Marathon Electric oers a full line of motors for the pool, spa and bath
markets. For quick installation, long life and easy serviceability, poolside
contractors prefer our pool and spa motors.
Marathon designs motors for a variety of pool and spa applications:
above-ground pool, in-ground pool, commercial pool, variable-speed,
heat pumps and all other standard applications.
Our variable speed products consume up to 64% fewer watts than standard PSC
induction motors. This not only saves the Earth's precious resources, but also
saves the consumer hundreds of dollars per year in energy costs.
Why Choose Us?
Our fast response to customer questions, unmatched engineering expertise
and the delivery speed that comes with maintaining a large inventory makes
Marathon Electric ideally suited to meeting our customers' needs. In addition
Marathon's focus on innovation keeps our customers on the leading edge of
technology.
100 East Randolph St.
Wausau, WI 54402
800-683-9144

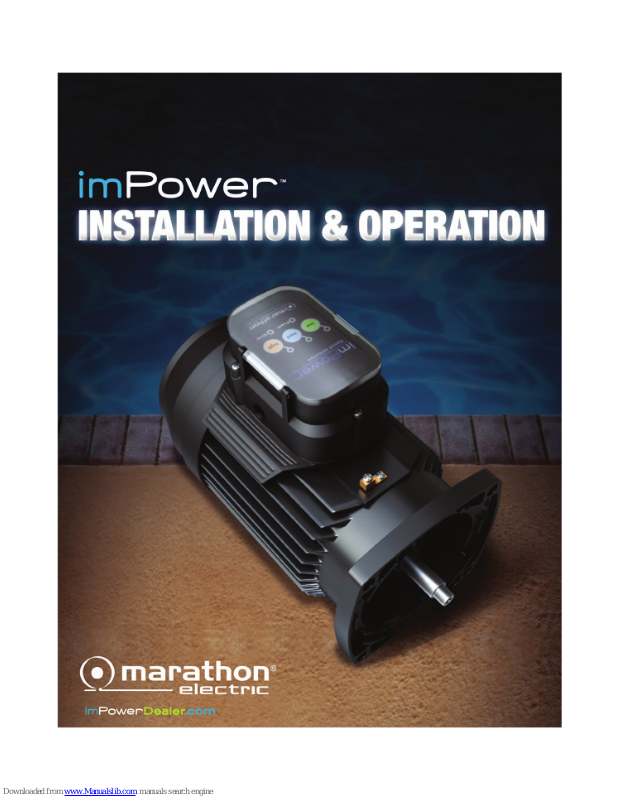

imPower™ Installation Guide
© Copyright 2010
Regal Beloit Corporation
The information in this document is subject to change without notice.
Rev 1.0 05/10
Marathon Electric is a Regal Beloit Company.
www.imPowerDealer.com
Table of Contents
Safety Considerations 4
Introduction 5
Removing the Existing Motor from Pump 6
Single Speed Connection with Timer 7
Two Speed Connections with Timer 9
Automation Controller Signal Line Connection 11
Changing Default Low Speed 14
imPower Motor Connection Diagramm 15
Please read the entire instruction manual before
starting the installation.
www.imPowerDealer.com
4 5
Safety Considerations
The following denitions are used as safety considerations on the imPower pool
lter pump motor. Please read and observe all of these safety concerns.
Please abide by all health and safety regulations governing pools by the state
and local departments governing pool health and safety.
SAFETY SYMBOLS
Safety Considerations
The following definitions are used as safety considerations on the
Evergreen IM motor and in this manual. Please read and observe all
of these safety concerns.
SAFETY
SYMBOLS
Installation and service of this motor should be attempted only by
trained service technicians familiar with the Evergreen instructions
and training manual.
This motor should be installed in accordance with accepted practices
and installation instructions, and in compliance with all national and
local codes.
Safety Considerations
The following definitions are used as safety considerations on the
Evergreen IM motor and in this manual. Please read and observe all
of these safety concerns.
SAFETY
SYMBOLS
Installation and service of this motor should be attempted only by
trained service technicians familiar with the Evergreen instructions
and training manual.
This motor should be installed in accordance with accepted practices
and installation instructions, and in compliance with all national and
local codes.
Ground the motor in accordance with local and national electrical codes.
Disconnect main power and wait 30 seconds prior to servicing motor. Topside
interface enclosure must be securely fastened for safe operation.
Motor not intended for disassembly. Attempting to do so may result in pinching
injury from strong rotor magnets.
Safety Considerations
The following definitions are used as safety considerations on the
Evergreen IM motor and in this manual. Please read and observe all
of these safety concerns.
SAFETY
SYMBOLS
Installation and service of this motor should be attempted only by
trained service technicians familiar with the Evergreen instructions
and training manual.
This motor should be installed in accordance with accepted practices
and installation instructions, and in compliance with all national and
local codes.
Keep ngers and objects away from openings and rotating parts.
www.imPowerDealer.com
Introduction
The imPower motor is a permanent magnet alternating current (PMAC)
electronically commutated motor (ECM), leveraging over 20 years of ECM
technical and manufacturing experience. The motor can save up to 85% of
electrical consumption due to this innovative motor design. This imPower motor
is designed to replace existing fulll-rated pool lter pump motors rated at 3/4 HP
1.65 SF or up-rated motor at 1.0HP 1.25 SF.
This motor also features three selectable speeds either through the use of the
patent pending auto speed switch feature, top panel push buttons, external
multi-speed timers, or through external automation controls.
RB003
Model Number 5SME29DFT001
Voltage 208-230V (±10%)
Flange Square
HP 1.0
Service Factor 1.25
High Speed 3450 RPM
Medium Speed 2600 RPM
Low Speed 1725 RPM
Weight 11 lbs
RB053
Model Number 5SME29DFT002
Voltage 208-230V (±10%)
Flange Round/C-Face
HP 1.0
Service Factor 1.0
High Speed 3450 RPM
Medium Speed 2600 RPM
Low Speed 1725 RPM
Weight 11 lbs
The installation manual enables a technician, certied by their local/state agency/
board, to install, service, repair, and maintain the imPower motor.
