PRODUCT INFORMATION PACKET
Model No: 132MTFC6587
Catalog No: R329A
7.50 HP General Purpose, 3 phase, 1200 RPM, 230/460 V, 132M Frame, TEFC
Cast Iron TEFC Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 7
Product Information Packet: Model No: 132MTFC6587, Catalog No:R329A 7.50 HP General Purpose, 3 phase, 1200 RPM, 230/460 V, 132M Frame,
TEFC
Nameplate Specifications
Output HP 7.50 Hp Output KW 5.6 kW
Frequency 60 Hz Voltage 230/460 V
Current 21.6/10.8 A Speed 1185 rpm
Service Factor 1.15 Phase 3
Efficiency 91 % Power Factor 72
Duty Continuous Insulation Class F
Design Code B KVA Code H
Frame 132M Enclosure Totally Enclosed Fan Cooled
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6308 Opp Drive End Bearing Size 6207
UL Recognized CSA Y
CE Y IP Code 55
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 6 Rotation Reversible
Resistance Main 0 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Cast Iron
Shaft Type IEC Overall Length 19.76 in
Shaft Diameter 1.500 in Shaft Extension 3.14 in
Assembly/Box Mounting F3
Connection Drawing 004172.03 Outline Drawing SS622237
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:03/11/2020
2 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 7
Uncontrolled Copy
3 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 7
3/18/2008 11:50:02 AM -
4 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 7
STACK:
/CB
-dictionary-
/Pscript_WinNT_Compat
-dictionary-
ERROR: syntaxerror
OFFENDING COMMAND: --nostringval--
5 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 7
²
²
MOUNT
SEVERE
DRIP
PREMIUM SEVERE DUTY
FORM: 3531 REV_4 2/27/06
ODE BRACKET
SOUND PRESSURE
SOUND
MOTOR
HAZARDOUS
1045 HOT ROLLED (C-204)
APROX.
O
N
E
S
T
* NONE PPR
PREPARED BY: EARL BABBITTS
DATE: FT-LB:
13-07-17
*
0 00
THERMOSTATS PROTECTORS
R1 (ohms/ph) R2 (ohms/ph) X1 (ohms/ph)
NONE NOT
BALL BALL
6308 6207
DE ODE
POLYREX EM
GREASE
DE BRACKET TYPE
STANDARD
BEARINGS
STANDARD
TYPE
33.2 LB-FT 65.0 LB-FT 196% 108 LB-FT 325% 40
60 dBA 69 dBA 0.00
@ 3 FT. MAX. LOAD WK²ROTOR WK²
F.L. PF
72.0 65.0 52.0 90.2
POWER
74.5
PH HZ INSL S.F. AMB ELEV.
3 60/50 F 1.15 40 3300
F.L. EFF
230/460#200/400 LINE OR INVERTER
91.0 91.0 89.5 GTD EFF
VOLTS
HP KW TYPE DESIGN
7.5 5.6 TFC N
SYNC RPM FL RPM
1200 1185 132M TEFC
CONN. DIAGRAM: 004172.03
SPEED:
WINDING: T10706011
CUSTOMER: CUSTOMER P.O. #:
ORDER #: REFERENCE MODEL #: 132MTFC6587
WDG RTD's BRG RTD's
NONE NONE NONE FALSE
X2 (ohms/ph) FLOAT
0
THERMISTORS CONTROL
UL:
Y-(LEESON UL REC)
VOLTAGE: HZ:
NONE
NONE
BRAKE:
NONE NONE
NONE
NA
INV. HP SPEED RANGE:
NONE
ENCODER:
INVERTER TORQUE:
NONE
1.5 X BASE SPEED
CONSTANT 20:1
Xm (ohms/ph)
0
VIBRATION (in/sec)
0.080 ODE
HEATERS
NA
STANDARD IEC
NONE NONE
CAST IRON
SPACE
RIGID
SHAFT TYPE
HORIZONTAL
SPECIAL DE
SPECIAL ODE
NONE
SHAFT MATERIAL
NO NONE
FRAME MATERIAL
BLUE (ENAMEL)
`
TYPE
LB-FT
*** SUPPLEMENTAL INFORMATION ***
ORIENTATION
0
DUTY
LOCATION
COVER SCREENS
PAINT
LB-FT
0 SEC. 240 LB.
0
460 V
3/4 LD EFF
21/10.5&19/9.5
AMPS
NONE 3
TYPICAL MOTOR PERFORMANCE DATA
CERTIFICATION DATA SHEET
L.R. TORQUEF.L. TORQUE LR AMPS @
START TYPE
1/2 LD EFF
1/2 LD PF3/4 LD PF
CONT
B.D. TORQUE
STARTS/HOURSAFE STALL TIME
SQ CAGE INV RATED
F.L. RISE (
°
C)
MOTOR WGT
DUTY
ELECT. TYPE
FRAME ENCLOSURE
CUSTOMER PART #: OUTLINE: SS622237
MOUNTING: F3
CAT #:
P.O. BOX 8003
WAUSAU, WI 54401-8003
PH. 715-675-3311
#VALUE!
KVA CODE
H
DATA VOLTS: 460
Uncontrolled Copy
6 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 7
Speed (RPM)
230/460#200/400
Current (Amps)
P
E
0.0
0 200 400 600 800 1000 1200 1400
20.0
40.0
TORQU
60.0
80.0
100.0
120.0
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
74.5 70.0 41.0 10.8 6.0 7.5
65.0 58.0 108 33.2 0.00 1200
0 600 1055 1185 1200
P.F. (%)
Submitted by:
Customer:
Attention:
Date:
1200 1198 1192 1188 1185 1,182 1180 0
0.00 8.2 16.5 25.0 33.2 38.5 41.8 65.0
5.0 32.0 52.0 65.0 72.0 74.0 75.5 42.0
LR Pull-Up BD Rated Idle
FAREEDA DUDEKULA
6.0 6.5 7.5 9.0 10.8 11.9 13.0 74.5
6/29/2017 132MTFC6587
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
84.0 89.5 91.0 91.0 91.0 90.2
Data Sheet
Torque Amps

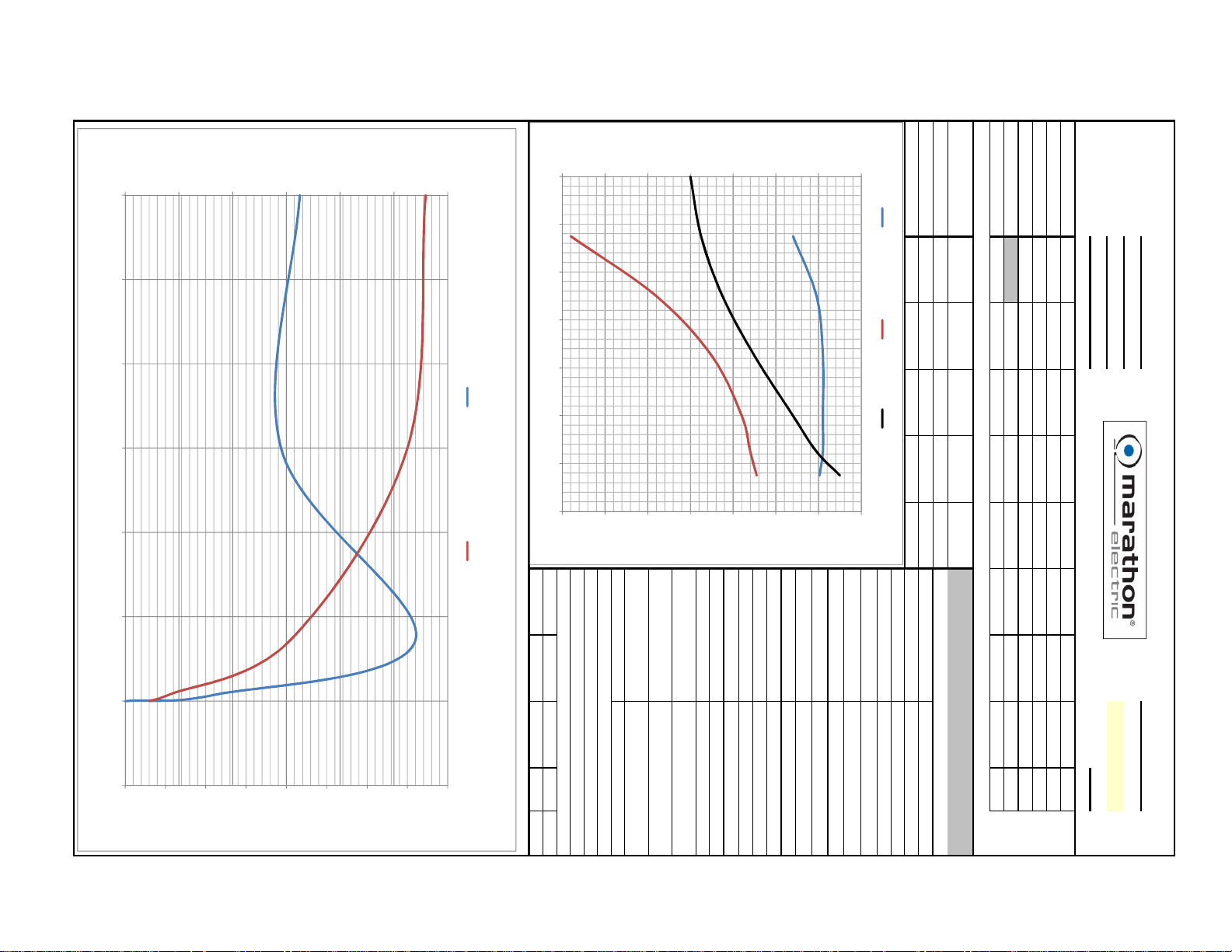

Speed -Torque Curve
Motor Load Data
RPM
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
A
M
P
S
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg SS622237
Conn. Diag 004172.03
0
0
Additional Specifications:
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
Information Block
T10706011 NONE
CONSTANT 20:1
60 dBA
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
A
M
P
S
CONT
1,000
0.00
feet
Lb-Ft²
1.15
40
40
°
°
C
C
60
H
B
Hz
TEFC
TFC
132
V
Submittal
Data @
460
