PRODUCT INFORMATION PACKET
Model No: 184TTFB6029
Catalog No: GT1313
5,1800,TEFC,184TC,3/60/230/460 GT1313
Totally Enclosed Fan Cooled (TEFC)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Product Information Packet: Model No: 184TTFB6029, Catalog No:GT1313 5,1800,TEFC,184TC,3/60/230/460
GT1313
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 89.5 % Duty Continous
Insulation Class
KVA Code L Frame 184TC
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code
5 Hp
12.4/6.2 A
1.15
F
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
3.7 kW
1740 rpm
3
B
6206
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Extension 2.62 in Assembly/Box Mounting F1/F2 Capable
Outline Drawing
Round
16.73 in
SS620307
Motor Orientation
Shaft Diameter
Connection Diagram
Horizontal
1.125 in

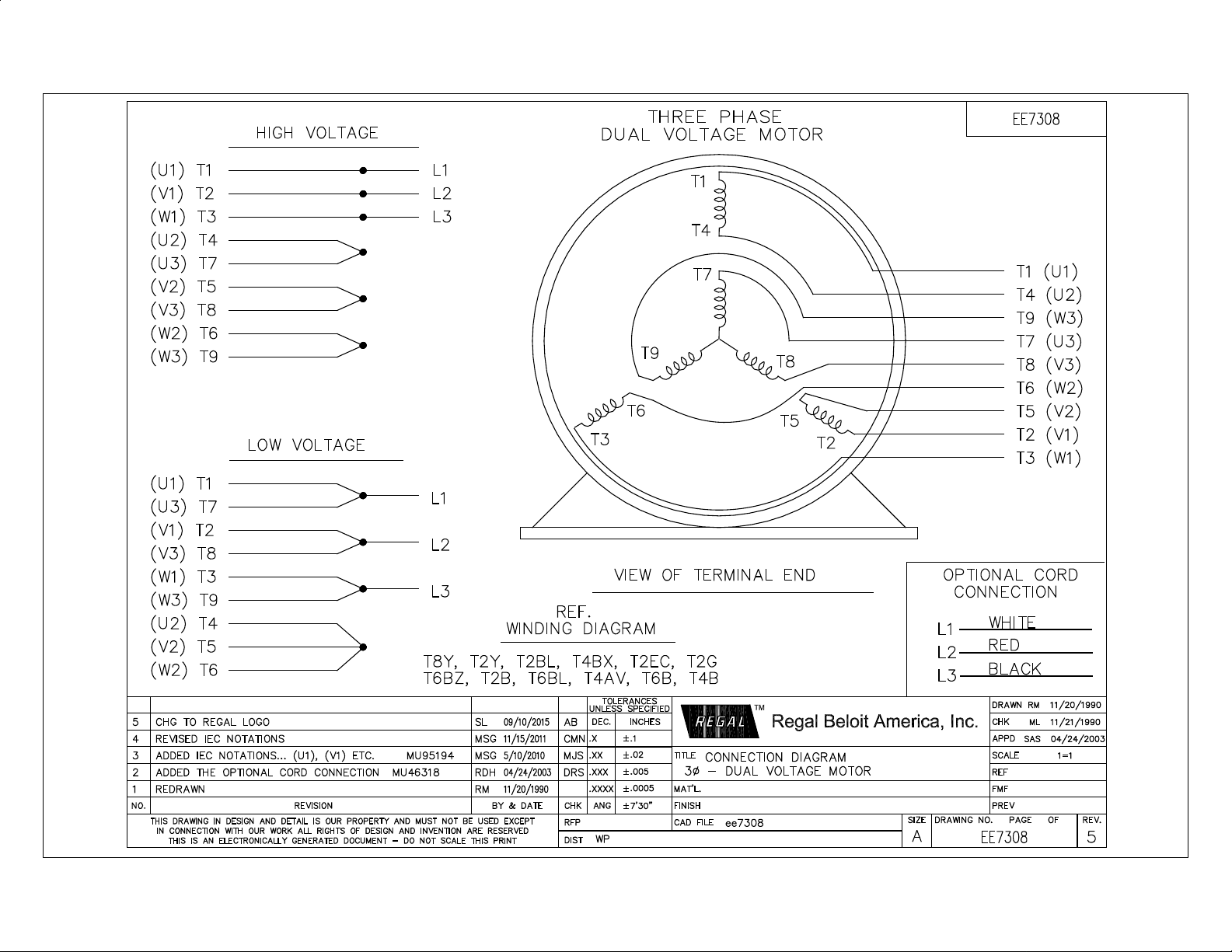

EE7308
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
2/4/2011 9:21:07 AM
3 of 6
Uncontrolled Copy
4 of 6
CERTIFICATION DATA SHEET
Model#: 184TTFB6029 BB WINDING#: CHT18440007 NONE 1
CONN. DIAGRAM: EE7308 ASSEMBLY: F1/F2 CAPABLE
OUTLINE: SS620307
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
5&3 3.70&2.24 1800 1740&1468 184TC TEFC L B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
12.4/6.2&9.6/4.8ACROSS THE
LINE
CONTINUOUSF7 1.15/1.0 40 3300
FULL LOAD EFF:
89.5&89.5
3/4 LOAD EFF: 89.5 1/2 LOAD EFF: 88.5 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 85&80 3/4 LOAD PF: 76 1/2 LOAD PF: 64.5 88.5 SQ CAGE IND RUN 5.6 / 2.8
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
15.1 LB-FT 112 / 56 38 LB-FT 252 57.4 LB-FT 380 55
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
62 dBA 72 dBA 0.5 LB-FT^2 30 LB-FT^2 20 SEC. 2 110 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD ROUND HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1045 HOT
ROLLED (C-204)
ROLLED STEEL
6206 6205
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 06:54:04 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Speed (RPM)
230/460#190/380
Current (Amps)
P
E
10.0
20.0
0.0
0 200 400 6 00 800 1000 1200 1400 1600 1800 2000
30.0
TORQU
40.0
50.0
60.0
70.0
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
56.0 50.5 36.0 6.2 2.80 5.0
38.0 34.2 57.4 15.1 0.00 1800
0 900 1450 1740 1800
P.F. (%)
Submitted by:
Customer:
Attention:
Date:
1800 1790 1780 1755 1740 1,732 1725 0
0.00 3.7 7.4 11.2 15.1 17.4 19.0 38.0
5.5 42.5 64.5 76.0 85.0 85.5 85.5 53.0
LR Pull-Up BD Rated Idle
FAREEDA DUDEKULA
2.80 3.2 4.0 5.0 6.2 6.9 7.7 56.0
6/20/2017 184TTFB6029
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
86.5 88.5 89.5 89.5 89.5 88.5
Data Sheet
Torque Amps
Speed -Torque Curve
Motor Load Data
RPM
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
A
M
P
S
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg SS620307
Conn. Diag EE7308
0
0
Additional Specifications:
1.3040 1.4740 3.8270 4.0370 106.8800
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
Information Block
CHT18440007 NONE
CONT
1,000
0.50
62 dBA
NONE
feet
Lb-Ft²
0.0
10.0
20.0
30.0
P
S
40.0
A
M
50.0
60.0
1.15
55
40
°
°
C
C
60
A
K
Hz
TEFC
TFC
184
V
Submittal
Data @
460
v
Uncontrolled Copy
6 of 6
