Marathon Electric GT0531 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: 286TTDCA6033

Catalog No: GT0531

30 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 286JM Frame, ODP

JM Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6

Product Information Packet: Model No: 286TTDCA6033, Catalog No:GT0531 30 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 575 V, 286JM Frame, ODP

Nameplate Specifications

Output HP 30 Hp Output KW 22.4 kW Frequency 60 Hz Voltage 575 V Current 29.5 A Speed 1775 rpm Service Factor 1.15 Phase 3 Efficiency 94.1 % Power Factor 81 Duty Continuous Insulation Class F Design Code B KVA Code F Frame 286JM Enclosure Drip Proof Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6311 Opp Drive End Bearing Size 6210 UL Recognized CSA Y CE Y IP Code 12

Technical Specifications

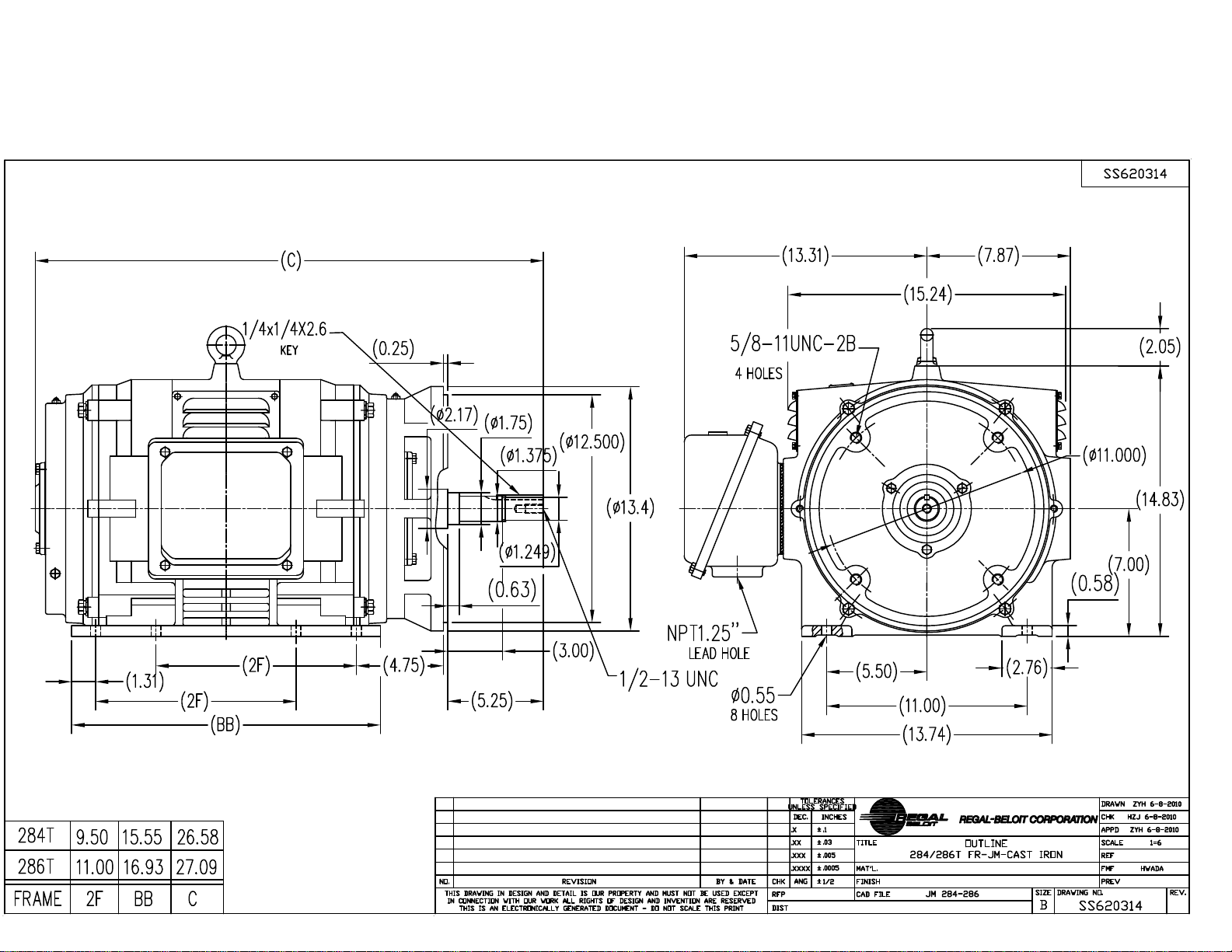

Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter Poles 4 Rotation Reversible Resistance Main .255 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Cast Iron Shaft Type JM Overall Length 27.09 in Shaft Diameter 1.250 in Shaft Extension 5.25 in Assembly/Box Mounting F1/F2 CAPABLE Outline Drawing SS620314-286T Connection Drawing A-EE7300

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:03/11/2020

2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6

3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6

THREE PHASE - SINGLE VOLTAGE

THREE PHASE - SINGLE VOLTAGE MOTOR - CONDUIT BOX @ 'A'

MOTOR - CONDUIT BOX @ 'A'

TO REVERSE ROTATION:

TO REVERSE ROTATION: INTERCHANGE ANY TWO

INTERCHANGE ANY TWO LINE LEAD CONNECTIONS.

LINE LEAD CONNECTIONS.

IF MOTOR HAS

6 LEADS

C

Uncontrolled Copy

T3

T1

B

T2

TERMI NAL BLOCK WHEN SPECIFIED

L1

L2

L3

A

T1

T2

T3

T1 (U1)

T2 (V1)

T3 (W1)

T1(U1)

T1(U1) T1(U1)

T1(U1)

T2(V1)

T2(V1) T2(V1)

T2(V1)

T3(W1)

T3(W1) T3(W1)

T3(W1)

A-9806 DECAL

REVISION BY DATE

DRAWING REVISION

AB

ECO

ECO-0125361

ECO DESCRIPTION

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

UPDATED TO CURRENT STANDARDS

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

REVISION BY DATE

APPROVED BY DATE

JJB

TB

L1

L2

L3

06-27-2017

06-27-2017 06-27-2017

06-27-2017

D

VIEW OF TERMINAL END

DRAWN BY

DATE

APPROVED BY

DATE

REFERENCE

THIRD ANGLE

THIRD ANGLE PROJECTION

PROJECTION

DA

03-26-1993

TB

03-26-1993

TM

Regal Beloit America , Inc.

DESCRIPTION

CONNECTION DIA GRAM

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

MATERIAL

SIZE DRAWING NUMBER

A

4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6

L1

L2

L3

EE7300

OPTIONAL CORD

CONNECTION

WHITE

RED

BLACK

PROCESS/FINISH

SHEET

1 OF 1

CERTIFICATION DATA SHEET

Model#: 286TTDCA6033 AA WINDING#: CHT28640004 NONE 4 CONN. DIAGRAM: A-EE7300 ASSEMBLY: F1/F2 CAPABLE OUTLINE: B-SS620314

TYPICAL MOTOR PERFORMANCE DATA

HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN

30 22.4 1800 1775 286JM DP F B

PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION

3 60 575 29.5 LINE OR

INVERTER

CONTINUOUSF7 1.15 40 3300

FULL LOAD EFF: 94.1 3/4 LOAD EFF: 94.1 1/2 LOAD EFF: 93.6 GTD. EFF ELEC. TYPE NO LOAD AMPS

FULL LOAD PF: 81 3/4 LOAD PF: 77 1/2 LOAD PF: 67 93.6 SQ CAGE INV RATED 12

F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C

88.5 LB-FT 168 182 LB-FT 206 230 LB-FT 260 40

SOUND PRESSURE

@ 3 FT.

SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS

/HOUR

APPROX. MOTOR

WGT

75 dBA 85 dBA 4.8 LB-FT^2 175 LB-FT^2 20 SEC. 2 425 LBS.

*** SUPPLEMENTAL INFORMATION ***

DE BRACKET

TYPE

ODE BRACKET

TYPE

MOUNT

TYPE

ORIENTATION SEVERE

DUTY

HAZARDOUS

LOCATION

DRIP

COVER

SCREENS PAINT

C-FACE STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE

(ENAMEL)

BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT

MATERIAL

FRAME

MATERIAL

DE OPE

BALL BALL POLYREX EM JM NONE NONE 1045 HOT

ROLLED (C-204)

CAST IRON

6311 6210

THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS

THERMOSTATS PROTECTORS WDG RTDs BRG RTDs

NONE NOT NONE NONE NONE FALSE NONE VOLTS

If Inverter equals NONE, contact factory for further

information

* N O T E S *

INVERTER TORQUE: VARIABLE 10:1 INV. HP SPEED RANGE: NONE

ENCODER: NONE NONE NONE NONE NONE PPR

BRAKE: NONE NONE NONE P/N NONE NONE NONE NONE FT-LB NONE V NONE Hz

DATE: 06/27/2017 03:26:25 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.

Uncontrolled Copy

5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6

Speed (RPM)

Current (Amps)

P

E

0.0

0 200 400 600 800 1000 1200 1400 1600 1800 2000

50.0

100.0

TORQU

150.0

200.0

250.0

30.0

40.0

50.0

0% 20% 40% 60% 80% 100% 120% 140%

F

60.0

70.0

EFF

80.0

100.0

90.0

Torque (ft-lb)

Efficiency (%) P.F. (%) Current (Amps)

168 152 100 29.2 12.0 30.0

182 155 230 88.5 0.00 1800

0 900 1675 1775 1800

P.F. (%)

Submitted by:

Customer:

Attention:

Date:

1800 1795 1790 1785 1775 1,772 1770 0

0.00 22.0 44.0 66.5 88.5 102 111 182

4.5 45.0 67.0 77.0 81.0 82.0 83.0 38.0

LR Pull-Up BD Rated Idle

FAREEDA DUDEKULA

12.0 13.6 18.0 23.2 29.2 34.0 36.4 168

6/29/2017 286TTDCA6033

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps)

Torque (ft-lb)

RPM

Efficiency (%)

Motor Speed Data

LOAD

90.2 93.6 94.1 94.1 94.1 93.6

Data Sheet

Torque Amps

Speed -Torque Curve

Motor Load Data

RPM

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

A

M

P

S

Rotor/Shaft wk²

Duty

Ambient

Elevation

Ref Wdg

Sound Pressure @ 1M

VFD Rating

Outline Dwg B-SS620314

Conn. Diag A-EE7300

0

Additional Specifications:

0.2510 0.1620 0.9300 1.6390 29.6790

R1 R2 X1 X2 Xm

EQUIV CKT (OHMS / PHASE)

Design

LR Code letter

Service Factor

Temp Rise @ FL

Construction

Voltage

Frequency

HP

Sync. RPM

Frame

Enclosure

Information Block

CHT28640004 NONE

VARIABLE 10:1

75 dBA

0.0

20.0

40.0

60.0

80.0

100.0

120.0

140.0

160.0

180.0

A

M

P

S

CONT

1,000

4.8

feet

Lb-Ft²

1.15

40

°

C

B

F

°

C

TDC

575

286

60

Hz

DP

V

Submittal

Data @

575

v

Uncontrolled Copy
