G584A

Marathon Electric G584A Product Information Packet

Download
PRODUCT INFORMATION PACKET
Model No: 056T17F15641
Catalog No: G584A
1 1/2,1800,TEFC,56HC,3/60/230/460
Totally Enclosed Fan Cooled (TEFC)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Nameplate Specifications
Output HP Frequency 60 Hz Voltage 230/460 V Current Service Factor Efficiency 86.5 % Duty Continous Insulation Class KVA Code P Frame 56HC Enclosure Totally Enclosed Fan Cooled Overload Protector No Ambient Temperature Opp Drive End Bearing Size 6203 UL Recognized CSA IP Code
1.50 Hp
4.6/2.3 A
1.15
F
40 °C
Y 43
Output KW
Speed Phase
Design Code
Drive End Bearing Size
CE
1.1 kW
1725 rpm 3
B
6205
Y
Technical Specifications
Electrical Type Poles 4 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Rolled Steel Shaft Type NEMA 56 Overall Length Shaft Diameter 0.625 in Shaft Extension 1.88 in Assembly/Box Mounting Outline Drawing
Bolt-on Base
14.15 in
F1 Only OL56100003-002
Motor Orientation
Frame Length
Connection Diagram
Horizontal Or Up Or Down
9.15 in
CDTD103
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 07/02/2018
2 of 5
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING IT IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS OTHERWISE SPECIFIED:
DEC.
INCH
mm
ANGLE
.X
0.1 [ 2.5] 0.5
.XX
0.01 [ 0.25]
XXX
0.005 [ 0.127]
.XXXX
0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] CORNER FILLETS: .02 [.51] MACHINED SURFACES:
125
3.2
INCH mm mm SHOWN IN [BRACKETS]
1
2
4
3
A
B
2
4
3
1
A
B
ECO DESCRIPTION
DATE
APPROVED BY
DATE
REVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBER
SIZE
DESCRIPTION
THIRD ANGLE PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
CDTD103
G. RODRIGUEZ
07-06-2016
R. VALENZUELA
07-06-2016
A
G. RODRIGUEZ
07-06-2016
R. VALENZUELA
07-06-2016

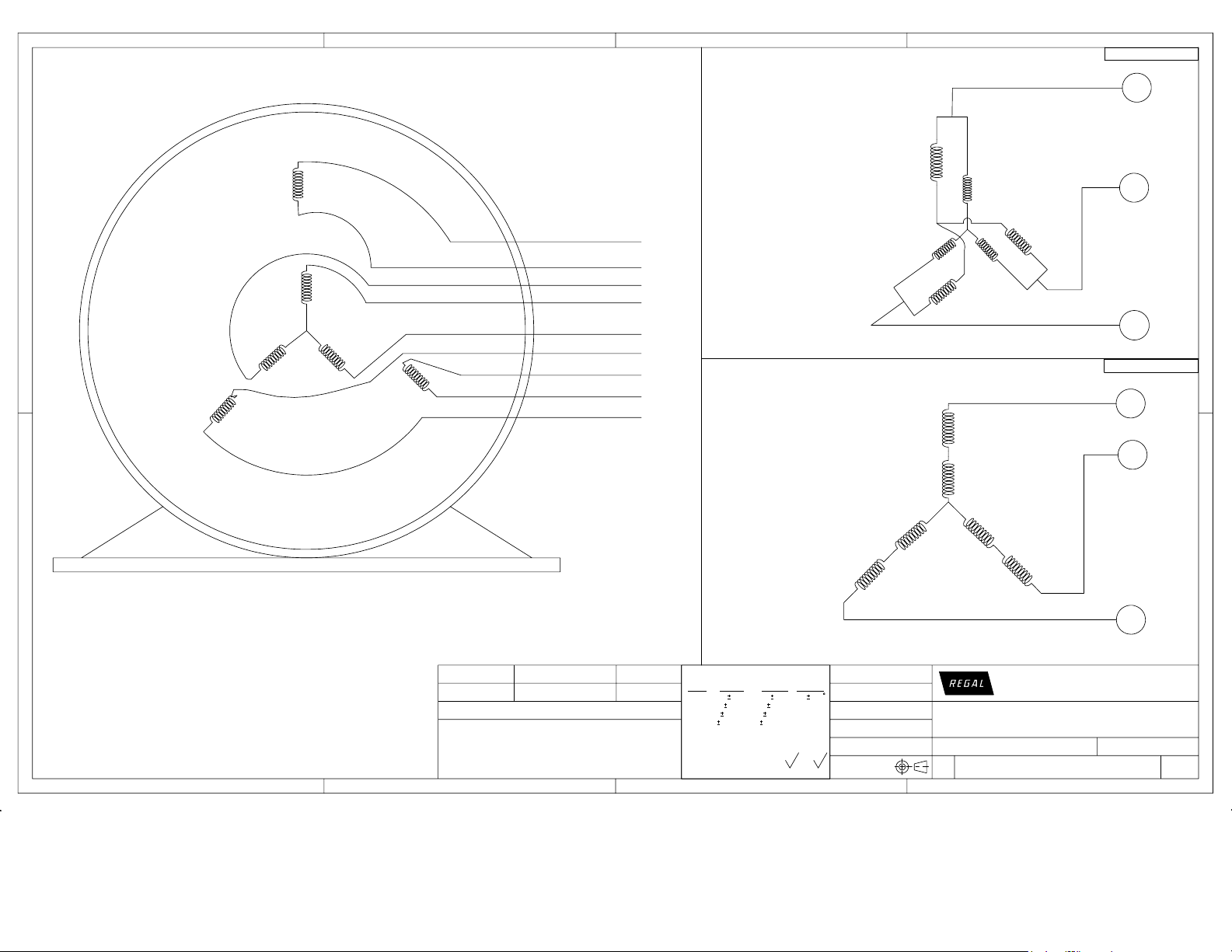

CONN DIAGRAM-EXTERNAL
SKT52A105383CA
VIEW OF TERMINAL END
CCW LOW VOLTAGE
CCW HIGH VOLTAGE
NOTE:
TO REVERSE ROTATION, INTERCHANGE ANY TWO LINE
1. CONNECTIONS TO L1, L2, OR L3.
2. CONNECTION DIAGRAM-NAMEPLATE DD10038
L3
T3
L1
T1
L2
T4
T7
T5
T2
T8
T6
T9
T3
L3
T8 T6
T5
T1
T4 T9 T7
T2
T3
T6
T9
T2
T1
T4
T7
T8
T5
L2
L1
001
002
Uncontrolled Copy
3 of 5
CERTIFICATION DATA SHEET
Model#: 56T17F15641 A WINDING#: ZT4256 FR 3 CONN. DIAGRAM: CDTD103 ASSEMBLY: F1 ONLY OUTLINE: OL56100003-002
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1 1/2&1 1.12&.75 1800 1725&1425 56HC TEFC P B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
4.6/2.3&4.2/2.1ACROSS THE LINE
CONTINUOUSF3 1.15/1.15 40 3300
FULL LOAD EFF:
86.5&85
3/4 LOAD EFF: 85.5 1/2 LOAD EFF: 82.5 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 71&64 3/4 LOAD PF: 62.5 1/2 LOAD PF: 49 84 SQ CAGE IND RUN 3 / 1.5
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
4.5 LB-FT 48 / 24 21.2 LB-FT 471 26 LB-FT 578 35
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
62 dBA 72 dBA 0.14 LB-FT^2 10 LB-FT^2 20 SEC. 2 50 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE BRAKE BOLT-ON HORIZONTAL
OR UP OR
DOWN
FALSE NONE PROVISIONS
ONLY
NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM STANDARD 56 NONE NONE AISI 1215
(MS1000)
ROLLED STEEL
6205 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
* N O T E S *
INVERTER TORQUE: NONE INV. HP SPEED RANGE: NONE
ENCODER: NONE NONE NONE NONE NONE PPR
BRAKE: PROVISIONS FOR KIT NONE NONE P/N NONE NONE NONE NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 07:09:00 AM FORM 3531 REV.3 02/07/99 ** Subject to change without notice.
Uncontrolled Copy
4 of 5
Speed (RPM)
Current (Amps)
P
E
-200 0 200 400 600 800 1000 1200 1400 1600 1800 2000
TORQU
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140 %
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
P.F. (%)
Load 0% 25% 50% 75% 100% 115% 125% LR
Submitted by:
Customer:
Attention:
Date:
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
0.0
5.0
10.0
15.0
20.0
25.0
30.0
Efficiency (%) P.F. (%) Current (Amps)
1800 1790 1780 1765 1755 1,750 1745 0
1.50 1.55 1.75 2.00 2.30 2.50 2.65 24.0
24.0 23.3 16.0 2.30 1.50 1.5
21.2 20.2 26.0 4.5 0.00 1800
LR Pull-Up BD Rated Idle
0 130 1190 1755 1800
0.00 1.10 2.20 3.5 4.5 5.2 5.7 21.2
7.5 30.5 49.0 62.5 71.0 75.0 77.0 69.5
VINAYAK YERATE
8/23/2017 56T17F15641
Motor Speed Data
LOAD
74.0 82.5 85.5 86.5 86.5 85.5
Data Sheet
Torque Amps
Uncontrolled Copy
Speed -Torque Curve
RPM
0.0
4.8380 3.7800 7.1250 7.1630 189.6050
R1 R2 X1 X2 Xm
0.5
0
0
Additional Specifications:
EQUIV CKT (OHMS / PHASE)
1.0
VFD Rating
Outline Dwg OL56100003-002
Conn. Diag CDTD103
NONE
1.5
Ref Wdg
Sound Pressure @ 1M
ZT4256 FR
62 dBA
2.0
A
M
P
S
Rotor/Shaft wk²
Duty
Ambient
Elevation
CONT
1,000 feet
0.14 40
2.5
LR Code letter
Service Factor
Temp Rise @ FL
1.15
35
P
3.0
HP
Sync. RPM
Frame
Enclosure
Voltage
Frequency
Design
A
Construction
230/460#190/380
TEFC
TFR
60
Information Block
145
Motor Load Data
Submittal
Data @
Hz
Lb-Ft²
0.0
5.0
10.0
15.0
S
20.0
25.0
30.0
AMP
°
°
C
C
V
460
v
5 of 5
