PRODUCT INFORMATION PACKET

Model No: 5KC42GN0051Y

Catalog No: F13E1

.33 HP General Purpose Farm Duty Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, TEFC

Single Phase Farm Duty Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4

Product Information Packet: Model No: 5KC42GN0051Y, Catalog No:F13E1 .33 HP General Purpose Farm Duty Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, TEFC

Nameplate Specifications

Output HP 0.33 Hp Output KW 0.25 kW Frequency 60 Hz Voltage 115/230 V Current 7.8 A Speed 1725 rpm Service Factor 1.15 Phase 1 Efficiency 57.2 % Power Factor 0 Duty Continuous Insulation Class B Design Code O KVA Code R Frame 56 Enclosure Totally Enclosed Fan Cooled Thermal Protection MAN Ambient Temperature 40 °C Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE N

Technical Specifications

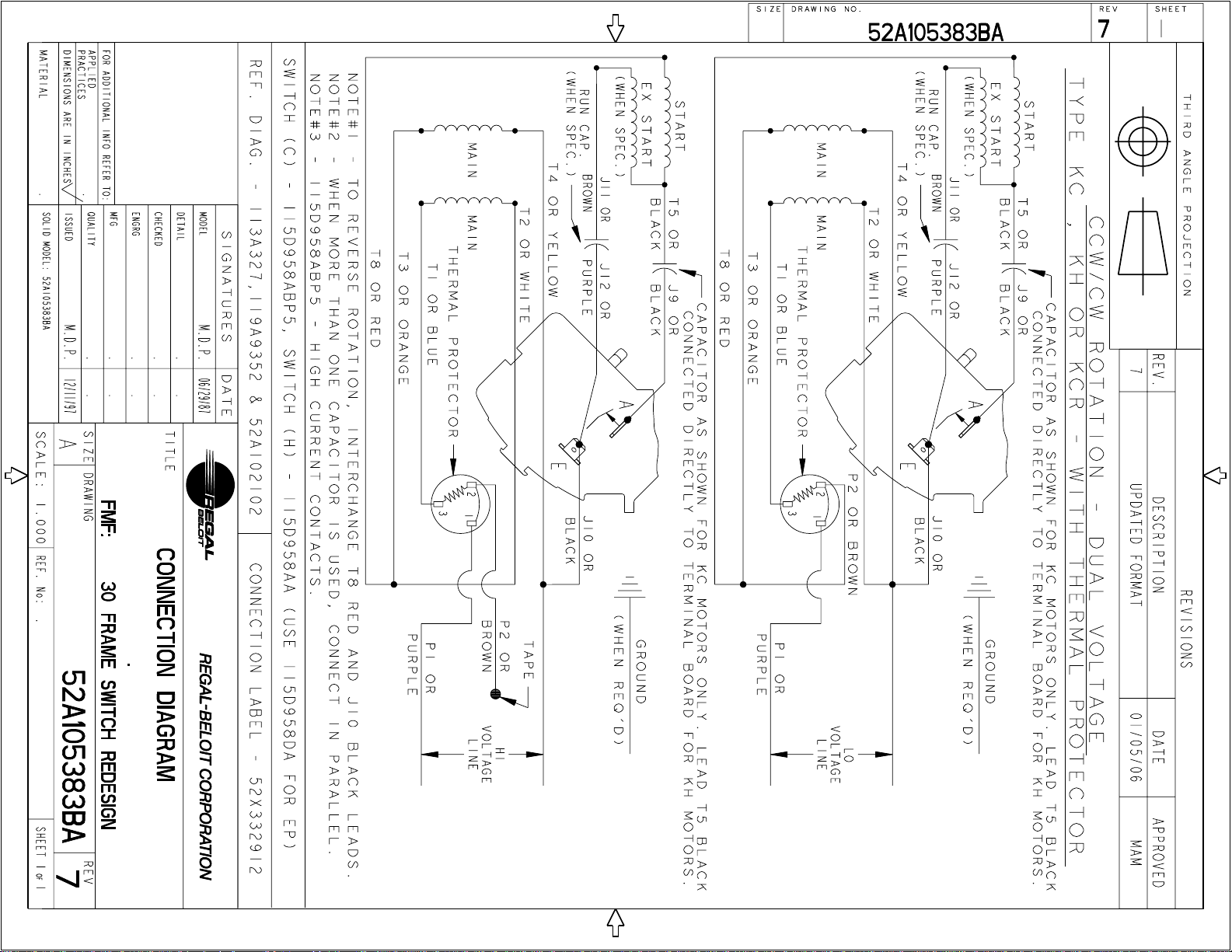

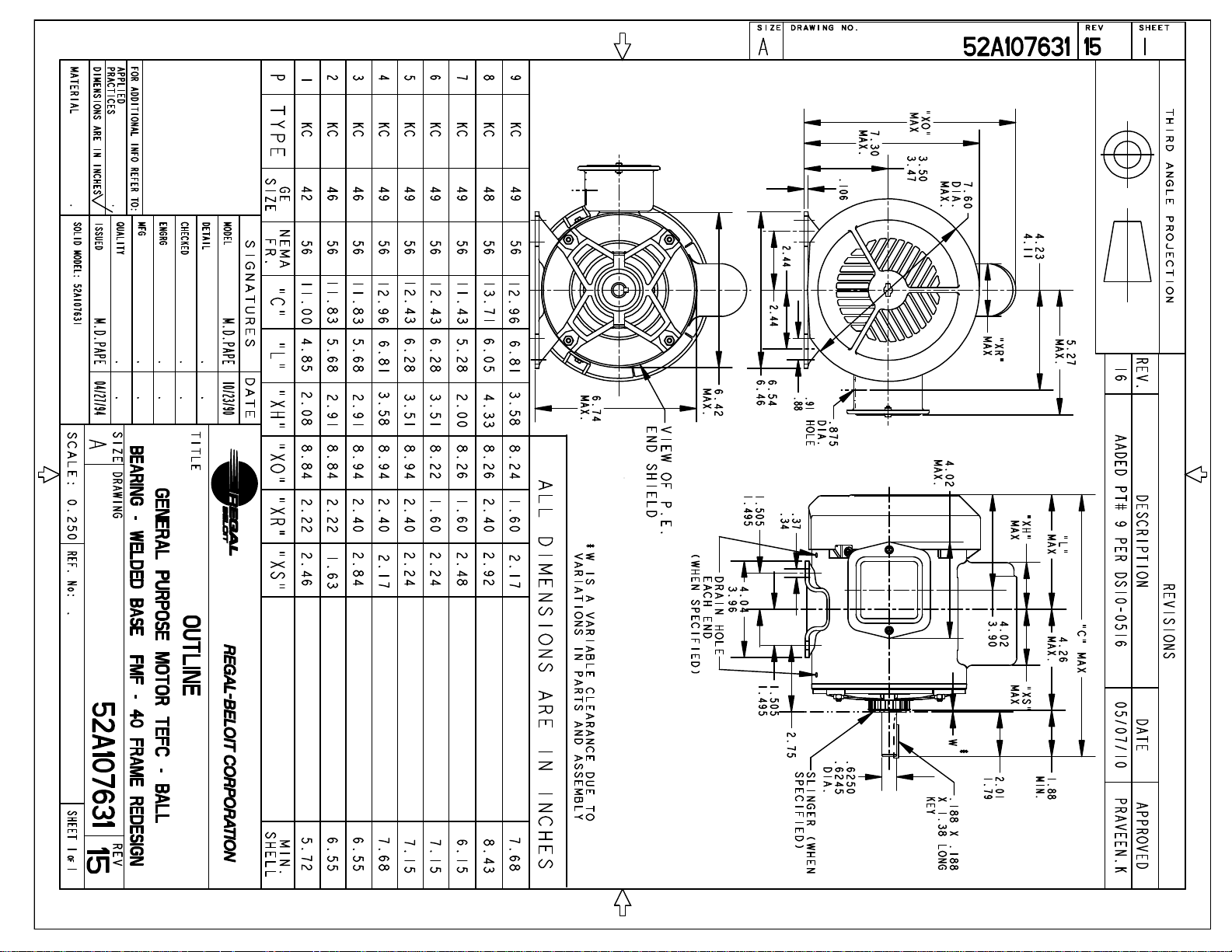

Electrical Type Capacitor start(CSIR) Starting Method SM Poles 4 Rotation Counterclockwise/Clockwise Mounting Rigid Base Motor Orientation Any Drive End Bearing Ball Opp Drive End Bearing Ball Overall Length 11.00 in Frame Length 5.72 in Shaft Extension .625 X 1.88 - .188 X .188 KEY in Outline Drawing 52A107631P1 Connection Drawing 52A105383BA

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:02/11/2020
