Marathon Electric CG230 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: 5KC46LN0158

Catalog No: CG230

3/4 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, ODP

Single Phase ODP Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4

Product Information Packet: Model No: 5KC46LN0158, Catalog No:CG230 3/4 HP General Purpose Motor, 1 phase, 1800 RPM, 115/208-230 V, 56
Frame, ODP

Nameplate Specifications

Output HP 0.75 Hp Output KW 0.56 kW
Frequency 60 Hz Voltage 115/208-230 V
Current 13.2,6.2-6.6 A Speed 1725 rpm
Service Factor 1.25 Phase 1
Efficiency 66 % Power Factor 0
Duty Continuous Insulation Class B
KVA Code M Frame 56
Enclosure Drip Proof Thermal Protection N/R
Ambient Temperature 40 °C Drive End Bearing Size 6203
Opp Drive End Bearing Size 6203 UL Recognized
CSA Yes CE N

Technical Specifications

Electrical Type Capacitor Start Induction Run Starting Method SM
Poles 4 Rotation Counterclockwise/Clockwise
Mounting Resilient Base Motor Orientation ANY
Drive End Bearing BALL Opp Drive End Bearing Ball
Frame Material Rolled Steel Overall Length 10.78 in
Frame Length 6.55 in Shaft Diameter 0.630 in
Shaft Extension 1.88 in

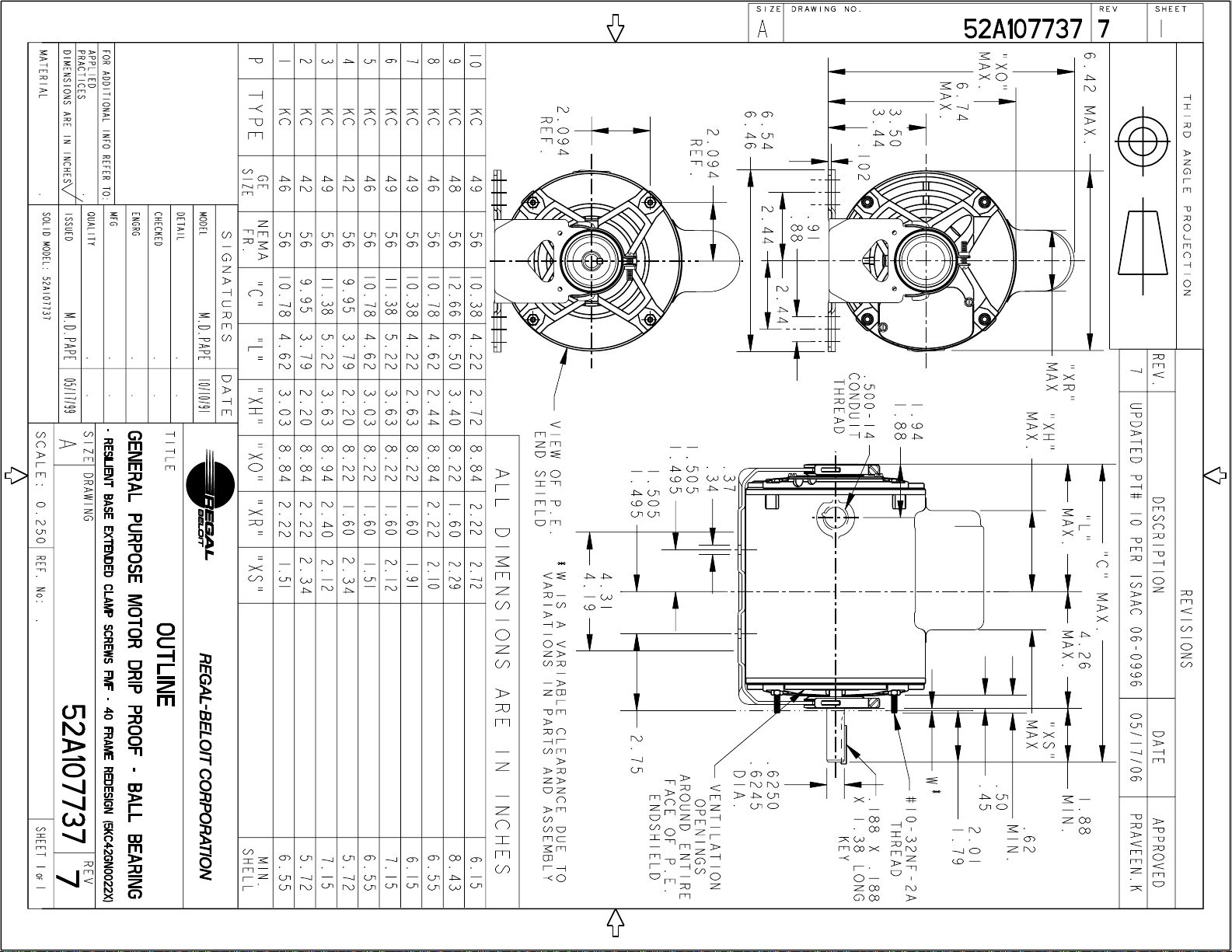

Outline Drawing 52A107737P1 Connection Drawing 52A105381AA
