PRODUCT INFORMATION PACKET

Model No: 5KCR49SN0493S

Catalog No: C1315

1 HP General Purpose Farm Duty Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, TENV

Single Phase Farm Duty Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4

Product Information Packet: Model No: 5KCR49SN0493S, Catalog No:C1315 1 HP General Purpose Farm Duty Motor, 1 phase, 1800 RPM, 115/208­230 V, 56 Frame, TENV

Nameplate Specifications

Output HP 1 Hp Output KW 0.75 kW
Frequency 60 Hz Voltage 115/208-230 V
Current 10.6,5.5-5.3 A Speed 1725/1425 rpm
Service Factor 1.3 Phase 1
Efficiency 75.7 % Power Factor 0
Duty Continuous Insulation Class B
KVA Code K Frame 56
Enclosure Totally Enclosed Non Ventilated Thermal Protection AUTO
Ambient Temperature 40 °C Drive End Bearing Size 6203
Opp Drive End Bearing Size 6203 UL Recognized
CSA Yes CE N

Technical Specifications

Electrical Type Capacitor Start Capacitor Run Starting Method SM
Poles 4 Rotation Counterclockwise/Clockwise
Mounting Resilient Base Motor Orientation ANY
Drive End Bearing BALL Opp Drive End Bearing Ball
Frame Material Rolled Steel Overall Length 11.38 in
Frame Length 7.15 in Shaft Diameter 0.630 in
Shaft Extension 1.88 in

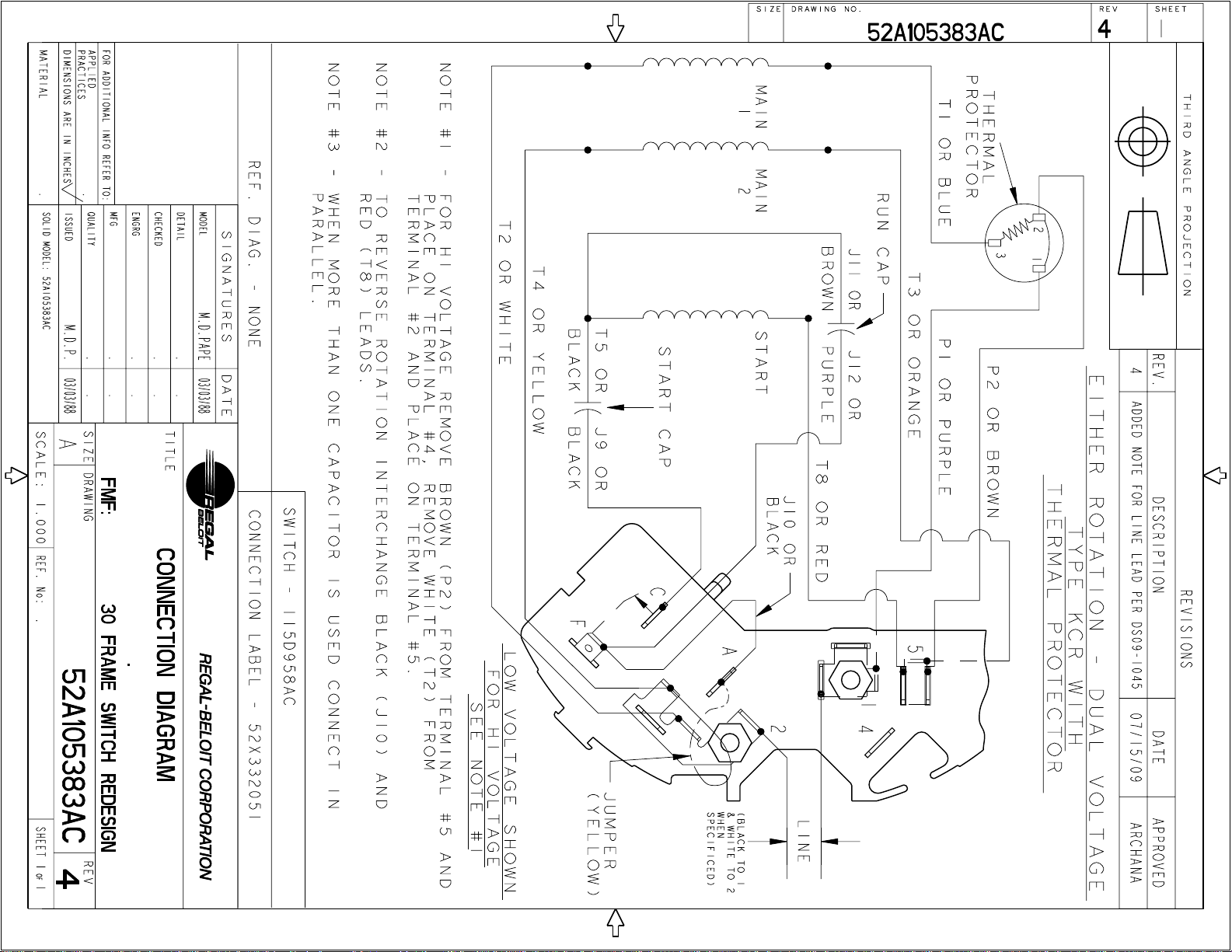

Connection Drawing 52A105383AC Outline Drawing 52A107710P4
