PRODUCT INFORMATION PACKET

Model No: 405TTFS8114

Catalog No: L427

60 HP General Purpose Motor, 3 phase, 900 RPM, 460 V, 405T Frame, TEFC

Three Phase TEFC Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4

Product Information Packet: Model No: 405TTFS8114, Catalog No:L427 60 HP General Purpose Motor, 3 phase, 900 RPM, 460 V, 405T Frame, TEFC

Nameplate Specifications

Output HP 60 Hp Output KW 45.0 kW Frequency 60 Hz Voltage 460 V Current 81.0 A Speed 885 rpm Service Factor 1.15 Phase 3 Efficiency 91.7 % Power Factor 76.5 Duty Continuous Insulation Class F Design Code B KVA Code G Frame 405T Enclosure Totally Enclosed Fan Cooled Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6316 Opp Drive End Bearing Size 6313 UL Recognized CSA Y CE Y IP Code 43

Technical Specifications

Electrical Type Squirrel Cage Induction Run Starting Method Across The Line Poles 8 Rotation Reversible Resistance Main .129 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Cast Iron Shaft Type T Overall Length 37.14 in Frame Length 16.75 in Shaft Diameter 2.875 in Shaft Extension 7.5 in Assembly/Box Mounting F1/F2 Capable

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019

2 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 4

Regal Beloit America, Inc.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED, BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED: DEC.

INCH mm ANGLE .X 0.1 [ 2.5] 7' 30" .XX 0.03 [ 0.76] XXX 0.005 [ 0.127] .XXXX 0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] CORNER FILLETS: .02 [.51] MACHINED SURFACES:

200 5.1

INCH mm mm SHOWN IN [BRACKETS]

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

1 OF 1

SS508859

TLB

05-19-1988

05-22-1988

F ZR 08-01-2018

ECO-0149979 TRK 08-01-2018

UPDATE TO CURRENT STANDARDS

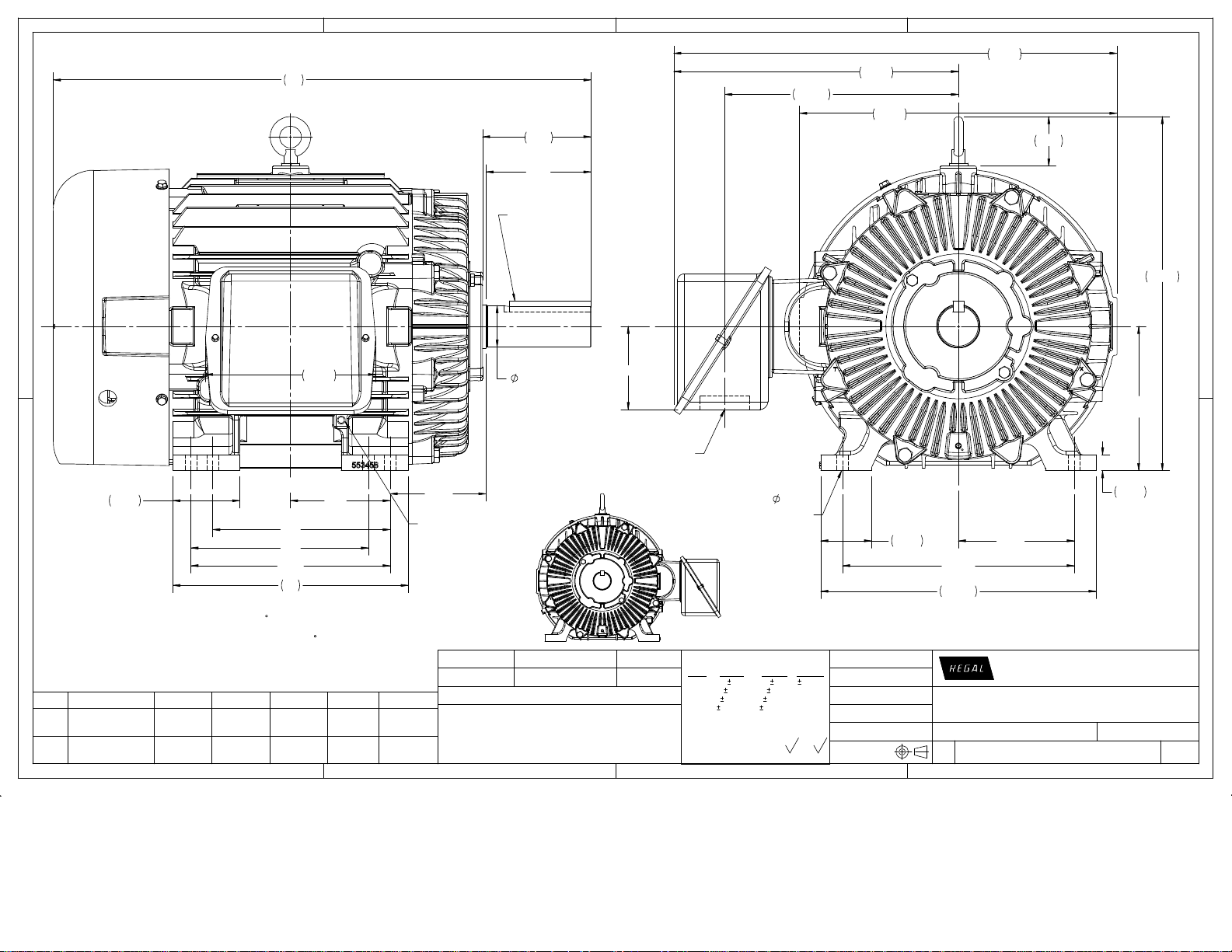

OUTLINE

400T FR.-TAPPED LEAD HOLE

NOTES:

1. CONDUIT BOX CAN BE ROTATED IN 90 STEPS.

2. CONDUIT BOX CAN BE MOUNTED ON OPPOSITE SIDE BY REMOVING BRACKETS AND TURNING FRAME 180 .

3. NAMEPLATE TO BE READ FROM CONDUIT BOX SIDE OF MOTOR.

DASH FRAME B C 2F 2FF BS

1525 404T 14.75 35.62 12.25 ---- 6.12

1675 404/405T 16.25 37.14 12.25 13.75 6.88

6.62

4.63

2FF

7.25

7.49

2.875

2.874

11.75

.750x.750x5.62 KEY

1/2-13 UNC-2B

1.00 FULL THD

16.13

10.00

9.94

1.10

19.00

16.00

8.003.50

5.75

19.64

30.60

21.92

3.41

24.45

3" NPT

LEAD HOLE

.81-.83

8 HOLES (404 MAY ONLY HAVE 4 HOLES)

F2 VIEW

Regal Beloit America, Inc.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS OTHERWISE SPECIFIED: DEC.

INCH mm ANGLE .X 0.1 [ 2.5] 7' 30" .XX 0.03 [ 0.76] XXX 0.005 [ 0.127] .XXXX 0.0005 [ 0.0127] REMOVE BURRS & BREAK SHARP EDGES: .003/.015 [.076/.381] CORNER FILLETS: .02 [.51] MACHINED SURFACES:

200 5.1

INCH mm mm SHOWN IN [BRACKETS]

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE PROJECTION

DRAWN BY

DATE

APPROVED BY

PROCESS/FINISH

1 OF 1

SS508859

TLB

05-19-1988

05-22-1988

F ZR 08-01-2018

ECO-0149979 TRK 08-01-2018

UPDATE TO CURRENT STANDARDS

OUTLINE

400T FR.-TAPPED LEAD HOLE

NOTES:

1. CONDUIT BOX CAN BE ROTATED IN 90 STEPS.

2. CONDUIT BOX CAN BE MOUNTED ON OPPOSITE SIDE BY REMOVING BRACKETS AND TURNING FRAME 180 .

3. NAMEPLATE TO BE READ FROM CONDUIT BOX SIDE OF MOTOR.

DASH FRAME B C 2F 2FF BS

1525 404T 14.75 35.62 12.25 ---- 6.12

1675 404/405T 16.25 37.14 12.25 13.75 6.88

Uncontrolled Copy

3 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 4

THREE PHASE - SINGLE VOLTAGE

THREE PHASE - SINGLE VOLTAGE MOTOR - CONDUIT BOX @ 'A'

MOTOR - CONDUIT BOX @ 'A'

TO REVERSE ROTATION:

TO REVERSE ROTATION: INTERCHANGE ANY TWO

INTERCHANGE ANY TWO LINE LEAD CONNECTIONS.

LINE LEAD CONNECTIONS.

IF MOTOR HAS

6 LEADS

Uncontrolled Copy

TERMI NAL BLOCK WHEN SPECIFIED

T1 (U1)

T2 (V1)

T3 (W1)

T1(U1)

T1(U1) T1(U1)

T1(U1)

T2(V1)

T2(V1) T2(V1)

T2(V1)

T3(W1)

T3(W1) T3(W1)

T3(W1)

A-9806 DECAL

REVISION BY DATE

DRAWING REVISION

ECO

ECO-0125361

ECO DESCRIPTION

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED

BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCE P T

UPDATED TO CURRENT STANDARDS

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATI ON OR OTHER FIRM RECEIVING IT IS DEEMED,

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

REVISION BY DATE

APPROVED BY DATE

JJB

06-27-2017

06-27-2017 06-27-2017

06-27-2017

VIEW OF TERMINAL END

DRAWN BY

DATE

APPROVED BY

DATE

REFERENCE

THIRD ANGLE

THIRD ANGLE PROJECTION

PROJECTION

03-26-1993

Regal Beloit America , Inc.

DESCRIPTION

CONNECTION DIA GRAM

EXTERNAL - SINGLE VOLTAGE - 3Ø MOTOR

MATERIAL

SIZE DRAWING NUMBER

4 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 4

EE7300

OPTIONAL CORD

CONNECTION

WHITE

RED

BLACK

PROCESS/FINISH

SHEET

1 OF 1
