PRODUCT INFORMATION PACKET
Model No: 324TTDP4345
Catalog No: U116
40 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 230/460 V, 324JM Frame, ODP
JM Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4
Product Information Packet: Model No: 324TTDP4345, Catalog No:U116 40 HP Close-Coupled Pump Motor, 3 phase, 1800 RPM, 230/460 V, 324JM
Frame, ODP
Nameplate Specifications
Output HP 40 Hp Output KW 30.0 kW
Frequency 60 Hz Voltage 230/460 V
Current 97.0/48.5 A Speed 1770 rpm
Service Factor 1.15 Phase 3
Efficiency 93 % Power Factor 82.5
Duty Continuous Insulation Class B
Design Code B KVA Code F
Frame 324JM Enclosure Drip Proof
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6312 Opp Drive End Bearing Size 6311
UL Recognized CSA Y
CE Y IP Code 23

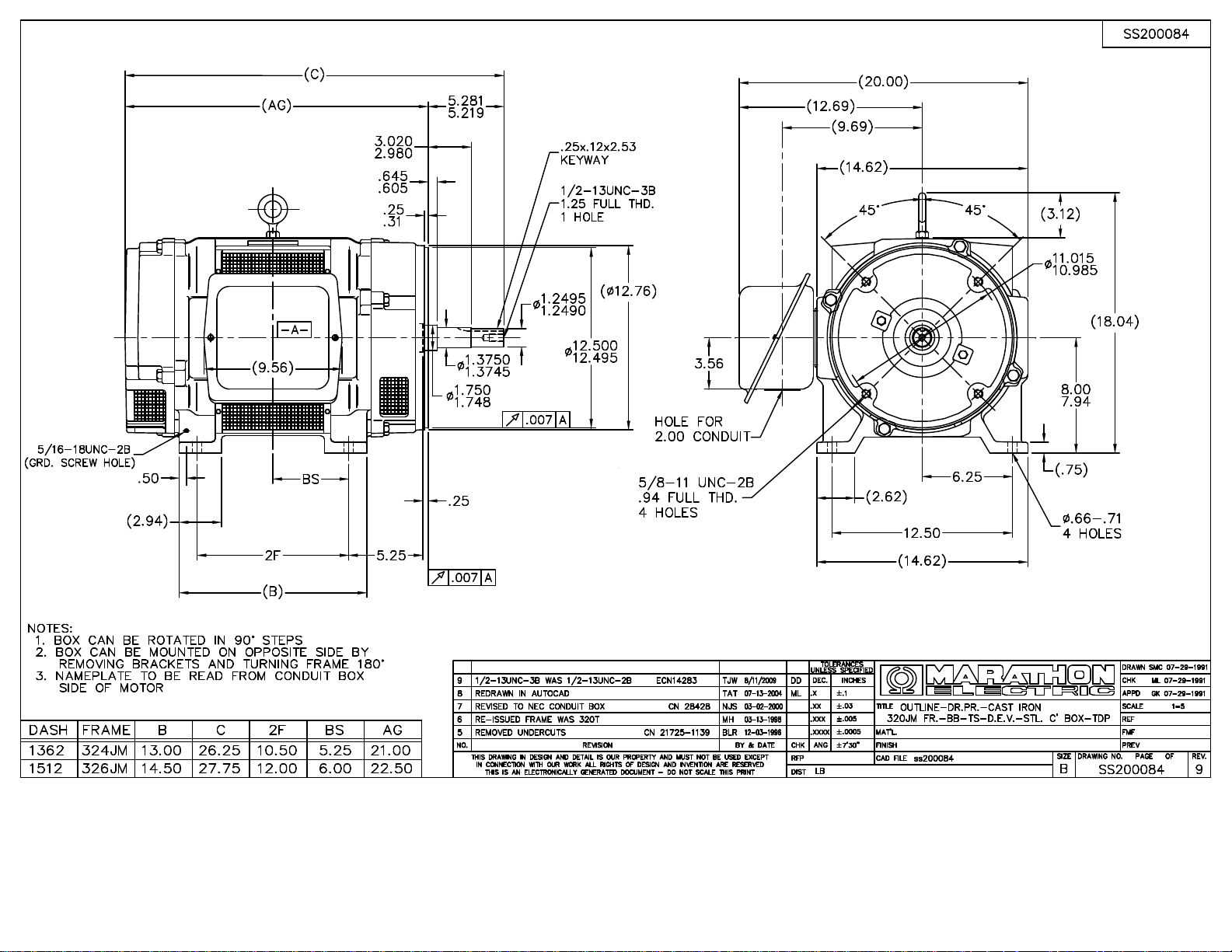

Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line
Poles 4 Rotation Reversible
Resistance Main .165 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Cast Iron
Shaft Type JM Overall Length 26.25 in
Frame Length 13.62 in Shaft Diameter 1.25 in
Shaft Extension 5.28 in Assembly/Box Mounting F1/F2 Capable
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
