PRODUCT INFORMATION PACKET

Model No: 324TTDP4002

Catalog No: U240

50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 230/460 V, 324JP Frame, ODP

JP Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4

Product Information Packet: Model No: 324TTDP4002, Catalog No:U240 50 HP Close-Coupled Pump Motor, 3 phase, 3600 RPM, 230/460 V, 324JP Frame, ODP

Nameplate Specifications

Output HP 50 Hp Output KW 37.0 kW Frequency 60 Hz Voltage 230/460 V Current 117.0/58.5 A Speed 3555 rpm Service Factor 1.15 Phase 3 Efficiency 92.4 % Power Factor 86.5 Duty Continuous Insulation Class B Design Code B KVA Code G Frame 324JP Enclosure Drip Proof Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6312 Opp Drive End Bearing Size 6311 UL Recognized CSA Y CE Y IP Code 23

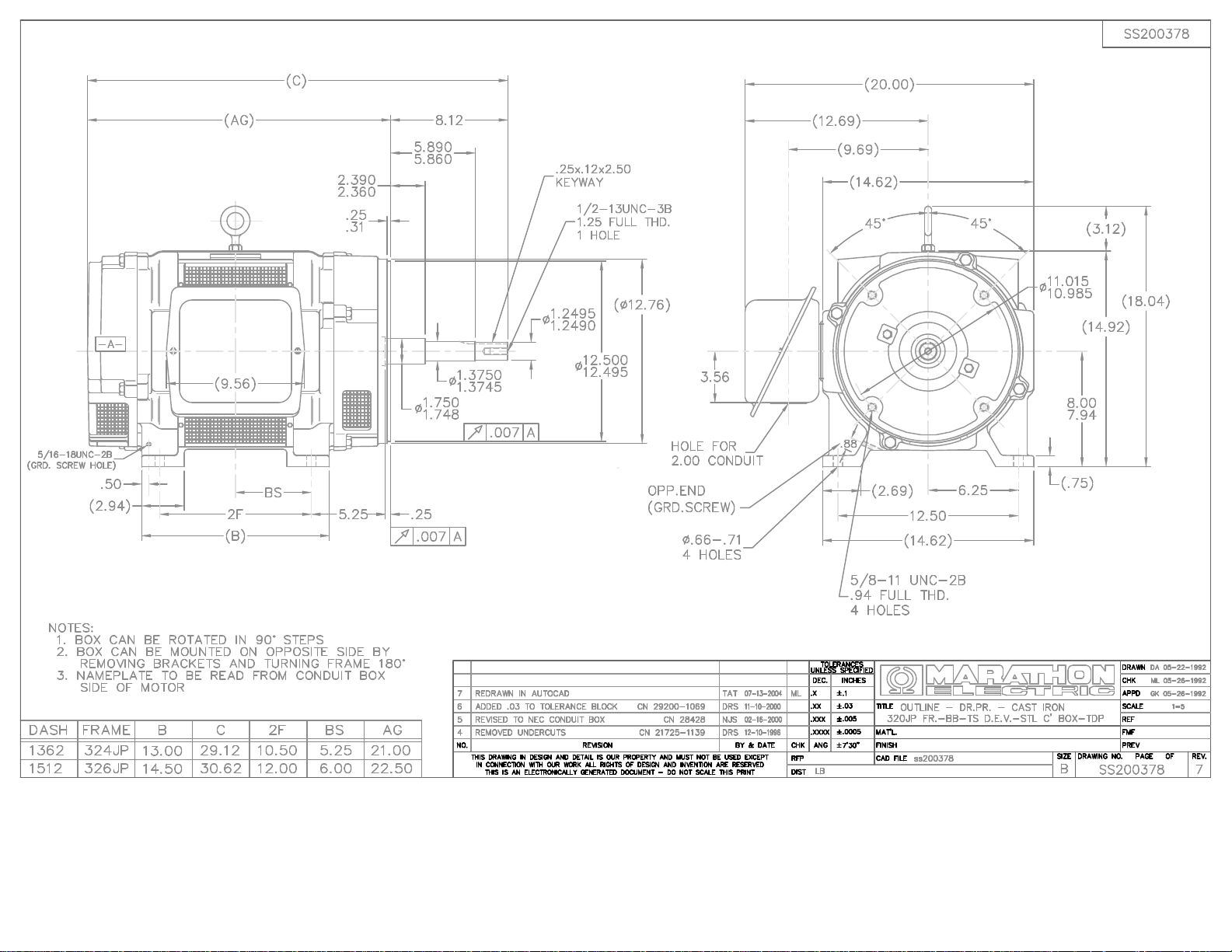

Technical Specifications

Electrical Type Squirrel Cage Induction Run Starting Method Across The Line Poles 2 Rotation Reversible Resistance Main .19 Ohms Mounting Rigid Base Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Cast Iron Shaft Type JP Overall Length 29.12 in Frame Length 13.62 in Shaft Diameter 1.25 in Shaft Extension 8.12 in Assembly/Box Mounting F1/F2 Capable

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
