PRODUCT INFORMATION PACKET
Model No: 324TTDC6029
Catalog No: E764A
40,1800,DP,324T,3/60/575
Open Drip Proof (ODP)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Product Information Packet: Model No: 324TTDC6029, Catalog No:E764A 40,1800,DP,324T,3/60/575
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 575 V
Current
Service Factor
Efficiency 94.1 % Duty Continous
Insulation Class
KVA Code G Frame 324T
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6312 UL Recognized
CSA
IP Code
40 Hp
38.5 A
1.15
F
40 °C
Y
12
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
30.0 kW
1780 rpm
3
B
6312
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Cast Iron Shaft Type T
Overall Length
Shaft Extension 5.25 in Assembly/Box Mounting F1/F2 Capable

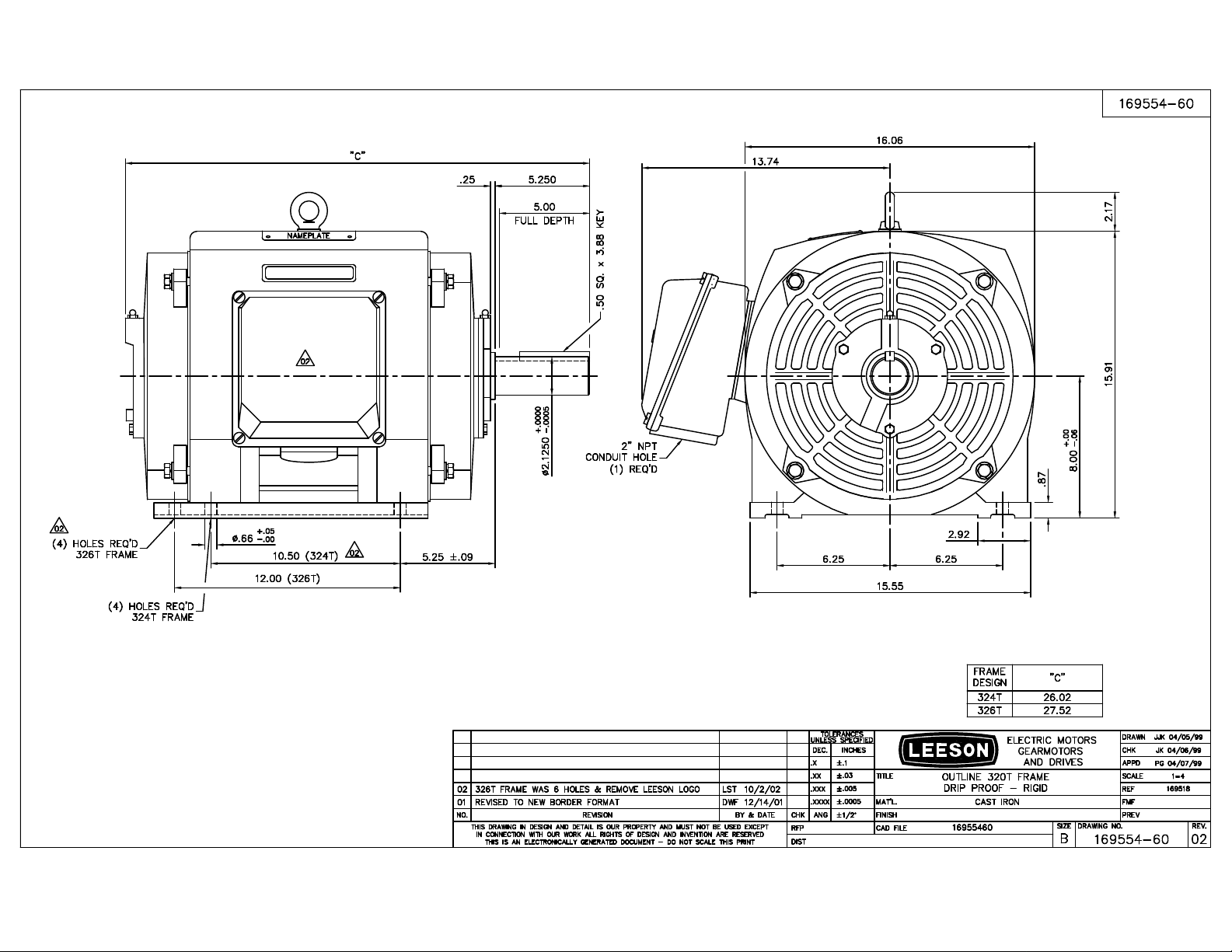

Outline Drawing
Rigid base
26.02 in
16955460ME
Motor Orientation
Shaft Diameter
Connection Diagram
Horizontal
2.125 in
00519001ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 6
7/6/2007 8:14:39 AM -
3 of 6
4 of 6
4/27/2012 9:57:03 AM - Converted by Connexus
CERTIFICATION DATA SHEET
Model#: 324TTDC6029 AA WINDING#: T16104018 NONE 4
CONN. DIAGRAM: 00519001ME ASSEMBLY: F1/F2 CAPABLE
OUTLINE: 16955460-ME
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
40 30 1800 1780 324T DP G B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60 575 38.5 LINE OR
INVERTER
CONTINUOUSF2 1.15/1.0 40 3300
FULL LOAD EFF: 94.1 3/4 LOAD EFF: 94.5 1/2 LOAD EFF: 94 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 83 3/4 LOAD PF: 78.5 1/2 LOAD PF: 69.5 93.6 SQ CAGE INV RATED 14.5
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
118 LB-FT 244 267 LB-FT 226 322 LB-FT 273 45
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
75 dBA 85 dBA - LB-FT^2 - LB-FT^2 20 SEC. - 581 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE 1045 HOT
ROLLED (C-204)
CAST IRON
6312 6312
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: CONSTANT 10:1
INV. HP SPEED RANGE: 1.5 X BASE SPEED
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/21/2017 03:56:17 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 6
Date:
Customer:
Attention:
Submitted by:
Data @
575
v
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
14.5 17.6 23.4 30.8 38.4 44.4 48.1 244
Torque (ft-lb)
0.00 30.0 60.0 90.0 118 136 150 267
RPM
1800 1795 1790 1785 1780 1,777 1775 0
Efficiency (%)
90.3 94.0 94.5 94.1 94.0 94.0
P.F. (%)
5.0 48.0 69.5 78.5 83.0 83.5 84.0 0.0
LR Pull-Up BD Rated Idle
Speed (RPM)
0 800 1655 1780 1800
Information Block
Current (Amps)
244 232 158 38.4 14.5 40.0
Torque (ft-lb)
267 227 322 118 0.00 1800
324
DP
TDC
575
V
60
Hz
A
H
1.15
45
°
C
CONT
40
°
C
1,000
feet
0.00
Lb-Ft²
T16104018 NONE
75 dBA
Additional Specifications:
R1 R2 X1 X2 Xm
0.0000 0.0000 0.0000 0.0000 0.0000
CONSTANT 10:1
0
365THFS8036
EQUIV CKT (OHMS / PHASE)
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg 16955460-ME
Conn. Diag 5190.01
Rotor/Shaft wk²
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Duty
Ambient
Elevation
Construction
Motor Speed Data
HP
Sync. RPM
Frame
Enclosure
Motor Load Data
Submittal
FAREEDA DUDEKULA
Data Sheet
19-06-2017 324TTDC6029
0.0
10.0
20.0
30.0
40.0
50.0
60.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
0% 20% 40% 60% 80% 100% 120% 140%
Efficiency (%) P.F. (%) Cu rrent (Amps)
LOAD
A
M
P
S
E
F
F
P
F
0.0
50.0
100.0
150.0
200.0
250.0
300.0
0.0
50.0
100.0
150.0
200.0
250.0
300.0
350.0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Speed -Torque Curve
Torque Amps
RPM
T
O
R
Q
U
E
A
M
P
S
Uncontrolled Copy
6 of 6
