PRODUCT INFORMATION PACKET
Model No: 215TBFW7026
Catalog No: I215
7 1/2,1740,TEFC,215T,1/60/208-230
Totally Enclosed Fan Cooled (TEFC)
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: 215TBFW7026, Catalog No:I215 7 1/2,1740,TEFC,215T,1/60/208-230
Nameplate Specifications
Output HP 7.50 Hp Output KW 5.6 kW
Frequency
Current 35.0-30.0 A Speed 1740 rpm
Service Factor
Efficiency
Insulation Class B Design Code L
KVA Code
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature 40 °C Drive End Bearing Size 6307
Opp Drive End Bearing Size
CSA Y CE Y
IP Code
60 Hz
1
84 %
G
6206
43
Voltage
Phase
Duty
Frame
UL
208-230 V
1
Continous
215T
Recognized
Technical Specifications
Electrical Type
Poles
Mounting Rigid Base Motor Orientation Horizontal
Capacitor Start Capacitor Run
4
Starting Method
Rotation
Across The Line
Selective Counterclockwise
Drive End Bearing
Frame Material Rolled Steel Shaft Type T
Overall Length 21.09 in Frame Length 12.40 in
Shaft Diameter
Assembly/Box Mounting F1 Only

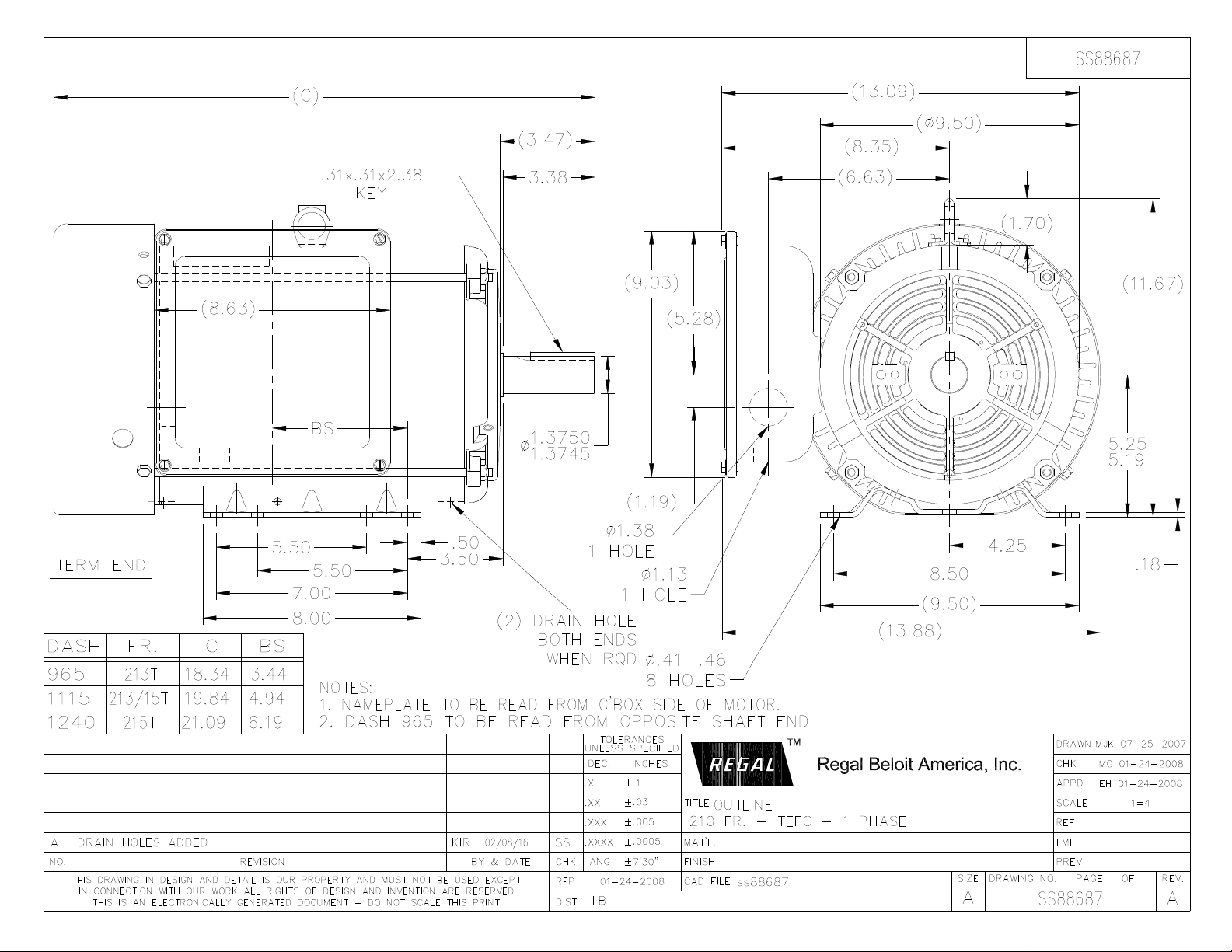

Outline Drawing
Ball
1.375 in
A-SS88687-1240
Opp Drive End Bearing
Shaft Extension

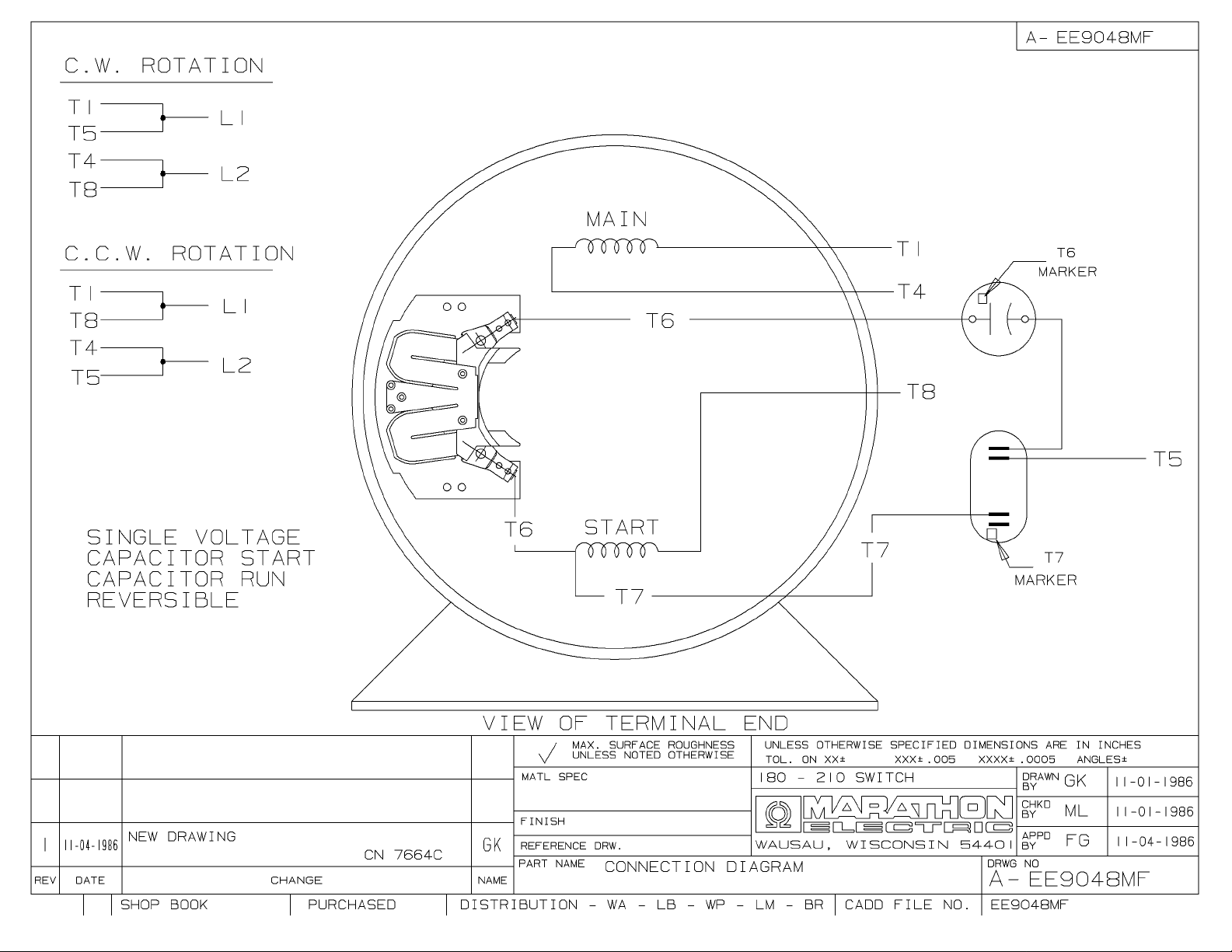

Connection Diagram
Ball
3.47 in
A-EE9048MF
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/08/2018
2 of 5
Uncontrolled Copy
3 of 5
8/26/2007 8:04:20 PM -
4 of 5
CERTIFICATION DATA SHEET
Model#: 215TBFW7026 BD WINDING#: BK104118 NONE 1
CONN. DIAGRAM: A-EE9048MF ASSEMBLY: F1 ONLY
OUTLINE: A-SS88687-1240
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
7 1/2 5.6 1800 1740 215T TEFC G L
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 208-230 35-30 ACROSS THE
LINE
CONTINUOUSB4 1.0 40 3300
FULL LOAD EFF: 84 3/4 LOAD EFF: 84.5 1/2 LOAD EFF: 82.5 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 96 3/4 LOAD PF: 95.8 1/2 LOAD PF: 95 0 CAP START CAP RUN 5
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
22.5 LB-FT 198 50 LB-FT 222 51 LB-FT 227 85
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
72 dBA 82 dBA 0 LB-FT^2 - LB-FT^2 - SEC. - 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
STANDARD STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE BLUE
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1045 (C-240) ROLLED STEEL
6307 6206
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
- FT-LB NONE V NONE Hz
DATE: 06/22/2017 07:00:02 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
