Marathon Electric 184TTTY16076 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: 184TTTY16076

Catalog No: C402A

1.5/1,1200/1000,184TC,3/60/50/230/460#190/380
Brake

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 4

Product Information Packet: Model No: 184TTTY16076, Catalog No:C402A

1.5/1,1200/1000,184TC,3/60/50/230/460#190/380

Nameplate Specifications

Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 87.5 % Duty Continuous
Insulation Class
KVA Code K Frame 184TC
Enclosure Totally Enclosed Non Ventilated Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6205 UL Recognized
CSA
IP Code

1.50 Hp

5.2/2.6 A

1.15

F

40 °C

Y
43

Output KW

Speed
Phase

Design Code

Drive End Bearing Size

CE

1.1 kW

1175 rpm
3

B

6206

Y

Technical Specifications

Electrical Type
Poles 6 Rotation Reversible

Squirrel Cage Induction Run

Starting Method

Across The Line

Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Aluminum Shaft Type T
Overall Length
Shaft Diameter 1.125 in Shaft Extension 2.62 in
Assembly/Box Mounting

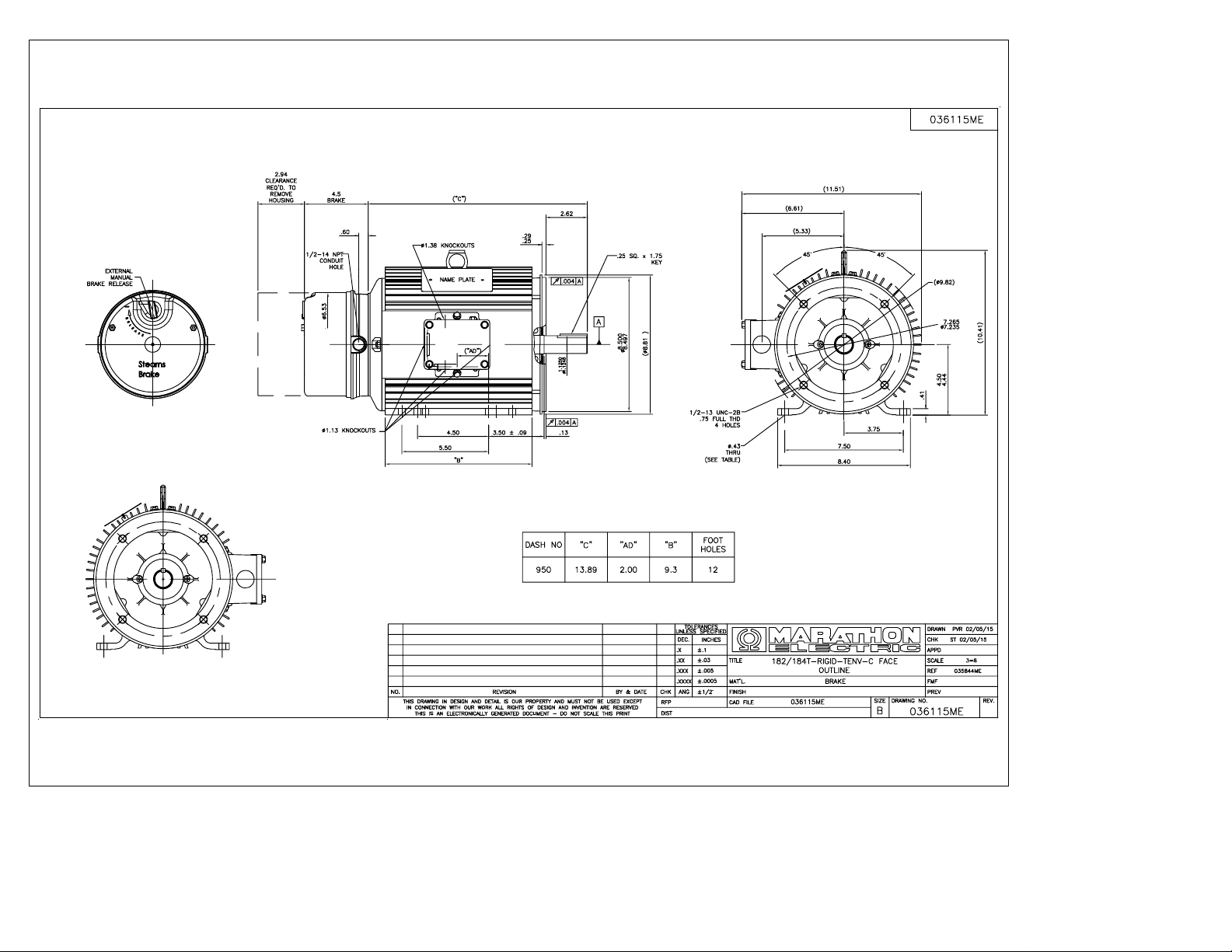

Outline Drawing

Rigid base

13.89 in

F1/F2 CAPABLE
036115ME-950

Motor Orientation

Frame Length

Connection Diagram

HORIZONTAL

9.50 in

005010.01

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/30/2018
