Marathon Electric 056T34V5309 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: 056T34V5309

Catalog No: N609

2 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56HC Frame, TENV

Washdown Duty Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 3

Product Information Packet: Model No: 056T34V5309, Catalog No:N609 2 HP Washdown Motor, 3 phase, 3600 RPM, 208-230/460 V, 56HC Frame,
TENV

Nameplate Specifications

Output HP 2 Hp Output KW 1.5 kW
Frequency 60 Hz Voltage 208-230/460 V
Current 5.6-5.0/2.5 A Speed 3450 rpm
Service Factor 1 Phase 3
Efficiency 84.2 % Power Factor 88.90
Duty Continuous Insulation Class F
Design Code A KVA Code M
Frame 56HC Enclosure Totally Enclosed Non Ventilated
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 55

Technical Specifications

Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 2 Rotation Reversible
Mounting Rigid Base Motor Orientation HORIZONTAL
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length 13.06 in Frame Length 8.00 in
Shaft Diameter 0.625 in Shaft Extension 1.94 in
Assembly/Box Mounting F1 ONLY

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019

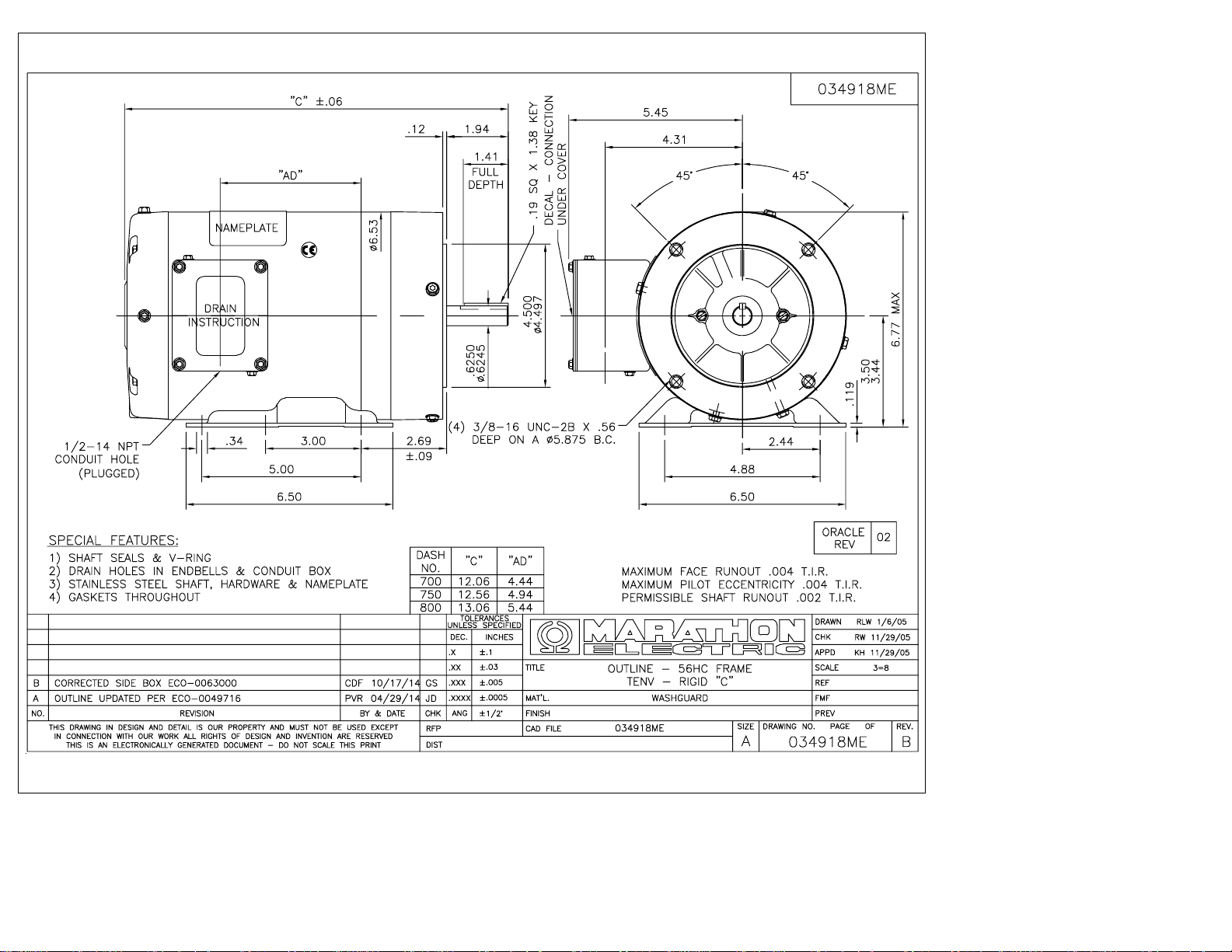

2 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 32 of 3
