PRODUCT INFORMATION PACKET
Model No: 056T34F5303
Catalog No: D393
1 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame, TEFC
Three Phase TEFC Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 7
Product Information Packet: Model No: 056T34F5303, Catalog No:D393 1 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 56C Frame,
TEFC
Nameplate Specifications
Output HP 1 Hp Output KW 0.75 kW
Frequency 60 Hz Voltage 208-230/460 V
Current 3.7-3.7/1.85 A Speed 3450 rpm
Service Factor 1.15 Phase 3
Efficiency 74 % Power Factor 71.3
Duty CONTINUOUS Insulation Class F
Design Code B KVA Code M
Frame 56C Enclosure TEFC
Thermal Protection NOT Ambient Temperature 40 °C
Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 43
Technical Specifications
Electrical Type SQ CAGE IND RUN Starting Method ACROSS THE LINE
Poles 2 Rotation REV
Resistance Main 4.4 Ohms Mounting BOLT-ON
Motor Orientation HORIZONTAL OR UP OR DOWN Drive End Bearing BALL
Opp Drive End Bearing BALL Frame Material ROLLED STEEL
Shaft Type STANDARD 56 Overall Length 11.81 in
Frame Length 6.56 in Shaft Diameter 0.63 in
Shaft Extension 2.06 in Assembly/Box Mounting F1 Only
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
2 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 7
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 7' 30"
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
200 5.1
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
100141
M M. CHATLAPALLI 01/10/2019
S. MACHARLA 01/10/2019
OUTLINE CONVERSION PROJECT
OUTLINE
100141
56 FR - BB - TEFC - 'C' FACE
TERM. END
NOTE :-
1. CONDUIT BOX CAN BE ROTATED 180° STEP.
2. REMOVABLE BASE.
3. NAMEPLATE READ FROM CONDUIT BOX SIDE.
DASH C AG BS
606 11.31[287.27] 9.25 [234.95] 2.75 [69.85]
656 11.81[299.97] 9.75 [247.65] 3.25 [82.55]
706 12.31[312.67] 10.25 [260.35] 3.75 [95.25]
756 12.81[325.37] 10.75 [273.05] 4.25 [107.95]
806 13.31[338.07] 11.25 [285.75] 4.75 [120.65]
856 13.81[350.77] 11.75 [298.45] 5.25 [133.35]
BLR
05-27-1997
05-27-1997
GK
ECO-0159684
(AG)
.16
.10
3.94
2.41
4.500
4.497
114.300
114.224
.6250
.6245
15.8737
15.8610
4.00
101.60
.35
8.89
2.06
52.39
(C)
3.14
79.76
BS
2.75
69.79
1.88
47.75
3.00
76.20
.19 [4.83] SQ X
1.38 [35.05] KEY
.004 A
.004 A
A
7.33
186.26
3.50
3.44
88.98
87.45
.12
3.04
3/8-16 UNC-2B
.56 [14.22] MIN. F ULL T HD.
4HOLES
6.50
165.10
1.22
30.99
1.58
40.13
1.81
45.97
4.48
113.71
5.41
137.30
6.48
164.58
2.44
61.98
7.36
187.05
9.09
230.83
.18
4.45
.44
11.18
.88
22.35
4.88
123.95
45° 45°
5.890
5.860
149.606
148.844
2- 1.09 [27.69]
KNOCKOUTS
3- .88 [22.35]
KNOCKOUTS
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 7' 30"
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
200 5.1
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
100141
M M. CHATLAPALLI 01/10/2019
S. MACHARLA 01/10/2019
OUTLINE CONVERSION PROJECT
OUTLINE
100141
56 FR - BB - TEFC - 'C' FACE
TERM. END
NOTE :-
1. CONDUIT BOX CAN BE ROTATED 180° STEP.
2. REMOVABLE BASE.
3. NAMEPLATE READ FROM CONDUIT BOX SIDE.
DASH C AG BS
606 11.31[287.27] 9.25 [234.95] 2.75 [69.85]
656 11.81[299.97] 9.75 [247.65] 3.25 [82.55]
706 12.31[312.67] 10.25 [260.35] 3.75 [95.25]
756 12.81[325.37] 10.75 [273.05] 4.25 [107.95]
806 13.31[338.07] 11.25 [285.75] 4.75 [120.65]
856 13.81[350.77] 11.75 [298.45] 5.25 [133.35]
BLR
05-27-1997
05-27-1997
GK
ECO-0159684
Uncontrolled Copy
3 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 7
Uncontrolled Copy
4 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 7
CERTIFICATION DATA SHEET
Model#: 56T34F5303 J WINDING#: ZT204 NONE 3

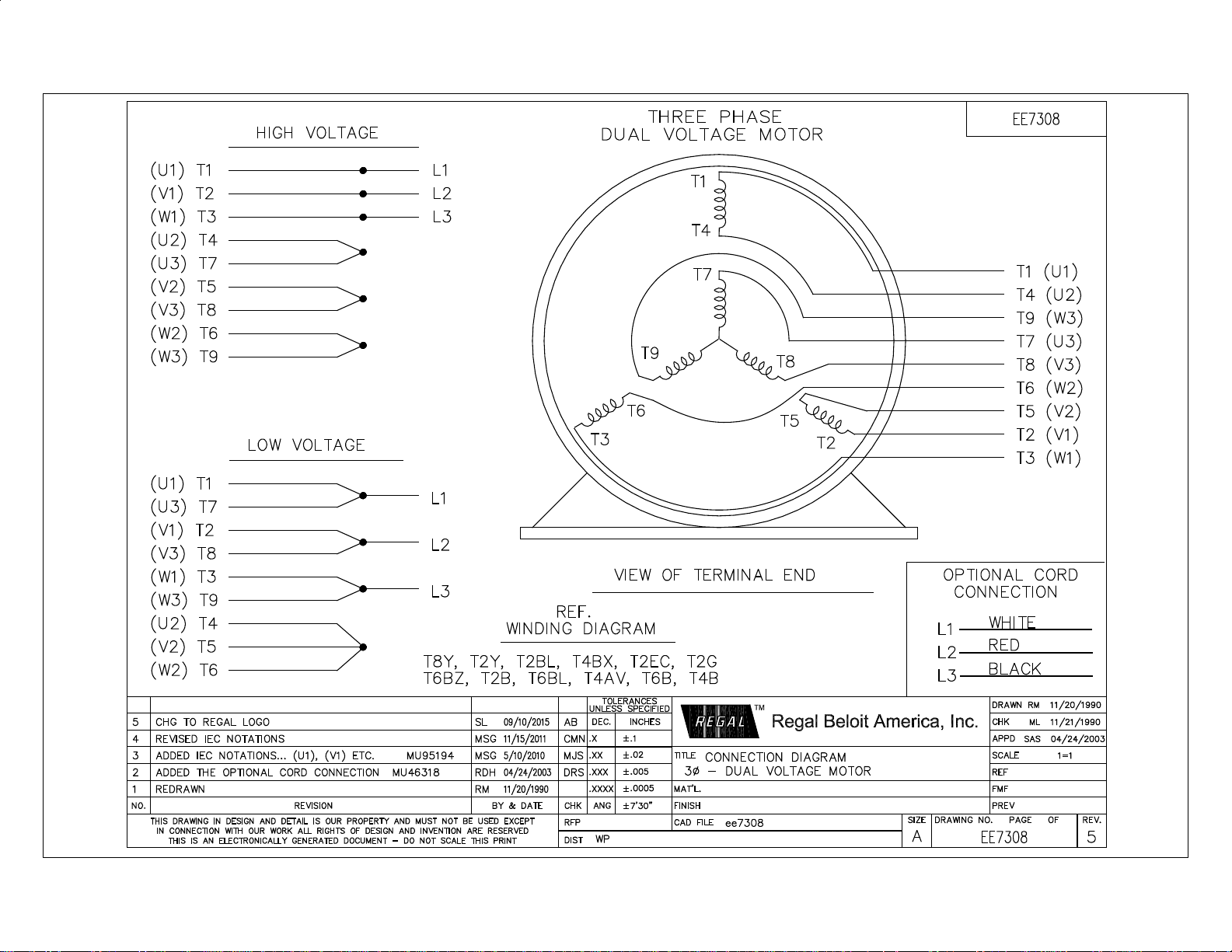

CONN. DIAGRAM: A-EE7308 ASSEMBLY: F1 ONLY
OUTLINE: A-100141-656
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1&3/4 .75&.56 3600 3450&2850 56C TEFC M B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 208-
230/460#190/
380
3.7-
3.7/1.85&3.4/1
.7
ACROSS THE
LINE
CONTINUOUSF3 1.15/1.15 40 3300
FULL LOAD EFF:
74&75.5
3/4 LOAD EFF: 69 1/2 LOAD EFF: 61 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF:
71.3&70
3/4 LOAD PF: 65.5 1/2 LOAD PF: 55.5 70 SQ CAGE IND RUN 2.2 / 1.1
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
1.5 LB-FT 29.6 / 14.8 5.3 LB-FT 353 6.3 LB-FT 420 45
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
68 dBA 78 dBA 0.03 LB-FT^2 2 LB-FT^2 10 SEC. 2 30 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE BRAKE BOLT-ON HORIZONTAL
OR UP OR
DOWN
FALSE NONE PROVISIONS
ONLY
NONE GRAY
(POWDER)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM STANDARD 56 NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: PROVISIONS FOR KIT NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 01:48:26 AM
Uncontrolled Copy
5 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 7
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
6 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 76 of 7
Date:
Customer:
Attention:
Submitted by:
v
Speed (RPM)
Current (Amps)
P
E
0.0
1.0
2.0
3.0
0 500 1000 1500 2000 2500 30 00 3500 4000
TORQU
4.0
5.0
6.0
7.0
30.0
40.0
50.0
0% 20% 40% 60% 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P. F. (%) Current (Amps)
14.8 14.0 9.0 1.85 1.10 1.0
5.3 4.8 6.3 1.50 0.00 3600
0 1500 3050 3515 3600
P.F. (%)
3600 3570 3555 3535 3515 3,505 3495 0
0.00 0.40 0.76 1.10 1.50 1.70 2.00 5.3
22.5 41.0 55.5 65.5 71.3 74.8 77.5 0.0
LR Pull-Up BD Rated Idle
FAREEDA DUDEKULA
1.10 1.25 1.40 1.55 1.85 1.95 2.10 14.8
12/13/2018 56T34F5303
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
46.5 61.0 69.0 74.0 74.5 74.5
Data Sheet
Uncontrolled Copy
Torque Am ps
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
0.5
1.0
1.5
2.0
2.5
A
M
P
S
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
VFD Rating
Outline Dwg A-100141-656
Conn. Diag A-EE7308
Additional Specifications:
0
0
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
EQUIV CKT (OHMS / PHASE)
ZT204 NONE
208-230/460#190/380
Information Block
CONT
1,000
0.03
68 dBA
NONE
feet
Lb-Ft²
0.0
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
AMP
S
1.15
45
40
°
°
C
C
60
M
B
Hz
TFR
V
7 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 77 of 7
TEFC
56
Submittal
Data @
460
