Marathon Electric 056T17D2115 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: 056T17D2115

Catalog No: G242

0.50 HP General Purpose Motor, 3 phase, 1800 RPM, 575 V, 56C Frame, ODP Three Phase ODP Motors

Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.

1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4

Product Information Packet: Model No: 056T17D2115, Catalog No:G242 0.50 HP General Purpose Motor, 3 phase, 1800 RPM, 575 V, 56C Frame, ODP

Nameplate Specifications

Output HP 0.50 Hp Output KW 0.37 kW Frequency 60 Hz Voltage 575 V Current 0.88 A Speed 1725 rpm Service Factor 1.25 Phase 3 Efficiency 70 % Power Factor 64 Duty Continuous Insulation Class B Design Code B KVA Code M Frame 56C Enclosure Drip Proof Thermal Protection No Ambient Temperature 40 °C Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203 UL Recognized CSA Y CE N IP Code 22

Technical Specifications

Electrical Type Squirrel Cage Induction Run Starting Method Across The Line Poles 4 Rotation Reversible Resistance Main 36.7 Ohms Mounting Round Motor Orientation Horizontal Drive End Bearing Ball Opp Drive End Bearing Ball Frame Material Rolled Steel Shaft Type T Overall Length 10.30 in Frame Length 6.75 in Shaft Diameter 0.625 in Shaft Extension 1.88 in Assembly/Box Mounting F1 ONLY

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019

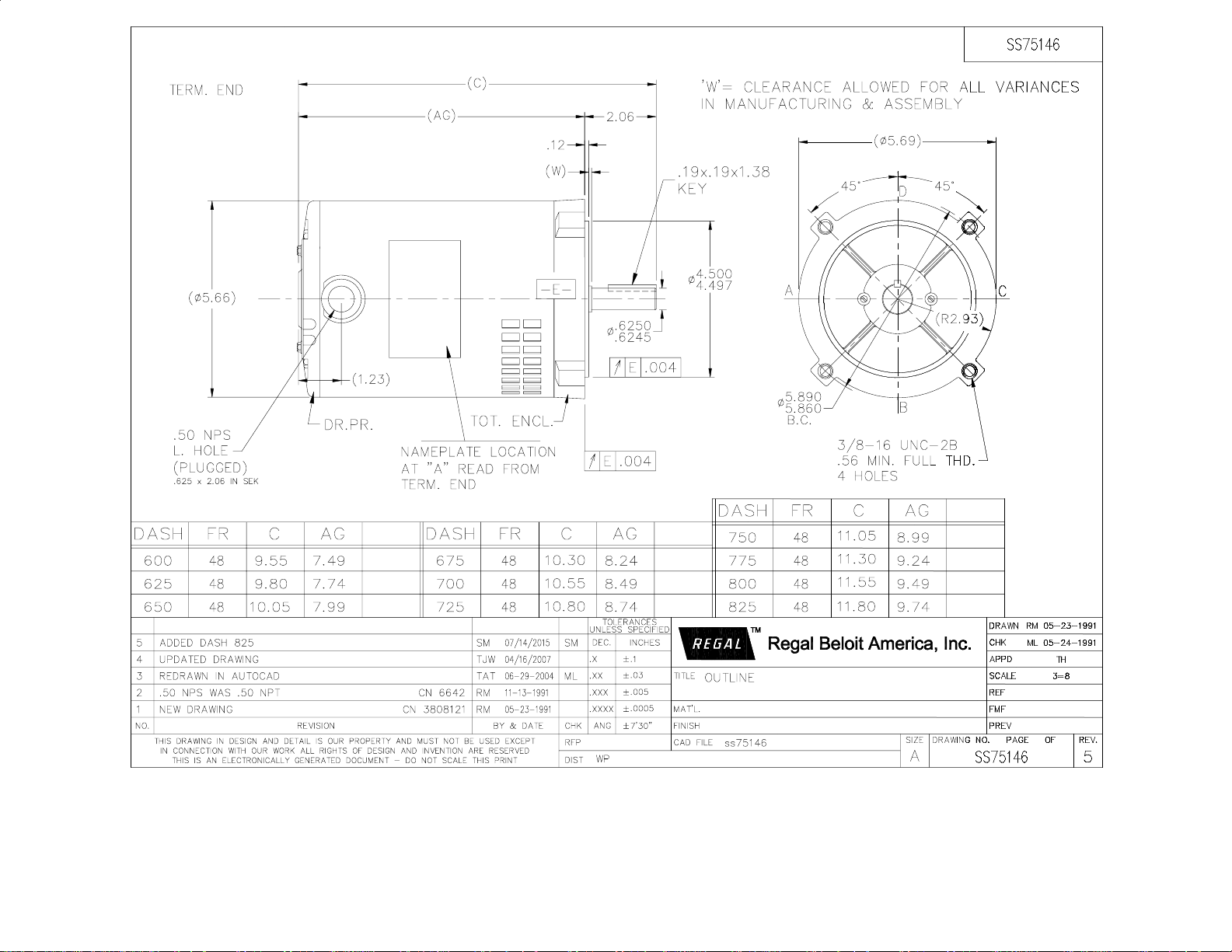

2 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 4
