PRODUCT INFORMATION PACKET
Model No: 056T17D15907
Catalog No: K1308A
0.75 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56C Frame, ODP
Three Phase ODP Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6
Product Information Packet: Model No: 056T17D15907, Catalog No:K1308A 0.75 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56C
Frame, ODP
Nameplate Specifications
Output HP 0.75 Hp Output KW 0.56 kW
Frequency 60 Hz Voltage 230/460 V
Current 2.6/1.3 A Speed 1725 rpm
Service Factor 1.25 Phase 3
Efficiency 81.1 % Power Factor 71.1
Duty Continuous Insulation Class B
Design Code B KVA Code K
Frame 56C Enclosure Drip Proof
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 22
Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line
Poles 4 Rotation Reversible
Resistance Main 23 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type T Overall Length 11.50 in
Frame Length 8.25 in Shaft Diameter 0.625 in
Shaft Extension 1.88 in Assembly/Box Mounting F1 OUT ODE BRKT RADIAL

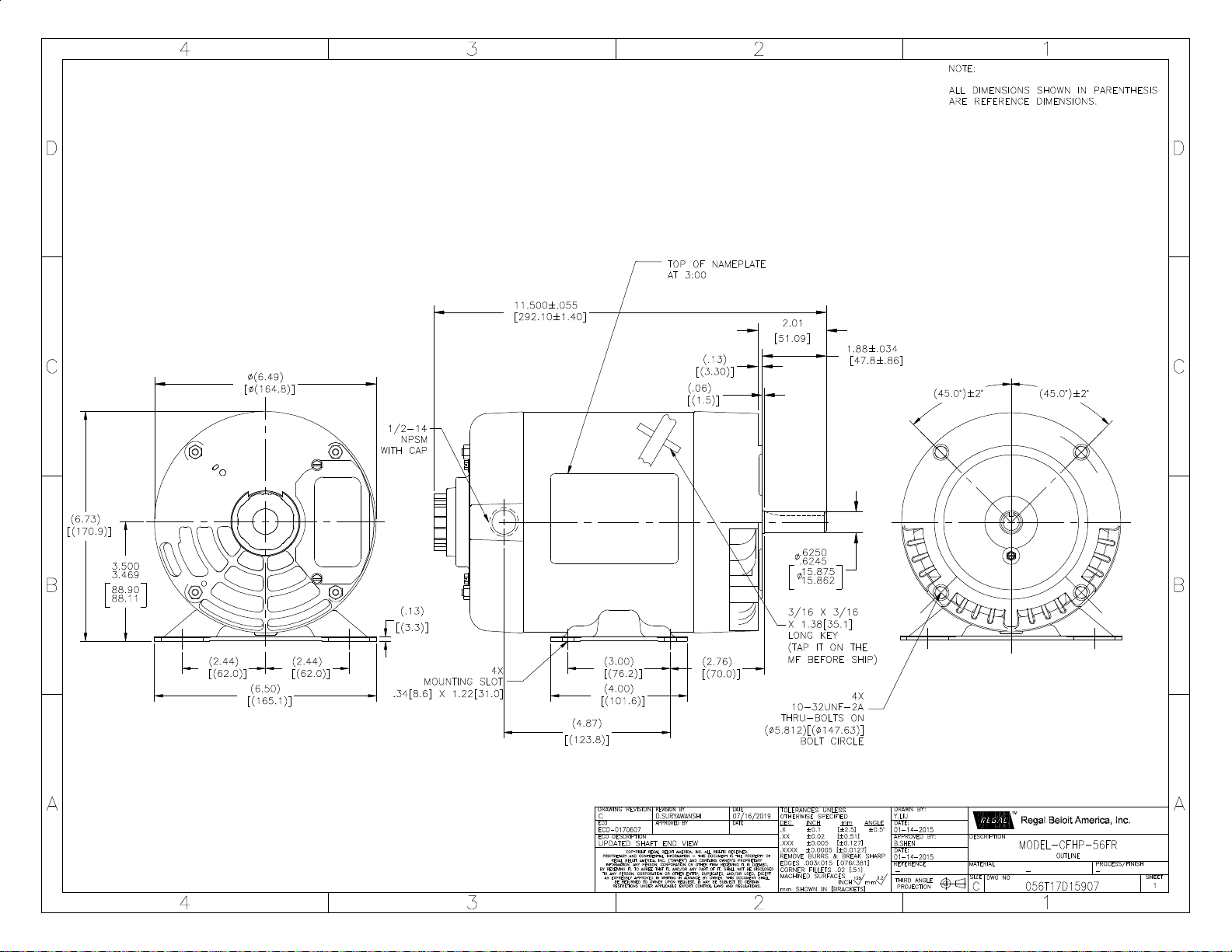

Outline Drawing 056T17D15907-S01 Connection Drawing D0000527-001
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/12/2020
2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6
Uncontrolled Copy
3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6
Uncontrolled Copy
4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6
CERTIFICATION DATA SHEET
Model#: 56T17D15907 A WINDING#: SS0066575 NONE 3
CONN. DIAGRAM: D0000527-001 ASSEMBLY: F1 OUT ODE BRKT
RADIAL
OUTLINE: 056T17D15907-S01
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
3/4&1/2 .56&.37 1800 1725&1425 56C DP K B
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
3 60/50 230/460#190/
380
2.6/1.3&4.6/2.3ACROSS THE
LINE
CONTINUOUSB3 1.25/1.25 40 3300
FULL LOAD EFF:
81.1&75.5
3/4 LOAD EFF: - 1/2 LOAD EFF: - GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF:
71.1&66.3
3/4 LOAD PF: - 1/2 LOAD PF: - 72 SQ CAGE IND RUN .9 / .4
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
- LB-FT / - LB-FT - - LB-FT - -
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
56 dBA 66 dBA 0.055 LB-FT^2 0 LB-FT^2 10 SEC. 0 22 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE GRAY
(ENAMEL)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM T NONE NONE AISI 1215
(MS1000)
ROLLED STEEL
6203 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 05:19:15 AM
FORM 3531 REV.3 02/07/99
Uncontrolled Copy
5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6
** Subject to change without notice.
