PRODUCT INFORMATION PACKET
Model No: 056C34W5307
Catalog No: N558
1/2,3600,TEFC,56C,1/60/115/208-230
Washdown Duty
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: 056C34W5307, Catalog No:N558 1/2,3600,TEFC,56C,1/60/115/208-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 63 % Duty Continous
Insulation Class
KVA Code M Frame 56C
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
7.6/4.0-3.8 A
1.15
F
40 °C
Y
55
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
3450 rpm
1
N
6205
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Selective Counterclockwise
Capacitor Start Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 2.06 in
Assembly/Box Mounting
Outline Drawing
Rigid base
10.41 in
F1 Only
028881ME-475
Motor Orientation
Frame Length

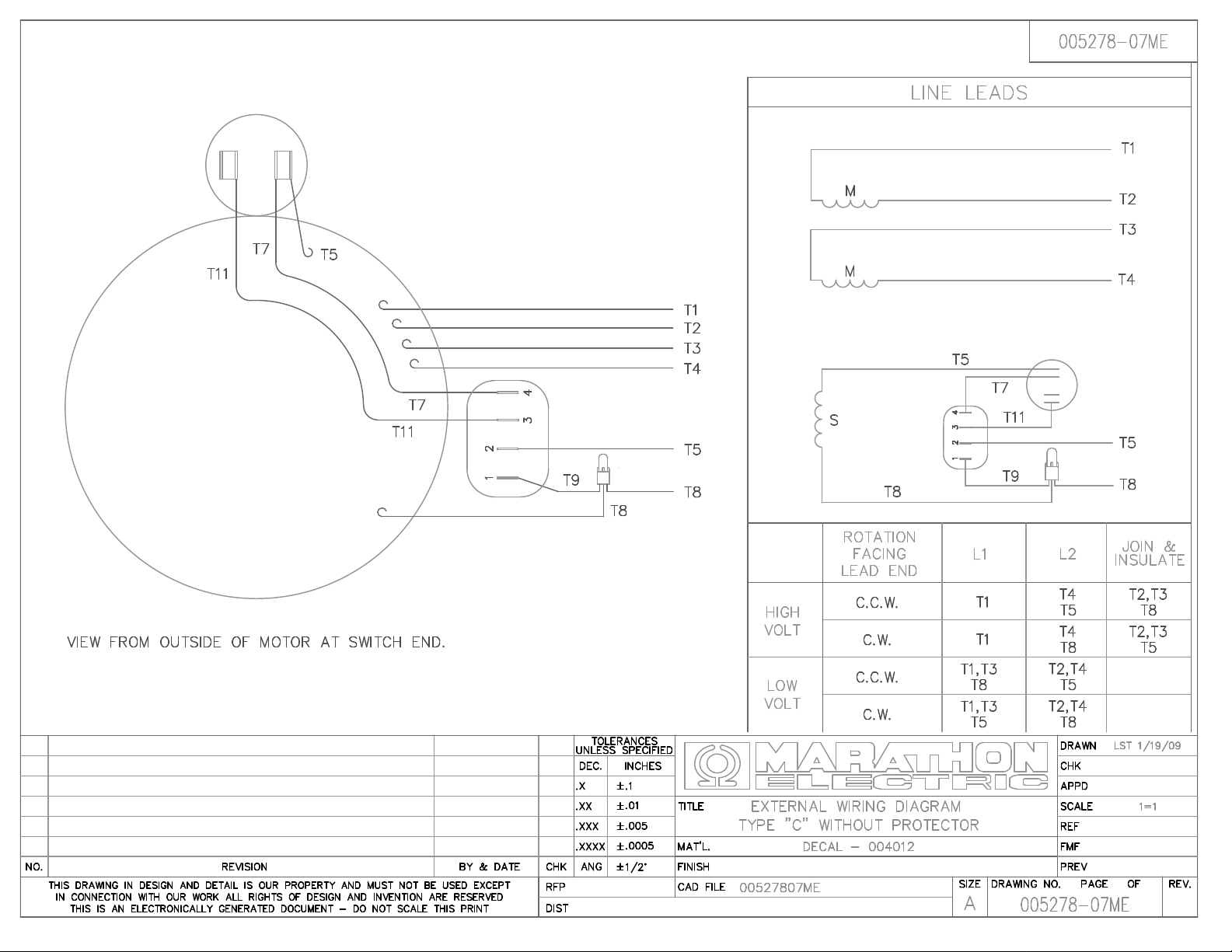

Connection Diagram
Horizontal
4.75 in
005278-07ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 06/29/2018
2 of 5
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 7' 30"
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
200 5.1
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
028881ME
RVD 02/26/2009
RVD 02/26/2009
C AS 01/23/2018
ECO-0138365 AS 01/23/2018
DASH # 575 ADDED
OUTLINE
028881
WASHGUARD
TEFC - RIGID "C" FACE
N
A
M
E
P
L
A
T
E
DASH
NO.
"C" "AD"
450 10.16 2.00
475 10.41 2.25
500 10.66 2.50
550 11.16 3.00
575 11.41 3.25
600 11.66 3.50
650 12.16 4.00
700 12.66 4.50
750 13.16 5.00
CAP.
DASH
"XO"
A1.54
B2.01
C2.25
"C" .06
1.94
2.06
.12
4.500
4.497
.6250
.6245
1.41
FULL
DEPTH
3.75
.34
3.00 2.69 .09
6.53
7.40
"AD"
.19 SQ. x 1.38 KEY
(1) 1/2-14 NPT
(PLUGGED)
NOTES:
1) SHAFT SEALS & V-RI N G .
2) DRAIN HOLES IN ENDBELLS & CONDUIT BOX.
3) GASKETS THROUG H O U T.
4) STAINLESS STEEL SHAFT, HARDWARE, & NAMEPLATE
WARNING
S.S.
SWITCH
CE
DECAL
.004 H
.002 G
.004 H
H
G
6.50
.12
1.22
2.44
4.88
5.45
45°
45°
"XO"
3.50
3.44
6.74 REF
2.37
4.32
DECAL - CONNECTION
UNDER COVER
(4) 3/8-16 UNC-2B x .56
DEEP ON A Ø5.875 B.C.
NAMEPLATE
SOLID STATE
SWITCH
DRAIN
INSTRUCTIONS
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 7' 30"
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
200 5.1
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
028881ME
RVD 02/26/2009
RVD 02/26/2009
C AS 01/23/2018
ECO-0138365 AS 01/23/2018
DASH # 575 ADDED
OUTLINE
028881
WASHGUARD
TEFC - RIGID "C" FACE
N
A
M
E
P
L
A
T
E
DASH
NO.
"C" "AD"
450 10.16 2.00
475 10.41 2.25
500 10.66 2.50
550 11.16 3.00
575 11.41 3.25
600 11.66 3.50
650 12.16 4.00
700 12.66 4.50
750 13.16 5.00
CAP.
DASH
"XO"
A1.54
B2.01
C2.25
Uncontrolled Copy
3 of 5
1/20/2009 5:28:05 PM
4 of 5
CERTIFICATION DATA SHEET
Model#: 56C34W5307 C WINDING#: C632209 FR 3
CONN. DIAGRAM: 005278-07ME ASSEMBLY: F1 ONLY
OUTLINE: 028881ME-475
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1/2 .37 3600 3450 56C TEFC M N
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 115/208-230 7.6/4-3.8 ACROSS THE
LINE
CONTINUOUSF4 1.15 40 3300
FULL LOAD EFF: 63 3/4 LOAD EFF: 59.3 1/2 LOAD EFF: 51.1 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 70 3/4 LOAD PF: 61.6 1/2 LOAD PF: 51.6 0 CAP START IND RUN 5.6 / 2.8
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
12.09 LB-FT 44 / 22 45 LB-FT 375 32 LB-FT 267 0
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
- dBA - dBA 0.03 LB-FT^2 - LB-FT^2 - SEC. - 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD RIGID HORIZONTAL FALSE NONE FALSE NONE WHITE -
LEESON
(EPOXY)
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM STANDARD 56 NONE NONE 1144
STRESSPROOF
(C-223)
ROLLED STEEL
6205 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/28/2017 12:45:13 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
