PRODUCT INFORMATION PACKET
Model No: 056C17V5304
Catalog No: N270
1/3,1800,TENV,56C,1/60/115/208-230
Washdown Duty
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: 056C17V5304, Catalog No:N270 1/3,1800,TENV,56C,1/60/115/208-230
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 72 % Duty Continous
Insulation Class
KVA Code M Frame 56C
Enclosure Totally Enclosed Non Ventilated Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.33 Hp
5.4/3.0-2.7 A
1.15
F
40 °C
Y
55
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.25 kW
1725 rpm
1
L
6205
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Selective Counterclockwise
Capacitor Start Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 2.06 in
Assembly/Box Mounting

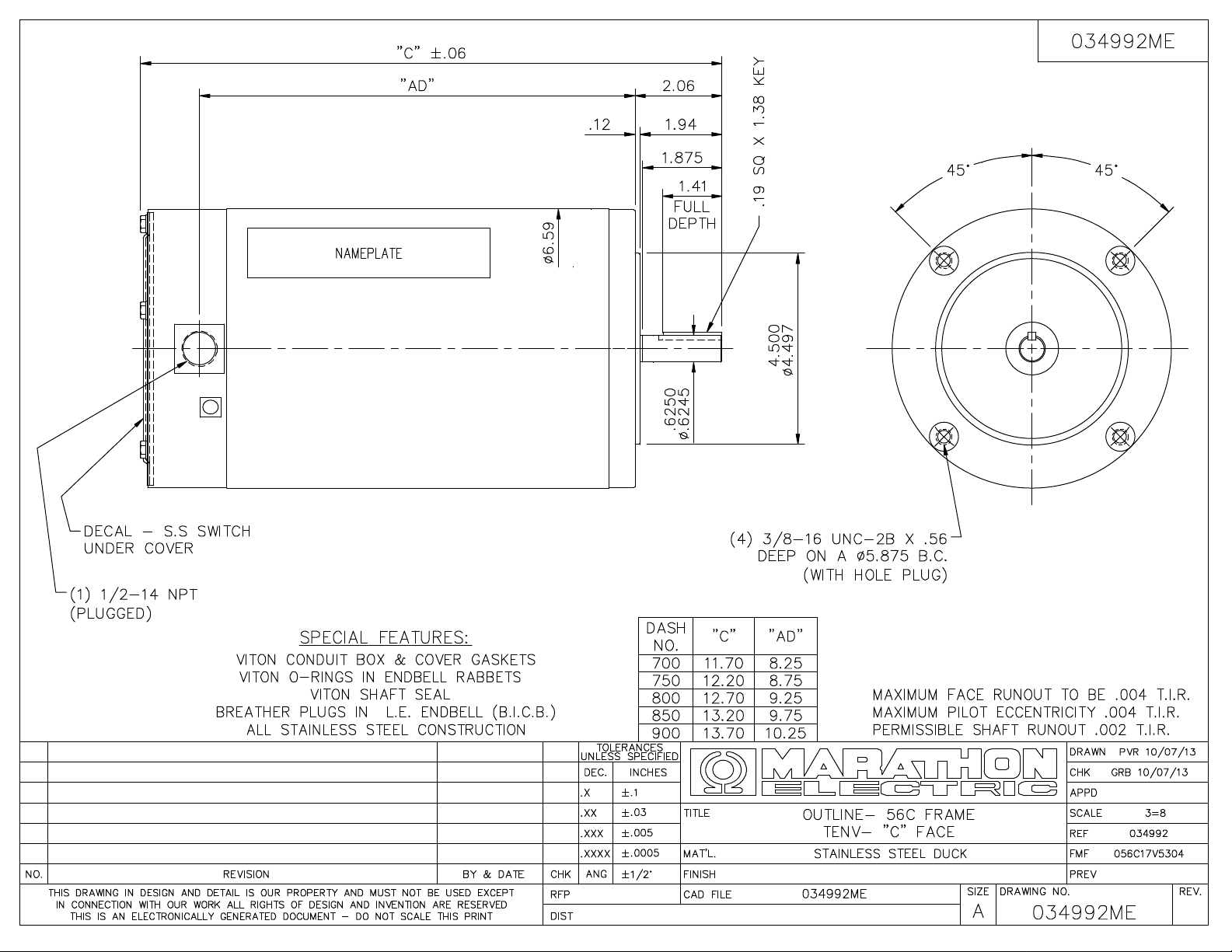

Outline Drawing
Round
11.7 in
F1 Only
034992ME-700
Motor Orientation
Frame Length
Connection Diagram
Horizontal
7.00 in
005278.01ME
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 07/02/2018
2 of 5
3 of 5
10/7/2013 10:02:39 AM - Converted by Connexus
9/25/2008 5:40:58 PM
4 of 5
CERTIFICATION DATA SHEET
Model#: 56C17V5304 A WINDING#: C634301 NR 3
CONN. DIAGRAM: 005278.01ME ASSEMBLY: F1 ONLY
OUTLINE: 034992ME-700
TYPICAL MOTOR PERFORMANCE DATA
HP KW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
1/3 0.25 1800 1725 56C TENV M L
PH Hz VOLTS FL AMPS START TYPE DUTY INSL S.F AMB°C ELEVATION
1 60 115/208-230 5.4/3-2.7 ACROSS THE
LINE
CONTINUOUSF4 1.15 40 3300
FULL LOAD EFF: 72 3/4 LOAD EFF: 71.5 1/2 LOAD EFF: 66.8 GTD. EFF ELEC. TYPE NO LOAD AMPS
FULL LOAD PF: 60 3/4 LOAD PF: 46.5 1/2 LOAD PF: 37 0 CAP START IND RUN 3.8 / 1.9
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
16 LB-FT 32 / 16 62 LB-FT 388 45 LB-FT 281 0
SOUND PRESSURE
@ 3 FT.
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME STARTS
/HOUR
APPROX. MOTOR
WGT
60 dBA 70 dBA 0.08 LB-FT^2 - LB-FT^2 10 SEC. - 0 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS PAINT
C-FACE STANDARD ROUND HORIZONTAL FALSE NONE FALSE NONE NO PAINT
BEARINGS GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE SHAFT
MATERIAL
FRAME
MATERIAL
DE OPE
BALL BALL POLYREX EM STANDARD 56 NONE NONE 303 STAINLESS
(C-501)
ROLLED STEEL
6205 6203
THERMO-PROTECTORS THERMISTORS CONTROL SPACE /n HEATERS
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE NOT NONE NONE NONE FALSE NONE VOLTS
If Inverter equals NONE, contact factory for further
information
*
N
O
T
E
S
*
INVERTER TORQUE: NONE
INV. HP SPEED RANGE: NONE
ENCODER: NONE
NONE NONE
NONE NONE PPR
BRAKE: NONE NONE
NONE P/N NONE
NONE NONE
NONE FT-LB NONE V NONE Hz
DATE: 06/27/2017 07:27:09 AM
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
Uncontrolled Copy
5 of 5
