ZR6001SP
DAvED TECHNOLOGY A/V RECEIVER & CLIENT SYSTEM
DAvED (pronounced David) stands for Digital Audio via Electrical Distribution. It is a great new method for distributing multi-room audio.
Simply connect the main unit into your home theater system, take the client unit wherever you wish, plug it in, and you’ll have second zone sound!
ZR6001 AV receiver with DAvED is a full featured home theater receiver based on the award winning SR5600. So in addition to
90 Watts x 7, HD component video switching, video upconversion, and typical second zone operation, once plugged into the wall
it is ready to utilize your house wiring for digital second zone audio.
• DAvED Transmitter function
• 90 watts (into 8 ohms) x 7 ch Amps
• 32bit DSP
• 192 kHz/24-bit D/A converters for all channels
• All discrete “Current Feedback” amplifier stages
• Lip Sync control
• Dolby Digital EX, Pro Logic IIx (Movie/Music/Game),
• Front panel A/V inputs
DTS 96/24, ES (Discrete 6.1/Matrix6.1), Neo:6 (Cinema/Music)
• RS232C terminal for system control
• SRS Circle surround II
• D-BUS (RC-5 In/Out) remote connection
• Dolby Headphone
• On Screen Display
• Multi channel stereo mode
• HDCD® Decoder
• Assignable HD compatible component video
• Detachable power cord switching (2 in / 1 out)
• 50 AM/FM station presets with station naming
• Video up-conversion: Composite to S-Video
• 2nd Zone audio output (Individual source)
• x2 Optical / x2 Coaxial assignable digital inp
w/discrete commands
• S-Video/Composite switching (5 in / 3 out)
• 2 digital outputs (1 optical / 1 coaxial)
• Pre-programmed system remote
• 1 switched and 1 unswitched AC convenience outlets
• Three year limited warranty

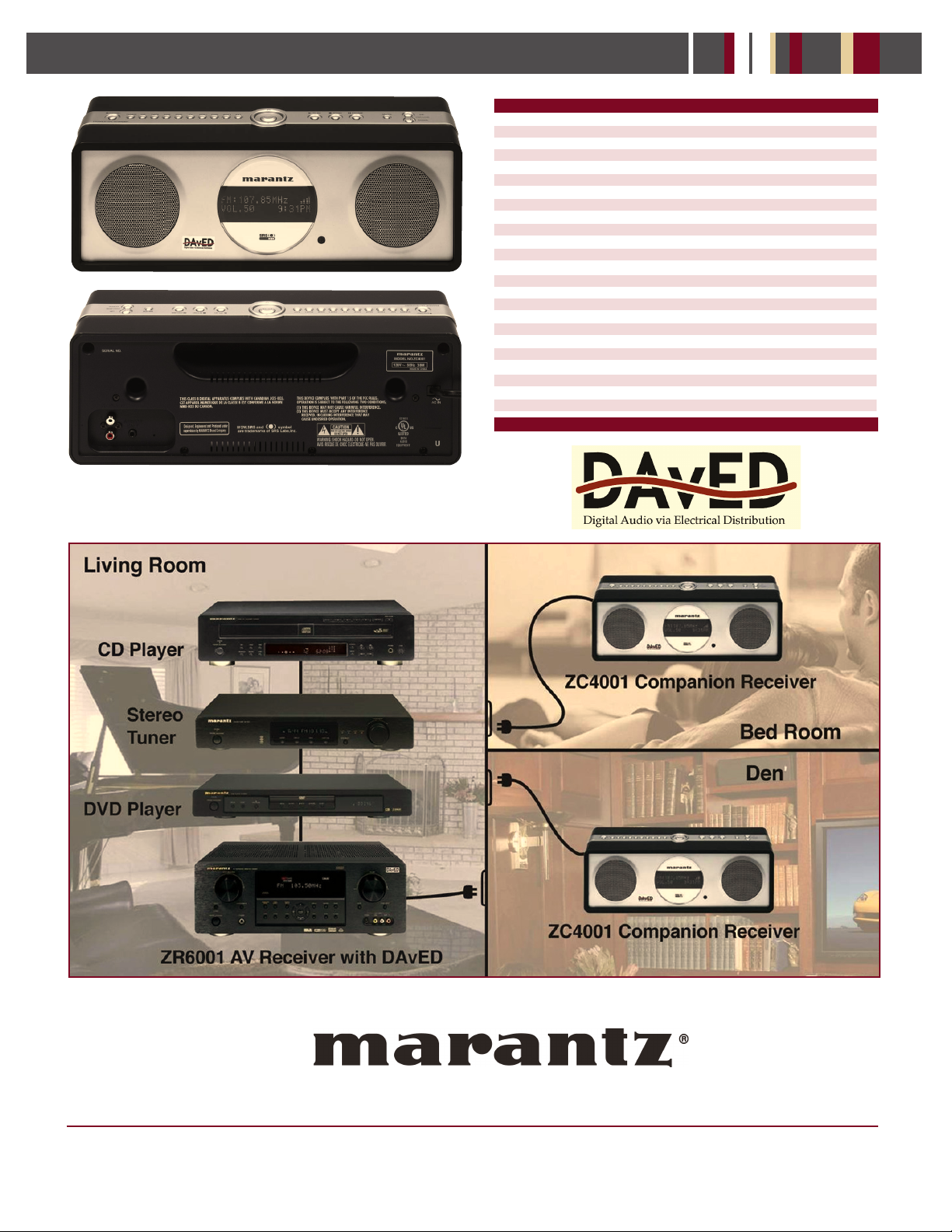

ZC4001 client is a fully self contained
DAvED receiver, amplifier and
speakers. It’s portable, so you can take
it anywhere that you have power and
access the audio from your main
system, including outdoors!
• Transportable DAvED client
• Built-in 10 watts x 2-ch powered speakers
• Up to six ZC4001 companion receivers
• Source product control by local keys and
remote can be connected to a ZR6001.
• Status feedback from ZR6001 on the FL display
• Instant audio distribution by connecting AC cord
• Wake-up timer
• Sound enhancement by SRS WOW
• Sleep timer
Life Amplified
• Bass boost mode
• Display dimmer
• External analog input
• Three year limited warranty
M
TM
ZR6001 A/V RECEIVER
®
FEATURES
MULTICHANNEL/SURROUND
Number of Channels
THX
DTS (ES, Discrete 6.1/ Matrix 6,1, Neo-6)
Dolby Digital EX
Dolby Pro Logic IIx
Circle Surround II
SOUND ENHANCEMENTS
HDCD Decoder
Current Feedback Topology
Discrete Amplification
Power Transformer
D/A Conversion
Digital Signal Processing
Video Off
Source Direct
Chassis
Variable X-over
Display Off
Video Up-conversion
Auto Calibration
XM-Ready
Dual AM/FM tuner
Bass management
Lip-sync (digital audio delay)
Software Upgradable (RS232)
IN/OUTPUTS
VIDEO
HDMI In
Component In
S-Video In
Composite In
HDMI Out
Component Out
S-Video Out
Composite Out
AUDIO
Analog L&R In
Analog L&R Out
Digital Optical In
Digital Coaxial In
Digital Optical Out
Digital Coaxial Out
IEEE1394 Connection
7
-
(+ 96/24)
•
•
•
•
•
•
(All 7ch)
•
EI
192kHz/24-Bit
Cirrus Logic© 32-Bit
•
•
Metal
•
•
Up to Component
-
-
-
-
•
-
-
2 (Assignable Inputs)
5
5
1
3
3
8
5
2
2
1
1
-
SPECIFICATIONS
AUDIO SECTION
Power Output (8 Ohm)
S/N Ratio
Freq. Response (Analog In)
Freq. Response (Dig In)
TUNER SECTION FM
Frequency Range
S/N Ratio (Mono/Stereo)
TUNER SECTION AM
Frequency Range
S/N Ratio
VIDEO SECTION
Video Freq. Response (Component)
Video Freq. Response (Composit, S-Video)
Signal to Noise
GENERAL
Color
Front Panel
Remote Control
Power Requirement
Power Consumption
Dimensions W" x H" x D" (Inches)
Weight (lbs)
IN/OUTPUTS (Continued)
OTHER
Pre-Amplifier Out
Main Amplifier In
Multi-Channel In
Multi-Room Audio Out
Multi-Room Video Out
Multi-Room Speaker Out
Speaker A/B
DAvED Transmitter
External control (RS232C)
DC Triggers
D-Bus Remote (RC-5) In/Out
External IR In/Out
Front Panel A/V Inputs
Headphone Out
AC Outlets (Switched/Unswitched)
95x7
105db
8Hz - 100kHz (+/- 3 dB)
8Hz - 45kHz (+/- 3 dB)
87.5 - 108.0MHz
Mono/Stereo 75/70 dB
520 - 1710kHz
50db
5Hz - 80MHz (- 1 dB)
5Hz - 8MHz (- 1 dB)
60dB
Black
Pre-Coded System Remote RC5500SR
Aluminum
AC 120V/60Hz
450w
17 5/16" x 6 7/16" x 18 1/4"
30.2
8ch
-
8ch
1 (L&R)
-
•
Surround Speaker “B”
•
•
2/2
0/4
•
(Dolby Headphone)
•
1/1
Compatible
ZC4001 CLIENT & SYSTEM GUIDE
SPECIFICATIONS
Number of Channels
Output Power/Channel (20Hz - 20kHz)
Power Transformer
Sound Enhancer
Bass Boost
Display Dimmer
Clock
Wake-up Timer
Sleep Timer
IN/OUTPUTS
AUDIO
Analog L&R In
Analog L&R Out
Headphone Out
DAvED SPECIFICATIONS
Modulation Method
Frequency Range
Maximum Audio Transmision Quality
GENERAL
Color
Power Requirement
Power Consumption
Dimensions (Inches) W x H x D
Weight (lbs.)
2
10W
EI
SRS WOW
•
•
•
•
•
1
-
-
Multi carrier
2MHz - 20MHz
Equivalent to CD (44.1kHz/16-Bit)
Black Metalic
AC 120V 60Hz
36W
14 1/4" x 5 1/16" x 4 3/8"
6.6
M
TM
Life Amplified
D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors in this spec sheet which may result in consequential errors being made by retail
dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document.
*All specifications, dimensions and weights are subject to change without notice.
©2006 Marantz America,Inc. • www.marantz.com
