Marantz SR5600 User Manual

Model SR5600 User Guide

AV Surround Receiver

ENGLISH

WARRANTY

For warranty information, contact your local Marantz
distributor.

RETAIN YOUR PURCHASE RECEIPT

Your purchase receipt is your permanent record of a
valuable purchase. It should be kept in a safe place to
be referred to as necessary for insurance purposes
or when corresponding with Marantz.

IMPORTANT

When seeking warranty service, it is the responsibility
of the consumer to establish proof and date of
purchase. Your purchase receipt or invoice is
adequate for such proof.

FOR U.K. ONLY

This undertaking is in addition to a consumer's
statutory rights and does not affect those rights in
any way.

FRANÇAIS

GARANTIE

Pour des informations sur la garantie, contacter le
distributeur local Marantz.

CONSERVER L'ATTESTATION D'ACHAT

L'attestation d'achat est la preuve permanente
d'un achat de valeur. La conserver en lieu sur pour
s'y reporter aux fins d'obtention d'une couverture
d'assurance ou dans le cadre de correspondances
avec Marantz.

IMPORTANT

Pour l'obtention d'un service couvert par la
garantie, il incombe au client d'établir la preuve de
l'achat et d'en corroborer la date. Le reçu ou la
facture constituent des preuves suffisantes.

DEUTSCH

GARANTIE

Bei Garantiefragen wenden Sie sich bitte an Ihren
Marantz-Händler.

HEBEN SIE IHRE QUITTING GUT AUF

Die Quittung dient Ihnen als bleibende Unterlage
für Ihren wertvollen Einkauf Das Aufbewahren der
Quittung ist wichtig, da die darin enthaltenen
Angaben für Versicherungswecke oder bei
Korrespondenz mit Marantz angeführt werden
müssen.

WICHTIG!

Bei Garantiefragen muß der Kunde eine
Kaufunterlage mit Kaufdatum vorlegen. Ihren
Quittung oder Rechnung ist als Unterlage
ausreichend.

NEDERLANDS

GARANTIE

Voor inlichtingen omtrent garantie dient u zich tot
uw plaatselijke Marantz.

UW KWITANTIE, KASSABON E.D. BEWAREN

Uw kwitantie, kassabon e.d. vormen uw bewijs van
aankoop van een waardevol artikel en dienen op
een veilige plaats bewaard te worden voor evt,
verwijzing bijv, in verbend met verzekering of bij
correspondentie met Marantz.

BELANGRIJK

Bij een evt, beroep op de garantie is het de
verantwoordelijkheid van de consument een
gedateerd bewijs van aankoop te tonen. Uw
kassabon of factuurzijn voldoende bewijs.

ESPAÑOL

GARANTIA

Para obtener información acerca de la garantia
póngase en contacto con su distribuidor Marantz.

GUARDE SU RECIBO DE COMPRA

Su recibo de compra es su prueba permanente de
haber adquirido un aparato de valor, Este recibo
deberá guardarlo en un lugar seguro y utilizarlo
como referencia cuando tenga que hacer uso del
seguro o se ponga en contacto con Marantz.

IMPORTANTE

Cuando solicite el servicio otorgado por la garantia
el usuario tiene la responsabilidad de demonstrar
cuándo efectuó la compra. En este caso, su recibo
de compra será la prueba apropiada.

ITALIANO

GARANZIA

L’apparecchio è coperto da una garanzia di buon
funzionamento della durata di un anno, o del
periodo previsto dalla legge, a partire dalla data di
acquisto comprovata da un documento attestante
il nominativo del Rivenditore e la data di vendita.
La garanzia sarà prestata con la sostituzione o la
riparazione gratuita delle parti difettose.
Non sono coperti da garanzia difetti derivanti da
uso improprio, errata installazione, manutenzione
effettuata da personale non autorizzato o,
comunque, da circostanze che non possano
riferirsi a difetti di funzionamento dell’apparecchio.
Sono inoltre esclusi dalla garanzia gli interventi
inerenti l’installazione e l’allacciamento agli
impianti di alimentazione.
Gli apparecchi verranno riparati presso i nostri
Centri di Assistenza Autorizzati. Le spese ed i
rischi di trasporto sono a carico del cliente.
La casa costruttrice declina ogni responsabilità per
danni diretti o indiretti provocati dalla inosservanza
delle prescrizioni di installazione, uso e manutenzione
dettagliate nel presente manuale o per guasti dovuti
ad uso continuato a fini professionali.

SVENSKA

GARANTI

För information om garantin, kontakta Marantz
lokalagent.

SPAR KVITTOT

Kvittot är ett inköpsbevis på en värdefull vara. Det
skall förvaras säkert och hänvisas till vid
försäkringsfall eller vidkorrespondens mod
Marantz.

VIKTIGT

Fö att garantin skall gälla är det kundens sak att
framställa bevis och datum om köpet. Kvitto eller
faktura är tillräokligt bevis fö detta.

CE MARKING

English

The SR5600 is in conformity with the EMC directive and low-voltage directive.

Français

Le SR5600 est conforme à la directive EMC et à la directive sur les basses tensions.

Deutsch

Das Modell SR5600 entspricht den EMC-Richtlinien und den Richtlinien für
Niederspannungsgeräte.

Nederlands

De SR5600 voldoet aan de EMC eisen en de vereisten voor laag-voltage.

Español

El SR5600 está de acuerdo con las normas EMC y las relacionadas con baja tensión.

Italiano

Il SR5600 è conforme alle direttive CEE ed a quelle per i bassi voltaggi.

Svenska

SR5600 är tillverkad i enlighet med EMC direktiven och direktiven för lågvoltsutrusning.

English

-

Do not expose the equipment to rain or moisture.

- Do not remove the cover from the equipment.
Do not insert anything into the equipment through

­the ventilation holes.

- Do not handle the mains cord with wet hands.

-

Do not cover the ventilation with any items such as
tablecloths, newspapers, curtains, etc.

-

No naked flame sources, such as lighted candles,
should be placed on the equipment.

-

When disposing of used batteries, please comply
with governmental regulations or environmental
public instruction’s rules that apply in your
country or area.

-

Do not place anything about 0.2 meter above the
top panel.

-

Make a space of about 0.2 meter around the unit.

-

No objects filled with liquids, such as vases, shall
be placed on the apparatus.

- When the switch is in the OFF position, the
equipment is not completely switched off from
MAINS.

WARNINGS

Français

- Ne pas exposer l’appareil à la pluie ni à l’humi­dité.

- Ne pas essayer de retirer le boîtier de l’appareil.

- Ne rien insérer dans l’appareil par les orifices de
ventilation.

- Ne pas manipuler le cordon d’alimentation avec
les mains mouillées.

- Ne pas recouvrir les ouïes de ventilation avec un
objet quelconque comme une nappe, un journal,
un rideau, etc.

- Ne placer aucune source de flamme nue,
comme une bougie allumée, sur l'appareil.

- Pour mettre au rebut les piles usées, respecter
les lois gouvernementales ou les règlements
officiels concernant l’environnement qui
s'appliquent à votre pays ou région.

- Ne placez aucun object à moins de 0,2 mètre
environ du panneau supérieur.

- Veiller à ce qu’aucun objet ne soit à moins de
0,2 mètre des côtés de l'appareil.

- Aucun objet rempli de liquide, un vase par
exemple, ne doit être placé sur l'appareil.

- Lorsque l'interrupteur est sur la position OFF,
l'appareil n'est pas complètement déconnecté
du SECTEUR (MAINS).

AVERTISSEMENTS

Deutsch

- Das Gerät nicht Regen oder Feuchtigkeit
aussetzen.

- Die Abdeckung nicht vom Gerät abnehmen.

- Keine Gegenstände durch die Belüftungs­schlitze stecken.

- Das Netzkabel nicht mit feuchten oder nassen
Händen anfassen.

-

Decken Sie die Lüftungsöffnungen nicht mit einem
Tischtuch, einer Zeitung, einem Vorhang usw. ab.

- Es dürfen keine Gegenstände mit offener
Flamme, wie etwa brennende Kerzen, auf dem
Gerät aufgestellt werden.

- Beachten Sie bei der Entsorgung der verbrauch­ten Batterien alle geltenden lokalen und überre­gionalen Regelungen.

- Darauf achten, daß über dem Gerät ein Frei­raum von mindestens 0.2 meter vorhanden ist.

- Auf allen Geräteseiten muß ein Zwischenraum
von ungefähr 0,2 meter vorhanden sein.

- Auf das Gerät dürfen keine mit Flüssigkeiten
gefüllte Behälter, wie etwa eine Vase, gestellt
werden.

- Wenn der Schalter ausgeschaltet ist (OFF­Position), ist das Gerät nicht vollständig vom
Stromnetz (MAINS) abgetrennt.

WARNHINWEISE

Nederlands

- Stel het apparaat niet bloot aan regen of vocht.

- Verwijder de afdekplaat van het apparaat niet.

- Duw niets door de ventilatieopeningen in het
apparaat.

- Raak het netsnoer niet met natte handen aan.

- Bedek de ventilatieopeningen niet met enige
voorwerpen, zoals tafelkleden, kranten,
gordijnen, enz.

- Plaats geen brandende voorwerpen, zoals
kaarsen, op het apparaat.

- Volg bij het weggooien van verbruikte batterijen
de overheidswetgeving of milieuvoorschriften op
die van kracht zijn in het land of de regio waarin
u zich bevindt.

- Zorg dat er tenminste 0.2 meter vrije ruimte
boven het toestel is.

- Zorg dat er 0,2 meter vrije ruimte rond het
toestel is.

- Plaats geen voorwerpen met een vloeistof erin,
zoals een bloemenvaas, op het apparaat.

- Als de schakelaar op OFF staat, is het apparaat
niet volledig losgekoppeld van de netspanning
(MAINS).

WAARSCHUWINGEN

Español

-

No exponga el equipo a la lluvia ni a la humedad.

- No extraiga la tapa del equipo.

- No introduzca nada en el interior del equipo a
través de los orificios de ventilación.

- No maneje el cable de alimentación con las
manos mojadas.

- No cubra la ventilación con objetos como man­teles, periódicos, cortinas, etc.

- No deben colocarse sobre el equipo elementos
con fuego, por ejemplo velas encendidas.

- Cuando se eliminen baterías usadas, deben
cumplirse las reglamentaciones oficiales o las
normas de protección medioambiental aplica­bles en su país o en su zona.

- No ponga nada a menos de 0.2 metro por
encima del panel superior.

- Deje un espacio de unos 0,2 metro alrededor de
la unidad.

-

No se deben colocar sobre el aparato recipientes
que contengan líquidos, como por ejemplo
jarrones.

- Cuando el interruptor está en la posición OFF, el
equipo no está completamente desconectado
de la alimentación MAINS.

ADVERTENCIAS

Italiano

- Non esporre l’apparecchio alla pioggia o all’umi-
dità.

- Non rimuovere il coperchio dell’apparecchio.

- Non introdurre oggetti all’interno dell’apparec­chio attraverso i fori di ventilazione.

- Non toccare il cavo di alimentazione con le mani
bagnate.

- Non coprire le fessure di ventilazione con
tovaglie, giornali, tende od oggetti analoghi.

- Non posare sull'apparecchio sorgenti di fiamme
scoperte quali candele accese.

- Smaltire le pile usate in conformità alle norme
governative o disposizioni ambientali vigenti nel
proprio paese o zona.

- Non posare alcun oggetto sopra il pannello
superiore, lasciando libero uno spazio di circa
0,2 m.

- Lasciare 0,2 metro liberi tutto intorno l'unità.

-

Non mettere sull'apparecchiatura alcun
contenitore di liquido, come ad esempio dei vasi.

- Quando l'interruttore è nella posizione OFF,
l'apparecchiatura non è completamente
scollegata da MAINS.

AVVERTENZE

Svenska

- Utsätt inte utrustningen för regn eller fukt.

- Ta inte bort utrustningens hölje.
För inte in föremål i utrustningen genom ventilations-

­hålen.

- Hantera inte nätsladden med våta händer.

-Täck inte för ventilationsöppningarna med några
föremål som till exempel bordsdukar, dagstid­ningar, gardiner e.d.

- Inga föremål med öppen låga, som till exempel
tända stearinljus, bör placeras på utrustningen.

-Följ de lagar och miljöskyddsråd som gäller i det
land eller område där du bor när du gör dig av
med batterier.

- Placera inte någonting närmare än 0.2 meter
ovanför apparaten eller enheten.

- Se till att det finns omkring 0,2 meter fri plats
runt omkring enheten.

- Inga objekt som är fyllda med någon vätska, till
exempel blomstervaser, bör placeras på
apparaten.

- Även om strömbrytaren står i det avstängda
läget OFF, så är utrustningen inte helt
bortkopplad från det elektriska nätet (MAINS).

VARNINGAR

TABLE OF CONTENTS FOREWORD

20 cm (8 ins.)

20 cm (8 ins.)

SURROUND

AV SURROUND RECEIVER SR5600

DOWN

UP

VOLUME

INPUT SELECTOR

POWER ON/OFF PHONES

STANDBY

MUTE

MULTI

M. SPEAKER B

7.1CH INPUT

PURE

SETUP

DIRECT

SIMPLE

AUTO

HT-EQ

MENU

ENTER

DISPLAY

MEMORY

CLEAR

T-MODE

EXIT

BAND

MODE

DISPMULTI AUTO TUNED ST V – OFFNIGHT PEAK ANALOG

DIGITAL

ATT

SLEEP

SURR

AUTO

DIRECT DISC 6.1MTX 6.1 EQ

DIGITAL

SURROUND

PCM

LCR

SLS SR

LFE

AUX 1 INPUT

AUDIOS-VIDEO VIDEO L R

INTRODUCTION

FOREWORD ........................................ 1

EQUIPMENT MAINS WORKING SETTING ..................... 1

COPYRIGHT ..................................................................... 1

INTRODUCTION.................................. 1

A NOTE ABOUT

RECYCLING ........................................ 1

DESCRIPTION..................................... 2

FEATURES .......................................... 3

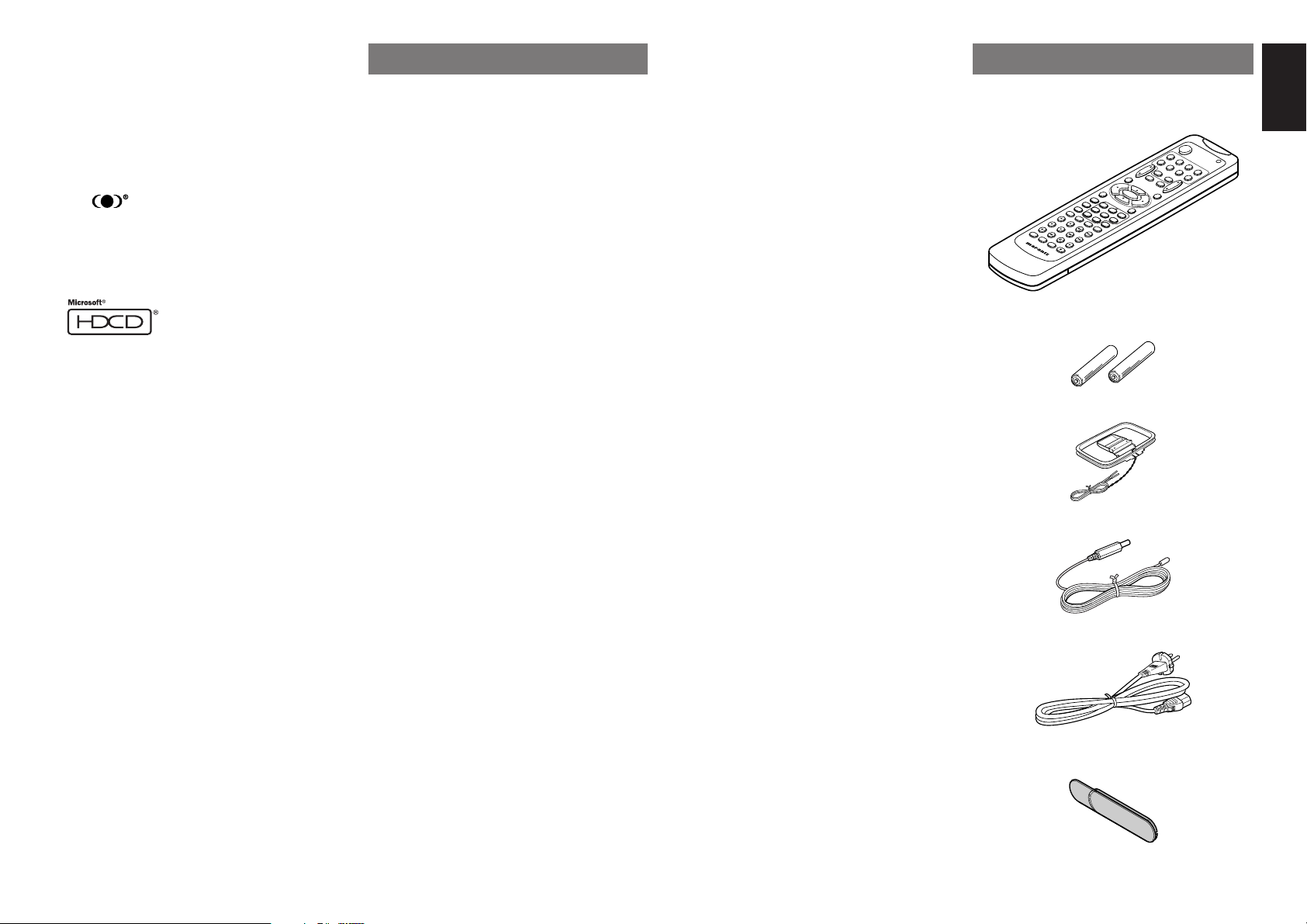

ACCESSORIES ................................... 3

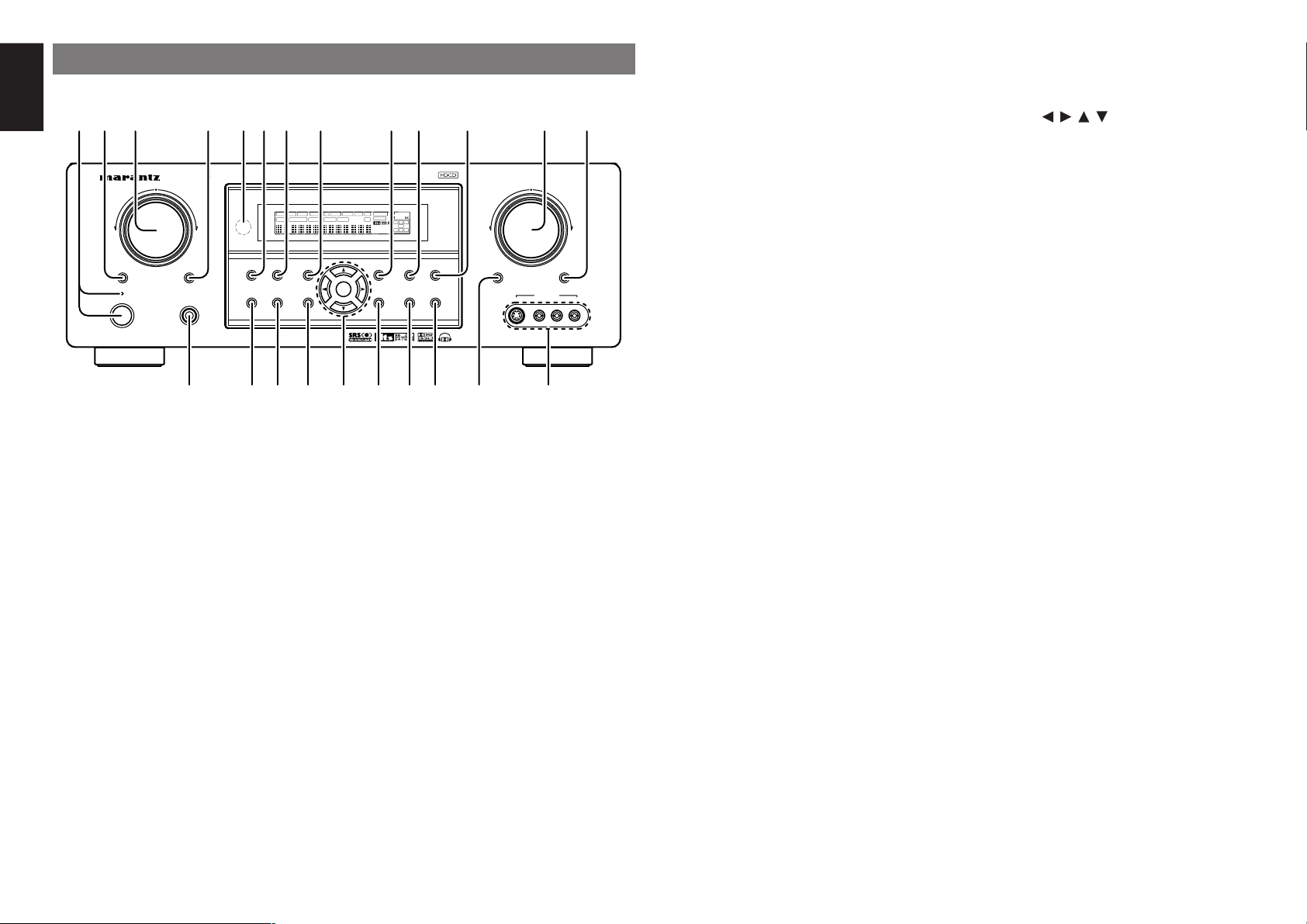

FRONT PANEL .................................... 4

FL DISPLAY ...................................................................... 5

REAR PANEL ...................................... 6

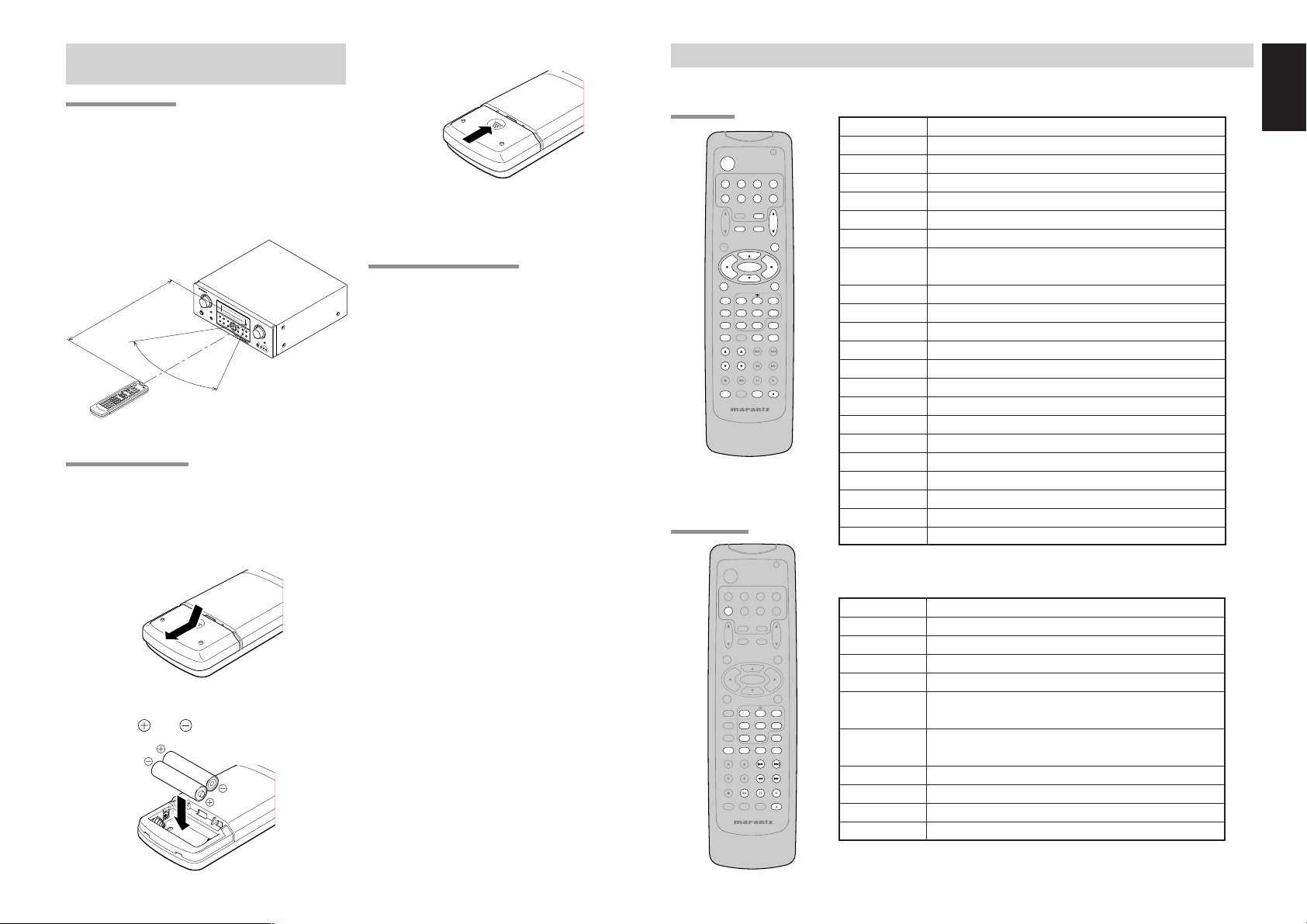

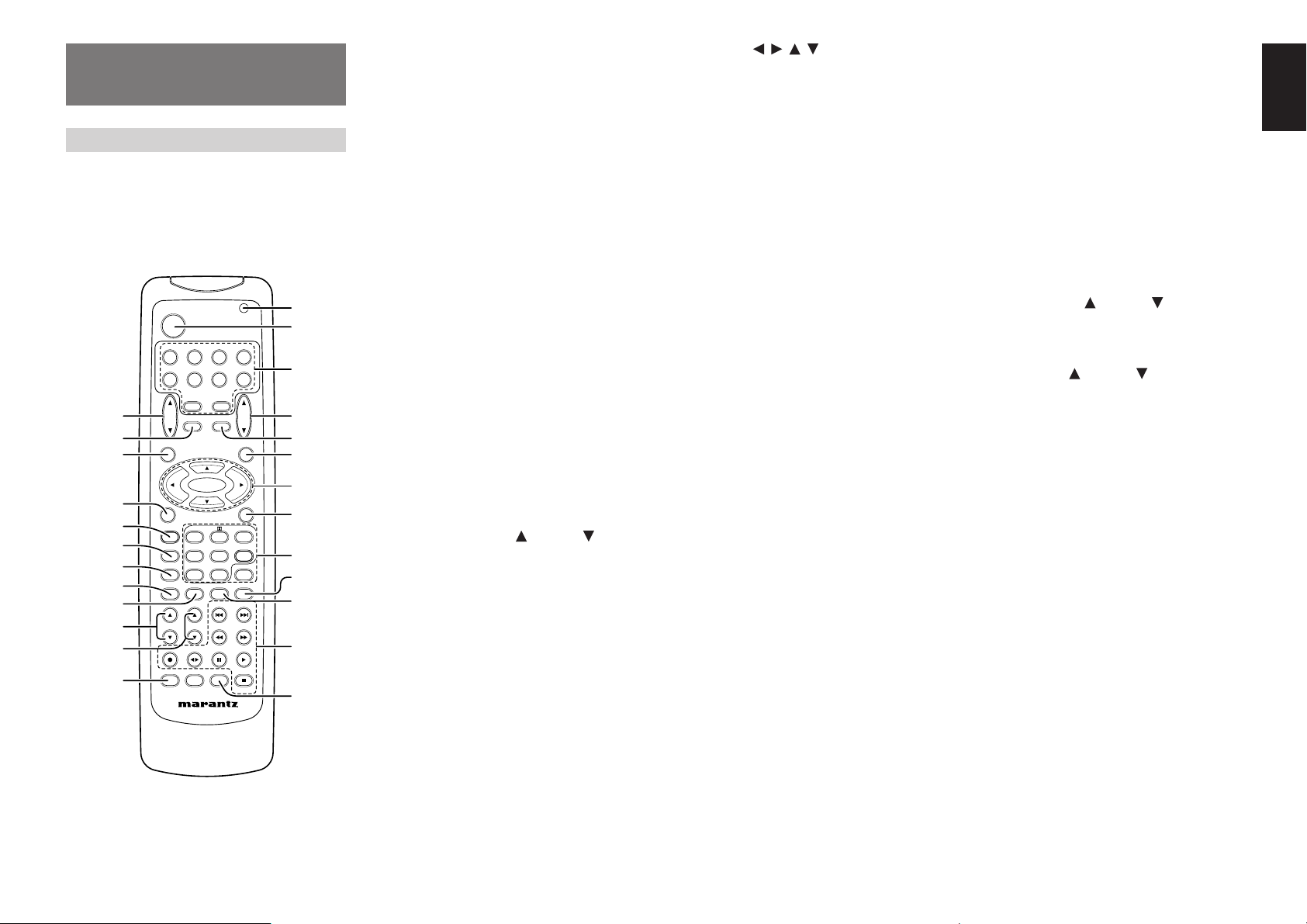

REMOTE CONTROL OPERATION ..... 7

FUNCTION AND OPERATION ......................................... 7

PROGRAMMING THE REMOTE CONTROLLER ............ 8

OPERATION OF REMOTE CONTROL UNIT ................... 9

GENERAL INFORMATION OF RC5500SR TO SR5600 .. 9

CONNECTIONS................................. 11

SPEAKER PLACEMENT ................................................ 11

CONNECTING SPEAKERS ............................................ 11

CONNECTING AUDIO COMPONENTS ......................... 12

CONNECTING VIDEO COMPONENTS ......................... 13

ADVANCED CONNECTING ........................................... 14

CONNECTING THE REMOTE CONTROL JACKS ........ 14

CONNECTING THE ANTENNA TERMINALS ................. 15

CONNECTING FOR THE MULTI ROOM ........................ 16

SETUP ............................................... 17

ON SCREEN DISPLAY MENU SYSTEM ........................ 17

1 INPUT SETUP (ASSIGNABLE DIGITAL INPUT AND

COMPONENT VIDEO INPUT) ..................................... 18

2 SPEAKER SETUP ...................................................... 18

3 PREFERENCE ............................................................19

4 SURROUND ............................................................... 20

5 PL

MUSIC PARAMETER .................................................. 20

6 CS

7 MULTI ROOM.............................................................. 20

8 7.1 CH INPUT LEVEL ................................................. 21

SPEAKERS LEVEL SETTING WITHOUT TEST TONE ...

9

II

(PRO LOGIC II)

II

(CIRCLE SURROUND II) PARAMETER .......... 20

SIMPLE SETUP ................................. 22

BASIC OPERATION (PLAY BACK) .. 23

SELECTING AN INPUT SOURCE ..................................23

VIDEO CONVERT ........................................................... 23

SELECTING THE SURROUND MODE .......................... 23

ADJUSTING THE MAIN VOLUME .................................. 23

ADJUSTING THE TONE (BASS & TREBLE) CONTROL23
TEMPORARILY TURNING OFF

THE SOUND ................................................................ 24

USING THE SLEEP TIMER ............................................ 24

NIGHT MODE ................................................................. 24

SURROUND MODE........................... 24

OTHER FUNCTION ........................... 27

TV AUTO ON/OFF FUNCTION....................................... 27

ATTENUATION TO ANALOG INPUT SIGNAL ................ 27

LISTENING THROUGH HEADPHONES ........................ 27

DOLBY HEADPHONE MODE ......................................... 27

VIDEO ON/OFF .............................................................. 27

DISPLAY MODE .............................................................. 27

SELECTING ANALOG AUDIO INPUT OR DIGITAL AUDIO

INPUT .......................................................................... 28

RECORDING AN ANALOG SOURCE ............................ 28

HT-EQ ............................................................................. 28

7.1 CH INPUT ................................................................. 28

AUX2 INPUT ................................................................... 29

LIP.SYNC ........................................................................ 29

BASIC OPERATION (TUNER) .......... 29

LISTENING TO THE TUNER .......................................... 29

PRESET MEMORY .........................................................30

RDS OPERATION ........................................................... 31

MULTI ROOM

SYSTEM ............................................ 32

MULTI ROOM PLAYBACK USING THE MULTI ROOM

OUT TERMINALS ........................................................ 32

MULTI ROOM PLAYBACK USING THE MULTI SPEAKER

TERMINALS ................................................................. 32

TROUBLESHOOTING....................... 33

TECHNICAL

SPECIFICATIONS ............................. 34

21

DIMENSIONS .................................... 34

This section must be read before any connection is
made to the mains supply.

EQUIPMENT MAINS WORKING
SETTING

Your Marantz product has been prepared to
comply with the household power and safety
requirements that exist in your area.
SR5600 can be powered by 230V AC only.

COPYRIGHT

Recording and playback of any material may
require consent. For further information refer to the
following:

— Copyright Act 1956
— Dramatic and Musical Performers Act 1958
— Performers Protection Acts 1963 and 1972
— Any subsequent statutory enactments and

orders

CAUTIONS ON INSTALLATION

For heat dispersal, leave at least 20 cm/8 inch of
space between the top, back and sides of this unit
and the wall or other components.

• Do not obstruct the ventilation holes.

Thank you for purchasing the Marantz SR5600
Surround receiver.
This remarkable component has been engineered
to provide you with many years of home theater
enjoyment. Please take a few minutes to read this
manual thoroughly before you connect and
operate the SR5600.
As there are a number of connection and
configuration options, you are encouraged to
discuss your own particular home theater setup
with your Marantz A/V specialist dealer.

A NOTE ABOUT
RECYCLING

This product’s packaging materials are recyclable
and can be reused. This product and the
accessories packed together are the applicable
product to the WEEE directive except batteries.
Please dispose of any materials in accordance
with your local recycling regulations.
When discarding the unit, comply with your local
rules or regulations.
Batteries should never be thrown away or
incinerated but disposed of in accordance with your
local regulations concerning chemical wastes.

ENGLISH

1

ENGLISH

DESCRIPTION

DTS was introduced in 1994 to provide 5.1 channels
of discrete digital audio into home theater systems.
DTS brings you premium quality discrete
multichannel digital sound to both movies and music.
DTS is a multichannel sound system designed to
create full range digital sound reproduction.
The no compromise DTS digital process sets the
standard of quality for cinema sound by delivering
an exact copy of the studio master recordings to
neighborhood and home theaters.
Now, every moviegoer can hear the sound exactly
as the moviemaker intended.
DTS can be enjoyed in the home for either movies
or music on of DVD’s, LD’s, and CD’s.

“DTS” and “DTS Digital Surround” are registered
trademarks of Digital Theater Systems, Inc.

The advantages of discrete multichannel systems
over matrix are well known.
But even in homes equipped for discrete
multichannel, there remains a need for high-quality
matrix decoding. This is because of the large library
of matrix surround motion pictures available on disc
and on VHS tape; and analog television broadcasts.
The typical matrix decoder of today derives a
center channel and a mono surround channel from
two-channel matrix stereo material. It is better than
a simple matrix in that it includes steering logic to
improve separation, but because of its mono,
band-limited surround it can be disappointing to
users accustomed to discrete multichannel.

Neo:6 offers several important improvements as
follow,

• Neo:6 provides up to six full-band channels of
matrix decoding from stereo matrix material.
Users with 6.1 and 5.1 systems will derive six
and five separate channels, respectively,
corresponding to the standard home-theater
speaker layouts.

•

Neo:6 technology allows various sound elements
within a channel or channels to be steered
separately, and in a way which follows naturally
from the original presentation.

•

Neo:6 offers a music mode to expand stereo
nonmatrix recordings into the five- or six-channel
layout, in a way which does not diminish the subtlety
and integrity of the original stereo recording.

2

DTS-ES Extended Surround is a new multichannel
digital signal format developed by Digital Theater
Systems Inc. While offering high compatibility with
the conventional DTS Digital Surround format,
DTS-ES Extended Surround greatly improves the
360-degree surround impression and space
expression thanks to further expanded surround
signals. This format has been used professionally
in movie theaters since 1999.
In addition to the 5.1 surround channels (FL, FR, C,
SL, SR and LFE), DTS-ES Extended Surround
also offers the SB (Surround Back) channel for
surround playback with a total of 6.1 channels.
DTS-ES Extended Surround includes two signal
formats with different surround signal recording
methods, as DTS-ES Discrete 6.1 and DTS-ES
Matrix 6.1.

“DTS”, “DTS-ES” and “Neo:6” are trademarks of
Digital Theater Systems, Inc.

The stereo CD is a 16-bit medium with sampling at

44.1 kHz. Professional audio has been 20- or 24­bit for some time, and there is increasing interest in
higher sampling rates both for recording and for
delivery into the home. Greater bit depths provide
extended dynamic range. Higher sampling rates
allow wider frequency response and the use of
anti-alias and reconstruction filters with more
favorable aural characteristics.

DTS 96/24 allows for 5.1channel sound tracks to
be encoded at a rate of 96kHz/24bits on DVD­Video titles.
When DVD-video appeared, it became possible to
deliver 24-bit, 96 kHz audio into the home, but only
in two channels, and with serious limitations on
picture. This capability has had little use.
DVD-audio allows 96/24 in six channels, but a new
player is needed, and only analog outputs are
provided, necessitating the use of the D/A
converters and analog electronics provided in the
player.

DTS 96/24 offers the following:

1. Sound quality transparent to the original 96/24
master.

Full backward compatibility with all existing

2.
decoders. (Existing decoders will output a 48 kHz
signal)

3.No new player required: DTS 96/24 can be
carried on DVD-video, or in the video zone of
DVD-audio, accessible to all DVD players.

4. 96/24 5.1-channel sound with full-quality full­motion video, for music programs and motion
picture soundtracks on DVD-video.

“DTS” and “DTS 96/24” are trademarks of Digital
Theater Systems, Inc.

Dolby Digital identifies the use of Dolby Digital
audio coding for such consumer formats as DVD
and DTV. As with film sound, Dolby Digital can
provide up to five full-range channels for left,
center, and right screen channels, independent left
and right surround channels, and a sixth (“.1”)
channel for low-frequency effects.

Dolby Surround Pro Logic II is an improved matrix
decoding technology that provides better spatiality
and directionality on Dolby Surround program
material; provides a convincing three-dimensional
soundfield on conventional stereo music
recordings; and is ideally suited to bring the
surround experience to automotive sound. While
conventional surround programming is fully
compatible with Dolby Surround Pro Logic II
decoders, soundtracks will be able to be encoded
specifically to take full advantage of Pro Logic II
playback, including separate left and right
surround channels. (Such material is also
compatible with conventional Pro Logic decoders.)

Dolby Digital EX creates six full-bandwidth output
channels from 5.1-channel sources. This is done
using a matrix decoder that derives three surround
channels from the two in the original recording.
For best results, Dolby Digital EX should be used
with movies soundtracks recorded with Dolby
Digital Surround EX.

About Dolby Pro Logic

Dolby Pro Logic II x technology delivers a natural
and immersing 7.1-channel listening experience to
the home theater environment. A product of
Dolby’s expertise in surround sound and matrix
decoding technologies, Dolby Pro Logic II x is a
complete surround sound solution that maximizes
the entertainment experience from stereo as well
as 5.1-channel encoded sources.

II x

Dolby Pro Logic II x is fully compatible with Dolby
Surround Pro Logic technology and can optimally
decode the thousands of commercially available
Dolby Surround encoded video cassettes and
television programs with enhanced depth and
spatiality. It can also process any high-quality
stereo or Advanced Resolution 5.1-channel music
content into a seamless 6.1- or 7.1-channel
listening experience.

The Dolby Headphone technology provides a
surround sound listening experience over headphones.
When listening to multichannel content such as
DVD movies over headphones, the listening
experience is fundamentally different than
listening to speakers. Since the headphone
speaker drivers are covering the pinna of the ear,
the listening experience differs greatly from
traditional speaker playback. Dolby utilizes
patented headphone perspective curves to solve
this problem and provides a non-fatiguing,
immersive, home theater listening experience.
Dolby Headphone also delivers exceptional 3D
audio from stereo material.

Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and the double­D symbol are trademarks of Dolby Laboratories.

Circle Surround II (CS-II ) is a powerful and
versatile multichannel technology. CS-II is
designed to enable up to 6.1 multichannel
surround sound playback from mono, stereo, CS
encoded sources and other matrix encoded
sources. In all cases the decoder extends it into 6
channels of surround audio and a LFE/subwoofer
signal. The CS-II decoder creates a listening
environment that places the listener “inside” music
performances and dramatically improves both hi-fi
audio conventional surround-encoded video
material. CS-II provides composite stereo rear
channels to greatly improve separation and image
positioning – adding a heightened sense of realism
to both audio and A/V productions.

CH.SEL

LIP.SYNC

PTY

SUB-T/ATT

AU

DIO

INPUT/DISC+

F.DIRECT

RDS

TUNE/SEARCH

T-MODE

TREB

LE

CHA

NNEL/

SK

IP

BASS

A/D

P.SCAN/V-OFF

7.1CH
IN

STER

EO

MCH

-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII

EX/ES

VIRTUAL

DTS

S-DIRECT

AUTO

T.TON

E

MEN

U OFF

SETUP/

MENU

O
SD

SLEEP

MUTE

AMP

AUX1

TUNER

CD

TAPE

CD

R/M

D

DVD

POWER

VCR1

DS

S/VCR2

TV

SYSTEM REMOTE CONTRO

LLER

RC5500SR

ENTER

0

321

654

9

8

7

VOL.

MAIN

VOL.

TV

PUSH

PUSH

CS-II is packed with other useful feature like dialog
clarity (SRS Dialog) for movies and cinema-like
bass enrichment (TruBass). CS-II can enable the
dialog to become clearer and more discernable in
movies and it enables the bass frequencies
contained in the original programming to more
closely achieve low frequencies – overcoming the
low frequency limitations of the speakers by full
octave.

Circle Surround II , Dialog Clarity, TruBass, SRS
and symbol are trademarks of SRS Labs,
Inc.
Circle Surround II , Dialog Clarity and TruBass
technology are incorporated under license from
SRS Labs, Inc.

HDCD® (High Definition Compatible Digital ®) is a
patented process for delivering on Compact Disc
the full richness and details of the original
microphone feed.
HDCD encoded CDs sound better because they
are encoded with 20-bits of real musical
information as compared to 16-bits for all other
CDs.
HDCD overcomes the limitation of the 16-bit CD
format by using a sophisticated system to encode
the additional four bits onto the CD while remaining
completely compatible with the CD format.
When listening to HDCD recordings, you hear
more dynamic range, a focused 3-D sound stage,
and extremely natural vocal and musical timbre.
With HDCD, you get the body, depth and emotion
of the original performance not a flat, digital
imitation.

HDCD system manufactured under license from
Microsoft. This product is covered by one or more
of the following: In the United States 5,479,168
5,638,074 5,640,161 5,808,574 5,838,274
5,854,600 5,864,311 5,872,531 and in Australia
669,114 with other patents pending.

FEATURES

The SR5600 incorporates the latest generation of
digital surround sound decoding technology such
as Dolby Digital EX, Dolby Digital, DTS-ES
(Discrete 6.1 and Matrix 6.1), DTS Neo:6 (Cinema,
Music), Dolby Pro-Logic IIx (Movie, Music and
Game), Circle Surround II (Cinema and Music) .
In addition, Marantz has focused on the future. By
utilizing pre-out jacks, 7.1 direct inputs and a RS­232C communication port, the SR5600 is
tomorrow’s technology, today!

The SR5600 features a fully discrete 7 channel
amplifier section capable of delivering 90 watts of
high-current amplification, for continuously clean
and stable power into each of the 7 channels. It
employs a massive EI power transformer in
combination with oversized filter capacitors.
Current feedback topology allows total operation
stability, while requiring minimal amounts of
negative feed-back, resulting in an excellent
transient frequency response and superb sonic
transparency. This design configuration is capable
of a clear and powerful reproduction of the most
demanding action movie soundtracks and full
range (multichannel) music discs. Through its
ability to generate very high output voltages, the
SR5600 can easily drive the most demanding
speakers with optimum results.

The SR5600 incorporates the most advanced
Digital Signal Processing circuitry, along with a

®

Crystal

192 kHz/24 bit D/A converter in each of
the 7 channels. Independent power supply circuits
are incorporated for the FL display, audio and
video sections for maximum separation, clarity
and dynamic range. Together with hand-selected
customized components, all elements work in
harmony to recreate the emotion, exactly as the
artist had intended.

The SR5600 is designed and engineered with
extensive feedback from custom installation
experts, dealers and consumers. It features multi­room/multisource, a RS-232C communication

An easy-to-use universal remote control allows full
access to all of the operating functions and can be
used for system operation as well.

This unit has Simple Setup function for easy setup.
You can setup all speaker settings by just selecting
your room size and the number of your speakers
with Simple Setup function. You can also setup
customized settings just like conventional AV
amplifiers.

• Dolby Digital EX, Dolby Digital ,
DTS ES (Discrete 6.1, Matrix 6.1, Neo: 6)

• Dolby Headphone (DH1, DH2, DH3)

• Dolby Pro Logic II x (Movie, Music, Game)

• Circle Surround II (Movie, Music, Mono)

• HDCD decording

• 7 x 90 Watts (8 Ohm), Discrete Amplifiers

• High Power Current Feedback Circuitry

• Massive Energy Power Supply, Huge EI
Transformer, Large ELCO’s.

• 192 kHz/24 bit Crystal® DAC for all 8 Channels

• 32 bit Digital Surround Processing Chipsets

• Video Off Mode

• Large Heavy Duty Speaker Terminals for all

Channels

• RS-232C Terminal for System Control

• Set Up Menu via all Video Output (Composite,

S-Video and Component video)

• Auto Input Signal Detection

• Improved Station Name Input Method, 50

Presets

• Auto Adjust Function for Speaker Distance
Settings (Delay Time)

• Front AUX Input (Digital Camera, Portable DVD)

• Universal remote control

• Simple Setup Function

• Video convert system

• LIP.SYNC Funciton (Audio delay)

ACCESSORIES

Remote Controller RC5500SR

ENGLISH

AAA-size batteries X 2

AM Loop Antenna

FM Antenna

AC Power Cord

port, heavy duty speaker binding posts and an
extensive array of both analog and digital inputs /
outputs. With 4 assignable digital inputs, 2
assingnable component inputs, SACD Multi
Channel (7.1 channel) direct inputs video convert
system and OSD output versatility is taken to a
stunning new level. Furthermore, the SR5600 can
output the OSD information through the Y/C (S­video) and composite video outputs.

Front AUX Jack Cover

User Guide

3

ENGLISH

SURROUND

AV SURROUND RECEIVER SR5600

DOWN

UP

VOLUME

INPUT SELECTOR

POWER ON/OFF PHONES

STANDBY

MUTE

MULTI

M. SPEAKER B

7.1CH INPUT

PURE

SETUP

DIRECT

SIMPLE

AUTO

HT-EQ

MENU

ENTER

DISPLAY

MEMORY

CLEAR

T-MODE

EXIT

BAND

MODE

DISP MULTI AUT O TUNED ST V – OFF NIGHT PEAK ANALOG

DIGITAL

ATT

SLEEP

SURR

AUTO

DIRECT DISC 6.1 MTX 6.1 EQ

DIGITAL

SURROUND

PCM

LCR

SL S SR

LFE

AUX 1 INPUT

AUDIOS-VIDEO VIDEO L R

!5!6!7!8 @3!9@0@1@2

qw yu !3io!0t!2!1re

!4

FRONT PANEL

q

Press the button to turn the power ON, and press
again to turn it OFF. If the POWER switch is in the
ON position, the power of this unit can be turned
ON/OFF by pressing the POWER button on the
remote control unit.
When this unit is in the standby mode with the
POWER switch set to the ON position, pressing
the ENTER button also allows to turn the power on.
The STANDBY indicator lights up when this unit is
the standby mode (power OFF) by the remote
control unit.

w

Press this button to activate the Multiroom system.
“MULTI” indicator will be illuminated in the display.

e

This knob is used to select the input sources.
The video function selector, such as TV, DVD, VCR1
and DSS, selects video and audio simultaneously.
Audio function sources such as CD, TAPE, CDR/
MD, and TUNER may be selected in conjunction
with a Video source.
This feature (Sound Injection) combines a sound
from one source with a picture from another.
Choose the video source first, and then choose a
different audio source to activate this function.

4

POWER switch and STANDBY indicator

MULTI (Multi Room) button

INPUT SELECTOR knob (AUDIO/ VIDEO)

r

M.(Multi Room) SPEAKER B button

Press this button to activate the Multiroom Speaker
B system. “MULTI” indicator will be illuminated in
the display.

t

(See page 32)

INFRARED receiving sensor window

This window receives infrared signals for the
remote control.

y

SURROUND MODE button

You can select the surround mode by pressing this
button.

u

PURE DIRECT button

When this button is pressed, the tone control
circuitry is bypassed as well as Bass Management.
“DIRECT” indicator will be illuminated in the
display.

Notes:

• The surround mode is automatically switched to
AUTO when the pure direct function is turned on.

• Additionally, Speaker Configurations are fixed
automatically as follows.
Front SPKR = Large, Center SPKR = Large,
Surround SPKR = Large, Sub woofer = On

• This function is unavailable when the M. speaker
B system is activated. While this function is
activated, this function will be canceled if the M.
SPEAKER B button is pressed.

i

SIMPLE SETUP button

Press this button to enter the simple setup mode.
You can setup the speaker conditions (speaker
sizes, number of speakers, speaker delay times)
quickly by pressing the cursor buttons.

o

DISPLAY button

When this button is pressed, the FL display mode
is changed as Surround Mode → Auto-display Off
→ Display Off → Input Function and the display off
indicator(DISP) lights up in condition of DISPLAY
OFF.

!0

MEMORY button

Press this button to enter the tuner preset memory
numbers or station names. (See page 30)

!1

CLEAR button

Press this button to cancel the station-memory
setting mode or preset scan tuning. (See page 30)

!2

VOLUME control knob

Adjusts the overall sound level. Turning the control
clockwise increases the sound level.

!3

7.1CH INPUT button

Press this button to select the output of an external
multichannel player.

!4

MUTE button

Press this button to mute the output to the
speakers. Press it again to return to the previous
volume level.

!5

T-MODE button

Press this button to select the auto stereo mode or
mono mode when the FM band is selected.
The “AUTO” indicator lights in the auto stereo
mode. (See page 30)

!6

BAND button

Press this button to switch between FM and AM in
the TUNER mode.

!7

EXIT button

This button is used to exit from the SETUP MAIN
MENU.

!8

Cursor ( , , , ) / ENTER button

Use these buttons when operating the SETUP
MAIN MENU and TUNER function.

!9

MENU button

This button is used to enter the SETUP MAIN
MANU.

@0

HT-EQ button

Used to turn on or off HT(Home Theater)-EQ
mode. This mode compensates for the audio
portion of a movie sounding “bright”. When this
button is pressed, “EQ” indicator lights up.

@1

AUTO (Auto surround) button

Press this button to select the AUTO mode from the
surround modes. When this mode is selected, the
receiver determines the surround mode
corresponding to a digital input signal automatically.

@2

HEADPHONE jack for stereo headphones

This jack may be used to listen to the SR5600’s
output through a pair of headphones. Be certain
that the headphones have a standard 1 / 4” stereo
phono plug. Note that the main room speakers will
automatically be turned off when the headphone
jack is in use.

Notes:

• When using headphones, the surround mode will
change to STEREO and Dolby Headphone by
MENU and Cursor button.

• The surround mode returns to the previous setting
as soon as the headphone plug is removed from
the jack.

@3

AUX1 INPUT jacks

These auxiliary video/audio input jacks accept the
connections of a camcorder, portable DVD, game
etc.

FL DISPLAY

DISP MULTI AUT O TUNED ST V – OFF NIGHT PEAK ANALOG

DIGITAL

ATT

SLEEP

SURR

AUTO

DIRECT DISC 6.1 MTX 6.1 SPKR B EQ

DIGITAL

SURROUND

PCM

L

C

R

SL S SR

LFE

¡8

¡7

g

s

a

¡6¡9

h k¡0¡2 ¡4f

j l ¡1

¡3

¡5d

ND

a

DISP (Display Off) indicator

This indicator is illuminated when the SR5600 is in
the display off condition.

s

SLEEP timer indicator

This indicator is illuminated when the sleep timer
function in the main-room is in use.

d

Multi-room system indicator

This indicator is illuminated when the multi-room
system is active.

f

AUTO SURR (Auto Surround mode)
indicator

This indicator is illuminated to show that the AUTO
SURROUND mode is in use.

g

TUNER’s indicators

AUTO : This indicator illuminates when the

TUNED : This indicator illuminates when a

ST(Stereo) : This indicator illuminates when an

tuner’s Auto mode is in use.

station is being received with
sufficient signal strength to provide
acceptable listening quality.

FM station is being tuned into
stereo condition.

j

V (video)-OFF mode indicator

This indicator is illuminated when the Video-OFF
function is active.

k

NIGHT mode indicator

This indicator is illuminated when the SR5600 is in
the Night mode, which reduces the dynamic range
of digital program material at low volume levels.

l

SPKR (speaker) B indicator

This indicator is illuminated when the M (Multiroom)
speaker B system is active.

¡0

PEAK indicator

This indicator is a monitor for an analog audio input
signal. If the selected analog audio input signal is
greater than the capable level of internal
processing, this will illuminate. If this happens, you
should press the ATT button on the remote.

¡1

EQ mode indicator

This indicator is illuminated when the HT-EQ
function is active.

¡2

ATT (Attenuation) indicator

This indicator is illuminated when the attenuation
function is active.

¡4

ANALOG input indicator

This indicator is illuminated when an analog input
source has been selected.

¡5

SIGNAL FORMAT indicators

2 DIGITAL, EX, 2 SURROUND, dts, ES, 96/24,
PCM

When the selected input is a digital source, some
of these indicators will be illuminated to display the
specific type of signal in use.

¡6

ENCODED CHANNEL STATUS
indicators

These indicators display the channels that are
encoded with a digital
input signal. If the selected digital input signal is
Dolby Digital 5.1ch or DTS 5.1ch, “L”, “C”, “R”,
“SL”, “SR” and “LFE” will be illuminated.If the
digital input signal is 2 channel PCM-audio, “L” and
“R” will be displayed.
If Dolby Digital 5.1ch signal with Surround EX flag
or DTS-ES signal comes in, “L”, “C”, “R”, “SL”, “S” ,
“SR” and “LFE” will be illuminated.

¡7

Main Information Display

This display shows messages relating to the
status, input source, surround mode, tuner,
volume level or other aspects of unit’s operation.

¡8

DIRECT (Puredirect) indicator

This indicator is illuminated when the SR5600 is in
the SOURCE DIRECT mode.

¡9

HDCD indicator

When HDCD signal is decoded from digital input,
this indicator will light up.

HOW TO ATTACH THE FRONT AUX JACK COVER

T

-M
OD

E

PUSH

PUSH

Front AUX Jack Cover

MUTE

UP

7.1CH INPU

S-VIDEO

T

AUX 1 INPUT

VIDEO

L

A

UDIO

R

ENGLISH

h

DTS-ES mode indicators
(DISC6.1, MTX6.1)

These indicators will illuminate to show the DTS­ES decoding mode (Discrete 6.1 or Matrix 6.1).

¡3

DIGITAL Input Indicator

This indicator lights when a digital input has been
selected.

5

ENGLISH

AMGND

ANTENNA

COMPONENT VIDEO

M.SPEAKER B

LL

SURROUNDCENTERFRONT

RRLR

SURROUND BACK

MODEL NO.SR5600

100W MAX.

230V

〜

50HZ

AC OUTLET

SPEAKER SYSTEMS : 6-8 OHMS

AC IN

SWITCHED

FM (75

Ω

)

CB

/

PB

CR

/

PR

CR

/

PR

CR

/

PR

CB

/

PB

CB

/

PB

INPUT-1

YY

MONITOR OUTINPUT-2

Y

COAX.

4

2

OPT.

1

3

DIGITAL OUT

DIGITAL IN

MONITOR

(AUX2)

OUTTV

VCR1

MONITOR

VIDEO

OUTIN

IN OUT

TAPE CDR/MD

OUT

SW

OUTIN

CD SBL

SBR

SLL

INOUT

IN

7.1CH

AUDIO

SR

IN

RC-5

SWR

IN

R

TV DVD DSS/VCR2

RSR

LSL

PRE

OUT

SBL

SBR

L

VCR1

VCR1

OUTOUTIN

DSS/VCR2

OUTIN

MULTI

OUT

RC

RS-232C

C

DSS/VCR2

DVD

S-VIDEO

OUTIN

C

DVDTV

OUT

MULTI

!0

!4

!3 !2 !1

tqw r yeui

!6 !5

o

REAR PANEL

q

VIDEO IN/OUT (TV, DVD, VCR1, DSS/VCR2)

These are the video inputs and outputs. There are
4 video inputs and 2 video outputs and each one
includes both composite video and S-video
configurations. Connect VCRs, DVD players, and
other video components to the video inputs.
The 2 video output channels can be used to be
connected to video tape recorders for making
recordings.
The input signals of video and S-video are
converted each other, and each of the converted
video signals can be output.

w

FM antenna terminal (75 ohms)

Connect an external FM antenna with a coaxial
cable, or a cable network FM source.

AM antenna and ground terminals

Connect the supplied AM loop antenna. Use the
terminals marked “AM” and “GND”. The supplied
AM loop antenna will provide good AM reception in

RS-232C

most areas. Position the loop antenna until you
hear the best reception.

e

The RS-232C port is to be used in conjunction with
an external controller to control the operation of the
SR5600 by using an external device.

y

Preamp Outputs
(L, R, SL, SR, SBL, SBR, C)

Jacks for L(front left), R (front right), C (Center), SL
(surround left), SR (surround right), SBL (surround
back left) and SBR (surround back right).
Use these jacks for connection to external power
amplifiers.

u

AC INLET

Plug the supplied power cord into this AC INLET
and then into the power outlet on the wall.
SR5600 can be powered by 230V AC only.

i

AC OUTLETS

Connect the AC power cable of component such
as a DVD or CD player to this outlet.
The marked SWITCHED provides power only
when the SR5600 is turned on and is useful for
components which you use every time you play
your system.

Caution:

• In order to avoid potential turn-off thumps,
anything plugged into these outlets should be
powered up before the SR5600 is turned on.

r

COMPONENT VIDEO INPUT/OUTPUT

If your DVD player or other device has component
video connectors, be sure to connect them to
these component video connectors on the
SR5600. The SR5600 has two component video
input connectors to obtain the color information (Y,
CB, CR) directly from the recorded DVD signal or
other video component and one component video
output connector to output it directly into the matrix
decoder of the display device.
By sending the pure DVD component video signal
directly, the DVD signal forgoes the extra
processing that normally would degrade the
image. The result is vastly increased image
quality, with incredibly life like colors and crisp
detail.
When the video convert function is enabled, video
and S-video images can be output to the
COMPONENT MOINTOR OUT jack.

t

MONITOR OUT

This is a monitor output and each one includes
both composite video and S-video configurations.
When connecting two video monitors or
televisions, be aware that the OSD interface can
be used with both MONITOR OUT connections.

• The capacity of this AC outlet is 100W. Do not
connect devices that consume electricity more
than the capacity of these AC outlet. If the total
power consumption of the connected devices
exceeds the capacity, the protection circuit shuts
down the power supply.

o

Speaker outputs terminals

Seven terminals are provided for the front left, front
right, front center, surround left, surround right,
surround back left and surround back right
speakers.

Note:

• You can use surround back speaker terminals as
M (Multiroom) SPEAKER B terminals, when you
use no surround back speaker.

!0

Subwoofer Output

Connect this jack to the line level input of a
powered subwoofer. If an external subwoofer
amplifier is used, connect this jack to the
subwoofer amplifier input. If you are using two
subwoofers, either powered or with a 2 channel
subwoofer amplifier, connect a “Y” connector to
the subwoofer output jack and run one cable from
it to each subwoofer amplifier.

!1

7.1 CHANNEL or AUX2 INPUT

By connecting a DVD Audio player, SACD
multichannel player, or other components that has
a multichannel port, you can playback the audio
with 5.1 channel or 7.1 channel outputs.

!2

Multiroom Outputs (Audio L&R)

These are the audio output jacks for the Multi zone
(Multi room).
Connect these jacks to optional audio power
amplifiers to listen the source selected by the
multiroom system in a remote room.

!3

MULTI ROOM REMOTE IN/OUT terminals

IN: Connect to a multi-room remote control

device, available from your Marantz dealer.

OUT: Connect to the Marantz component

equipped with remote control (RC-5)
terminals in Multi zone (Multi room).

!4

REMOTE CONT. IN/OUT terminals

Connect to a Marantz component equipped with
remote control (RC-5) terminals.

!5

AUDIO IN/OUT (CD, TAPE, CD-R, TV,
DVD, VCR1, DSS/VCR2)

These are the analog audio inputs and outputs.
There are 7 audio inputs (4 of which are linked to
video inputs) and 4 audio outputs (2 of which are
linked to video outputs). The audio jacks are
nominally labeled for cassette tape decks,

compact disc players, DVD players and etc.... The

audio inputs and outputs require RCA-type
connectors.

!6

DIGITAL INPUT (Dig.1 - 4) / OUTPUT
(coaxial, optical)

These are the digital audio inputs and outputs.
There are 2 digital inputs with coaxial jacks, 2 with
optical jacks.
The inputs accept digital audio signals from a
compact disc, LD, DVD, or other digital source
component.
For digital output, there is 1 coaxial output and 1
optical output.
The digital outputs can be connected to MD
recorders, CD recorders, DAT decks, or other
similar components.

6

ENTER

CH.SEL LIP.SYNC

PTY

SUB-T/ATT

AUDIO

INPUT/DISC+

F.DIRECT

RDS

TUNE/SEARCH

T-MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN/V-OFF

7.1CH IN

STEREO

MCH-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES VIRTUAL

DTS

PURE DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SET UP/

MENU

OSD

VOL.

TV

VOL.

MAIN

SLEEP

MUTE

AMPAUX1

TUNER

CD

TAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

TV

SYSTEM REMOTE CONTROLLER

RC5500SR

,

m

n

b

v

c

x

z

⁄1

⁄2

⁄5

¤3

¤2
¤1

¤0
⁄9

⁄8
⁄7

⁄6

¤4

⁄4

⁄3

¤5

.
⁄0

REMOTE CONTROL
OPERATION

FUNCTION AND OPERATION

The provided remote control unit is a universal
remote controller. The POWER button, numeric
buttons and control buttons are used in common
across different input source components.
The input source controlled with the remote control
unit changes when one of the input selector
buttons is pressed.

z

Transmitting indicator

Lights up during a button is pressed and an infrared
signal is sending.

x

(Main) POWER buttons

(when AMP mode is selected)

Press to switch the power of the SR5600 ON or OFF
after pressing the AMP button.

c

Input selector buttons/ FUNCTION
SELECTOR buttons (AUDIO/VIDEO INPUT)

These buttons are used to select a Audio or Video
source component. Press one of these buttons once
to change the function of the remote control. Press
same button within 2 seconds, the input function of
the SR5600 is changed.
Audio function sources such as CD, TAPE, CDR/
MD, and TUNER may be selected in conjunction
with a Video source.
This feature (Sound Injection) combines a sound
from one source with a picture from another.
Choose the video source first, and then choose a
different audio source to activate this function.

Notes:

• CDR/MD button is set CDR function at initial.

To switch MD function, press and hold down
CDR/MD button and press 2 button.

• To return CDR function, press and hold down

CDR/MD button and press 1 button.

v

MAIN VOLUME UP ( ) /DOWN ( ) buttons

Main volume control of the SR5600. The front, sur­round, center and subwoofer channel volumes con­trolled by these buttons simultaneously.

b

MUTE button

Muting button of the SR5600. Press this button de­crease the sound temporarily. Press this button
again to return to the previous sound.
When this button is pressed, “MUTE” indicator lights
up.

n

MENU button

(when AMP mode is selected)

This button is used to enter the SETUP MAIN MENU.

m

Cursor ( , , , ) / ENTER buttons

(when AMP mode is selected)

Use these button when operating the SETUP MAIN
MENU.

,

MENU OFF button

(when AMP mode is selected)

This button is used to exit from the SETUP MAIN
MENU.

.

Numeric buttons 1 to 9 / Surround mode
buttons

Numeric buttons

These buttons are used to enter figures in the selec­tion of a tuner preset station and station name pre­set or to set select a CD track number, etc. The func­tions of these buttons are dependent on the function
button selected.

Surround mode buttons
(when AMP mode is selected)

These buttons are used to select the surround mode.

⁄0

P.SCAN (Preset scan) / V(Video)-OFF
button

(when TUNER mode is selected)

This button is used to start preset scan when
SR5600 is selected TUNER mode.

(when AMP mode is selected)

This is used when switching the video signals from
the various monitor outputs to Video-Off mode.
(See page 27)

⁄1

0 / A/D button

0 button

This button is used to enter the number “0”

A/D button (when AMP mode is selected)

This is used to switch between the analog and
digital inputs.

⁄2

CONTROL buttons

These buttons are used when operating the CD
player, TAPE deck, etc.
The function of these buttons are dependent on the
function button selected.
For the controllable functions of each input function,
please refer to controllable function table on the page

10.

⁄3

SUB-T (Title) / ATT (attenuator) button

When the input signal is too high and the voice dis­torts even while adjusting the SR5600 VOLUME
control, turn on this function. “ATT ” is illuminated
when this function is activated.
The input level is reduced. Attenuator is invalid for
the output signal of “REC OUT”. (See page 27)

Note:

• This function is unavailable while the digital input
is selected.

⁄4

INPUT/DISC+ / CH.SEL buttons

This button is used to enter the input level setup
menu.

⁄5

TREBLE UP ( ) /DOWN ( ) buttons

These buttons are used to adjust the tone control of
high frequency sound for left and right speaker.

⁄6

BASS UP ( ) /DOWN ( ) buttons

These buttons are used to adjust the tone control of
low frequency sound for left, right and subwoofer
speaker.

⁄7

MEMO button

Memory enable button for various preset functions.

⁄8

CLEAR button

This button is used to cancel for certain memory or
programming operations.

⁄9

DISPLAY button

Selects the display mode for the front display of the
SR5600.

¤0

NIGHT button

Pressing this button prevents the Dolby Digital sig­nal from playback at a loud voice. This function re­duces the voice by 1/3 to 1/4 at maximum. Thus, it
eliminates the occurrence of an abruptly loud voice
at night. However, the function is valid only in the
case when the Dolby Digital signal is entered into
OPTICAL or COAXIAL and data to compress the
voice exists in the signal to be played back.
When this button is pressed, the “NIGHT” indicator
is illuminated.

ENGLISH

7

ENGLISH

MENU

OSD

VOL.

TV

VOL.

MAIN

SLEEP

MUTE

AMPAUX1

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

TV

1.

ENTER

PTY

SUB-T/ATT

AUDIO

INPUT/DISC+

F.DIRECT

RDS

TUNE/SEARCH

T-MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN/V-OFF

7.1CH IN

STEREO

MCH-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES VIRTUAL

DTS

PURE DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SET UP/

1.

2.

MENU

OSD

VOL.

TV

VOL.

MAIN

SLEEP

MUTE

AMP

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

TV

AUX1

2.

4.

4.

ENTER

TUNE/SEARCH

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN/V-OFF

7.1CH IN

STEREO

MCH-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES VIRTUAL

DTS

PURE DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SET UP/

2.

6.

3.

MENU

OSD

VOL.

TV

VOL.

MAIN

SLEEP

MUTE

AMP

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

TV

AUX1

1.

ENTER

F.DIRECT

RDS

TUNE/SEARCH

T-MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN/V-OFF

7.1CH IN

STEREO

MCH-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES VIRTUAL

DTS

PURE DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SET UP/

1.

3.

4.

2.

MENU

OSD

VOL.

TV

VOL.

MAIN

SLEEP

MUTE

AMP

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

TV

AUX1

1.

ENTER

TUNE/SEARCH

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN/V-OFF

7.1CH IN

STEREO

MCH-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES VIRTUAL

DTS

PURE DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SET UP/

MENU

OSD

1.

2.

¤1

PURE DIRECT button

When this button is pressed, the tone control
circuit is bypassed.

¤2

SETUP / T.TONE button

(when AMP mode is selected)

Used to enter the test tone menu.

¤3

OSD button

(when AMP mode is selected)

When this button is pressed, the current setting is
displayed on the TV monitor.

¤4

SLEEP (sleep timer) button

This button is used for setting the sleep timer. It
can be operated the same way as the button on the
unit.

¤5

TV VOLUME UP ( ) /DOWN ( ) buttons

These buttons increase or decrease TV’s volume.

PROGRAMMING THE REMOTE
CONTROLLER

The remote controller RC5500SR must be
programmed to use the codes for your appliances
of different brands. This is done by keying in a 4­digit code or by scanning the codes until the
correct one is found. We recommend to using the
4-digit code. This mode is faster and more reliable.
The code scanning method should be used only if
you cannot find the code for one of your
appliances. The codes are listed at the end of this
book.

Important:

•

Use the remote control buttons for programming,
not the buttons of the receiver or other appliances.

•

Some codes may be not match your equipment.
In this case, your equipment cannot be controlled
with this remote controller.

PROGRAMMING WITH THE 4-DIGIT CODE

SCANNING THE CODE TABLE

1.

Switch on the appliance which should be
controlled.

2.

Press and hold down the Function Selector
button for appliance which should be
controlled and press SETUP button until the
indicator blinking twice.

3.

Press the code 9 - 9 - 1.
The indicator will blink twice.

4.

Aim the remote control at the appliance and
slowly alternate between pressing POWER
button and the

Function Selector

the appliance.

5.

Stop when the appliance turns off.

6.

Press SETUP button once to lock in the code.

CHECKING THE CODE

button for

RESETTING THE ALL CODE

1.

Press and hold down the any Function
Selector button and press SETUP button until

the indicator blinking twice.

2.

Press the code 9 - 8 - 1.
The indicator will blink twice.
Then, RC5500SR will return to the factory
preset code.

Note:

• After this procedure, the selected function button
is set initial code and other function buttons are
set initial code too.

Once you have found and the codes for your various
appliances, you may want to write them down here.

TV

8

VCR

DSS

1.

Press and hold down the Function Selector
button for the appliance which should be
controlled and press SETUP button until the
indicator blinks twice.

2.

Press the 4-digit code for appliance (code
table at the end of this book)

3.

When the procedure is successful, the indicator
will blink twice.

Note:

• If the indicator did not blink twice, then repeat
steps 1 through 2 and try entering the same code
again.

1.

Press and hold down the Function Selector
button for appliance which should be
controlled and press SETUP button until the
indicator blinking twice.

2.

Press the code 9 - 9 - 0.
The indicator will blink twice.

3.

To view the code for first digit, press 1 once.
Wait 3 seconds, count the indicator blinks
(e.g. 3 blinks = 3) and write down the number.

Note:

• If a code digit is “0”, the indicator will not blink.

4.

Repeat step 3 three more times for remaining
digits. Use 2 for the second digit, 3 for the
third digit, and 4 for the fourth digit.

DVD

CD

TAPE

CDR

MD

S
U
R
R
O
U
N

D

A
V
S
U

R
R
O
U

N
D
R

E
C
E
IV
E
R

S
R
5
5
0
0

D
OW
N

UP

V
O
L
U

M
E

IN
PU

T S
EL
EC

TO

R

P
O

W
E
R
O

N
/
O
F

F

P
H
O

N
E
S

STANDBY

M
UTE

M
U
L

T
I

M

. S
PE

AKE
R B

PURE

S
E
TU
P

D
IR

E
C
T

S
IM
P

L
E

AUT
O

H

T­EQ

M
E
NU

E
N
TE

R

D
IS
P
L
A
Y

ME
MO

RY

C
LE
A

R

T

­M
O
D

E

E
X
I
T

BAN

D

MO
DE

A
U

X
1
IN

P
U
T

A
U

D
IO

S

­V
I
D
E

O

V
I
D
E

O

L

R

7
.1

C
H
I

NP
U
T

CH.SEL LIP.SYNC

PTY

SUB-T/ATT

AUDIO

INPUT/DISC+

F.DIRECT

RDS

TUNE/SEARCH

T-MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN/V-OFF

7.1CH IN

STEREO

MCH-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES VIRTUAL

DTS

PURE DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SET UP/

MENU

OSD

VOL.

TV

SLEEP

MUTE

AMP

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

TV

SYSTEM REMOTE CONTROLLER

RC5500SR

VOL.

MAIN

ENTER

AUX1

ENTER

CH.SEL LIP.SYNC

PTY

SUB-T/ATT

AUDIO

INPUT/DISC+

F.DIRECT

RDS

TUNE/SEARCH

T-MODE

TREBLE

CHANNEL/SKIP

BASS

A/D

P.SCAN/V-OFF

7.1CH IN

STEREO

MCH-ST

MEMO

CLEAR

DISPLAY

NIGHT

CSII EX/ES VIRTUAL

DTS

PURE DIRECT

AUTO

321

654

9807

T.TONE

MENU OFF

SET UP/

MENU

OSD

VOL.

TV

VOL.

MAIN

SLEEP

MUTE

AMP

TUNERCDTAPE

CDR/MD

DVD

POWER

VCR1

DSS/VCR2

TV

SYSTEM REMOTE CONTROLLER

RC5500SR

AUX1

OPERATION OF REMOTE CONTROL
UNIT

REMOTE CONTROL

The distance between the transmitter of the
remote control and the IR SENSOR of the SR5600
should be less than 5 meters. If the remote control
is pointed in a direction other than the IR SENSOR
or if there is an obstacle between them, use of the
remote control may not be possible.

Remote-controllable range

SR5600

Approx. 5 m

60°

Remote control unit (RC5500SR)

LOADING BATTERIES

The life of the batteries used with the remote
control is about 4 months with normal use. Also be
sure to replace batteries earlier when you notice
that they are getting weak.

1.

Remove the back cover.

2.

Insert the new batteries (AAA type) with
correct and polarity.

3.

Close the cover until it clicks.

Notes:

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

CAUTIONS ON BATTERIES

• Use “AAA” type batteries in this remote control
unit.

• If the remote control unit does not operate from
close to the main unit, replace the batteries with
new ones, even if less then a year has passed.

• The included battery is only for verifying
operation. Replace it with a new battery as soon
as possible.

• When inserting the batteries, be careful to do so
in the proper direction, following the + and ­marks in the remote control unit’s battery
compartment.

• To prevent damage or battery fluid leakage:

- Do not use a new battery with an old one.

- Do not use two different types of batteries.

- Do not short-circuit, disassemble, heat or
dispose of batteries in flames.

• Remove the batteries when not planning to use
the remote control unit for a long period of time.

• If the batteries should leak, carefully wipe off the
fluid from the inside of the battery compartment,
then insert new batteries.

• When disposing of used batteries, please
comply with governmental regulations or
environmental public instruction’s rules that
apply in your country or area.

GENERAL INFORMATION OF RC5500SR TO SR5600

To control the SR5600 by your RC5500SR, you have to select the device AMP or TUNER by pressing the
function selector button. Please refer below for the details in AMP and TUNER mode.

AMP MODE

TUNER MODE

POWER Turns the SR5600 on and off
Function selector *

Selects a particular source component
SLEEP * Sets the sleep timer function
MUTE * Decreases the sound temporarily
VOL 34 * Adjusts the over all sound level
MENU Enters the SETUP MENU
Cursor Moves the cursor for settings in the SETUP MENU
ENTER • Enters the SETUP MENU

• Confirms the settings in SETUP MENU
SETUP/T.TONE Enters the test tone mode for setting the Speaker Level Setup
MENU OFF Exits from the SETUP MENU
PURE DIRECT * Selects the Pure Direct mode
NIGHT * Turns on or off the NIGHT mode
DISPLAY * Change the front display mode
Surround mode (1-8)

Selects the surround mode

7.1CH-IN (9) Selects the 7.1CH IN
A/D (0) Switches between the analog and digital inputs
BASS 34 * Adjusts the tone control of low frequency sound
TREBLE 34 * Adjusts the tone control of high frequency sound
SUB-T/ATT Reduces the input level
P.SCAN/V-OFF Turns on or off the Video output
CH. SEL Adjusts the input level
LIP.SYNC Selects the LIP. SYNC mode

* These buttons are used to control SR5600 in any function mode.

TUNER Selects a frequency band
0-9 Inputs the numeric #s
CLEAR Clears the inputting
MEMO Enters the tuner preset memory numbers
P.SCAN/V-OFF Starts preset scan
CHANNEL/SKIP • Selects a preset station

4

/

¢

• Changes a PTY type *
TUNE/SEARCH Tunes a station

5

/

6

T-MODE

1 2

Selects the auto stereo mode or mono mode

RDS

;

F.DIRECT
PTY

9

Selects the display mode in RDS *

2

Selects the “Frequency direct input”
Displays the programmed information of the current station *

* : European model only

ENGLISH

9
