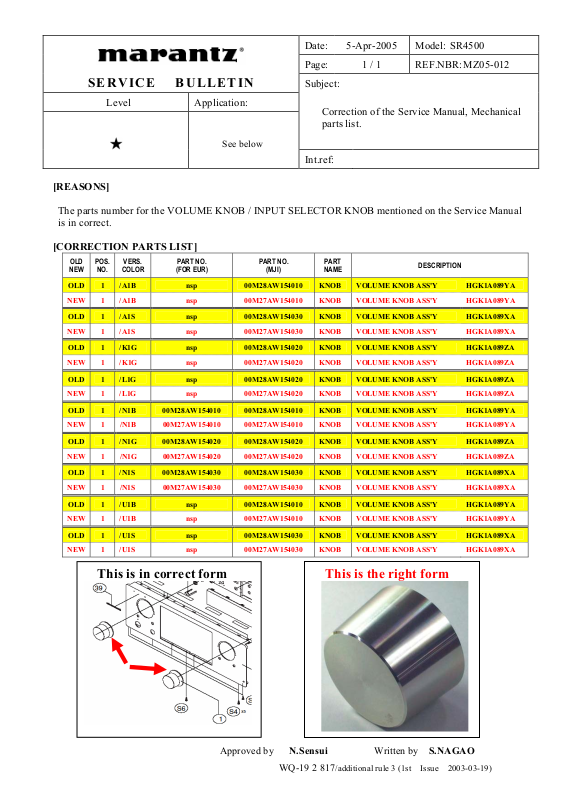

Marantz SR-4500 Sevice Bulletin

SERVICE BULLETIN

Level Application:

See below

Date: 5-Apr-2005 Model: SR4500

Page: 1 / 1 REF.NBR: MZ05-012

Subject:

Correction of the Service Manual, Mechanical
parts list.

Int.ref:

[REASONS]

The parts number for the VOLUME KNOB / INPUT SELECTOR KNOB mentioned on the Service Manual
is in correct.

[CORRECTION PARTS LIST]

OLD

POS.

NEW

OLD 1 /A1B nsp 00M28AW154010 KNOB VOLUME KNOB ASS'Y HGK1A089YA

NEW 1 /A1B nsp 00M27AW154010 KNOB VOLUME KNOB ASS'Y HGK1A089YA

OLD 1 /A1S nsp 00M28AW154030 KNOB VOLUME KNOB ASS'Y HGK1A089XA

NEW 1 /A1S nsp 00M27AW154030 KNOB VOLUME KNOB ASS'Y HGK1A089XA

NO.

VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI)

PART

NAME

DESCRIPTION

OLD 1 /K1G nsp 00M28AW154020 KNOB VOLUME KNOB ASS'Y HGK1A089ZA

NEW 1 /K1G nsp 00M27AW154020 KNOB VOLUME KNOB ASS'Y HGK1A089ZA

OLD 1 /L1G nsp 00M28AW154020 KNOB VOLUME KNOB ASS'Y HGK1A089ZA

NEW 1 /L1G nsp 00M27AW154020 KNOB VOLUME KNOB ASS'Y HGK1A089ZA

OLD 1 /N1B 00M28AW154010 00M28AW154010 KNOB VOLUME KNOB ASS'Y HGK1A089YA

NEW 1 /N1B 00M27AW154010 00M27AW154010 KNOB VOLUME KNOB ASS'Y HGK1A089YA

OLD 1 /N1G 00M28AW154020 00M28AW154020 KNOB VOLUME KNOB ASS'Y HGK1A089ZA

NEW 1 /N1G 00M27AW154020 00M27AW154020 KNOB VOLUME KNOB ASS'Y HGK1A089ZA

OLD 1 /N1S 00M28AW154030 00M28AW154030 KNOB VOLUME KNOB ASS'Y HGK1A089XA

NEW 1 /N1S 00M27AW154030 00M27AW154030 KNOB VOLUME KNOB ASS'Y HGK1A089XA

OLD 1 /U1B nsp 00M28AW154010 KNOB VOLUME KNOB ASS'Y HGK1A089YA

NEW 1 /U1B nsp 00M27AW154010 KNOB VOLUME KNOB ASS'Y HGK1A089YA

OLD 1 /U1S nsp 00M28AW154030 KNOB VOLUME KNOB ASS'Y HGK1A089XA

NEW 1 /U1S nsp 00M27AW154030 KNOB VOLUME KNOB ASS'Y HGK1A089XA

This is in correct form

This is the right form

Approved by N.Sensui Written by S.NAGAO

WQ-19 2 817

/additional rule 3 (1st Issue 2003-03-19)
