The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of suffi-cient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
NOTE TO CATV SYSTEM INSTALLER:
This reminder is provided to call the CATV (Cable-TV) system installer’s attention to Article 820-40 of the NEC, that provides
guidelines for proper grounding and, in particular, specified that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by tuning the
equipment off and on, the user is encouraged to try to
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
POUR ÉVITER LES CHOCS ÉLECTRIQUES,
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
NOTE:
Changes or modifications may cause this unit to fail to
comply with Part 15 of the FCC Rules and may void the
user’s authority to operate the equipment.
xi
Page 3
IMPORTANT SAFETY
INSTRUCTIONS
READ BEFORE OPERATING EQUIPMENT
This product was designed and manufactured to meet strict quality and
safety standards. There are, however, some installation and operation
precautions which you should be particularly aware of.
1. Read Instructions - All the safety and operating instructions
should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions should
be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the
operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions should be
followed.
5. Cleaning-Unplug this video product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
6. Attachments-Do not use attachments not recommended by the
video product manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this video product near water-for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub,
in a wet basement, or near a swimming pool, and the like.
8. Accessories-Do not place this video product on an unstable cart,
stand, tripod, bracket, or table. The video product may fall,
causing serious injury to a child or adult, and serious damage to
the appliance. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the video
product. Any mounting of the appliance should follow the
manufacturer’s instructions, and should use a mounting
accessory recommended by the manufacturer.
9. Ventilation-Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the video product
and to protect it from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by
placing the video product on a bed, sofa, rug, or other similar
surface. This video product should never be placed near or over a
radiator or heat register. This video product should not be placed
in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer’s instructions have
been adhered to.
10. Power Sources-This video product should be operated only from
the type of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your
appliance dealer or local power company. For video products
intended to operate from battery power, or other sources, refer to
the operating instructions.
11. Grounding or Polarization-This video product is equipped with a
polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to insert the
plug fully into the outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the polarized plug.
AC POLARIZED PLUG
12. Power-Cord Protection-Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
appliance.
13. Protective Attachment Plug - The appliance is equipped with an
attachment plug having overload protection. This is a safety
feature. See Instruction Manual for replacement or resetting of
protective device. If replacement of the plug is required, be sure
the service technician has used a replacement plug specified by
the manufacturer that has the same overload protection as the
original plug.
14. Outdoor Antenna Grounding-If an outside antenna or cable
system is connected to the video product, be sure the antenna or
cable system is grounded so as to provide some protection
against voltage surges and built up static charges. Section 810 of
the National Electrical Code, ANSI/NFPA No. 70-1984, provides
information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure 1.
15. Lightning-For added protection for this video product receiver
during a lightning storm, or when it is left un-attended and unused
for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage
to the video product due to lightning and power-line surges.
16. Power Lines-An outside antenna system should not be located in
the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as contact
with them might be fatal.
17. Overloading-Do not overload wall outlets and extension cords as
this can result in a risk of fire or electric shock.
18. Object and Liquid Entry-Never push objects of any kind into this
video product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the video product.
i
Page 4
19. Servicing-Do not attempt to service this video product yourself
as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.
20. Damage Requiring Service-Unplug this video product from the
wall outlet and refer servicing to qualified service personnel
under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video
product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the
video product to its normal operation.
e. If the video product has been dropped or the cabinet has been
damaged.
f. When the video product exhibits a distinct change in
performance-this indicates a need for service.
21. Replacement Parts-When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
22. Safety Check-Upon completion of any service or repairs to this
video product, ask the service technician to perform safety checks
to determine that the video product is in proper operating
condition.
23. Carts and Stands-The appliance should be used only with a cart
or stand that is recommended by the manufacturer.
24. An appliance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
FIGURE 1
EXAMPLE OF ANTENNA GROUNDING ACCORDING TO
NATIONAL ELECTRICAL CODE INSTRUCTIONS
CONTAINED IN ARTICLE 810 - “RADIO AND TELEVISION EQUIPMENT”
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
NEC - NATIONAL ELECTRICAL CODE
This Class B digital apparatus meets all requirements of the Canadian
Interference - Cansing Equipment Regulations.
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
Cet appareil numérique de la Classe B respecte toutes les exigences
du Règlement sur le matériel brouilleur du Canada.
ii
Page 5
kHz
MHz
BCDEF GAHIJ
K
¤4
¤3
¤2
¤1
¤0
⁄9
⁄8
⁄7
⁄6
⁄5
⁄4
POWER
VCR1
DSS/VCR2
TV
TUNER
CD
TV
VOL.
SLEEP
OSD
OK
SETUP/
T.TONE
S-DIRECT
AUTO
NIGHTCS5.1
6-STEREO
DIMMER
MEMO
CLEAR
TREBLE
BASS
DISP./RDS
MODE
–/B /VCR+/A /ANT
DISC/DECK
SYSTEM REMOTE CONTROLLER
RC5200SR
TAPE
AMPAUX
MUTE
MENU OFF
6.1DSP
2CH
A/D
CHANNEL/SKIP
TUNE/SEARCH
ATT.
DVD
CDR/MD
MAIN
VOL.
MENU
DTS
321
654
7CH-DIR
9807
P.SCAN
F.DIRECT
PTY
z
x
c
v
b
n
m
,
.
⁄0
⁄1
⁄2
⁄3
ANTENNA
FM(75Ω)
L
R
REMOTE CONTROL
IN
OUT
Attenuate
Night mode
Display off
Peak
GND
CDINTAPE
IN
FRONT SURR.
L
R
AM
OUT
PRE OUT
SURR.FRONT
CDR/MD
IN
CENTER
SUB WOOFER
IN
DSS/VCR2
OUT
IN
AUDIO
Surround mode
NIGHT
ATT
PEAK
DISPLAY OFF
!1
ey
VIDEO
OUTINOUT
VCR1
OUT
IN
OUT
SPEAKER SYSTEMS (IMPEDANCE 6 OHMS)
–
+
SURR.
RL
DIGITAL
STEREO
DSP
MOVIE MUSIC
PCM
ANALOG
S-VIDEO
IN
OUT
IN
IN IN
DVDINTV
CENTER
PRO LOGIC
VIRTUAL
HALL
MATRIX
GAME
AUTO
MONITOR OUT
DIG-1 DIG-2 DIG-3 DIG-4
OPTICAL
IN
FRONT
INPUT
LR
Tuned
TUNED
COAXIAL
VCR1
COAXIAL
DIGITAL IN/OUT
–
UNSWITCHED
100W 1A MAX
+
SWITCHED
100W 1A MAX
NQPO
FM stereo
STEREO
MONITOR
DVD
OUT
OPUTICAL
OUTPUT
AC OUTLETS (120V ~ 60Hz)
MODEL NO. SR4200
LMR
Sleep timer
Stereo mode
M
MEMO
PRESET CH.
kHz
MHz
Preset channel
!3!4!6!5
u!2io!0
r
Memory
mS
AV SURROUNDRECEIVERSR4200
SURROUND
NIGHT
DIGITAL PRO LOGIC
DTS
STEREO
RDS PTYRTRT TA TP
VCR 1 REC SPK A B
DVD LD AUX SOURCE
MEMORY
S-DIRECT
VCR1
DSS/VCR2
TUNED
TUNING/PRESET
SLEEP
CDR/MD
STANDBY
POWER ON / STANDBY
3 STEREO AC-3 PCM THEATER
ATT
HALL STADIUM DISCO CHURCH
PEAK
DISPLAY OFF
CLEAR
A/D
PHONES
DVD
TVCD
qwt
iii
TAPE M
MEMO
DELAY T.PRESET CH.
kHz
MHz
mS
MODE
F/P
DIMMERMUTE
TAPE
VOLUME
DOWN
TUNER
UP
Page 6
SPEAKER SYSTEMS (IMPEDANCE 6 OHMS)
SURR.
RL
CENTER
FRONT
LR
+
—
IN
OUT
REMOTE CONTROL
PRE OUT
FRONT SURR.
CENTER
SUB WOOFER
SURR.FRONT
FM(75‰)
GND
AM
ANTENNA
—
+
L
R
CDINTAPE
IN
OUT
CDR/MD
IN
OUT
DSS/VCR2
IN
OUT
VCR1
IN
OUT
DVDINTV
IN
AUDIO
IN
OUT
IN
OUT
ININ
S-VIDEO
MONITOR OUT
VCR1
IN
OUT
IN
DVD
MONITOR
OUT
DIGITAL IN/OUT
INPUT
OUTPUT
OPTICAL
COAXIAL
DIG-1 DIG-2 DIG-3 DIG-4
COAXIAL
OPUTICAL
L
R
MODEL NO. SR4200
VIDEO
AC OUTLETS (120V ~ 60Hz)
UNSWITCHED
100W 1A MAX
SWITCHED
100W 1A MAX
iv
VIDEO SYSTEM CONNECTIONS FOR VIDEO COMPONENTS
VIDEO SYSTEM CONNECTIONS FOR VIDEO COMPONENTS
LR
AUDIO
OUT
AUDIO
IN
LR
VIDEO
OUT IN
S-VIDEO
OUT IN
VCR
MONITOR TV
S-VIDEO
IN
VIDEO
IN
CVBS
LR
AUDIO
OUT
DIGITAL
OUT
VIDEO
OUT
S-VIDEO
OUT
DVD PLAYER
LR
AUDIO
OUT
AUDIO
IN
LR
VIDEO
OUT IN
DIGITAL
OUT
SATELLITE TUNER or VCR2
LR
AUDIO
OUT
VIDEO
OUT
S-VIDEO
OUT
TV
Page 7
SPEAKER SYSTEMS (IMPEDANCE 6 OHMS)
SURR.
RL
CENTER
FRONT
LR
+
—
IN
OUT
REMOTE CONTROL
PRE OUT
FRONT SURR.
CENTER
SUB WOOFER
SURR.FRONT
FM(75‰)
GND
AM
ANTENNA
—
+
L
R
CDINTAPE
IN
OUT
CDR/MD
IN
OUT
DSS/VCR2
IN
OUT
VCR1
IN
OUT
DVDINTV
IN
AUDIO
IN
OUT
IN
OUT
ININ
S-VIDEO
MONITOR OUT
VCR1
IN
OUT
IN
DVD
MONITOR
OUT
DIGITAL IN/OUT
INPUT
OUTPUT
OPTICAL
COAXIAL
DIG-1 DIG-2 DIG-3 DIG-4
COAXIAL
OPUTICAL
L
R
MODEL NO. SR4200
VIDEO
AC OUTLETS (120V ~ 60Hz)
UNSWITCHED
100W 1A MAX
SWITCHED
100W 1A MAX
v
NORMAL
INPUT
INVERT
OUTPUT
CD PLAYER
SUBWOOFER
AMPLIFIER
(MA6100)
FM EXTERNAL
ANTENNA
AM EXTERNAL ANTENNA
AM LOOP ANTENNA
SURROUND SPEAKER
CENTER
SPEAKER
SPEAKER SYSTEM
(L)
(L)
(R)
(R)
OUTPUT
L
R
AUDIO SYSTEM CONNECTIONS FOR AUDIO COMPONENTS
MD PLAYER
DIGITAL
INPUT
DIGITAL
OUTPUT
Assemble the AM loop antenna as
shown in the figure before use
To a component with REMOTE
(Marantz RC-5 D-BUS) jacks
Refer to "CONNECTION FOR A
SUBWOOFER" (Page 5)
SUBWOOFER
IN OUT
L
R
L
R
CD RECORDER
IN OUT
L
R
L
R
TAPE DECK
DIGITAL
OUTPUT
DIGITAL
INPUT
FM FEEDER ANTENNA
F-type converter plug (attached)
When using the FM antenna
attach to this apparatus.
FEATURES ...................................................................................................................................................................... 2
FRONT PANEL FEATURES ............................................................................................................................................ 3
REMOTE CONTROL OPERATION ................................................................................................................................. 6
FUNCTION AND OPERATION ................................................................................................................................................................................. 6
PROGRAMMING THE REMOTE CONTROLLER .................................................................................................................................................... 7
OPERATION OF REMOTE CONTROL UNIT........................................................................................................................................................... 8
MENU FUNCTION ................................................................................................................................................................................................... 9
MENU STRUCTURE ................................................................................................................................................................................................ 9
SYSTEM SETUP .................................................................................................................................................................................................... 10
TEST MODE ........................................................................................................................................................................................................... 11
LISTENING TO THE TUNER .................................................................................................................................................................................. 12
Thank you for purchasing the Marantz SR4200 DTS/Dolby Digital
Surround receiver.
This remarkable component has been engineered to provide you with
many years of home theater enjoyment.
Please take a few minutes to read this manual thoroughly before you
connect and operate the SR4200.
As there are a number of connection and configurations options, you
are encouraged to discuss your own particular home theater setup
with your Marantz A/V specialist dealer.
DESCRIPTION
DTS was introduced in 1994 to provide 5.1 channels of discrete digital
audio into home theater systems.
DTS brings you premium quality, discrete multi-channel digital sound
to both movies and music.
DTS is a multi-channel sound system designed to create full range
digital sound reproduction.
The no compromise DTS digital process sets the standard of quality
for cinema sound by delivering an exact copy of the studio master
recordings to neighborhood and home theaters.
Now, every moviegoer can hear the sound exactly as the moviemaker
intended.
DTS can be enjoyed in the home for either movies or music on DVD’s,
LD’s and CD’s.
FEATURES
• Dolby Digital and DTS surround sound decoding, plus Dolby Pro
Logic II decoding and a variety of additional surround modes.
• 96 kHz/ 24 bit decoding for highest possible fidelity and bandwidth,
and high-resolution playback of 96 kHz/ 24 bit PCM audio sources.
• 70 watts to each of the five main channels; the power amp section
features advanced, premium high-storage power supply capacitors,
and fully discrete output stages housed in cast aluminum heat
sinks.
• 5.1 channel pre-amp outputs for connection to external components
such as a subwoofer and external power amplifiers.
• 2 Digital outputs for connection to CD-R or MD.
• High-quality AM / FM tuner with 50 station presets.
• Source Direct switch bypasses, tone controls and bass management
for purest sound quality.
• S-video and composite video switch.
]
Dolby Digital lets you enjoy Digital TV, Digital Satellite as well as DVD,
LD software in digital surround, which is the next step above Dolby Pro
Logic.
In Comparison with Dolby Pro Logic, Dolby Digital can provide
separate left surround and right surround channels, for more precise
localization of sound and a more convincing, realistic ambience.
And, with Dolby Digital all five main channels can be full ranged and a
subwoofer can be added to each channel, if desired.
By providing up to 5.1 channels of digital audio independently. Dolby
Digital lets you enjoy better sound quality and more powerful presence
than conventional Dolby Surround.
Pro Logic II, the next generation in Dolby Surround Pro Logic
technology, brings the excitement of surround sound to any existing
stereo mix, while making existing Dolby Surround mixes sound more
like discrete 5.1-channel surround sound. It works with CDs, VHS
tapes and TV shows, and MP3 files and radio broadcasts-converting
all of these source to surround sound, without the artifacts by other
matrix-decoding technologies.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of
Dolby Laboratories.
“DTS” and “DTS Digital Surround” are registered trademarks of Digital
Theater Systems, Inc.
2
Page 10
FRONT PANEL FEATURES (SEE
PAGE iii.)
q POWER switch and STANDBY indicator
When this switch is pressed once, the unit turns ON and display
appears on the display panel. When pressed again, the unit turns OFF
and the STANDBY indicator lights.
When this unit is in the standby mode, pressing one of the FUNCTIONSELECTOR buttons also allows to turn the power on.
“When the STANDBY indicator lights up, the apparatus is NOT
disconnected from the AC supply mains.”
i SLEEP button
Set the sleep timer function with this button .
o DIMMER (Display off) button
When this button is pressed once, the display is dimmed.
When this button is pressed twice, the display is turned off and the
“DISPLAY OFF” indicator lights up.
Press this button again to turn the display ON again.
!0 MUTE button
Press this button to mute the output to the speakers. Press it again to
return to the previous volume level.
ENGLISH
w PHONES jack for stereo headphones
Conventional dynamic headphones can be plugged in here.
Notes:
When using headphones, the surround mode is switched automatically to STEREO and the sound from the speakers is muted.
The surround mode returns to the previous setting as soon as the
plug is removed from the jack.
e SURROUND MODE Selector knob
When this knob is turned, the surround mode is switched in the
following sequence.
AUTO
STEREO
VIRTUAL
Note:
Not all modes will be present if an analog input is selected.
DTS
5 STEREO
DOLBY
PROLOGIC
DOLBY PLII
MOVIE
MATRIX
DOLBY PLII
MUSIC
MOVIE
HALLGAME
r VOLUME control knob
Adjusts the overall sound level. Turning the control clockwise
increases the sound level.
t FUNCTION SELECTOR buttons (AUDIO/
VIDEO)
These buttons are used to select the sources.
The video function selector, such as TV , DVD , VCR1 and DSS/
VCR2, selects video and audio simultaneously.
Audio function sources such as CD, TAPE , CDR/MD and TUNER
may be selected in conjunction with a Video source.
This feature (Sound Injection) combines a sound from one source with
a picture from another.
Choose the video source first, and then choose a different audio
source to activate this function.
!1 CLEAR button
Press this button to cancel the station memory setting mode or preset
scan tuning.
!2 MEMORY button
Press this button to enter the tuner preset memory numbers and
station names.
!3 TUNING / PRESET UP and DOWN buttons
During reception of AM or FM, you can scan the other frequencies or
select another preset station pressing these buttons.
!4 FREQUENCY / PRESET button
During reception of AM or FM, you can change the function of the UP/
DOWN buttons for scanning frequencies or selecting preset stations
by pressing this button.
!5 MODE button
Press this button to select the auto stereo mode or mono mode when
the FM band is selected. The M indicator lights in the auto stereo
mode.
!6 INFRARED SENSOR window
This window receives infrared signals from the remote control unit.
y A/D (Analog/Digital) SELECTOR button
This is used to select between the analog and/or digital inputs.
When analog input is selected, “ANALOG” will be shown in the
display.
Note:
This button is not used for an input source that is not connected to
a digital input.
u S. ( Source) DIRECT button
When this button is pressed, the tone control circuit is bypassed as
well as Bass Management.
Notes:
The surround mode is automatically switched to AUTO when the
source direct function is turned on.

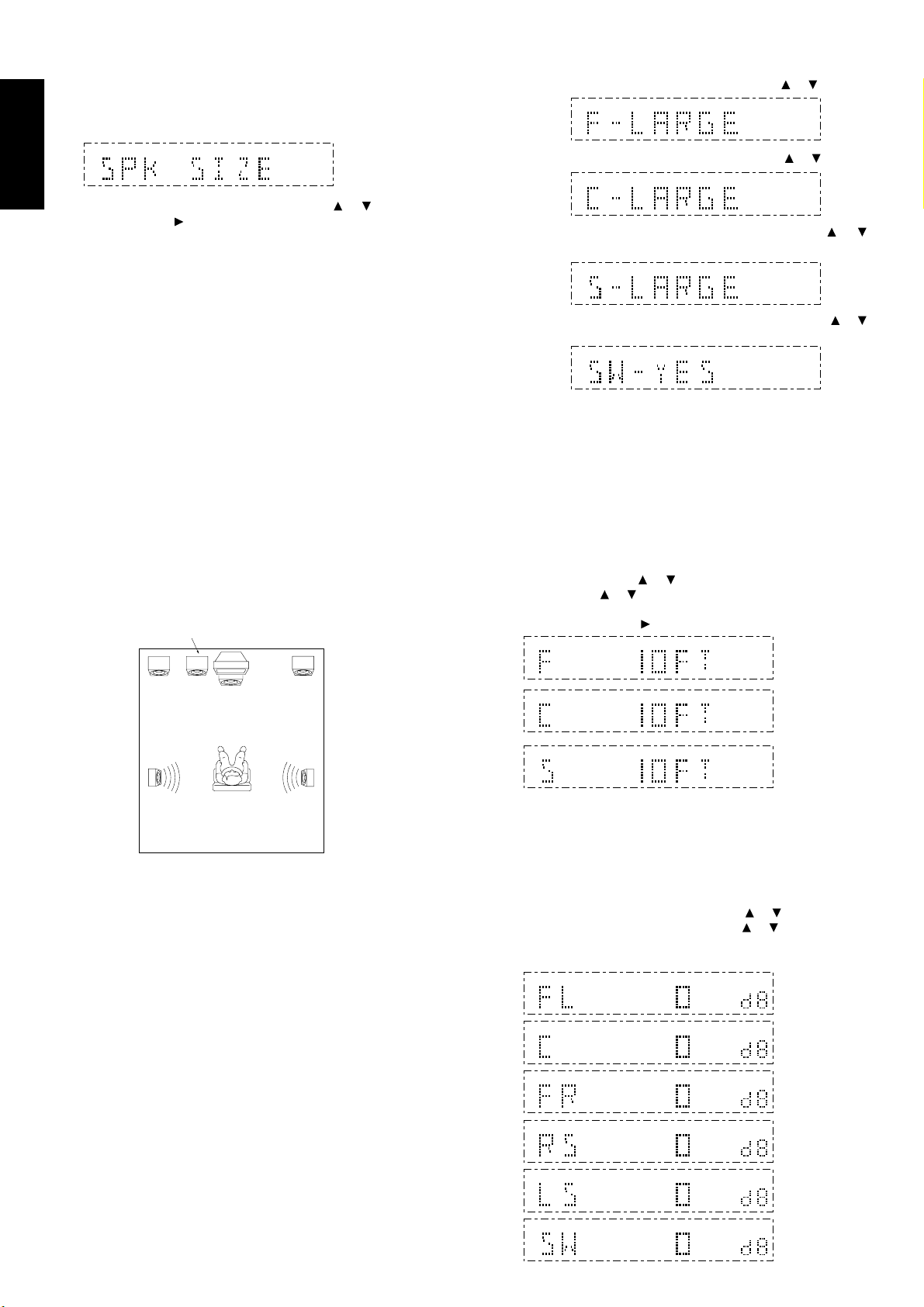

Additionally, Speaker Configurations are fixed automatically as follow.
Front speaker = Large
Center speaker = Large
Surround speaker = Large
Sub woofer = Yes
3
Page 11
ENGLISH
REAR PANEL CONNECTIONS
(SEE PAGE iii.)
All connections to the rear panel should be made with the entire
system powered off.
To avoid errors, it is advisable to connect one cable at a time between
the various components.
J S-video outputs
VCR1
Connect each output terminals to S-video input (REC in) of your video
recording equipment.
K AC power cable
Plug into an AC 120V household outlet.
A Analog audio inputs for video source
equipment
TV, DVD, VCR1, and DSS/VCR2
Connect each input to the audio outputs of your video source
equipment.
B Analog audio inputs
CD, TAPE, and CD-R/MD
Connect the audio outputs of your source components to the input
jacks on the receiver.
C Analog audio outputs for audio source
equipment
TAPE and CD-R/MD
Connect each output to the audio inputs (REC in) of your recording
equipment.
D FM antenna terminal (75 ohms)
Connect an external FM antenna with a coaxial cable, or a cable
network FM source.
AM antenna and ground terminals
Connect the supplied AM loop antenna. Use the terminals marked
“AM” and “GND”.
The supplied AM loop antenna will provide good AM reception in most
areas.
Position the loop antenna until you hear the best reception.
L AC OUTLETS
Connect the power cables of components such as a DVD and CD
player to these outlets. Both SWITCHED and UNSWITCHED outlets
are provided.
The one marked SWITCHED provides power only when the SR4200
is turned on and is useful for components which you use every time
you play your system.
The one marked UNSWITCHED is always live as long as the SR4200
is plugged into a live outlet.
A component connected here may be left on permanently, or may be
switched off with its own power switch.
Caution:
In order to avoid potential turn-off thumps, anything plugged in
here should be powered up BEFORE the SR4200 is turned on.
M DIGITAL outputs
Optical and Coaxial
Connect digital input of your digital recording equipment.
N DIGITAL inputs
Dig.1, 2 (Optical) and Dig.3 ,4 (Coaxial)
Connect each input to the digital output of your equipment.
Use the system setup menu to assign digital input to appropriate
source. (see page. 10)
Note :
Do not connect for LD player’s RF out, If you want to decode this
type of signal, an external demodulator must be used.
E Analog audio outputs for video source
equipment
VCR1, and DSS/VCR2
Connect each output to the audio inputs (REC in) of your video
recording equipment.
F Video inputs
TV, DVD, VCR1, and DSS/VCR2
Connect each input to the video outputs of your video source
equipment.
G Video outputs
VCR1, and DSS/VCR2
Connect each output to the video input (REC in) of your video
recording equipment.
H
TV MONI. (VIDEO/S-VIDEO) output jacks
Connect the TV MONI jack to your TV’s video input (VIDEO IN) jack.
You can connect your video equipment with S-VIDEO jacks if
possible, or the composite VIDEO jacks.
You must use the same type of connection from your video
player into the receiver, and out of the receiver into your TV.
Both must be composite video or both must be S-Video. You cannot
convert a signal from one type to the other.
I S-video inputs
DVD and VCR1
Connect each input to the S-video outputs of your video source
equipment.
o SPEAKER terminals
FRONT Left & Right speakers output terminals
Connect to the front left & right speakers.
CENTER speaker output terminals
Connect to the center speaker.
SURROUND Left & Right speakers output terminals
Connect to the surround (rear) left & right speakers.
P SUB WOOFER output jack
Connect to the input jack(s) of the power amplifier for subwoofer
channel or powered subwoofer.
Q PRE OUT jacks
Jacks for Front - L/R, Center and Surround.
Use these jacks for connection to an external power amplifier.
R REMOTE CONT. IN/OUT terminals
Connect to a Marantz component equipped with remote control (RC-
5) terminals.
4
Page 12
REMOTE CONTROL BUS CONNECTIONS
This unit is equipped with a remote control function.
By connecting this unit’s remote control jacks to a Marantz CD player
or tape deck equipped with remote control (RC-5) jacks, it allows
system remote control to operate.
Connect RCEMOTE CONTROL OUT jack of SR4200 to REMOTE
CONT. IN of other Marantz equipment, i.e. CD player or tape deck, by
using an RCA pin cable.
Note:
If a component equipped with remote control (RC-5) jacks has an
INT/EXT switch on the rear panel, set the switch to EXT when using
the system control function with SR4200.
(Connection example)
REMOTE CONTROL
ENGLISH
IN
OUT
REMOTE
CONT.
REMOTE
IN
OUT
CONT.
IN
OUT
SR4200 rear panelCD player rear panelTape deck panel
CONNECTION FOR A SUBWOOFER
VIDEO
ANTENNA
FM(75Ω)
GND
REMOTE CONTROL
IN
OUT
L
R
CDINTAPE
IN
FRONT SURR.
L
R
AM
PRE OUT
OUT
IN
CENTER
SUB WOOFER
SURR.FRONT
CDR/MD
IN
OUT
IN
OUT
IN
DSS/VCR2
OUT
IN
AUDIO
VCR1
OUT
IN
DVD
OUT
IN
Use this connection when using a sub-woofer speaker.
You can also connect a powered subwoofer.
+
SURR.
RL
Powered subwoofer
5-13VDC
EXT.CONT.IN
+
-
SPEAKER SYSTEM
8 OHMS
REMOTE CONT.
IN
INPUT
INVERT
OUT
OUTPUT
VIDEO/
Other Marantz
Equipment (RC-5)
LINE IN
Marantz MA6100 power amplifier
Controlling the power ON/OFF of a power amplifier connected to
Subwoofer speaker
the SR4200 through Marantz remote control
1. Now the MA6100 can be turned ON / OFF in synchronism with the
power ON / OFF of the SR4200.
Notes:
n Be sure to connect the remote control bus before the procedure
above.
5
Page 13
ENGLISH
REMOTE CONTROL OPERATION
OPERATION
The provided remote control unit is a universal remote controller. The
POWER button x, numeric buttons . and control buttons ⁄2 are used
in common across different input source components.
The input source controlled with the remote control unit changes when
one of the input selector buttons c is pressed.
• Example: To select the DVD as the input source and play the DVD
player.
Press the DVD button c twice within 2 seconds.
The input selector of the SR4200 is switched to DVD and
the remote control unit is set for control of the DVD player.
Press the PLAY button on the remote controller .
FUNCTION AND OPERATION
. Numeric buttons 1 to 9 (A, B, C ... Z, –) /
Surround mode buttons
Numeric buttons
These buttons are used to enter figures in the selection of a tuner preset
station and station name preset or to set select a CD track number, etc.
The functions of these buttons are dependent on the function button
selected.
Surround mode buttons (when AMP mode is selected)
These buttons are used to select the surround mode.
Note:
The 6-STEREO button is used to 5-stereo mode for SR4200.
The CS5.1, 6.1 and 7CH-DIR buttons are unavailable for SR4200.
⁄0 P.SCAN (preset scan) button (when TUNER
mode is selected)
This button is used to start preset scan when SR4200 is selected
TUNER mode.
z Transmitting indicator
Lights up during a button is pressed and an infrared signal is sending.
x Main POWER buttons
Press to switch the power of the SR4200 ON or OFF after pressing the
AMP button c.
c Input selector buttons/ FUNCTION
SELECTOR buttons (AUDIO/VIDEO
INPUT)
Press one of these buttons once or twice to select a particular source
component. For example, to set the receiver to the DVD input, press
the DVD button twice within 2 seconds.
Note:
CDR/MD button is set CDR function at initial. To switch MD function,
press and hold down CDR/MD button and press 2 button ..
To return CDR function, press and hold down CDR/MD button and
press 1 button ..
v MAIN VOLUME UP ( ) /DOWN ( ) buttons
Main volume control of the SR4200. The front, surround, center and
subwoofer channel volumes controlled by these buttons simultaneously.
b MUTE button
Muting button of the SR4200. Press this button decrease the sound
temporarily . Press this button again to return to the previous sound.
⁄1 0 / A/D button
0 button
This button is used to enter the number “0”
A/D button (when AMP mode is selected)
This is used to switch between the analog and digital inputs.
⁄2 CONTROL buttons
These buttons are used when operating the CD player, TAPE deck, etc.
The function of these buttons are dependent on the function button
selected.
For the controllable functions of each input function, please refer to
following table.
TVVCRDVDDSS TUNER CDTAPECDRMD
CHANNEL/SKIP
CHANNEL/SKIP
TUNE/SERCH
TUNE/SERCH
MODE
DISP/RDS
F.DIRECT
+/A/ANT
–/B/VCR
PTY
CH—
PREV
NEXT
CH+
REWIND
FF
RECRECRECREC
CH
PAUSE PAUSEPAUSE PAUSE
DISPLAY
PLAYPLAYPLAY PLAY PLAY PLAY
VIDEO
TV/VCR
VIDEO
TV/VCRDSS/VCR
STOP STOPSTOP STOP STOP STOP
CH—
PREV
NEXT
REWIND
FF
DISC +
DISC +
CH—
CH+
CH+
TUNING—
TUNING+
MODE
CH
DISPLAY
FRQ.
DIRECT
DSS/VCRDECK A
PREV
NEXT
REWIND
FF
DISC +
DISC —
PREV
PREV
NEXT
NEXT
REWIND
REWIND
FF
DIRECTION
PAUSE PAUSE
DECK B
FF
PREV
NEXT
REWIND
FF
n MENU button
This button is used to enter the menu functions. Use the menu functions
to setup SR4200.
m Cursor buttons ( , , , , OK)
Use these button when operating the menu functions.
See page 9.
, MENU OFF button
This button is used to return original display from menu functions.
⁄3 ATT (attenuater) button
When the input signal is too high and the voice distorts even by throttling
the SR4200 VOLUME control and PEAK indicator will light up, turn on
this function. “AT T ” is indicated when this function is activated.
The input level is reduced. Attenuater is invalid for use with the output
signal of “REC OUT”.
⁄4 TREBLE buttons
These buttons are used to adjust the tone control of high frequency
sound for left, center and right speaker.
⁄5 BASS buttons
These buttons are used to adjust the tone control of low frequency sound
for left, center, right and subwoofer speaker.
⁄6 MEMO button
Memory enable button for various preset functions.
6
Page 14
⁄7 CLEAR button
This button is used to cancel for certain memory or programming
operations.
⁄8 DIMMER button
When this button is pressed once, the display is dimmed.
When this button is pressed twice, the display is turned off and the
“DISPLAY OFF” indicator lights up.
Press this button again to turn on the display again.
⁄9 NIGHT button
Pressing this button prevents the Dolby Digital signal from playback at
a loud voice. This function reduces the voice by 1/3 to 1/4 at maximum.
Thus, it eliminates the occurrence of an abruptly loud voice at night.
However, the function is valid only for the case when the Dolby Digital
signal is entered into OPTICAL or COAXIAL and data to compress the
voice exists in the signal to be played back.
PROGRAMMING THE REMOTE CONTROLLER
The remote controller RC5200SR must be programmed to use the
codes for your appliances of different brands. This is done by keying
in a 4-digit code or by scanning the codes until the correct one is found.
We recommend to using the 4-digit code. This mode is faster and
more reliable. The code scanning method should be used only if you
cannot find the code for one of your appliances. The codes are listed
at the end of this book.
Important:
Use the remote control buttons for programming, not the buttons of the
receiver or other appliances.
PROGRAMMING WITH THE 4-DIGIT CODE
1. Press and hold down the function button c for the appliance
which should be controlled and press SETUP ¤1 until the indicator
z blinks twice.
ENGLISH
¤0 S- ( Source) DIRECT button
When this button is pressed, the tone control circuit is bypassed as
well as Bass Management.
¤1 SETUP / T.TONE button
Test tone function is used for adjusting the balance between the volume
levels of speaker channels. Press AMP button and press this button to
generate pink noise from each channel. Press the button again to stop
the pink noise generation.
¤2 OSD button
This button is not used for SR4200.
¤3 SLEEP (sleep timer) button
This button is used for setting the sleep timer. It can be operated the
same way as the button in unit.
¤4 TV VOLUME UP ( ) /DOWN ( ) buttons
These buttons increase or decrease TV’s volume.
2. Press the 4-digit code for appliance (codetable at the end of this
book)
3. When the procedure is successful, the indicator will blink twice.
Notes:
If the indicator did not blink twice, then repeat steps 1 through 2
and try entering the same code again.
SCANNING THE CODE TABLE
1. Switch on the appliance which should be controlled.
2. Press and hold down the function button c for appliance which
should be controlled and press SETUP ¤1 until the indicator z
blinking twice.
3. Press the code 9 - 9 - 1.
The indicator will blink twice.
4. Aim the remote control at the appliance and slowly alternate
between pressing POWER x and the function button c for the
appliance.
5. Stop when the appliance turns off.
6. Press SETUP ¤1 once to lock in the code.
CHECKING THE CODE
1. Press and hold down the function button c for appliance which
should be controlled and press SETUP ¤1 until the indicator z
blinking twice.
2. Press the code 9 - 9 - 0.
The indicator will blink twice.
3. To view the code for first digit, press 1 once.
Wait 3 seconds, count the indicator blinks (e.g. 3 blinks = 3) and
write down the number.
Note:
If a code digit is “0”, the indicator will not blink.
4. Repeat step 3 three more times for remaining digits. Use 2 for the
second digit, 3 for the third digit, and 4 for the fourth digit.
7
Page 15
Once you have found and the codes for your various appliances, you
ENGLISH
may want to write them down here.
TV
VCR
DSS
DVD
CD
TAPE
CDR
MD
OPERATION OF REMOTE CONTROL UNIT
1. Remote control
The distance between the transmitter of the remote control unit and
the IR SENSOR of the SR4200 should be less than about 5 meters. If
the transmitter is pointed to a direction other than the IR SENSOR or
if there is an obstacle between them, remote control may not be
possible.
Remote-controllable range
SR4200
Approx. 5 m
60°
Remote control unit (RC5200SR)
2. Loading batteries
The life of the batteries used with the remote control unit is about 4
months with normal use. Also be sure to replace batteries earlier
when you notice that they are getting weak.
(1) Remove the back cover.
(2) Insert the new batteries (AAA type) with correct (+) and (–)
polarity.
(3) Close until it clicks.
8
Page 16
SET-UP
After all components are connected, initial setup must be performed.
MENU FUNCTION
The SR4200 incorporates a menu function, which makes various
operations possible by using the cursor ( , , , ) and OK buttons
on the remote controller.
MENU STRUCTURE
SPK SIZE (Speaker size)
FRONTF(ront)- LARGE
ENGLISH
F(ront)- SMALL
SPK DIST (Speaker distance)
CH LEVEL (Channel Level)
CENTER
SURROUND
S (ub) - WOOFER
FRONTF(ront)10FT
CENTER
SURROUND
F(ront) L(eft) LEVEL
C(enter)- LARGE
C(enter)- SMALL
C(enter)- NONE
S(urround)- LARGE
S(urround)- SMALL
S(urround)- NONE
S (ub) W(oofer) - YES
S (ub) W(oofer) - NO
C(enter)10FT
S(urround)10FT
F(ront) L(eft)0 dB
LFE ATT (LFE Attenuater)
DIG IN (Digital Input)
C(enter) LEVEL
F(ront) R(ight) LEVEL
R(ight) S(urround) LEVEL
L(eft) S(urround) LEVEL
S(ub) W(oofer) LEVEL
LFE OFF
LFE 0
LFE -10
DIGITAL1D(igital)1/DVD
DIGITAL2
DIGITAL3
DIGITAL4
C(enter)0 dB
F(ront) R(ight)0 dB
R(ight) S(urround) 0 dB
L(eft) S(urround)0 dB
S(ub) W(oofer)0 dB
D(igital)2/CD
D(igital)3/CD-R
D(igital)4/DSS
9
Page 17
ENGLISH
SYSTEM SETUP
1. Press the AMP button c.
2. Press MENU button n display the menu.
Choose a desired item in the contents with or button, and
press the OK or button to select.
Display will change to menu for each item.
Note:
If no operating continues for 1 minute or more, the setup menu is
cancelled and the display will return to original.
FRONT : Select the type of front speakers with or button.
CENTER : Select the type of center speaker with or button.
SURROUND: Select the type of surround speakers with or
button.
SPEAKERS SETUP
The home theater system you already have installed should function
provided that there are left, center and right front speakers, left and
right rear/surround speakers and a subwoofer. For best results we
recommend that all front speakers be of the same type, with identical
or similar driver units. This will deliver smooth pans across the front
sound stage as the action moves from side to side.
Your center channel speaker is very important as over 80 % of the
dialog from a typical motion picture emanates from the center channel.
It should possess similar sonic characteristics to the main speakers.
Rear channel speakers need not be identical to the front channel
speakers, but they should be of high quality.
One of the benefits of both Dolby Digital (AC-3) and DTS is that
surround channels are discrete full range, while they were frequency
limited in earlier “Pro Logic’ type systems.
Bass effects are an important part of home theater. For optimal
enjoyment a subwoofer should be used as it is optimized for low
frequency reproduction. If you have full range front speakers,
however, they may be used in place of a subwoofer with proper setting
of the switches in the menu system.
SUB WOOFER
LEFT
CENTER
RIGHT
S-WOOFER: Select the subwoofer speaker YES or NO with or
button.
Notes:
The SUBWOOFER cannot be set to NO when the front speakers
are set to SMALL.
This speaker size setup is not effective when the SOURCEDIRECT is selected.
SPK DIST (Speaker distance)
Use this parameter to specify the distance of the speaker’s position
from the listener.
The delay time is automatically set according to these distances.
UNITS:Select speaker with or button, and input each speaker’s
distance with or button.
When the input for each speaker’s distance has been finished,
and press the OK or button.
SURROUND-L
If possible, mount the surround speakers on the walls to the sides of
the viewing area, 2-3 feet above seated viewers, firing straight across
at each other.
SURROUND-R
SPK SIZE (Speake size)
This menu enters the information about which type of speakers will be
used for each channel.
In turn, these settings will determine which speakers receive low
frequency information.
For the purpose of establishing proper bass reproduction, use the
LARGE settings if the speaker being used at any position is a
traditional full-range loudspeaker that is capable of reproducing sound
below 100 Hz and you are not using a subwoofer.
Use the SMALL setting for smaller, frequency-limited speakers that are not
able to reproduce sounds below 100Hz and you are using a subwoofer.
Low frequencies will be diverted from the speaker to the subwoofer.
Note that when “small” speakers are used it is advisable to install a
separate subwoofer, especially if you wish to appreciate the full
impact of a good home theater soundtrack.
If the Surround speakers or Center speaker will not be used, set
NONE for each speaker. The NONE setting will send the audio for the
surround channels or Center channel to the front left/right speakers.
Notes :
Placement beyond that distance is beyond the range of the
automatic time delay feature.
The delay feature does not function in the SOURCE-DIRECT and
decoding of 96 kHz sources.
CH LEVEL (Channel level)
Desired channels can be selected by pressing or button.
Each channel level will be adjusted by pressing or button.
Only the usable channels which are determined depending on the
SURROUND mode, and SPEAKER SETTING are displayed.
10
Page 18
LFE ATT (LFE attenuater)
Select the output level of the LFE signal included in the Dolby Digital
signal or the DTS signal. Select 0dB, -10 dB or OFF with or
button.
The level is ordinarily set to 0 dB. When use DTS Music source, LFE
level is set to -10 dB.
DIG IN (Digital input)
Four digital inputs can be assigned for the desired source.
Use this menu to determine which source is connected to which input.
Example;
When the digital output of a DVD player is connected to Digital 4 (input
jack) of the SR4200;
1. Select “DIG IN” with cursor buttons or and press the OK or
button.
2. Select “DIGITAL4” with cursor buttons or and press the OK or
button.
ENGLISH
3. Select “D4/DVD” with cursor buttons or and press the OK or
button.
4. If you desire to continue the next setup, press the and or button.
If you desire to exit from menu system, press the MENU OFF button.
Notes:
The TUNER is assigned to the analog input, and are prevented
from selecting any digital input.
While the DTS-LD or DTS-CD is playing, this setup is not available,
this is to avoid noise being generated from the analog input. Stop
the LD or CD playback to setup.
The SR4200 does not switch from digital input to analog input or
vice versa automatically.
In the event that both digital and analog inputs are connected to
SR4200, if you desire to switch to an analog input temporarily, you
can switch by pressing the A/D button y.
TEST MODE
When you press the T.TONE ¤1, the test tone will be cycled through in
a circular pattern which is FL (front left) → C (center) → FR (front right)
→ RS (right surround ) → LS (left surround) → SW (subwoofer) → FL
→ ... 3 seconds for each channel.
Adjust the level of test tone for each channel with the or buttons of
the RC5200SR
11
Page 19
ENGLISH
BASIC OPERATION
LISTENING TO THE TUNER
MANUAL TUNING
1. To select the tuner as the source, press the TUNER button t onthe front panel or press the TUNER button c on the remote.
2. Press the TUNER button t on the front panel or press the
TUNER button c on the remote to select the desired frequency
band if required.
3. Press the F/P button !4 on the front panel to display the frequency.
4. Press the TUNING/PRESET or button !3 on the front panel or
press the 1 or ¡ button ⁄2 on the remote.
5. If FM is selected, press the MODE button !5 on the front panel or
press the MODE button ⁄2 on the remote control to select the
desired audio mode.
(FM) MODE BUTTON OPERATION
When “M” indicator is on in the display, FM stations that broadcast in
stereo will be received in stereo and the “STEREO” indicator lights.
When “M” indicator is off, all the FM stations will be received in mono
regardless of whether or not they are broadcasting in stereo.
AUTO TUNING (USING THE SR4200)
1. Press the F/P button !4 on the front panel to display the frequency.
2. Press the TUNING/PRESET or button !3 on the front panel
for more than 1 second to start the Auto tuning function.
AUTO TUNING (USING THE REMOTE CONTROL UNIT)
Press 1 or ¡ button ⁄2 for more than 1 second to start the Auto
tuning function.
PRESET TUNING
With this unit you can preset up to 50 FM/AM stations in any order. For
each station, you can memorize the frequency and reception mode if
desired.
3. Recalling a Preset Station
1. Press the F/P button !4 to change the display to preset.
2. Select the desired preset station by pressing TUNING/PRESET
or button !3 on the front panel or press CHANNEL button ⁄2
on the remote.
Note:
To directly access the preset stations using the numeric keypad,
select the desired preset station by entering one or two digits using
the numeric keypad ..
To return to the Manual Tuning mode, press the F/P button !4.
4. Preset Scan Tuning (Using the remote control unit)
1. Press the P.SCAN button ⁄0 on the remote control. (The preset
station with the smallest preset number is recalled first. If no
stations have been preset, CH “00” blinks in the display and the
unit returns to the previous mode.)
2. Preset stations are recalled in sequence (CH-1 → CH-2, etc.) for 5
seconds each. Preset numbers that do not contain stations are
skipped.
3. You can fast forward the preset stations by pressing the
CHANNEL ¢ button ⁄2 continuously.
When the desired preset station is received, cancel the preset
scan operation by pressing the CHANNEL 4 button ⁄2 or the
CLEAR button !1.
5. Clearing Preset Stations
You can remove preset stations from memory using the following
procedure.
1. Recall the preset number to be cleared with the method described
in “Recalling” a preset station .
2. Press the MEMORY button !2 on the front panel or MEMO button
⁄6 on the remote unit, “MEMO” blinks in the display for 5 seconds.
While “MEMO” is still blinking, press the CLEAR button !1 on the
front panel or CLEAR button ⁄7 on the remote unit.
“CLEAR” appears on the display to indicate that the specified
preset number has been cleared.
1-a. Manual Presetting (Using the SR4200)
1. Refer to the “MANUAL TUNING” or “AUTO TUNING” section
above to tune in a desired station.
2. Press the MEMORY button !2. “MEMO” indicator starts blinking
on the display.
While “MEMO” is still blinking (approx. 5 seconds), select the
preset number by pressing the TUNING/PRESET or button !3
then press the MEMORY button !2 again.
3. When a number has been properly input, “MEMO” indicator stops
blinking and goes out.
The station is now stored in the specified preset memory location.
1-b. Manual Presetting (Using the remote control unit)
1. Tune in a desired station.
2. Press the MEMO button ⁄6.
3. Enter the desired preset number with ten keypad ..
* When entering a single digit number (2, for example), either input
“02” or just input “2” and wait for a few seconds.
2. Auto Presetting
This function automatically scans the AM and FM band and enters all
stations with sufficient signal strength into the memory.
1. Select the FM band with the TUNER button t.
2. Tune in the lowest receivable frequency.
3. Press and hold down the MEMORY button !2 and TUNING/
PRESET button !3 simultaneously, auto presetting will starts.
4. Each time the tuner finds a station, the scanning will pause and
memory.
5. Operation stops automatically when all 50 preset memory
positions are filled or when auto scanning attains the highest end
of all bands.
To stop the auto preset function at anytime, press the CLEAR
button !1.
12
Page 20
STATION NAME PRESET
1020304050
OFF90807060
The station name preset function allows the name of each preset
channel to be entered using alphanumeric characters. The Station
Name button is valid only in the tuner mode. Before station name
preset operation, store stations with the preset memory operation.
1. Press the MEMORY button !2 on the front panel or MEMO button
⁄6 on the remote for more than 3 seconds.
2. The left most column of the station name indicator flashes,
indicating the character entry ready status.
[Operation (Using the SR4200)]
3. When you press the TUNING/PRESET or buttons !3 is
turned, alphabetic and numeric characters will be displayed in the
following order:
A → B → C ...Z → 1 → 2 → 3..... 0 → – → + → / → (Blank) → A
UP →← DOWN
4. After selecting the first character to be entered, press the
MEMORY button !2. The entry in this column is fixed and the next
column starts to flash. Fill the next column and press the
MEMORY button !2 for more than 3 seconds to confirm the entry.
[Operation (Using the remote control unit)]
First, press the TUNER button c on the remote control unit.
(This operation is not necessary if the remote control unit has
already been operated in the TUNER mode.)
3. Enter the character using the ten keypad .. For example, to
enter “A”:
1) Press the “1” button. “A” appears on the display column.
2) Every time the 1 button is pressed, the displayed character
changes in the order: A → B → C → 1 → A...
Pressing buttons other than the “1” button cause different
characters to be displayed in a similar way, so that other
alphanumeric characters can be entered. To enter a blank or
space, press the “9” button.
4. When the desired character is displayed, press the MEMO button
⁄6 to confirm the entry in this column and move to the next
column. After having filled all of the 8 columns, press the MEMO
button ⁄6, for more than 3 seconds to confirm the entry.
PLAYBACK OPERATION
NORMAL PLAYBACK
1. Press the POWER button q / x.
2. Press the FUNCTION SELECTOR button t on the front panel or
press the FUNCTION button c on the remote unit to select an
input source.
3. Turn the SURROUND MODE SELECTOR knob e on the front
panel or Surround mode buttons . in the AMP MODE on the
remote unit to select the desired surround mode.
AUTO
4. Adjust the volume level using the VOLUME knob r on the front
panel or press the MAIN VOL. button v on the remote. If
necessary, adjust the tone, press the TREBLE , TREBLE ⁄4
and BASS , BASS ⁄5 on the remote unit.
Note:
• In case of remote control operation, press one of the function
buttons twice within 2 seconds to select the function.
• Tone control is not effective for SOURCE DIRECT and 96kHz
PCM input.
LISTENING TO A DIFFERENT AUDIO SOURCE WHILE
WATCHING A VIDEO SOURCE (Using the remote control
unit)
1. Select one of the following video sources
TV, DVD, VCR1 or DSS/VCR2.
2. Next, select one of the following audio sources
FM, AM, CD, TAPE, or CDR/MD.
ENGLISH
FREQUENCY DIRECT CALL (Using the remote control
unit)
1. Press the F.DIRECT button ⁄2 in the TUNER MODE on the
remote controller.
2. Front display will show “F-DIR IN”.
3. Input your desired frequency with ten key pad button on the
remote.
SETTING THE SLEEP TIMER
Set the sleep timer while the power is turned on.
1. Turn the power ON and press the SLEEP button i / ¤3.
2. Press the SLEEP button i / ¤3 the number of times to set the
desired sleep time in minutes.
Each press of the SLEEP button i / ¤3 or changes the display in
the following order:
The unit will shut off in the number of minutes indicated.
* While the sleep timer is activated, the remaining time can be
displayed for approximately 2 seconds by pressing the SLEEP
button i / ¤3.
* To cancel the sleep timer, press the SLEEP button i / ¤3 and then
press the CLEAR button !1 / ⁄7.
13
Page 21
ENGLISH
SURROUND MODES
The SR4200 incorporates digital signal processors (DSP) which can reproduce various surround effects you experience in concert halls and movie
theaters, etc. These Surround Modes, are provided to reproduce a variety of surround sound effects, according to the content of the source to be played.
Surroud mode
1. AUTO
2. STEREO
3. 2
MOVIE
MUSIC
PRO LOGIC
4. DTS
FEATURES
When this mode is selected, the receiver determines whether the digital input signal is Dolby Digital, PCM-audio or DTS.
Note:
When a Dolby Digital or DTS signal is input, the number of channels for which the corresponding signal is encoded will be
played.
Inputting a Dolby Digital two channel signal with Dolby surround status automatically subjects that signal to ProLogicII
processing before play.
96 kHz source material can be playback in this mode and 96k will be shown in the display.
This mode bypasses all surround processing.
Stereo program sources the left and right channels play normaly when PCM-audio or analog stereo is input.
With Dolby Digital and DTS sources, the 5.1 multi-channels are converted to two channel stereo. 96 kHz source material can be
playback in this mode and 96k will be shown in the display.
This mode is used with source materials encoded in Dolby Digital and Dolby Surround.
Dolby Pro Logic II brings the excitement of surround sound to any stereo mix, while making existing Dolby Surround mixes
sound more like discrete 5.1 channels Surround sound.
Dolby Pro Logic II has below 3 modes.
This mode provides 5.1 channel surround sound from Dolby Surround encoded stereo movie sound tracks.
This mode provides 5.1 channel surround sound from conventional stereo sources, analog or digital, such as CD, tape, FM,
TV, stereo VCR, etc.
This mode emulated original Dolby Pro Logic decoding (3/1 surround) suit for Dolby Surround encoded stereo movie
soundtracks.
Note:
PCM-audio signals can be subjected to Pro Logic processing when the sampling frequency is 32 kHz, 44.1 kHz or 48 kHz.
When a signal in another format is input, output will be muted.
This mode is for DTS encoded source materials such as LASER DISC, CD, and DVD.
The DTS mode cannot be used when an Analog input has been selected. When the signal in another digital format is input,
output will be muted.
5. MOVIE
HALL
MATRIX
GAME
6. VIRTUAL
7. 5-STEREO
Caution for DTS signal:
This signal can be played when the connected DVD-player, laserdisc player or CD-player is capable of DTS-digital output. For
details, refer to the player's operation manual.
Depending on the player used, DTS play may produce noise. If that
happens, set the Surround mode to DTS.
Playing a DTS-CD or DTS laser disc causes the player’s analog
output terminal to output noise. Before playing DTS sources, be
sure to connect the player’s digital output to the SR4200’s digital
input. Be careful when connecting the output of these players to
analog audio input.
Note that the SR4200 has the following restrictive functions built in
to reduce noise emission as much as possible.
If DTS is selected while in the Surround mode, digital input cannot
be switched to analog input. When the analog input function has
been selected, Surround mode cannot be switched to DTS.
While signals from DTS-laser disc or CD are playing in another
Surround mode, you cannot switch to digital input or from digital
input to analog input.
These modes provide surround effect processing from each input source material.
They will produce theater, concert hall and stadium like atmospheres. Select as your taste desires.
Note:
PCM-audio (32 kHz, 44.1 kHz or 48 kHz) and analog source material can playback in this mode.
This mode create the virtual surround sound with the front right and left speakers.
Note:
PCM-audio (32 kHz, 44.1 kHz or 48 kHz) and analog source material can playback in this mode.
This mode is used to create a wider, deeper and more natural soundstage from two channel source material.
This is done by feeding the left channel signal to both left front and left surround speaker and the right channel signal to both
right front and right surround speaker. Additionally, the center channel reproduces a mix of the right and left channel.
Note:
The 96 kHz sampling frequency mutes output.
Caution for 96kHz PCM-audio signal:
This signal can be played when a DVD-player or DAT-player
connected to the SR4200 is capable of 96 kHz PCM output. For
details, refer to the player’s operation manual.
The signal can be played when STEREO or AUTO has been selected
for the Surround mode.
Some DVD formatted discs featured copy protect. When use such
disc, 96 kHz PCM signal is not output from the DVD player. For
details, refer to the player's operation manual.
14
Page 22
The relation between the selected surround mode and the input signal
The surround mode is selected with the surround mode buttons of the SR4200 or the remote control unit. However, the sound from the speakers
depend upon the relationship between the selected surround mode and the input signal. They are as follows;
SURROUND
MODEL/RLS/RSCSWFORMAT STATUS & SURROUND MODETEMPORARY DISPLAY STATUS
AUTODOLBY DIGITAL(5.1CH)
•Dolby Digital (2 ch: Lt/Rt): signal with Dolby Surround flag Speakers are full set.
•When 2, dts or PCM is blinking, the selected surround mode is unavailable for
input signal. Select the other appropriate surround mode to playback.
•No sound outputs from the surround speaker, center speaker and subwoofer if
the DVD disc has no surround data.
L/R: Front speaker
LS/RS : Surround speaker
C: Center speaker
SW: Sub woofer speaker
15
( ): The indicator blinks
Page 23
ENGLISH
TROUBLE SHOOTING
In case of trouble, check the following before calling for service:
1. Are the connections made properly ?
2. Are you operating the unit properly following user’s guide ?
3. Are the power amplifiers and speaker working properly ?
If the unit does not operate properly, check items shown in the following table.
If your trouble cannot be recovered with the remedy actions listed in
the following table, malfunction of the internal circuitry is suspected;
immediately unplug the power cable and contact your dealer, nearest
Marantz distributor or the Marantz Service Center in your country.
SYMPTOM
SR4200 cannot be turned up.
No sound and picture are output
even when power is on.
Speaker does not outputting any
sound.
Sound and pictures from other
than equipment selected with the
function selector.
Sound from the wrong channel is
output from the speaker.
No sound is output from the center
speaker.
No sound is output from the
surround speakers.
No output to Sub Woofer Out.
Surround mode cannot be changed.
Noise is produced during DTSencoded CD or laser disc play.
DTS sources cannot be played.
Player skips during play of a DTS
source and produces noise.
A 96kHz PCM signal cannot be
played.
A normal PCM signal (CD or laser
disc) cannot be played.
A Dolby Digital signal cannot be
played.
A specific channel does not
produce output.
FM or AM reception fails.
Noise is heard during AM reception.
Noise is heard during FM reception.
Cannot get programmed station
when the PRESET button is
pressed.
Nothing appears on the remote
commander display.
Control with the remote control unit
fails.
CAUSE
The power plug is not connected.
Mute is on.
The input cable is not connected correctly.
The master volume control is turned all the way down.
The function selector position is wrong.
The headphones are connected to the headphone jack.
Input cable connected incorrectly.
Speaker cable connected incorrectly.
The center speaker cable connection is incomplete.
STEREO has been selected for Surround mode.
Center = NONE has been selected in SETUP mode.
The surround speaker cable connection is incomplete.
STEREO has been selected for Surround mode.
Surround = NONE has been selected in SETUP mode.
Sub-woofer = NO has been selected in SETUP mode.
The headphones are connected to the jack.
Analog has been selected for input.
Surround mode is set to DOLBY.
The DVD or LD player is not DTS digital out capable.
Data error occurred during player skip.
The disc player is not 96kHz PCM digital out capable.
Surround mode is set to other than STEREO and AUTO.
Surround mode is set to DTS.
Surround mode is set to DTS.
Nothing recorded on source.
Antenna connection is incomplete.
Reception is affected by other electrical fields.
The radio waves from the broadcasting station are weak.
Preset data has been erased.
Batteries are consumed.
Batteries are consumed..
Remote controller's function-key setting is wrong.
The distance between this SR4200 and the remote
commander is too far.
Something is blocking SR4200 and the remote commander.
REMEDY
Connect the power plug to the outlet.
Cancel mute using the remote control unit.
See the connection diagram and connect the cables correctly.
Adjust the master volume.
Select correct position.
Disconnect the headphones. (Speakers will not output sound when
headphones are connected.)
Connect the cable correctly by referring to the connection diagram.
Connect the cable correctly by referring to the connection diagram.
Connect the cable correctly.
When STEREO is selected for Surround mode, no sound will be
output from the center speaker. Set another Surround mode.
Make the correct setting.
Connect the cable correctly.
When STEREO has been selected for Surround mode, no sound will
be output from the surround speaker. Set another Surround mode.
Make the correct setting.
Select Sub-woofer = YES.
Disconnect the headphones. (When headphones are connected,
Surround mode will be fixed to STEREO.)
Be sure to perform digital connection, select digital input, then play.
Select other mode.
Use a player which responds to DTS-digital out.
Set Surround mode to DTS.
Use a player that responds to 96kHz PCM digital out.
Set Surround mode to STEREO or AUTO.
Select other mode.
Select other mode.
Check the encoded channel on the source side.
Correctly connect the indoor FM and AM antennas to FM and AM
antenna outlets.
Try changing location where the AM indoor antenna is set up.
Install an FM outdoor antenna.
Disconnecting power plug for long periods of time will erase preset
data. If that happens, input the preset data again.
Replace all the batteries with new ones.
Replace all the batteries with new ones..
Select different position from which equipment will be controlled.
Move closer to this SR4200.
Remove offending object.
16
Page 24
GENERAL MALFUNCTION
If the equipment malfunctions, this may be because an electrostatic
discharge or AC line interference has corrupted the information in the
equipment memory circuits. Therefore:
- disconnect the plug from the AC line supply
- after waiting at least three minutes, reconnect the plug to the AC
line supply
- re-attempt to operate the equipment
Memory backup
• In case a power outage occurs or the power cord is
accidentally unplugged, the SR4200 is equipped with a backup
function to prevent memory data such as the preset memory
from being erased.
The memory functions are backed up for up to about one
week.
NOTE:
First of all keep SR4200 Standby or Powered-on more than 6
hours, to sufficient time for memory back up.
HOW TO RESET THE UNIT
Should the operation or display seem to be abnormal, reset the unit
with the following procedure.
Press POWER button x to set SR4200 in standby mode, then press
and hold the F/P !4 until SR4200 is turned on.
Remember that the procedure will reset the settings of the function
selector, Surround mode, delay time, TUNER PRESET etc., to their
initial settings.
Frequency Range ................................................................................................................................................. 87.5 - 108.0 MHz
Signal to Noise Ratio .................................................................................................................................... Mono/Stereo 70/65 dB
Frequency Range ..................................................................................................................................................... 520 - 1710 kHz
Signal to Noise Ratio .............................................................................................................................................................. 50 dB
Selectivity ................................................................................................................................................................ ± 18 kHz 60 dB
AUDIO SECTION
Continuous Power Output (8 ohms / 20 Hz - 20 kHz)
Front .................................................................................................................................................................................... 70W
Center .................................................................................................................................................................................. 70W
Linear ........................................................................................................................................................... 316 mV/ 47 Kohms
Signal to Noise Ratio
Linear ................................................................................................................................................................................. 99 dB
Power Requirement ................................................................................................................................................ AC 120 V 60 Hz
Power Consumption ................................................................................................................................................................. 2.7 A
Weight............................................................................................................................................................... 21.4 lbs (9.7 Kg)
ACCESSORIES
Remote Control Unit RC5200SR .................................................................................................................................................... 1
FM Feader Antenna ....................................................................................................................................................................... 1
FM Antenna Converter ................................................................................................................................................................... 1
AM Loop Antenna........................................................................................................................................................................... 1
Warranty Card (for USA) ................................................................................................................................................................ 1
User Guide ..................................................................................................................................................................................... 1
Specifications subject to change without prior notice.
Page 30
COUNTRYCOMPANYADDRESS
ALGERIEAzur 20008, Lotissement Ben Hatadi, Alger, Algerie
ARMENIANGYIG Ltd.47 A/75 St. Lalaiants, 375000 Yerevan, Armenia
AUSTRALIAJamo Australia Pty. Ltd.,24 Lionel Road, Mt. Waverley, VIC 3149, Australia
AUSTRIAHuber & Prohaska GmbHTaborstraße 95 / Ladestraße 1, Gebäude Hangartner, A-1200 Wien, Austria
BAHREINAmbassador StoresP.O. Box 237,141, Government Avenue, Manama,Bahrein
BANGLADESHTarget1078, Ramjoy Mohanja Lane Asadgonj, Chittagong 4000, Bangladesh
BELGIUMVan der Heyden Audio N.V.Brusselbaan 278, 9320 Erembodegem, Belgium
BULGARIAAriescommerce GmbHMakedonia Blvd. 16, 1606 Sofia, Bulgaria
CANADALenbrook Industries Limited633 Granite Court, Pickering, Ontario
CHINA
CYPRUSEmpire Hifi systems Ltd.P.O. Box 5604, Nicosia, Cyprus
CZECH REPUBLICAudio InternationalSokolska 41, 67902 Rajecko, OKR,Blansko, Czech Republic
DENMARKAudio NordDali Allé 1, 9610 Noerager, Denmark
DUBAIV.V.& SONSP.O. Box 105, Dubai, U.A.E.
EGYPTSolimco9, El Attibaa St. Doki, Cairo, Egypt
ESTONIAHiFi Club EstoniaEhte 4, 90503 Haapsalu, Estonia
F.Y.R.O.M.T.P. KODIul.Cedomir Kantargiev 21a, Skopje, Former Yugoslavian Republic of Macedonija
FINLANDAudio NordUudenmaankatu 4-6, Helsinki SF-00120, Finland
FRANCEMarantz FranceA division of Marantz Europe B.V., P.O. Box 301, 92 156 Suresnes Cedex, France
GERMANYMarantz DeutschlandHakenbusch 3, 49078 Osnabrück, Germany
GREECEAdamco S.A.188, Hippocratous Street, 11471 Athens, Greece
HEADQUARTERS EUROPE: Marantz Europe B.V.Building SFF-2, P.O. Box 80002, 5600 JB Eindhoven, The Netherlands
HONG KONGMarantz Asia Ltd.Unit 1706, Metroplaza II, 223 Hing Fong Road, Kwai Fong, N.T., Kowloon, Hong Kong
HUNGARYInfovox Ltd.Terez Krt.31, 1067 Budapest, Hungary
ICELANDID Electronics Ltd.Armula 38, 108 Reykjavik, Iceland
INDIANOVA Audio Private8,Punam Co-op.Society 29/30 Road#5, Union Park MUMBAI 400052, India
IRANHome Co.5th floor no 878 Philips Building Enghelab ave, P.O. 11365/7844 Tehran, Iran
IRELANDMarantz IrelandClonskeagh, Dublin 14, Ireland
ISRAELElmor Ltd.52 Heh Beiyar Street, Kikar Hamedina, Tel Aviv, Israel
ITALYMarantz ItalyVia Casati 23, 20052 Monza (Milano), Italy, Servizio Consumatori 1678-20026, Numero Verde
IVORY COASTHifivoirB.P. 2428, Abidjan 01, Ivory Coast
JAPANMarantz Japan Inc.35-1 Sagami Ohno 7-Chome, Sagamihara-shi, Kanagawa 228-8505, Japan
KOREAMk Enterprises Ltd.121-210, 2F Shinhan Bldg., 247-17 Seokyo-dong, Mapo-ku, Seoul, Korea
KUWAITalAlamiah Electronics Intl.P.O. Box 8196, Salmiah 22052, Kuwait
LATVIAAce Ltd.61, LacPlesa Str., Riga LV 1011, Latvia
LEBANONAZ Electronics S.A., 1,P.O. Box 11 2833, Beirut, Lebanon
LITHUANIAAccapella Ltd.Ausros, Vartu G/5, Pasazo SKG., 2001 Vilnius, Lithuania
MALAYSIAWo Kee Hong Electronics Sdn. Bhd. Suite 8.1, Level 8, Menara Genesis, No. 33, Jalan Sultan Ismail, 50250 Kuala Lumpur, Malaysia
MALTADoneo Co Ltd.78 The Strand, Sliema SLM07, Malta
MAURITIUSSKR Electronics Ltd.P.O. Box 685, Bell Village, Port Louis, Mauritius
MILITARY MARKET EUROPE PASCO GmbHPO BOX 1280, Sandhausen 69200, Germany
NETHERLANDSMarantz Domestic Sales
NEW ZEALANDWildash Audio Systems14 Malvern Road, Mt. Albert, Auckland, New Zealand
NORWAYAudio NordSandkerveien 64, Oslo 0483, Norway
OMANMustafa & Jawad Trading CO.P.O. Box 1918, Ruwi, Oman
POLANDPhilips Polska Sp. z.o.o.Al.Jerozolimskie 195b, 02 222 Warszawa, Poland
PORTUGALCorel2Comércio de Electrónica Lda., Av. Luís Bívar, No 85 A, 1050 Lisboa, Portugal
PROFESSIONAL EUROPEMarantz Professional ProductsKingsbridge House, Padbury Oaks, 575-583 Bath Road, Longford, Middlesex UB7 0EH, U.K.
PROFESSIONAL U.S.A.Marantz Professional ProductsDistributed by: Superscope Technologies Inc., 1000 Corporate Blvd. Ste.D, Aurora, Illinois
QATARAlmana & Partners W.W.L.P.O. Box 49, Doha, Qatar
REUNIONVision +180 Rue du Marechal Leclerc, 97400 Saint Denis, Ile de la Reunion
ROMANIANova Music Entertainment5, Zagazului Str. Bl.1G,apt.18, sector 1,Bucharest, Romania
