Marantz SR-12-S-1 Service Manual

Service

SR-12S1 /

N1G/N1S

Manual

POEWER ON/OFF

AV Surround Receiver

AV SURROUND RECEIVER SR-12S1SURROUND

MOVIE

MEMOAUX2 CLEARATT

MUSIC

THX SURR EX

NIGHT

CINEMA

PRO LOGIC

MUSIC

ATT

MTX 6.1

DISC 6.1

SLEEP

GYRO TUNINGDOWN UP

TAPECDDSS

ANALOG

PCM

OTHER

C

L

R

LFE

DIGITAL

DIGITAL

SL S SR

96kHz

SURROUND

PEAK

AUTO TUNE

T-MODE

AUX1 INPUT

S-VIDEO

L

DIGITAL

MULTI ROOMLDMULTI SPKR

VIDEO

DISP

PRO LOGIC

ST

AUTO

AUTO SURR

DIRECT

TUNED

TEST

COPY

MULTI
SLEEP
M-SPKR

TUNER

F/P

STAMDBY

TV CD-R/MD

VCR2/DVD-R

PHONES

AUX1

7.1CH INPUT

VCR1DVD

S-DIRECT

VOLUME

DOWN

AUDIO

R

UP

SR-12S1

TABLE OF CONTENTS

SECTION PA GE

1. TECHNICAL SPECIFICATIONS AND SERVICE TOOL ........................................ 1

2. TECHNICAL DESCRIPTION ................................................................................. 4

3. WIRING DIAGRAM................................................................................................ 7

4. BLOCK DIAGRAM ................................................................................................. 9

5. SCHEMATIC DIAGRAM ...................................................................................... 11

6. PARTS LOCATION .............................................................................................. 33

7. IC DATA................................................................................................................ 53

8. EXPLODED VIEW AND PARTS LIST ................................................................. 63

9. SERVICE PROGRAM.......................................................................................... 67

10. UPDATE FIRMWARE .......................................................................................... 69

11. POWER AMPLIFIER ADJUSTMENT .................................................................. 71

12. SYSTEM ERROR................................................................................................ 73

13. TROUBLE SHOOTING........................................................................................ 75

14. ELECTRICAL PARTS LIST ................................................................................. 77

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

SR-12S1

Part no. 05AJ855010
First Issue 2003.08

ecm

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components,
Only original

MARANTZ

parts can insure that your

MARANTZ

MARANTZ

product will continue to perform to the specifi cations for which

company has created the ultimate in stereo sound.

it is famous.
Parts for your

MARANTZ

ORDERING PARTS :

equipment are generally available to our National Marantz Subsidiary or Agent.

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed.
The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

USA

MARANTZ AMERICA, INC

1100 MAPLEWOOD DRIVE
ITASCA, IL. 60143
USA
PHONE : 630 - 741 - 0300
FAX : 630 - 741 - 0301

AMERICAS

SUPERSCOPE TECHNOLOGIES, INC.

MARANTZ PROFESSIONAL PRODUCTS
2640 WHITE OAK CIRCLE, SUITE A
AURORA, ILLINOIS 60504 USA
PHONE : 630 - 820 - 4800
FAX : 630 - 820 - 8103

EUROPE / TRADING

MARANTZ EUROPE B.V.

P. O. BOX 8744, BUILDING SILVERPOINT
BEEMDSTRAAT 11, 5653 MA EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2507844
FAX : +31 - 40 - 2507860

AUSTRALIA

TECHNICAL AUDIO GROUP PTY, LTD

43-53 Bridge Rd.,
STANMORE NSW 2048
AUSTRALIA
PHONE : +61 - (0)2 - 9519 - 0900
FAX : +61 - (0)2 - 9519 - 0600

CANADA

LENBROOK INDUSTRIES LIMITED

633 GRANITE COURT,
PICKERING, ONTARIO L1W 3K1
CANADA
PHONE : 905 - 831 - 6333
FAX : 905 - 831 - 6936

HONG KONG

Jolly ProAudio Broadcast Engineering Ltd.

UNIT 2, 10F, WAH HUNG CENTRE,

41 HUNG TO ROAD, KWUN TONG, KLN.,
HONG KONG
PHONE : 852 - 21913660
FAX : 852 - 21913990

AUSTRALIA

QualiFi Pty Ltd,

24 LIONEL ROAD,
MT. WAVERLEY VIC 3149
AUSTRALIA
PHONE : +61 - (0)3 - 9543 - 1522
FAX : +61 - (0)3 - 9543 - 3677

NEW ZEALAND

WILDASH AUDIO SYSTEMS NZ

14 MALVERN ROAD MT ALBERT
AUCKLAND NEW ZEALAND
PHONE : +64 - 9 - 8451958
FAX : +64 - 9 - 8463554

JAPAN

MARANTZ JAPAN, INC.

35- 1, 7- CHOME, SAGAMIONO
SAGAMIHARA - SHI, KANAGAWA
JAPAN 228-8505
PHONE : [phone]
FAX : [phone]

Technical

THAILAND

MRZ STANDARD CO., LTD

746 - 754 MAHACHAI ROAD.,
WANGBURAPAPIROM, PHRANAKORN,
BANGKOK, 10200 THAILAND
PHONE : +66 - 2 - 222 9181
FAX : +66 - 2 - 224 6795

TAIWAN

PAI- YUING CO., LTD.

6 TH FL NO, 148 SUNG KIANG ROAD,
TAIPEI, 10429, TAIWAN R.O.C.
PHONE : +886 - 2 - 25221304
FAX : +886 - 2 - 25630415

SHOCK, FIRE HAZARD SERVICE TEST :

SINGAPORE

WO KEE HONG DISTRIBUTION PTE LTD

130 JOO SENG ROAD
#03-02 OLIVINE BUILDING
SINGAPORE 368357
PHONE : [phone]
FAX : [phone]

MALAYSIA

WO KEE HONG ELECTRONICS SDN. BHD.

2ND FLOOR BANGUNAN INFINITE CENTRE
LOT 1, JALAN 13/6, 46200 PETALING JAYA
SELANGOR DARUL EHSAN, MALAYSIA
PHONE : +60 - 3 - 7954 8088
FAX : +60 - 3 - 7954 7088

KOREA

MK ENTERPRISES LTD.

ROOM 604/605, ELECTRO-OFFICETEL, 16-58,
3GA, HANGANG-RO, YONGSAN-KU, SEOUL
KOREA
PHONE : +822 - 3232 - 155
FAX : +822 - 3232 - 154

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product
and controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied,
and verifi ed before it is return to the user/customer.
Ref. UL Standard No. 1492.

In case of diffi culties, do not hesitate to contact the Technical
Department at above mentioned address.

030307MIT

1. TECHNICAL SPECIFICATIONS AND SERVICE TOOL

TECHNICAL SPECIFICATIONS

FM TUNER SECTION

Frequency Range .................................. 87.5 - 108.0 MHz

Usable Sensitivity .............................. IHF 1.8 µV/16.4 dBf

Signal to Noise Ratio .....................Mono/Stereo 76/72 dB

Distortion....................................... Mono/Stereo 0.2/0.3 %

Stereo Separation .......................................... 1 kHz 45 dB

Alternate Channel Selectivity.................. ± 300 kHz 60 dB

Image Rejection .......................................... 98 MHz 70 dB

Tuner Output Level ..............1 kHz, ± 75 kHz Dev 800 mV

AM TUNER SECTION

Frequency Range ............................... 152 - 282 kHz (LW)

.........................................................531 - 1602 kHz (MW)

Signal to Noise Ratio ................................................50 dB

Usable Sensitivity............................................Loop 400µV

Distortion......................................1 kHz, 30 % Mod. 0.5 %

Selectivity.................................................. ± 20 kHz 70 dB

AUDIO SECTION

Power Output (20 Hz - 20 kHz/THD=0.08%)

Front L&R............................................ 8 ohms 105 W / Ch

Center ................................................. 8 ohms 105 W / Ch

Surround L&R ..................................... 8 ohms 105 W / Ch

Surround Back L&R ............................ 8 ohms 105 W / Ch

VIDEO

Television Format ..............................................NTSC/PAL

Input Level/Impedance..............................1 Vp-p/75 ohms

Output Level/Impedance...........................1 Vp-p/75 ohms

Video Frequency Response ........ 5 Hz to 10 MHz (- 3 dB)

Component Video

Frequency Response......... 5 Hz to 50 MHz (- 3 dB)

S/N ............................................................................60 dB

GENERAL

Power Requirement ..................................AC 230 V 50 Hz

Power Consumption.................................................530 W

Weight ................................................................... 26.5 kg

ACCESSORIES

Remote Control Unit RC3200 ..........................................1

AA-size batteries............................................................. 3

FM Antenna ..................................................................... 1

AM Loop Antenna ............................................................1

RS232C Cable ................................................................. 1

Front L&R............................................ 6 ohms 160 W / Ch

Center ................................................. 6 ohms 160 W / Ch

Surround L&R ..................................... 6 ohms 160 W / Ch

Surround Back L&R ............................ 6 ohms 160 W / Ch

Input Sensitivity/Impedance .................168 mV/ 47 Kohms

Signal to Noise Ratio

(Analog Input / Source Direct) .............................105 dB

Frequency Response
(Analog Input / Source Direct)... 8 Hz - 100 kHz (± 3 dB)

(Digital Input / 96 kHz PCM) ...... 8 Hz - 45 kHz (± 3 dB)

SERVICE TOOL

Updated of the CPU and DSP DISC ...........................*SR12S1CDR

(The disc is regarding when exchanged in QU01.)

1

The relation between the selected surround mode and the input signal

The surround mode is selected with the surround mode buttons on SR-12S1 or the remote control unit. However, the sound
you hear is subject to the relationship between the selected surround mode and input signal. That relationship is as follows;

Surround Mode Input Signal

AUTO Dolby D Surr. EX

DTS-ES
Dolby D (5.1ch)
DTS(5.1ch)
Dolby D(2ch)
Dolby D(2ch Surr)
PCM(Audio)
PCM 96kHz
HDCD
Analog

S-DIRECT Dolby D Surr. EX

DTS-ES
Dolby D (5.1ch)
DTS(5.1ch)
Dolby D(2ch)
Dolby D(2ch Surr)
PCM(Audio)
PCM 96kHz
HDCD
Analog

DTS Dolby D Surr. EX - - - - - (2 DIGITAL ) - (NO DTS INPUT)
cinema/music DTS-ES

Dolby D (5.1ch) - - - - - (2 DIGITAL ) - (NO DTS INPUT)
DTS(5.1ch)
Dolby D(2ch) - - - - -(2
Dolby D(2ch Surr) - - - - -(2
PCM(Audio) - - - - - (PCM) - (NO DTS INPUT)
PCM 96kHz - - - - - PCM, (96kHz) - (NO DTS INPUT)
HDCD - - - - - (PCM) - (NO DTS INPUT)
Analog - - - - - (ANALOG) - (NO DTS INPUT)

DTS ES Dolby D Surr. EX - - - - - (2 DIGITAL ) - (NO DTS INPUT)

DTS-ES
Dolby D (5.1ch) - - - - - (2 DIGITAL ) - (NO DTS INPUT)
DTS(5.1ch)
Dolby D(2ch) - - - - -(2
Dolby D(2ch Surr) - - - - -(2
PCM(Audio) - - - - - (PCM) - (NO DTS INPUT)
PCM 96kHz - - - - - PCM, (96kHz) - (NO DTS INPUT)
HDCD - - - - - (PCM) - (NO DTS INPUT)
Analog - - - - - (ANALOG) - (NO DTS INPUT)

Neo6 Dolby D Surr. EX

DTS-ES
Dolby D (5.1ch)
DTS(5.1ch)
Dolby D(2ch)
Dolby D(2ch Surr)
PCM(Audio)
PCM 96kHz - - - - - PCM, (96kHz) - NEO 6
HDCD
Analog

THX Dolby D Surr. EX

DTS-ES
Dolby D (5.1ch)
DTS(5.1ch)
Dolby D(2ch)
Dolby D(2ch Surr)
PCM(Audio)
PCM 96kHz - - - - - PCM, (96kHz) L,R THX CINEMA PLII, MOVIE
HDCD
Analog

THX EX Dolby D Surr. EX

DTS-ES
Dolby D (5.1ch)
DTS(5.1ch)
Dolby D(2ch)
Dolby D(2ch Surr)
PCM(Audio)
PCM 96kHz - - - - - PCM, (96kHz) L,R THX CINEMA THX Surr EX, PLII, MOVIE
HDCD
Analog

THX ULTRA2 Dolby D Surr. EX

DTS-ES
Dolby D (5.1ch)
DTS(5.1ch)

THX MUSIC Dolby D Surr. EX

DTS-ES
Dolby D (5.1ch)
DTS(5.1ch)

Output Channel Front information display

L/R C

OOOOO2 DIGITAL L,C,R,SL,SR,S,LFE THX SUR EX AUTO SURR
OOOOO
OOO-O
OOO-O
O
OOO-O2DIGITAL , 2SURROUND
O
O
O
O
OOOOO2 DIGITAL L,C,R,SL,SR,S,LFE S-DIRECT AUTO SURR
OOOOO
OOO-O
OOO-O
O
OOO
O
O
O
O

OOO-O

OOO-O

OOOOO

OOOOO

OOO-O
OOOOO
OOO-O
OOO-O
OOOOO2 DIGITAL L,R NEO 6
OOOOO2DIGITAL , 2SURROUND
OOOOO

OOOOO
OOOOO
OOO-O
OOO-O
OOO-O
OOO-O
OOO-O
OOO-O2DIGITAL , 2SURROUND
OOO-O

OOO-O
OOO-O
OOOOO2 DIGITAL L,C,R,SL,SR,S,LFE THX SUR EX THX Surr EX
OOOOO
OOOOO2 DIGITAL L,C,R,SL,SR,LFE THX SUR EX THX Surr EX
OOOOO
OOO-O
OOO-O2DIGITAL , 2SURROUND
OOO-O

OOO-O
OOO-O
OOOOO2 DIGITAL L,C,R,SL,SR,S,LFE THX SUR EX THX Surr EX
OOOOO
OOOOO2 DIGITAL L,C,R,SL,SR,LFE THX ULTRA2
OOOOO
OOOOO2 DIGITAL L,C,R,SL,SR,S,LFE THX 5.1 MUSIC
OOOOO
OOOOO2 DIGITAL L,C,R,SL,SR,LFE THX 5.1 MUSIC
OOOOO

SBL

SL
SR

SBR

---O2

---OPCM L,R STEREO AUTO SURR

---OPCM, 96kHz L,R STEREO AUTO SURR

---OPCM, HDCD L,R STEREO AUTO SURR

---OANALOG - STEREO AUTO SURR

----2 DIGITAL L,R S-DIRECT AUTO SURR

- - - - PCM L,R S-DIRECT AUTO SURR

- - - - PCM, 96kHz L,R S-DIRECT AUTO SURR

- - - - PCM, HDCD L,R S-DIRECT AUTO SURR

- - - - ANALOG - S-DIRECT AUTO SURR

Signal format

SubW

indicators

dts , ES L,C,R,SL,SR,S,LFE DTS ES AUTO SURR

2

DIGITAL L,C,R,SL,SR,LFE DOLBY D AUTO SURR

dts L,C,R,SL,SR,LFE DTS Cinema AUTO SURR

DIGITAL L,R DOLBY D AUTO SURR

dts , ES L,C,R,SL,SR,S,LFE S-DIRECT AUTO SURR

2

DIGITAL L,C,R,SL,SR,LFE S-DIRECT AUTO SURR

dts L,C,R,SL,SR,LFE S-DIRECT AUTO SURR

--2DIGITAL , 2SURROUND

dts , ES L,C,R,SL,SR,S,LFE DTS CINEMA or DTS MUSIC

dts L,C,R,SL,SR,LFE DTS CINEMA or DTS MUSIC

DIGITAL , 2SURROUND)
DIGITAL , 2SURROUND)

dts , ES L,C,R,SL,SR,S,LFE DTS ES Disc6.1

dts L,C,R,SL,SR,LFE DTS ES Mtx 6.1

DIGITAL , 2SURROUND)
DIGITAL , 2SURROUND)

2

DIGITAL L,C,R,SL,SR,S,LFE (NO DTS INPUT)

dts ES L,C,R,SL,SR,S,LFE DTS ES Disc6.1

2

DIGITAL L,C,R,SL,SR,S,LFE (NO DTS INPUT)

(dts) L,C,R,SL,SR,LFE DTS ES Mtx 6.1

PCM - NEO 6

PCM - NEO 6
ANALOG - NEO 6

2

DIGITAL L,C,R,SL,SR,S,LFE THX 5.1

dts , ES L,C,R,SL,SR,S,LFE THX 5.1

2

DIGITAL L,C,R,SL,SR,LFE THX 5.1

dts L,C,R,SL,SR,LFE THX 5.1

2

DIGITAL L,R, LFE THX CINEMA PLII, MOVIE

PCM L,R THX CINEMA PLII, MOVIE

PCM L,R THX CINEMA PLII, MOVIE
ANALOG - THX CINEMA PLII, MOVIE

dts , ES L,C,R,SL,SR,S,LFE THX SUR EX THX Surr EX

dts L,C,R,SL,SR,LFE THX SUR EX THX Surr EX

2

DIGITAL L,R,LFE THX CINEMA THX Surr EX, PLII, MOVIE

PCM L,R THX CINEMA THX Surr EX, PLII, MOVIE

PCM L,R THX CINEMA THX Surr EX, PLII, MOVIE
ANALOG - THX CINEMA THX Surr EX, PLII, MOVIE

dts , ES L,C,R,SL,SR,S,LFE TTHX SUR EX THX Surr EX

dts L,C,R,SL,SR,LFE THX ULTRA2

dts , ES L,C,R,SL,SR,S,LFE THX 5.1 MUSIC

dts L,C,R,SL,SR,LFE THX 5.1 MUSIC

Channel status Dot matrix display Segments

L,R,S DOLBY PL2 AUTO SURR

L,R,S S-DIRECT AUTO SURR

- (NO DTS INPUT)

- (NO DTS INPUT)

- (NO DTS INPUT)

- (NO DTS INPUT)

- NEO 6

L,R,S,LFE THX CINEMA PLII, MOVIE

L,R,S,LFE THX CINEMA THX Surr EX, PLII, MOVIE

2

L/R : Front speaker
SL/SR : Surround speaker
SBL/SBR : Surround back speaker
C : Center speaker
SubW : Sub woofer speaker

PL: The PRO LOGIC indicator

lights

PLII : The PRO LOGIC II

indicator lights

( ): The indicator blinks

Note: DOLBY-D(2ch Surr)signals have Dolby Surround flag.

SPKRS setup is full THX system (8ch Speakers).

Surround Mode Input Signal

Output Channel Front information display

L/R C

SL

SBL

SubW

Signal format

Channel status Dot matrix display Segments

SR

SBR

indicators

DOLBY Dolby D Surr. EX

OOOOO2 DIGITAL L,C,R,SL,SR,S,LFE DOLBY D

(PL2-movie) DTS-ES - - - - - (dts , ES) L,C,R,SL,SR,S,LFE DOLBY D
(PL2-music) Dolby D (5.1ch)

OOO-O

2

DIGITAL L,C,R,SL,SR,LFE DOLBY D

(PL2-PL) DTS(5.1ch) - - - - - (dts) L,C,R,SL,SR,LFE DOLBY D

Dolby D(2ch)

OOO-O

2

DIGITAL L,R, LFE DOLBY PL2 PLII, MOVIE or MUSIC or PL

Dolby D(2ch Surr)

OOO-O2DIGITAL , 2SURROUND

L,R,S,LFE DOLBY PL2 PLII, MOVIE or MUSIC or PL

PCM(Audio)

OOO-O

PCM L,R DOLBY PL2 PLII, MOVIE or MUSIC or PL
PCM 96kHz - - - - - PCM, (96kHz) L,R DOLBY D PLII, MOVIE or MUSIC or PL
HDCD

OOO-O

PCM L,R DOLBY PL2 PLII, MOVIE or MUSIC or PL
Analog

OOO-O

ANALOG - DOLBY PL2 PLII, MOVIE or MUSIC or PL

CSII music Dolby D Surr. EX

OOO-O(2

DIGITAL) L,C,R,SL,SR,S,LFE DOLBY D

CSII cinema DTS-ES

OOOOO

dts , ES L,C,R,SL,SR,S,LFE DTS-ES

CSII mono Dolby D (5.1ch)

OOO-O

2

DIGITAL L,C,R,SL,SR,LFE DOLBY D

DTS(5.1ch)

OOO-O

dts L,C,R,SL,SR,LFE DTS cinema
Dolby D(2ch)

OOOOO2 DIGITAL L,R, LFE CSII MUSIC or CINEMA

Dolby D(2ch Surr)

OOOOO2DIGITAL , 2SURROUND

L,R,S,LFE CSII MUSIC or CINEMA

PCM(Audio)

OOOOO

PCM L,R CSII MUSIC or CINEMA
PCM 96kHz - - - - - PCM, (96kHz) L,R CSII MUSIC or CINEMA
HDCD

OOOOO

PCM L,R CSII MUSIC or CINEMA
Analog

OOOOO

ANALOG - CSII MUSIC or CINEMA

STEREO Dolby D Surr. EX

O

---O2

DIGITAL L,C,R,SL,SR,S,LFE STEREO

DTS-ES

O

---Odts , ES L,C,R,SL,SR,S,LFE STEREO

Dolby D (5.1ch)

O

---O2

DIGITAL L,C,R,SL,SR,LFE STEREO

DTS(5.1ch)

O

---Odts L,C,R,SL,SR,LFE STEREO

Dolby D(2ch)

O

---O2

DIGITAL L,R, LFE STEREO

Dolby D(2ch Surr)

O

---O2

DIGITAL , 2SURROUND

L,R,S,LFE STEREO

PCM(Audio)

O

---OPCM L,R STEREO

PCM 96kHz

O

---OPCM, 96kHz L,R STEREO

HDCD

O

---OPCM, HDCD L,R STEREO

Analog

O

---OANALOG - STEREO

Virtual Dolby D Surr. EX

O

---O2

DIGITAL L,C,R,SL,SR,S,LFE VIRTUAL

DTS-ES

O

---Odts , ES L,C,R,SL,SR,S,LFE VIRTUAL

Dolby D (5.1ch)

O

---O2

DIGITAL L,C,R,SL,SR,LFE VIRTUAL

DTS(5.1ch)

O

---Odts L,C,R,SL,SR,LFE VIRTUAL

Dolby D(2ch)

O

---O2

DIGITAL L,R, LFE VIRTUAL

Dolby D(2ch Surr)

O

---O2

DIGITAL , 2SURROUND

L,R,S,LFE VIRTUAL

PCM(Audio)

O

---OPCM L,R VIRTUAL
PCM 96kHz - - - - - PCM, (96kHz) L,R VIRTUAL
HDCD

O

---OPCM L,R VIRTUAL
Analog

O

---OANALOG - VIRTUAL

Multi Ch. Dolby D Surr. EX

OOOOO2 DIGITAL L,C,R,SL,SR,S,LFE M-CH ST

Stereo DTS-ES

OOOOO

dts , ES L,C,R,SL,SR,S,LFE M-CH ST

Dolby D (5.1ch)

OOOOO2 DIGITAL L,C,R,SL,SR,LFE M-CH ST

DTS(5.1ch)

OOOOO

dts L,C,R,SL,SR,LFE M-CH ST

Dolby D(2ch)

OOOOO2 DIGITAL L,R, LFE M-CH ST

Dolby D(2ch Surr)

OOOOO2DIGITAL , 2SURROUND

L,R,S,LFE M-CH ST

PCM(Audio)

OOOOO

PCM L,R M-CH ST
PCM 96kHz - - - - - PCM, (96kHz) L,R M-CH ST
HDCD

OOOOO

PCM L,R M-CH ST
Analog

OOOOO

ANALOG - M-CH ST

MOVIE Dolby D Surr. EX

OOO-O

2

DIGITAL L,C,R,SL,SR,S,LFE MOVIE, HALL, MATRIX

HALL DTS-ES

OOO-O

dts , ES L,C,R,SL,SR,S,LFE MOVIE, HALL, MATRIX

MATRIX Dolby D (5.1ch)

OOO-O

2

DIGITAL L,C,R,SL,SR,LFE MOVIE, HALL, MATRIX

DTS(5.1ch)

OOO-O

dts L,C,R,SL,SR,LFE MOVIE, HALL, MATRIX
Dolby D(2ch)

OOO-O

2

DIGITAL L,R, LFE MOVIE, HALL, MATRIX

Dolby D(2ch Surr)

OOO-O2DIGITAL , 2SURROUND

L,R,S,LFE MOVIE, HALL, MATRIX

PCM(Audio)

OOO-O

PCM L,R MOVIE, HALL, MATRIX
PCM 96kHz - - - - - PCM, (96kHz) L,R MOVIE, HALL, MATRIX
HDCD

OOO-O

PCM L,R MOVIE, HALL, MATRIX
Analog

OOO-O

ANALOG - MOVIE, HALL, MATRIX

3

2. TECHNICAL DESCRIPTION

DESCRIPTION

THX®is an exclusive set of standards and technologies established by
the world-renowned film production company, Lucasfilm Ltd. THX
resulted from George Lucas’ desire to reproduce the movie
soundtrack as faithfully as possible both in the movie theater and in
the home theater.
THX engineers developed patented technologies to accurately
translate the sound from a movie theater environment into the home,
correcting the tonal and spatial errors that occur.
When the THX mode of the SR-12S1 is on, three distinct THX
technologies are automatically added:
Re-Equalization-restores the correct tonal balance for watching a
movie in a home environment.
These sounds are otherwise mixed to be brighter for a large movie
theater. Re-EQ compensates for this and prevents the soundtracks
from being overly bright and harsh when played in a home theater.
Timbre Matching-filters the information going to the surround
speakers so they more closely match the tonal characteristics of the
sound coming from the front speakers.
This ensures seamless panning between the front and surround speakers.
Adaptive Decorrelation-slightly changes one surround channel’s time
and phase relationship with respect to the other surround channel.
This expands the listening position and creates with only two surround
speakers the same spacious surround experience as in a movie
theater with multiple surround speakers.
The Marantz SR-12S1 was required to pass a rigorous series of
quality and performance tests, in addition to incorporating the
technologies explained above, in order to be THX Ultra certified by
Lucasfilm Ltd.
THX Ultra requirements cover every aspect of performance including
pre-amplifier and power amplifier performance and operation, and
hundreds of other parameters in both the digital and analog domain.
Movies which have been encoded in Dolby Digital, DTS, Dolby Pro Logic,
stereo and Mono will all benefit from the THX mode when being viewed.
The THX mode should only be activated when watching movies which
were originally produced for a movie theater environment.
THX need not be activated for music, movies made especially for TV,
or shows such as sports programming, talk shows, etc.
This is because they were originally mixed for a small room
environment.

®

“Lucasfilm

Lucasfilm and THX are trademarks or registered trademarks of
Lucasfilm Ltd. ©Lucasfilm Ltd. & TM. Surround EX is a jointly
developed technology of THX and Dolby Laboratories, Inc. and is a
trademark of Dolby Laboratories, Inc. All rights reserved. Used under
authorization.

” and “THX®” are registered trademarks of Lucasfilm Ltd.

B.G.C. (Boundary Gain Compensation)

“If your chosen listening room layout (for practical or aesthetic
reasons) results in most of the listeners being close to the rear wall,
the resulting bass level can be sufficiently reinforced by the boundary
that the overall sound quality becomes ‘boomy’. THX Ultra2 receivers
contain the BGC (Boundary Gain Compensation) feature to provide an
improved bass balance. BGC can be selected by choosing ‘THX
Ultra2 Subwoofer-Yes’ from the ‘Boundary Gain Compensation’
section of the ‘THX Audio setup menu’.

THX Surround EX - Dolby Digital Surround EX is a joint development
of Dolby Laboratories and the THX division of Lucasfilm Ltd.

In a movie theater, film soundtracks that have been encoded with
Dolby Digital Surround EX technology are able to reproduce an extra
channel which has been added during the mixing of the program.
This channel, called Surround Back, places sounds behind the
listener in addition to the currently available front left, front center,
front right, surround right, surround left and subwoofer channels.
This additional channel provides the opportunity for more detailed
imaging behind the listener and brings more depth, spacious
ambience and sound localization than ever before.
Movies that were created using the Dolby Digital Surround EX
technology when released into the home consumer market may
exhibit a Dolby Digital Surround EX logo on the packaging.
A list of movies created using this technology can be found on the
Dolby web site at

http ://www.dolby.com.

“SURROUND EX ™” is a trademark of Dolby Laboratories. Used
under authorization.

DTS was introduced in 1994 to provide 5.1 channels of discrete digital
audio into home theater systems.
DTS brings you premium quality discrete multi-channel digital sound
to both movies and music.
DTS is a multi-channel sound system designed to create full range
digital sound reproduction.
The no compromise DTS digital process sets the standard of quality
for cinema sound by delivering an exact copy
of the studio master recordings to neighborhood and home theaters.
Now, every moviegoer can hear the sound exactly as the moviemaker
intended.
DTS can be enjoyed in the home for either movies or music on of
DVD’s, LD’s, and CD’s.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital
Theater Systems, Inc.

The THX Ultra2 specification provides uncompromised 7.1 channel
playback of any multi-channel program, whether movie soundtracks or
music over the widest possible seating area.
There are an additional two processing’s for THX Ultra2 as bellow.

A.S.A. (Advanced Speaker Array)

“ASA is a proprietary THX technology which processes the sound fed
to 2 surround and 2 surround back speakers to provide the optimal
surround sound experience. When you set up your home theater
system using all eight speaker outputs (Left, Center, Right, Surround
Right, Surround Back Right, Surround Back Left, Surround Left and
Subwoofer), placing the two Surround Back speakers close together
facing the front of the room as shown in the diagram will provide the
largest sweet spot. If for practical reasons you have to place the
Surround Back speakers apart, you will need to go to the THX Audio
Set-up screen and choose the setting that most closely corresponds
to the speaker distance, which will re-optimize the surround sound­field. ASA is used in two new surround modes; THX Ultra2 Cinema
and THX Music Mode.

The advantages of discrete multichannel systems over matrix are well
known.
But even in homes equipped for discrete multichannel, there remains
a need for high-quality matrix decoding. This is because of the large
library of matrix surround motion pictures available on disc and on
VHS tape; and analog television broadcasts.
The typical matrix decoder of today derives a center channel and a
mono surround channel from two-channel matrix stereo material. It is
better than a simple matrix in that it includes steering logic to improve
separation, but because of its mono, band-limited surround it can be
disappointing to users accustomed to discrete multichannel.

Neo 6 offers several important improvements as follow,

• Neo 6 provides up to six full-band channels of matrix decoding from
stereo matrix material. Users with 6.1 and 5.1 systems will derive
six and five separate channels, respectively, corresponding to the
standard home-theater speaker layouts.

4

5

• Neo 6 technology allows various sound elements within a channel
or channels to be steered separately, and in a way which follows
naturally from the original presentation.

• Neo 6 offers a music mode to expand stereo nonmatrix recordings
into the five- or six-channel layout, in a way which does not diminish
the subtlety and integrity of the original stereo recording.

DTS-ES Extended Surround is a new multi-channel digital signal
format developed by Digital Theater Systems Inc. While offering high
compatibility with the conventional DTS Digital Surround format, DTS­ES Extended Surround greatly improves the 360-degree surround
impression and space expression thanks to further expanded
surround signals. This format has been used professionally in movie
theaters since 1999.
In addition to the 5.1 surround channels (FL, FR, C, SL, SR and LFE),
DTS-ES Extended Surround also offers the SB (Surround Back)
channel for surround playback with a total of 6.1 channels. DTS-ES
Extended Surround includes two signal formats with different
surround signal recording methods, as DTS-ES Discrete 6.1 and DTS­ES Matrix 6.1.

“DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of
Digital Theater Systems, Inc.

The stereo CD is a 16-bit medium with sampling at 44.1 kHz.
Professional audio has been 20- or 24-bit for some time, and there is
increasing interest in higher sampling rates both for recording and for
delivery into the home. Greater bit depths provide extended dynamic
range. Higher sampling rates allow wider frequency response and the
use of anti-alias and reconstruction filters with more favorable aural
characteristics.

DTS 96/24 allows for 5.1channel sound tracks to be encoded at a rate
of 96kHz/24bits on DVD-Video titles.
When DVD-video appeared, it became possible to deliver 24-bit, 96
kHz audio into the home, but only in two channels, and with serious
limitations on picture. This capability has had little use.
DVD-audio allows 96/24 in six channels, but a new player is needed,
and only analog outputs are provided, necessitating the use of the D/A
converters and analog electronics provided in the player.

DTS 96/24 offers the following:

1. Sound quality transparent to the original 96/24 master.

2. Full backward compatibility with all existing decoders. (Existing
decoders will output a 48 kHz signal)

3. No new player required: DTS 96/24 can be carried on DVD-video, or
in the video zone of DVD-audio, accessible to all DVD players.

4. 96/24 5.1-channel sound with full-quality full-motion video, for
music programs and motion picture soundtracks on DVD-video.

Dolby Digital identifies the use of Dolby Digital (AC-3) audio coding for
such consumer formats as DVD and DTV. As with film sound, Dolby
Digital can provide up to five full-range channels for left, center, and
right screen channels, independent left and right surround channels,
and a sixth ( ".1") channel for low-frequency effects.

Dolby Surround Pro Logic II is an improved matrix decoding
technology that provides better spatiality and directionality on Dolby
Surround program material; provides a convincing three-dimensional
soundfield on conventional stereo music recordings; and is ideally
suited to bring the surround experience to automotive sound. While
conventional surround programming is fully compatible with Dolby
Surround Pro Logic II decoders, soundtracks will be able to be
encoded specifically to take full advantage of Pro Logic II playback,
including separate left and right surround channels. (Such material is
also compatible with conventional Pro Logic decoders.)

Dolby Digital EX creates six full-bandwidth output channels from 5.1­channel sources. This is done using a matrix decoder that derives
three surround channels from the two in the original recording. For
best results, Dolby Digital EX should be used with movies soundtracks
recorded with Dolby Digital Surround EX.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro
Logic”, and the double-D symbol are trademarks of Dolby
Laboratories.

Circle Surround II (CS-II ) is a powerful and versatile multi-channel
technology. CS-II is designed to enable up to 6.1 multi-channel
surround sound playback from mono, stereo, CS encoded sources
and other matrix encoded sources. In all cases the decoder extends it
into 6 channels of surround audio and a LFE/subwoofer signal. The
CS-II decoder creates a listening environment that places the listener
“inside” music performances and dramatically improves both hi-fi
audio conventional surround-encoded video material. CS-II provides
composite stereo rear channels to greatly improve separation and
image positioning – adding a heightened sense of realism to both
audio and A/V productions.
CS-II is packed with other useful feature like dialog clarity (SRS Dialog)
for movies and cinema-like bass enrichment (TruBass). CS-II can
enable the dialog to become clearer and more discernable in movies
and it enables the bass frequencies contained in the original
programming to more closely achieve low frequencies – overcoming the
low frequency limitations of the speakers by full octave.

SRS Circle Surround II, SRS Dialog, SRS TruBass, SRS and
symbol are trademarks of SRS Labs, Inc.
SRS Circle Surround II , SRS Dialog and SRS TruBass technology are
incorporated under license from SRS Labs, Inc.

®

HDCD®(High Definition Compatible Digital ®) is a patented process for
delivering on Compact Disc the full richness and details of the original
microphone feed.
HDCD encoded CDs sound better because they are encoded with 20­bits of real musical information as compared to 16-bits for all other CDs.
HDCD overcomes the limitation of the 16-bit CD format by using a
sophisticated system to encode the additional four bits onto the CD
while remaining completely compatible with the CD format.
When listening to HDCD recordings, you hear more dynamic range, a
focused 3-D sound stage, and extremely natural vocal and musical
timbre. With HDCD, you get the body, depth and emotion of the
original performance not a flat, digital imitation.

®

, HDCD®, High Definition Compatible Digital ®and Pacific
Microsonics™ are either registered trademarks or trademarks of
Pacific Microsonics, Inc. in the United States and/or other countries.
HDCD system manufactured under license from Pacific Microsonics,
Inc. This product is covered by one or more of the following: In the
USA: 5,479,168, 5,638,074, 5,640,161, 5,808,574, 5,838,274,
5,854,600, 5,864,311, 5,872,531, and in Australia: 669114. Other
patents pending.

5

Remark : Bass signal output from Sub Woofer terminal.

Sub woofer output is not active while all surround modes. Please refer to the following table.

SPK setup

Sub Surr. Surr.B Bass CFG AUTO (PCM,Ana)

Woofer Front Center L/R (L/R) # DTS ES

ON Large Large Large Large 1 LFE LFE none L+R LFE L+R

Small Large 3 LFE+SL+SR LFE+SL+SR none L+R LFE+SL+SR L+R

None (prohibit) 1 LFE LFE none L+R LFE L+R

Small Large Large 5 LFE+C LFE+C C L+R LFE+C L+R

Small Large 8 LFE+C+SL+SR LFE+C+SL+SR C L+R LFE+C+SL+SR L+R

None (prohibit) 5 LFE+C LFE+C C L+R LFE+C L+R

None Large Large 1 LFE LFE none L+R LFE L+R

Small Large 3 LFE+SL+SR LFE+SL+SR none L+R LFE+SL+SR L+R

Small Large Large Large 1 2 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R

OFF No output to subW

None (prohibit) 1 LFE LFE none L+R LFE L+R

Small Large 11 LFE+L+R+SL+SR LFE+L+R+SL+SR L+R L+R LFE+L+R+SL+SR L+R

None (prohibit) 12 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R

Small Large Large 1 0 LFE+L+R+C LFE+L+R+C L+R+C L+R LFE+L+R+C L+R

Small Large 0 LFE+L+R+C+SL+SR

None (prohibit) 10 LFE+L+R+C LFE+L+R+C L+R+C L+R LFE+L+R+C L+R

None Large Large 12 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R

Small Large 11 LFE+SL+SR LFE+SL+SR L+R L+R LFE+SL+SR L+R

None (prohibit) 12 LFE+L+R LFE+L+R L+R L+R LFE+L+R L+R

ZR38601

Small 14 LFE+Sb LFE

Small 16 LFE+SL+SR+Sb LFE+SL+SR

Small 18 LFE+C+Sb LFE+C

Small 21 LFE+C+SL+SR+Sb LFE+C+SL+SR

Small 14 LFE+Sb LFE

Small 16 LFE+SL+SR+Sb LFE+SL+SR

Small 25 LFE+L+R+Sb LFE+L+R

Small 24 LFE+L+R+SL+SR+Sb LFE+L+R+SL+SR

Small 23 LFE+L+R+C+Sb

Small 13

Small 25 LFE+L+R+Sb

Small 24 LFE+SL+SR+Sb

THX Surr EX,

LFE+L+R+C+SL+SR+Sb

THX5.1, Dolby-D,

DTS

LFE+L+R+C+SL+SR L+R+C L+R LFE+L+R+C+SL+SR L+R

SubWoofer Output by Surround mode

PL2, CS,

Neo6

Stereo AUTO(AC-3,DTS) (AC-3:2ch,karaoke)

6

3. WIRING DIAGRAM

PH-4P,PH-13P Shield

PH-2P,PH-13P Shield

PH-5P,PH-13P Shield pH-2P,pH-13P Shield

WL71

TUNER

MOD.

W801

Wrapping,VA-2P

P-SW

P824

AC INLET

JS04JL05JX05

PS04

JS03

123456789101112

MQ-12P B to B ConnectorMQ-5P B to BMQ-12P B to B ConnectorMQ-8P B to B ConnectorMQ-9P B to B ConnectorMQ-10P B to B ConnectorMQ-9P B to B ConnectorMQ-5P B to BMQ-4PMQ-9P B to B Connector

123456789101112

YJ11

JY25

123

WN01

EH-3P,EH-3P

WC03

EH-3P,EH-3P

W503

SAN-7P,PH-7P

1

2

3

4

5

6

YJ04

7

8

9

10

11

12

1

2

3

YJ03

4

MQ-5P B to B MQ-12P B to B Connector

5

19

YJ01

11

19

YJ02

JE-19P B to B Connector JE-19P B to B Connector

1

1

JC02

2

3

XH-JQ 6P B to B

123456

JC60

PC64

ENCODER

WY01

200mm

SUMI card 15P

S-VIDEO

PX04

1234123456789

YJ21YJ22

JY23

12345 123456789 12345678910 987654321 12345678

YJ18 YJ17 YJ14 YJ15 YJ16

JX06JX07

12345678912345

CVBS

12345678910

PL04

JL07JL06

12345678

987654321

JL08

AUDIO

INPUT(2)

123456789101112

123456789101112

PQ04

JQ04

YJ13

AUDIO INPUT(1)

JS05

12345

12345

YJ12

CONNECTOR

1

2

3

J851

4

5

6

1

2

JY24

3

4

1

2

JY26

3

4

5

W803

EH-4P,SCN-4P

MQ-12P B to B Connector MQ-4P MQ-12P B to B Connector MQ-7P B to B MQ-10P B to B ConnectorMQ-6P B to B MQ-9P B to B ConnectorMQ-8P B to B

123456789101112 1234 123456789101112

JE07 JE06 JE05

E-VR

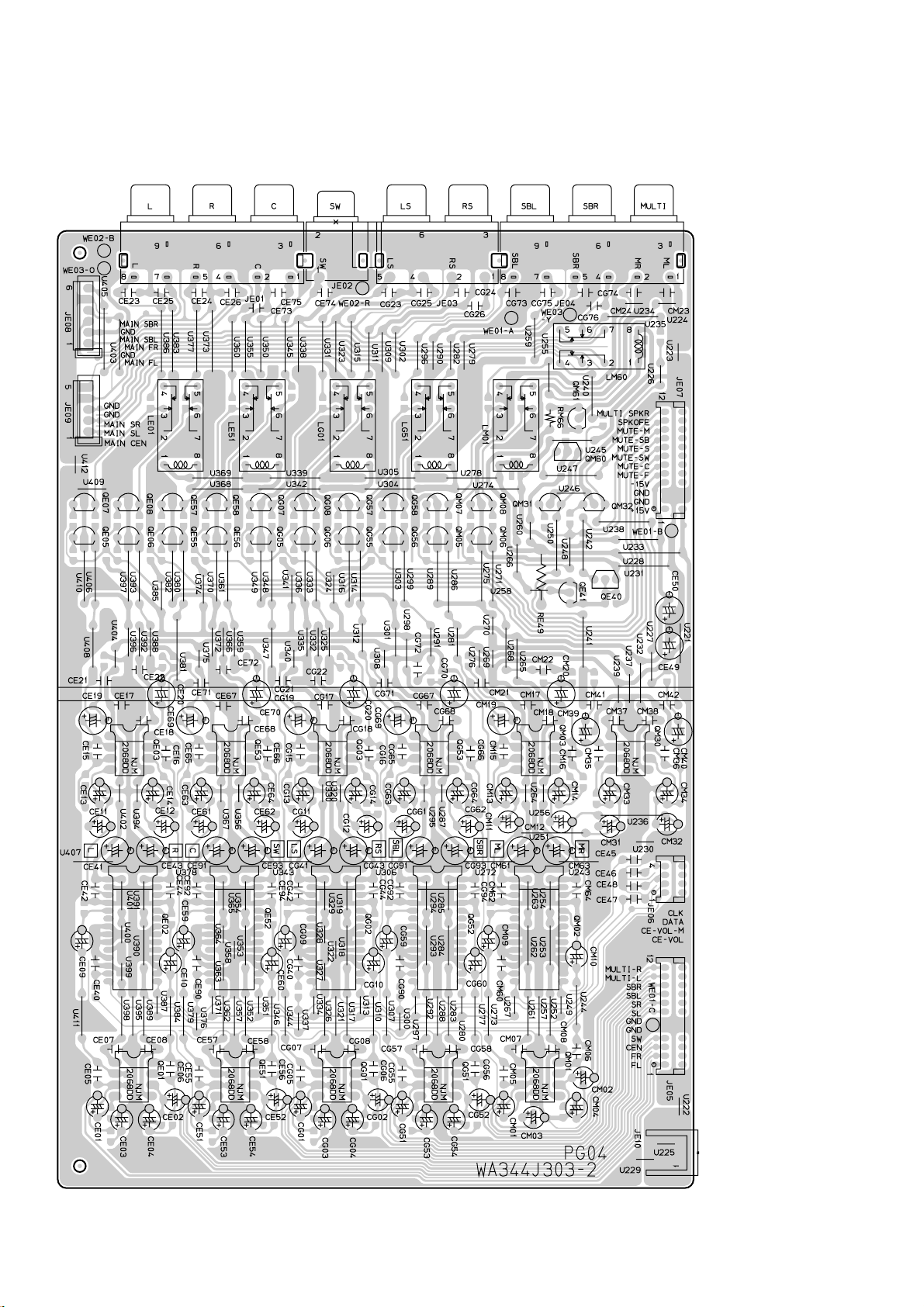

PG04

WN02

EH-5P,EH-5P

HP

PP94

1

2

3

4

JE08JE09

123451234

EH-4P,EH-4P

1234567 123456 12345678910 12345678 123456789

JS73 JS72 JS74 JF54 JF55

MULTI CH INPUT

WG01

EH-5P,EH-5P Shield

12345
1

2

JP91JP92
3

4

JN02

F/SB SPK OUT

P124

W851

VH-6P,Wrapping

1234

J811

J093

PRIMARY

1

J805

2

P814

J802

12

JB03

2

1

W802

VA-2P,VA-2P

J804

W804

VA-2P,Wrapping

1

2

W805 WP91

Wrapping,VH-7P

WN51

123

EH-3P,SCN-3P VH-2P,SDN-2P

123

JN51

W351

1

1

J351

C/S/M SPK OUT

P124

WG02

EH-4P,EH-4P shield

2

2

J104

W351WN51

J154

J152

PY04

PS54

1

2

3

4

1

2

3

4

1

2

W154

1

2

3

W104 W102

VH-4P,VH-4P VH-4P,VH-4P

VH-2P,VH-2P

W152

VH-3P,VH-3P

YJ10YJ09YJ08YJ07YJ06YJ05

MQ-8P B to B

YJ19

YJ20

123456789123456781234567891012345612345671234567891011121234123456789101112

COMP VIDEO INPUT

PF14

W504

SAN-6P,PH-6PSDN-6P,VH-6P

W401

1

2

J504

3

4

5

6

1

2

3

J401
4

5

6

J531

12345

12345

J501

6

W501

EH-6P,EH-6PVH-4P,VH-4P

6

P414

1

J837

J836

W504

W401

W836

VH-5P<180>VH-5P

W883

2

3

4

5

6

1

2

3

4

5

6

P834

J883

1234

1234

J884

1

2

J101

3

4

3.5CH AMP 0.5CH AMP

5

1

2

3

4

1

2

3

4

1

2

3

4

5

6

7

1

2

1

2

3

P114

J102J103

12345

12345

J105

J831

J155

J152

MAIN POWER SUPPLY

3CH AMP

1

2

J151
3

4

P154

1

2

3

W503

4

5

6

7

1

JN01

2

3

1

J838

2

3

1

2

3

4

W503

5

6

7

1

JN61

2

3

1234567891011121312345121234

JP03

AUX INPUT

PP04

1

2

3

4

5

6

JD04

7

8

9

10

11

12

1

2

JD03

3

4

5

J606

119
119

J604

19

JU02

AD/DA

PD04

JD02

JE-19P B to B Connector

JE-19P B to B Connector MQ-12P B to B Connector

J602

U-Com/DSP

19

JU03

1

P604

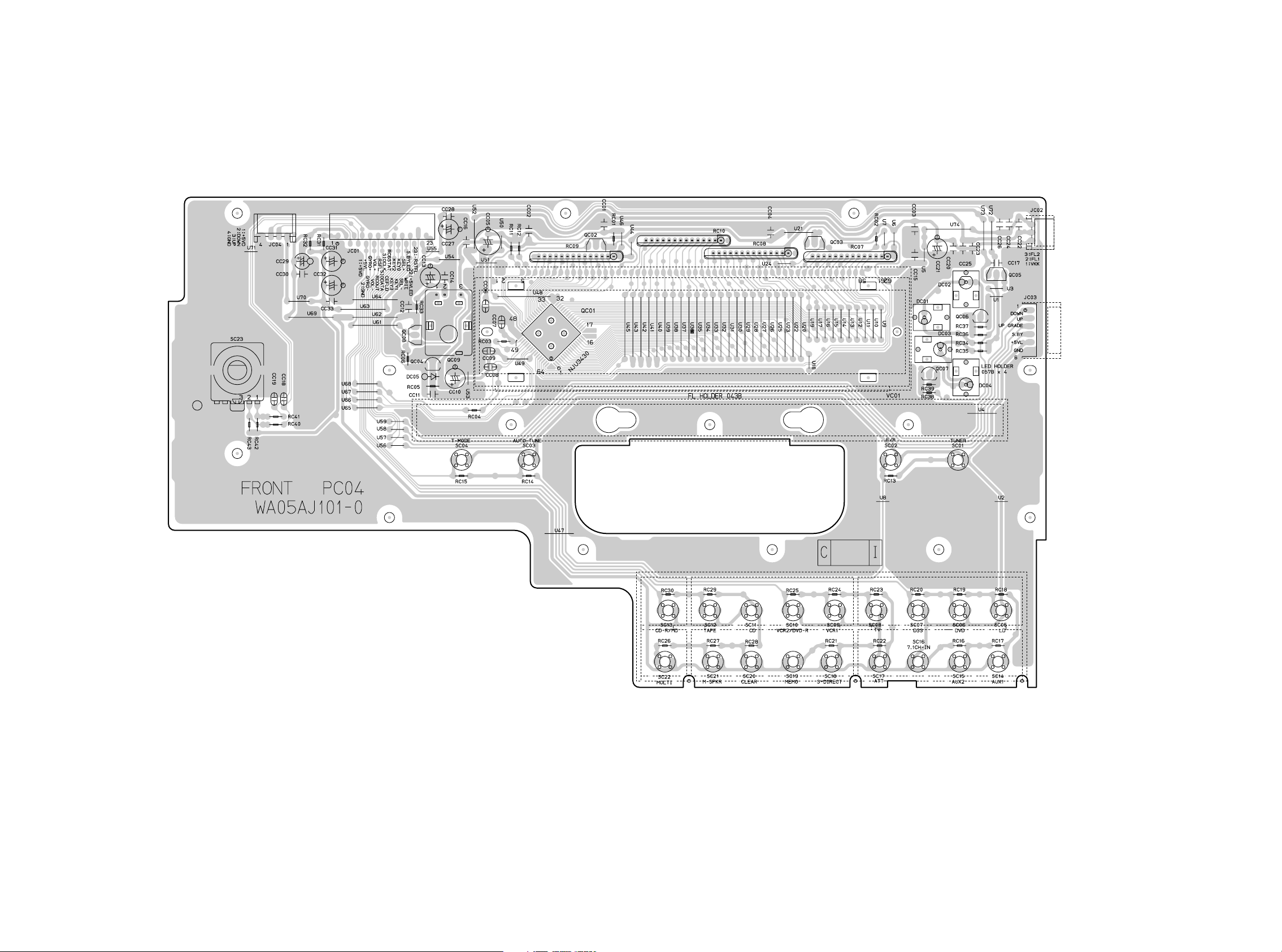

FRONT

PC04

JC04JC03

1234123456
JQ 6P

XH 6P

EH-4P,EH-4P

1234

JC70

PC74

GYRO

191

191

WC02

JD01

112

MQ-12P B to B Connector

112

J605

J603

112

J601

JU04

WC01

SUMI card 21P

JC01

1

JA07

2

121

7 8

4. BLOCK DIAGRAM

From Tuner-M

TUNER L/R

CD IN

TAPE IN

TAPE OUT

CDR IN

CDR OUT

DSS IN

LD IN

DVD IN

TV IN

VCR1 IN

VCR1 OUT

VCR2 IN

VCR2 OUT

1

AUX CVBS

From Front AUX

DSS IN

LD IN

DVD IN

TV IN

VCR1 IN

VCR1 OUT

VCR2 IN

VCR2 OUT

AUX Y/C

From Front AUX

DSS IN

LD IN

DVD IN

TV IN

VCR1 IN

VCR1 OUT

VCR2 IN

VCR2 OUT

TAPE_OUT

CDR_OUT

VCR1_OUT

VCR2_OUT

1

MODULE

2

Y

C

Y

C

Y

C

Y

C

Y

C

Y

C

Y

C

Y

C

From M-Ch in

M_F(L/R)

AUX(L/R)

From Front AUX

A-MULTI(L)

TUNER

M-SURR(L/R)

M-SB(L/R)

M-CENTER

M-SUB_W

M F(L/R)

To Function SEL

M-CENTER

M-SUB_W

E-VR

D-SB(L)

M-SB(L)

D-CENTERD-SW

Center

SW

M-SB(R)

D-SURR(L)

M-SURR(L)M-SURR(R)

SB-L

sR sL

SB-R

D-SB(R)

D-SURR(R)

Center/SW

sL/sR

TC9459N

Front

E-VR

TC9459N

C/SW

E-VR

TC9459N

TUNER(L)

CD(L)

CD(L)

2

27

TAPE(L)

TAPE(L)

3

26

CDR(L)CDR(L)

4

25

TUNER(L)

24

5

AUX(L)

AUX(L)

7

22

M_F(L)

M_F(L)

8

21

TAPE_OUT(L)

10

19

CDR_OUT(L)

11

18

12

CD(R)

2

CDR(R)

TUNER(R)

5

AUX(R)

71022

M_F(R)

8

11 18

CD(R)

TAPE(R)TAPE(R)

CDR(R)

TUNER(R)

AUX(R)

M_F(R)

TAPE_OUT(R)

CDR_OUT(R)

27

263

254

24

12

21

19

FRONT L/R

SURR L/R

SURR BACK L/R

CENTER

SUB WOOFER

Surr

E-VR

A-MULTI(R)

V-MULTI(L)

DSS(L)

DSS(L)

27 227

2

LD(L)

LD(L)

3

26

DVD(L)

DVD(L)

25

TV(L)

TV(L)

24

5

VCR1(L)

VCR1(L)

22

7

VCR2(L)

VCR2(L)

8

21

VCR1_OUT(L)

19

10

11

18 11

VCR2_OUT(L)

TUNER L/R

To Function SEL

DSS_IN

LD_IN

DVD_IN

NJM2534

TV_IN

VCR1_IN

VCR2_IN

AUX_IN

NJM2296

+6dB

TV_IN

DSS_IN

LD_IN

DVD_IN

NJM2534

TV_IN

VCR1_IN

VCR2_IN

AUX_IN

CONT

+6dB DRV

+6dB DRV

+6dB DRV

CONT

+6dB

+6dB

V-MULTI(R)

DSS(R)

DSS(R)

LD(R)

LD(R)

3

26

DVD(R)

DVD(R)

4

254

TV(R)

TV(R)

5

24

VCR1(R)

NJM2235

7

VCR2(R)

8

10

OSD

LC74781

VCR1(R)

VCR2(R)

VCR1_OUT(R)

22

21

19

18

VCR2_OUT(R)

NJM2234

NJM2234

12

VCR1_OUT

VCR2_OUT

DRV

DRV

12

74HC4094 x2

S-Register

DRV

DRV

DRV

BA7622

Cascade

OSD/FL Cont

Function(R)

Function(L)

DIG IN 1

DIG IN 2

DIG IN 3

DIG IN 4

DIG IN 5

DIG IN 6

DIG IN 7

DIG IN 8

DIG IN 9

MONITOR 1

MONITOR 2

MULTI MONI

Lt/Rt

D1

D-AUX

D-AUX

D2

D3

D1
D2

D4

D3
D4
D5
D6
D7

D5

D8
D9
D-AUX

D6

D1
D2

D7

D3
D4
D5
D6

D8

D7
D8
D9
D-AUX

P-EXP Cont

12

Ver.Up

SW

2CH A/D

AK5383

OSD/FL Cont

P-EXP Cont

RC-5 OUT

M-RC OUT

_W/N SW

W/_N SW

RS232C

RC-6 Status

RC-5 IN

M-RC IN

OPT OUT

COAX OUT

RS232C

9p D-SUB

EX IR OUT

(RC-6 Status)

DC OUT 1

DC OUT 2

DC 1

DC 2

RC-5 IN

RC-5 OUT

MULTI RC IN

Y

MONITOR 1 OUT

C

Y

MONITOR 2 OUT

C

MULTI RC OUT

Y

CB

DVD

CR

Y

CB

DSS

CR

Y

CB

VCR 1

CR

Y

CB

VCR 2

CR

+6dB

DRV

NJM2296

DSS_IN

LD_IN

DVD_IN

NJM2234

TV_IN

VCR1_IN

VCR2_IN

AUX_IN

Y Signal

C Signal

DSS_IN

LD_IN

DVD_IN

NJM2234

TV_IN

VCR1_IN

VCR2_IN

AUC_IN

NJM2595

NJM2595

CONT

+6dB

+6dB

+6dB

CONT

+6dB

+6dB DRV

+6dB

DRV

VCR1_OUT(Y)

DRV

VCR2_OUT(Y)

DRV

DRV

VCR1_OUT(C)

VCR2_OUT(C)

DRV

NJM2249

NJM2235

BA7622

DRV

DRV

DRV

DIG/ANA

Lt/Rt

Lt/Rt

2CH D/A

CS4396

DSP FR

(FL/FR)

PH DET

ALL MUTE

AVSS LEV

AMP MONI

Standby

16bit

2CH D/A

CS4396

(sL/sR)

2CH D/A

CS4396

(C/SW)

2CH D/A

CS4396

(SB L/R)

Power Down

H8S-2633

MOD ENC

GYRO

µ-com

VR ENC

Surr-L/R

C/SW

SB-L/R

KEY

E2P ROM

RST IC

SPI signal

Parallel port

LC89055

Audio
Output

DIR

CKOUT

XMCK

Level shift

Level shift

for U & S

DSS-YV2-Y

DVD-Y

V1-Y

DSS-CB

DVD-CB

DVD-CR

DSS-CR

V2-CB

V1-CB

V2-CR

V1-CR

SBL/SBR

VR Cont

P-EXP Cont

CS49329

Audio

DSP DSP

Input

MCLK

CLKIN

TC9459N

S-Back

E-VR

TC9459N

Multi

12

12

DIG/ANA

DC 2

DC 1

S-Register

F-ROM

4M Flash

Ds

Ds

Memory Bus

Audio
Output

Y

CB

MONITOR OUT

CR

Level shift

74HC4094
S-Register

MCLK

CLKIN

SPKOFF

74HC4094
S-Register

Cascade

CS49330

Audio
Input

Audio

Output

Level shift

FRONT L/R

CENTER/SW

SURR L/R

S-BACK L/R

M-SPK

FRONT L

P-AMP

FRONT R

P-AMP

CENTER

P-AMP

Temp.
Sensor

SURR L

P-AMP

SURR R

P-AMP

SB L

or

MULTI L

P-AMP

Temp.
Sensor

SB R

or

MULTI R

P-AMP

Cooling Fan

+5V

Regulator

-5V

+15V

Regulator

-15V

Level Sens

FRONT

SURROUND

CENTER

SURR BACK

DC/Current

Sens

TA7317P

Temp

I/F 1

Temp

Fan

I/F 2

Driver

AVSS LEV

AMP MONI

+5VL

Power Down

Standby

ALL MUTE

M-SPK

SPKR OFF

PH DET

+5VL Reg

P-Down

+12V

M-SPKR

+24V

Delay

SUB TRANSF

AVSS Cont

+B

-B
1

2

MAIN TRANSF

KEY

RC-6 Status

RC-6 Status

RC-5 IN

VR ENC

MOD ENC

GYRO

OSD/FL Cont

D-AUX

To DSP

AUX Y/C

To VIDEO(Y/C)

AUX CVBS

To VIDEO(CVBS)

AUX L/R

To Function

KEY MATRIX

12

I RED

FL DRIVER

NJU3430

FL DISPLAY

STANDBY LED

Ver.UP Busy

STANDBY

IR SENSOR

STANDBY

ROTARY ENCODER

(MASTER VR)

ROTARY ENCODER

(SURR MODE)

GYRO CONTROL

109

5. SCHEMATIC DIAGRAM

PP94

P114

R113
470

+18V

C148

100/25V

C101

R102

10/50V

1K

33K

R101

330p

C102

R149

10

R104

47

C201

R202

10/50V

1K

33K

R201

WE03-O

R204

47 33K

From JE08(PC04)

10/50V

C401

R404

47

100/25V

C403

100/25V

C349

-18V

R405

33K

R412

15K

2SC2240

Q408

-36.0

10 1/4W

123

R414

470

R418

150

C407

220/50V

R443

123

-34.5

-35.0

-1.8

123

D402

2SC2705

Q410

R406

330

R407

330

-36.9

R408

330

R409

330

R401

R402

1K

33K

0

2

4

123

R415

33

1200p

R419
330K

OP-AMP1/2

1

0

100

0

0.1

C404

0
3

2068

R410

2SA1048

Q301

Q403

0.6

2SC2240

Q405

(RME)X401

R411

15K

123

34.5

123

1.8

C402
330p

-18

2SC2458

10p

Q404

-0.6

C411

123

-0.1
R416

2SA970

33

Q406

R420
330K

1

1

1

1

1

1

+18V

1

2SA1145

Q409

FL

S-GND

FR
SBL

S-GND

SBR

2

35.0

3
2SA970

EH

J101

1

1

2

2

3

3

4

4

5

5

6

6

R413

470

36.0

Q407

D401

R417

150

C406

220/50V

WE03-Y

C301

R302

10/35V

1K

33K

R301

R304

47

36.9

10 1/4W

R442

18

8

5

R110

100

0

7

OP-AMP2/2

0

0

Q101

6

2068

C103
100/50V

Q101

0

2068

3

R210

100

1

OP-AMP1/2

0

0

2

4

-18

330p

C202

-18V

C203
100/25V

+18V 1

100/25V

C348

18

8

0

5

R310

100

7

OP-AMP2/2

0

0

Q301

6

2068

330p

C302

C303
100/25V

36.0

R111
15K

2

0.6

Q103

2SA1048

3

0

2

1

Q104

2SC2458

1

2

3

2

-0.6

10p

C111

R112

15K

Q108

2SC2240

-36.0

-18V

R105

33K

R213
470

+18V

R211
15K

2

0.6

Q203

2SA1048

3

0

2

1

Q204

2SC2458

1

2

3

10p

C211

2

-0.6

R212

15K

Q208

2SC2240

-36.0

100/25V

C149

R205

R313
470

R311
15K

2

0.6

Q303

2SA1048

3

0

2

1

Q304

2SC2458

1

2

3

2

-0.6

10p

C311

R312

15K

Q308

2SC2240

-18V

-36.0

R305

33K

R117

150

Q107

D101

3

2SA970

2

35.0

Q109

3

2SA1145

1

2

34.5

1

3

0.1

R115

R116

-0.1
3

1

-34.5

3

R114

R106

330

36.0

3

1

1

3

0.1

R215

R216

-0.1

3

1

1

3

R214

R206

330

36.0

3

1

1

3

0.1

R315

R316

-0.1

3

1

-34.5

1

3

R314

R306

330

Q105
2SC2240

33

33

Q106

2SA970

470

2SA970

34.5

Q205
2SC2240

33

33

Q206

2SA970

-34.5

470

2SA970

Q305
2SC2240

33

33

Q306

2SA970

470

1

1.8

C104

330K

10K

R119

R121

1200p

2

-35.0

2

R217

Q207

D201

2

Q209

2SA1145

2

C204

1200p

2

2

-35.0

R317

Q307

D301

2

Q309

2SA1145

2

34.5

C304

1200p

2

2

-35.0

Q111

1.1

1

C

2SC3419

-0.6
2

B

3

E

2.2K

330K

R122

R120

-1.8

1

3

R118

R107

150

35.0

3

1

330K

R219

330K

R220

-1.8

1

3

R218

R207

150

35.0

3

1

330K

R319

330K

R320

-1.8

1

3

R318

R307

2SC2705

D102

150

330

1.8

R221

R222

2SC2705

D202

150

330

1.8

R321

R322

2SC2705

D302

150

330

2.2K
R123

13

Q110

10K

-0.6

2.2K

2.2K

R223

13

Q210

10K

-0.6

2.2K

2.2K
R323

13

Q310

-1.8

2

R108

R109

330

330

Q211

1.1

C

1

2SC3419

2

B

3

E

-1.8

2

-36.9

R209

R208

330

330

Q311

1.1

C

2SC3419

1

2

B

E

3

-1.8

2

-36.9

R309

R308

330

330

R142

10 1/4w

36.9

41.4

C106

220/100V

Q114

4.3V

D109

220/100V

4.3V

D209

220/100V

220/100V

4.3V

D309

220/100V

-1.8

-1.8

-1.8

C112

47p

8.2V

D105

D103

D104

8.2V

D106

C107

10 1/4w

10 1/4w

220/100V
C206

C212

8.2V

D205

D203

D204

8.2V

D206

C207

10 1/4w

C306

C312

Dummy

8.2V

D305

D303

D304

8.2V

D306

C307

10 1/4w

R143

R242

R243

10 1/4w

R343

1

2SC3421

2

1.8

-1.2

2

47p

C113

47p

2

1.8

-1.2

2

C213C313

47p47p

R342

2

1.8

-1.2

2

1

3

2

1.2

R127

47

0.6

3

220

0.01

C108

R131

R126

1K

-0.5

Q113

2SA1859

3

R128

47

2

31

1

Q115

2SA1358

1

-37.0

1

Q214
2SC3421

1

3

2

1.2

R227

47

0.6

3

220

0.01

R231

C208

R226

1K

-0.5

Q213

2SA1859

3

R228

47

2

3

1

Q215

2SA1358

1

-37.0

Q314
2SC3421

1

3

2

1.2

R327

47

0.6

3

220

0.01

R331

C308

R326

1K

-0.5

Q313

2SA1859

3

R328

47

2

3

1

Q315

2SA1358

1

-37.0

R124

100

C105

10/35V

R125

100

-36.9

36.9

R224

100

C205

10/35V

R225

100

36.9

R324

100

C305

10/35V

R325

100

(RMA)X101 ,X201 ,X301

Q112

2SC4883

R129

EH

R130

Q212

2SC4883

R229

R230

Q312

2SC4883

R329

R330

2SC2922

10

R132

0.1x2 5w

J132

10

-0.5

2SC2922

10

EH

J232J332

10

-0.5

2SC2922

10

EH

10

-0.5

37.0

Q116

2

0.6
0

2

2

1

0

2

3

1

1

3

R133

1K

3

R134

1K

1

Q117

2SA1216

R139

22K

Q118

1

2SC2240

2

0

3
0

R135

1K

D108

D107

HSS81

22K

22K

R137

R136

37.0

2

HP DET

2

HP ON

2

3SPKR

2

SB SPKR

2

M-SPKR

(RHP)XP91

P124

5V

5

5

0V

4

4

5V

3

3

5V

2

2

0V

1

1
JN02
EH

From Port Eepander 4

Q216

1

2

0.6
R233

0

3

1K

3

R232

2

1K

R235

2

1

5w

0.1x2

R234

1K

1

0

3

Q217

2

2SA1216

1

37.0

CN14

10/50V

Q316

1

2

0.6
R333

0

3

1K

3

2

R332

1K

R335

2

1

0.1x2 5w

R334

1K

1

0

3

Q317

2

2SA1216

1

-0.7

R239

22K

Q218

1

2SC2240

2

0

3
0

VH
J102

FL

1

1

FR

2

2

SBL

3

3

SBR

4

D207

D208

HSS81

22K

22K

R236

R237

RN40

6.8K

3

QN08

2

1

-0.7

2SA970

RN41

R339

22K

22K

Q318

1

2SC2240

2

0

3
0

D308

D307

HSS81

HSS81 HSS81 HSS81

22K

22K

R336

R337

101010

R544

R543

R542

4

37.0

-37.0

+18V

-18V

+B

5

5

P-GND

4

4

-B

3

3

2

2

1

1
J837
VH

From Main Transfomer

PH

PH

WN62JN62 WN62

CN66

2

2

1

1

1/50V

PH

PH

WN47JN47 WN47

CN18

2

2

1

1

1/50V

JP99

RN27

4.7K

RN30

RN28

2.2K

RN31

RN29

4.7K

To Display

JB

PN24

2

RN62

1

JB

PN14

2

1

HEAD PHONES OUT

2SC2458

10K

2SC2458

10K

2SC2458

10K

RN32

Z34
FL1

FL2

VKK

F2

RN47

D2

JP91
EH

QN04

2
B

CN10

100p

QN05

2
B

CN11

100p

QN06

2
B

CN12

100p

W102

Z26 J831

1

2

3

4

5

Z75

2

3

2

1

For FAN Sens.

For HEAT Sens.

WP91

C

1

E

3

C

1

E

3

C

1

E

3

VH

J104

J107

VH

VH

1

2

3

4

5

J840

121

EH

J838

3

2

1

5V

VH

819

HP DET

123

123

123

123

AC42v

AC27v

AC 0v

AC27v

AC42v

AC5v

7

CP91

Dummy

HP-R

P-GND

HP-L

4

4

4

4

RP92

RP91

330 1w

1

2

123

1

2

123

FLG

FRG

W104

W104

123

1

2

1

1

2

R831

D840

6.8V

P834

3

EH
JP92

330 1w

10 1w

10 1w

10 1w

10 1w

SBRG

2

100 1/4W

-30V

SBLG

W105

W105

3

2

CP92

Dummy

35V

VH

RELAYP

35V

100 1/4W

JP93

CP93

0.1

EARTH

SPEAKER OUTPUTS

34125

C119

100p(N,S)

451

326

164

LP91

R438

R338

R238

R138

J106

VH

R832

100/50V

LN01

330 1/4w

DN05DP91

RP93

0.022

C409

0.022

C309

0.022

C209

0.022

C109

VH

123

J103

123

FLFRSBR

SBL

W102

J105

1A

26V

330 1/4W

R539

876 5

L501

VSB24STB 16A

VSB24STB 16A

8765

L502

330 1/4W

R538

26V

D833 D837

1A 1A

1A

1A

D831

D835

D838

D834

1A

1A

1A 1A

D832 D836

C839

FR SBLFL

CN96

0.1(N,S)
C319

100p(N,S)

C219

4

4

D502

CN95

0.1(N,S)
Dummy

253

330 1/4w

RN35

0.022

C410

C310

0.022

C210

0.022

0.022

C110

1234

1234

123 4

1234

RN24

1 1/4w

D503
1A

1 1/2W

R833

33V

D839

1 1/4W

R834

100p(N,S)

CN93

JUMPER

12

12

RN98

DUMMY

C840

C841

DN01

1A

C831

1000/50V

C832

470/50V

R835

100 1/6W

(RPS)X831

SBR

34125

100p(N,S)

C419

164

LN03

1A1A1A

DN07

RN99

D25XB60

D841

0.1

15K

0.1

RN26

DN02

36V

1A

35V

C833

0.1

C834

0.1

-36V

C846

J349J149

CN97

CN94

0.1(N,S)

253

RN37

330 1/4w

W351

SDN

18000/71V

C843 C842

CN07

220/50V

18000/71V

RN46

3.3K

78M18

31

Q831

2

1

Q832

23

79M18

78M18

31

Q833

2

0.1

0.1

0.1(N,S)

SCN
WN51

-18V

2

1

onlySR9200

W836

SDN

C845

18000/71V

RN25

3.3K

18V

18V

C848

1

2

3

18000/71V

C847

2

1

WN51

1

2

3

12345

C844

C835

0.1

C836

0.1

100/25V

From J501(P154)

P164

2

1

J351

VH

EH

JN51

35V

1

2

3

M-SPKR

-37V

C837

100/25V

C838

100/25V

J839

SPEAKER OUTPUTS

ML

MR

J299

3412534125678

C240

CN99

100p(N,S)

C140

100p(N,S)

0.1(N,S)
CN92

253

164

LN04

DN08

only SR8200

1A 1A

U496

RN38

330 1/4w

U497

only SR8200

C

2SC2458

1

QN07

2

0V

0V

37V

EARTH

B

3

E

4.7K
100p

CN13

RN34

10K

RN33

123

4

W883

J883

123

4

VH

Q503

C

1

2SC2458

2

B

E

3

15K15K

R556R559

R557R558

0V

100p

100p

R563R561

0V

GND

Q506

2SC2458

15K15K

R560

2

10K

R554

C514

47/16V

DN03

CN08

2.0V

CN09

2.0V

DN04

22K22K

R562

10K

FAN-G

HEAT3PAMPFAIL4+18V-25+18V6-18V
2

7

2

345

6

7

33K

C511

DTC114

0.1(N,S)

100p

1

3

R552
220K

0.1

C512

3

Q505

AVSSDET

EH

1

J531

1

W501

SL SR

100p(N,S)

LN05

U498
U499

J155
VH

2SC2458
Q507

E

9V

CENTER

J199

C169

C269

C369

CN90

CN98

CN91

0.1(N,S)

0.1(N,S)

0.1(N,S)

100p(N,S)

100p(N,S)

253

164

DN09

J153

164

253

LN02

1A

330 1/4w

DN06

RN36

RN39

VH

SR

330 1/4w

R388

C359

C259

C159

SL

W152

10 1w

0.022

C360

R288

0.022

10 1w

C260

R188

10 1w

0.022

C160

VH

123

J154

123

C

VH
J156

1

2

123

123

1

2

CG

SRG

SLG

MRG

MLG

W156

W154

From J152(P154)

W156

W154

CG

SLG

C

Q504
2SC2458

R553

MRG

2

2

1000p

Q508

2SA1048

123

4.7K
R551

SRG

123

J157

1

2

3

VH

100K

R555

3

2

1

EH
JN01

5V

1

4V

2

5V

3

5V

4

AVSSOUT

1

PROTECT1

2

AVSSDET

3

PROTECT2

4

From J884(P154)

To & From u-Com

MLG

1

1

R537

4.7K

R536

10K

C513

123

B

22K

D501

1

2

From W401(P414)

FR

Ov Curr

FAN Sens

J401

VH

12345

6

12345

6

From J504(P414)

SAN
W504

Sbl(SB)FLHEAT Sens

12345

6

11 12

Temp FANFRTemp HEAT

Ov CurrFLSBL

SBR

From J503(P414)

1234567

SAN

W503

P154

12345

J504

12345

R503

47K

D514

100p

C504

10K

R508

11

10

1/4 2901

Q502

13

1

Q502

1/4 2901

7

6

47K

R504

D513

100p

C503

R507

10K

9

8

1/4 2901

Q502

14

Q502

2

12

3

1/4 2901

4

5

R532

10K

D517

47K

47K

D512

100p

C502

R506

10K

9

8

1/4 2901

Q501

14

1

Q501

1/4 2901

+18V-2

7

6

100/25V

C510

D516

C506C507

100p100p

R535

47K

22K

RN16

10K

RN19

RN22

2SC2458

QN03

4.7K

B

2

C

E

1

3

47K

R502

R534

R501

C509

C508

100/25V

D511

1/50V

100p

C501

100

10K

R505

10

11

R509

1/4 2901

12

3

Q501

100K

R517

13

10K

R549

9V

2

Q501

1/4 2901

5

4

10K10K

R530R531

D515

C505

100p

+18V-2

R533

47K

CN06

0.01

RN21

4.7K

RN20

10K

2SC2458

CBE
123

+18V-2

RN18
22K

QN02

4V

3

4.5V

R541

+18V

10K

2.2K 10K

R540

R545

22K

+18V-2

-18V

1

DTC114

2

RN23

+18V-2

(RMB)X5XX

+18VP-2

PAMPFAIL

AVSSDET

2V

QN11

P414

123

VH

J152

123

C414
47/100V

10K

R421

2.2K

R422

23

From J153(P164)

(RME)X401

37.0

Q411

1.1

2SC3419

C

1

-0.6
2

B

E

3

-1.8

2.2K

1

R423

-37.0

Q414

2SC3421

C412

47p

100

2

1.8

R424

8.2V

D405

D403

4.3V

C405

10/35V

D409

D404

D406

8.2V

R425

100

-1.8

47p

From J401(P114)

1

-B

2

P-GND

3

+B

4

Sbr

5

+Sbr

6

-Sbr

W401

SDN

FAN-G

7

7

-18VP

6

6

+18VP

5

5

4

4

3

3

HEAT

2

2

1

1

EH

J501

From J531(P834)

From J883(P834)

-B+BP-GND

W883

123

4

J884

VH

123

4

SLCSR

W152

PH

1

1

Q412

3

2SC4883

2

0.01

C408

Q413

2SA1859

Q416

2SC2922

0.6

3

2

0.6

R429

10

220

R431

2

EH

J432

1

2

R430

10

-0.5

2

-0.5

3

2

1

1.2

R427

47

R426

1K

R428

47

-1.2

3

Q415

2

2SA1358

1

C413

From W504(P114)

6

6

J503

PH

1

1

2

2

3

3

4

4

5

5

6

6

7

7

CN16

RN44

10/50V

6.8K
QN10

3

2SA970

2

1

-0.7

R439

Q418
2SC2240

0

RN45

22K

22K

1

2

3

0

R548
100

D408R437

D407

HSS81

HSS81

22K

22K

R436

1

R433

0

3

1K

3

1K

R435

0.1x2 5w

R432

1K

1

R434

0

3

Q417

2SA1216

1

C415
47/100V

From J503(P154)

100/50V

-B

68K

68K

68K

68K

68K

D2

RN08

0.47/50V

CN03

RN06

RN10

100K

CN17

RN14

1

1

1

RN49

RN04

RN05

100K

0.01

RN11

15K

33K

3.2V

1/50V

CN05

2PH1

WN49 WN49JN49

2

2

PN54

0V

(RMC)XN01

PH

PH

JB

68K

RN03

RN02

RN01

123456789

TA7317P

QN01

+B

10K

RN15

1/50V

CN63

JN86 WN86WN86

2

PH

1

2

JB

1

2

PN64

RN86

F2

For FAN Sens.

22K

2SC2922

0.6

47

1.8

123

+B

RN42

22K

-0.7

123

2SA970

QN09

RN43

C389

2SC4883

34.5

100/25V

Q362

123

2SA1145

1

6.8K

CN15

10/50V

37.0

123
2SC3421

Q364

1.8

35.0

Q359

2

R392

101/4w

47p
C362

C356

220/100V

R374

100

36.9

R367

D351

150

2SA970

Q357

36.0

3

R363

470

+18V

CENTER

S-GND

S-GND

SL

SR

J151

EH

12345

12345

-37.0

R293

101/4w

220/100v

C257

-36.9

R259

330

R258

330

R268

R257

330

150

R264

470

R256

330

-36.0

33K

R255

100/25V

C253

R254

47

R389

123

Q366

R377

1.2

123

R361

15K

123

D252

100/25V

C199

-18V

2SA1360

-1.8

-35.0

Q265

100

2SC2240

Q258

123

8.2V
D256

R275

123

R287

R286

-34.5

22K

22K

47

-1.2

2SC2705

15K

R262

123

2SA1859

R278

Q260

123

-1.8

123

WE02-B

HSS81

-0.5

Q263

D258

HSS81

D257

2SA1216

-0.5

D254

-0.6

C261

Q267

10

2SA970

10p

0

R280

R273

2.2K

2

13

Q256

-0.1

D152

2SA1358

123

-1.8

-35.0

Q165

2SC2240

123

D156

R175

100

123

Q158

R187

R186

47

-1.2

8.2V

2SC2705

-34.5

15K

22K

22K

Q160

R162

123

-0.5

2SA1859

Q163

R178

123

-1.8

123

10p

C161

HSS81

D158

HSS81

D157

2SA1216

Q167

10

-0.5

D154

2SA970

-0.6

R199

10

0

R180

R173

2

13

Q156

-0.1

1K

1

1

2

-1.8

2.2K

2.2K
R172

330K
R170

33

123

123

0

22K

R289

2SC2240

Q268

0

1K

R284

R283

R285

1K

1K

123

3

1

0

2SC2922

Q266

R282

0.6

2

J282

0.1x25w

EH

1

2

R276

1K

D259

4.3V

10/35V

-1.8

1.1

C255

123
C

E

Q261

2SC3419

B

-0.6

2.2K
R272

330K
R270

R265

R266

33

33

123

2SC2458

Q254

4

-18

2

330p
C252

33K

R251

220
R281

D253

10K
R271

330K
R269

1200p

C254

123

0

0

2SC4883

Q262

R279

10

123

0.6

0.01

R277

C258

47

1.2

1.8

D255

8.2V

1.8

123

2SA1145

Q259

2SC2240

34.5

Q255

0.1
123

1

+18V

0.6
R261

15K

2SA1048

Q253

0

R260

100

NJM2068DD

1

Q151

3

0

R252

1K

10/50V

C251

37.0

-37.0

123
2SC3421

Q264

R292

101/4w

47p 47p

220/100V

C262 C162

C256

R274

100

36.9

35.0
R267

D251

150

2SA970

Q257

2

36.0

3

R263

470

R193

101/4w

220/100V

C157

-36.9

R159

330

R158

330

R168

R157

330

150

R164

470

R156

330

33K

47

R155

100/25V

R154

-36.0

-18V

C153

R184

D159

E

R166

2SC2458

123

0

22K

R189

2SC2240

Q168

0

1K

R183

1K

R185

2

J182

EH

R176

1K

10/35V

C155

B

Q154

0.1x25w

-0.6

330p
C152

33K
R151

R182

D153

4.3V

1.1

123
C

Q161

2SC3419

10K
R171

330K
R169

R165

33

123

NJM2068DD

Q151

6

123

3

0

2SC2922

Q166

0.6
2SC4883

R179

10

0.6

220

R181

0.01

R177

47

C158

1.2

8.2V

D155

1.8

1

2

1200p

C154

2SC2240

Q155

34.5

0.1
123

0.6
R161

15K

2SA1048

Q153

0

R160

100

0

7

18

8

C198

100/25V

5

0

0

R152

1K

10/50V

C151

Q162

1

123

3

2SA1145

Q159

47.0

2SC3421

Q164

123

1.8

35.0

2

R192

101/4w

220/100V

C156

R174

100

36.9

R167

D151

150

2SA970

Q157

36.0

3

R163

470

+18V

100/25V

RN61

4.7K

RN71

100

7.1V

9

8

1/4 2901

QN61

14

9.1V

CN61

RN63

CN62

4.7K

6

1/4 2901

QN61

+18V-2

3

XH

JN61

11

100K

RN77

2

1

4.7V

FAN-

NC

0.01

RN69

100

10

1/4 2901

QN61

RN76

13

RN80

10K

QN62

DTC114

3

8.2V
DN61DN62

FAN+

321

321

Cooling FAN

M011

12

RN67

RN66

470

4.7K

+18V-2

4

3

QN61

2

RN85

4.7 1/2w

1

C

3

E

2SC3419

QN64

(RMD)XN61

+18V-2

+18V-2

1/50V

CN65

100

RN68

1.6V

5

1/4 2901

100K

12

10K

RN83

2

QN63

DTC114

1

RN84

1.5K

2

B

RN64RN65

6.8K4.7K

RN70

100

CN64
1/50V

7

1

8.5V

(RMA)X151 ,X251 ,X351

-B

HSS81
D358

22K

R387

HSS81
D357

22K

R386

2SA1216

Q367

R384

1K

123

1

0

-37.0

R393

101/4w

C357

220/100V

-36.9

R359

330

R358

330

R368

R357

330

150

R364

470

R356

330

-18V

33K

R355

100/25V

C353

R354

47

-0.5

R380

10

123

-0.5

2SA1859

Q363

2SA1358

Q365

R378

47

123

-1.2

C363 C263 C163

47p 47p 47p

-1.8

8.2V
D354

D356

R375

100

-35.0

D352

123

-36.0
2SC2240

Q358

100/25V

-34.5

C399

WE02-R

2SC2705

Q360

123

15K

R362

C361

-1.8

R373

2.2K

2

2.2K

13

123

R372

-1.8

330K
R370

2SA970

Q356

-0.1
33

123

-0.6

10p

0

NJM2068DD

1

-18
4

2

0

0

R382

D359

E

R366

2SC2458

Q351

3

123

0

2SC2240

Q368

0

R385

1K

R383

1K

0.1x25w
3

0

0.6

2

R379

1

2

10

J382

EH

220

R381

0.01
C358

R376

1K

8.2V

D353

D355

4.3V

10/35V

1.1

C355

123
C

Q361

2SC3419

B

-0.6

10k
R371

330K
R369

1200p

C354

2SC2240

Q355

R365

33

0.1

123

330p
C352

33K

R351

NJM2068DD

0

Q351

6

0

0.6

2SA1048

Q353

0

R360

100

7

18

8

5

0

R352

1K

10/50V

C351

Q354

From JE09(PC04)

68K

RN07

33K

RN09

CN01

CN02

0.01

1K

RN12

RN13

33K

CN04

0.47/50V

For HEAT Sens.

1413

To u-COM

123

4

1

2

3

4

J811
EH

P814

(RBU)X811

L811
Backup Trans.

3

1

P824

VA

VA

J803

J802

121

0.1

S801

21

C801

121

2

2

W802

(RSW)

P844

J810

AC INLET

L

1

2

N

J809

AC CORD

Z011

VA-S

VA

J805

1

1

1

1

2

2

2

2

W801

GND

EARTH

1A

D811

D812

1A

1A
D813

1A

D814

14

AC13V

132
12

1A

D815

11

AC13V

D816

L811

R807

1 1/4w

1A

D802

32

TV-8

15

L801

C802

0.1

R801

2.2 7W

J806

R811

5.1V

470 1/6w

8.7V

D817

5.1V

0.1
C814

C813

4700/16V

C811

470/25V

1A

R802

2.2 7W

2

R897

-12.6V
1

R808

470 1/4w

1A

D801

14

TV-5

23

L802

0.1

C803

47/25V

C812

R812
22K

10.4V

C804
100p

E

3

2
B

Q801
2SA1048

1

C

100/10V(U,F) 0.1/50v(N,S)

C805

E

3

2
B

Q802

1

C

2SA1048

150mSec Delay

Q812

IN OUT

Q811

IN OUT

R804
10K

R803

10K

R806

4.7K

R805

22K

PST600D

GND

1

78M05

GND

2

C816

23

5V

31

C815

0V

D803

1

3

D804

F801
250V 6.3A

1

J807

J808

0.1
5V

R813

10K

C817

0.1

100/16V

C

E

Q803

DTC114

1

(RPS)X801

P-DOWN

2
B

STANDBY

5V

+5VL

+5VL-DG

Main Transformer

J812
GND

EARTH

VA

J804

1

1

2

2

L001

1

2

3

to J831(J834)

4

5

1

2

3

to J851(PY04)

4

5

6

1

to J840(P834)

2

JF51

Y

B

C

R

MONITOR_OUT

Y

C

B

VCR2

C

R

Y

C

B

DSS

C

R

JF52

Y

C

B

VCR1

C

R

Y

C

B

DVD

C

R

JF53

RVP PF14

DF54

QF54
2SC2458

2

5

6

3

4

1

2

GND

9

11

5

RF70

0

CF54

7

1

3

10

12

6

8

2

4

13

GND

9

11

5

7

1

3

10

12

6

8

2

4

13

GND

Dummy

CF53

Dummy

GND

RF71

0

CF56

Dummy

CF55

Dummy

GND

RF72

0

CF58

Dummy

CF57

Dummy

GND

RF73

0

CF60

Dummy

CF59

Dummy

GND

JF54

8MQ-ST-L

RF74

CF63

470/6.3V

10K

RF75
10K

10K

RF57

RF58

10K

10K

RF54

RF55

10K

10K

RF51

RF52

10K

C

3

B

1

E

GND

GND

RF77

75

QF53

2SC2458
2

C

3

B

1

E

GND

GND

QF52
2SC2458

2

C
3
B

1

E

GND

GND

RF61 Dummy

QF51

2SC2458

2

C
3

B

1

E

GND

GND

8

SEL_VDCOSD

CO_MUTE

CO_MUTE

SEL_VC

GND

GND

OSD_MENU

1 1/6W

RF76

87

12

34

56

MR82-24

LF59

DF53

LF56

87

12

34

LF54

12

34

LF51

12

34

GN D

MR82-24

MR82-24

RF60

MR82-24

+24V

DF52

DF51

+24V

CF61
CF62

1234567

GND

GND

56

87

RF62

Dummy

RF64

Dummy

56

0

87

56

0.01
10/50V

+24V

LF57

12

34

MR82-24

LF55

12

34

MR82-24

RF63

LF52

12

34

MR82-24

87

56

87

56

0

8

7

56

GND

JF56

COMPONENT

LF58

GND

GND

DUMMY

RF56

1 1/6W

RF67

Dummy

RF65

Dummy

RF66

RF53

1 1/6W

LF53

12

34

MR82-24

JF55

DUMMY

-DVD

-DVD

B

C

C

Y-DVD

0

R

Y-DSSCY

+24V

RF68

87

56

-DSS

B

C

+24V

Dummy

+24V

-DSS

R

RF59

1 1/6W

GND

COMPONENT CONTROL

VC

VD

DVD

LL

H

VCR1
VCR2

123456789

R

B

C

C

DSS

H
LH
HL

15 16

CE16

RM11

3.9K

10/50V

47/25V

10/50V

CG13

10/50V

CG63

10/50V

CM13

CE14

CE13
10/50V

CE64

CE63
10/50V

CG14

10/50V

CG64

10/50V

CM14

10/50V

2

3

RE14

4.7K

RE13

4.7K

5

6

2

3

RE64

1.8K

RE63

4.7K

5

6

2

3

RG14

4.7K

RG13

4.7K

5

6

2

3

RG64

4.7K

RG63

4.7K

5

6

2

3

5

6

NJM2068DD

OP-AMP1/2

-15V

+15V

8

OP-AMP2/2

NJM2068DD

CE15

CE66

NJM2068DD

OP-AMP1/2

-15V

+15V

8

OP-AMP2/2

NJM2068DD

CE65

CG16

NJM2068DD

OP-AMP1/2

-15V

+15V

8

OP-AMP2/2

NJM2068DD

CG15

CG66

NJM2068DD

OP-AMP1/2

-15V

+15V

8

OP-AMP2/2

NJM2068DD

CG65

CM16

NJM2068DD

OP-AMP1/2

-15V

+15V

8

OP-AMP2/2

NJM2068DD

CM15

PRE

100p

RE16

8.2K

QE03

CE20

RE20

47/25V

220

1

4

GND

CE18

0.1u
RE18

CE22

47K

470p

GNDGNDGNDGND

RE17

CE21

47K

CE17

0.1u

QE03

100p

100p

QE53

4

CE68

0.1u

CE67

0.1u

QE53

100p

100p

QG03

4

CG18

0.1u

CG17

0.1u

QG03

100p

100p

QG53

4

CG68

0.1u

CG67

0.1u

QG53

100p

100p

QM03

4

CM18

0.1u

CM17

0.1u

QM03

100p

470p

GND

CE19

RE19

7

47/25V

RE15

RE66

RE65

RG16

RG15

RG66

RG65

RM14

RM13

220

8.2K

8.2K

CE70

RE70

47/25V

220

1

GND

RE68

CE72

47K

470p

RE67

CE71

47K

470p

GND

CE69

RE69

7

47/25V

220

8.2K

8.2K

CG20

RG20

1

47/25V

220

GND

RG18

CG22

47K

470p

RG17

CG21

47K

470p

GND

CG19

RG19

7

47/25V

220

8.2K

8.2K

CG70

RG70

220

47/25V

1

GND

CG72

RG68

470p

47K

RG67

CG71
470p

47K

GND

CG69

RG69

7

220

47/25V

8.2K

CM20

47/25V

RM16

47K

RM15

47K 470p

CM19 RM17

47/25V 220

RM18

220

CM22
470p 47K

CM21

22/50V

22/50V

CM32

RM32

RM31

47K

CM31

12K

1

GND

GND

7

12K

CM36

100p

RM36

12K

QM30

2

NJM2068DD

CM35

-15V

+15V

NJM2068DD

CM40

47/25V

1

4

GNDGND

CM38

0.1u

RM38

47K

RM37

47K

CM37

0.1u

8

CM39

7

47/25V

QM30

RM35

12K

100p

OP-AMP1/2

3

RM34

3.9K

CM34
10/50V

CM33

10/50V

RM33

3.9K

5

OP-AMP2/2

6

SPK

CE06

100p

RE06

10K

QE01

2

CE02

22/50V

RE02

47K

RE01

47K

CE01

22/50V

CE52

22/50V

RE52

47K

RE51

47K

CE51

22/50V

CG02

22/50V

RG02

47K

RG01

47K

CG01

22/50V

CG52

22/50V

RG52

47K

GNDGND GND GND GND

RG51

47K

CG51

22/50V

CM02

22/50V

RM02

47K

RM01

47K

CM01

22/50V

JE05

12MQ-ST-L

GND

123456789101112 12MQ-ST-L121110987654321

SL

SWFLSR

SBLFRSBR

GND

GND

CEN

TO JY07(PY04) CONNECT TO JY06(PY04) CONNECT

MULTI-L

MULTI-R

RE04

CE04

10/50V

CE03
10/50V

RE03
10K

RE54
DUMMY

CE54
DUMMY

CE53
10/50V

RE53
10K

RG04

10K

CG04

10/50V

CG03

10/50V

RG03

10K

RG54

10K

CG54

10/50V

CG53

10/50V

RG53

10K

RM04

10K

CM04

10/50V

CM03

10/50V

RM03

10K

3

5

6

2

3

5

6

2

3

5

6

2

3

5

6

2

3

5

6

-15V

+15V

OP-AMP2/2

CE05

CE56

OP-AMP1/2

-15V

+15V

OP-AMP2/2

CE55

CG06

OP-AMP1/2

-15V

+15V

OP-AMP2/2

CG05

CG56

OP-AMP1/2

-15V

+15V

OP-AMP2/2

CG55

CM06

OP-AMP1/2

-15V

+15V

OP-AMP2/2

CM05

JE06

04MQ-ST-L

NEW

4

CE08

0.1u10K

CE07

0.1u

8

QE01

NJM2068DD

100p

100p

QE51

NJM2068DD

4

CE58

0.1u

CE57

0.1u

8

QE51

NJM2068DD

100p

100p

QG01

NJM2068DD

4

CG08

0.1u

CG07

0.1u

8

QG01

NJM2068DD

100p

100p

QG51

NJM2068DD

4

CG58

0.1u

CG57

0.1u

8

QG51

NJM2068DD

100p

100p

QM01

NJM2068DD

4

CM08

0.1u

CM07

0.1u

8

QM01

NJM2068DD

100p

1

GND

GND

7

RE05

10K

RE56

0

1

GND

GND

7

RE55

10K

RG06

10K

1

GND

GND

7

RG05

10K

RG56

10K

1

GND

GND

7

RG55

10K

RM06

10K

1

GND

GND

7

RM05

10K

CE_VOL

1234

CE_VOL

NJM2068DD

OP-AMP1/2

CE10

22/50V

RE08

47K

RE07

47K

CE09

22/50V

CE60

22/50V

RE58

47K

RE57

47K

CE59

22/50V

CG10

22/50V

RG08

47K

RG07

47K

CG09

22/50V

CG60

22/50V

RG58

47K

RG57

47K

CG59

22/50V

CM10

22/50V

RM08

47K

RM07

47K

CM09

22/50V

DATA

CE_VOL-M

100

RE44

CE_VOL-M

CLK

100

RE43

DATA

CLK

DATA
CE_VOL

CLK

DATA
CE_VOL

CLK

DATA
CE_VOL

CLK

DATA
CE_VOL

CLK

DATA
CE_VOL-M

GND

FR

GND

NC

CK

GND

STB

DATA

GND

RE40

100

CE40
100p

GND

FL

SW

GND

NC

CK

GND

STB

DATA

GND

RE90

100

CE90
100p

GND

CEN

SR

GND

NC

CK

GND

STB

DATA

GND

RG40

100

CG40
100p

GND

SL

SBR

GND

NC

CK

GND

STB

DATA

GND

RG90

100

CG90
100p

GND

SBL

MR

GND

NC

CK

GND

STB

DATA

GND

RM60

100

CM60
100p

GND

ML

100p

CE45

100p

CE46

100p

CE47

100p

CE48

NC

NC

CS1

L_LD2

L_A_GND

R_LD2

R_A_GND

NC

CS2NCNC

+15V

+15V

NC

NC

CS1

L_LD2

L_A_GND

R_LD2

R_A_GNDNCCS2NCNC

+15V

+15V

NC

NC

CS1

L_LD2

L_A_GND

R_LD2

R_A_GND

NC

CS2NCNC

NC

NC

CS1

L_LD2

L_A_GND

R_LD2

R_A_GND

NC

CS2NCNC

NC

NC

CS1

L_LD2

L_A_GND

R_LD2

R_A_GND

NC

CS2NCNC

L_LD1

R_LD1

L_LD1

R_LD1

L_LD1

R_LD1

L_LD1

R_LD1

L_LD1

R_LD1

-15V

CE12

CE43

22/50V

CE44

1234567891011121314

0.1u

VSS

TC9459N

VDD

2827262524232221201918171615

CE94

1234567891011121314

0.1u

VSS

TC9459N

VDDNCR_OUT

2827262524232221201918171615

CG44

12

0.1u

VSS

TC9459N

VDDNCR_OUT

2827262524232221201918171615

CG94

1234567891011121314

0.1u

VSS

TC9459N

VDDNCR_OUT

2827262524232221201918171615

CM64

1234567891011121314

0.1u

VSS

TC9459N

VDDNCR_OUT

2827262524232221201918171615

GND

RE10

47K

QE02

CE42

RE09

0.1u
47K

GND

CE11

22/50V

CE62

22/50V

GND

RE60

47K

QE52

CE92

RE59

0.1u
47K

GND

CE61

22/50V

CG12

22/50V

GND

RG10

47K

QG02

CG42

RG09

0.1u
47K

GND

CG11

22/50V

CG62

22/50V

GND

RG60

47K

QG52

CG92

RG59

0.1u
47K

GND

CG61

22/50V

CM12

22/50V

GND

RM10 RM12

47K 3.9K

QM02

CM62

RM09

0.1u
47K

GND

CM11

22/50V

RE12

5.6K

RE11

5.6K

RE62

1.5K

RE61

5.6K

RG12

5.6K

RG11

5.6K

RG62

5.6K

RG61

5.6K

47/25V

NC

NC

L_IN

L_OUT

NC

R_IN

R_OUT

NC

CE41
47/25V

+15V

-15V

CE93

47/25V

NC

NC

L_IN

L_OUT

NC

R_IN

CE91
47/25V

+15V

-15V

CG43

47/25V

34567891011121314

NC

NC

L_IN

L_OUT

NC

R_IN

CG41
47/25V

+15V

-15V

CG93

47/25V

NC

NC

L_IN

L_OUT

NC

R_IN

CG91
47/25V

+15V

-15V

CM63

47/25V

NC

NC

L_IN

L_OUT

NC

R_IN

CM61
47/25V

+15V

-15V

RE22

220

1

E

RE24 RE26

B

3

4.7K 4.7K
QE06

C

2SC2878

MUTE-F

RE41

1M

RE92

1M

MUTE-SW

MUTE-C

RE91

1M

MUTE-S

RG41

1M

MUTE-SB

RG91

1M

MULTI-SPKR

RM40

-15V

330

RM20

RM61

CM42

1M

470p

CM41
470p

RM39

330

-15V

+15V

GND

RM22 RM24

4.7K 4.7K

MUTE-M

2SC2878

RM21 RM23

4.7K 4.7K

CE50

100/16V

CE49

100/16V

+15v

220

E

1

B

3

QM06 QM08

C

2

2SC2878 2SC2878

QM05

QM07 QM31

C

2

2SC2878 2SC2878
3
B

E

1

RM19

220

MUTE-F

MUTE-C

MUTE-SW

GND

GND

-15v
MUTE-C

MUTE-F

MUTE-SW

TO JY05(PY04) CONNECT

-15V

-15V

-15V

-15V

3
B

3
B

MUTE-S

MUTE-S

-15V

MUTE-SB

MUTE-SB

E

C

C

E

1

2

2

1

MUTE-M

MUTE-M

C

RE23 RE25

3
B

4.7K 4.7K
E

E

RE74

B

3

4.7K
C

QE55

C

RE73

3
B

4.7K
E

E

RG24

B

3

4.7K
C

QG05

C

RG23

3
B

4.7K
E

E

RG74

B

3

4.7K

QG56

C

2SC2878

QG55

C

2SC2878

RG73

3
B

4.7K
E

RM42

B
3

4.7K
QM32

2SC2878

RM41

4.7K

MULTI-SPKR

_SPKOFF

MULTI SPKR

1

E

B

3

QE08

2

2

C

2SC2878

QE07QE05

2SC28782SC2878

2

2

C
3
B

1

1

E

RE21

220

RE72

220 33

E

1

1

RE76

B

4.7K

3

C

QE58QE56

2

2

2SC28782SC2878

QE57

C

2SC28782SC2878

2

2

RE75

3
B

4.7K
E

1

1

RE71

220

RG22

220 33

1

1

E

RG26

B

3

4.7K

QG08QG06

2

2

C

2SC28782SC2878

QG07

2

2

C

2SC28782SC2878
RG25

3
B

4.7K

1

1

E

RG21

220

RG72

220

E

1

1

RG76

B

4.7K

3

QG58

C

2

2

2SC2878

QG57

C

2

2

2SC2878
RG75

3
B

4.7K
E

1

1

RG71

220

E

1

C

2

GND

C

2
3
B

E

1

RE45
10K

3

B

JE07

10K

QE40
DTC114ES
UN4211
KRC102M-AT

87

GND

GND

GND

GND

+15V

C

10K

E

GND

COM

COM

12

87

COM

COM

12

87

COM

COM

12

87

COM

COM

12

87

COM

COM

12

3

2

1

C

2

B

3

RE47

2

10K

1

E

RE48

RE49

10K

1

+15V

GND

OFF

OFF4ON

GND

GND

OFF

OFF4ON

GND

GND

OFF

OFF4ON

GND

GND

OFF

OFF4ON

GND

GND

OFF

OFF4ON

GND

DE40

DAN202K

QE41
2SA817

150

5ON6

3

5ON6

3

5ON6

3

5ON6

3

5ON6

3

1/2W

TO J151(P154) 3CH AMP TO J101(P114) 3.5CH AMP

RE28

33

LE01

MR82-24USR

RE27

33

RE78

LE51

MR82-24USR

RE77

33

RG28

LG01

MR82-24USR

RG27

33

RG78

33

LG51

MR82-24USR

RG77

33

RM44

150

RM26

33

LM01

MR82-24USR

RM25

33

RM43

150

B5B-EH

JE09

MAIN CEN

MAIN SL

12345CLK

DAN202K

QM60

DTC114ES

UN4211

KRC102M-AT

3

B

10K

MAIN SR

DM60

GND

GND

GND GND

31

+15V

RM62

10k

C

2

10K

1

E

GND

JE08

B6B-EH

2

RM64

10k

RM65

10k

MAIN FR

GND

MAIN FL

123456

-15V

87

COM

COM

12

LM60

MR82-24USR

C

2

B

QM61

3

2SA970

1

E

RM66

680

1/6W

+15V

MAIN SBL

GND

GND

OFF

OFF4ON

3

MAIN SBR

5ON6

PG04

PG04
RVR(XEXX)

JE01

CE24

5

220p

6

CE26

4

470p

CE23

8

220p

9

CE25

7
470p
CE73

2
220p

3

CE75

1

470p

JE02

1

CE74
220p

2

GND

JE03

CG24

2

PRE OUT

220p

3

GNDGND GNDGNDGND

CG26

1

MAIN IN

470p

CG23

5

PRE OUT

220p

6

CG25

4

MAIN IN

470p

JE04

CG74

5
220p

6

GNDGNDGND

CG76

4
470p

CG73

8
220p

9

CG75

7
470p
CM24

2
220p

3

MULTI ROOM

CM23

1
220p

JE10

GND

(XMXX)

PRE OUT

FR

MAIN IN

PRE OUT

FL

MAIN IN

PRE OUT

CEN

MAIN IN

PRE OUT

SW

SR

SL

PRE OUT

SBR

MAIN IN

PRE OUT

SBL

MAIN IN

R

L

(XGXX)

1817

MONI2

MONI1

MULTIOUT

JL03

LD

DVD

DSS
TV

JL04

IN

VCR1

OUT

IN

VCR2

OUT

LL01

CL65

10/50V

1

+5VL

P6

P5

75

CL01

470/6.3V

75

CL02

470/6.3V

GND

CF28

470/6.3V

CL03
DUMMY

RL04

CL04

RL06

CL05

DUMMY

RL08

CL06

DUMMY

RL10

RL12

75

RL15

75 DUMMY

RL14

75

RL16

DSS
DVD

TV

LD

AUX

VCR2
VCR1LD

DVD

0

DSS

TV

0

0

GND

VCR1

VCR1

0

VCR2

VCR2

0

AUX

GND

10/50V

CF02

10/50V

CF01

CF11
DUMMY

GND

QF01

NJM2534M

LD

DVD

DSS

TV

DSS
DVD
TV
LD

QL01
NJM2534M

VCR2

VCR1

BUFF.

V+

CF03

10/50V

GND+5VV

GND

CL30
DUMMY

CL17

10/50V

CL13

10/50V

BUFF. BUFF.

V+

CL14
10/50V

GND+5VV

JL01

RL01

1

2

CL09

47p

GND

JL02

RL02

1

CL10
47p

3

CF27
47p

2

RF01

75

1

RL03

75

2

3

RL05

750DUMMY

4

5

RL07

75

6

7

RL09

75

8

9

GND

1

RL11 CL07

75 DUMMY

2

3

4

CL11CL12

47p47p

5

RL13 CL08

6

7

8

9

GND

1234

GND

8765

1234

GND

8765

10/50V

CF04

0.1
CF05

10/50V

CL15

0.1
CL16

10/50V

CF09

CF06

GND

10/50V

QF02

NJM2296M

CF12
10/50V

10/50V

10/50V

CL29

10/50V

CL28

CL27 CF08

CL26 CF07

100/10V 100/10V

GND
CL19
10/50V

QL02
NJM2296M

VE2

VF2

P3

P4

CF10

-5VV
10/50V

1K

QL08

470/6.3V

12345678

V+

GND

161514131211109

1K

GND

RF03

47p

47p

+5VV

CF14

CF15

GNDGND

+5VL

RL24

1K

QL09

RL22

E

1

3

B

2

C

C

2

3

B

1

E

RL23

CL33

DUMMY

1K

RL21

GND

GNDGNDGND

12345678

V+

GND

161514131211109

GND

CL21

CL23

CL22

10/50V

470/6.3V

GND

+5VV

VA1

V-

RF02

10/50V

CF13

CL32

RL19 RL20

10K 10K

-5VV

0.1 0.1
V-

CL20

10/50V

VB2

100/10V

CF16

GNDGND

470

10/50V

CL34

1K

100/10V

CL24

GND

GND

10K

RF04

0.1

CF17

NJM2535M

GND

10K

RL18

0.1

CL25

P2

P1

RVM-*F**/RVC-*L** PL04

RF05

75

47p

10/50V

CF19

GND

+5VV

RL25
10K

OSD_SEL

1234

H:Y/C
L:CVBS

10/50V

BUFF.

CL79

GND

V+

CL37

CL86
100p

CL80

VD2

SF_YIN

2.2/50V

8765

CL35

0.1

GND+5VL
CL36
100/16V

RL62

75

CL59

47p

GND

OSD_SEL

CF18

DUMMY

QL03

GND

CL31

DUMMY

VC2

_OSDINT

+5VL

RL26

100K

RL28RL27

GND

3

DTA114ES

QL11

QL10

3

B

C

2

3

12K10K

B

1

E

QL22
CL38
10/50V

GND GND GND

+5VV

1

2

DL01
3

1

CL84

DUMMY

2

P1P2P3

P4

P5

P6

MV_MUTE

GND

MULTI_OSD

MULTI_OSD
L:THROUGH
H:OSD

QL19

XL01

DTC114TS

14.31818MHz
N,S ONLY

GND

0

CL41

DUMMY

RL32

GND

100/10V

0.1

CL60

CL42

+5VL

2

C

1

E

RL29

220

560p

CL83

SIODATA

SIOCLK

CE_OSD

GND GND

U,F 22P

+5VL

SCLK

DATA

VDD2

QL04

CV-INNCCV-O

GND

RL33
220

RL35

CL81

10K

10/50V

RL34

DUMMY

GND

N.S 15P

CL40

22p

24p

LL04
33uH

CL49

CL39

CS

CNT1

BLNK

OSC-I

OSC-O

CHARA

1477LC74781

CNT2

SEP-I

SEP-O

SEPC

SY-IN

VDD1

CL44

1/50V

CL43

1200p

GND

+5VV

2

C

3

3
B

QL12

1

E

QL13

1/2W

DTC114ES

RL69

75

RL36

220

-5VV

47p

CL82

GND

XL02

17.31818MHz

RL31
1M

XIN

XOUT

RST

CNT3

CL45

1/50V

GND

+5VL

2

GND

+5VL

RL38
10K

1

N,S ONLY

123456789101112

VSS1

VDD1

242322212019181716151413

RL37

4.7K

1

2

1

0

U,F

RL30

2

QL18
DTC114TS
N,S ONLY

CL48

U,F 22P

N.S 15P

GND

0.1
10/50V

CL47

CL46

GND

QL14

C

2
3
B

1

E

CL73

RL40 RL39

56 1K1K10K

0.022

GND GND

GND

+5VL

QL20

DTA114ES

N,S ONLY

CF21

2

1

3

3

3

BP_OSD_CVBS
H:THROUGH
L:OSD

RL43

QL15

CL50

C

47p

2
3
B

RL41

1K

E

1

RL42

PAL/_NTSC

OSD_OUT

VSYNC

10/50V

10/50V

CL51

10/50V

CL52

10/50V

GND

1M

RF06

CF33

0.1

CF20

1234

QF03

NJM2535M

BUFF.

GND

V+

8765

GND

GND

+5VV

GND

GND GND

RL63

V+

+5VV GND

0.1

CF22

100/16V

CF23

GND

CL55

1/50V

CLAMP

CLAMP

QL06

DRV.

DRV.

BA7622F

RL85

0

47p

CL85

1M

1234

GND

8765

CL54
CL53

100/10V

VCC

0.1

CL57

100/16V

CL58

+5VV

GND

0.1

CL78

QL05
NJM2535M

0.1

RL79

1K

RL80

1K

_V_MUTE

RF07

1M

RL64

1M

GND

DRV.

CF24

GND

1/50V

1234

8765

VA1
VB2
VC2
VD2

OSD_SEL
_OSDINT
VF2
VE2

1K1K1K

RF13

DTC114ES
3

VE1

1K

RL82

RF14

QL16

VF1

1K

RL81

MV_MUTE

RF15

_OSDINT

MULTI_OSD

1K1K1K

1K

CLK

RF09

RF10

RF11

RF12

C_DATA

QF04
74HC4094
HC709449B0

12

13

2

1

RL74

VC1

QL07

74HC4094

HC709449B0

1K

RL84

_V_MUTE

CE_PEXP

100

RL44

LL02

1000p

CF25

12

12345678

GND

V

9

CE

DATA

CLKQ1Q2Q3Q4

+5V

CL6

0.01

GND

GND

LL03

12

VCCOEQ5Q6Q7Q8Q’S

-5VV

161514131211109

RF08

0.01

CL72

0

0.1

CF26

GND

GND

GND

+5VL

CF32

DUMMY

QL21

QL21

11

9

10

QL21

3

QL21

4

5

1K1K1K

RL73

VB1

VA1

1K

RL72

12345678

CE

DATA

CLKQ1Q2Q3Q4

VCCOEQ5Q6Q7Q8Q’S

161514131211109

RL70
0

+5VL

GND

GND
CL61
DUMMY

8

DL05

31

6

100

RL45

+5VV

CL62

1000p

GND

14 13 12 11 10 9 8

CL63

0.1

1234567
QL21
74HC00

GND

+5VV

2

VE1

VF1

1K

GND

RF16

GND

QS

+5VV

RL57
10K

2

1

GND

RL75

VD1

RL76

1K

RL77

1K

RL78

1K

GND

GND

QS

1K

RL83

CL66

0.01

CL68
10/50V

0.01

CL67

3

GND GND

0.01

10/50V

CL70

CL71

3

GNDGND

+5VV

RL71
22K

1

3

2

QL17

DTA114ES

DUMMY

RL47

DUMMY

RL68
DUMMY

GND

VC1

CLK

CE_PEXP

0.1

CF31

GND

C_DATA

2

CL64

0.01

3

GNDGNDGND GND

JL06
12MQ-ST-L

OSD_SEL

12

NC

C2_DATA

VSYNC

SIOCLK

SIODATA

CE_OSD

CL76

GND

DUMMY

CL74

DUMMY

GND

GND

RL58

RL59

RL60

RL61

GND

GND

DUMMY

CL75

CL77

11

10

0

0

0

0

DUMMY

9

8

7

6

5

4

3

2

1

JL05
B2B-PH

SEL_VA
SEL_VB
SEL_VC
SEL_VD
SEL_VE
SEL_VF
+5VL
+5VV
GN D

-5VV

JL07
9MQ-ST-L

1

BP_OSD_Y/C

2

CHR/BLK_OUT

3

SF_YIN

4

OSD_OUT

5

6

_CO_MUTE

7

_V_MUTE

8

C2_DATA

9

PAL/_NTSC

JL08
8MQ-ST-L
1

BP_OSD

2

CLK

3

DATA

4

CE_PEX P

5

VSYNC

6

SIOCLK

7

SIODATA

8

CE_OSD

WL71
B2B-PH

1

1

GND

2

2

AUX

JL09

WL71
EH2P EH2P
1

2

TO JY14

(PY04)

CONNECT

TO JY16

(PY04)

CONNECT

TO JY15

(PY04)

CONNECT

FROM JP03

(PP04)

AUX

VA1

VB1

VC1

VD1

VE1

VF1

SF_YIN

OSD_OUT

_V_MUTE

PAL/_NTSC

MONI2

VCR1

VCR2

MONI1

LD

DVD

DSS

TV

IN

OUT

IN

OUT

JX01

JX02

JX03

JX04

CYYC

CYYCCYYCYC

CYYCYC

470/6.3V

75

CX09

RX01

CX01
DUMMY

22/16V

DUMMY
CX02

CX10

45213789106

75

RX02

75

CX11

RX03

470/6.3V

CX03
DUMMY
CX04

22/16V

DUMMY

CX12

RX04

75

GND

RX05

75

10/50V

CX25

GND

RX06

CX26

75

452137891064521378910612 1314 15 11

RX07

75

CX27

10/50V

GND

CX28

75

RX08
RX09

75

CX29

10/50V

GND

RX10

CX30

75

75

RX11

CX31

10/50V

GND

RX12

CX32

75

RX13

75

10/50V

CX33

GND

CX34

RX14

75

RX15

75

CX35

470/6.3V

47p

CX05

CX36

47p

CX06

22/16V

4521378910612 1314 15 11

RX16

75

RX17

CX37

75

GND

RX18

CX38

75

RX19

75

CX39

CX07

470/6.3V

47p

47p
CX08

RX20

75

CX40

GND

RVS-PX04

22/16V

10/50V

10/50V

10/50V

10/50V

10/50V

DVD_Y

DSS_Y

10/50V

10/50V

GND

VF

VE

CX90

DUMMY

DSS_C
DVD_C

TV_C
LD_C

LD_Y

CX13
CX14
RX21

CX15
CX16
RX22

CX17
CX18
RX23

TV_Y

CX19
CX20
RX24

V1_Y

CX21
CX22
RX25

V2_Y

CX23
CX24
RX26

DVD_C

DUMMY
DUMMY

0

LD_C

DUMMY
DUMMY

0

DUMMY
DUMMY

0

DSS_C

DUMMY
DUMMY

0

TV_C

DUMMY
DUMMY

0

V1_C

DSS_Y
DVD_Y
TV_Y
LD_Y

DUMMY
DUMMY

0

V2_C

V2_Y

V1_Y

AUX_C

V2_C
V1_C

AUX_C

QX01

NJM2234D

QX03

NJM2234D

1234

CX45

100/10V

10/50V

GND

CX44

BUFF.

CX43

GND

V+

+5VV

GND

CX67
DUMMY

V+

+5VV

CX62

10/50V

DUMMY

0

QX02

8765

RX27

NJM2296D

CX41

GND

0.01
CX42
10/50V

GND

1234

BUFF.

GND

8765

CX61

0.01

GND

CX66

CX65

100/10V

10/50V

GND

CX64

CX63
DUMMYy

GND

RX35

QX04

0

NJM2296D

VE

VF

VC

VD

-5VV

0.1

V-

CX46

-5VV

V-

0.1

VB

12345678

V+

GND

161514131211109

GND

+5VV

GND

CX48

100/10V

12345678

V+

GND

161514131211109

GND

GND
CX68
100/10V

+5VV

VA

VB

VA

SF_YIN2

RX29

75

CX50

DUMMY

GND

10K

RX28

CX49

0.1

GND

CX70

DUMMY

GND

RX36

10K

CX69

0.01

GND

VC

VD

CX53

10/50V

47p

CX51

+5VV

GND

3.3K

RX30

RX31

2.2K

GND

CX57

0.01

47p

CX93

GND

75

RX40

CX72

RX37

75

47p

CX71

GND

QX06
NJM2235D

_V_MUTE2

CHR/BLK_IN

1234

GND

1234

GND

8765

8765

CX55
CX56

CX73
CX79

CLAMP

QX05
NJM2249D

RX39

CX74

10/50V

0.01
10/50V

75

0.01
100/16

CX92

20p

BP_OSD_Y/C

BP_OSD_Y/C
H:THROUGH
L:OSD

10/50V

QX07
BA7622

GND

CX81

CX82

0.022

10/50V

GND

CX83

100/16V

CX54

GND

LX01

12

+5VV

CX86

0.01

GND

1234

GND

CX80

1/50V

GND

DRV.

8765

GND

-5VV

CX89

0.01

GND

12

LX02

CX85

CX84

0.01

10/50V

3

GND

GND

GND

CX87

0.01

CX88

10/50V

3

GND

GND

GND

10/50V

75

RX38

CX91

20p

CX58

GND

CLAMP

CLAMP

DRV.

DRV.

VCC

+5VV

RX32

47K

GND

BUFF.

V+

RX33

RX34

2.2K

3.3K

GND

+5VV

GND

GND

10/50V

CX75

10/50V

BUFF.

V+

GND

+5VV

VA

VB

VC

VD

VE

VF

BP_OSD_Y/C

CHR/BLK_IN

SF_YIN2

_V_MUTE2

+5VV

GND

GND

GND

GND

WX01

1

2

JX06

9

8

7

6

5

4

3

2

1

11

11

16

16

JX07

5

4

3

2

1

JX05
S4B-PH

1

+5VV

2

3

4

TO JL09

(PX04)

CVBS

60159MQ-ST-L

SEL_VA
SEL_VB
SEL_VC
SEL_VD
SEL_VE
SEL_VF
+5VV
GND

-5VV

JX01

JX02

JX03

JX04

60115MQ-ST-L

BP_OSD_Y/C
CHR/BLK_IN
SF_YIN
OSD_IN
_V_MUTE

WL71
B4B-PH

AUX_Y
GND
AUX_C

TO JY17

(PY04)

CONNECT

TO JY18

CONNECT

1

2

3

FROM JP03

4

(PY04)

(PP04)

AUX

MAIN ROOM CONTROL

TV

DVD

LD
VCR1
VCR2

DSS
AUX

VC

VA

H

H

H

HLHHHL

HHHLHH

HLHHLH
HHHHHL

HHHLHH

VF

L

MULTI ROOM CONTROL

VCR1
VCR2

VC

VB

HH

TV

LD

DSS
AUX H
*:DONT CARE

H

H
H
H
L

H
H

L

LDVD

H

H

H
H

LL

LVAL

L

H

L

H

H

VFHVEVD

LHL
*

*
HH

L

**

**
**
*H

VE

VDVB

L

H

HHLHHH

19 20

TUNER

TAPE IN

TAPE OUT

CD-R/MD IN

CD-R/MD OUT

LD

DVD

DSS

VCR1 IN

VCR1 OUT

DVD-R

/VCR2 IN

DVD-R

/VCR2 OUT

L

R

L

CD

R

L

R

L

R

L

R

L

R

L

R

L

R

L

R

L

TV

R

L

R

L

R

L

R

L

R

JS01

RS01

270K

100p

7

100

9

CS01
CS02

RS02

8

270K

100p

100

RS09

4

4

100

6

6

RS10

5

5

100

1

RS17

1

100

3

3

2

RS18

2

100

10

7

CS33

JUMPER

CS07,08,13,14

JS01

N,S Ver.
470p

JS02

RS33

RS35

CS25 CS27

7

1K

47K

9

220p
220p

47K

RS34

8

RS36CS26

1K

RS25

4

270K

100p

100

6

CS19
CS20

RS26

5

270K

100p

100

CS29

1

1K

47K

3

220p
220p

47K

RS38

2

CS30

RS40

1K

10

GND

CS34

JUMPER

CS19,20
N,S Ver.
470p

JQ01

RQ01

270K100p

7

100

9

CQ01
CQ02

RQ02

8

270K100p

100

RQ09

4

4

100

6

6

RQ10

5

5

100

1

RQ17

1

100

3

3

2

RQ18 RQ20

2

100

10

7

CQ45

JUMPER

SR8200JQ01

CQ01,02,07,08,13,14
N,S Ver.
470p

JQ02

RQ25

100p

7

270K

100

9

CQ19
CQ20

RQ26

8

100p

270K

100

RQ33

100p

4

270K

100

6

CQ25
CQ26

RQ34

5

100p

270K

100

CQ37 RQ49 CQ39

RQ51

1

1K

47K

220p

3

220p

47K

RQ50

2

1K

CQ38

RQ52

10

GND

CQ46

JUMPER

CQ19,20,25,26,31,32
N,S Ver.
470p

JQ03

RQ41

100p

270K

4

100

6

CQ31
CQ32

RQ42 RQ44

5

100p

270K

100

RQ55

RQ53

CQ41

1

1K

47K

220p

3

220p

47K

RQ54

2

RQ56

1K

CQ42

7

GND

CQ47

JUMPER

-15V

RS05

0

CS05

TUN-L

12-3+4

CS04
DUMMY

876-5

GND

0

0

12-3+4

CS10

DUMMY

876-5

GND

0

0

12-3+4

CS16

DUMMY

876-5

GND

0

0

12-3+4

CS22

DUMMY

876-5

GND

0

+15V

JUMPER

12-3+4

CQ04
DUMMY

876-5

GNDGND

JUMPER

12-3+4

CQ10
DUMMY DUMMY

876-5

JUMPER

12-3+4

CQ16

DUMMY

876-5

GND

JUMPER

12-3+4

CQ22
DUMMY

876-5

GND

JUMPER

12-3+4

CQ28

DUMMY

876-5

GND

JUMPER

12-3+4

CQ34
DUMMY

876-5

GND

JUMPER

CS06

JUMPER

CS11

JUMPER

CS12

JUMPER

CS17

JUMPER

CS18

JUMPER

CS23

JUMPER

CS24

JUMPER

CQ05

JUMPER

CQ06

JUMPER

CQ11

JUMPER

CQ12

JUMPER

CQ17

JUMPER

CQ18

JUMPER

CQ23

JUMPER

CQ24

JUMPER

CQ29

JUMPER

CQ30

JUMPER

CQ35

JUMPER

CQ36

JUMPER

TAPE_O-L

TAPE_O-R

CDR_O-L

+15V

VCR1_O-L

VCR2_O-L

RS07
DUMMY

RS08
DUMMY

RS15
DUMMYy

RS16
DUMMY

TAPE-L

RS23
DUMMY

RS24
DUMMY

TAPE-R

CDR-L

RS31
DUMMY

RS32
DUMMY

RQ07
DUMMY

RQ08
DUMMY

DVD-L

RQ15
DUMMY

RQ16

RQ23
DUMMY

RQ24
DUMMY

RQ31
DUMMY

RQ32
DUMMY

VCR1-L

RQ39
DUMMY

RQ40
DUMMYy

VCR1-R

VCR2-L

RQ47
DUMMY

RQ48
DUMMY

VCR2-R

DSS-L

GND

CD-L

GNDGND

GND

LD-L

GND

GND

GND

TV-L

GNDGND

GND

TUN-R

CDR-R

CDR_O-R

DVD-R

DSS-R

VCR1_O-R

VCR2_O-R

+15V

CS41

0.1

GNDGND

28 27 26 25 24 23 22 21 20 19 18 17 16 15

MAIN

QS01

VDD

Lch

NJU7313A

CD-R

LD-R

TV-R

VEE

MULTI

1234567891011121314

CS42

0.1

-15V

+15V

CS44

0.1

GND

28 27 26 25 24 23 22 21 20 19 18 17 16 15

MAIN

QS02

VDD

Rch

NJU7313A

VEE

MULTI

1234567891011121314

GND

CS45

0.1

-15V

+15V

CQ54

0.1

28 27 26 25 24 23 22 21 20 19 18 17 16 15

MAIN

VDD

QQ01

Lch

VEE

NJU7312A

MULTI

1234567891011121314

GND

CQ55

0.1

-15V

+15V

CQ57

0.1

GND

28 27 26 25 24 23 22 21 20 19 18 17 16 15

MAIN

VDD

Rch

QQ02

VEE

NJU7312A

MULTI

1234567891011121314

GND GND

CQ58

0.1

-15V

GND

CS03

DUMMY

NJM4558MD

QS04

DUMMY

+

RS03

GND

RS04

100p

270K

RS11
CS07
CS08

GNDGND

RS12

100p

270K

270K

100p

RS19
CS13
CS14

RS20

270K

100p

GND

10/50V

GNDGND

CS28

10/50V

RS27

RS28

CS31RS37 RS39

10/50V

GND

CS32

10/50V

RQ03

GND

RQ04

100p

270K

RQ11
CQ07

GND

CQ08

RQ12

100p

270K

100p

270K

RQ19
CQ13

GND

CQ14

100p

270K

GND

RQ27

RQ28

RQ35

RQ36

10/50V

GNDGND GND GNDGND

CQ40

10/50V

RQ43

CQ43

10/50V

CQ44

10/50V

RS06

RS13

GND

CS09
DUMMY

NJM4558MD

QS05

DUMMY

+

RS14

RS21

GND

CS15

DUMMY

NJM4558MD

QS06

DUMMY

+

RS22

RS29

GND

CS21

DUMMY

NJM4558MD

QS07

DUMMY

+

RS30

-15V

RQ05

GNDGND

CQ03

DUMMY

NJM4558MD

QQ04

DUMMY

+

JUMPER

RQ06

RQ13

CQ09

DUMMY

NJM4558MD

QQ05

DUMMY

+

JUMPER

RQ14

RQ21

GND

CQ15

DUMMY

NJM4558MD

QQ06

DUMMY

+

JUMPER

RQ22

RQ29

GND

CQ21

DUMMY

NJM4558MD

QQ07

DUMMY

+

RQ30

JUMPER

RQ37

GNDGND

CQ27

DUMMY

NJM4558MD

QQ08

DUMMY

+

RQ38

JUMPER

RQ45

CQ33

DUMMY

NJM4558MD

QQ09

DUMMY

+

RQ46

JUMPER

RRJ(XSXX)

AUDIO FUNCTION

Tun-L

AUX2-L

AUX1-L

RS45

RS46

DUMMY

CDR-L

CDR-L

CDR-RCDR-R

0

TUN-L

CS35

0.1

TUN-R

RS50

DUMMY

CDR_O-L

TAPE_O-L

AUX2-L

AUX1-L

CS37

RS43

10/50V

NJM4560M

+

AUX1-R

AUX1-R

AUX2-R

AUX2-R

47K

CS39

10/50V

12-3+4

QS03

876-5

CS40

10/50V

RS44

47K

CDR_O-R

TAPE_O-R

RS51

0

Tun-R

RS41

270K

GND

GND

RS42

270K

GND

CS38

10/50V

PQ04

CD-L

TAPE-L

CD-L

TAPE-L

-15V

TAPE-R TAPE-R

RRJ(XQXX)

VISUAL FUNCTION

TV-LTV-LTV-R

DSS-L

DVD-L

VCR1-L

VCR2-L

VCR1_O-L

VCR2_O-LVCR2_O-R

DSS-L

VCR1-L

DVD-R

DVD-R DVD-L

VCR2-L

CQ50

RQ59

10/50V

NJM4560D

TV-R

+

VCR1-R

VCR1-R

VCR2-R

VCR2-R

CQ53
10/50V

RQ60

47K

VCR1_O-R

47K

CQ52
10/50V

12-3+4

QQ03

876-5

CQ49

0.1

RQ57

270K

CQ48

0.1

GND

RQ58

270K

GND GND

CQ51

10/50V

DSS-R

DSS-R

LD-L LD-L

-15V

LD-R

LD-R CD-RCD-R

GND

CS36

0.1

GND

GND

GND

GND

F_DATA

F_ST

RS49
100
CS43
100p

GND

GND

F_DATA

F_ST

RS54
100
CS46
100p

F_DATA

F_ST

RQ61
100
CQ56
100p

GND

+15V

F_DATA

F_ST

RQ62
100
CQ59
100p

F_CLK

GND

+15V

F_CLK

GND

F_CLK

GND

GND

F_CLK

GND

GND

PS04

AUX1-L

AUX2-L

Tun-L

CS47
100p

+15V

-15V

GND

CS48 CS49 CS50
100p 100p 100p

RS55

100

AUX1-R

-15V

+15V

AUX2-R

Tun-R

GND

CQ61 CQ63CQ60
100p 100p100p

RQ63

100

+15V

GND

-15V

RS56

100

100/16V

GND

100/16V

12MQ-ST-L

05MQ-ST-L

CQ62
100p

RQ64

100

100/16V

100/16V

JQ04

12MQ-ST-L

CS51

CS52

JS03

JS04

S5B-PH

JS05

CQ64

CQ65

1

DATA

2

CLK

3

CE_A

4

+15V

5

GND

6

-15V

7

RT

TO JY11(PY04) CONNECT

8

GND

GNDGNDGND

9

LT

10

GND

GNDGND

11

MULTI ROOM R

12

MULTI ROOM L

AUX1-L

1

1

GND

2

2

AUX1-R

3

3

-15V
4

4

+15V

5

5

WL71

B5B-PH

TO JP03(PP04) AUX

1

AUX2-R

2

GND

3

AUX2-L

TO JY12(PY04) CONNECT

4

TUN-R

5

TUN-L

1

DATA

2

CLK

3

CE_A

4

+15V

5

GND

6

-15V

TO JY13(PY04) CONNECT

7

RT

8

GND

GND

9

LT

10

GND

11

MULTI ROOM R

12

MULTI ROOM L

FRONT

SURROUND

SURROUND

BACK

CENTER

SUB WOOFER

JS70

CS73

100p

CS71
CS72

100p

100p

CS79
CS80

100p

GND

CS71,72,79,80
N,S Ver.
470p

10/50V

CS74

10/50V

CS81

10/50V 47K

CS82

10/50V

RS73

47K

47K

RS74

RS81

47K

RS82

RS71

4

L

100

6 +15V

RS72

5

R

100

RS79

1

L

100

3

RS80

2

R

100

7

CS87

0.1

MULTI CH INPUT

JS71

CQ73

CQ71
CQ72

CQ79
CQ80

GND

CQ71,72,79
N,S Ver.
470p

RQ73

100p

10/50V

47K

CQ74

47K

100p

RQ74

10/50V

CQ81

RQ81

100p

10/50V

47K

CQ82

47K

100p

RQ82

10/50V

RQ71

4

L

100

6

RQ72

5

R

100

RQ79

1

100

3

RQ80

2

100

7

CQ87

0.1

-15V

RS75

JUMPER

GND

CS75

0.1

NJM2068DD

QS71

RS76

JUMPER

-15V

GND

RS83

JUMPER

GND

GND

CS83

0.1

NJM2068DD

QS72

RS84 CS86

JUMPER

-15V

RQ75

JUMPER

GND

CQ75

0.1

NJM2068DD

QQ71

RQ76

JUMPER

GND

-15V

GND

RQ83

JUMPER

GND

CQ83

0.1

NJM2068DD

QQ72

RQ84 CQ86

JUMPER

CS77

10/50V

1234

-+

CS76

-+

0.1

8765

GND

CS78

10/50V

+15V

CS85

10/50V

34

12

-+

CS84

-+

0.1

8765

GND

10/50V

+15V

CQ77

10/50V

1234

-+

CQ76

-+

0.1

8765

GND

CQ78

10/50V

+15V

CQ85

10/50V

1234

-+

CQ84

-+

0.1

8765

GND

10/50V

+15V

RDP(X6XX)
CONNECTION PCB

TO J601(P604)

TO J602(P604)

RS77
47K

GND

RS78
47K

M_SL

RS85
47K

GND

RS86
47K

M_SR

RQ77
47K

RQ78
47K

RQ85
47K

RQ86
47K

M_SBL

GND

M_SBR

M_CEN

GND

M_SW

P654

12

11

10

9

8

7

6

5

4

3

2

1

B12-MQ

+5V-A

J603 J605

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

GND

RRM(XSXX XQXX)

M_SR

M_SBR

D_SR

+15V

CS88

0.1

GNDGND

28 27 26 25 24 23 22 21 20 19 18 17 16 15

VDD

QS70

NJU7311A

VEE

1234567891011121314

CS89

0.1

-15V

D_SL

M_SL

M_SBL

12

11

10

9

TO JD01(PD04)

8

7

6

5

4

3

2

1

B12-MQ

19R-JE19R-JE

J606J604

19

18

17

TO JD02(PD04)

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

MULTI CH IN

M_SW

D_SW

D_SBR

ES OPEN

F_DATA

F_ST

ES OPEN

RS87
100

D_SBL

D_CEN

GND

M_CEN

GND

CS90

100p

F_CLK

PS54

CS91

CS92 CS93 CS94

100p

100p 100p 100p

RS88

-15V

D_CEN

D_SBL

D_SL

100

GND

100/16V

GND

100/16V

07MQ-ST-L

D_SW

D_SBR

D_SR

RS89

CS95

CS96

JS72

06MQ-ST-L

NEW

JS73

GND

JS74

10MQ-ST-L

GND

GND

1
2

100

3

4

5

6

1

2

3

4

5

6

7

1

2

3

4

5

6

7

8

9

10

DATA

CLK

CE_A

+15V

TO JY09(PY04) CONNECT

GND

-15V

GND

D_CEN

D_SBL

D_SL

TO JY08(PY04) CONNECT

D_SW

D_SBR

D_SR

AUX2-R

GND

AUX2-L

CEN

SW

GND

TO JY10(PY04) CONNECT

SL

SR

SBL

SBR

2221

VSYNC

_CEEXP

_PDOWN

JY01

JE-19P

_CLK

VSYNC

_DATA

+5VD

JY03

MQ-5P

+5VD

MSPK

JY05

-15V

+3.3V

12345

-15V

+3.3V

_SPKOFF

SBMUTE

MLTMUTE

101112

_CEEXP

+15V

+15V

SLRMUTE

-Com/DSP PCBAD/DA PCB

µ

Pre out/Main in PCBMulti Ch Input PCBAudio input(1) PCBAudio input(2) PCBCVBS input PCBS-Video input PCBComp-Video input PCB

D-SL

D-SR

D-SW

D-SBL

D-SBR

JY08

MQ-7P

DSR_IN

DSL_IN

DSW_IN

DSBR_IN

FU_LOUT

MFU_LOUT

MFU_ROUT

10

JY11JY13

11

12

MQ-12PMQ-12P

A-GND A-GND

12

FU_LOUT

A-GND

MFU_LOUT

MFU_ROUT

_BPOSD_Y/C

CHAR/BRK

SF_Y

OSDNCCOMUTE

123456789

VE

VC

VB

VA

VD

JY17 JY15

MQ-9P MQ-09P

NC

45678

JY19

MQ-8P MQ-12P

SEL_VC

SEL_VD

COMUTE

+5VV

123

4

V-GND

SEL_VC

SEL_VD

D Terminal Video PCB

CE_VOL-M

234

2

SIOCLK

VSYNC

CE_VOL

1

AUX2-R

1

+2.5VB

JY10

MQ-10P

SIODATA

5VLG 5VLG

+2.5VA

12345678910111213141516171819

JY04

MQ-12P

MFU_LIN

MFU_RIN

MQ-12P

9

10

11

12

JY07

SBR

SBLSRSLSWC

SL

SR

SBL

SBR

10

A-GND A-GND

2

JY12

MQ-5P

N,S 47pN,S 47p

DAMMY

CW03

34
CW01
10/50V

100K

RW01

A-GND -15V A-GND

Main Function

Buffer

658

DAMMY

CW04

CW02

10/50V

100K

RW02

A-GND

_CEOSD

OSDMENU

JY14

8

MQ-12P

CLK(B1)

DSR_OUT

123456789

D-SR

OP-AMP1/2

OP-AMP2/2

-5VV

123456789

V-GND

SIOCLK

ERMUTE

SIODATA

STANDBY

+15V +5VL +5VD +3.3V

+15V

5VLG D-GNDD-GNDD-GND D-GND

_PDOWN

SIOCLK

ERMUTE

SIODATA

STANDBY

D-GND

-15V

+15V

DATA(B2)

+15V

+15V

A-GND

6

A-GNDA-GND

-15V

5

CE_ASW

123

+15V

CE_ASW

4

12345

CLK(B3)

CE_ASW

DATA(B3)

1234567891011

CLK(B3)

DATA(B3)

_BPOSD

JY16

1234567

MQ-08P

JY06

CLK(B3)

TU_LIN

CLK(B1)

MQ-5P

123

DATA(B1)

CLK(B2)DATA(B3)

JY09

TU_RIN

_CEEXP

MQ-6P

AUX2-L

345

A-GND

DSBL_IN

A-GND

SWMUTE

D-C

DC_IN

FU_ROUT

789

FU_ROUT

CMUTE

1234567

-15V

6

A-GND

-15V

A-GND

L/RMUTE

56789

Q’s

4

NTSC/PAL

VF

+5VV

-5VV

JY18

V-GND

123456789

MQ-5P

12345

+24V

Y-DSS

CB-DSS

CR-DSS

123456789

Y

CB

CR

123456789

123

JY20

DUMMY

V-GND

(OSD)

OSDMENU

Y-DVD

CR-DVD

CB-DVD

DUMMY

JY22

DUMMY

JY21

CLK(B2)

DATA(B2)

DATA(B1)

12345678

QY01

TC74HC368A

161514131211109

DATA(B3)

CLK(B3)

FR_OUT

DSL_OUT

DC_OUT

DSW_OUT

DSBL_OUT

DSBR_OUT

D-SBR

D-SW

D-SL

D-SBL

D-C

2345678

FR_IN

A-GND

C

SW

2

AUX2-L

AUX2-R

1

3456789

QW01

NJM2068DD

CW05

1

10/50V

100K

RW03

0.01

CW07

+15V

A-GND

0.01

CW08

CW06

7

10/50V

QW01

NJM2068DD

100K

RW04

A-GND A-GND

+5VL

+5VV

SEL_VD

SEL_VE

SEL_VF

VF

CE_ASW

GND

JY02

19R-JE

0.01

CY01

5VLG+5VL

LtRtFL_OUT

101112

A-GND

A-GND

1

FL_IN

CW31
10/50V

Multi Function

CW32
10/50V

OSDSEL

SEL_VA

SEL_VB

SEL_VC

101112

VAVBVCVDVE

CE_VOL

_SPKOFF

CE_VOL-M

CE_ASW

CE_VOL

_SPKOFF

CE_VOL-M

QW31
NJM4558DD

2

OP-AMP1/2

DAMMY

34

100K

RW31

A-GND A-GND

-15V

+15V

Buffer

658

OP-AMP2/2

DAMMY

CW34 CW33

100K

RW32

A-GND

C/D CONT

TPU2

QW31

NJM4558DD

_HPDET

_HPDET

1

CW37

A-GND

CW38

7

_BPOSD

_CEOSD

PY04
RCN-*Y**/RVR-*M,W**/RTU-*T**
RTR-*9**/RPS-*8**

SD

TUST

CETU

CERDS

CLKTU

DATAITU

CLKTU

RDSDATA

12345678910111213141516171819

SD

TUST

CETU

DATAITU

CERDS

RDSDATA

ERMUTE

R961R962

MLTMUTE

+5VD

+5VL

0.1A

(343J S,N ONLY)

DM94

3

1

QM83

DTA114ES

+5VL +5VL

MLTMUTE

0.1A

0.1A

DAMMY

RM81

DM93

DM92

CM81

CM82

16

15OE14Q513Q612Q711Q810

D-GND

VCC

2

QM81

74HC4094

1ST2SI3CK4Q15Q26Q37Q48

_CEEXP

CM83

RM84

CLK(B1)

L/RMUTE

SLRMUTE

CMUTE

Q’S

D-GND

SWMUTE

TUNEMUTE

KILRDS

SBMUTE

9

QS

GND

D-GND

RM83

_SPKOFF

D-GND

D-GND

10K

CM84

QM82

CM86

74HC4094

OSDSEL

NTSC/PAL

OSDMENU

CM85

D-GND

16

15OE14Q513Q612Q711Q810

VCC

1ST2SI3CK4Q15Q26Q37Q48

3SPK

HPON

SBSPK

_CEEXP

RM85

CLK(B1)

9

QS

Q’S

GND

D-GND

MSPK

D-GND

DTA114ES

QM84

3

L/RMUTE

SLRMUTE

CMUTE

SWMUTE

SBMUTE

DM91

0.1A

2

1

QM85

DTA114ES

3

2

1

QM86

DTA114ES

3

2

1

QM87

DTA114ES

3

2

1

QM88

DTA114ES

3

2

1

2

DTC114ES

TUNER MODULE

100P

CT04

100P

CT03

100P

CT02

100P

CT01

A-GND

LT01

DAMMY

CETU

100P

C953

R955

10K

Q951

2

NJM4558DD

R959

220

OP-AMP1/2

1

C957

4.7/50V
4

3

0.01

C959

0.01

C960

7

Q951
NJM4558DD

-15V

+15V

8

OP-AMP2/2

R956

10K

C954

100P

Uxxx
U Only

R957

C955

4.7/50V 15K

C956

15K 4.7/50V

R958

6

5

47K47K

A-GND

R960

220

C958

4.7/50V

0.1A

0.1A

0.1A

DM90

DM89

DM88

QM89

1

3

D-GND

CEDICLDOGND

15

A-GND A-GND

DAMMY

DAMMY

LT03

LT02

LT04

DAMMY

DATAOTU

CLKTU

DATAITU

C951

4.7/50V

R951

47

47K47K

R953R954

C952

4.7/50V

R952

47

DM81

0.1A

DM82

0.1A

DM83

0.1A

DM84

0.1A

0.1A

0.1A

DM85

0.1A

DM87

DM86

3

1

+5VL

QM90

DTA114ES

+5VD

U143

DUMMY

_PDOWN

2

U144

QT01

FMIFOUT

VCC2(+5V)

VCC1(+12V)

DETOUT

LOUT

GND

ROUT

MUTE

TUNED

STEREO

15FE-BT

JY23

123456789

33K

RT02

1

RT01

2.2K
CT05
100P

3

QT04

A-GND

CLKTU

RDSDATA

DAMMY

DAMMY

C907

L906

L905

C908

C909

C910

R904

RDS-ID

D-GND D-GND

560P

C904

D-GND

47K

DTA114ES

+12V

+5VD

CT09

+5VD

D-GND

100P

0.022

L911

100P

12

100P

100P

D-GND

10K

18

17T716T615

14

VSSD

SYNC

VDDD

C905

1000P

L912

DAMMY

1

3

Q903

DTC114ES

D-GND

CT06
100P

LT08

LT07

DAMMY

DAMMY

TUST

SD

CERDS

DATAOTU

DAMMY

DAMMY

L904

L903

10K0.01

R903

D-GND D-GND D-GND

24

23CE22DI21CL20DO19

SYR

Q901

LC72722

VREF2MPXIN3VDDA4VSSA5FLOUT6CIN7T18T29T310T411T512XOUT

1

R901
100K

C902

C903

10/50V

D-GND

R902

2

2

100/16V

3

13

1

3

D-GND

XIN

1

A-GND

CT08

C911

C912

10/50V

Q904

DTA114ES

3

DAMMY

QT02

DTC114ES

31

0.01

DT01

C913

0.01

C914
22p

C915
27p

2

+5VD

1011121314

12

3

D-GND

3

21

0.022

0.022

LT05

LT06

+12V

Q902

2SC2458

+5VD

21

3

+5VD

D-GND

0.022

L902 C906

DAMMY 330P

L901

C901

10/50V

NJM7812FA

OUT IN

1A

X901

2

QT03

GND

A-GND

D-GNDD-GND

4.322MHz

_HPDET

+15V

0.01

CT07

2

+5VL

JY28

_PDOWN

DAMMY

STANDBY

5VLG

EH-5P

W803

EH-4P

1

2

3

4

For J811 P804

JY26

WN02
EH-5P

1

1

2

2

3

3

4

4

5

5

For JN02 P124

Q852

BA033T

(0.4W)

GND

D-GND

100/16V100/16V

Q856

2

D-GND

0.01 0.01

C857 C858

C873

C869C870

NJM7915FA

32

OUT IN

(0.3W)
GND

1A1A

D860D859

1

2

GND

(0.6W)

OUT IN

31

Q851

NJM7815FA

R851

100 1/4W

0.01

C876

NJM7805FA

31

OUT IN

(1.84W)

1A

D864D863D862

100/16V100/16V100/16V

NJM7805FA

31

OUT IN

(1.06W)

1A1A

0.01 0.01 0.01

C868 C867 C872

OUT IN

32

NJM7905FA

Q855

GND

Q853

GND

(0.5W)

Q854

C854

0.010.01

2200/35V

C856C855

R852

R853

A-GND

DAMMY

C853
2200/35V

Q858

2SC4793

1A

D868

C879

(1.3W)

D-GND

Q857

2SC4793

1A

D866

C875

(1.3W)

100/16V 100/16V

D-GND

100/10

C874

D865

3.0V

D-GND

0.010.010.01

C871

2

C880

DAMMY

C865C866

2

1

GND

V-GND D-GND

DAMMY

EARTH

D861

DIODE

1

C863

10000/16V

EARTH

C864

2200/16V

D852 D851

1A 1A

3

2

D857D858

1A1A

D853D854

1A1A

D855D856

1A1A

F852

C852C851

0.010.01

F851

6

5

4

3

2

1

F854

From MAIN TRANSF

J851

VH-6P

4

0.01 0.01

C862 C861

F853

J852

GND TERMINAL

EARTH

-15V

+15V

+24V

+2.5VB

+2.5VA

+3.3V

+5VD

+5VV

-5VV

87mA

177mA

202mA

202mA

232mA

C878

100/16V

229mA

265mA

J853
DAMMY

124mA

A-GND

31

1A

0.01

D867

C877

1

2

C860C859

OUT IN

V-GND

DATAOTU

TPU1

_CEOSD

_BPOSD

DATAOTU

CW35
10/50V

100K

RW33

0.010.01

A-GNDA-GND

CW36

10/50V

100K

RW34

23 24

DIG-8

DIG-9

DIG-1

DIG-2

DIG-3

DIG-4

AUX-OPT

DIG-5

DIG-6

DIG-7

AUX-OPT

DA01

1SS302

2

31

RA06

CA01

1K

0.1

RA01
75

DA02

1SS302

GND

JA01

2

1

2

3

4

5

6

7

GND

JA02

3

4

1

2

5

GND

JA03

1

2

3

GND

JA04

1

2

3

GND

JA05

1

2

3

JA06

1

2

3

GND

JA07

1

2

CK19

1/50V

LP

CK20

1/50V

31

CA02

RA07

1K

0.1

RA02
75

1SS302

DA03

GND

2

31

RA08

CA03

1K

0.1

RA03
75

GND

1SS302

DA04

2

31

RA09

CA04

0.1

1K

RA04
75

1SS302

DA05

GND

2

31

RA10

CA05

1K

0.1

RA05

75

GND

+5V

0.1
CA10

CA06

47uF/25V
RA21
10K

+5V

0.1
CA11

CA07

None

RA22

10K

+5V

0.1
CA12

CA08

47uF/25V

RA23

10K

GND

+5V

0.1

CA13

CA09

None

RA24

10K

GND

QK07

DTA114EU

_ATT

_ATT

3

-15V

RK21
1M

RK23 RK33

2

22K 10K

3

A-GND

-15V

RK24

2

22K

3

A-GND

-15V

+5V

RA11

GND

100K

QA01

13

12

74HCU04AF

RA16

4.7K

GND

RA12

GND +5V

100K

QA01

11

34

74HCU04AF

RA17

4.7K

+5VGND

GND

RA13

GND

100K

QA01

9

56

74HCU04AF

RA18

4.7K

GND

+5V

RA14
100K

QA02

12

13

74HCU04AF

RA19

4.7K

+5VGND

GND

RA15
100K

QA02

34

11

74HCU04AF

RA20

4.7K

GND

Note:*Mark SR8200 Parts Description

+5VA

LT

1

2

RT

CK21

47p
RK25
22K

31

QK05
2068M

1SS302

2

1

DK01

4

CK25

0.1

A-GND

47p

CK22
RK26
22K

31

QK06
2068M

1SS302RP

2

1

DK02

4

+5V

CA14

14

QA01

74HCU04AF

QA01

74HCU04AF

QA01
74HCU04AF

7

GND

QA02

74HUC04AF

QA02
74HCU04AF

7

GND

RK27

RK28
22K

0.1

GND

12

10

8

12

10

RK01

6.8K 0ohm 22/50V

*4.7k

RK02

6.8K

*4.7k

RK39

RK29

RK31

4.7K

RK40

RK30

RK44

4.7K

COAX1

COAX2

COAX3

COAX4

RA25

None

*4.7k

GND

COAX5

SELG

RA26

None

*4.7k

GND

SELD

OPT1

SELE

SELG

OPT2

SELG

OPT3

OPT4

RA27

None

*4.7k

GND

680K

47K

680K

47K

OPT5

CK01 CK03

RK59

RK05

None

2.7K

*2.2k

A-GND

RK07

E

1

2.2K
B

3

QK01

C

2

2SC4213

A-GND

CK02

CK04

22/50V

RK06

RK60
None

2.7K

*2.2k

RK08

E

1

2.2K

A-GND

B

3

QK02

2

C

2SC4213

A-GND

CK23

47p22K

RK41

680K

47K

RK32

QK05

6

2068M

7

OP-AMP1/2OP-AMP1/2

8

5

CK26

0.1

+15V

A-GND

A-GND

CK27

47p

RK43

680K

RK42

47K

QK06

6

2068M

7

OP-AMP2/2OP-AMP1/2 OP-AMP2/2

8

5

+15V

A-GND

JD02

PCF8574

0.22

19PS-JE

123456789

GND

AUDATA3

AUDATA2

AUDATA1

+5V

QA07

A0

A1

A2

P0

P1

P2

P3

Vss

CK31CK30

D-GND

_INT

_ADCAL
RK36

RK57

Vcc

SDA

SDL

P7

P6

P5

P4

RK58
470

+3.3V

CAL

5.6K
CK61
470p

ADWCLK

ADCLK

CA19

0.1

16

15

14

13

12

_ATT

11

SELG

SELF

10

9

SELE

_ADDF

RK77

_MLR

CK51CK53

0.110/50V

A-GND

CK55

0.22

D-GND

CK57CK59

0.1100/10V

D-GND

RK37

10K

31

DK04

2

1SS302

+3.3V

PEAK

SCLK0

AUDATA0

LRCLK0

GND

IICDATA1

IICCLK1

RK76

10K

10K

1

VREFL28VREFR

2

GNDL

3

VCOML

4

AINL+

5

AINL-

6

ZCAL

7

VD

8

DGND

9

CAL

10

_RST

11

SMODE2

12

SMODE1

13

LRCK

14

SCLK

101112131415161718

DFS

_SMUTE

CLKOUT0

PEAK

+5VA

QK70

DTA114EU

1

3

2

+5VA

QK72
DTA114EU

1

3

2

QK51

AK5383VS

GNDR

VCOMR

AINR+

AINR-

VA

AGND

BGND

TEST

HPFE

DFS

MCLK

FSYNC

SDATA

RK70
10K

RK72
10K

27

26

25

24

23

22

21

20

19

18

17

16

15

+3.3V

_RSTDAC

RK71

10K

RK73

10K

CK52CK54

0.1 10/50V

CK58 CK60

2

_MLR

3
B

3
B

CK56

0.22

INR+

INR-

0.1100/10V
D-GND

RK35

RK34

31

DK05
1SS302

_ADDF

ADWCLK

C

E

-15V

C

E

-15V

10K

CLKOUT0

ADDATA

LY1

2

1

LY2

2

1

5.6K

ADCLK

QK71
2SC2458

QK73
2SC2458

A-GND

A-GND

DFS

ADDATA

19

GND

+5VA

D-GND

D-GND

RD09
10k

CD41
100p

1

_RST28VREF

2

DFS

3

DEM1

4

DEM0

5

CD01

DIF0

10/50V

6

+5VD

+5VD

+5VD

+5VD

_SMUTE

D-GND

D-GND

D-GND

+5V

21

DGND

7

VD

CD05

8

0.1
VD

9

DGND

D-GND

10

MCLK

11

SCLK

12

LRCLK

13

SDATA

14

DIF1

D-GND

D-GND

CD42
100p

1

_RST28VREF

2

DFS

3

DEM1

4

DEM0

5

CD02

DIF0

10/50V

6

DGND

D-GND

7

VD

CD06 CD38

8

0.1 10/50V
VD

9

DGND

D-GNDD-GND

10

MCLK

11

SCLK

12

LRCLK

13

SDATA

14

DIF1

D-GND

CD43
100p

1

_RST28VREF

2

DFS

3

DEM1

4

DEM0

5

CD03

DIF0

10/50V

6

DGND

7

VD

CD07

8

0.1
VD

9

DGND

10

MCLK

11

SCLK

12

LRCLK

13

SDATA

14

DIF1

D-GND

D-GND

CD44
100p

1

_RST28VREF

2

DFS

3

DEM1

4

DEM0

5

CD04

DIF0

10/50V

6

DGND

7

VD

CD08 CD40

8

0.1 10/50V
VD

9

DGND

10

D-GND D-GND

MCLK

11

SCLK

12

LRCLK

13

SDATA

14

DIF1

D-GND

+5VD

+5VA

+3.3V

CD57 CD61

CD58 CD62

0.01 10/50V

0.01 10/50V

21

21

21

3

3

3

LD02

LD03

LD01

0.01 10/50V0.01

CD50 CD60CD56

0.01

CD51

CD53 CD59 CD63

0.01

CD52

12345

JD03
05MQ-ST

D-GND

_RSTDAC

DFS

CLKOUT0

SCLK0

LRCLK0

AUDATA0

_SMUTE

_RSTDAC

DFS

CLKOUT0

SCLK0

LRCLK0

AUDATA1

_SMUTE

_RSTDAC

DFS

CLKOUT0

SCLK0

LRCLK0

AUDATA2

_SMUTE

_RSTDAC

DFS

CLKOUT0

SCLK0

LRCLK0

AUDATA3

QD01

CS4396-KS

QD02

CS4396-KS

QD03

CS4396-KS

QD04

CS4396-KS

+15V -15V

CD64

3

LD04

CD54

0.01 0.01 10/50V

D-GND

10/50V

0.1

FILT+

FILT-

CMOUT

AOUTL-

AOUTL+

AOUTR+

AOUTR-

_MUTEC

C/_H

_MUTE

FILT+

FILT-

CMOUT

AOUTL-

AOUTL+

AOUTR+

AOUTR-

_MUTEC

_MUTE

FILT+

FILT-

CMOUT

AOUTL-

AOUTL+

AOUTR+

AOUTR-

_MUTEC

_MUTE

FILT+

FILT-

CMOUT

AOUTL-

AOUTL+

AOUTR+

AOUTR-

_MUTEC

_MUTE

VA

AGND

AGND

VA

AGND

AGND

C/_H

VA

AGND

AGND

C/_H

VA

AGND

AGND

C/_H

A-GND

D-GND

CD09

0.1

27

A-GND A-GND

CD17 CD21

26

0.1

25

A-GND
24

23

22

CD33 CD37

21

0.1 10/50V

20

19

18

17

16

15

CD10

0.1

27

A-GND

CD18

26

0.1

25

A-GND
24

23

22

CD34

21

0.1

20

19

18

17

16

15

27

A-GND

CD19

26

0.1

25

A-GND
24

23

22

CD35

21

0.1

20

19

18

17

16

15

CD12

0.1

27

A-GND

CD20

26

0.1

25

A-GND
24

23

22

CD36

21

0.1

20

19

18

17

16

15

CD65

0.1 10/50V

CD55

SR

123456789

JD04

12MQ-ST

D-GND A-GND

D-GND A-GND

CD11

0.1

A-GND

D-GND

A-GND

D-GND

A-GND

SBR

+5VA

+5VA

A-GND

+5VA

CD13

100/10V

100/10V

A-GND

CD14

100/10V

CD22

100/10V

A-GND

CD23

100/10V

CD39
10/50V

A-GND

CD16

100/10V

CD24

100/10V

A-GND

SW

+5VA

CD25 CD29

0.1 10/50V

A-GND A-GND

+5VA

+5VA

CD26

0.1

A-GND

+5VA

+5VA

CD15

100/10V

CD27

0.1

A-GND

+5VA

+5VA

CD28

0.1

A-GND

+5VA

SL

FR

SBL

CNT

10/50V

SR- SR+

10/50V

10/50V

CH42
220p

A-GND

-15V

QH05
2068M

3

4

OP-AMP1/2

2

3.3K

RH59

CH43

RH57

4.7K

+15V

5

8

OP-AMP2/2

6

RH60

3.3K

CH44

RH58

4.7K

CJ23
560p

CJ24
560p

1

47p

QH05
2068M

7

47p

RH33 RH37
22K 560K

CH25

22/50V

CH26

22/50V

RH34 RH38
22K 560K

RH35
10k

CH27

22/50V

CH28

22/50V

RH36
10k

RJ33
22K

CJ25

22/50V

CJ26

22/50V

RJ34

4.7K

RJ35
10k

CJ27

22/50V

CJ28

22/50V

RJ36
10k

2

3

5

6

RH42

CH30

2

3

RH39
120k

RH40
120k

5

6

RH44

CH32

2

3

RJ37
560K

RJ38
68K

5

6

RJ42

CJ30

2

3

RJ39
120k

RJ40
120k

5

6

RJ44

CJ32

CH29

RH41

OP-AMP1/2

OP-AMP2/2

CH31

RH43

OP-AMP1/2

OP-AMP2/2

CJ29

RJ41

CJ31

RJ43

PD04

RD01
1K

RD05
1K

RH01

2.2K

A-GND

820p

FL-

CH05
820p

RH05

2.2K

FR+

FL+

RH06

2.2K

FR-

820p

CH02
820p

RH02

2.2K

RD02
1K

RD06
1K

A-GNDA-GND

SL-SL+

CD30

RH03

2.2K

A-GND

820p

CH07
820p

RH07

2.2K

RH08

2.2K

820p

CH04
820p

RH04

2.2K

+5VA

RJ01

2.2K
RD03
1K

820p

RD07

CT-CT+

CJ05

1K

820p

A-GND

CD31

RJ05

2.2K

A-GND

RJ06

2.2K

820p

CJ02
820p

LF- LF+

RJ02

2.2K

RD04
1K

RD08

SBL-

1K

RJ03

2.2K

A-GND

820p

CD32

CJ07

A-GND

820p

RJ07

2.2K

SBR+

SBL+

RJ08

2.2K

SBR-

820p

CJ04
820p

RJ04

2.2K

MR82-24

A-GND

FL

LT

RT

101112

CH01

CH06

CH03

CH08

CJ01

CJ06

CJ03

CJ08

LK71

RH17

2.2K

RH21

2.2K

RH13 CH13

2.2K 270p

RH14

2.2K

RH22

2.2K

RH18

2.2K

RH10

2.2K

RH11

2.2K

RH19

2.2K

RH23

2.2K

RH15

2.2K

RH16

2.2K

RH24

2.2K

RH20

2.2K

RH12

2.2K

RJ09

2.2K

RJ17

2.2K

RJ21

2.2K

RJ13

2.2K

RJ14

2.2K

RJ22

2.2K

RJ18

2.2K

RJ10

2.2K

RJ11

2.2K

RJ19

2.2K

RJ23

2.2K

RJ15

2.2K

RJ16

2.2K

RJ24

2.2K

RJ20

2.2K

RJ12

2.2K

FLFR

LT

FL0

563487

RT

FR0

CH09RH09

270p2.2K

CH14

270p

CH10

270p

CH11

270p

CH15

270p

CH16

270p

CH12

270p

CJ09

270p

CJ13

270p

CJ14

270p

CJ10

270p

CJ11

270p

CJ15

270p

CJ16

270p

CJ12

270p

2

OP-AMP1/2

3

5

OP-AMP2/2

6

2

OP-AMP1/2

3

5

OP-AMP2/2

6

2

OP-AMP1/2

3

5

OP-AMP2/2

6

2

OP-AMP1/2

3

5

OP-AMP2/2

6

QH01
2068M

-15V

+15V

2068M
QH01

QH02
2068M

-15V

+15V

2068M
QH02

QJ01
2068M

-15V

+15V

2068M
QJ01

QJ02
2068M

-15V

+15V

2068M
QJ02

RK75

680 1/6W

12

LY2

RH53

4.7K

RH55 CH41

3.3K 220p

A-GND A-GND

RH25

CH17

1

22/50V

2.2K

4

8

7

1

4

8

7

1

4

8

7

1

4

8

7

RH29
100K
CH21

CH49

560p

0.1

CH51

CH22

0.1
560p

RH30
100K

CH18

RH26

2.2K 22/50V

RH54

4.7K

RH56

3.3K

A-GND

RH27

CH19

2.2K

22/50V

RH31
100K
CH23

CH50

560p

0.1

CH52

CH24

0.1
560p

RH32
100K

CH20

RH28

2.2K 22/50V

RJ25

CJ17

2.2K

22/50V

RJ29
100K
CJ21

CJ41

560p

0.1

CJ43

CJ22

0.1
560p

RJ30
100K

CJ18

RJ26

2.2K

22/50V

RJ27

CJ19

2.2K

22/50V

RJ31
100K

CJ42

0.1

CJ44

0.1

RJ32
100K

CJ20

RJ28

22/50V

2.2K

+15V

31

DK71

2

1SS302

RH61
470 22/50V

22p

10K

QH03
2068M

RH45

1

470

4

CH53

0.1

-15V

+15V

CH55

0.1

8

RH46
470 22/50V

7

QH03

2068M

10K

RH62

22p

470

22p

10K

QH04
2068M

RH47

1

470

4

CH54

0.1

-15V

+15V

CH56

0.1

8

RH48
470

7

QH04

2068M

10K

22p

22p

10K

QJ03
2068M

RJ45

1

470

OP-AMP1/2

4

CJ45

0.1

-15V

+15V

CJ47

0.1

8

RJ46
470

OP-AMP2/2

7

QJ03

2068M

10K

22p

22p

10K

QJ04
2068M

RJ47

1

470

OP-AMP1/2

4

CJ46

0.1

-15V

+15V

CJ48

0.1

8

RJ48
470

OP-AMP2/2

7

QJ04

2068M

10K

22p

RDS-*A**
RDD-*D**, *H**
RDA-*K**

CH45

A-GND
CH33
22/50V

RH49
100K

RH50 CH38
100K 470p

CH34

CH46
22/50V

RH64
100K

A-GND
CH35
22/50V

RH51
100K

CH36
22/50V

CJ33
22/50V

RJ49
100K

RJ50
100K

CJ34
22/50V

CJ35
22/50V

RJ51
100K

RJ52
100K

CJ36
22/50V

CH47RH63
470p100K

A-GND

CH37
470p

MR82-24

A-GND

CH48
470p

A-GND

CH39
470p

A-GND

CH40RH52
470p100K

CJ37
470p

A-GND

CJ38
470p

CJ39
470p

A-GND

CJ40
470p

RH65
None

FL0

+15V

RK74

563487

680 1/6W

12

31

DK70

2

1SS302

LY1

FR0
RH66
None

SL

SR

CNT

SW

SBL

SBR

LK70

JD01
12MQST

1

COAX1

2

COAX2

3

COAX3

4

COAX4

5

DINO

6

7

_SPDIF1

8

GND

COAX1

1

COAX2

2

COAX3

3

COAX4

4

5

SELO

6

7

8

GND

QA06
74HC00AF

13

+5V

12

QA06
74HC00AF

1

2

COAX5

QA06
74HC00AF

4

5

OPT5

GND

CK05

150p

RK09

4.7K

RK03

QK03

2

3.9K
2115M

OP-AMP1/2

BIAS

CK11

3

0.1
A-GND

A-GND

CK06

150p

RK10

4.7K

QK04

2

3.9K0ohm
2115M

OP-AMP1/2

BIAS

CK12

3

0.1
A-GND

A-GND

RK47

10K

CK24
47p

RK49

A-GND

3.3K

*4.7k

A-GND

RK48

RK46

10K

10K

CK28
47p

A-GND

RK50

3.3K

*4.7k

A-GND

121110

OPT5

QA03
74HC151AF

D3

D2

D1

D0

Y

W

_ST

GND

QA04
74HC151AF

D3

D2

D1

D0

Y

W

_ST

GND

11

56

QA02

74HCU04AF

1

4

1

4

+5VA

2

3
RK55
None

*56k

+5VA

6

5
RK56
None

*56k

COAX5

DINO

3

6

LP

RK11
10K

BIAS

CK15

0.1

RP

RK12
10K

BIAS

CK16

0.1

RK53
None

QK08
2115M

OP-AMP1/2

A-GND

RK54
None

QK08
2115M

+5VA

87654

9

SELO

+5V

16

Vcc

15

D4

14

D5

13

D6

12

D7

11

A

10

B

9

C

+5V

16

Vcc

15

D4

14

D5

13

D6

12

D7

11

A

10

B

9

C

+5V

4

5

GND

1

2

74HC32AF

QA05

GND

A-GND

A-GND

1

4

7

8

A-GND

COAXO

OPTO

CA15

0.1

GND

CA16

0.1

CA17

0.1

14

74HC32AF

7

QA05

+5V

CA18

14

9

QA02

74VHCU04AF

CK07

RK13

6

OP-AMP2/2

5

+5VA

CK08

RK14RK04

6

OP-AMP2/2

5

+5VA

74HC00AF

CK29

0.1

321

GND

_ADCAL

CAL

IICCLK1

IICDATA1

RK15
330

RK17
330

RK16
330

RK18
330

0.1

SELA

SELB

SELC

SELD

QA05

74HC32AF

QA05

74HC32AF

GND

8

1

2

3

4

5

6

7

8

GND

11

8

+5VA

RK19

CK18CK17

2.2K

10/50V0.1

RK20

2.2K

A-GNDA-GNDA-GND

INL+

CK09
470p

*None

INR+

CK10
470p

*None

INR-

1SS302
DK03

31

2

GND

OPT1

OPT2

OPT3

OPT4

SELA

SELB

SELC

GND

OPT1

OPT2

OPT3

OPT4

SELD

SELE

SELF

OPTO

COAXO

SELD

13

GND

12

6

10

9

3

0.1

GND

8

BIAS

100p

10K

QK03
2115M

7

8

CK13

0.1

A-GND

*None

100p

10K

QK04
2115M

7

8

CK14

0.1

A-GND

*None

+5V

CA20

14

QA06

10

9

7

GND

2625

+5V-A

0.1

75

CR52

0.01u

GNDGND

Q682

74VHC32

74VHC08

QR44

QR44

74VHC08

74VHC08

QR44

8.2K

5.1K

GND

+3.3V

GND

CR44

14

GND

9

8

10

7

GND

2

3

1

5

6

4

+5V

22K

RR61

22K

RR65

22K

RR63

0.1

CR64

Dummy

RR62

Dummy

RR64

GND

XMODE

1

DISEL

2

GND

DOUT

3

DIN0

4

DIN1

5

DIN2

CR50

0.1

6

DGND

GND

7

DVDD

+5V

8

R

9

VIN

10

LPF

11

5.1K

0.01u

CR51

RR52

GND

C682

0.1

14

7

AVDD

12

+5V-A

AGND

CR54

CR55

0.1
CKOUT

47uF/16V

GND

CKOUT1

BCK1

LRCK1

XMCK1

GND
11

8

1

2

3
CR31

0.1

1

CR35

2

3

0.1

_UMUTE

D_A

FRPG0

FRPG1

FRPG2

FRPG3

DATAODIR

CLKDIR

_CEDIR

_XMODE

DATAIDIR

XSTATE

IICDATA1

IICCLK1

_EMOE1

_EMWR1

_EMOE2

_EMWR2

_RSTDSP1

_RSTDSP2

RR30

75

CR30
68p

CR32

0.1

+5V-A

GND

ERF

REQ2

REQ1

LR30
Puls Trans.

4

631

CR36

47uF/16V

CR33

470p

SPDIF0

SPDIF1

SPDIF2

LRCLK2

SCLK2

ADDATA

_UMUTE

DATAODIR

_XMODE

DATAIDIR

IICDATA1

R688
10K

GND

R689
10K

GND

10K

RR66

GND

FRPG0

FRPG1

FRPG2

FRPG3

CLKDIR

_CEDIR

XSTATE

IICCLK1

CR34

RR31

0.1

27

GND

+5V-A

RR50

RR51

RR53

CR53

0.1

D_A

IICCLK1

REQ2

ERF

IICDATA1

REQ2

Q682
74VHC32

13

12

10

9

GND

JR30

JR31

+5V-A

+5V-A

22K

22K

RR33

RR32

13

11

12

QR44

74VHC08

_XMODE

+5V

CR63

CR62

47uF/16V

0.1

48

13
33

RR54

CKOUT1

42

47

43

DGND

DVDD39XSEL

CKSEL146CKSEL045DOSEL144DOSEL0

BCK15LRCK16DATAO17XSTATE18DGND19DVDD20XMCK21XOUT22XIN23EMPHA

14

22

22

RR55

BCK1

33

22

CR56

0.1

RR57

RR56

RR58

CR57

47uF/16V

GND

GND

+5V

XMCK1

DATAO1

LRCK1

QR70
TC74VHCT541A

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

1

_G1

19

_G2

+5V

GND

R602

R606

2.2K

2.2K

2.5A2.5A2.5A 2.5A

COAXOUT

OPTOUT

SELOUT

_CEDIR

CLKDIR

+5V

40

38CL37

GND

CE

MODE041MODE1

ERROR

BPSYNC

AUTO

DGND

DVDD

VF/P3/C3

F2/P2/C2

F1/P1/C1

F0/P0/C0

CSFLAG

AUDIO

24

RR59

1M

XR50

12.288MHz

22p

CR59

22p

CR58

GND

Y1

Y2

Y3

Y4

Y5

Y6

Y7

Y8

Vcc

GND

Q600
HN1K05FU

61

DGS

2

Q600

HN1K05FU

34

DGS

5

Q601

HN1K05FU

61

DGS

2

Q601

HN1K05FU

34

DGS

5

DI

DO

LC89055W-RA8

18

17

16

15

14

13

12

11

20

10

GND

R601

2.2K

R603

2.2K

R605

2.2K

R607

2.2K

_EMOE1

_EMWR1

_EMOE2

_EMWR2

FRPG0

FRPG1

47uF/16V

TR04

CR61

GND

TR05

TR06

+3.3V

_EXTMEM1

TR01

TR08

TR07

CKOUT2

ADDATAO

LRCLK2

SDATA2DATAO1

XMCK2

DATAIDIR

DATAODIR

+5V

XSTATE

SCLK2

ERF

2.5A

10K

ADDATAO

SDATA2

SCLK2

LRCLK2

FRPG2

FRPG3

R626

47u/16V

R623

R622

R621

R620

R619

R618

R617

R616

2.5A

22K

R624

18

19

20

21

22

C614

23

0.1

C615

24

25

26

27

28

GND

+5V

2.2K

RR60

36

35

34

33

32

31

0.1

30

CR60

29

28

27

26

25

QR50

TR03

TR02

RR77

33

RR72

22

RR76

22

RR75

10

RR74

22

RR73

33

CR70

0.1

P604 1/2

IIC Address

MSB

L
L
L
L
L
H

BTMODE Condition

BTMODE1

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

4.7K

C612

17

GND

14

DATA1

EMAD016EMAD115DATA2

GPIO0

DATA0

GPIO3

GPIO1

_CS
SCDIO,SCDOUT

DATA3,EMAD3

EMAD2,GPIO2

PSEL,GPIO9
_ABOOT,_INTREQ

_EXTMEM,GPIO8

SDATAN1

VD3

DGND3

SCLKN1,STCCLK2

LRCLKN1

CMPDAT,SDATAN2,RCV958
CMPCLK

SCLKN2

CMPREQ

FILT231CLKSEL30CLKIN

LRCLKN2

32

29

22K

2.2u

C618

33K

R629

R630

GND

GND

GND

C617 C616 C647 C646

0.01u 470p 0.01u 470p

XMCK2

LSB

notes

L

L

DSP initialize

L

L

L

L

L

L

CS49329

H
L

CS49330

L

H

L

L

IIC Expander1

L

L

H

IIC Expander2

L

EEPROM

H

*

*

BTMODE3

notes

CS49329 SRAM

L

L

CS49329 FRASH ROM

L

CS49330 FRASH ROM

L

L

H

L u-COM FRASH ROM

u-COM to CS49329

H

L
H

u-COM to CS49330

H

+3.3V

CU20

0.1

14

GND

1

3

2

QU20

7

74VHC00

GND

74VHC08

Q681

13

11

12

74VHC08

Q681

10

8

9

74VHC08

Q681

1

3

2

+3.3V

Q611
74VHCT245A

2

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

19

G

1

DIR

2.5A

Q610

9

10

CS49329

4.7K

A0

GPIO68EMAD77SCCLK

DATA7

GPIO7

GPIO5

_EMOE,GPIO11

DATA6,EMAD6

_EMWR,GPIO10

_RESET35AGND34VA

R633

4.7K

R632

2.5A

R631

22K

C621 C651

0.1 0.1
GND GND

_WR,_DS

_RD,R/_W

AUDATA3

XMT958

AUDATA0

AUDATA1

AUDATA2

38DC37DD36

4.7K

SCDIN

DGND1

MCLK

SCLK

LRCLK

39

R634

R615

6

A1

5

4

R610

27

3

0.1

47u/16V

2

1

VD1

C611

C610

44

43

R638

27

42

R637

10

41

27

R636

40

R635
Dummy

Dummy

T611

2.5A

2.5A

0.1

DGND2

FILT1

33

2.5A

L

L

L

L

H

L

H
L

H

L
LLH
H
H
H
L

C613

13

12

VD2

GPIO4

DATA4,EMAD4

0.1

C619

GND

L
L
L
L
L

BTMODE2

47u/16V

11

DATA5,EMAD5

47u/16V

C620

PAD15

PAD16

PAD17

PAD18

VCC
GND

74244 series

Input

Output

Yn

_G

An

LL

L

HL

H
X

ZH

74245 series

Function

Input

B Bus

DIR

A Bus

_G

L

output

L
H

H

output

input

H

Hight impedance

X

74574 series

Input

Output

_OE

D

CK

H

XZ

X

XQn

L

LL

L
L

HH

R694 : SR9200 only
R695 : SR8200 only

R694

22K

R695

0

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

2.5B

10K

_EXTMEM2

1

2

3

4

5

6

7

8

9

4

5

Q671
MBM29LV400TC-90P

A15

A14

A13

DQ15/A-1

A12

A11

A10

A9

A8

NC

NC

_WE

_RESET

NC

NC

RY/_BY

NC

A17

A7

A6

A5

A4

A3

A2

A1

2.5B

22K

R656

R654

C645

47u/16V

R652

0.1
C644

_SMUTE

_UMUTE

ERF

D_A

PAD17

PAD16

PAD15

AD14

AD13

AD12

AD11

AD10

AD9

22K

R679

+3.3V

PAD18

AD8

AD7

AD6

AD5

AD4

AD3

AD2

18

EMAD7

B1

17

EMAD6

B2

16

EMAD5

B3

15

EMAD4

B4

14

EMAD3

B5

13

EMAD2

B6

EMAD1

12

B7

EMAD0

11

B8

20

+3.3V

10

C622

0.1

GND

2.5A

4.7K

Dummy

R611

R613

R614

R612

4.7K

Dummy

2.5A

GND

T612

CKOUT2

_EMOE1

_EMWR1

Output

condition

A=Binput
B=A

Z

+3.3V

C683

0.1

14

7

GND

+3.3V

C681

0.1

14

5

GND

6

4

Q681

7

74VHC08

GND

48

A16

47

_BYTE

46

Vss

45

44

DQ7

43

DQ14

42

DQ6

41

DQ13

40

DQ5

39

DQ12

38

DQ4

37

Vcc

36

DQ11

35

DQ3

34

DQ10

33

DQ2

32

DQ9

31

DQ1

30

DQ8

29

DQ0

28

_OE

27

Vss

26

_CE

25

A0

GND

2.5B

4.7K

R653

4.7K

4.7K

R651

4.7K

R650

4.7K

R649

4.7K

R648

4.7K

R647

4.7K

R646

GND

18

_CS

19

SCDIO,SCDOUT

PSEL,GPIO9

20

_ABOOT,_INTREQ

21

_EXTMEM,GPIO8

22

SDATAN1

23

VD3

24

DGND3

25

SCLKN1,STCCLK2

26

LRCLKN1

27

CMPDAT,SDATAN2,RCV958

28

CMPCLK

SCLKN2

CMPREQ
LRCLKN2

GND

GND

Q683
74VHC00

6

0.1

C675

47u/16V

C674

17

GPIO0

DATA0

EMAD016EMAD115DATA2

29

DATA1

XMCK2

12MQST
J601

to A/D,D/A PCB

12

J600

LU71

LU72

LU73

LU74

LU75

LU76

LU77

LU78

LU79

LU80

LU87

BTMODE3

BTMODE1

BTMODE2

FROE

FRWE

FREXTMEM

EARTH

+5V

11

OPT5

10

COAX5

9

DINO

8

SELO

7

COAXO

6

OPTO

5

GND

4

IICDATA1

3

IICCLK1

2

_ADCAL

1

CAL

19PS-JE

J602

GND

19

GND

18

ADDATA

17

ADCLK

16

ADWCLK

15

_ADDF

14

_MLR

13

_RSTDAC

12

DFS

11

_SMUTE

10

D_A

9

PEAK

8

CKOUTO

7

SCLKO

6

LRCLKO

5

AUDATA0

4

AUDATA1

3

AUDATA2

2

AUDATA3

1

GND

GND

+5V

SPDIF2

GND

8

Q684

Q684

74VHC32

13

SPDIF1

SPDIF0

SELOUT

COAXOUT

OPTOUT

IICDATA1

IICCLK1

_ADCAL

CAL

ADDATA

SCLK2

LRCLK2

_ADDF

_MLR

_RSTDAC

DFS

_SMUTE

D_A

PEAK

CKOUTO

SCLKO

LRCLKO

AUDATA0

AUDATA1

AUDATA2

AUDATA3

11

22K

R691

R692

22K

3

GND

6

11

CKOUTO

SCLKO

LRCLKO

AUDATA0

AUDATA1

AUDATA2

AUDATA3

74VHCU04

74VHCU04

QR91

QR91

56

11 10

74VHCU04
QR91

98

+3.3V

CR91

GND

Dummy

131412

GND

QR91

7

74VHCU04

GND

GND

47u/16V

L691

C693

+5V

+3.3V

C684

0.1

GND

14

10

8

9

Q684

7

74VHC32

GND

AD0

EMAD7

EMAD6

EMAD5

EMAD4

+3.3V

EMAD3

EMAD2

EMAD1

EMAD0

AD1

2.5B

0.1

C643

47u/16V

C642

14

13

12

11

VD2

GPIO4

GPIO3

DGND2

GPIO5

GPIO1

EMAD2,GPIO2

DATA3,EMAD3

DATA4,EMAD410DATA5,EMAD5

_RESET35AGND34VA

FILT231CLKSEL30CLKIN

FILT1

33

32

22K

0.1

C649

4.7K

2.2u

C648

47u/16V

R657

33K

R660

C650

2.5B

R658

GND

GND

GND

GND

R659

EMAD0

EMAD1

EMAD2

EMAD3

EMAD4

EMAD5

EMAD6

EMAD7

9

DATA7

GPIO68EMAD77SCCLK

GPIO7

_WR,_DS

DATA6,EMAD6

_EMOE,GPIO11

_RD,R/_W

_EMWR,GPIO10

AUDATA3

XMT958

AUDATA0

AUDATA1

AUDATA2

38DC37DD36

R661

4.7K

2.5B

22K

74VHCU04

RR91

GND GND

SCDIN

DGND1

LRCLK

39

QR91

MCLK

SCLK

R662

GND

19

CS49330

A0

A1

VD1

27

XR91

Dummy

1

2

3

4

5

6

7

8

9

Q640

Dummy

2.5B

Q674

9

D7

8

D6

7

D5

6

D4

5

D3

4

D2

3

D1

2

D0

1

OC

11

CLK

Q641
74VHCT245A

A1
A2
A3
A4
A5
A6
A7
A8

G
DIR

2.5B

6

5

4

R640

3

0.1

2

1

C640

44

43

R666

42

R665

41

R664

40

R663

74VHC574

R645

27

47u/16V

47

47

27

27

74VHCU04

3412

CR93CR92
DummyDummy

4.7K

C641

CKOUT2

QR91

VCC
GND

12

Q7

13

Q6

14

Q5

15

Q4

16

Q3

17

Q2

18

Q1

19

Q0

20

VCC

10

GND

GND

18

B1

17

B2

16

B3

15

B4

14

B5

13

B6

12

B7

11

B8

20

10

GND

GND

2.5B

RR92
Dummy

47u/16V

MUTE

AD0

AD0 AD8

AD1

AD1

AD2

AD2

AD3

AD3

AD4

AD4

AD5

AD5

AD6

AD6

AD7

AD7

+3.3V

GND

_EMOE1

EMAD7

_EMWR1

EMAD6

_EXTMEM1

EMAD5

EMAD4

EMAD3

_EXTMEM2

EMAD2

_EMWR2

EMAD1

GND

_EMOE2

EMAD0

C652

+3.3V

0.1

2.5B

R643

R641

4.7K
Dummy

_EMOE2

_EMWR2

R644

R642

4.7K

Dummy

GND

XMCK2

21

3

C692C691

0.1

GND

Q675 Q676
74VHC574

D7
D6
D5
D4
D3
D2
D1
D0

OC
CLK

1

19

XMCK2

2

4

6

8

11

13

15

17

Q673
74VHCT244A

1A1

1A2

1A3

1A4

2A1

2A2

2A3

2A4

_1G

_2G

12

13

GND

CKOUT2

VCC
GND

Q7
Q6
Q5
Q4
Q3
Q2
Q1
Q0

Q683
74VHC00

2

3

4

5

6

7

8

9

1

19

12

13

14

15

16

17

18

19

20

10

9

8

7

6

5

4

3

2

1

11

+3.3V

GNDGNDGND

C678C677

0.10.1

GND

18

1Y1

16

1Y2

14

1Y3

12

1Y4

9

2Y1

7

2Y2

5

2Y3

3

2Y4

20

Vcc

10

GND

Q680
74VHCT541A

A1

A2

A3

A4

A5

A6

A7

A8

_G1

_G2

+5V-A

EMADU0

EMADU1

EMADU2

EMADU3

EMADU4

EMADU5

EMADU6

EMADU7

EMADU7

EMADU6

AD9

EMADU5

AD10

EMADU4

AD11

EMADU3

AD12

EMADU2

AD13

EMADU1

AD14

EMADU0 EMAD0

AD15

+3.3V

Q684
74VHC32

4

5

T670

+3.3V

C676

0.1

GND

1

2

11

74VHC32

4

5

Q682

74VHC32

Q683
74VHC00

2

1

18

Y1

Dummy

R680

17

Y2

33

R681

16

Y3

27

R682

15

Y4

27

R683

14

Y5

10

R684

13

Y6

27

R685

12

Y7

27

R686

11

Y8

27

R687

20

Vcc

C680

10

0.1

GND

GND

T671

Q682

2

3

4

5

6

7

8

9

19

1

3

6109

3

T680

+5V

22K

R678

74VHCT245A

A1
A2
A3
A4
A5
A6
A7
A8

G
DIR

+3.3V

6

Q685
74VHC125

2

22K

R677

22K

R676

Q683
74VHC00

22K

22K

22K

22K

22K

R675

R674

R673

R672

R671

EMADU0

EMADU1

EMADU2

EMADU3

EMADU4

EMADU5

EMADU6

EMADU7

18

EMAD7

B1

EMAD6

17

B2

EMAD5

16

B3

EMAD4

15

B4

EMAD3

14

B5

13

EMAD2

B6

12

EMAD1

B7

11

B8

20

VCC

10

C679

+3.3V

D

GN

0.1

GND

+3.3V

0.1

C685

14

7

GND

9

10
Q685
74VHC125

12

13

74VHC32

812

5

3

Q685

74VHC125

Q685
74VHC125

4

12

1

27 28

JU80

LGA6502-0150

IR out

Multi­Remote

RC-5
IN/OUT

LGY6501-0600

JU82

NC
DTR
TXD
CTS
RXD
RTS
DSR
NC
GND

1

3

2

5

6

_RSTFL

+5VLED

STANDBY

_WRIT

RC6STAT

_CEFLD

SIOCLK

SIODATA

GTRO+

GYRO-

JU50 D-SUB9P

EARTH

2P RCA

JU62

2P RCA

JU61

2

4

RU95

1

QU86

RN1303

to FRONT PCB

JU04

SEL+

SEL-

KEY0

KEY1

KEY2

KEY3

_RSFL

RCOUT

VOL+
VOL-

+5VL

GND

+5VD

6

7

8

9

1

3

2

4

5

CU61

load(0)

1

3

2

4

5

CU64

load(0)

GND

RU80

RU81 CU80
10K 0.1

RU87

68 1/4W

RU88
10K

RU94

2.2 1/4W

220

2

1

GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

GND

1

2

3

4

5

RU59

DUMMY

RU60

CU60

CU62

0.1

GND

0.1

CU63

GND

68 1/4W

GNDGND 2

RN1303

GND

GND

RU76

0

LU54

RU78

LU28

LU29

LU30

LU31

LU32

LU33

LU34

LU35

LU36

LU37

LU38

LU39

LU40

LU41

LU42

LU43

LU44

LU45

RU77

0

GND

LU50

LU51

LU52

LU53

GND

RU61

47

0.1

47

RU62

QU81

CU81

QU84

RN1303

0

47uF/16V

0.1

CU19

220

QU80

231

CBE

RU83

6.8K

QU83

231

C

RU90

6.8K

+5V

3

CU18

47uF/16V

GND

P604 2/2

1

_RSFL

VOL+

GYRO+

GYRO-

RN1303
QU60

RU84

2.2 1/4W

RU91

2.2 1/4W

SEL+

SEL-

KEY0

KEY1

KEY2

KEY3

VOL-

GND

2

3

+15V

+5V

DU80
1SS301

3

2

+15V

DU81
1SS301

3

RU09
RU10
RU11
RU12

+5VL

DUMMY

RU36

2

3

QU61
RN2303

1

GND

+5VL

RU63

18K

4

3

RN2303
QU82

1

RU86
DUMMY

RU93
DUMMY

3

2

+5V

RN2303
QU85

1

3

2

4.7K

4.7K

4.7K

RU25

RU26

220

KEY0

KEY1

KEY2

KEY3

GYRO+

GYRO-

VOL+

VOL-

SEL+

SEL-

_RSFL

_CEFLD

SIOCLK

SIODATA

+5VL

RU27

+5VL

RU54

DUMMY

KILLIR

+5VL

1

2

1

3

2

QU66
RN1303

RU65

47K

+5VL +5VL

RU11RU12

MRC5I

RU09RU10

GNDGND

RC5O

RN2303
QU63

3

2

3

1

QU62
RN1303

GND

3

QU65

RN2303

RU64

1.2k
1k

4.7k

1.2k

+5VL

DUMMY

4.7K

4.7K

QU67

100K

RU52

RU51

RU50

RU24

RU53

DUMMYy

RU57

RU56

22K

22K

GND GND

MRC5I

RCIN

+5VL

1

2

RN2303

RU66
47K

GND

4.7K

RU28

PROTECT

_HPDET

AVSSDET

RU55

DUMMY

+5VL

_BPOSD

_CEOSD

SIOCLK

SIODATA

2

3

1

QU68

RN2303

3

2

1

GND

GND

RU85
22k

GND

1

3

RU92
22k

GND

+5VL

1

2

2SA970

RU82
22K

1

GND

2AS970

E

B

RU89
22K

2

1

GND

+5VLD

_CEFLD

SIOCLK

SIODATA

RC6STAT

+5V

MRC5O

3

RU67

220

QU69

PC817

1

2

+5VL

+5VL

PST600D

QU02

31

2

CU16

0.1

GND GND

GND

_BHIGH

REQ1

+5VL

+5VL

0.1

CU14

CU15

HS8/2633

QU01

GNDGND

ADADADAD

103

KEY0

104

KEY1

105

KEY2

106

KEY3

ADADAD

107

PROTECT

108

MODE1

109

MODE2

110

GYRO+

111

GYRO-

112

VOL+

113

VOL-

114

SEL+

115

SEL-

116

_HPDET

117

AVSSDET

118

MRC5I

119

Vss

120

_STCYLED

121

_RSFL

122

_CEFLD

123

_BPOSD

124

_CEOSD

125

S

SIOCLK

126

D_A

127

S

SIODATA

128

MD0

RU13

12K

+5VL

+5VL

47uF/16V

GND

GND

102

101

100NC99NC98

97

Vref

AVcc

REQ1

_BHIGH96_SPKOFF

MD12MD23NC4NC5DATAOTU6CLKTU7_CETU8DATAITU9Vss10SD11Vccint12TUST13_CERDS14RDSDATA15Vss16VSYNC17Vccio18_Data19_CLK20_CEEXP21RC_BUS_OUT22KILLIR23MRC5O24_UMUTE25RTS26TXD27RXD28CTS29Vss30RC6STAT31RCIN32_SMUTE33DFS34_PDOWN35NC36NC37_RSTDAC38ERF

1

RU01

12K

+5VL

RU30

DUMMY

RU31

22K

RU32

22K

DATAOTU

CLKTU

CU52

CU53

+5VL

CU54

0.1
CU55

GND GND

PQ30RV11
QU41

+5VLD

3214

GND GND GNDGND

GND

+5VLD+3.3L

3

RU17

4.7K

3

QU03

RN2303

CU17

10uF/16V

_SPKOFF

CE_VOL-M

REQ2

95

94

93

REQ2

CE_VOL-M

47uF/16V

CU02

GND

CETU

DATAITUSDTUST

0.1
1

0.1
2

3

4

5

0.1
6

7

8

1.2K
RU43

RU42

390

QU43

2AS970

E

B

RU44

2.2K
2

1

GND

CE_VOL

CE_VOL92CE_ASW

0.1

CU01

QU50
HIN202E

C1+

V+

C1-

C2+

C2-

V-

T2out

R2in

1.2K
RU41

CU44CU43

0.10.1

231
C

CU46

0.1

RN1303
QU42

+3.3L

CE_ASW

91

GNDGND

+5VL

1

2

DUMMY

RU18

GND

5MHz

DUMMY

CU11

GND

1M
RU29

+3.3L

+3.3L

+5VL

0.1

0.1

CU13

CU12

GND

89

88

86

85

84

Vss

Vss90CAL

OSC287OSC1

Vccio

EXTAL

T

GNDGND

+5VL

CU04

0.1

47uF/16V

CU03

GND

GND

CERDS

RDSDATA

_Data

DUMMY

+5VL

RU34

+5VL

CU50

16

0.1

Vcc

CU51

15

47uF/16V

GND

14

T1out

13

R1in

12

R1out

11

T1in

10

T2in

9

R2out

+3.3L

CU45
47uF/16V

+5VL

CU47
47uF/16V

+5VL

12K

RU20

GND

2

3

1

QU05

RN1303

GND

DUMMY

CU10

XU01

0

RU08

83

82

XTAL

Vccint

T

_CLK

_CEEXP

RC5O

+3.3L

0.1

RU06

100

CU27

+5VL

GND

470p

CU08 RU38

CU09

0.1 100

3K

RU07

_STBY

GND

80

79

78

75

74

MNI

_RST

PCCVSS77PLLCAP76PLLVCC

_WDTOVF

S

S

T

MRC5O

SU03

5678

RU72

RU73

RU74

RU75

GND

81

FWE

KILLIR

SU01
Tact SW(DUMMY)

12

FROE

FRWE

FREXTMEM

73

_FROE72_FRWE

FREXTMEM

T

T

GND

RC6STAT

RCIN

DIP SW(DUMMY)

0

DUMMY

0

0

BTMODE2

BTMODE1

71

69

BTMODE270BTMODE1

1000p

CU25

GND

1234

_RSTDSP2

68NC67NC66

_RSTDSP2

RU37

+5VL

12K

RU02

22K

RU03

_RSTDSP1

_PROTECT2

12K

+5VL +5VL

RU05

2.2K

CU26

S

0.1

47uF/16V

65

_RSTDSP1

_STANDBY

DATAIDIR

DATAODIR

IICCLK

IICDATA

BTMODE3

Vccio

_RSTFL

PEAK

EMADU7

EMADU6

EMADU5

EMADU4

EMADU3

EMADU2

EMADU1

Vccio

EMADU0

KILLSCL

_XMODE

XSTATE

_CEDIR

CLKDIR

_ADCAL

CU07

S

64

63

62

Vss

61

60

DUMMY

59

RU16

58

57

56

55

54

53

52

51

50

49

CU05

48

Vss

47

46

45

44

43

42

41

40

39

STANDBY

+5VL

2.2K

0.1

CU06

0.1

DUMMY
RU19

JU01

JTAG 20P(DUMMY)

2

1

4

3

6

5

8

7

10

9

RU14

12K

+5VL

RU04

4.7K

GND

RU58

+5VL

GND

_XMODE

XSTATE

DATAIDIR

_CEDIR

CLKDIR

DATAODIR

BTMODE3

EMADU7

EMADU6

EMADU5

EMADU4

EMADU3

EMADU2

EMADU1

EMADU0

47K
RU15

ERF

12

11

14

13

16

15

18

17

20

19

GND

+5VL

74VHC00

QU20

13

+3.3V

+5V

BTMODE3

BTMODE2

+5VL

1

2

22K

3

RU70

4

GND

+5V +5V

1

2

3

4

5

6

7

8

GND

IIC Address

L
L
L

H

11

12

74VHC00

QU20

10

8

9

74VHC00

QU20

4

6

5

R693

22K

GND

QU70
AT24C08

Vcc

A0

WP

A1

SCL

A2

SDA

GND

QU71
PCF8574

16

A0

Vcc

15

A1

SDA

14

A2

SCL

13

P0

_INT

12

P1

P7

11

P6

P2

10

P5

P3

9

P4

Vss

LSB

L

LL

LLLLLL

H

L

L

LL

L

H

L

L

L CS49330

L

L

HL

L

L

LL

HL

H

LL

H

*

LHL* EEPROM

+5VL

8

RU71

7

22K

6

5

CU71

0.1

notesMSB

DSP initialize

IIC Expander1
IIC Expander2

GND

CS49329

12

FRWE

FROE

CU70

0.1

RU22

1K

+3.3V

CU21

0.1

14

GND

13117

QU21

74VHC125

GND

10

9

8

QU21
74VHC125

2

3

QU21

1

74VHC125

4

5

6

QU21
74VHC125

_RSTDSP1

_RSTDSP2

REQ1

REQ2

EMADU0

EMADU1

EMADU2

EMADU3

EMADU4

EMADU5

EMADU6

EMADU7

BTMODE1

BTMODE2

BTMODE3

FRWE

FROE

FREXTMEM

GND

_XMODE

XSTATE

DATAIDIR

_CEDIR

CLKDIR

DATAODIR

ERF

_EMOE1

_EMWR1

_EMOE2

_EMWR 2

+5VL

DUMMYy

RU35

CAL

PEAK

_RSTDSP 1

_RSTDSP 2

REQ1

REQ2

EMADU0

EMADU1

EMADU2

EMADU3

EMADU4

EMADU5

EMADU6

EMADU7

BTMODE1

BTMODE2

BTMODE3

FRWE

FROE

FREXTMEM

D_A

IICDATA1

IICCLK1

FRPG0

FRPG1

FRPG2

FRPG3

_MLR

_ADDF

_XMODE

XSTATE

DATAIDIR

_CEDIR

CLKDIR

DATAODIR

ERF

_UMUTE

_ADCAL

_RSTDAC

DFS

_SMUTE

+5VL

_BHIGH

PROTECT

AVSSDET

2.5A

+5VLD +5V +3.3V 2.5B

SIOCLK

SIODATA

STANDBY

_CEEXP

_CLK

_Data

+15V

RDSDATA

CERDS

TUST

SD

DATAITU

CETU

CLKTU

DATAOTU

_CEOSD

_BPOSD

_HPDET

_SPKOFF

CE_VOL-M

CE_VOL

CE_ASW

+5VL

654

2

DU01
1SS301

47uF/16V0.1

47uF/16V0.1

47uF/16V
CU34CU33

47uF/16V
CU36CU35

47uF/16V
CU38

2

+5VL

DUMMY

RU33

CU42CU41

CU32CU31

0.1

GND

321

GND

3

22K

RU39

GND

12K

RU21

+5VL

1

3

JU05

LU46

1

_BHIGH

LU47

2

PROTECT

LU48

3

AVSSDET

LU49

4

PROTECT2

12

LU81

3

19PS-JE
JU02

GND

1

+2.5VA

12

2

+2.5VB

3

LU82

3

GND

12

4

+3.3V

5

LU83

3

GND

12

6

+5VD

7

LU84

3

GND

12

8

LU85

1

LU86

GND

+5VL

9

3

GND

10

+15V

LU01

11

MUTE

LU02

12

SIOCLK

LU03

13

SIODATA

LU04

14

_STANDBY

LU05

15

_PDOWN

LU06

16

_CEEXP

LU07

17

_CLK

LU08

18

_Data

LU09

19

VSYNC

19PS-JE

JU03

LU10

1

RDSDATA

LU11

2

CERDS

LU12

3

TUST

LU13

4

SD

LU14

5

DATAITU

LU15

6

CETU

LU16

7

CLKTU

LU17

8

DATAOTU

LU18

9

_CEOSD

LU19

10

_BPOSD

LU20

11

TESTPOIN

LU21

LU22

LU23

LU24

LU25

LU26

LU27

T

12

_HPDET

13

_RSTFL

14

KILLSCL

15

_SPKOFF

16

CE_VOL-M

17

CE_VOL

18

CE_ASW

19

GND

SU02

SPUN

GND GND

GND

0.1

GND

0.1
GND

CU37

GND

MUTE

47uF/25V

CU40

GNDGND

CU39

0.1

TPU1

3029

PC04
FRONT DISPLAY

RC07

47k

VKK

1234567891011121314

47k

RC08

HQ31601410

VC01

ST

AUTO

DIRECT

TUNED

MULTI
SLEEP

1234567891011121314

GND

M-SPKR

P3757P3656P3555P3454P3353P3252P3151P3050P2949P2848P2747P2646P2545P2444P2343P2242P2141P2040P1939P1838P1737P1636P1535P1434P1333P1232P1131P1030P929P828P727P626P525P424P323P222P121NC2016G1915G1814G1713G1612G1511G128G117G

F2

62F258

61

CC15 CC16

0.01 0.01

MK1

MK2

S33

S34

S35

PRO LOGIC

TEST

S32

S31

DISP

S30

+5VD

AUTO SURR

COPY

S28

S29

QC04

PST600D-2

16-BT-92GNK

MOVIE

MUSIC

THX SURR EX

NIGHT

S21

S22

S23

S24

S25

S26

S27

VKK

CC01

0.01

RC01

10k

1

QC02

E

C3199

B

C1740S
C2458

3

2

C

GND GND

CC02

0.01

+5VD

VKK

CC05

100/50V

+5VL

DC05

12

31

IN OUT

GND

2

GND

MTX 6.1
SLEEP

S28

S27

CC08
100p

CC09

0.01

+5VD

ANALOG

AT T

DIGITAL

PEAK

S1

S26

S25

S23

S22

S24

S21

S3S2S1

MK1

S4

MK2

GND

GND
CC10
100/6.3V

7.1CH-IN

12

MEMO
SC19 SC08

12

MULTI

12

CINEMA

MUSIC

PRO LOGIC

DISC 6.1

S14

S13

S12

S11

S10S9S8S7S6S5S4S3S2

S15

S18

S19

S16

S17

S20

S35

S34

S33

S32

S31

S30

S29

T1

32T131

S3530S3429S3328S3227S3126S3025S2924S2823S2722S2621S2520S2419S2318S2217S21

T2 S20

T2

33

T3

T3

34

T4

T4

35

T5

T5

36

T6

T6

37

T7

T7

38

T8

T8

39

GND

RC06

DUMMY

T9

T9

40

T10

T10

41

T11

T11

42

T12

T12

43

T13

T13

44

T14

T14

45

T15

T15

46

T16

T16

47

VFDP

48

Vss

CC06

49

50

0.01

GND

RC03

68k

+5VD

CC07

390p

GND
RC05
47k

CC11

0.1

QC01

NJU3430

OSC151OSC252RST53CS54CLK55SI56RS57VDD58P159MK260MK161S162S263S364S4

RC04

100

_RSTFL

_RSFL

SIODATA

SIOCLK

_CEFLD

PCM

OTHER

DIGITAL

96kHz

SURROUND

10G139G

14

T1

S20

16

S19

15

S18

14

S17

13

S16

12

S15

11

S14

10

S13

S12

S11

S10

S9

S8

S7

S6

S5

VKK

CC03

0.01

RC02
47k

QC03

E

C2458

1

B

C1740S
C3199

3

2

C

CC04

0.01

+5VD

S19

S18

S17

S16

S15

S14

S13

9

S12

8

S11

7

S10

6

S9

5

S8

4

S7

3

S6

2

S5

1

12

AUX2
SC15SC16 SC07

12

S-DIRECT

12

12

12LD12

RC16

2.2k

SC18

12

RC21 RC23 RC24

M-SPKR

CLEAR

12

C

L

R

LFE

SL S SR

6G84G73G62G

5G51G2F11F1

10

9

T14

T13

T10T9T8T7T6T5T4T3T2

T15

T16

T12

T11

GND GND

TUNER
SC01 SC03

AUX1
SC14 SC05 SC06

RC17

1.5k 5601k 820

ATT

SC17 SC09

RC22

1.5k2.2k 1k 820 560

SC20SC22 SC11

RC27 RC29RC28RC26

1.5k 8201k2.2k 560

F/P

SC02

12

RC13 RC14 RC15

1k 820 560

TV

12

CD

12

TO J838(P834) SUPPLY

WC03

VKK

FL1

FL2

JC02

123

S3B-EH
YP06003930

CC21

CC20

10/50V

0.01
CC22

CC23 CC24

0.01 0.01

GND

CC25 CC26

VKK

DUMMY DUMMY

GND

FL1 FL2

RC09

VKK

RC11

10k

RC12

GND

10k

1234567891011121314

FL1FL2

AUTO-TUNE

12

DVD

12

RC19

VCR1

12

TAPE

12

RC10

+5VL

T-MODE

SC04

12

DSS

12

RC20RC18

VCR2/DVD-R

SC10

12

RC25

CD-R/MD

SC13SC21 SC12

12

RC30

TO JU04(P604)

µ-COM/DSP

WC01

VOL+

GYRO+

VOL-

AUX-OPT

AUX-C

AUX-Y

+5VV

AUX-CVBS

+15V

-15V

AUX-R

AUX-L

GND

GND

GND

GND

GYRO-

JUMPER0.47

10/16V

+5VL

CC29

CC30

0.01

C2458

C1740S

C3199

13

12

11

10

B13B-PH

GND

+5VD

123567891011121323 4141516171819202122

RC31

RC32

GND

+5VL +5VD

+5VLED

CC17
DUMMY

C

2

QC05

B
3

1

E

A-GND

9

8

7

6

5

4

3

GND

2

1

JP03

DUMMY

100/6.3V

SLR-932AV-8K

SLR-932AV-8K

RC36

1.5k

RC37

DUMMY

+5V

CP08

10/50V

CP07

10/50V

CC32
DUMMY

CC33

0.01

GND

CC31

DC02

23FE-ST-VK-N

DC01

3
B

JC01

1

E

10K

3

B

3

10K

OUT

C

2

QC08
DTA114ES
UN4111

RC34

JUMPER

2

DC03

1

SLR-932AV-8K

2

DC04

1

SLR-932AV-8K

C

2

RC38

1.5k

QC06

1

E

KTC3203

RC39

DUMMY

GND

1

+5VD

DOWN

2

UP

3

4

GND

JC04

S4B-EH

YP06003940

JC03

S6B-XH-A

YP06006290

1

DOWN

2

UP

3

UP GRADE

4

S.BY

5

+5VL

6

GND

RP06

47k

RP05

+15V

47k

GND

-15V

RC35

JUMPER

2

1
2

1

C

2
3
B

QC07

1

E

KTC3203

GND

CC18 CC19

0.01 0.01

WC02

1

2

3

4

JC70

B4B-EH

YP0600391X

SURR. ENCODER

YJ06008860

1

2

3

4

5

6

+15V

CP04

0.01

CP06

10/50V

876-5

NJM4558DD

QP01

GND

12-3+4

CP05

10/50V

CC70

0.01

JC60

06JQ-ST

GND

GND

AUXPP04

+5VL

CC12

0.01
GND

QC09

TP0P1136TB1

RC33

TEMIC

330

2

VS

CC13

CC14

RC40

RC41

6

4

5

3GND

10k

10k

DUMMY

VCC

VO2

VO1

4.7/35V

+5VD

RC42

RC43

10k

10k

1A2

SC23

B

SR02010070

SURR. ENCODER

C

3

GND

QC70

GP1A06

1GND

GND

GND

PC74 GYRO

PC64

RC60

10k

RC61

10k

CC61

CC62

0.01

CC60

0.01

GND GND

10K

3

B

10K

QC60

DTA114ES

UN411

STANDBY UP GRADE

DC60

GL3ED8

+5V

RP16

CP12

10/16V
CP11

10/16V
CP14

10/16V

GND

RP04

47k

+

RP03

47k

-15V

+5VL

VOLUME ENCODER

1

E

C

2

RC64

3RED 1

GND

CP17

100/10V

10k

RP13

JUMPER

A-GNDA-GND

CP13

DUMMY

RP15

JUMPER

CP15

CP02
100p

CP18 CP09CP03

GND

DUMMY

E

2

JUMPER

RP02

CP01
100p

RP01

GND

RP17

DUMMY

1

2C

RC65

180680

GREEN

A-GND

100

100

0.01

SC60

SR02010080

10K

10K

CP16

0.01

RP12

75

RP11

75

RP14

75

GND

GNDA-GND

RC70

RC62

GND

11

10

DUMMY0.01

JC05

ANODE

CATHODE

+5VL

3

3

B

QC61

DTA114ES

UN4111

JP01

JFJ4000

VOUT

4

2

5

1

3
7

6

9

8

JP02

330

1

2

GND

RC63
10k

1A2

B

C

JC61

1

VCC
2

3

CG

C

GND

Y

YG

CVBS

L
R

JP04

DUMMY

EARTH

SIOCLK

_RSFL

KEY2

KEY3

RC6STAT

KEY2

KEY3

TO JA07(PD04) DAC

_CEFLD

_CEFLD

SIODATA

SIOCLK

SIODATA

WL71

RCOUT

_RSFL

KEY1

KEY0

SEL-

SEL+

+5VLED

_RSTFL

_S.BYLED

_WRIT

CC28

0.01

+5VLED

CC27

100/6.3V

GND

KEY0

KEY1

10k

JUMPER

1234567891011121314

VKK

47k

KEY0

_RSTFL

TO JX05(PX04) S-VIDEO

KEY1

TO JL05(PL04) CVBS

TO JS04(PS04) AUDIO FUNC

KEY2

KEY3

31 32

6. PARTS LOCATION

P604

QU60 - QU69
QU80 - QU86

QR44 Q610

DU81
DU80

QU70

QU71QU50

QR50

Q676

QU01

QU41

Q600 Q601 Q611

QU02

QU03 QU05

QU43

Q681

Q684 QU20

Q683 Q671

QU21

Q685Q682
Q673

Q641

Q640

Q674

Q680

Q670

Q675QU42

DU01QR91QR70

3433

PD04

DA01 - DA04

QA01 - QA06

QK01
QA07
DK03

QK02
QK07

QK04 QK06
QK03 QK08
QK51

QK05

QK52

DK02

DK01
DK04DK05

QD01 - QD04

DK71

QH03QH01

QH02

QH05 DK70

QJ02 QJ03

QJ01

QH04

QJ04

QK70 - QK73

35 36

PY04

QY01

D868 D866Q858 Q857

DM81 - DM91
QM83 - QM90

DM93DM92

QT03 Q951

QT04QT02 Q902 D860

Q901

Q904Q903

D864D867Q856D865

Q855

QW01QM81

D859

Q852
Q851 D851 - D858

QM82QW31

D861 Q853D863Q854 D862

3837

PC04

QC08 QC04 QC02QC01 QC03 QC07 QC06 QC05

39 40

D359Q362 - Q365

D401 D402Q403 Q404

Q318 Q405 - Q410

D302

D309

Q313

Q315

D303 - D306

Q314

Q312

Q218

D208

D207

D209

Q301

D308

Q305 - Q310

D301 D302Q303 Q304

QN08

Q317

Q311

Q316

Q217

Q211

Q216

Q354Q353 D352D351

Q355 - Q360D357

D353 - D356

Q255 - Q260

D253 - D256 D358

D259 Q262 - Q265

Q151

D153 - D156

Q162 - Q165

Q155 - Q160 D252D251 Q254Q253

Q268D256

D152Q154Q153D151

Q367

Q361

Q366

Q267

Q261

Q266

Q212 Q213

Q112 Q113

P114

Q205 - Q210

Q214 Q215

D203 - D206

D108

D107

D109 Q118

D103 - D106

Q105 - Q110

Q114 Q115

D201 D202Q203 Q204

Q101

D101Q103 D102Q104

Q117

Q111

Q116

D516

D517

D157

P154

D159

Q502

D514 D513

Q501

D158 Q168

QN09

QN61

QN64 D257 Q351

D512

QN02 QN03 QN63 QN62DN61 DN62

QN11 D511

Q167

Q161

Q166

4241

P134

Q111

P174

Q161

P214

Q211

P314

Q311

PN14

P254

Q261

P354

Q361

PN24

Q418

D407 D408 Q417

QN10

Q415 Q413

Q414

D403 - D406

PN54

PN64

Q411

Q416 Q412

P414

43

PG04

QE05 - 08

QE01 - 03

QG05 - 08

QE51 - 53

QG55 -58

QG01 - 03

QM05 - 08

QG51 - 53

QM60

QE31QE55- 58

QM01 - 03

QM61

QE32

QE40QE41

QM30

QE01

QE07

QE07

QE07

44

QE07

PL04

QL08 QL09

QL10

QL12

QL13 - QL15 QF04

QL04 QL18 - QL20

QL16 QL11QL07 QL17

45

PS04

QS02 QS01

P124

DN07

QN04 - QN06

DN05

PP94

P824

46

P834

D839 D840 Q505 D501 Q504 Q506 Q507 Q508

DN01 - DN04

Q831 D831 - D838Q833 Q832

D503

D502

PC74

QC70

47

PQ04

QQ01QQ03QQ02

QQ09 QQ04QQ05QQ06QQ07QQ08

PC64

QC60 QC61

P654

48

PF14

DF51 QF51
DF52 QF52
DF53 QF53

QF54 DF54

PP04

QP01

49

PX04

QX07 QX04 QX02

QX06

QX01QX03

QX05

PS04

QS02 QS01

50

P814

Q802
Q801

Q812

Q811Q803

PS54

QS70

QS71 QS72
QQ71 QQ72

51

P164

DN09 DN06 DN08

PY54

52

7. IC DATA

Q671 : MBM29LV400TC

Pin Assignment Pin Configuration

A
A
A
A
A
A

A

A
N.C.
N.C.

WE

RESET

N.C.
N.C.

RY/BY

N.C.

A

A

A

A

A

A

A

A

15

1

14

2

13

3

12

4

11

5

10

6

9

7

8

8

(Marking Side)

9
10
11
12

MBM29LV400TC/MBM29LV400BC

13

Standard Pinout

14
15
16

17

17

7

18

6

19

5

20

4

21

3

22

2

23

1

24

FPT-48P-M19

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25

A

16

BYTE

SS

V
DQ

15/A-1

DQ

7

DQ

14

DQ

6

DQ

13

DQ

5

DQ

12

DQ

4

V

CC

DQ

11

DQ

3

DQ

10

DQ

2

DQ

9

DQ

1

DQ

8

DQ

0

OE
V

SS

CE
A

0

Pin Function

A

, A0 to A

-1

to DQ

DQ

0

CE

OE

WE

RY/BY

RESET

BYTE

N.C. No Internal Connection

V

V

Address Inputs

17

Data Inputs/Outputs

15

Chip Enable

Output Enable

Write Enable

Ready/Busy Output

Hardware Reset Pin/Temporary Sector
Unprotection

Selects 8-bit or 16-bit mode

SS

CC

Device Ground

Device Power Supply

QN01 : TA7317P

Equivalemt Circuit Diagram

53

Q901 : LC72722M

Vdda

Vssa

A12365

Vdda

Vssa

A12366

A12367

Ð

+

Vdda

V

REF

Vssa

A12368

Vddd

Vssd

A12369

X

OUT

X

IN

A12370

Vssd

S

A12371

Vssd

A12372

Vssd

A12373

Vssd

S

Pin Functions

Pin No. Pin name Function I/O Pin circuit

1 VREF Reference voltage output (Vdda/2) Output

2 MPXIN Baseband (multiplexed) signal input Input

5 FLOUT Subcarrier output (filter output) Output

6 CIN Subcarrier input (comparator input) Input

3 Vdda Analog system power supply (+5 V) Ñ Ñ
4 Vssa Analog system ground Ñ Ñ

12 XOUT Crystal oscillator output (4.332/8.664 MHz) Output

13 XIN Crystal oscillator input (external reference signal input)

7 T1 Test input (This pin must always be connected to ground.) Input

8T2

9 T3 (RDCL) Test I/O (RDS clock output)
10 T4 (RDDA) Test I/O (RDS data output)
11 T5 (RSFT) Test I/O (soft-decision control data output)

16 T6 (ERROR/57K/TP/BE1)

17 T7 (CORREC/ARI-ID/TA/BE0)

18 SYNC Block synchronization detection output

19 RDS-ID RDS detection output

20 DO Data output

21 CL Clock input
22 DI Data input
23 CE Chip enable
24 SYR Synchronization and RAM address reset (active high)
14 Vddd Digital system power supply (+5 V) Ñ Ñ
15 Vssd Digital system ground Ñ Ñ

Note: * Normally function as an output pin. Used as an I/O pin in test mode, which is not available to user applications.

Test input (standby control)
0: Normal operation, 1: Standby state (crystal oscillator stopped)

Test I/O (error status output, regenerated carrier output,
TP output, error block count output)

Test I/O (Error correction status output, SK detection output,
TA output, error block count output)

Serial data interface (CCB)

I/O*

Output

Input

54

QR50 : LC89055W

Pin Functions

No. Pin name I/O Function

1 DISEL I Data input pin (DIN0, DIN1) selection input pin
2 DOUT O Input bi-phase data through output pin
3 DIN0 I Digital data input pin (CMOS level, with pull-down resistance when no selected)
4 DIN1 I Digital data input pin (CMOS level, with pull-down resistance when no selected)
5 DIN2 I Digital data input pin (TTL level)
6 DGND Digital GND
7 DVDD Digital power supply
8 R I VCO gain control input pin

9 VIN I VCO free-running frequency setting input pin
10 LPF O PLL loop filter setting pin
11 AVDD Analog power supply
12 AGND Analog GND
13 CKOUT O Clock output pin (256 fs, 384 fs, 512 fs, crystal oscillation, VCO free-running oscillation)
14 BCK O 64 fs clock output pin
15 LRCK O fs clock output pin (L = R-ch, H = L-ch, I
16 DATAO O Data output pin
17 XSTATE O Source clock switch monitor output pin
18 DGND Digital GND
19 DVDD Digital power supply
20 XMCK O Crystal oscillation clock output pin (24.576 MHz or 12.288 MHz)
21 XOUT O Crystal oscillator connection output pin
22 XIN I Crystal oscillator connection input pin, external signal input supported (24.576 MHz or 12.288 MHz)
23 EMPHA O Channel status emphasis information output pin
24 AUDIO O Channel status bit 1 (non-PCM data detection bit) output pin
25 CSFLAG O First 40 channel status bits update flag output pin
26 F0/P0/C0 O Input fs calculation signal output/Pc data type output/input word length information output pin
27 F1/P1/C1 O Input fs calculation signal output/Pc data type output/input word length nformation output pin
28 F2/P2/C2 O Input fs calculation signal output/Pc data type output/input word length information output pin
29 VF/P3/C3 O Validity flag output/Pc data type output/input word length information output pin
30 DVDD Digital GND
31 DGND Digital power supply
32 AUTO O Non-PCM burst data transfer detection signal (Pa, Pb detection) output pin

33 BPSYNC O Non-PCM burst preamble Pa, Pb, Pc, Pd sync signal output pin
34 ERROR O PLL lock error or data error flag output pin
35 DO O Microcontroller IF/read data output pin
36 DI I Microcontroller IF/write data input pin
37 CE I Microcontroller IF/Chip enable input pin
38 CL I Microcontroller IF/clock input pin
39 XSEL I [XIN] crystal oscillation selection input pin (24.576 MHz or 12.288 MHz)
40 MODE0 I Mode setting input pin
41 MODE1 I Mode setting input pin
42 DGND Digital GND
43 DVDD Digital power supply
44 DOSEL0 I Output data format selection input pin
45 DOSEL1 I Output data format selection input pin
46 CKSEL0 I Output clock selection input pin
47 CKSEL1 I Output clock selection input pin
48 XMODE I System reset input pin

Note: * Perform digital power supply (DVDD) and analog power supply (AVDD) ON/OFF with the same potential and the same timing as a latch-up

countermeasure.

2

S = inverted)

55

QK51 : AK5383

Pin Description

No. Pin Name I/O Function

1 VREFL O Lch Reference Voltage Pin, 3.75V

2 GNDL - Lch Reference Ground Pin, 0V
3 VCOML O Lch Common Voltage Pin, 2.75V

4 AINL+ I Lch Analog positive input Pin
5 AINL- I Lch Analog negative input Pin

6 ZCAL I Zero Calibration Control Pin

7VD -Digital Power Supply Pin, 3.3V
8 DGND - Digital Ground Pin, 0V

9CAL OCalibration Active Signal Pin

10

11
12

13 LRCK I/O Left/Right Channel Select Clock Pin

14 SCLK I/O Serial Data Clock Pin

15 SDATA O Serial Data Output Pin

16 FSYNC I/O Frame Synchronization Signal Pin

17 MCLK I Master Clock Input Pin

18 DFS I Double Speed Sampling Mode Pin

RST

SMODE2
SMODE1

Normally connected to GNDL with a 10µ

F electrolytic capacitor and

a 0.1µF ceramic capacitor.

This pin controls the calibration reference signal.
"L": VCOML and VCOMR
"H": Analog Input Pins (AINL ±, AINR±)

"H" means the offset calibration cycle is in progress. Offset calibration starts
when RST
17408 LRCK cycles for DFS =

goes "H". CAL goes "L" after 8704 LRCK cycles for DFS="L",

"H".

I Reset Pin

When "L", Digital section is powered-down. Upon returning "H", an
offset calibration cycle is started. An offset calibration cycle should always
be initiated after power-up.

I

Serial Interface Mode Select Pin

MSB first, 2's compliment.

I

SMODE2 SMODE1 MODE LRCK

L
L H Master mode : Similar to I

H L Slave mode : I
H H Master mode

L Slave mode : MSB justified : H/L

2

2

S

2

: I

S : L/H

S : H/L

:

L/H

LRCK goes "H" at SMODE2="L" and "L" at SMODE2="H" during reset
when SMODE1 "H".

Data is clocked out on the falling edge of SCLK.
Slave mode:

SCLK requires more than 48fs clock.

Master mode:
SCLK outputs a 128fs(DFS="L") or 64fs(DFS="H") clock.
SCLK stays "L" during reset.

MSB first, 2's complement. SDATA stays "L" during reset.

Slave mode:

When "H", the data bits are clocked out on SDATA. In I

2

S mode, FSYNC is

Don’t care.

Master mode:

FSYNC outputs 2fs clock. FSYNC stays "L" during reset.

256fs at DFS="L", 128fs at DFS="H".

"L": Normal Speed

"H": Double Speed

56

19 HPFE I High Pass Filter Enable Pin

20 TEST I Test Pin ( pull-down pin)

21 BGND - Substrate Ground Pin, 0V
22 AGND - Analog Ground Pin, 0V
23 VA - Analog Supply Pin, 5V
24 AINR- I Rch Analog negative input Pin
25 AINR+ I Rch Analog positive input Pin
26 VCOMR O Rch Common Voltage Pin, 2.75V
27 GNDR - Rch Reference Ground Pin, 0V
28 VREFR O Rch Reference Voltage Pin, 3.75V

Note: All digital inputs should not be left floating

QA07, QU71 : PCF8574

"L": Disable
"H": Enable

Should be connected to GND.

Normally connected to GNDR with a 10µF electrolytic capacitor
and a 0.1µF ceramic capacitor

Pin Description

57

QU50 : HIN202ECB

Pin Assignment

T2

HIN202E (PDIP, SOIC)

TOP VIEW

1

C1+

2

V+

3

C1-

4

C2+

5

C2-

6

V-

7

OUT

8

R2

IN

1

C1+

+

0.1 F

16

V

CC

15

GND

14

T1

OUT

13

R1

IN

12

R1

OUT

11

T1

IN

10

T2

IN

9

R2

OUT

0.1 F

R1

R2

T1

T2

OUT

OUT

3

VOLTAGE INVERTER

C1-

4

C2+

+

5

VOLTAGE INVERTER

C2-

+5V

400k

11

IN

+5V

400k

10

IN

+5V

16

V

CC

+5V TO 10V

+10V TO -10V

T1

T2

R1

R2

GND

15

0.1 F

+

2

V+

6

V-

5k

5k

0.1 F

+

14

7

1312

89

Pin Descriptions

PIN FUNCTION

V

CC

V+ Internally generated positive supply (+10V nominal).

V- Internally generated negative supply (-10V nominal).

GND Ground Lead. Connect to 0V.

C1+ External capacitor (+ terminal) is connected to this lead.

C1- External capacitor (- terminal) is connected to this lead.

C2+ External capacitor (+ terminal) is connected to this lead.

C2- External capacitor (- terminal) is connected to this lead.

T

IN

T

OUT

R

IN

R

OUT

EN Enable Input. This is an active low input which enables the receiver outputs. With EN = 5V, the outputs are placed in a high

SD,

NC No Connect. No connections are made to these leads.

Power Supply Input 5V 10%, (5V 5% HIN207E).

Transmitter Inputs. These leads accept TTL/CMOS levels. An internal 400k pull-up resistor to VCCis connected to each lead.
Transmitter Outputs. These are RS-232 levels (nominally 10V).
Receiver Inputs. These inputs accept RS-232 input levels. An internal 5k pull-down resistor to GND is connected to each input.
Receiver Outputs. These are TTL/CMOS levels.

impedance state.

SD Shutdown Input. With SD = 5V (HIN213E SD = 0V), the charge pump is disabled, the receiver outputs are in a high impedance

state (except R4 and R5 of HIN241E) and the transmitters are shut off.

T1

T2

R1

R2

OUT

OUT

IN

IN

58

QL04 : LC74781

Pin Functions

Pin No. Symbol Function Description

1V
2 Xtal
3 Xtal

4 CTRL1 Crystal oscillator input switching

5 BLANK Blanking output sync signal when MOD0 is high.) Outputs the crystal oscillator clock during reset (when the

6 OSC
7 OSC

8 CHARA Character output external synchronization signal is present or not. Outputs a high level when the synchronization

9 CS Enable input

10 SCLK Clock input

11 SIN Data input Serial data input. A pull-up resistor is built in (hysteresis input).
12 V
13 CV
14 NC Must be either connected to ground or left open.
15 CV
16 V

17 SYN

18 SEP

19 SEP

20 SEP

21 CTRL2 NTSC/PAL-M switching input PAL-N formats. A low level selects NTSC after a reset. The microprocessor command NTSC,

22 CTRL3 SEP

23 RST Reset input System reset input. A pull-up resistor is built in (hysteresis input).
24 V

1 Ground Ground connection (digital system ground)

SS

IN

Crystal oscillator connection

OUT

IN

LC oscillator connection

OUT

2 Power supply Composite video signal level adjustment power supply pin (analog system power supply).

DD

Video signal output Composite video signal output

OUT

Video signal input Composite video signal input

IN

1 Power supply Power supply (+5 V: digital system power supply)

DD

Sync separator circuit input synchronization signal or composite sync signal input when the built-in sync separator circuit is

IN

Sync separator circuit bias voltage Built-in sync separator circuit bias voltage monitor pin

C

Composite sync signal output level during internal synchronization and a low level during external synchronization.) (Outputs

OUT

Vertical synchronization Inputs a vertical synchronization signal created by integrating the SEP

IN

signal input integrator must be attached at the SEP

input control

IN

1 Power supply (+5 V) Power supply (+5 V: digital system power supply)

DD

Used to connect the crystal oscillator and capacitor used to generate the internal
synchronization signal, or to input an external clock (2fsc or 4fsc).

Switches between external clock input mode and crystal oscillator mode.
Low = crystal oscillator mode, high = external clock mode

Outputs the blank signal (the OR of the character and border signals). (Outputs a composite

RST pin is low), but can be set up to not output this signal by microprocessor command.

Connections for the coil and capacitor that form the oscillator that generates the character
output dot clock.

Outputs the character signal. (Functions as the external synchronization signal discrimination
signal output pin when MOD0 is high, and outputs the state of the judgment as to whether the

signal is present.) Outputs the dot clock (LC oscillator) during reset, but can be set up to not
output this signal by microprocessor command.

Serial data input enable input. Serial data input is enabled when low. A pull-up resistor is built in
(hysteresis input).

Serial data input clock input.
A pull-up resistor is built in (hysteresis input).

Video signal input for the built-in sync separator circuit (Used for either horizontal

not used.)

Built-in sync separator circuit composite sync signal output. (When MOD1 is high, outputs a high

the SYN

The setting indicated by this pin takes priority in switching between the NTSC, PAL, PAL-M and

PAL, PAL-M, or PAL-N setting is valid. High = PAL-M format.
Controls whether or not the VSYNC signal is input to the SEP

high = VSYNC not input.

input signal when the internal sync separator circuit is not used.)

IN

pin. This pin must be tied to VDD1 if unused.

OUT

input. Low = VSYNC input,

IN

pin output signal. An

OUT

QU70 : AT24C04N

Pin Configuration

Pin Name Function

A0 - A2 Address Inputs

SDA Serial Data

SCL Serial Clock Input

WP Write Protect

NC No Connect

59

A0
A1
A2

GND

8-Pin SOIC

1
2
3
4

VCC

8

WP

7

SCL

6

SDA

5

QU01 : H8S2633

Pin Description

pin port I/O use Name Port Setting Note

mode = 7 Act. init

MD1

1
2 MD2

NC - -

3

NC - -

4
5 PC0
6 PC1
7 PC2
8 PC3
9 VSS

10 PC4

11 VCC
12 PC5
13 PC6/PWM0
14 PC7/PWM1
15 VSS
16 PB0/TIOCA3

I YES
I YES

I/O O
I/O O
I/O O
I/O I

I YES

I/O I

I YES
I/O I
I/O O
I/O I

I YES
I/O T_IN

MD1
MD2

DATAOTU
CLKTU
_CETU
DATAITU
GND
SD
VCC
TUST
_CERDS
RDSDATA
GND
VSYNC

- - Fix H

- - Normal :H, Boot :L

- - N.C.

- - N.C.

- L Tuner Pack

- L Tuner Pack

L L Tuner Pack

- Tuner Pack

- - GND

L Tuned

- - 3.3V

H Stereo Tune/_MONO

L L Tuner Pack(RDS)

- Tuner Pack(RDS)

- - GND

H V-sync Det. & Change

OSD

17 PVCC1
18 PB1/TIOCB3

I YES
I/O O

PVCC1
_Data(Inverted)

- - +5V
P-Exp. (mute, Video),

H

Analog SW, Volume

19 PB2/TIOCC3

I/O O

_CLK(Inverted)

P-Exp.(mute, Video),

H

Analog SW, Volume

20 PB3/TIOCD3

PB4/TIOCA4

21
22 PB5/TIOCB4
23 PB6/TIOCA5
24 PB7/TIOCB5

PA0

25
26 PA 1 /TxD2

27 PA 2 /RxD2

28 PA3 /SCK2
29 Vss
30 P10/TIOCA0/
31 P11/TIOCB0/
32 P12/

P13/

33
34 P14/_IRQ0

NC - -

35

NC - -

36
37 P15/
38 P16/_IRQ1

I/O O
I/O T_OUT
I/O O
I/O T_OUT
I/O O
I/O O
I/O SO

I/O SI

I/O I

I ­I/O T_OUT
I/O T_IN
I/O O
I/O O
I/O INT

I/O O
I/O INT

_CEEXP
RC_BUS_OUT
KILLIR
MRC5O
_UMUTE
RTS
TXD

RXD

CTS
GND
RC6STAT
RCIN
_SMUTE
DFS
_PDOWN
N.C.
N.C.
_RSTDAC
ERF

L

P-Exp. (mute, Video),

H

L RC BUS Output

H L

Kill to IR input signal.

L RC BUS MULTI Output

L L logic for Tr mute

L UART
L

-

UART for Panja, Flash WR

Necessary to Pull Up

UART for Panja, Flash WR
Necessary to Pull Up

- - UART

- - Ground

H L IR carry out

IR In for RC-5 $ RC-6

L L DAC

H L DAC&ADC

L - Power Down Detect

- -

- -

L L DAC

H - error from DIR

60

39 P17/
40 PE0
41 PE1
42 PE2
43 PE3
44 PE4
45 PE5
46 PE6
47 PE7
48 VSS
49 PD0
50 PVCC1
51 PD1
52 PD2
53 PD3
54 PD4
55 PD5
56 PD6
57 PD7
58 P30/
59 P31/
60 PVCC2
61 P32/SDA1/

IRQ4/

VSS

62

P33/SCL1/ I/O O

63
64 P34/SDA0/
65 P35/SCL0/

IRQ5/

66 P36/RxD4

NC

67

NC - -

68
69 P37/TxD4
70 PG0/_IRQ6
71 PG1/_IRQ7

PG2

72

PG3 I/O O

73

PG4 I/O O

74

_WDTOVF No

75

PLLVCC I YES

76

PLLCAP YES

77

PCCVSS I YES

78

_RES YES

79

MNI I NO

80

_STBY NO

81
82 FWE

XTAL YES

83

VCC I YES

84

EXTAL YES

85

VSS I -

86

OSC1

87

OSC2 I NO

88

PVCC1 YES

89
90

PF7/φ

VSS YES

91

PF6 I/O O

92

PF5 I/O O

93

PF4 I/O O

94
95 PF3/_IRQ3/

PF2

96

PF1/BUZZ I/O O

97
98 PF0/_IRQ2

NC

99

NC - -

100

AVCC I -

101

Vref I -

102

I/O O
I/O O
I/O O
I/O O
I/O I
I/O I
I/O O
I/O O
I/O O

I -

I/O I/O

I ­I/O I/O
I/O I/O
I/O I/O
I/O I/O
I/O I/O
I/O I/O
I/O I/O
I/O I
I/O O

I ­I/O Int

I -

I/O SD
I/O SC

I/O O

- -

I/O O
I/O O
I/O O
I/O O

O

I

I

I

I YES

I

I

I N

I
I/O I

I

I/O INT
I/O O

I/O INT

- -

_ADCAL
DATAODIR
CLKDIR
_CEDIR
DATAIDIR
XSTATE
_XMODE
KILLSCI
_STANDBY
GND
EMADU0
PVcc
EMADU1
EMADU2
EMADU3
EMADU4
EMADU5
EMADU6
EMADU7
PEAK
_RSTFL
PVcc
_PROTECT2

GND
BTMODE3
IICDATA
IICCLK

_RSTDSP1
N.C.
N.C.
_RSTDSP2
BTMODE1
BTMODE2
_FRWE
_FROE
FREXTMEM

PLLVCC

GND

FWE

Vcc

GND

O

PVcc
CAL
GND
CE_ASW
CE_VOL
CE_VOL-M
REQ2
_SPKROFF
_BHIGH
REQ1

AVcc
Vref

L L ADC

L DIR
L DIR

L L DIR

L DIR

-

L L DIR

H L Kill CLKto Analog Input IC

L L Standby Power

- - GND

- L exFROM I/F

- - +5V

- L exFROM I/F
L exFROM I/F
L exFROM I/F
L exFROM I/F
L exFROM I/F
L exFROM I/F
L exFROM I/F

H -

L L Reset FL Driver

- - +5V

L -

- - GND

- L exFROM I/F

- L I2C0 for DSP,E2PROM,EXP

- L I2C0 for DSP,E2PROM,EXP

L L DSP1

- - N.C.

- - N.C.

L L DSP1

- L exFROM I/F

- L exFROM I/F

L L exFROM I/F
L L exFROM I/F

- L exFROM I/F

L - WDT OVF Output

- -

- - For PLL

- - GND for PLL

L - Reset

- - Fix H

L H Fix H

H L Normal :L, Boot :H

- - X’tal (4 or 5M)

- - +3.3V

- - X’tal (4 or 5M)

- - GND

- - +3.3V

- - N.C.

- - +5V

H - Calibration status from ADC

- - GND

L L Analog Switch

L Volume IC
L Volume IC

L - DSP2
L L Speaker relay
L L Power Amp
L - DSP1

- - N.C.

- - N.C.

- - +5V

- - +5V

61 62

DIR

Peak Indicator

Emergency Protection

DC supply for PLL (3.3V)

103 P40/AN0
104 P41/AN1
105 P42/AN2
106 P43/AN3
107 P44/AN4
108 P45/AN5

P46/AN6/DA0

109

P47/AN7/DA1 I I

110

P90/AN8 I

111

P91/AN9 I I

112

P92/AN10 I

113

P93/AN11 I I

114

P94/AN12 I

115

P95/AN13 I I

116

P96/AN14/DA2 I I

117

P97/AN15/DA3 I I

118

AVSS -

119

P70/ I/O O

120

P71/

121

P72/ I/O O

122

P73/

123

P74/ I/O O

124

I/O O

I/O O

125 P75/SCK3/
126 P76/RxD3
127 P77/TxD3
128 MD0

Pin Assignment

I AD
I AD
I AD
I AD
I AD
I AD
I A

D

I

I

I

I

I/O SC
I/O

O D_A

I/O SO

I YES

KEY0
KEY1
KEY2
KEY3
PROTECT1
MODE1
MODE2
GYRO­GYRO+
VOL+
VOL­SEL+
SEL­_HPDET
AVSSDET
MLTRC5I
GND
_STBY LED
_RSFL
_CEFLD
_BPOSD
_CEOSD
SIOCLK

SIODATA
MD0

L - HP Jack
H - power circuit

L H* Standby LED On
L L Front FL driver
L L Front FL driver
L L Video Circuit
L H Video Circuit

- - Front Key

- - Front Key

- - Front Key

- - Front Key

- - Protect SPKR

- - CPU mode

- - CPU mode

- - Front Gyro

- - Front Gyro

- - Front Vol. Encoder

- - Front Vol. Encoder

- - Front Select. Encoder

- - Front Select. Encoder

- - Multi RC5 IN

- - GND

- - Front FL & Video(OSD)

- L

DIR or _ADC sel

- - Front FL & Video(OSD)

- - +5V

8. EXPLODED VIEW AND PARTS LIST

002D

x5

013D

x10

5150
3X10( M)

x4

040Bx2

001D

014D

003D

x8

010D

x8

5110
2X3( U)

008B

013B

x2

x8

008D

007B

x4

005B

x4

047B

005D

007D

058B

x2

5129
3X8(M)

041B

5128
3X8( M)

x2

045B

x2

059B

030G

042B

VC01

003D

006D

x5

072G

x2

P824

5110
3X6( M) x2

PP94

032Bx2

044B

5128
3X6( M)
x13

070G

PC64

5128
3X8( M)

x4

057B

x4

043B

015B

5129
3X8( M)

x3

5129
3X8( M)

5129
3X8( M)

x2

5129
3X8( M)

x4

5128
3X8( M)
x12

x2

049Bx3

013G

x2

PP04

5126
3X8( M)

060G

x4

5110
3X6( M)

x4

078G

x2

PC04

5126
3X10( M)

001G

x3

006G

P164

920G

003G

021K

079G

036G

5129
3X8(M)

x2

(057G)

x2

5405

3( M)

064G

077G

P124

PF14

055G ASSY.

5128
3X20( U)

x2

(056G)

011K

P834

076G

025G

5110
4X8( M)

011G

012G

x2

x2

024K

035G

5405

4( M)
x4

010G

x3

x18

043G

PX04

P814

5405

3( M)

033G

5204
4X8( M)

x4

065G

5405

3( M)

5129
3X8( M)

x2

030L

5110
3X6( M)

PL04

PQ04

L001

003K

001K

002K

004K

PS04

5110
3X6( M)

5405

3( M)

008K

5129
3X8( M)

at 01

PS54

034G

005K

075G

x4

041G

006K

042G

PG04

5110
3X6( M)

x7

070G

5129
3X8( M)

x5

5129
3X8( M)

5405

PY04

013K- 018K

PD04

3( M)

5129
3X8( M)

P844

x3

9 0 9 G( GL OMLY)

P604

5110
3X6( M)

Z011

5129
3X8(M)
x39

906G

901G

P654

5129
3X8( M)

x3

5128
3X10(M)

016B

5128
2X5( A)

023B

021B

5128
3X6( M)

024B

017B

002B

055B

030B

5128
3X8( U)

x2

001B

018Bx2

5128

2. 6X6( U)
x2

014B

x2

012B

x2

010B

003B

026B

5128
3X6( M)

x6

007G

052G

x4

5126
4X15( U)

x2

5128
3X12( M)

x2

05AJ

5128
3 X 1 0 (M )

5128
3X25( M)

x4

050G

x4

005G

5129
3X8( M)

X6

5129
3X12( M)

X3

6463

072G

x2

5128
3X8( M)

x4

004G

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

001B /N1G 05AJ248110 FRONT AL PANEL (GL N) 05AJ248110

001B /N1S 05AJ248210 FRONT AL PANEL (SI N) 05AJ248210

002B /N1G 313J251110 BADGE MARANTZ (GL) 313J251110

002B /N1S 313J251040 BADGE MARANTZ (SI) 313J251040

003B /N1G 05AJ248150 FRONT MOLD PANEL (GL) 05AJ248150

003B /N1S 05AJ248250 FRONT MOLD PANEL (SI) 05AJ248250

005B /N1G 05AJ158110 WINDOW FL (GL/SI) 05AJ158110

005B /N1S 05AJ158110 WINDOW FL (GL/SI) 05AJ158110

007B /N1G 300J270120 BUTTON

300J270120

GYRO SIDE FUNCTION (GL)

007B /N1S 300J270220 BUTTON

300J270220

GYRO SIDE FUNCTION (SI)

008B /N1G 322J063110 ESCUTCHEON

322J063110

CORNER (L SIDE GL)

008B /N1S 322J063210 ESCUTCHEON

322J063210

CORNER (L SIDE SI)

010B /N1G 322J063120 ESCUTCHEON

322J063120

CORNER (R SIDE GL)

010B /N1S 322J063220 ESCUTCHEON

322J063220

CORNER (R SIDE SI)

013B 230K355040 LENS POWER (CLEAR) 230K355040

015B /N1G 05AJ270110 BUTTON FUNCTION BLOCK(GL) 05AJ270110

015B /N1S 05AJ270210 BUTTON FUNCTION BLOCK(SI) 05AJ270210

016B /N1G 300J002110 ARM DOOR HINGE (L SIDE GL) 300J002110

016B /N1S 300J002210 ARM DOOR HINGE (L SIDE SI) 300J002210

017B /N1G 300J002120 ARM DOOR HINGE (R SIDE GL) 300J002120

017B /N1S 300J002220 ARM DOOR HINGE (R SIDE SI) 300J002220

018B 300J112010 SHAFT DOOR SHAFT 300J112010

021B 391H130030 DAMPER DOOR 391H130030

023B /N1G 05AJ162110 DOOR PANEL (GL) 05AJ162110

023B /N1S 05AJ162210 DOOR PANEL (SI) 05AJ162210

026B 271K305500 MAGNET DOOR 271K305500

030B 300J115010 SPRING DOOR ESD 300J115010

040B /N1G 300J154210 KNOB MASTER (GL) 300J154210

040B /N1S 300J154310 KNOB MASTER (SI) 300J154310

041B /N1G 176J270150 BUTTON POWER (GL) 176J270150

041B /N1S 176J270160 BUTTON POWER (SI) 176J270160

042B 025J125010 JOINT POWER JOINT 025J125010

058B /N1G 322J063130 ESCUTCHEON

322J063130

TOP COVER SPACER (GL)

058B /N1S 322J063230 ESCUTCHEON

322J063230

TOP COVER SPACER (SI)

001C /N1G 290J063110 ESCUTCHEON

290J063110

GYRO ESC.(UP & DOWN:GL)

001C /N1S 290J063210 ESCUTCHEON

290J063210

GYRO ESC.(UP & DOWN:SI)

002C /N1G 290J066110 RUBBER RING GYRO (GL) 290J066110

002C /N1S 290J066210 RUBBER RING GYRO (SI) 290J066210

003C 290J273110 FLYWHEEL GYRO WHEEL BASE 290J273110

006C 290J112010 SHAFT GYRO MAIN 290J112010

014C 300J112020 SHAFT

300J112020

GYRO SUSTAINER (UNDER)

001D /N1G 322J257110 LID TOP COVER (GL) 322J257110

001D /N1S 322J257210 LID TOP COVER (SI) 322J257210

002D /N 323S010070 SCREW TOP C. 3X12 HGNI FRONT 323S010070

003D /N 318K010040 SCREW TOP C. REAR 3X5HGNI 318K010040

004D /N 258S010030 SCREW SIDE 4X10 HGNI 258S010030

005D /N1G 322J249110 SIDE PANEL(L GL) 322J249110

005D /N1S 322J249210 SIDE PANEL(L SI) 322J249210

006D /N1G 322J249120 SIDE PANEL(R GL) 322J249120

006D /N1S 322J249220 SIDE PANEL(R SI) 322J249220

007D /N1G 322J003110 PERFORATED SIDE NET (GL) 322J003110

007D /N1S 322J003210 PERFORATED SIDE NET (SI) 322J003210

001G 05AJ105020 CHASSIS FRONT METAL 05AJ105020

050G /N1G 163J057410 LEGS (GOLD) 163J057410

050G /N1S 163J057510 LEGS (SILVER) 163J057510

AT01 /N AV01203040 TUNER MODULE TFCE1L114A AV01203040

L001 /N TS42002210 MAINS TRANSF. MAIN AC230V TS42002210

L011 FC50230010 FERRITE CORE TFCK-23-11-14 FC50230010

L021 /N FC50160030 FERRITE CORE TFCK-16-8-13 FC50160030

L031 /N FC90400010 FERRITE CORE SSC-40-12 FC90400010

M011 MM01200320 D.C MOTOR COOLING FAN

WC01 nsp JUMPER LEAD FFC 23P

MM01200320

YU23500530

JC01(PC04)-JU04(P604)

WY01 /N nsp JUMPER LEAD FFC 15P

YU15200500

TUNERPACK-JY23(PY04)

PACKING

001T /N 05AJ851310 USER GUIDE FOR N 05AJ851310

Z004 ZK344J0010 REMOTE CONTROLLER RC3200 ZK344J0010

Z011 /N ZC01803080 MAINS CORD

ZC01803080

2P 10A 250V CLASS2

NOT STANDARD SPARE PART

001S /N PACKING CASE 05AJ801010

002S CUTSION (L SIDE) 300J809010

003S CUTSION (R SIDE) 300J809020

011S /N MASTER CARTON (N) 05AJ805010

5110
3X8( A)

009C

008C

014C

015Cx2

007C

PC74

5128
4X35( U)

x4

5128
3X8( M)
x2

010L
x24

5128
3X8( M)

P154

5128
3X8( M)

M011

019L

031L
x14

006C

5128
3X8( M)

x4

008L

x2

001L

x2

5126
3X8( U)

001C

002C

004C

001C

003C

030L

002L

5128
3X8( M)

P17 4

P254

PN54

5128
3X8( M)

x2

5128
3X8( M)

x2

P414

5128
3X8( M)

x2

x2

P354

PN64

Z001

5128
3X12( M)

012L

5128
3X8( M)

x5

5110
3X6( M)

x4

P114

006L

x2

5110
3X6( M) x8

011K

001K, 002K, 003K, 008K

004K, 005K, 006K, 021K

5128
3X8( M)

x2

2003- 08- 18

5126
3X12( M)

x6

P134, PN14, P214, PN24, P314

5128
3X8( M)

x4

PY5 4

004L

5128
3X8( U)

5128
3X8( M)

x4

x2

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

65 66

9. SERVICE PROGRAM

Factory Mode

With the following procedure, the Tracking Point, which is necessary for the adjustment and measurement of the tuner, can
be memorized.

1. Turn on the unit, press DVD, TUNER and MULTI ROOM key simultaneously more than three seconds.

2. "FACTORY MODE" will be displayed on the FLD for two seconds and the following frequencies will be stored in the
Preset Memory.

Band Version P1 P4 P3 P2

FM AUTO [MHz] /N 90.0 98.0 106.0 87.5

Band Scan Step P5 P6 P7 P8 P9 P10 P11 P12 Other

AM [kHz]

9kHz(/N) 603 999 1404 531
MW / LW 603 999 1404 171 207 270 152 531

No

Preset

Microprocessor (CPU), DSP Version and FLD Segment Check Mode

Turn the unit into the Factory Mode (See above) first. Each time DISPLAY key on the remote control unit is pressed or
RC-5 code 161500 (Display) is entered, information shown on the FLD changes in the following order. Software versions of
µ-com and DSP can be seen and FLD segments can be checked.

1. Model Name is displayed like "SR-12S1:.

2. Software version of QU01(CPU) is displayed in the following format.

MAIN V030426 0N

Year Month Date No Ver.

Note:

Step4, 5 is to check if CPU software is capable of DSP code. "Software Type No" is to show what "DSP Code Group"

CPU is capable of. And vice versa.
Step 8 is to manage the 16 codes for DSP.
* When the unit is once turned into Factory Mode, the unit keeps this mode until the main power is turned off.

(Turning into stand-by mode does not make it quit from Factory Mode.) When the unit quits from Factory Mode,
Information in the memory is also cleared and the unit returns to the status when it is out from the factory.

Product Reset

To reset the back up memory of the unit into the default status, follow the procedure below.

1. Turn of the unit and press CD-R/MD and AUX1 keys simultaneously more than three seconds.

2. After "DEFAULT" is displayed on FLD, power is turned off once and turned of again, EEPROM is cleared to the default

status, µ-com is reset and the unit returns to the normal status. (Software Serial Number will not be cleared.)

Note: When the unit is shipped from the factory, the procedure above must be done to set the unit to initial status after the

tests.

3. Software Serial Number that is written in the factory is displayed.

SERI AL XXXXXX

4. Software Type Number is displayed

SOFT TYPE XX

(XX is displayed in Hex)

5. Group Type Number of the code that is written in the DSP’s external ROM is displayed.

CODE - G T YPE XX

6. 1G and 2G of the FLD is lighted each other. (Character part of Dot Matrix stays off.)

7. Dot Matrix part of the FLD lights in the checker pattern. (Other part stays off.)

8. Code ID of the code that is written in the DSP’s external ROM is displayed.

CD XX XXXXXXXX

ID ID ID

9. Returns to the step 1 and repeats the sequence.

10. Turn off power to quit Service Mode.

Code No. Device Code Sig Code Type Ve rs ion

6867

10. UPDATE FIRMWARE

Software for CPU and DSP can be updated.
Have *SR12S1CDR update disc.
There are two mode of download, regarding to the target of software as bellow.

Mode 1: Download DSP’s software to 4M Flash-ROM.
This mode is to update the software for DSP.
The target devise is 4M –Flash ROM (Q671) on P604.
SR-12S1 need to be set download condition, by three front keys.

Mode 2: Download CPU’s software to internal Flash-ROM.
This mode is to update the software for CPU.
The target devise is internal flash ROM of CPU (QU01) on P604.
The unit needs to be set to writing condition, by pushing internal switch from back-panel.

The following items are required for updating.
RS232C Dsub-9 pin cable (female to female/Straight type)
PC (Windows 98, NT, ME, 2000) with RS-232C port.
Upgrade software to CPU.
Upgrade software to DSP.

Use RS232C Dsub-9 pin cable (female to female/Straight type) to connect PC and the unit.
COM port on PC needs to be set by dialog box for each program. COM port can be set from COM1 to COM5.

Download Firmware for DSP (Mode 1)

1. Put the "DSP upgrade" folder into anywhere on your PC’s hard disc.

2. Connect PC and the unit with the RS-232C cable.

3. Turn on the unit.

4. Press TUNER, AUX1 and MULTI ROOM buttons simultaneously more than 5 seconds to turn the unit into Loading

Mode.

5. "LOADING MODE" will be shown on FLD.

6. Launch "UpgradeDSP.exe" on PC.

7. Set the Baud Rate to 38400 then click Start communication button. If the connection is made successfully, a dialog

box saying "Success to connect" appears and "CONNECTED" is displayed on FLD.

8. Click Send the DSP codes button on the dialog box. Progress status of downloading will be shown on PC and

"LOADING" is displayed on FLD.

9. If downloading is completed successfully, "COMPLETED" is displayed on FLD. And a dialog box saying "Finished the

DSP code transmitting" appears. Click OK and then click CLOSE to close the application.

10. Turn off the unit.

ATTENTION :

The program isn’t written in the ROM of QU01 and Q671.

• When QU01 or Q671 was replaced, Writing of software is necessary.

• Write it with the procedure of UPDATE FIRMWARE

69

Download Firmware for CPU (Mode 2)

1. Put the "CPU upgrade" folder into anywhere on your PC’s hard disc.

2. Connect PC and the unit with the RS-232C cable.

3. Remove the screw on the backside of the unit.(Fig.1)

(Fig.1) (Fig.2)

4. Insert a thin rot to the screw hole and push the switch (SU02) inside to turn on the switch.(Fig.2)

5. Turn on the power of the unit. (Confirm that the stand-by LED lights in green so the unit is in the boot mode.)

6. Launch "H8Download.exe" on PC.

7. Click other files… button in the dialog box to specify the file (XXXX.mot) to be upload.

8. Click Connect button. If the connection with the H8 µ-com is successfully made, a dialogue box saying "Success to

the H8

micro processor connection" appears. If the connection fails, error message will appear.

9. Click Send button to start update.

10. If the firmware is updated successfully, a dialog box saying "Finished the firmware program sending" appears.

11. Click CLOSE button to close the application.

12. Disconnect Mains power cord.

13. Turn off the internal switch that has been turned on at step 3. Put on the screw.

14. Turn on the unit.

Firmware Version Check

To check the versions of the firmware, see "Microprocessor (CPU), DSP Version and FLD Segment Check Mode" in
"SERVICE PROGRAM" section.

70

11. POWER AMPLIFIER ADJUSTMENT

Idling Current Alignment

1. Each of the cement resistors (R132, R182…R432) are provided with the three test points. Set a digital Voltage meter to DC

voltage input, connect the meter to the test points at both ends among the three test points on the cement resistors.

2. After the setup above, turn on the main switch and heat up the amplifier about 10 minutes.

3. Adjust variable resistors (R123, R173…R423) according to the digital voltmeter readings. The target setting value is 2.15 mV

±0.05 mV (10.8 mA) for each channels.

Settings: Master Volume --- Minimum

Speaker out --- No Load

Step Power Channel

Front L R123 R132

enter

C R173 R182

1

Power ON

after

After XX

2

minutes

Time Table of Idling Current Rise

After Turning ON

10 min. 2.15 mV 10.8 mA

Front R R223 R232

Surr. L R273 R282

Surr. R R373 R382

SB L R323 R332

SB R R423 R432

Measurement Voltage

Alignment

Point

(R***)

Measurement

Point

R***:0.1ohms

x 2

Idling Current

Alignment Value

--------------

See table for

alignment value

15 min. 2.13 mV 10.7 mA

20 min. 2.07 mV 10.4 mA

25 min. 2.03 mV 10.2 mA

30 min. 2.00 mV 10.0 mA

40 min. 2.00 mV 10.0 mA

* The Time-Current values in the chart above are from measurement with a unit whose idling current has already adjusted to

10.0mA.

AVSS Function Check

AVSS is the function that switches B voltage automatically depending on the volume of the input signal.

To check whether B voltage is switched or not, follow the procedure below.

71

1. Check if B voltage is switched to High.

If maximum power can be output, it is OK. IF wave form is clipped and maximum power is not output, it is NG.

2. Check if B voltage is switched to Low.

After adjustment of idling current, if power consumption is within 60W 10W under power on, no signal condition. If it is over

90W, it is NG. It is very possible that B voltage stays High.

Note: Once B voltage is switched to High, it is kept High for 1 minutes. So, power consumption can be over 90W with no signal

condition for 1 minute if B voltage has been switched to High.

B voltage is Low upon turning on the power (initial status) if there is no signal input.

Cooling Fan Check

There is three speeds for the cooling fan, stop, Low Speed and High Speed, depending on the temperature of the heat sink.

Heat sink temperature is monitored with RN62, RN86, thermo sensors for cooling fan. If heat sink temperature becomes higher,

resistance of the sensors also becomes higher. To check the cooling fan, connect test resisters to JN62, JN86 where the thermo

sensors are connected. There are two ways of checking. Remove either sensor and connect the testresister

Fan Speed Test Resister Value Temperature

Stop 1 0 – 220 (0 ) Under 60 ˚C

2 Low Speed 560 – 2.2 k (1.0 k ) 60 – 80 ˚C

3 High Speed 4.7k - (10 k ) Over 80 ˚C

Ω

Ω

Ω

Ω

Ω

Ω

Overheat Protection Check

If monitored temperature of the heat sink goes overheat, microcomputer shuts down the unit to stand-by mode. Heat sink

temperature is monitored with RN47, RN49, thermo sensors for overheat. To check the overheat protection function, connect

test resisters to JN47, JN49 where the thermo sensors are connected.

Function Test Resister Value Temperature

1 Normal 0 – 220 (0 ) Under 110 ˚ C

Heat Protection

2

(Stand-by)

4.7k - (10 k ) Over 110 ˚C

Ω

Ω

ΩΩ

If overheat is detected, 2nd pin of J501 is led to GND by a transistor. Normally, it is high impedance (open-collector).

72

12. SYSTEM ERROR

The CPU inside the unit monitors peripheral interfaces and if a trouble is detected the following information is displayed on the

FLD.

1. Trouble in DSP1

If communication with DSP1(Q610) is troubled more than 2 seconds, FLD shows below.

E R R O R D S P 1 R O M

* This display stays and sound is muted.

2. Trouble in DSP2

If communication with DSP2(Q640) is troubled more than 2 seconds, FLD shows below.

E R R O R D S P 2 R O M

* This display stays and sound is muted.

3. Trouble in ADC

If CAL signal from A/D converter(QK51, QK52) keeps high more than 2 seconds, FLD shows below.

E R R O R A DC

* In analog input mode, this display stays and sound is muted.

4. Trouble in EEPROM

If data from EEPROM(QU70) does not match, FLD shows below.

E R R O R E 2P

* After displaying it, Back-up Data is reset to default.

5. Trouble in EEPROM I/F

If communication with EEPROM(QU70) is troubled more than 2 seconds, FLD shows below.

E R R O R E 2 P I F

6. Trouble in 5V Supply

If 5V supply to P604(DSP/CPU PCB) is troubled, FLD shows below.

E R R O R P O W 5

73

7. Trouble in Power Amplifier (1)

If DC offset, over-current, over-heat, trouble in main transformer is detected, FLD shows below.

P R O T E C T

* If a trouble is detected upon power on, CPU turns off the speaker relay. And if the trouble is not recovered within 2

seconds, CPU turns the unit into stand-by. If DC offset or over-current is detected on power on status, the speaker

relay is turned off, and if over-heat, trouble in main transformer is detected, the unit turns into stand-by immediately.

8. Trouble in Power Amplifier (2)

If a trouble in

±B power supply or ±18V power supply is detected, the unit behaves like the followings.

1) If a trouble is detected upon power on and the trouble is not recovered within 2 seconds, the unit turns into stand-by.

2) If a trouble is detected in power on status, the unit turns into stand-by immediately.

74

13. TROUBLE SHOOTING

No Power

No Power

No Picture

Standby LED

Lights up on

standby mode?

yes

FLD Light ON ?

yes

FLD shows

PROTECT ?

yes yes

Power amp circuit P114,154

has some problem.

QU01(107p) lnput level is

too Low.

Power supply circuite

no

no

no no

has some problem.

To be check +5VL or

PDOWN signal.

Vkk or FL is not supplied

to PU04.

Supply ±B,

±18V

to P114,154 ?

(PB04)

Check POWER ON

or PL signal.

Main Transf(L001)

or P834

has some problem.

No picture

from Monitor output

no

VCR1&2 out

are OK ?

yes

Video Input select circuits

have problem.

OSD menu is

shown?

no

OSD IC (QL04,) or

driver QL03,04,QX05,07

have some trouble.

yes

OSD ICs control has no problem

Video output stage has no problem

Input to OSD IC(QL04) has some trrouble.

Video input detection has some trouble.

75

No Sound

No sound from SPK

Main in or

Pre out is OK ?

no

yes

7.1ch input
is OK ?

no

yes

Digital input

is OK ?

no no

yes yes

Power amp circuit P114,154,

Relay Driver circuit P124,P164

Audio SW-QS70 (PS54),

Volume, mute Tr (PG04)

Encode status

shows ?

yes

Test Tone is

OK ?

yes

DSP:Q610,640(P604)

has some problem ?

has some problem

has some problem.

DIG SEL:QA03,04,07(PD04),

DIR:QR50(P604),DSP:Q610,640

P654 Connection has problem

no

DSP:Q610,640,DAC:QD01-04

P654 Connection has problem

has some problem.

DIG.SEL, DIR is OK

(PD04) has some problem.

Analog input

is OK ?

yes yes

Confirm

SPK SETUP MENU

no no

TAPE or VCR

OUT is OK ?

Audio/Visual Function SW

is OK

ADC (QK51,52:PD04) has

some problem

Audio Function SW

(QS01,02- PS04)

Visual Function SW

(QQ01,02-PQ04)

has some problem

76

14. ELECTRICAL PARTS LIST

ASSIGNMENT OF COMMON PARTS CODES.

RESISTORS

R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W
R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W

Examples ;

Resistance value

➀

0.1 Ω.... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω.... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ.... 105

6.8 Ω.... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ.... 475

Note : Please distinguish 1/4W from 1/6W by the shape of parts

used actually.

CAPACITORS

C : CERAMIC CAP.

3) DD1 × × × × 370, Ceramic capacitor

Examples ;

Tolerance (Capacity deviation)

➁

±0.25 pF .... 0

Tolerance of COMMON PARTS handled here are as follows :

C : CERAMIC CAP.

Examples ;

C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( )

Examples ;

0.5 pF 5 pF .... ±0.25 pF

Capacity value

➂

0.5 pF ....005 3 pF .... 030 100 pF .... 101

1.5 pF ....015 47 pF .... 470 560 pF .... 561

4) DK16 × × × 300, High dielectric constant ceramic

Capacity value

➃

100 pF .... 101 1000 pF .... 102 10000 pF .... 103

470 pF .... 471 2200 pF .... 222

5) EA × × × × × × 10, Electrolytic capacitor

Capacity value

➄

0.1 µF.... 104 4.7 µF .... 475 100 µF ....107

0.33 µF.... 334 10 µF .... 106 330 µF ....337

Working voltage

➅

{

➂

{

{

➅

Resistance value

Disc type
Temp.coeff.P350 N1000, 50V

Capacity value
Tolerance

capacitor
Disc type
Temp.chara. 2B4, 50V

Capacity value

One-way lead type, Tolerance ±20%

Working voltage
Capacity value

2200 µF ....228

➀

{

➁

±0.5 pF .... 1

±5% .... 5

6 pF 10 pF .... ±0.5 pF

12 pF 560 pF .... ±5%

1 pF .... 010 10 pF .... 100 220 pF .... 221

➃

{

➄

1 µF....105 22 µF .... 226 1100 µF ....118

6.3V....006 25V ....025

10V .... 010 35V ....035

16V .... 016 50V ....050

NOTE ON SAFETY FOR FUSIBLE RESISTOR :

The suppliers and their type numbers of fusible resistors
are as follows;

1. KOA Corporation
Part No. (MJI) Type No. (KOA) Description
NH05 × × × 140 RF25S × × × × ΩJ(±5% 1/4W)
NH05 × × × 120 RF50S × × × × ΩJ(±5% 1/2W)
NH85 × × × 110 RF73B2A × × × × ΩJ(±5% 1/10W)
NH95 × × × 140 RF73B2E × × × × ΩJ(±5% 1/4W)

2. Matsushita Electronic Components Co., Ltd
Part No. (MJI) Type No. (MEC) Description
NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W)
RF05 × × × 140
NF02 × × × 140
RF02 × × × 140

Examples ;

{

Resistance value

ERD-2FCG

{

Resistance value

Resistance value

0.1 Ω.... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω.... 005 18 Ω .... 180 2.7 kΩ .... 272 680 kΩ .... 684

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ.... 105

6.8 Ω.... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ.... 475

{

Resistance value
(0.1 Ω − 10 kΩ)

× × × (±2% 1/4W)

{

Resistance value

ABBREVIATION AND MARKS

ANT. : ANTENNA BATT. : BATTERY
CAP. : CAPACITOR CER. : CERAMIC
CONN. : CONNECTING DIG. : DIGITAL
HP : HEADPHONE MIC. : MICROPHONE
µ-PRO : MICROPROCESSOR REC. : RECORDING
RES. : RESISTOR SPK : SPEAKER
SW : SWITCH TRANSF. : TRANSFORMER
TRIM. : TRIMMING TRS. : TRANSISTOR
VAR. : VARIABLE X’TAL : CRYSTAL

NOTE ON FUSE :

Regarding to all parts of parts code FS20xxx2xx, replace
only with Wickmann-Werke GmbH, Type 372 non glass type
fuse.

6) DF15 × × × 350 Plastic film capacitor
DF15 × × × 310 One-way type, Mylar ±5% 50V
DF16 × × × 310 Plastic film capacitor

Examples ;

Capacity value

➆

0.001 µF (1000 pF) ....... 102 0.1 µF....104

0.0018 µF ........................ 182 0.56 µF .... 564

0.01 µF........................ 103 1 µF ....105

0.015 µF ........................ 153

: 1) The above CODES ( R , R , C , C and

NOTE

C ) are omitted on the schematic diagram in some

case.

2) On the occasion, be confirmed the common parts on
the parts list.

3) Refer to “Common Parts List” for the other common
parts (RI05, DD4, DK4).

➆

{

One-way type, Mylar ±10% 50V

Capacity value

NOTE ON SAFETY :

Symbol Fire or electrical shock hazard. Only original
parts should be used to replaced any part marked with
symbol . Any other component substitution (other
than original type), may increase risk of fire or electrical
shock hazard.

010728MIT

77

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

P114-POWER AMP FL FR SBL

CUIT BOARD
P114-CAPACITORS

C101 nsp ELECT. 22µF M 25V ARS OA22602540

C102 OF15331540 FILM 330pF TP 100V PP APSV OF15331540

C103 nsp ELECT. 100µF M 50V RA-2 OA10705020

C104 OF15122540 FILM 1200pF TP 100V PP APSV OF15122540

C105 nsp ELECT. 10µF M 50V RA-2 OA10605020

C106 nsp ELECT. 220µF M 100V RA-2 OA22710020

C107 nsp ELECT. 220µF M 100V RA-2 OA22710020

C148 nsp ELECT. 100µF M 25V RA-2 OA10702520

C149 nsp ELECT. 100µF M 25V RA-2 OA10702520

C201 nsp ELECT. 22µF M 25V ARS OA22602540

C202 OF15331540 FILM 330pF TP 100V PP APSV OF15331540

C203 nsp ELECT. 100µF M 50V RA-2 OA10705020

C204 OF15122540 FILM 1200pF TP 100V PP APSV OF15122540

C205 nsp ELECT. 10µF M 50V RA-2 OA10605020

C206 nsp ELECT. 220µF M 100V RA-2 OA22710020

C207 nsp ELECT. 220µF M 100V RA-2 OA22710020

C301 nsp ELECT. 22µF M 25V ARS OA22602540

C302 OF15331540 FILM 330pF TP 100V PP APSV OF15331540

C303 nsp ELECT. 100µF M 50V RA-2 OA10705020

C304 OF15122540 FILM 1200pF TP 100V PP APSV OF15122540

C305 nsp ELECT. 10µF M 50V RA-2 OA10605020

C306 nsp ELECT. 220µF M 100V RA-2 OA22710020

C307 nsp ELECT. 220µF M 100V RA-2 OA22710020

C348 nsp ELECT. 100µF M 25V RA-2 OA10702520

C349 nsp ELECT. 100µF M 25V RA-2 OA10702520

C401 nsp ELECT. 22µF M 25V ARS OA22602540

C402 OF15331540 FILM 330pF TP 100V PP APSV OF15331540

C403 nsp ELECT. 100µF M 50V RA-2 OA10705020

C404 OF15122540 FILM 1200pF TP 100V PP APSV OF15122540

C406 nsp ELECT. 220µF M 100V RA-2 OA22710020

C407 nsp ELECT. 220µF M 100V RA-2 OA22710020

CN14 nsp ELECT. 10µF M 50V RA-2 OA10605020

CN18 nsp ELECT. 1µF M 50V RA-2 OA10505020

CN66 nsp ELECT. 1µF M 50V RA-2 OA10505020

P114-CAPACITORS(COMMON)

PLASTIC FILM CAPACITOR

±5% 50V : C108 C208 C308

P114-RESISTORS

R123 RA01020760 TRIM. 1kΩ VERTICAL RA01020760

R132 BW10000050 RES. COMPO.

BW10000050

0.1Ω K 5W X2 RGC-55

R223 RA01020760 TRIM. 1kΩ VERTICAL RA01020760

R232 BW10000050 RES. COMPO.

BW10000050

0.1Ω K 5W X2 RGC-55

R323 RA01020760 TRIM. 1kΩ VERTICAL RA01020760

R332 BW10000050 RES. COMPO.

BW10000050

0.1Ω K 5W X2 RGC-55

P114- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : R101 R102 R104

R105 R110 R111 R112 R115

R116 R119 R120 R121 R122

R133 R134 R135 R136 R137

R139 R201 R202 R204 R205

R210 R211 R212 R215 R216

R219 R220 R221 R222 R233

R234 R235 R236 R237 R239

R301 R302 R304 R305 R310

R311 R312 R315 R316 R319

R320 R321 R322 R333 R334

R335 R336 R337 R339 R401

R402 R404 R405 R410 R411

R412 R415 R416 R419 R420

R542 R543 R544 RN40 RN41

P114-SEMICONDUCTORS

D101

nsp DIODE HD20002000

D104 1SS176 MA165 1SS254 30V 0.1A

D105 HD30821000 ZENER DIODE 8.2V HD30821000

D106 HD30821000 ZENER DIODE 8.2V HD30821000

D107 nsp DIODE HSS81TD 150V 150MA HD20027010

D108 nsp DIODE HSS81TD 150V 150MA HD20027010

D109 HD30431000 ZENER DIODE 4.3V HD30431000

D201

D203 nsp DIODE HD20002000

D204 1SS176 MA165 1SS254 30V 0.1A

D205 HD30821000 ZENER DIODE 8.2V HD30821000

D206 HD30821000 ZENER DIODE 8.2V HD30821000

D207 nsp DIODE HSS81TD 150V 150MA HD20027010

D208 nsp DIODE HSS81TD 150V 150MA HD20027010

D209 HD30431000 ZENER DIODE 4.3V HD30431000

D301

D303 nsp DIODE HD20002000

D304 1SS176 MA165 1SS254 30V 0.1A

D305 HD30821000 ZENER DIODE 8.2V HD30821000

D306 HD30821000 ZENER DIODE 8.2V HD30821000

D307 nsp DIODE HSS81TD 150V 150MA HD20027010

D308 nsp DIODE HSS81TD 150V 150MA HD20027010

D309 HD30431000 ZENER DIODE 4.3V HD30431000

D401 nsp DIODE

HD20002000

1SS176 MA165 1SS254 30V 0.1A

D402 nsp DIODE

HD20002000

1SS176 MA165 1SS254 30V 0.1A

K102 HK121619F0 TRS. KIT 2SA1216/2SC2922 OPY

HK121619F0

LF203 PAIR FOR Q116 AND Q117

Q116 nsp TRS. C2922 OPY 17A 200W LF203

nsp

PAIR WITH Q117 AS K102.

Q117 nsp TRS. A1216 OPY 17A 200W LF203

nsp

PAIR WITH Q116 AS K102.

K103 HK185919C0 TRS. KIT 2SA1859/2SC4883 O/O

HK185919C0

OR Y/Y PAIR FOR Q112 AND Q113

Q112 nsp TRS. 2SC4883 O OR Y

nsp

PAIR WITH Q113 AS K103.

Q113 nsp TRS. 2SA1859 O OR Y

nsp

PAIR WITH Q112 AS K103.

K202 HK121619F0 TRS. KIT 2SA1216/2SC2922 OPY

HK121619F0

LF203 PAIR FOR Q216 AND Q217

Q216 nsp TRS. C2922 OPY 17A 200W LF203

nsp

PAIR WITH Q217 AS K202.

Q217 nsp TRS. A1216 OPY 17A 200W LF203

nsp

PAIR WITH Q216 AS K202.

K203 HK185919C0 TRS. KIT 2SA1859/2SC4883 O/O

HK185919C0

OR Y/Y PAIR FOR Q212 AND Q213

Q212 nsp TRS. 2SC4883 O OR Y

nsp

PAIR WITH Q213 AS K203.

Q213 nsp TRS. 2SA1859 O OR Y

nsp

PAIR WITH Q212 AS K203

K302 HK121619F0 TRS. KIT 2SA1216/2SC2922 OPY

HK121619F0

LF203 PAIR FOR Q316 AND Q317

Q316 nsp TRS. C2922 OPY 17A 200W LF203

nsp

PAIR WITH Q317 AS K302

Q317 nsp TRS. A1216 OPY 17A 200W LF203

nsp

PAIR WITH Q316 AS K302

K303 HK185919C0 TRS. KIT 2SA1859/2SC4883 O/O

HK185919C0

OR Y/Y PAIR FOR Q312 AND Q313

Q312 nsp TRS. 2SC4883 O OR Y

nsp

PAIR WITH Q313 AS K303

Q313 nsp TRS. 2SA1859 O OR Y

nsp

PAIR WITH Q312 AS K303

Q101 HC10053090 IC NJM-2068-DD HC10053090

Q103 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q104 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q105 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

78

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

Q106 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q107 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q108 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q109 HT600131B0 TRS. KTA1024 PNP (Y) HT600131B0

Q110 HT800941B0 TRS. KTC3206 NPN (Y) HT800941B0

Q114 HT900291B0 TRS. KTD600K NPN (Y) HT900291B0

Q115 HT700241B0 TRS. KTB631K PNP (Y) HT700241B0

Q118 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q203 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q204 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q205 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q206 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q207 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q208 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q209 HT600131B0 TRS. KTA1024 PNP (Y) HT600131B0

Q210 HT800941B0 TRS. KTC3206 NPN (Y) HT800941B0

Q214 HT900291B0 TRS. KTD600K NPN (Y) HT900291B0

Q215 HT700241B0 TRS. KTB631K PNP (Y) HT700241B0

Q218 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q301 HC10053090 IC NJM-2068-DD HC10053090

Q303 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q304 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q305 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q306 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q307 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q308 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q309 HT600131B0 TRS. KTA1024 PNP (Y) HT600131B0

Q310 HT800941B0 TRS. KTC3206 NPN (Y) HT800941B0

Q314 HT900291B0 TRS. KTD600K NPN (Y) HT900291B0

Q315 HT700241B0 TRS. KTB631K PNP (Y) HT700241B0

Q318 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q403 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q404 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q405 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q406 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q407 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q408 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q409 HT600131B0 TRS. KTA1024 PNP (Y) HT600131B0

Q410 HT800941B0 TRS. KTC3206 NPN (Y) HT800941B0

QN08 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

P124-SPKOUTS FRONT

SURRBACK HEAD CUIT BOARD
P124-CAPACITORS(COMMON)

PLASTIC FILM CAPACITOR

±5% 50V : C109 C110 C209

C210 C309 C310 C409 C410

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

C119 C219 C319 C419

P124- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : RN27-RN32

P124-SEMICONDUCTORS

DN05 nsp DIODE 1D3 1A/200V HD20002710

DN07 nsp DIODE 1D3 1A/200V HD20002710

DP91 nsp DIODE 1D3 1A/200V HD20002710

QN04 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

QN05 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

QN06 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

P124-MISCELLANEOUS

J149 YT01040890 TERMINAL SPKROUT FL FR YT01040890

J349 YT01040890 TERMINAL SPKROUT SBL SBR YT01040890

LN01 LY20240310 RELAY VB 24MBU-510 5A/240VAC LY20240310

LN03 LY20240310 RELAY VB 24MBU-510 5A/240VAC LY20240310

LP91 LY20240490 RELAY HP OUT RELAY LY20240490

P134-Q111

CUIT BOARD

Q111 HT334191Y0 TRS. 2SC3419 Y 40V 0.8A

HT334191Y0

PC=1.2W (5W)

P154-POWER AMP C SL SR

AVSS SENS CUIT BOARD
P154-CAPACITORS

C151 nsp ELECT. 22µF M 25V ARS OA22602540

C152 OF15331540 FILM 330pF TP 100V PP APSV OF15331540

C153 nsp ELECT. 100µF M 50V RA-2 OA10705020

C154 OF15122540 FILM 1200pF TP 100V PP APSV OF15122540

C155 nsp ELECT. 10µF M 50V RA-2 OA10605020

C156 nsp ELECT. 220µF M 100V RA-2 OA22710020

C157 nsp ELECT. 220µF M 100V RA-2 OA22710020

C198 nsp ELECT. 100µF M 25V RA-2 OA10702520

C199 nsp ELECT. 100µF M 25V RA-2 OA10702520

C251 nsp ELECT. 22µF M 25V ARS OA22602540

C252 OF15331540 FILM 330pF TP 100V PP APSV OF15331540

C253 nsp ELECT. 100µF M 50V RA-2 OA10705020

C254 OF15122540 FILM 1200pF TP 100V PP APSV OF15122540

C255 nsp ELECT. 10µF M 50V RA-2 OA10605020

C256 nsp ELECT. 220µF M 100V RA-2 OA22710020

C257 nsp ELECT. 220µF M 100V RA-2 OA22710020

C351 nsp ELECT. 22µF M 25V ARS OA22602540

C352 OF15331540 FILM 330pF TP 100V PP APSV OF15331540

C353 nsp ELECT. 100µF M 50V RA-2 OA10705020

C354 OF15122540 FILM 1200pF TP 100V PP APSV OF15122540

C355 nsp ELECT. 10µF M 50V RA-2 OA10605020

C356 nsp ELECT. 220µF M 100V RA-2 OA22710020

C357 nsp ELECT. 220µF M 100V RA-2 OA22710020

C389 nsp ELECT. 100µF M 25V RA-2 OA10702520

C399 nsp ELECT. 100µF M 25V RA-2 OA10702520

C508 nsp ELECT. 1µF M 50V RA-2 OA10505020

C509 nsp ELECT. 100µF M 25V RA-2 OA10702520

C510 nsp ELECT. 100µF M 25V RA-2 OA10702520

CN01 nsp ELECT. 100µF M 50V RA-2 OA10705020

CN02 nsp CER. 0.01µF Z 50V DK18103310

CN03 nsp ELECT. 0.47µF M 50V RA-2 OA47405020

CN04 nsp ELECT. 0.47µF M 50V RA-2 OA47405020

CN05 nsp ELECT. 1µF M 50V RA-2 OA10505020

CN06 nsp CER. 0.01µF Z 50V DK18103310

CN15 nsp ELECT. 10µF M 50V RA-2 OA10605020

CN17 nsp CER. 0.01µF Z 50V DK18103310

CN61 nsp ELECT. 100µF M 25V RA-2 OA10702520

CN62 nsp CER. 0.01µF Z 50V DK18103310

CN63 nsp ELECT. 1µF M 50V RA-2 OA10505020

CN64 nsp ELECT. 1µF M 50V RA-2 OA10505020

CN65 nsp ELECT. 1µF M 50V RA-2 OA10505020

P154-CAPACITORS(COMMON)

PLASTIC FILM CAPACITOR

±5% 50V : C158 C258 C358

P154-RESISTORS

R173 RA01020760 TRIM. 1K VERTICAL RA01020760

R182 BW10000050 RES. COMPO.

BW10000050

0.1Ω K 5W X2 RGC-55

R273 RA01020760 TRIM. 1K VERTICAL RA01020760

R282 BW10000050 RES. COMPO.

BW10000050

0.1Ω 5W X2 RGC-55

R373 RA01020760 TRIM. 1kΩ VERTICAL RA01020760

R382 BW10000050 RES. COMPO.

BW10000050

0.1Ω K 5W X2 RGC-55

P154- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : R151 R152 R154

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

79

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

R155 R160-R162 R165 R166

R169-R172 R183-R187 R189

R251 R252 R254 R255 R260

R261 R262 R265 R266 R269

R270 R271 R272 R283-R287

R289 R351 R352 R354 R355

R360 R361 R362 R365 R366

R369-R372 R383-R387 R389

R501-R509 R517 R530-R535

R540 R541 R545 R549

RN01-RN16 RN18-RN23 RN42

RN43 RN61 RN63-RN71 RN76

RN77 RN80 RN84 RN85

P154-SEMICONDUCTORS

D151

nsp DIODE HD20002000

D154 1SS176 MA165 1SS254 30V 0.1A

D155 HD30821000 ZENER DIODE 8.2V HD30821000

D156 HD30821000 ZENER DIODE 8.2V HD30821000

D157 nsp DIODE HSS81TD 150V 150MA HD20027010

D158 nsp DIODE HSS81TD 150V 150MA HD20027010

D159 HD30431000 ZENER DIODE 4.3V HD30431000

D251

nsp DIODE HD20002000

D254 1SS176 MA165 1SS254 30V 0.1A

D255 HD30821000 ZENER DIODE 8.2V HD30821000

D256 HD30821000 ZENER DIODE 8.2V HD30821000

D257 nsp DIODE HSS81TD 150V 150MA HD20027010

D258 nsp DIODE HSS81TD 150V 150MA HD20027010

D259 HD30431000 ZENER DIODE 4.3V HD30431000

D351

nsp DIODE HD20002000

D354 1SS176 MA165 1SS254 30V 0.1A

D355 HD30821000 ZENER DIODE 8.2V HD30821000

D356 HD30821000 ZENER DIODE 8.2V HD30821000

D357 nsp DIODE HSS81TD 150V 150MA HD20027010

D358 nsp DIODE HSS81TD 150V 150MA HD20027010

D359 HD30431000 ZENER DIODE 4.3V HD30431000

D511

nsp DIODE HD20002000

D517 1SS176 MA165 1SS254 30V 0.1A

DN61 HD30821000 ZENER DIODE 8.2V HD30821000

DN62 HD30471000 ZENER DIODE 4.7V HD30471000

K152 HK121619F0 TRS. KIT 2SA1216/2SC2922 OPY

HK121619F0

LF203 PAIR FOR Q166 AND Q167

Q166 nsp TRS. 2SC2922 OPY 17A 200W

nsp

LF203 PAIR WITH Q167 AS K152

Q167 nsp TRS. 2SA1216 OPY 17A 200W

nsp

LF203 PAIR WITH Q166 AS K152

K153 HK185919C0 TRS. KIT 2SA1859/2SC4883 O/O

HK185919C0

OR Y/Y PAIR FOR Q162 AND Q163

Q162 nsp TRS. 2SC4883 O OR Y

nsp

PAIR WITH Q163 AS K153

Q163 nsp TRS. 2SA1859 O OR Y

nsp

PAIR WITH Q162 AS K153

K252 HK121619F0 TRS. KIT 2SA1216/2SC2922 OPY

HK121619F0

LF203 PAIR FOR Q266 AND Q267

Q266 nsp TRS. 2SC2922 OPY 17A 200W

nsp

LF203 PAIR WITH Q267 AS K252

Q267 nsp TRS. 2SA1216 OPY 17A 200W

nsp

LF203 PAIR WITH Q266 AS K252

K253 HK185919C0 TRS. KIT 2SA1859/2SC4883 O/O

HK185919C0

OR Y/Y PAIR FOR Q262 AND Q263

Q262 nsp TRS. 2SC4883 O OR Y

nsp

PAIR WITH Q263 AS K253

Q263 nsp TRS. 2SA1859 O OR Y

nsp

PAIR WITH Q262 AS K253

K352 HK121619F0 TRS. KIT 2SA1216/2SC2922 OPY

HK121619F0

LF203 PAIR FOR Q366 AND Q367

Q366 nsp TRS. 2SC2922 OPY 17A 200W

nsp

LF203 PAIR WITH Q367 AS K352

Q367 nsp TRS. 2SA1216 OPY 17A 200W

nsp

LF203 PAIR WITH Q366 AS K352

K353 HK185919C0 TRS. KIT 2SA1859/2SC4883 O/O

HK185919C0

OR Y/Y PAIR FOR Q362 AND Q363

Q362 nsp TRS. 2SC4883 O OR Y

nsp

PAIR WITH Q363 AS K353

Q363 nsp TRS. 2SA1859 O OR Y

nsp

PAIR WITH Q362 AS K353

Q151 HC10053090 IC NJM-2068-DD HC10053090

Q153 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q154 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q155 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q156 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q157 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q158 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q159 HT600131B0 TRS. KTA1024 PNP (Y) HT600131B0

Q160 HT800941B0 TRS. KTC3206 NPN (Y) HT800941B0

Q164 HT900291B0 TRS. KTD600K NPN (Y) HT900291B0

Q165 HT700241B0 TRS. KTB631K PNP (Y) HT700241B0

Q168 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q253 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q254 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q255 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q256 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q257 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q258 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q259 HT600131B0 TRS. KTA1024 PNP (Y) HT600131B0

Q260 HT800941B0 TRS. KTC3206 NPN (Y) HT800941B0

Q264 HT900291B0 TRS. KTD600K NPN (Y) HT900291B0

Q265 HT700241B0 TRS. KTB631K PNP (Y) HT700241B0

Q268 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q351 HC10053090 IC NJM-2068-DD HC10053090

Q353 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q354 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q355 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q356 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q357 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

Q358 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q359 HT600131B0 TRS. KTA1024 PNP (Y) HT600131B0

Q360 HT800941B0 TRS. KTC3206 NPN (Y) HT800941B0

Q364 HT900291B0 TRS. KTD600K NPN (Y) HT900291B0

Q365 HT700241B0 TRS. KTB631K PNP (Y) HT700241B0

Q368 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

Q501 HC10009090 IC NJM2901 QUAD COMPARATOR HC10009090

Q502 HC10009090 IC NJM2901 QUAD COMPARATOR HC10009090

QN01 HC10042050 IC TA7317P HC10042050

QN02 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

QN03 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

QN09 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

QN11 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QN61 HC10009090 IC NJM2901 QUAD COMPARATOR HC10009090

QN62 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QN63 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QN64 HT334191Y0 TRS. 2SC3419 Y 40V 0.8A

HT334191Y0

PC=1.2W (5W)

P164-SPKOUTS SURR CENTER

MULTI CUIT BOARD
P164-CAPACITORS(COMMON)

PLASTIC FILM CAPACITOR

±5% 50V : C159 C160 C259

C260 C359 C360

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

80

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

C140 C169 C240 C269 C369

P164- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : RN33 RN34

P164-SEMICONDUCTORS

DN06 nsp DIODE 1D3 1A/200V HD20002710

DN08 nsp DIODE 1D3 1A/200V HD20002710

DN09 nsp DIODE 1D3 1A/200V HD20002710

QN07 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

J199 YT01060040 TERMINAL SPKROUT

P164-MISCELLANEOUS

YT01060040

CENTER SL SR

J299 YT01040890 TERMINAL SPKROUT ML MR YT01040890

LN02 LY20240310 RELAY VB 24MBU-510 5A/240VAC LY20240310

LN04 LY20240310 RELAY VB 24MBU-510 5A/240VAC LY20240310

LN05 LY20240310 RELAY VB 24MBU-510 5A/240VAC LY20240310

P174-Q161

CUIT BOARD

Q161 HT334191Y0 TRS. C3419 Y 40V 0.8A PC=1.2W

HT334191Y0

(5W)

P214-Q211

CUIT BOARD

Q211 HT334191Y0 TRS. C3419 Y 40V 0.8A PC=1.2W

HT334191Y0

(5W)

P254-Q261

CUIT BOARD

Q261 HT334191Y0 TRS. C3419 Y 40V 0.8A PC=1.2W

HT334191Y0

(5W)

P314-Q311

CUIT BOARD

Q311 HT334191Y0 TRS. C3419 Y 40V 0.8A PC=1.2W

HT334191Y0

(5W)

P354-Q361

CUIT BOARD

Q361 HT334191Y0 TRS. C3419 Y 40V 0.8A PC=1.2W

HT334191Y0

(5W)

P414-SBR POWER AMP

CUIT BOARD
P414-CAPACITORS

C405 nsp ELECT. 10µF M 50V RA-2 OA10605020

C414 EA47610010 ELECT CAP. 47µF 100V EA47610010

C415 EA47610010 ELECT CAP. 47µF 100V EA47610010

CN16 nsp ELECT. 10µF M 50V RA-2 OA10605020

P414-CAPACITORS(COMMON)

PLASTIC FILM CAPACITOR

±5% 50V : C408

P414-RESISTORS

R423 RA04710780 TRIM. 470Ω RH0638CS2R RA04710780

R432 BW10000050 RES. COMPO.

BW10000050

0.1Ω K 5W X2 RGC-55

P414- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : R421 R422

R433-R437 R439 R548 RN44 RN45

D403 nsp DIODE

P414-SEMICONDUCTORS

HD20002000

1SS176 MA165 1SS254 30V 0.1A

D404 nsp DIODE

HD20002000

1SS176 MA165 1SS254 30V 0.1A

D405 HD30821000 ZENER DIODE 8.2V HD30821000

D406 HD30821000 ZENER DIODE 8.2V HD30821000

D407 nsp DIODE HSS81TD 150V 150MA HD20027010

D408 nsp DIODE HSS81TD 150V 150MA HD20027010

D409 HD30431000 ZENER DIODE 4.3V HD30431000

K402 HK121619F0 TRS. KIT 2SA1216/2SC2922(O Y)

HK121619F0

PAIR FOR Q416 AND Q417

Q416 nsp TRS. 2SC2922 O Y

nsp

PAIR WITH Q417 AS K402

Q417 nsp TRS. 2SA1216 O Y

nsp

PAIR WITH Q416 AS K402

K403 HK185919C0 TRS. KIT 2SA1859/2SC4883 O/O

HK185919C0

OR Y/Y PAIR FOR Q412 AND Q413

Q412 nsp TRS. 2SC4883 O OR Y

nsp

PAIR WITH Q413 AS K403

Q413 nsp TRS. 2SA1859 O OR Y

nsp

PAIR WITH Q412 AS K403

Q411 HT334191Y0 TRS. 2SC3419 Y 40V 0.8A

HT334191Y0

PC=1.2W (5W)

Q414 HT900291B0 TRS. KTD600K NPN (Y) HT900291B0

Q415 HT700241B0 TRS. KTB631K PNP (Y) HT700241B0

Q418 HT800931A0 TRS. KTC3200 NPN (GR) HT800931A0

QN10 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

P604-DSP AND µ-COM

CUIT BOARD
P604-CAPACITORS

C610 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C611 nsp ELECT. 47µF M 16V RA-2 OA47601620

C612 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C613 nsp ELECT. 47µF M 16V RA-2 OA47601620

C614 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C615 nsp ELECT. 47µF M 16V RA-2 OA47601620

C616 nsp CER. CHIP 470pF (GR39) DK96471300

C617 nsp CER. CHIP 0.01µF DK98103300

C618 nsp ELECT. 2.2µF M 50V RA-2 OA22505020

C619 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C620 nsp ELECT. 47µF M 16V RA-2 OA47601620

C621 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C622 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C640 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C641 nsp ELECT. 47µF M 16V RA-2 OA47601620

C642 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C643 nsp ELECT. 47µF M 16V RA-2 OA47601620

C644 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C645 nsp ELECT. 47µF M 16V RA-2 OA47601620

C646 nsp CER. CHIP 470pF (GR39) DK96471300

C647 nsp CER. CHIP 0.01µF DK98103300

C648 nsp ELECT. 2.2µF M 50V RA-2 OA22505020

C649 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C650 nsp ELECT. 47µF M 16V RA-2 OA47601620

C651 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C652 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C670 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C671 nsp ELECT. 47µF M 16V RA-2 OA47601620

C672 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C673 nsp ELECT. 47µF M 16V RA-2 OA47601620

C674 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C675 nsp ELECT. 47µF M 16V RA-2 OA47601620

C676

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C685

C691 nsp ELECT. 47µF M 16V RA-2 OA47601620

C692 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

81

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

C693 nsp ELECT. 47µF M 16V RA-2 OA47601620

CR30 nsp CER. CHIP 68pF (GR39) DD95680300

CR31 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR32 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR33 nsp CER. CHIP 470pF (GR39) DK96471300

CR34 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR35 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR36 nsp ELECT. 47µF M 16V RA-2 OA47601620

CR44 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR50 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR51 nsp CER. CHIP 0.01µF DK98103300

CR52 nsp CER. CHIP 0.01µF DK98103300

CR53 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR54 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR55 nsp ELECT. 47µF M 16V RA-2 OA47601620

CR56 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR57 nsp ELECT. 47µF M 16V RA-2 OA47601620

CR58 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CR59 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CR60 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR61 nsp ELECT. 47µF M 16V RA-2 OA47601620

CR62 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR63 nsp ELECT. 47µF M 16V RA-2 OA47601620

CR64 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CR70 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU01 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU02 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU03 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU04 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU05 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU06 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU07 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU08 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU09 nsp CER. CHIP 470pF (GR39) DK96471300

CU12 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU13 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU14 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU15 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU16 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU17 nsp ELECT. 10µF M 16V RA-2 OA10601620

CU18 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU19 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU20 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU21 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU25 nsp CER. CHIP 1000pF ±10% B 50V DK96102300

CU26 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU27 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU31 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU32 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU33 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU34 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU35 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU36 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU37 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU38 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU39 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU40 nsp ELECT. 47µF M 25V RA-2 OA47602520

CU41 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU42 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU43 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU44 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU45 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU46 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU47 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU50 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU51 nsp ELECT. 47µF M 16V RA-2 OA47601620

CU52

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU55

CU60 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU61 nsp CHIP RES. 0Ω ±5% 1/16W NN05000610

CU62 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU63 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200
CU64 nsp CHIP RES. 0Ω ±5% 1/16W NN05000610

CU70 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU71 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU80 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CU81 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

P604-RESISTORS

R601 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
R602 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
R603 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
R605 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
R606 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
R607 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
R610 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R611 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610

R614

nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610

R623
R624 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R626 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
R629 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R630 nsp CHIP RES. 33kΩ ±5% 1/16W NN05333610
R631 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R632 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
R633 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
R636 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R637 nsp CHIP RES. 10Ω ±5% 1/16W NN05100610
R638 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R640 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R641 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610

R644

nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610

R653
R654 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R656 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
R657 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R658 nsp CHIP RES. 33kΩ ±5% 1/16W NN05333610
R659 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R660 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
R661 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
R662 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R663 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R664 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R665 nsp CHIP RES. 47Ω ±5% 1/16W NN05470610
R666 nsp CHIP RES. 47Ω ±5% 1/16W NN05470610

R671

nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610

R679
R681 nsp CHIP RES. 33Ω ±5% 1/16W NN05330610
R682 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R683 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R684 nsp CHIP RES. 10Ω ±5% 1/16W NN05100610
R685 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R686 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R687 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
R688 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
R689 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
R691 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R692 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R693 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
R694 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RR30 nsp CHIP RES. 75Ω ±5% 1/16W NN05750610
RR31 nsp CHIP RES. 27Ω ±5% 1/16W NN05270610
RR32 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RR33 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RR50 nsp CHIP RES. 8.2kΩ ±5% 1/16W NN05822610
RR51 nsp CHIP RES. 5.1kΩ ±5% 1/16W NN05512610

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

82

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

RR52 nsp CHIP RES. 5.1kΩ ±5% 1/16W NN05512610
RR53 nsp CHIP RES. 75Ω ±5% 1/16W NN05750610
RR54 nsp CHIP RES. 33Ω ±5% 1/16W NN05330610
RR55 nsp CHIP RES. 22Ω ±5% 1/16W NN05220610
RR56 nsp CHIP RES. 22Ω ±5% 1/16W NN05220610
RR57 nsp CHIP RES. 22Ω ±5% 1/16W NN05220610
RR58 nsp CHIP RES. 33Ω ±5% 1/16W NN05330610
RR59 nsp CHIP RES. 1MΩ ±5% 1/16W NN05105610
RR60 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
RR61 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RR63 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RR65 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RR66 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RR72 nsp CHIP RES. 22Ω ±5% 1/16W NN05220610
RR73 nsp CHIP RES. 33Ω ±5% 1/16W NN05330610
RR74 nsp CHIP RES. 22Ω ±5% 1/16W NN05220610
RR75 nsp CHIP RES. 10Ω ±5% 1/16W NN05100610
RR76 nsp CHIP RES. 22Ω ±5% 1/16W NN05220610
RR77 nsp CHIP RES. 33Ω ±5% 1/16W NN05330610
RU01 nsp CHIP RES. 12kΩ ±5% 1/16W NN05123610
RU02 nsp CHIP RES. 12kΩ ±5% 1/16W NN05123610
RU03 nsp CHIP RES. 12kΩ ±5% 1/16W NN05123610
RU04 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
RU05 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
RU06 nsp CHIP RES. 100Ω ±5% 1/16W NN05101610
RU07 nsp CHIP RES. 3kΩ ±5% 1/16W NN05302610
RU08 nsp CHIP RES. 0Ω ±5% 1/16W NN05000610
RU09 /N nsp CHIP RES. 1.2kΩ ±5% 1/16W NN05122610
RU10 /N nsp CHIP RES. 1kΩ ±5% 1/16W NN05102610
RU11 /N nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU12 /N nsp CHIP RES. 1.2kΩ ±5% 1/16W NN05122610
RU13 nsp CHIP RES. 12kΩ ±5% 1/16W NN05123610
RU14 nsp CHIP RES. 12kΩ ±5% 1/16W NN05123610
RU15 nsp CHIP RES. 47kΩ

±5% 1/16W NN05473610

RU17 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU20 nsp CHIP RES. 12kΩ ±5% 1/16W NN05123610
RU21 nsp CHIP RES. 12kΩ ±5% 1/16W NN05123610
RU22 nsp CHIP RES. 1kΩ ±5% 1/16W NN05102610
RU24 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RU25 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU26 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU27 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU28 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU29 nsp CHIP RES. 1MΩ ±5% 1/16W NN05105610
RU31 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU32 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU37 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU38 nsp CHIP RES. 100Ω ±5% 1/16W NN05101610
RU39 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU41 nsp CHIP RES. 1.2kΩ ±5% 1/16W NN05122610

RU42 nsp CHIP RES. 390

Ω ±5% 1/16W NN05391610
RU43 nsp CHIP RES. 1.2kΩ ±5% 1/16W NN05122610
RU44 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
RU50 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU51 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU56 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU57 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU58 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RU60 nsp CHIP RES. 47Ω ±5% 1/16W NN05470610
RU61 nsp CHIP RES. 220Ω ±5% 1/16W NN05221610
RU62 nsp CHIP RES. 47Ω ±5% 1/16W NN05470610
RU63 nsp CHIP RES. 18kΩ ±5% 1/16W NN05183610
RU64 nsp CHIP RES. 220Ω ±5% 1/16W NN05221610
RU65 nsp CHIP RES. 47kΩ ±5% 1/16W NN05473610
RU66 nsp CHIP RES. 47kΩ ±5% 1/16W NN05473610
RU67 nsp CHIP RES. 220Ω ±5% 1/16W NN05221610
RU70 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610

RU71 nsp CHIP RES. 22k

Ω ±5% 1/16W NN05223610

RU72 nsp CHIP RES. 0Ω ±5% 1/16W NN05000610

RU74

nsp CHIP RES. 0Ω ±5% 1/16W NN05000610

RU78
RU81 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RU82 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU83 nsp CHIP RES. 6.8kΩ ±5% 1/16W NN05682610
RU85 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU88 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RU89 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU90 nsp CHIP RES. 6.8kΩ ±5% 1/16W NN05682610
RU92 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RU95 nsp CHIP RES. 220Ω ±5% 1/16W NN05221610

P604-SEMICONDUCTORS

DU01 HZ20028050 CHIP DIODE 1SS301 HZ20028050

DU80 HZ20028050 CHIP DIODE 1SS301 HZ20028050

DU81 HZ20028050 CHIP DIODE 1SS301 HZ20028050

Q600 HY22010050 CHIP FET HN1K05FU 2SK2824 X 2 HY22010050

Q601 HY22010050 CHIP FET HN1K05FU 2SK2824 X 2 HY22010050

Q610 HC10009880 IC CS493292

HC10009880

AUDIO DSP CRYSTAL

Q611 HC009805K0 IC TC74VHCT245AFT HC009805K0

Q640 HC10009880 IC CS493292

HC10009880

AUDIO DSP CRYSTAL

Q641 HC009805K0 IC TC74VHCT245AFT HC009805K0

Q671 HC60021000 IC MBM29LV400TC-90P Flash ROM

HC60021000

Note : Rom is written in after the

replacement. Refer to 67 pege

Q673 HC009705K0 IC TC74VHCT244AFT HC009705K0

Q674 HC009605K0 IC TC74VHC574FT HC009605K0

Q675 HC009605K0 IC TC74VHC574FT HC009605K0

Q676 HC009805K0 IC TC74VHCT245AFT HC009805K0

Q680 HC008805K0 IC TC74VHCT541AFT HC008805K0

Q681 HC008205K0 IC TC74VHC08FT HC008205K0

Q682 HC009505K0 IC TC74VHC32FT HC009505K0

Q683 HC005105K0 IC TC74VHC00FS HC005105K0

Q684 HC009505K0 IC TC74VHC32FT HC009505K0

Q685 HC009405K0 IC TC74VHC125FT HC009405K0

QR44 HC008205K0 IC TC74VHC08FT HC008205K0

QR50 HC10405030 IC LC89055 (SPDIF RECORDER) HC10405030

QR70 HC008805K0 IC TC74VHCT541AFT HC008805K0

QU01 HC60022010 IC H8S/2633 FP-128

HC60022010

Note : µ-P is written in after the

replacement. Refer to 67 pege

QU02 HC10098550 IC PST600D-2 RESET IC HC10098550

QU03 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU05 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

QU20 HC005105K0 IC TC74VHC00FS HC005105K0

QU21 HC009405K0 IC TC74VHC125FT HC009405K0

QU41 HC3693032F IC REG. PQ30RV11 HC3693032F

QU42 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

QU43 HT600141B0 TRS. KTA1271 PNP (Y) HT600141B0

QU50 HC10204990 IC HIN202ECB

HC10204990

16LEAD WIDE BODY

QU60 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

QU61 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU62 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

QU63 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU65 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU66 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

QU67 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU68 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU69 HW10006320 PHOTO UNIT PC-817 PHOTO

HW10006320

CUPLER 1PAIR

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

83

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

QU70 HC10191990 IC AT24C08 8PIN ATMEL SOIC HC10191990

QU71 HC10068490 IC PCF8574I(I/O EXPANDER) HC10068490

QU80 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

QU81 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

QU82 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU83 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

QU84 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

QU85 BA10013050 DIG. TRS. RN2303 PNP(22K+22K) BA10013050

QU86 BA21303000 DIG. TRS.

BA21303000

DTC124EU RN1303 UMT

JR30 YT02010790 TERMINAL

P604-MISCELLANEOUS

YT02010790

14X14 RA 1L1P BLK AU FLM-GND

JR31 YJ15000210 OPT. OUTPUT CONNE. JFJ300 YJ15000210

JU50 YJ90001220 JACK DELC-J9PAF-20L9 YJ90001220

JU61 YT02020890 TERMINAL 2P CINCH PIN JACK YT02020890

JU62 YT02021740 TERMINAL

YT02021740

CINCH PIN JACK GRN-GRN

JU80 YJ01004750 JACK 3.5MM MINI JACK

YJ01004750

LGA6502-0150

JU82 YJ01004670 JACK LGY6501-0600 3.5 MINI YJ01004670

L691 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LR30 TP41042030 PULSE TRNSF.

TP41042030

(TPS247MN-0386AN)

LU01

FC90020120 FERRIT BEADS BK1608HM102-T FC90020120

LU54

LU71

FC90020120 FERRIT BEADS BK1608HM102-T FC90020120

LU80

LU81

FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LU86

LU87 FC90020120 FERRIT BEADS BK1608HM102-T FC90020120

SU02 SP02022320 PUSH SWITCH

SP02022320

SPUJ191000 WITH KNOB

XR50 JX12013260 CRYSTAL 12.288MHz (AT-49) JX12013260

XU01 FQ05004050 CERAMIC VIB. CSTLS 5.0MHz FQ05004050

P654 nsp P.W.BOARD CONNECTION PCB WI344J1020

J603 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

J605 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

P814-PRIMARY

CUIT BOARD
P814-CAPACITORS

C802 nsp CER. DE1607-1F 103M-KH DK17103910

C803 nsp CER. DE1607-1F 103M-KH DK17103910

C805 nsp ELECT. 100µF M 10V RA-2 OA10701020

C811 nsp ELECT. 470µF 25V M RA-2 OA47702520

C812 nsp ELECT. 47µF M 25V RA-2 OA47602520

C813 nsp ELECT. 4700µF 16V OA47801620

C817 nsp ELECT. 100µF M 16V RA-2 OA10701620

R801 NQ15022070 ROTOR RES. 2.2Ω 7W

P814-RESISTORS

NQ15022070

W/TEMP. FUSE

R802 NQ15022070 ROTOR RES. 2.2Ω 7W

NQ15022070

W/TEMP. FUSE

R807 nsp RES. 1Ω ±5% 1/4W GG05010140
R808 nsp RES. 470Ω ±5% 1/4W GG05471140
R811 nsp RES. 470Ω ±5% 1/6W GG05471160

P814- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : R803-R806 R812 R813

P814-SEMICONDUCTORS

D801 nsp DIODE 1D3 1A/200V HD20002710

D802 nsp DIODE 1D3 1A/200V HD20002710

D803 nsp DIODE

HD20002000

1SS176 MA165 1SS254 30V 0.1A

D804 nsp DIODE

HD20002000

1SS176 MA165 1SS254 30V 0.1A

D811

nsp DIODE 1D3 1A/200V HD20002710

D816

D817 HD30511000 ZENER DIODE 5.1V HD30511000

Q801 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q802 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q803 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

Q811 HC3850509F IC REG. NJM78M05FA HC3850509F

Q812 HC10098550 IC PST600D-2 RESET IC HC10098550

P814-MISCELLANEOUS

F801 /N FS10630850 FUSE 6.3 A 250V BS LISTED FS10630850

J802 /N YP04000760 PLUG CONNECTOR 2P B3P-VH YP04000760

J804 YP04000760 PLUG CONNECTOR 2P B3P-VH YP04000760

J805 YP04000760 PLUG CONNECTOR 2P B3P-VH YP04000760

L801 LY10240240 RELAY

LY10240240

VS24MB-NR TV-8 SEMKO LISTED

L802 LY10120400 RELAY POWER G5PA-1 5A LY10120400

L811 /N TS13521080 BACKUP TRANS. AC230V TS13521080

P824-POWER SWITCH

CUIT BOARD

C801 /N nsp CER. DE1307-1E 472M-KH DK17472910

J803 /N YP06013300 PLUG B2P3S-VH YP06013300

S801 /N SP01012460 PUSH SWITCH POWER SDDLB1

SP01012460

TV-5

P834-POWER SUPPLY FOR

POWER AMP CUIT BOARD
P834-CAPACITORS

C831 nsp ELECT. ELNA RA2 16X25 OA10805020

C832 nsp ELECT. 470µF M 50V RA-2 OA47705020

C837 nsp ELECT. 100µF M 25V RA-2 OA10702520

C838 nsp ELECT. 100µF M 25V RA-2 OA10702520

C839 nsp ELECT. 100µF M 50V RA-2 OA10705020

C842

OB18907120 ELECT. CAP 35XL90 VNSD OB18907120

C845 BLUE ON MJI LOGO

C847 nsp ELECT. 100µF M 25V RA-2 OA10702520

CN07 nsp ELECT. 220µF M 50V RA-2 OA22705020

P834-CAPACITORS(COMMON)

PLASTIC FILM CAPACITOR

±5% 50V : C512

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

C513

P834-RESISTORS

RN24 nsp RES. 1Ω ±5% 1/4W GG05010140

P834- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : R536 R537

R551-R563 RN25 RN26 RN46

D501 nsp DIODE

P834-SEMICONDUCTORS

HD20002000

1SS176 MA165 1SS254 30V 0.1A

D502 nsp DIODE 1D3 1A/200V HD20002710

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

84

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

D503 nsp DIODE 1D3 1A/200V HD20002710

D831

nsp DIODE 1D3 1A/200V HD20002710

D838

D839 HD33301000 ZENER DIODE MTZJ33D HD33301000

D840 HD30681000 ZENER DIODE 6.8V HD30681000

D841 HE20029290 DIODE 600V 25A

HE20029290

BRIDGE-DI D25XB60

DN01 nsp DIODE 1D3 1A/200V HD20002710

DN02 nsp DIODE 1D3 1A/200V HD20002710

DN03 HD30201000 ZENER DIODE MTZJ2.0B HD30201000

DN04 HD30201000 ZENER DIODE MTZJ2.0B HD30201000

L501 LY10240300 RELAY VSB24STB 16A AVSS LY10240300

L502 LY10240300 RELAY VSB24STB 16A AVSS LY10240300

Q503 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q504 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q505 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

Q506 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q507 HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

Q508 HT600111B0 TRS. KTA1267 PNP (Y) HT600111B0

Q831 HC3851809F IC REG. NJM78M18FA HC3851809F

Q832 HC3951809F IC NJM79M18FA JR

HC3951809F

-18V 500MA REG.

Q833 HC3851809F IC NJM78M18FA REG. HC3851809F

P844-MAINS INLET

CUIT BOARD

J810 YJ04002440 JACK 2P MAINS INLET PWI1910-H YJ04002440

PC04-FRONT PCB

CUIT BOARD
PC04-CAPACITORS

CC01 nsp CER. 0.01µF Z 50V DK18103310

CC02 nsp CER. 0.01µF Z 50V DK18103310

CC03 nsp CER. 0.01µF Z 50V DK18103310

CC04 nsp CER. 0.01µF Z 50V DK18103310

CC05 nsp ELECT. 100µF M 50V RA-2 OA10705020

CC12 nsp CER. 0.01µF Z 50V DK18103310

CC15 nsp CER. 0.01µF Z 50V DK18103310

CC16 nsp CER. 0.01µF Z 50V DK18103310

CC20 nsp CER. 0.01µF Z 50V DK18103310

CC23 nsp CER. 0.01µF Z 50V DK18103310

CC24 nsp CER. 0.01µF Z 50V DK18103310

CC28 nsp CER. 0.01µF Z 50V DK18103310

CC30 nsp CER. 0.01µF Z 50V DK18103310

CC33 nsp CER. 0.01µF Z 50V DK18103310

PC04-CAPACITORS(COMMON)

PLASTIC FILM CAPACITOR

±5% 50V : CC22

RC07 BW05473230 RES. COMPO.

PC04-RESISTORS

BW05473230

RKC13BS473J ±5% P1.8

RC08 BW05473230 RES. COMPO.

BW05473230

RKC13BS473J ±5% P1.8

RC09 BW05103330 RES. COMPO.

BW05103330

RKC13BS103J ±5% P1.8

RC10 BW05473230 RES. COMPO.

BW05473230

RKC13BS473J ±5% P1.8

PC04- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : RC01-RC05

RC11-RC30 RC33 RC36 RC38

RC40-RC43

PC04-SEMICONDUCTORS

DC01

HI20006030 GAS LED GL-350 HI20006030

DC04 SLR-932AV-8K A RANK 5MM P2.5

DC05 nsp DIODE

HD20002000

1SS176 MA165 1SS254 30V 0.1A

QC01 HC10220090 IC NJU3430FG1 HC10220090

QC02 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QC03 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QC04 HC10098550 IC PST600D-2 RESET IC HC10098550

QC05 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QC06 HT800951B0 TRS. KTC3203 NPN (Y) HT800951B0

QC07 HT800951B0 TRS. KTC3203 NPN (Y) HT800951B0

QC08 BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

QC09 HW10002620 PHOTO UNIT

HW10002620

IR SENSOR TSOP 1136 TB1

PC04-MISCELLANEOUS

SC01

SP01013370 PUSH SWITCH SP01013370

SC22 EVQ11L05R H/5MM 160GF

SC23 SR02010070 ROTARY SWITCH ROTALY

SR02010070

ENCODER 36PULSE EC16B

VC01 HQ31601410 DISPLAY UNIT

HQ31601410

6-BT-92GNK

PC64-ENCODER

CUIT BOARD
PC64-CAPACITORS

CC60 nsp CER. 0.01µF Z 50V DK18103310

CC61 nsp CER. 0.01µF Z 50V DK18103310

CC62 nsp CER. 0.01µF Z 50V DK18103310

PC64- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : RC60-RC65

DC60 HI10099320 L.E.D. GL3ED8 SHARP

PC64-SEMICONDUCTORS

HI10099320

RED/GREEN

QC60 BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

QC61 BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

PC64-MISCELLANEOUS

JC60 YJ06008860 JACK 06JQ-ST 6P (YOKO) YJ06008860

SC60 SR02010080 ROTARY SWITCH ROT ENCOD

SR02010080

EC16B 16PLS 16CLICK

PC74-JYRO

CUIT BOARD

QC70 /N HW10033320 PHOTO UNIT GP1A06 2PHASE

HW10033320

RC70 /N nsp RES. 330Ω ±5% 1/6W GD05331160

PD04-DIG IN/ADC/DAC

CUIT BOARD
PD04-CAPACITORS

CA01

nsp CER. CHIP 0.1µF ±10% B 10V DK96104200

CA05

CA06 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CA07 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CA08 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CA09 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CA10 nsp ELECT. 47µF M 25V RA-2 OA47602520

CA12 nsp ELECT. 47µF M 25V RA-2 OA47602520

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

85

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

CA14

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CA20

CD01 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD02 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD03 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD04 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD05

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD12

CD13 nsp ELECT. 100µF 10V ARA OA10701050

CD14 nsp ELECT. 100µF 10V ARA OA10701050

CD15 nsp ELECT. 100µF 10V ARA OA10701050

CD16 nsp ELECT. 100µF 10V ARA OA10701050

CD17 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD18 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD19 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD20 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD21 nsp ELECT. 100µF M 10V RA-2 OA10701020

CD22 nsp ELECT. 100µF M 10V RA-2 OA10701020

CD23 nsp ELECT. 100µF M 10V RA-2 OA10701020

CD24 nsp ELECT. 100µF M 10V RA-2 OA10701020

CD25 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD26 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD27 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD28 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD29 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD30 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD31 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD32 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD33 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD34 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD35 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD36 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD37 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD38 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD39 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD40 nsp ELECT. 10µF M 50V RA-2 OA10605020

CD41 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

CD42 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

CD43 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

CD44 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

CD50 nsp CER. CHIP 0.01µF DK98103300

CD51 nsp CER. CHIP 0.01µF DK98103300

CD52 nsp CER. CHIP 0.01µF DK98103300

CD53 nsp CER. CHIP 0.01µF DK98103300

CD54 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD55 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD56 nsp CER. CHIP 0.01µF DK98103300

CD57 nsp CER. CHIP 0.01µF DK98103300

CD58 nsp CER. CHIP 0.01µF DK98103300

CD59 nsp CER. CHIP 0.01µF DK98103300

CD60 nsp ELECT. 220µF M 6.3V RA-2 OA22700620

CD61 nsp ELECT. 220µF M 6.3V RA-2 OA22700620

CD62 nsp ELECT. 220µF M 6.3V RA-2 OA22700620

CD63 nsp ELECT. 220µF M 6.3V RA-2 OA22700620

CD64 nsp ELECT. 100µF M 16V RA-2 OA10701620

CD65 nsp ELECT. 100µF M 16V RA-2 OA10701620

CH01

DF15821350 FILM 820pF J 50V DF15821350

CH08

CH09

OF15271540 FILM 270pF TP 100V PP APSV OF15271540

CH16
CH17 nsp RES. 0Ω ±5% 1/4W GD05000140
CH18 nsp RES. 0Ω ±5% 1/4W GD05000140
CH19 nsp RES. 0Ω ±5% 1/4W GD05000140
CH20 nsp RES. 0Ω ±5% 1/4W GD05000140

CH21 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CH22 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CH23 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CH24 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CH25 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CH26 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CH27 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CH28 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CH29 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CH30 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CH31 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CH32 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CH33 nsp ELECT. 22µF 25V ARA OA22602550

CH34 nsp ELECT. 22µF 25V ARA OA22602550

CH35 nsp ELECT. 22µF 25V ARA OA22602550

CH36 nsp ELECT. 22µF 25V ARA OA22602550

CH37 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CH38 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CH39 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CH40 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CH41 OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CH42 OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CH43 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CH44 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CH45 nsp ELECT. 22µF 25V ARA OA22602550

CH46 nsp ELECT. 22µF 25V ARA OA22602550

CH47 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CH48 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CH49

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CH56

CJ01

DF15821350 FILM 820pF J 50V DF15821350

CJ08

CJ09

OF15271540 FILM 270pF TP 100V PP APSV OF15271540

CJ16
CJ17 nsp RES. 0Ω ±5% 1/4W GD05000140

CJ18 nsp ELECT. 22µF M 50V RA-2 OA22605020
CJ19 nsp RES. 0Ω ±5% 1/4W GD05000140
CJ20 nsp RES. 0Ω ±5% 1/4W GD05000140

CJ21 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CJ22 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CJ23 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CJ24 OF15561540 FILM 560pF TP 100V PP APSV OF15561540

CJ25 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CJ26 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CJ27 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CJ28 nsp ELECT. 22µF M 25V ARS-TYPE OA22602540

CJ29 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CJ30 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CJ31 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CJ32 nsp CER. CHIP 22pF ±5% CG 50V DD95220300

CJ33 nsp ELECT. 22µF 25V ARA OA22602550

CJ34 nsp ELECT. 22µF M 50V RA-2 OA22605020

CJ35 nsp ELECT. 22µF 25V ARA OA22602550

CJ36 nsp ELECT. 22µF 25V ARA OA22602550

CJ37 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CJ38 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CJ39 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CJ40 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CJ41

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CJ48
CK01 nsp RES. 0Ω ±5% 1/4W GD05000140
CK02 nsp RES. 0Ω ±5% 1/4W GD05000140

CK03 nsp ELECT. 22µF M 50V RA-2 OA22605020

CK04 nsp ELECT. 22µF M 50V RA-2 OA22605020

CK05 nsp CER. CHIP 150pF ±5% CG 50V DD95151300

CK06 nsp CER. CHIP 150pF ±5% CG 50V DD95151300

CK07 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

CK08 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

86

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

CK09 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CK10 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CK11

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CK17

CK18 nsp ELECT. 10µF M 50V RA-2 OA10605020

CK19 nsp ELECT. 1µF M 50V RA-2 OA10505020

CK20 nsp ELECT. 1µF M 50V RA-2 OA10505020

CK21 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CK22 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CK23 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CK24 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CK25 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CK26 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CK27 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CK28 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

CK29 nsp CER. CHIP 0.1µF 50V F

DK98104300

C1608JF1H104Z

CK30 nsp CER. CHIP 0.22µF ±10% B 10V DK96224200

CK51 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CK52 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CK53 nsp ELECT. 10µF M 50V RA-2 OA10605020

CK54 nsp ELECT. 10µF M 50V RA-2 OA10605020

CK55 nsp CER. CHIP GRM39F224Z16 0.22UF DK98224200

CK56 nsp CER. CHIP GRM39F224Z16 0.22UF DK98224200

CK57 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CK58 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CK59 nsp ELECT. 100µF M 10V RA-2 OA10701020

CK60 nsp ELECT. 100µF M 10V RA-2 OA10701020

CK61 nsp CER. CHIP 470pF (GR39) DK96471300

CK68 nsp CER. CHIP 470pF (GR39) DK96471300

PD04-RESISTORS

RA01

nsp CHIP RES. 75Ω ±5% 1/16W NN05750610

RA05

RA06

nsp CHIP RES. 1kΩ ±5% 1/16W NN05102610

RA10

RA11

nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610

RA15

RA16

nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610

RA20
RA21 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RA22 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RA23 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RA24 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610

RD01

nsp CHIP RES. 1kΩ ±5% 1/16W NN05102610

RD08
RD09 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610

RH01

nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610

RH28
RH29 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH30 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH31 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH32 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH33 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RH34 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RH35 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RH36 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RH37 nsp CHIP RES. 560kΩ ±5% 1/16W NN05564610
RH38 nsp CHIP RES. 560kΩ ±5% 1/16W NN05564610
RH39 nsp CHIP RES. 120kΩ ±5% 1/16W NN05124610
RH40 nsp CHIP RES. 120kΩ ±5% 1/16W NN05124610
RH41 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RH42 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610

RH43 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RH44 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RH45 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RH46 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RH47 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RH48 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RH49 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH50 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH51 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH52 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH53 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RH54 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RH55 nsp CHIP RES. 3.3kΩ ±5% 1/16W NN05332610
RH56 nsp CHIP RES. 3.3kΩ ±5% 1/16W NN05332610
RH57 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RH58 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RH59 nsp CHIP RES. 3.3kΩ ±5% 1/16W NN05332610
RH60 nsp CHIP RES. 3.3kΩ ±5% 1/16W NN05332610

RH61 nsp CHIP RES. 470

Ω ±5% 1/16W NN05471610
RH62 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RH63 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RH64 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610

RJ01

nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610

RJ28
RJ29 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RJ30 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RJ31 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RJ32 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RJ33 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RJ34 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RJ35 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RJ36 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RJ37 nsp CHIP RES. 560kΩ ±5% 1/16W NN05564610
RJ38 nsp CHIP RES. 68kΩ ±5% 1/16W NN05683610
RJ39 nsp CHIP RES. 120kΩ ±5% 1/16W NN05124610
RJ40 nsp CHIP RES. 120kΩ ±5% 1/16W NN05124610
RJ41 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RJ42 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RJ43 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RJ44 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RJ45 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RJ46 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RJ47 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RJ48 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RJ49 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RJ50 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RJ51 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RJ52 nsp CHIP RES. 100kΩ ±5% 1/16W NN05104610
RK01 nsp CHIP RES. 6.8kΩ ±5% 1/16W NN05682610
RK02 nsp CHIP RES. 6.8kΩ ±5% 1/16W NN05682610
RK03 nsp CHIP RES. 3.9kΩ ±5% 1/16W NN05392610
RK04 nsp CHIP RES. 3.9kΩ ±5% 1/16W NN05392610
RK05 nsp CHIP RES. 2.7kΩ ±5% 1/16W NN05272610
RK06 nsp CHIP RES. 2.7kΩ ±5% 1/16W NN05272610
RK07 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
RK08 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610

RK09 nsp CHIP RES. 4.7k

Ω ±5% 1/16W NN05472610
RK10 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RK11 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK12 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK13 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK14 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK15 nsp CHIP RES. 330Ω ±5% 1/16W NN05331610
RK16 nsp CHIP RES. 330Ω ±5% 1/16W NN05331610
RK17 nsp CHIP RES. 330Ω ±5% 1/16W NN05331610
RK18 nsp CHIP RES. 330Ω ±5% 1/16W NN05331610
RK19 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
RK20 nsp CHIP RES. 2.2kΩ ±5% 1/16W NN05222610
RK21 nsp CHIP RES. 1MΩ ±5% 1/16W NN05105610

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

87

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

RK23 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RK24 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RK25 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RK26 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RK27 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RK28 nsp CHIP RES. 22kΩ ±5% 1/16W NN05223610
RK29 nsp CHIP RES. 47kΩ ±5% 1/16W NN05473610
RK30 nsp CHIP RES. 47kΩ ±5% 1/16W NN05473610
RK31 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RK32 nsp CHIP RES. 47kΩ ±5% 1/16W NN05473610
RK33 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK34 nsp CHIP RES. 5.6kΩ ±5% 1/16W NN05562610
RK35 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK36 nsp CHIP RES. 5.6kΩ ±5% 1/16W NN05562610
RK37 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK39 nsp CHIP RES. 680kΩ ±5% 1/16W NN05684610
RK40 nsp CHIP RES. 680kΩ ±5% 1/16W NN05684610
RK41 nsp CHIP RES. 680kΩ ±5% 1/16W NN05684610
RK42 nsp CHIP RES. 47kΩ ±5% 1/16W NN05473610
RK43 nsp CHIP RES. 680kΩ ±5% 1/16W NN05684610
RK44 nsp CHIP RES. 4.7kΩ ±5% 1/16W NN05472610
RK46 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK47 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK48 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK49 nsp CHIP RES. 3.3kΩ ±5% 1/16W NN05332610
RK50 nsp CHIP RES. 3.3kΩ ±5% 1/16W NN05332610
RK51 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK58 nsp CHIP RES. 470Ω ±5% 1/16W NN05471610
RK70 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK71 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK72 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK73 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK76 nsp CHIP RES. 10kΩ ±5% 1/16W NN05103610
RK77 nsp CHIP RES. 10kΩ

±5% 1/16W NN05103610

PD04-SEMICONDUCTORS

DA01

HZ20018050 CHIP DIODE 1SS302 (TOSHIBA) HZ20018050

DA05

DK01

HZ20018050 CHIP DIODE 1SS302 (TOSHIBA) HZ20018050

DK05

DK70 HZ20018050 CHIP DIODE 1SS302 (TOSHIBA) HZ20018050

DK71 HZ20018050 CHIP DIODE 1SS302 (TOSHIBA) HZ20018050

QA01 HC700400Z0 IC CMOS 74HCU04 HC700400Z0

QA02 HC700400Z0 IC CMOS 74HCU04 HC700400Z0

QA03 HC715100Z0 IC TC74HC151AF HC715100Z0

QA04 HC715100Z0 IC TC74HC151AF HC715100Z0

QA05 HC703200Z0 IC OR-GATE 74HC32 HC703200Z0

QA06 HC700000Z0 IC CMOS 74HC00 FLAT HC700000Z0

QA07 HC10068490 IC PCF8574I(I/O EXPANDER) HC10068490

QD01 HC10011880 IC 24BIT 192KHZ DAC DR=120DB HC10011880

QD02 HC10011880 IC 24BIT 192KHZ DAC DR=120DB HC10011880

QD03 HC10011880 IC 24BIT 192KHZ DAC DR=120DB HC10011880

QD04 HC10011880 IC 24BIT 192KHZ DAC DR=120DB HC10011880

QH01

HC10102090 IC NJM2068M HC10102090

QH05

QJ01

HC10102090 IC NJM2068M HC10102090

QJ04

QK01 HX342132A0 CHIP TR. 2SC4213 HX342132A0

QK02 HX342132A0 CHIP TR. 2SC4213 HX342132A0

QK03 HC10172090 IC NJM2115M TE1 HC10172090

QK04 HC10172090 IC NJM2115M TE1 HC10172090

QK05 HC10102090 IC NJM2068M HC10102090

QK06 HC10102090 IC NJM2068M HC10102090

QK07 BA10026210 DIG. TRS. DTA114EU BA10026210

QK08 HC10172090 IC NJM2115M TE1 HC10172090

QK51 HC10033480 IC ADC AK5383VS 96KHZ 24BIT HC10033480

QK70 BA10026210 DIG. TRS. DTA114EU BA10026210

QK71 HT800951B0 TRS. KTC3203 NPN (Y) HT800951B0

QK72 BA10026210 DIG. TRS. DTA114EU BA10026210

QK73 HT800951B0 TRS. KTC3203 NPN (Y) HT800951B0

JA01 YT02030610 TERMINAL

PD04-MISCELLANEOUS

YT02030610

14X14 RA 1L3P BLK AU F-SHIELD

JA02 YT02021540 TERMINAL

YT02021540

CINCH 2P AU(BL) FRONT SHIELD

JA03 YJ15000200 OPT. RECEIVER CONNE. JFJ400 YJ15000200

JA04 YJ15000200 OPT. RECEIVER CONNE. JFJ400 YJ15000200

JA05 YJ15000200 OPT. RECEIVER CONNE. JFJ400 YJ15000200

JA06 YJ15000200 OPT. RECEIVER CONNE. JFJ400 YJ15000200

LD01 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LD02 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LD03 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LD04 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LK70 LY20240480 RELAY MR82-24USR LY20240480

LK71 LY20240480 RELAY MR82-24USR LY20240480

PF14-COMPONENT

CUIT BOARD
PF14-CAPACITORS

CF61 /N nsp CER. 0.01µF Z 50V DK18103310

CF62 /N nsp ELECT. 10µF M 50V RA-2 OA10605020

CF63 /N nsp ELECT. 470µF M 6.3V RA-2 OA47700620

PF14-RESISTORS (COMMON)

CARBON FILM FIXED RES.
±5% 1/6W : RF51 RF52 RF54 RF55
RF57 RF58 RF74 RF75 RF77

PF14-SEMICONDUCTORS

DF51

/N nsp DIODE HD20002000

DF54 1SS176 MA165 1SS254 30V 0.1A

QF51

/ N HT800921B0 TRS. KTC3199 NPN (Y) HT800921B0

QF54

PF14-MISCELLANEOUS

JF51 /N YT02030700 TERMINAL YKC21-4076 1L3 FS AU YT02030700

JF52 /N YT02060640 TERMINAL

YT02060640

6P CINCH R/G/B DUAL GND 2L6P

JF53 /N YT02060640 TERMINAL

YT02060640

6P CINCH R/G/B DUAL GND 2L6P

LF51

/N LY20240480 RELAY MR82-24USR LY20240480

LF57

LF59 /N LY20240480 RELAY MR82-24USR LY20240480

PG04-ELE.VOLUME

CUIT BOARD
PG04-CAPACITORS

CE01 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE02 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE03 nsp ELECT. 10µF M 50V RA-2 OA10605020

CE04 nsp ELECT. 10µF M 50V RA-2 OA10605020

CE05 OF15101540 FILM 100pF J 100V APSV OF15101540

CE06 OF15101540 FILM 100pF J 100V APSV OF15101540

CE09 nsp ELECT. 22µF M 50V RA-2 OA22605020

CE10 nsp ELECT. 22µF M 50V RA-2 OA22605020

CE11 nsp ELECT. 22µF M 25V ARS OA22602540

CE12 nsp ELECT. 22µF M 25V ARS OA22602540

CE13 nsp ELECT. 10µF M 50V RA-2 OA10605020

CE14 nsp ELECT. 10µF M 50V RA-2 OA10605020

CE15 OF15101540 FILM 100pF J 100V APSV OF15101540

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

88

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

CE16 OF15101540 FILM 100pF J 100V APSV OF15101540

CE19 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE20 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE21 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CE22 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CE23 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CE24 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CE25 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CE26 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CE41 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE43 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE49 nsp ELECT. 100µF M 16V RA-2 OA10701620

CE50 nsp ELECT. 100µF M 16V RA-2 OA10701620

CE51 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE52 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE53 nsp ELECT. 10µF M 50V RA-2 OA10605020

CE54 nsp ELECT. 10µF M 50V RA-2 OA10605020

CE55 OF15101540 FILM 100pF J 100V APSV OF15101540

CE59 nsp ELECT. 22µF M 50V RA-2 OA22605020

CE60 nsp ELECT. 22µF M 50V RA-2 OA22605020

CE61 nsp ELECT. 22µF M 25V ARS OA22602540

CE62 nsp ELECT. 22µF M 50V RA-2 OA22605020

CE63 nsp ELECT. 10µF M 50V RA-2 OA10605020

CE64 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE65 OF15101540 FILM 100pF J 100V APSV OF15101540

CE69 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE70 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE71 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CE73 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CE74 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CE75 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CE91 nsp ELECT. 47µF M 25V RA-2 OA47602520

CE93 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG01 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG02 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG03 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG04 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG05 OF15101540 FILM 100pF J 100V APSV OF15101540

CG06 OF15101540 FILM 100pF J 100V APSV OF15101540

CG09 nsp ELECT. 22µF M 50V RA-2 OA22605020

CG10 nsp ELECT. 22µF M 50V RA-2 OA22605020

CG11 nsp ELECT. 22µF M 25V ARS OA22602540

CG12 nsp ELECT. 22µF M 25V ARS OA22602540

CG13 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG14 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG15 OF15101540 FILM 100pF J 100V APSV OF15101540

CG16 OF15101540 FILM 100pF J 100V APSV OF15101540

CG19 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG20 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG21 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG22 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG23 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CG24 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CG25 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG26 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG41 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG43 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG51 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG52 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG53 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG54 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG55 OF15101540 FILM 100pF J 100V APSV OF15101540

CG56 OF15101540 FILM 100pF J 100V APSV OF15101540

CG59 nsp ELECT. 22µF M 50V RA-2 OA22605020

CG60 nsp ELECT. 22µF M 50V RA-2 OA22605020

CG61 nsp ELECT. 22µF M 25V ARS OA22602540

CG62 nsp ELECT. 22µF M 25V ARS OA22602540

CG63 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG64 nsp ELECT. 10µF M 50V RA-2 OA10605020

CG65 OF15101540 FILM 100pF J 100V APSV OF15101540

CG66 OF15101540 FILM 100pF J 100V APSV OF15101540

CG69 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG70 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG71 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG72 OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG73 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CG74 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CG75 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG76 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CG91 nsp ELECT. 47µF M 25V RA-2 OA47602520

CG93 nsp ELECT. 47µF M 25V RA-2 OA47602520

CM01 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM02 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM03 nsp ELECT. 10µF M 50V RA-2 OA10605020

CM04 nsp ELECT. 10µF M 50V RA-2 OA10605020

CM09 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM10 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM11 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM12 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM13 nsp ELECT. 10µF M 50V RA-2 OA10605020

CM14 nsp ELECT. 10µF M 50V RA-2 OA10605020

CM19 nsp ELECT. 47µF M 25V RA-2 OA47602520

CM20 nsp ELECT. 47µF M 25V RA-2 OA47602520

CM23 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CM24 /N OF15221540 FILM 220pF TP 100V PP APSV OF15221540

CM31 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM32 nsp ELECT. 22µF M 50V RA-2 OA22605020

CM33 nsp ELECT. 10µF M 50V RA-2 OA10605020

CM34 nsp ELECT. 10µF M 50V RA-2 OA10605020

CM39 nsp ELECT. 47µF M 25V RA-2 OA47602520

CM40 nsp ELECT. 47µF M 25V RA-2 OA47602520

CM61 nsp ELECT. 47µF M 25V RA-2 OA47602520

CM63 nsp ELECT. 47µF M 25V RA-2 OA47602520

PG04-CAPACITORS(COMMON)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

CE40 CE45-CE48 CE56 CE66

CE72 CE90 CG40 CG90 CM05

CM06 CM15 CM16 CM21 CM22

CM35 CM36 CM41 CM42 CM60

PG04-RESISTORS

RE01 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RE02 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RE03 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE04 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE05 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE06 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE07 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE08 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE09 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE10 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE11 NI05562110 CHIP RES. 5.6kΩ ±5% 1/10W NI05562110
RE12 NI05562110 CHIP RES. 5.6kΩ ±5% 1/10W NI05562110
RE13 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE14 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE15 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RE16 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RE17 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE18 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE19 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE20 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE21 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE22 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE23 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE24 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE25 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE26 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE27 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

89

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

RE28 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RE40 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RE41 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RE43 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RE44 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RE45 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE47 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE48 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE51 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RE52 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RE53 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE54 NI05273110 CHIP RES. 27kΩ ±5% 1/10W NI05273110
RE55 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE56 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RE57 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE58 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE59 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE60 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE61 NI05562110 CHIP RES. 5.6kΩ ±5% 1/10W NI05562110
RE62 NI05152110 CHIP RES. 1.5kΩ ±5% 1/10W NI05152110
RE63 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE64 NI05182110 CHIP RES. 1.8kΩ ±5% 1/10W NI05182110
RE65 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RE66 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RE67 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE68 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RE69 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE70 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE71 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE72 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RE73 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE74 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE75 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RE76 NI05472110 CHIP RES. 4.7kΩ

±5% 1/10W NI05472110

RE77 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RE78 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RE90 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RE91 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RE92 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RG01 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RG02 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RG03 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG04 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG05 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG06 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG07 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG08 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG09 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG10 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG11 NI05562110 CHIP RES. 5.6kΩ ±5% 1/10W NI05562110

RG12 NI05562110 CHIP RES. 5.6k

Ω ±5% 1/10W NI05562110
RG13 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG14 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG15 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RG16 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RG17 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG18 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG19 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG20 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG21 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG22 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG23 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG24 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG25 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG26 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG27 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RG28 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110

RG40 NI05101110 CHIP RES. 100

Ω ±5% 1/10W NI05101110
RG41 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RG51 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110

RG52 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RG53 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG54 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG55 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG56 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RG57 NI05473110 CHIP RES. 47kΩ

±5% 1/10W NI05473110

RG58 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG59 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG60 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG61 NI05562110 CHIP RES. 5.6kΩ ±5% 1/10W NI05562110
RG62 NI05562110 CHIP RES. 5.6kΩ ±5% 1/10W NI05562110
RG63 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG64 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG65 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RG66 NI05822110 CHIP RES. 8.2kΩ ±5% 1/10W NI05822110
RG67 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG68 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RG69 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG70 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG71 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG72 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RG73 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG74 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG75 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG76 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RG77 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RG78 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RG90 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RG91 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RM01 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM02 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM03 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RM04 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RM05 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RM06 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RM07 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM08 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM09 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM10 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM11 NI05392110 CHIP RES. 3.9kΩ ±5% 1/10W NI05392110
RM12 NI05392110 CHIP RES. 3.9kΩ ±5% 1/10W NI05392110
RM13 NI05123110 CHIP RES. 12kΩ ±5% 1/10W NI05123110
RM14 NI05123110 CHIP RES. 12kΩ ±5% 1/10W NI05123110
RM15 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM16 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM17 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RM18 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RM19 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RM20 NI05221110 CHIP RES. 220Ω ±5% 1/10W NI05221110
RM21 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RM22 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RM23 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RM24 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RM25 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RM26 NI05330110 CHIP RES. 33Ω ±5% 1/10W NI05330110
RM31 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM32 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM33 NI05392110 CHIP RES. 3.9kΩ ±5% 1/10W NI05392110
RM34 NI05392110 CHIP RES. 3.9kΩ ±5% 1/10W NI05392110
RM35 NI05123110 CHIP RES. 12kΩ ±5% 1/10W NI05123110
RM36 NI05123110 CHIP RES. 12kΩ ±5% 1/10W NI05123110
RM37 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM38 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RM39 NI05331110 CHIP RES. 330Ω ±5% 1/10W NI05331110
RM40 NI05331110 CHIP RES. 330Ω

±5% 1/10W NI05331110

RM41 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RM42 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RM43 NI05151110 CHIP RES. 150Ω ±5% 1/10W NI05151110
RM44 NI05151110 CHIP RES. 150Ω ±5% 1/10W NI05151110
RM60 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

90

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

RM61 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RM62 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RM64 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RM65 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110

PG04-SEMICONDUCTORS

DE40 HZ20002210 CHIP DIODE DAN202K RΩ HZ20002210
DM60 HZ20002210 CHIP DIODE DAN202K RΩ HZ20002210

QE01 HC10053090 IC NJM-2068-DD HC10053090

QE02 HC10443050 IC TC9459N ELE.VOLUME HC10443050

QE03 HC10053090 IC NJM-2068-DD HC10053090

QE05 HT805501B0 TRS. KTC2874 NPN HT805501B0

QE06 HT805501B0 TRS. KTC2874 NPN HT805501B0

QE07 HT805501B0 TRS. KTC2874 NPN HT805501B0

QE08 HT805501B0 TRS. KTC2874 NPN HT805501B0

QE40 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QE41 HT108172B0 TRS.

HT108172B0

2SA817 O OR Y 600MW -300MA

QE51 HC10053090 IC NJM-2068-DD HC10053090

QE52 HC10443050 IC TC9459N ELE.VOLUME HC10443050

QE53 HC10053090 IC NJM-2068-DD HC10053090

QE55 HT805501B0 TRS. KTC2874 NPN HT805501B0

QE56 HT805501B0 TRS. KTC2874 NPN HT805501B0

QE57 HT805501B0 TRS. KTC2874 NPN HT805501B0

QE58 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG01 HC10053090 IC NJM-2068-DD HC10053090

QG02 HC10443050 IC TC9459N ELE.VOLUME HC10443050

QG03 HC10053090 IC NJM-2068-DD HC10053090

QG05 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG06 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG07 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG08 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG51 HC10053090 IC NJM-2068-DD HC10053090

QG52 HC10443050 IC TC9459N ELE.VOLUME HC10443050

QG53 HC10053090 IC NJM-2068-DD HC10053090

QG55 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG56 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG57 HT805501B0 TRS. KTC2874 NPN HT805501B0

QG58 HT805501B0 TRS. KTC2874 NPN HT805501B0

QM01 HC10053090 IC NJM-2068-DD HC10053090

QM02 HC10443050 IC TC9459N ELE.VOLUME HC10443050

QM03 HC10053090 IC NJM-2068-DD HC10053090

QM05 HT805501B0 TRS. KTC2874 NPN HT805501B0

QM06 HT805501B0 TRS. KTC2874 NPN HT805501B0

QM07 HT805501B0 TRS. KTC2874 NPN HT805501B0

QM08 HT805501B0 TRS. KTC2874 NPN HT805501B0

QM30 HC10053090 IC NJM-2068-DD HC10053090

QM31 HT805501B0 TRS. KTC2874 NPN HT805501B0

QM32 HT805501B0 TRS. KTC2874 NPN HT805501B0

QM60 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QM61 HT600121A0 TRS. KTA1268 PNP (GR) HT600121A0

JE01 YT02060690 TERMINAL

PG04-MISCELLANEOUS

YT02060690

14X14 RA 2L6P BLK AU F-SHIELD

JE02 YT02011710 TERMINAL

YT02011710

YKC21-3914 1L1P FS BK AU

JE03 YT02041340 TERMINAL

YT02041340

YKC21-4086 2L4P FS BK AU

JE04 YT02060690 TERMINAL

YT02060690

14X14 RA 2L6P BLK AU F-SHIELD

LE01 LY20240480 RELAY MR82-24USR LY20240480

LE51 LY20240480 RELAY MR82-24USR LY20240480

LG01 LY20240480 RELAY MR82-24USR LY20240480

LG51 LY20240480 RELAY MR82-24USR LY20240480

LM01 LY20240480 RELAY MR82-24USR LY20240480

LM60 LY20240480 RELAY MR82-24USR LY20240480

PL04-CVBS

CUIT BOARD
PL04-CAPACITORS

CF01 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF02 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF03 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF05 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF06 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF07 nsp ELECT. 100µF M 10V RA-2 OA10701020

CF09 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF10 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF12 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF13 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF14 nsp CER. 47pF J CH 50V BLK DD15470300

CF15 nsp CER. 47pF J CH 50V BLK DD15470300

CF16 nsp ELECT. 100µF M 10V RA-2 OA10701020

CF19 nsp CER. 47pF J CH 50V BLK DD15470300

CF20 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF21 nsp ELECT. 10µF M 50V RA-2 OA10605020

CF23 nsp ELECT. 100µF M 10V RA-2 OA10701020

CF24 nsp ELECT. 1µF M 50V RA-2 OA10505020

CF27 nsp CER. 47pF J CH 50V BLK DD15470300

CF28 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CL01 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CL02 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CL09 nsp CER. 47pF J CH 50V BLK DD15470300

CL10 nsp CER. 47pF J CH 50V BLK DD15470300

CL11 nsp CER. 47pF J CH 50V BLK DD15470300

CL12 nsp CER. 47pF J CH 50V BLK DD15470300

CL13 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL14 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL16 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL17 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL19 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL20 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL21 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CL22 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL23 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CL24 nsp ELECT. 100µF M 10V RA-2 OA10701020

CL26 nsp ELECT. 100µF M 10V RA-2 OA10701020

CL28 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL29 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL32 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL34 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL36 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL37 nsp ELECT. 4.7µF M 50V RA-2 OA47505020

CL38 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL39 nsp CER. 24pF J CH 50V BLK DD15240300

CL40 nsp CER. 22pF J CH 50V BLK DD15220300

CL44 nsp ELECT. 1µF M 50V RA-2 OA10505020

CL45 nsp ELECT. 1µF M 50V RA-2 OA10505020

CL47 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL48 /N nsp CER. 15pF J CH 50V BLK DD15150300

CL49 /N nsp CER. 15pF J CH 50V BLK DD15150300

CL50 nsp CER. 47pF J CH 50V BLK DD15470300

CL51 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL52 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL53 nsp ELECT. 100µF M 10V RA-2 OA10701020

CL55 nsp ELECT. 1µF M 50V RA-2 OA10505020

CL58 nsp ELECT. 100µF M 10V RA-2 OA10701020

CL59 nsp CER. 47pF J CH 50V BLK DD15470300

CL60 nsp ELECT. 100µF M 10V RA-2 OA10701020

CL65 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL68 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL71 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL73 nsp CER. 0.022µF Z 50V DK18223310

CL79 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL80 nsp ELECT. 10µF M 50V RA-2 OA10605020

CL81 EQ10601630 ELECT. CAP. 10UF/ 16V EQ10601630

CL82 nsp CER. 47pF J CH 50V BLK DD15470300

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

91

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

CL85 nsp CER. 47pF J CH 50V BLK DD15470300

CL87 nsp ELECT. 100µF M 10V RA-2 OA10701020

PL04-CAPACITORS(COMMON)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

CF25 CL43 CL62 CL83 CL86

PL04-RESISTORS

RF01 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RF02 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RF03 NI05102110 CHIP RES. 75Ω ±5% 1/10W NI05102110
RF04 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RF05 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RF06 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RF07 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RF08 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RF09 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110

NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RF15 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RF16 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL01 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL02 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL03 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL04 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL05 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL06 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL07 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL08 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL09 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL10 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL11 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL12 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL13 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL14 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL15 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL16 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL18 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL19 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL20 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL21 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL22 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL23 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110

RL24 NI05471110 CHIP RES. 470

Ω ±5% 1/10W NI05471110
RL25 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL26 NI05104110 CHIP RES. 100kΩ ±5% 1/10W NI05104110
RL27 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL28 NI05123110 CHIP RES. 12kΩ ±5% 1/10W NI05123110
RL29 NI05471110 CHIP RES. 470Ω ±5% 1/10W NI05471110
RL31 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110
RL32 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL33 NI05221110 CHIP RES. 220Ω

±5% 1/10W NI05221110

RL35 NI05682110 CHIP RES. 6.8kΩ ±5% 1/10W NI05682110
RL37 NI05472110 CHIP RES. 4.7kΩ ±5% 1/10W NI05472110
RL38 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL39 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL40 NI05560110 CHIP RES. 56Ω ±5% 1/10W NI05560110
RL41 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL42 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL43 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL44 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RL45 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RL57 NI05103110 CHIP RES. 10kΩ ±5% 1/10W NI05103110
RL58 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL59 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL60 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL61 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL62 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL63 NI05105110 CHIP RES. 1MΩ

±5% 1/10W NI05105110

RL64 NI05105110 CHIP RES. 1MΩ ±5% 1/10W NI05105110

RL69 NI05750110 CHIP RES. 75Ω ±5% 1/10W NI05750110
RL70 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RL71 /N NI05223110 CHIP RES. 22kΩ ±5% 1/10W NI05223110
RL72 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110

NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL84 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RL85 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110

PL04-SEMICONDUCTORS

DL01 HZ20002210 CHIP DIODE DAN202K RΩ HZ20002210

DL05 /N HZ20001210 CHIP DIODE DAP202K HZ20001210

QF01 HC10223090 IC NJM2534M TE1 HC10223090

QF02 HC10210090 IC NJM2296M HC10210090

QF03 HC10224090 IC NJM2535M TE1 HC10224090

QF04 HC709449B0 IC 74HC4094 16PIN DIP HC709449B0

QL01 HC10223090 IC NJM2534M TE1 HC10223090

QL02 HC10210090 IC NJM2296M HC10210090

QL03 HC10224090 IC NJM2535M TE1 HC10224090

QL04 HC10377030 IC OSD IC LC74781 HC10377030

QL05 HC10224090 IC NJM2535M TE1 HC10224090

QL06 HC10221210 IC BA7622F-E2 HC10221210

QL07 HC709449B0 IC 74HC4094 16PIN DIP HC709449B0

QL08 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QL09 HT10001000 TRS. A1048 A933S A1267 ETC. HT10001000

QL10 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QL11 BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

QL12 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QL13 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QL14 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QL15 HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

QL16 BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QL18 /N BA20004000 DIG. TRS. DTC114TS/UN4215 10K BA20004000

QL19 /N BA20004000 DIG. TRS. DTC114TS/UN4215 10K BA20004000

QL20 /N BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

QL21 HC700000Z0 IC CMOS 74HC00 FLAT HC700000Z0

QL22 HX316221A0 CHIP TR. 2SC1622AD17 HX316221A0

PL04-MISCELLANEOUS

JL01 YT02011690 TERMINAL YKC21-3913 1L1 FS AU YT02011690

JL02 YT02021710 TERMINAL YKC21-4074 2L2 FS AU YT02021710

JL03 YT02041310 TERMINAL YKC21-3701 1L4 FG AU YT02041310

JL04 YT02041310 TERMINAL YKC21-3701 1L4 FG AU YT02041310

LL01 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LL02 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LL03 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LL04 LU15333010 CHIP INDUCTANCE

LU15333010

NL252018 33µH

XL01 JX14001260 CRYSTAL AT49/14.31818MHz(TP) JX14001260

XL02 /N JX17001260 CRYSTAL AT49 17.7MHz JX17001260

PN14-RN47 BDCIR

CUIT BOARD

RN47 HP00029230 VARISTOR

HP00029230

FOR HEAT SENS. 100C BD

PN24-RN62 BF

CUIT BOARD

RN62 HP00042230 VARISTOR

HP00042230

FOR FAN SENS. 80C BF

PN54-RN49 BD

CUIT BOARD

RN49 HP00029230 VARISTOR

HP00029230

FOR HEAT SENS. 100C BD

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

92

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

PN64-RN86 BF

CUIT BOARD

RN86 HP00042230 VARISTOR

HP00042230

FOR FAN SENS. 80C BF

PP04-AUX

CUIT BOARD
PP04-CAPACITORS

CP03 nsp CER. 0.01µF Z 50V DK18103310

CP04 nsp CER. 0.01µF Z 50V DK18103310

CP05 nsp ELECT. 10µF M 50V RA-2 OA10605020

CP06 nsp ELECT. 10µF M 50V RA-2 OA10605020

CP07 nsp ELECT. 10µF M 50V RA-2 OA10605020

CP08 nsp ELECT. 10µF M 50V RA-2 OA10605020

CP16 nsp CER. 0.01µF Z 50V DK18103310

CP17 nsp ELECT. 100µF M 10V RA-2 OA10701020

PP04-CAPACITORS(COMMON)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

CP01 CP02

RP11 nsp RES. 75Ω ±5% 1/6W GD05750160
RP12 nsp RES. 75Ω ±5% 1/6W GD05750160
RP14 nsp RES. 75Ω ±5% 1/6W GD05750160

PP04- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : RP01-RP06 RP16

JP01 YJ15000200 OPT. RECEIVER CONNE. JFJ400 YJ15000200

QP01 HC10008090 IC NJM4558D-D HC10008090

PP94-HEADPHONE

CUIT BOARD

JP99 /N YJ01004330 JACK HLJ2307-01-3163 GOLD YJ01004330

PQ04-A-FUNCTION-V

CUIT BOARD
PQ04-CAPACITORS

CQ01 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ02 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ07 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ08 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ13 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ14 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ19 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ20 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ25 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ26 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ31 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ32 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ39 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ40 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ43 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ44 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ50 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ51 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ52 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ53 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ64 nsp ELECT. 100µF M 16V RA-2 OA10701620

CQ65 nsp ELECT. 100µF M 16V RA-2 OA10701620

PQ04-CAPACITORS(COMMON)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

CQ37 CQ38 CQ41 CQ42 CQ56

CQ59-CQ63

PQ04- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : RQ01-RQ04

RQ09-RQ12 RQ17-RQ20

RQ25-RQ28 RQ33-RQ36

RQ41-RQ44 RQ49-RQ64

PQ04-SEMICONDUCTORS

QQ01 HC10124090 IC NJU7312L ANALOG SWITCH HC10124090

QQ02 HC10124090 IC NJU7312L ANALOG SWITCH HC10124090

QQ03 HC10021090 IC NJM4560D-D HC10021090

JQ01 YT02060670 TERMINAL 14X14 RA 2L6 WH+RE

PQ04-MISCELLANEOUS

YT02060670

AU F-GROUND

JQ02 YT02060670 TERMINAL 14X14 RA 2L6 WH+RE

YT02060670

AU F-GROUND

JQ03 YT02041280 TERMINAL 14X14 RA 2L4 WH+RE

YT02041280

AU F-GROUND

PS04-AUDIO FUNCTION

CUIT BOARD
PS04-CAPACITORS

CS07 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS08 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS13 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS14 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS19 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS20 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS27 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS28 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS31 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS32 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS35 nsp CER. 0.01µF Z 50V DK18103310

CS36 nsp CER. 0.01µF Z 50V DK18103310

CS37 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS38 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS39 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS51 nsp ELECT. 100µF M 16V RA-2 OA10701620

CS52 nsp ELECT. 100µF M 16V RA-2 OA10701620

PS04-CAPACITORS(COMMON)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

CS25 CS26 CS29 CS30 CS43

CS46-CS50

PS04-RESISTORS

RS09 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS10 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS11 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS12 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS13 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS14 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS17 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS18 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS19 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS20 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS21 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS22 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS25 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS26 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS27 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS28 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS29 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS30 NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS33 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RS34 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RS35 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RS36 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

93

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

RS37 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RS38 NI05102110 CHIP RES. 1kΩ ±5% 1/10W NI05102110
RS39 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RS40 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RS41 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS42 NI05274110 CHIP RES. 270kΩ ±5% 1/10W NI05274110
RS43 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RS44 NI05473110 CHIP RES. 47kΩ ±5% 1/10W NI05473110
RS46 /N NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS49 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS51 /N NI05000110 CHIP RES. 0Ω ±5% 1/10W NI05000110
RS54 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS55 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110
RS56 NI05101110 CHIP RES. 100Ω ±5% 1/10W NI05101110

PS04-MISCELLANEOUS

QS01 HC10125090 IC NJU7313L ANALOG SWITCH HC10125090

QS02 HC10125090 IC NJU7313L ANALOG SWITCH HC10125090

QS03 HC10029090 IC NJM4560M HC10029090

JS01 /N YT02041280 TERMINAL 14X14 RA 2L4 WH+RE

PS04-MISCELLANEOUS

YT02041280

AU F-GROUND

JS02 YT02060670 TERMINAL 14X14 RA 2L6 WH+RE

YT02060670

AU F-GROUND

JS05 YP06902270 PLUG 05MQ-ST-L YP06902270

PS54-MULTI CH INPUT

CUIT BOARD
PS54-CAPACITORS

CQ71 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ72 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ73 nsp ELECT. 47µF M 25V RA-2 OA47602520

CQ74 nsp ELECT. 47µF M 25V RA-2 OA47602520

CQ77 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ78 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ79 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CQ81 nsp ELECT. 47µF M 25V RA-2 OA47602520

CQ82 nsp ELECT. 47µF M 25V RA-2 OA47602520

CQ85 nsp ELECT. 10µF M 50V RA-2 OA10605020

CQ86 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS71 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS72 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS73 nsp ELECT. 47µF M 25V RA-2 OA47602520

CS74 nsp ELECT. 47µF M 25V RA-2 OA47602520

CS75 nsp CER. 0.01µF Z 50V DK18103310

CS76 nsp CER. 0.01µF Z 50V DK18103310

CS77 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS78 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS79 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS80 /N OF15471540 FILM 470pF TP 100V PP APSV OF15471540

CS81 nsp ELECT. 47µF M 25V RA-2 OA47602520

CS82 nsp ELECT. 47µF M 25V RA-2 OA47602520

CS85 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS86 nsp ELECT. 10µF M 50V RA-2 OA10605020

CS95 nsp ELECT. 100µF M 16V RA-2 OA10701620

CS96 nsp ELECT. 100µF M 16V RA-2 OA10701620

PS54-CAPACITORS(COMMON)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

CQ80 CS90-CS94

PS54-RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : RQ71-RQ74

RQ77-RQ86 RS71-RS74

RS77-RS82 RS85-RS89

PS54-SEMICONDUCTORS

QQ71 HC10053090 IC NJM-2068-DD HC10053090

QQ72 HC10053090 IC NJM-2068-DD HC10053090

QS70 HC10123090 IC NJU7311L ANALOG SWITCH HC10123090

QS71 HC10053090 IC NJM-2068-DD HC10053090

QS72 HC10053090 IC NJM-2068-DD HC10053090

JS70 YT02041330 TERMINAL YKC21-3601 2L4P FG

PS54-MISCELLANEOUS

YT02041330

BK AU

JS71 YT02041330 TERMINAL YKC21-3601 2L4P FG

YT02041330

BK AU

PX04-S-VIDEO

CUIT BOARD
PX04-CAPACITORS

CX05 nsp CER. 47pF J CH 50V BLK DD15470300

CX06 nsp CER. 47pF J CH 50V BLK DD15470300

CX07 nsp CER. 47pF J CH 50V BLK DD15470300

CX08 nsp CER. 47pF J CH 50V BLK DD15470300

CX09 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CX10 nsp ELECT. 22µF M 16V RA-2 OA22601620

CX11 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CX12 nsp ELECT. 22µF M 16V RA-2 OA22601620

CX25

nsp ELECT. 10µF M 50V RA-2 OA10605020

CX34

CX35 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CX36 nsp ELECT. 22µF M 16V RA-2 OA22601620

CX37 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX38 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX39 nsp ELECT. 470µF M 6.3V RA-2 OA47700620

CX40 nsp ELECT. 22µF M 16V RA-2 OA22601620

CX41 nsp CER. 0.01µF Z 50V DK18103310

CX42 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX44 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX45 nsp ELECT. 100µF M 10V RA-2 OA10701020

CX48 nsp ELECT. 100µF M 10V RA-2 OA10701020

CX51 nsp CER. 47pF J CH 50V BLK DD15470300

CX53 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX54 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX55 nsp CER. 0.01µF Z 50V DK18103310

CX56 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX57 nsp CER. 0.01µF Z 50V DK18103310

CX58 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX61 nsp CER. 0.01µF Z 50V DK18103310

CX62 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX64 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX65 nsp ELECT. 100µF M 10V RA-2 OA10701020

CX68 nsp ELECT. 100µF M 10V RA-2 OA10701020

CX69 nsp CER. 0.01µF Z 50V DK18103310

CX71 nsp CER. 47pF J CH 50V BLK DD15470300

CX72 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX73 nsp CER. 0.01µF Z 50V DK18103310

CX74 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX75 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX79 nsp ELECT. 100µF M 10V RA-2 OA10701020

CX80 nsp ELECT. 1µF M 50V RA-2 OA10505020

CX81 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX83 nsp ELECT. 100µF M 10V RA-2 OA10701020

CX84 nsp CER. 0.01µF Z 50V DK18103310

CX85 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX86 nsp CER. 0.01µF Z 50V DK18103310

CX87 nsp CER. 0.01µF Z 50V DK18103310

CX88 nsp ELECT. 10µF M 50V RA-2 OA10605020

CX89 nsp CER. 0.01µF Z 50V DK18103310

CX91 nsp CER. 20pF J CH 50V BLK DD15200300

CX92 nsp CER. 20pF J CH 50V BLK DD15200300

CX93 nsp CER. 47pF J CH 50V BLK DD15470300

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

94

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

PX04-RESISTORS

RX01

nsp RES. 75Ω ±5% 1/6W GD05750160

RX20
RX29 nsp RES. 75Ω ±5% 1/6W GD05750160
RX37 nsp RES. 75Ω ±5% 1/6W GD05750160
RX38 nsp RES. 75Ω ±5% 1/6W GD05750160
RX39 nsp RES. 75Ω ±5% 1/6W GD05750160
RX40 nsp RES. 75Ω ±5% 1/6W GD05750160

PX4-RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W :

RX28 RX30-RX34 RX36

PX04-SEMICONDUCTORS

QX01 HC10143090 IC NJM2234D DIP HC10143090

QX02 HC10227090 IC NJM2595D 5IN30UT VIDEO SEL HC10227090

QX03 HC10143090 IC NJM2234D DIP HC10143090

QX04 HC10227090 IC NJM2595D 5IN30UT VIDEO SEL HC10227090

QX05 HC10221090 IC NJM2249D HC10221090

QX06 HC10222090 IC NJM2235D HC10222090

QX07 HC10220210 IC BA7622 DIP HC10220210

PX04-MISCELLANEOUS

JX01 YT02021520 TERMINAL 2P S-VIDEO JACK GL YT02021520

JX02 YT02021520 TERMINAL 2P S-VIDEO JACK GL YT02021520

JX03 YT02030550 TERMINAL 3P S-VIDEO JACK GL YT02030550

JX04 YT02030550 TERMINAL 3P S-VIDEO JACK GL YT02030550

JX07 YP06902270 PLUG 05MQ-ST-L YP06902270

LX01 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LX02 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

PY04-CONNECTOR

CUIT BOARD
PY04-CAPACITORS

C851 nsp CER. 0.01µF Z 50V DK18103310

C852 nsp CER. 0.01µF Z 50V DK18103310

C853 nsp ELECT. 2200µF M 35V RA-2 OA22803520

C854 nsp ELECT. 2200µF M 35V RA-2 OA22803520

C855 nsp CER. 0.01µF Z 50V DK18103310

C856 nsp CER. 0.01µF Z 50V DK18103310

C859 nsp ELECT. 100µF M 16V RA-2 OA10701620

C860 nsp ELECT. 100µF M 16V RA-2 OA10701620

C861 nsp CER. 0.01µF Z 50V DK18103310

C862 nsp CER. 0.01µF Z 50V DK18103310

C863 EA22901010 ELECT CAP. 22000µF 10V EA22901010

C864 nsp ELECT. 2200µF M 35V RA-2 OA22803520

C865 nsp CER. 0.01µF Z 50V DK18103310

C866 nsp CER. 0.01µF Z 50V DK18103310

C867 nsp CER. 0.01µF Z 50V DK18103310

C868 nsp CER. 0.01µF Z 50V DK18103310

C869 nsp ELECT. 100µF M 16V RA-2 OA10701620

C870 nsp ELECT. 100µF M 16V RA-2 OA10701620

C871 nsp CER. 0.01µF Z 50V DK18103310

C872 nsp CER. 0.01µF Z 50V DK18103310

C873 nsp ELECT. 100µF M 16V RA-2 OA10701620

C874 nsp ELECT. 100µF M 10V RA-2 OA10701020

C875 nsp ELECT. 100µF M 16V RA-2 OA10701620

C876 nsp CER. 0.01µF Z 50V DK18103310

C877 nsp CER. 0.01µF Z 50V DK18103310

C878 nsp ELECT. 100µF M 16V RA-2 OA10701620

C879 nsp ELECT. 100µF M 16V RA-2 OA10701620

C901 /N nsp ELECT. 10µF M 50V RA-2 OA10605020

C902 /N nsp CER. 0.01µF Z 50V DK18103310

C903 /N nsp ELECT. 10µF M 50V RA-2 OA10605020

C912 /N nsp ELECT. 10µF M 50V RA-2 OA10605020

C914 /N nsp CER. 22pF J CH 50V BLK DD15220300

C915 /N nsp CER. 27pF J CH 50V BLK DD15270300

C951 /N nsp ELECT. 4.7µF M 50V RA-2 OA47505020

C952 /N nsp ELECT. 4.7µF M 50V RA-2 OA47505020

C955 /N nsp ELECT. 4.7µF M 50V RA-2 OA47505020

C956 /N nsp ELECT. 4.7µF M 50V RA-2 OA47505020

C957 /N nsp ELECT. 4.7µF M 50V RA-2 OA47505020

C958 /N nsp ELECT. 4.7µF M 50V RA-2 OA47505020

C959 /N nsp CER. 0.01µF Z 50V DK18103310

C960 /N nsp CER. 0.01µF Z 50V DK18103310

CT07 /N nsp CER. 0.01µF Z 50V DK18103310

CT08 /N nsp CER. 0.01µF Z 50V DK18103310

CT09 /N nsp ELECT. 100µF M 16V RA-2 OA10701620

CW01 nsp ELECT. 10µF 16V ARA OA10601650

CW02 nsp ELECT. 10µF 16V ARA OA10601650

CW05 nsp ELECT. 10µF 16V ARA OA10601650

CW06 nsp ELECT. 10µF 16V ARA OA10601650

CW31 nsp ELECT. 10µF M 50V RA-2 OA10605020

CW32 nsp ELECT. 10µF M 50V RA-2 OA10605020

CW35 nsp ELECT. 10µF M 50V RA-2 OA10605020

CW36 nsp ELECT. 10µF M 50V RA-2 OA10605020

CW37 nsp CER. 0.01µF Z 50V DK18103310

CW38 nsp CER. 0.01µF Z 50V DK18103310

CY01 nsp CER. 0.01µF Z 50V DK18103310

PY04-CAPACITORS(COMMON)

HIGH DIELECTRIC CONSTANT

CER.CAPACITOR ±10% 50V :

C904-C906 C953 C954 CM83

CM86 CT02 CT03

PY04- RESISTORS(COMMON)

CARBON FILM FIXED RES.

±5% 1/6W : R901-R904

R951-R962 RM81 RM83-RM85

RT01 RT02 RW01-RW04

RW31-RW34

PY04-SEMICONDUCTORS

D851

D857 nsp DIODE 1D3 1A/200V HD20002710

D858

D859 nsp DIODE 1GWJ43 HD20031050

D860 nsp DIODE 1D3 1A/200V HD20002710

D861 HE20011290 DIODE S2VB20 HE20011290

D862 nsp DIODE 1D3 1A/200V HD20002710

D863 nsp DIODE 1D3 1A/200V HD20002710

D864 nsp DIODE 1D3 1A/200V HD20002710

D865 HD30301000 ZENER DIODE MTZJ3.0B HD30301000

D866 nsp DIODE 1D3 1A/200V HD20002710

D867 nsp DIODE 1D3 1A/200V HD20002710

D868 nsp DIODE 1D3 1A/200V HD20002710

DM81

nsp DIODE HD20002000

DM93 1SS176 MA165 1SS254 30V 0.1A

DT01 /N nsp DIODE 1D3 1A/200V HD20002710

Q851 HC3891509F IC REG. NJM7815FA +15V 1A HC3891509F

Q852 HC3991509F IC REG. NJM7915FA HC3991509F

Q853 HC3890509F IC REG. NJM7805FA +5V HC3890509F

Q854 HC3990509F IC REG. NJM7905FA HC3990509F

Q855 HC3890509F IC REG. NJM7805FA +5V HC3890509F

Q856 HC36J3321F IC REG. BA033T +3.3V 1A HC36J3321F

Q857 HT347932A0 TRS. 2SC4793 O Y HT347932A0

Q858 HT347932A0 TRS. 2SC4793 O Y HT347932A0

Q901 /N HC10404030 IC LC72722 RDS DECODER HC10404030

Q902 /N HT30001000 TRS. C2458 C1740S C3199 ETC. HT30001000

Q903 /N BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

Q904 /N BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

Q951 /N HC10008090 IC NJM4558D-D HC10008090

QM81 HC709449B0 IC 74HC4094 16PIN DIP PHILIPS HC709449B0

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

95

VERS.

POS.

NO

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

QM82 HC709449B0 IC 74HC4094 16PIN DIP PHILIPS HC709449B0

QM83

BA10001000 DIG. TRS. BA10001000

QM88 DTA114ES/UN4111 10K 10K

QM89 BA20001000 DIG. TRS. D

BA20001000

TC114ES/UN4211 10K 10K

QM90 BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

QT02 /N BA20001000 DIG. TRS.

BA20001000

DTC114ES/UN4211 10K 10K

QT03 /N HC3891209F IC REG. NJM7812FA +12V HC3891209F

QT04 /N BA10001000 DIG. TRS.

BA10001000

DTA114ES/UN4111 10K 10K

QW01 HC10053090 IC DUAL NJM2068DD HC10053090

QW31 HC10008090 IC NJM4558D-D HC10008090

QY01 HC736805B0 IC TC74HC368AP HC736805B0

PY04-MISCELLANEOUS

F851 /N FS20200200 FUSE T2.0A 250V TR5 FS20200200

F852 /N FS20200200 FUSE T2.0A 250V TR5 FS20200200

F853 /N FS20200200 FUSE T2.0A 250V TR5 FS20200200

F854 /N FS20200200 FUSE T2.0A 250V TR5 FS20200200

JY04 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

JY05 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

JY06 YJ06031800 JACK JACK B04P-MQ-C YJ06031800

JY07 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

JY09 YJ06031810 JACK JACK B06MQ-C YJ06031810

JY11 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

JY13 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

JY14 YJ06030450 JACK BASE POST 12P B12P-MQ-C YJ06030450

JY15 YJ06030440 JACK BASE POST 9P B09P-MQ-C YJ06030440

JY17 YJ06030440 JACK BASE POST 9P B09P-MQ-C YJ06030440

L901 /N FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

L911 /N FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LT05 /N FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

LT06 /N FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

96
