Marantz SACD 10 User guide

Download

Page 1

Super Audio CD Player

Owner’s Manual

Page 2

Contents Connections Playback Settings Tips Appendix

Accessories

Inserting the batteries Operating range of the remote control unit

Part names and functions

Front panel Rear panel Remote control unit

Connections

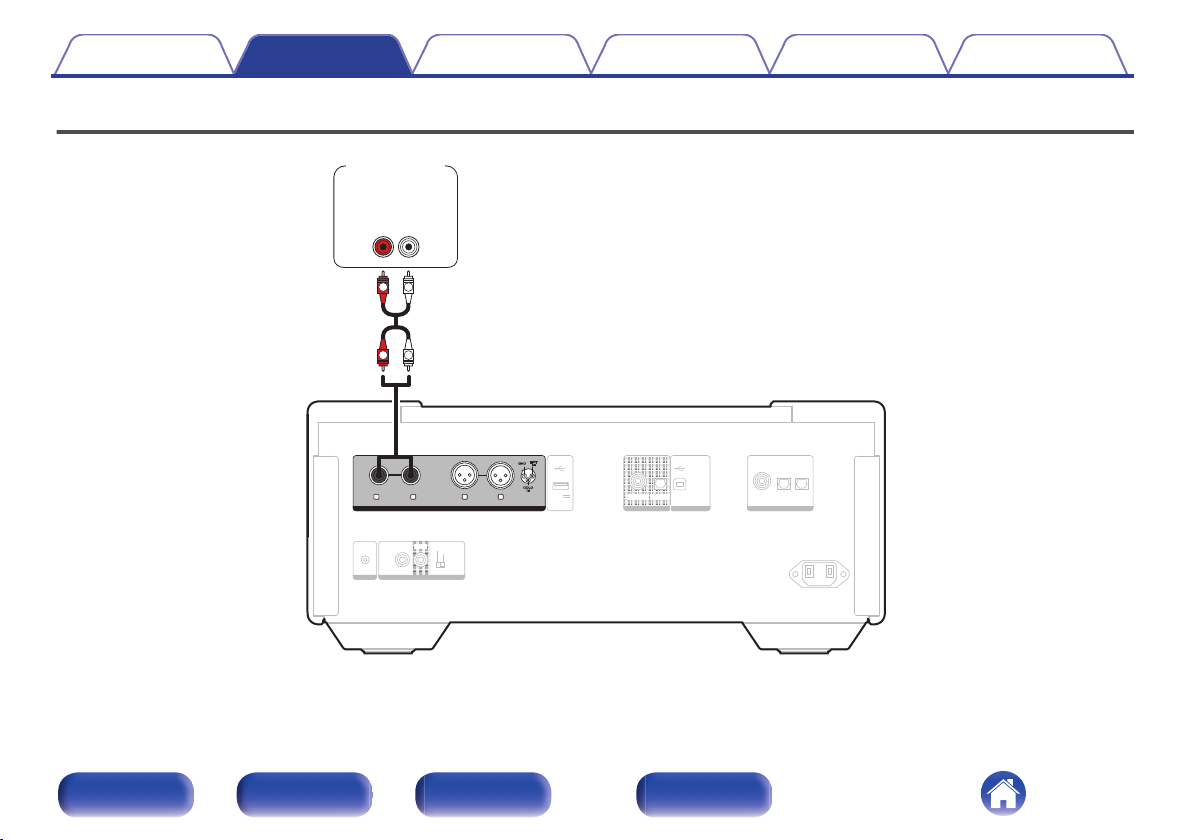

Connecting an amplifier Connecting to a device with digital audio input connectors Connecting to a device with digital audio output connectors Connecting a PC or Mac Connecting a USB flash drive to the USB port Connecting an external control device

FLASHER IR IN jack REMOTE CONTROL connectors

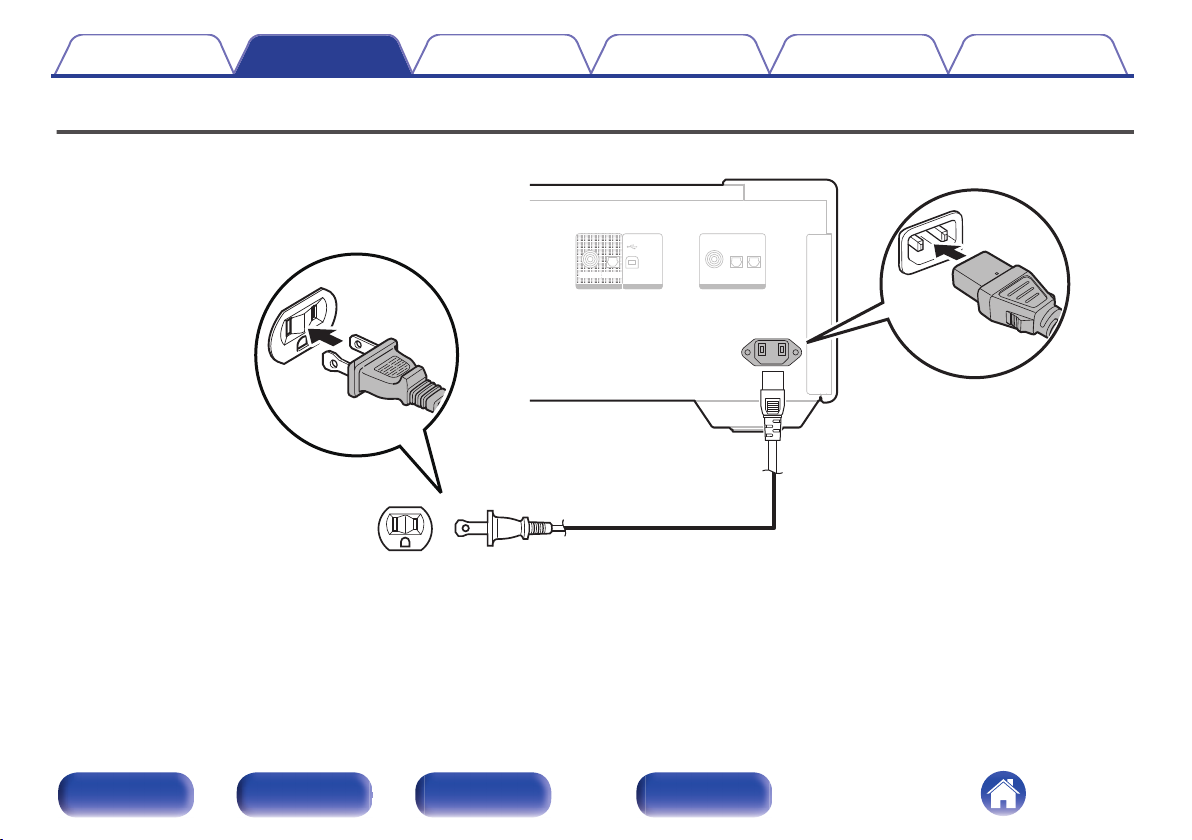

Connecting the power cord

Playback

Basic operation

Turning the power on

Switching the power to standby

7 10 12

19 21 22 23 24 25

25 26

Selecting the input source Switching the display’s brightness Turning the illumination and display on/off

Playing CDs/Super Audio CDs

Playing CDs and Super Audio CDs Setting the top priority playback layer for Super Audio CDs

Playing Data CDs and Data DVDs

Playing files

Playing a USB flash drive

Playing files stored on USB flash drives

Using as a D/A converter

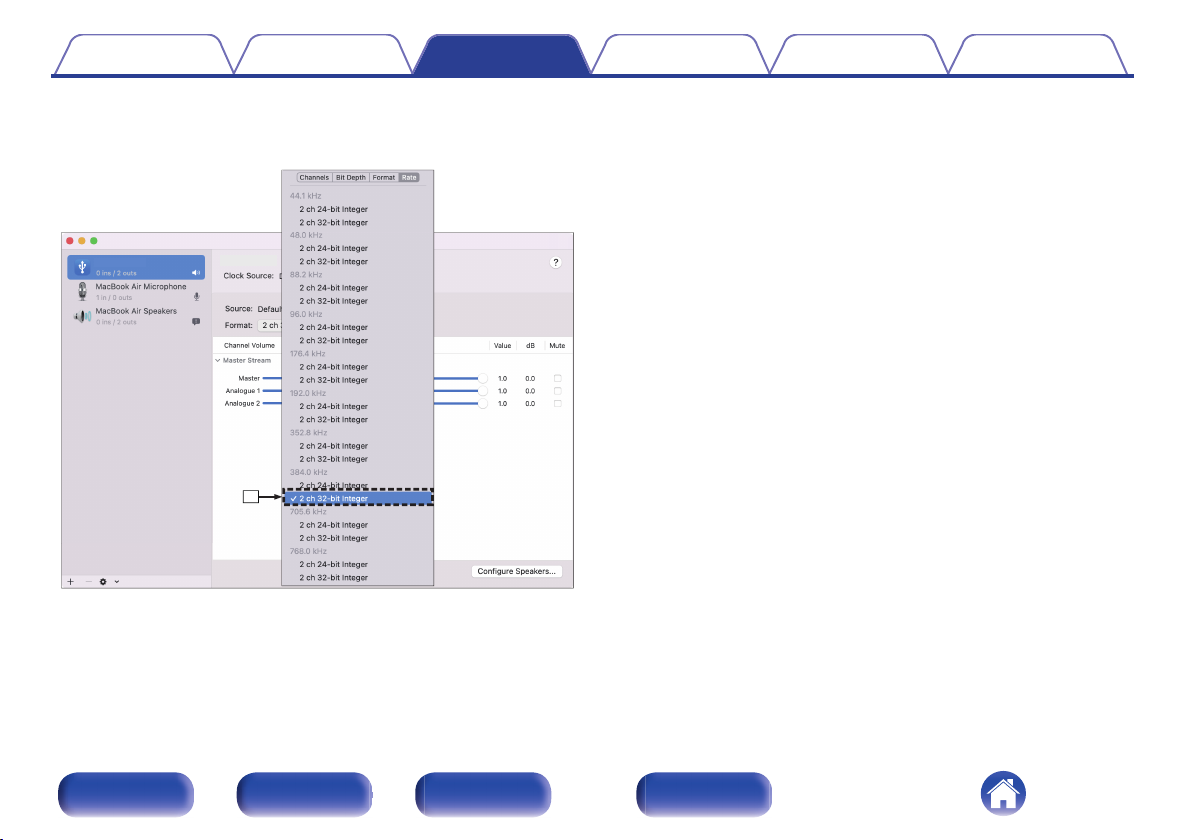

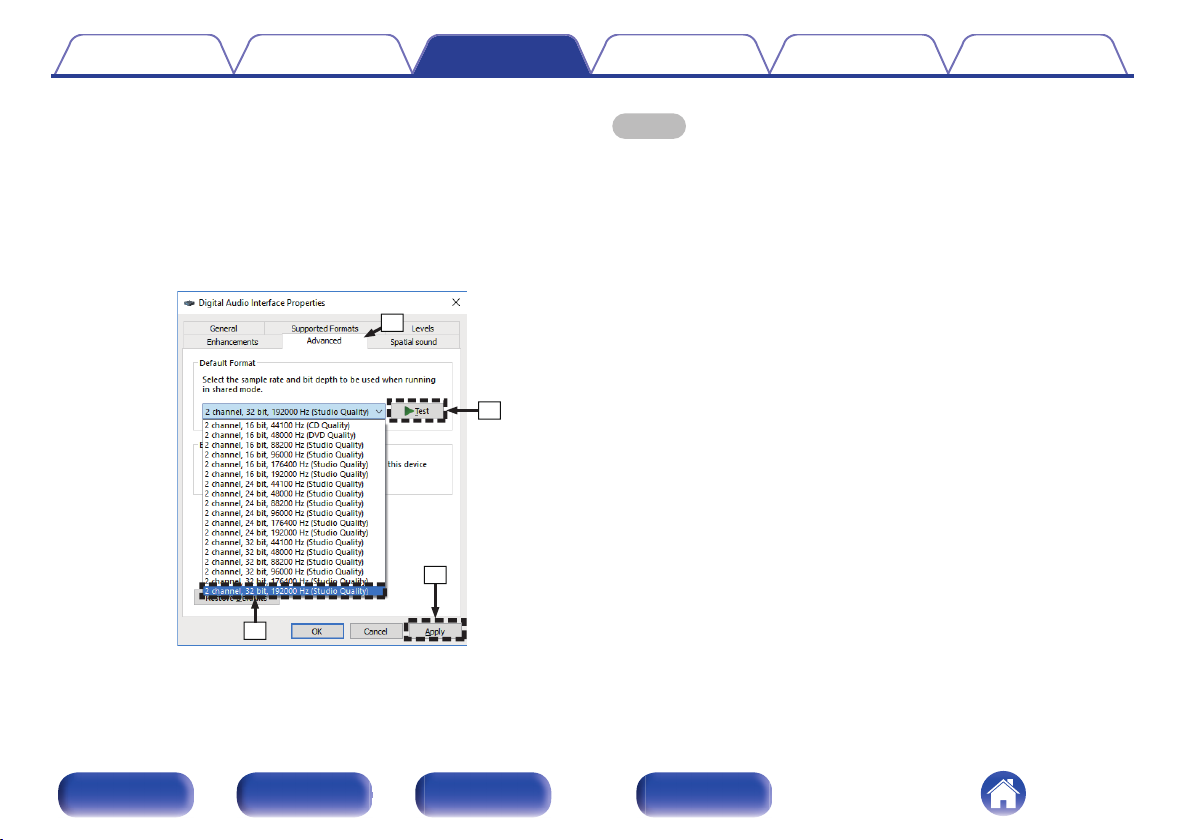

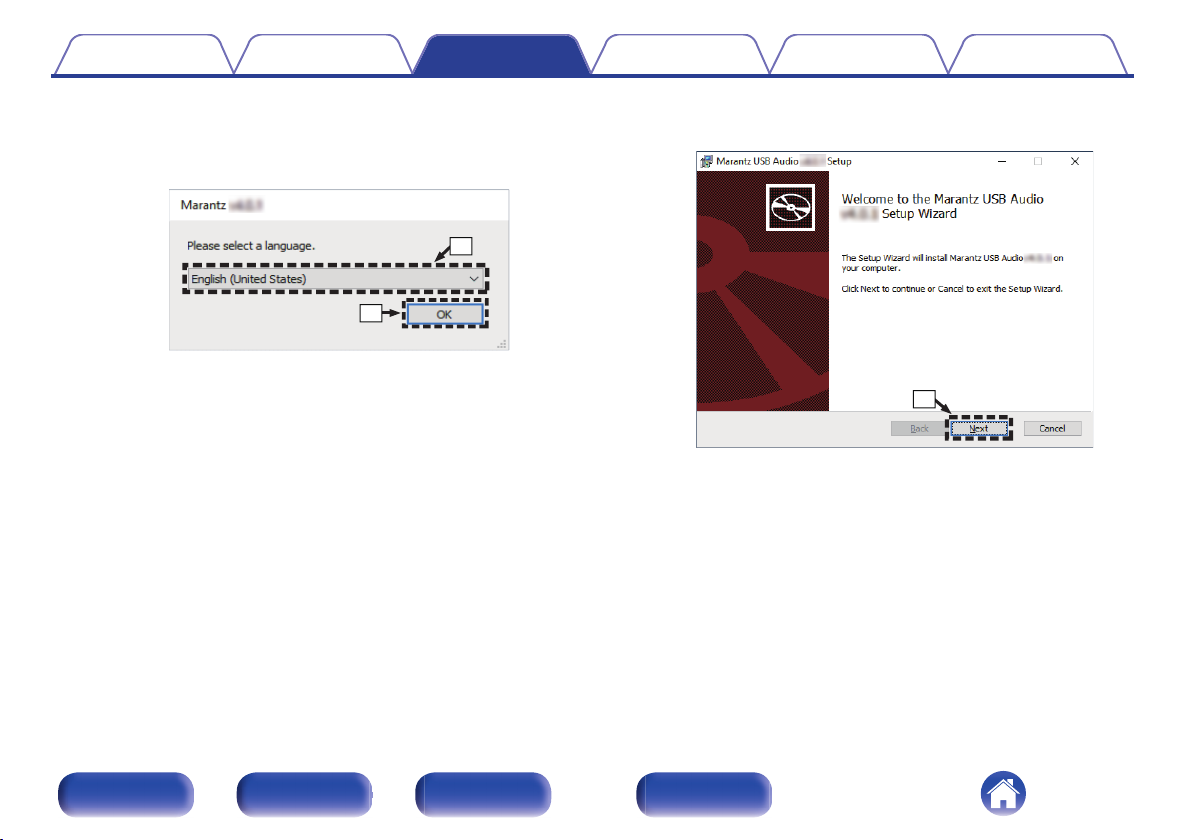

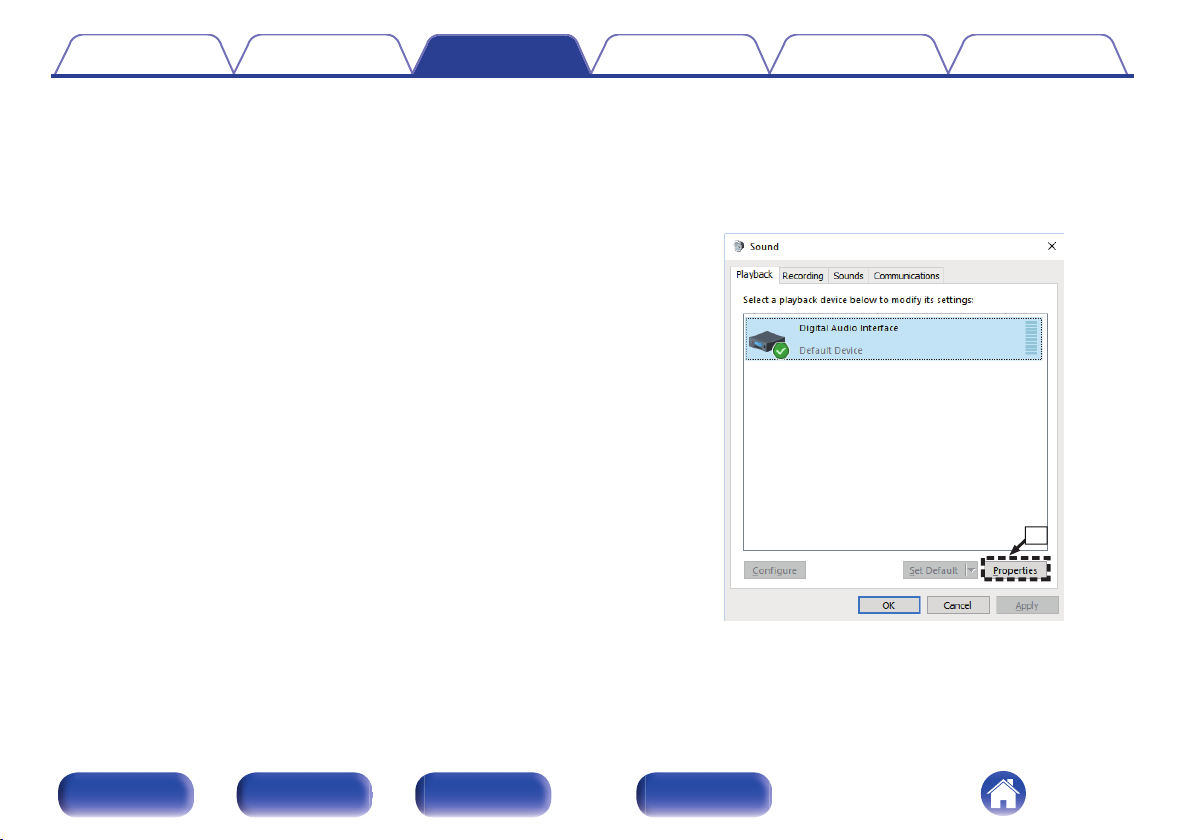

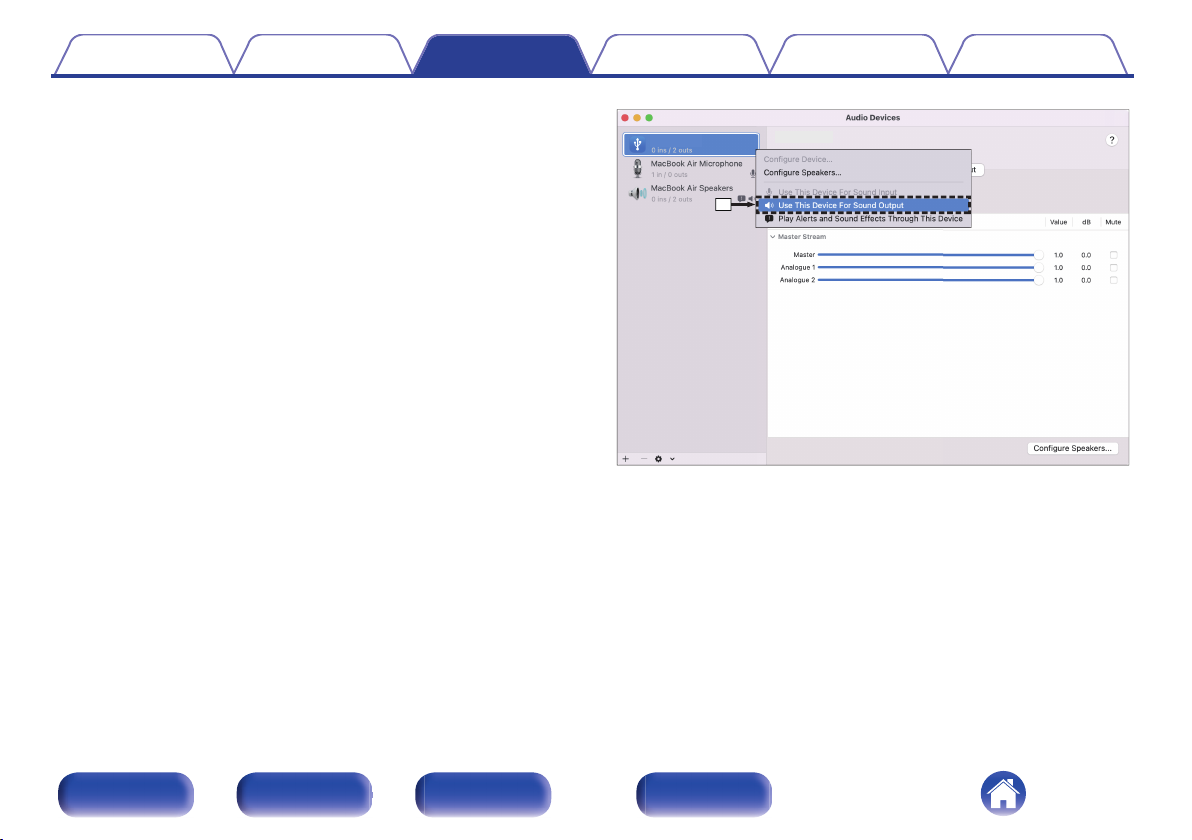

Connecting and playing back from a computer (USB-DAC) Connecting and playing back from a digital device (Coaxial/

Optical 1/Optical 2)

30 30 31 31 32

33 36

Front panel Rear panel Remote control

unit

Index

Page 3

Contents Connections Playback Settings Tips Appendix

Settings

Menu map

Menu operation

Audio

Filter Dither Noise Shaper Digital Out HP Amplifier Gain Resume Play

General

Illumination Auto-Standby

Disabling amplifier/streaming preamplifier operating mode on remote control

Disabling amplifier operating mode Disabling streaming preamplifier operating mode

Setting the device to be operated by the volume buttons on the remote control

Setting the device to be operated by the volume buttons in SACD player operating mode

Tips

Troubleshooting

55 55 56 56 57 57

58 58

60 60

Power does not turn on / Power is turned off Operations cannot be performed through the remote control unit Display on this unit shows nothing No sound comes out Sound is interrupted or noise occurs Desired sound does not come out USB flash drives cannot be played back Cannot playback Discs There is a delay before the disc tray starts to open Music files on PC or Mac cannot be played back (USB-DAC) Audio from digital devices cannot be played back (Coaxial/

Optical)

64 66

67 68 69 69 70 70 71 72 72 73

Front panel Rear panel Remote control

unit

Index

Page 4

Contents Connections Playback Settings Tips Appendix

Appendix

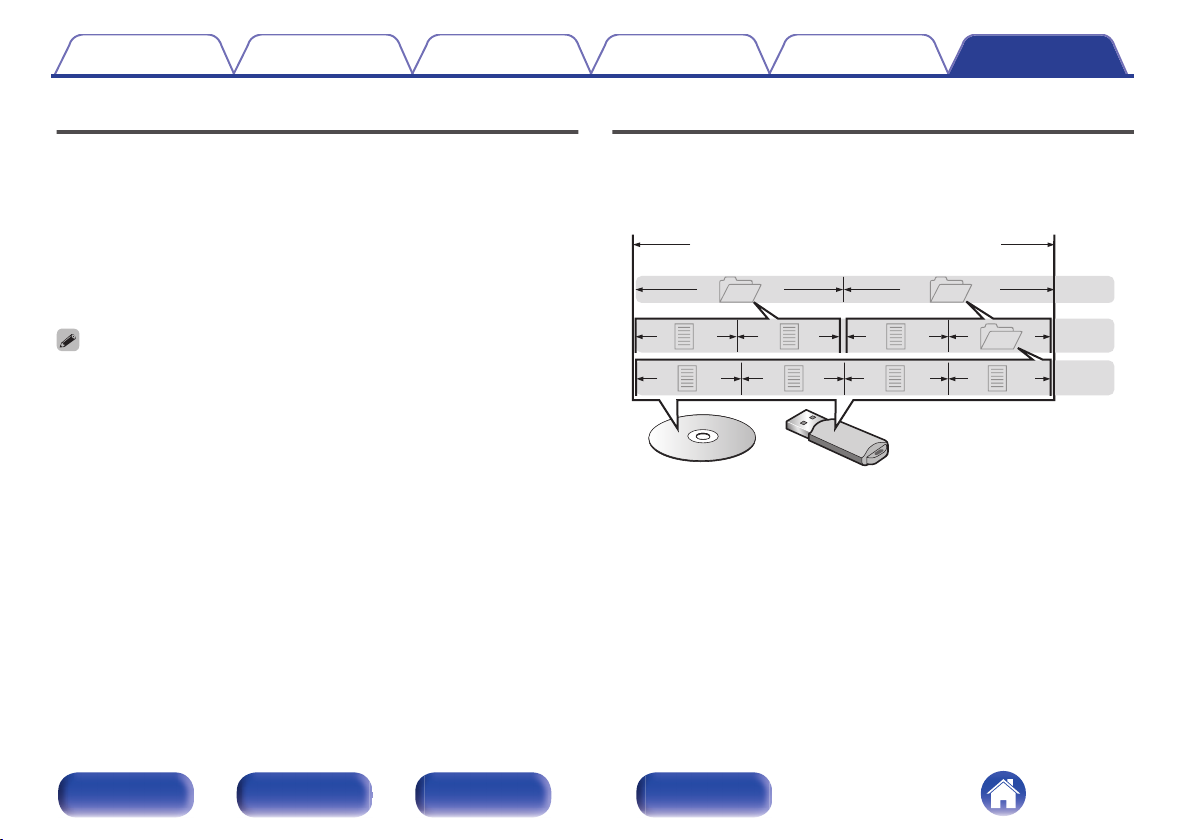

Playing back Discs Playing back a USB flash drives Playback order of music files About discs and files Cautions on using media

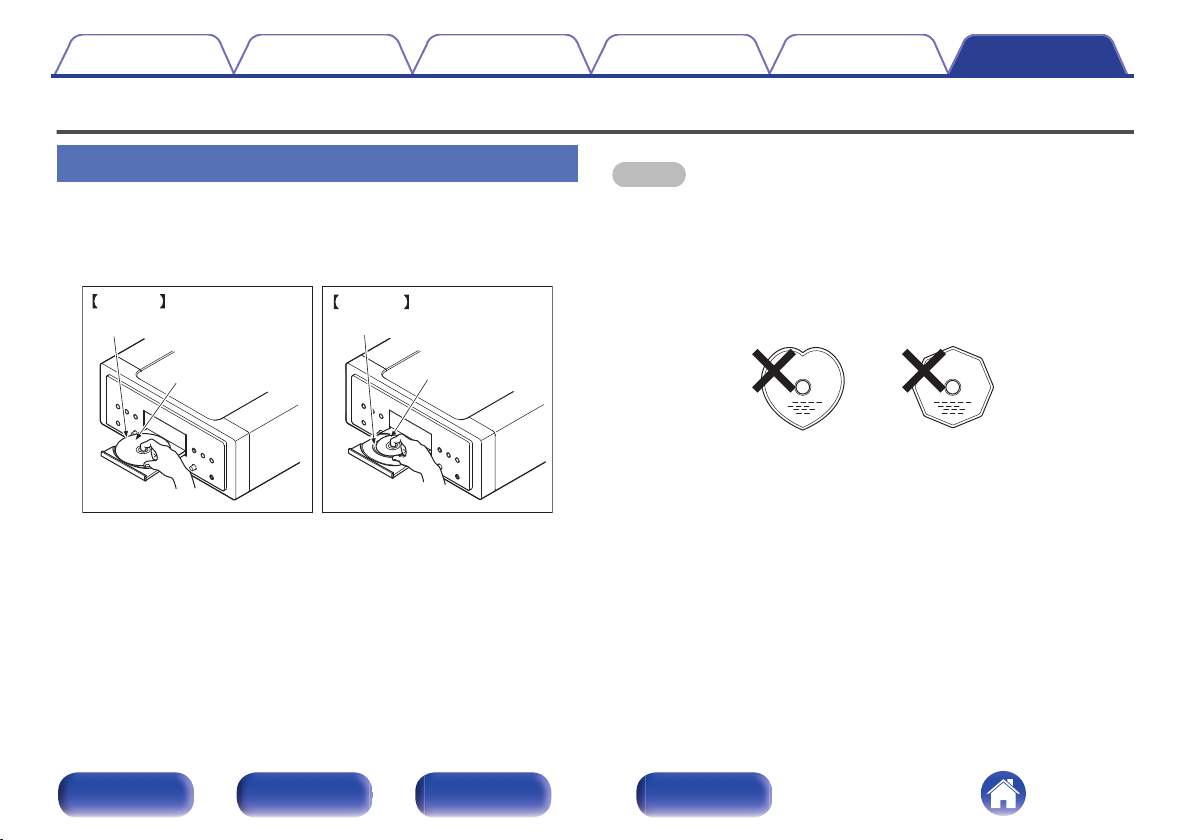

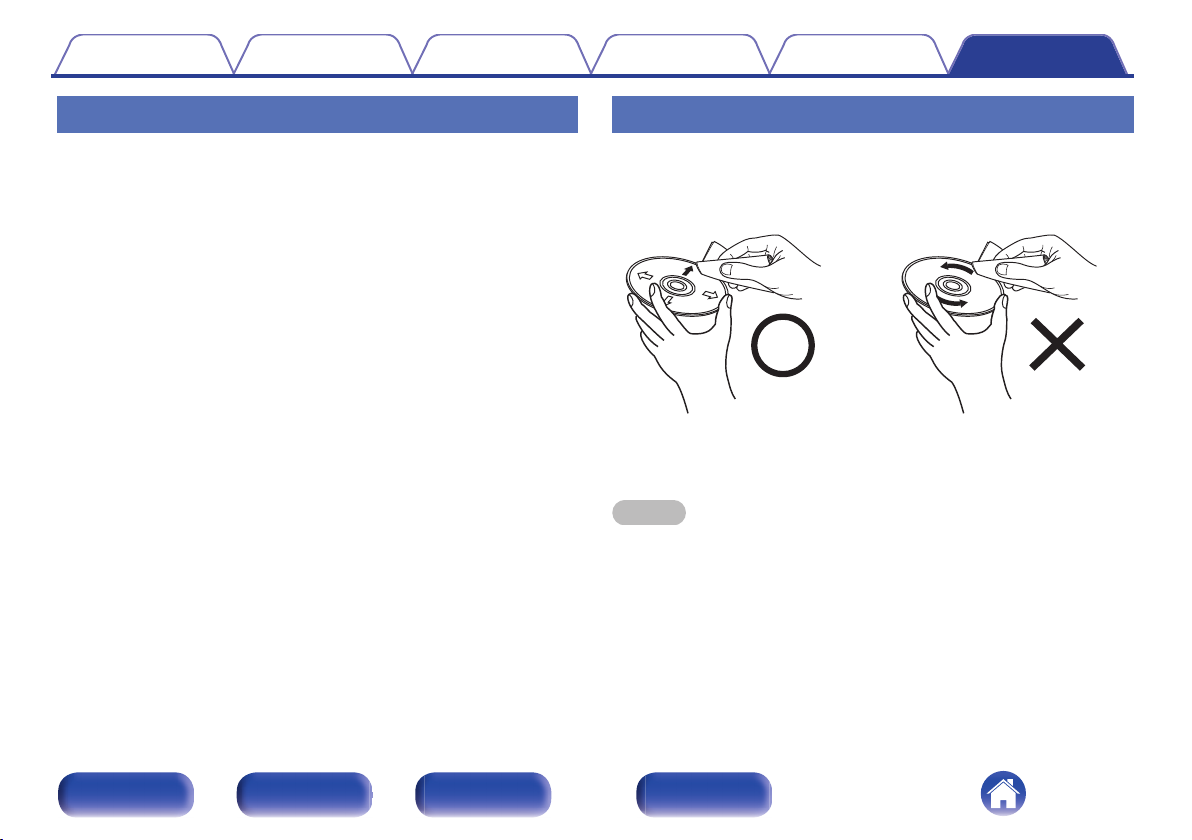

Loading discs How to handle media Cleaning discs

Digital input Explanation of terms Specifications Index

74 77 79 79 80

80 81 81

82 83 85 88

Front panel Rear panel Remote control

unit

Index

Page 5

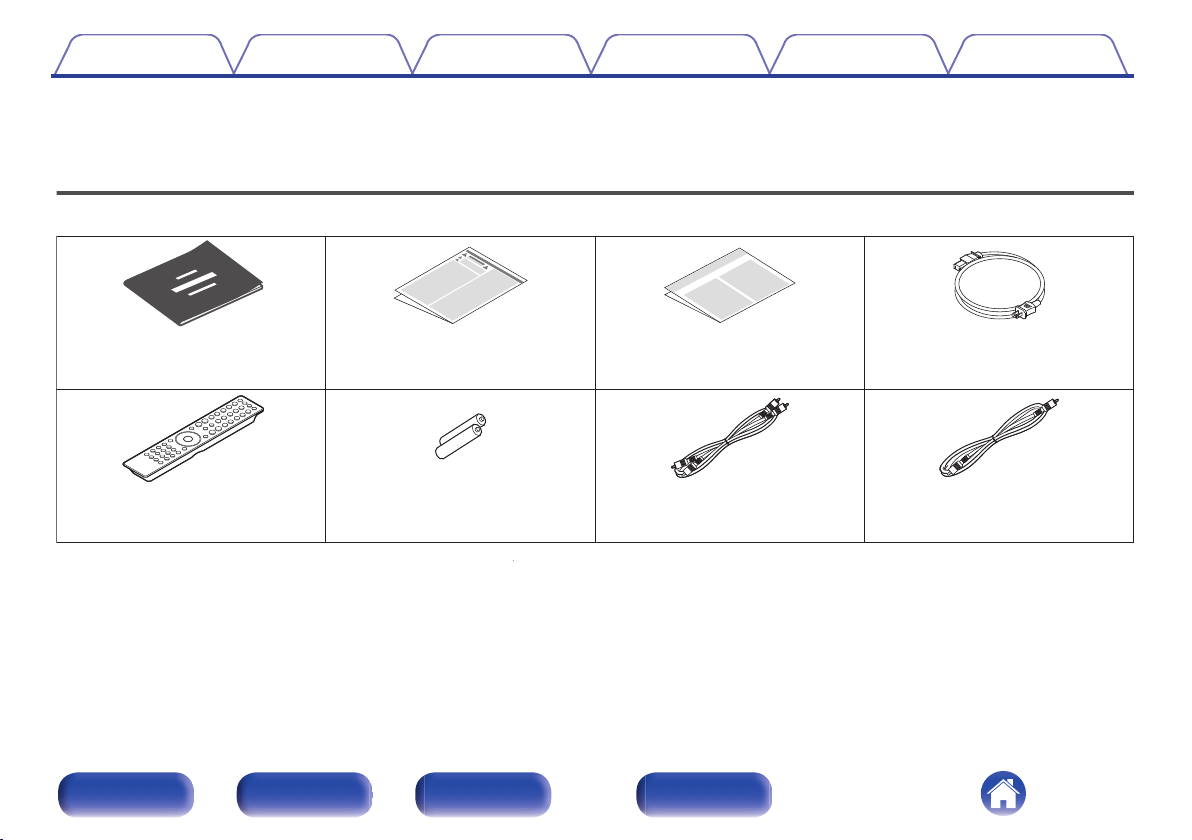

Power cordWarranty

(for North America model only)

Safety InstructionsQuick Start Guide

Remote connector cable

Audio cable

2× R03/AAA batteries

Remote control unit

(RC004PMND)

Contents Connections Playback Settings Tips Appendix

Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Front panel Rear panel Remote control

unit

Index

Page 6

Batteries

Approx. 23 ft/7 m

30° 30°

Contents

Connections Playback Settings Tips Appendix

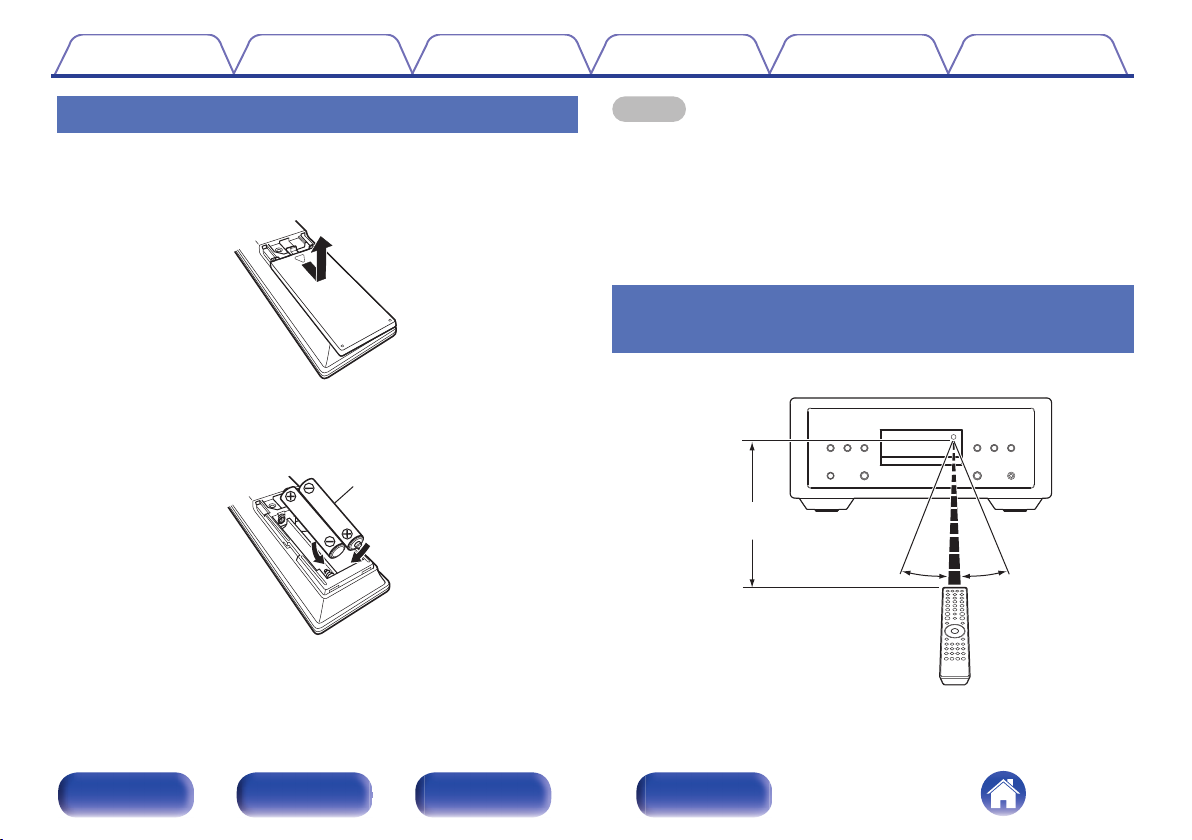

Inserting the batteries

Remove the rear lid in the direction of the arrow and

remove it.

Insert two batteries correctly into the battery

compartment as indicated.

Put the rear lid back on.

NOTE

To prevent damage or leakage of battery fluid:

Do not use a new battery together with an old one.

Do not use two different types of batteries.

Remove the batteries from the remote control unit if it will not be in use for long

periods. If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Front panel Rear panel Remote control

unit

Index

Page 7

u iyew r t o Q0 Q1q

Q2 Q3 Q4

Contents

Connections Playback Settings Tips Appendix

Part names and functions

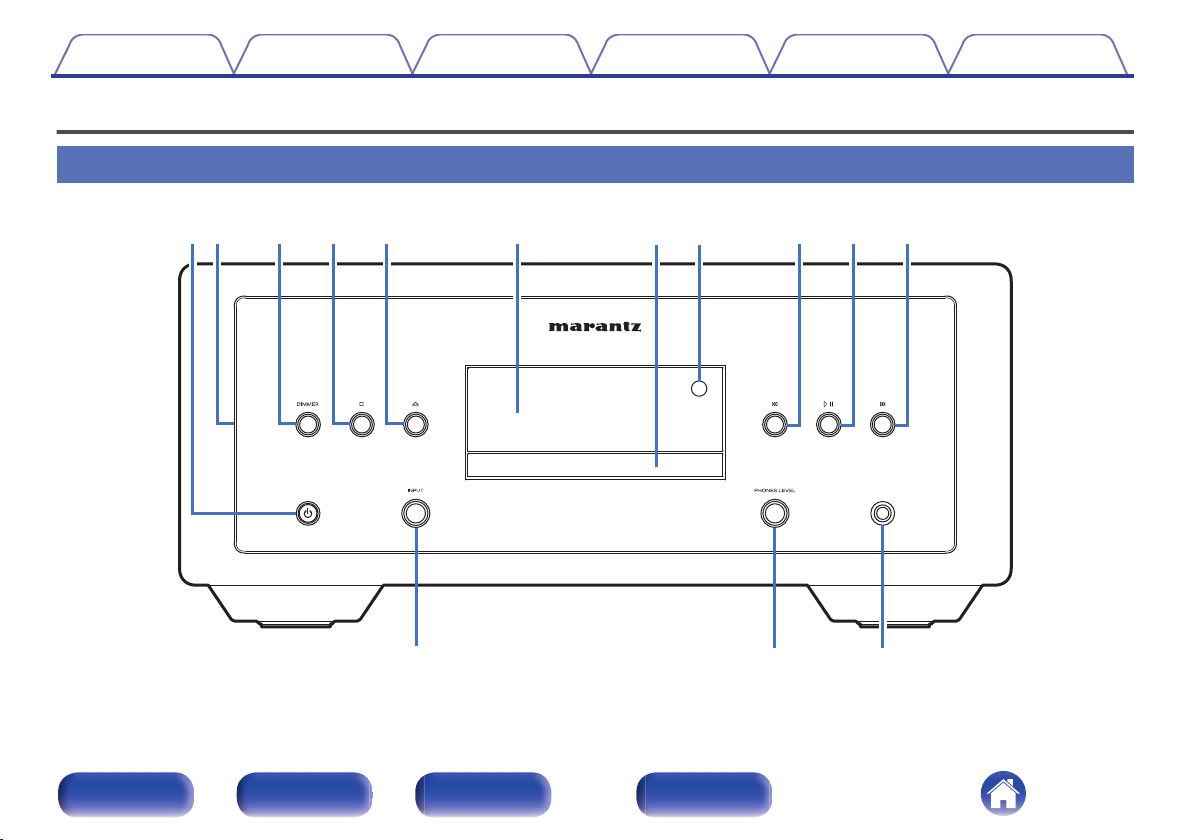

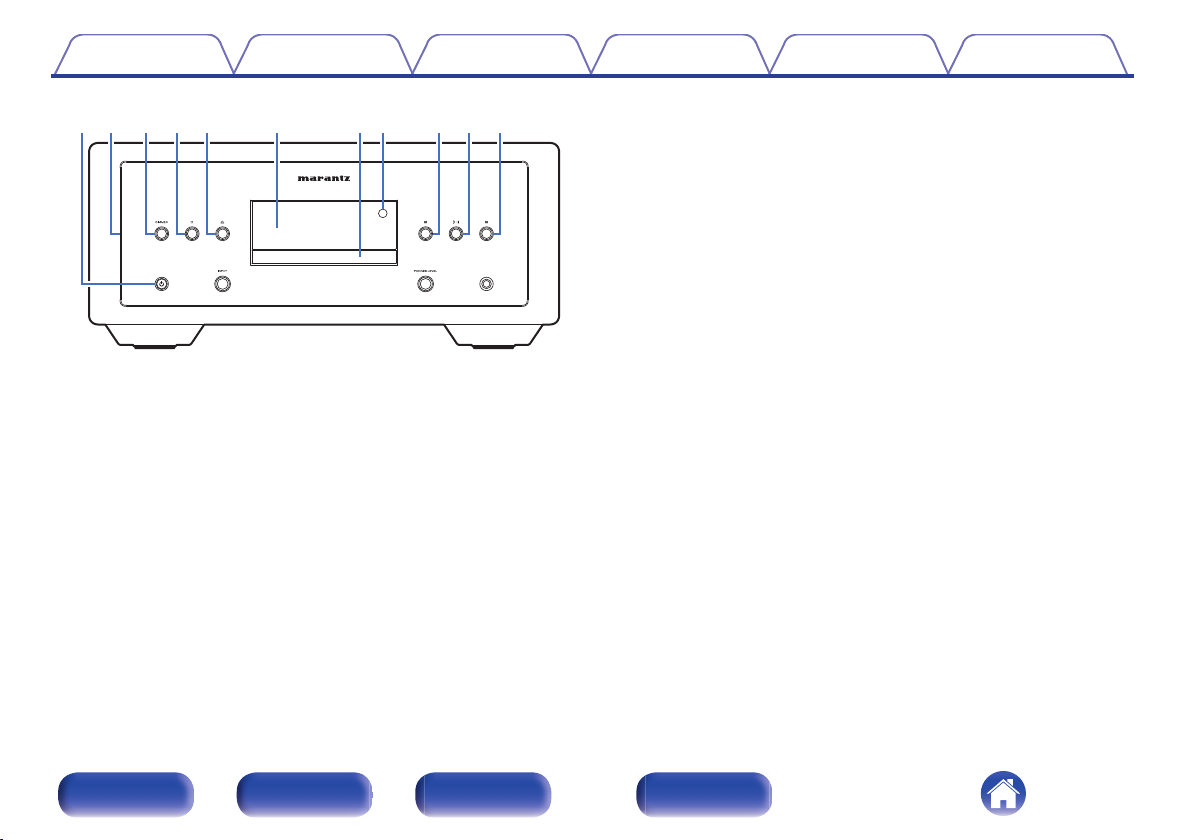

Front panel

For details, see the next page.

Front panel Rear panel Remote control

unit

Index

Page 8

iyewqrt oQ0 Q1u

Contents

Power (X) button/indicator

This turns the power on/off (standby). (v p. 30)

This is lit as follows according to the power status:

Power on : White

Standby : Off

When the protection circuit is activated : Orange (blinking)

Illumination

This illuminates when the power is turned on. Brightness can be changed and lighting turned off.

“Turning the illumination and display on/off” (v p. 32)

“Illumination” (v p. 58)

Connections Playback Settings Tips Appendix

DIMMER button

This switches the brightness of the display. (v p. 31)

Stop button (i)

Press this button to stop during playback.

Disc tray open/close button (q)

Opens and closes the disc tray. (v p. 33)

Display

Various information is displayed here.

Disc tray

Used to insert a disc.

Remote control sensor

This receives signals from the remote control unit. (v p. 6)

Reverse-skip button (k)

Press this button during playback to restart the current track or play the previous track.

Play/Pause button (p)

Press this button to pause during playback. If pressed while paused or stopped, resumes playback.

Forward-skip button (j)

Press this button during playback to play the next track.

Front panel Rear panel Remote control

unit

Index

Page 9

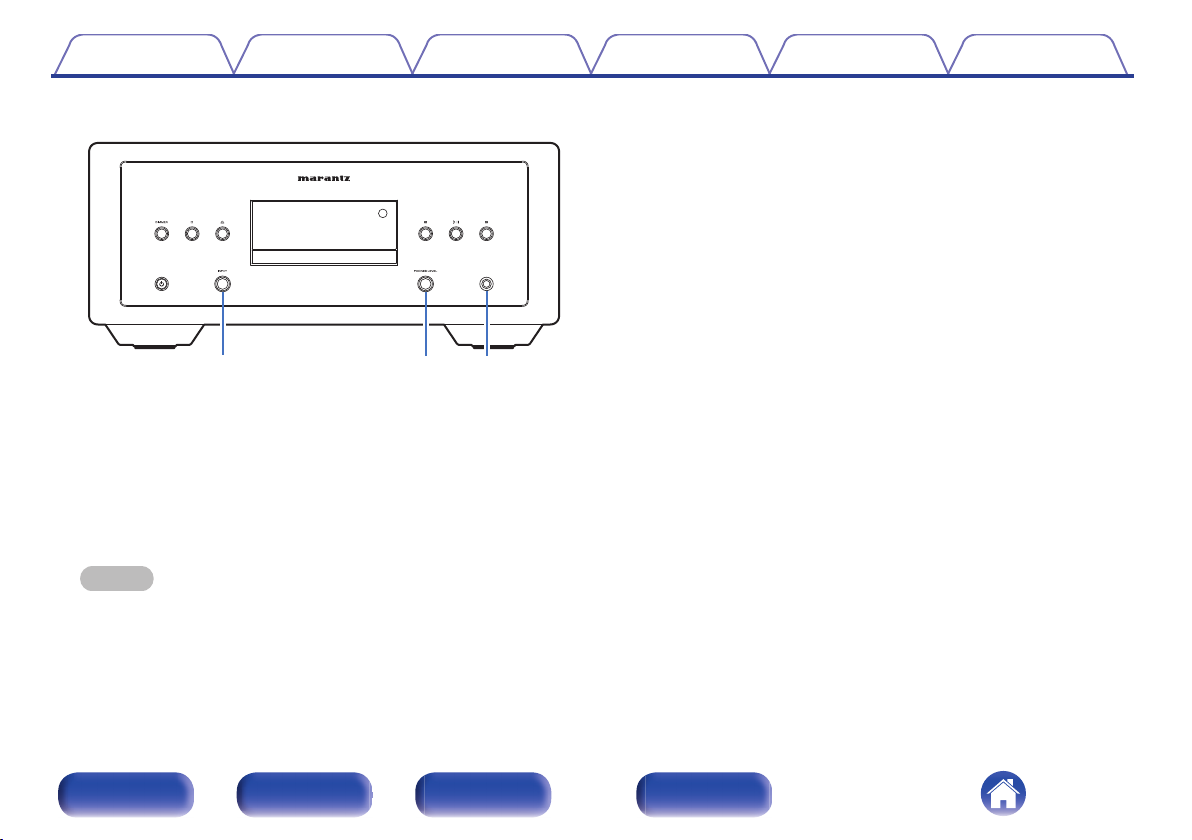

Q2 Q3 Q4

Contents Connections Playback Settings Tips Appendix

INPUT selector knob

This selects the input source. (v p. 31)

Headphone volume control knob (PHONES LEVEL)

Adjusts the headphone volume.

Headphones jack

Used to connect headphones.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using

headphones.

Front panel Rear panel Remote control

unit

Index

Page 10

IR IN

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

BALANCED

LINE OUT

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

R L R L

5V/1A

UNBALANCED

COAXIAL

AC IN

wqre

uyti

Contents

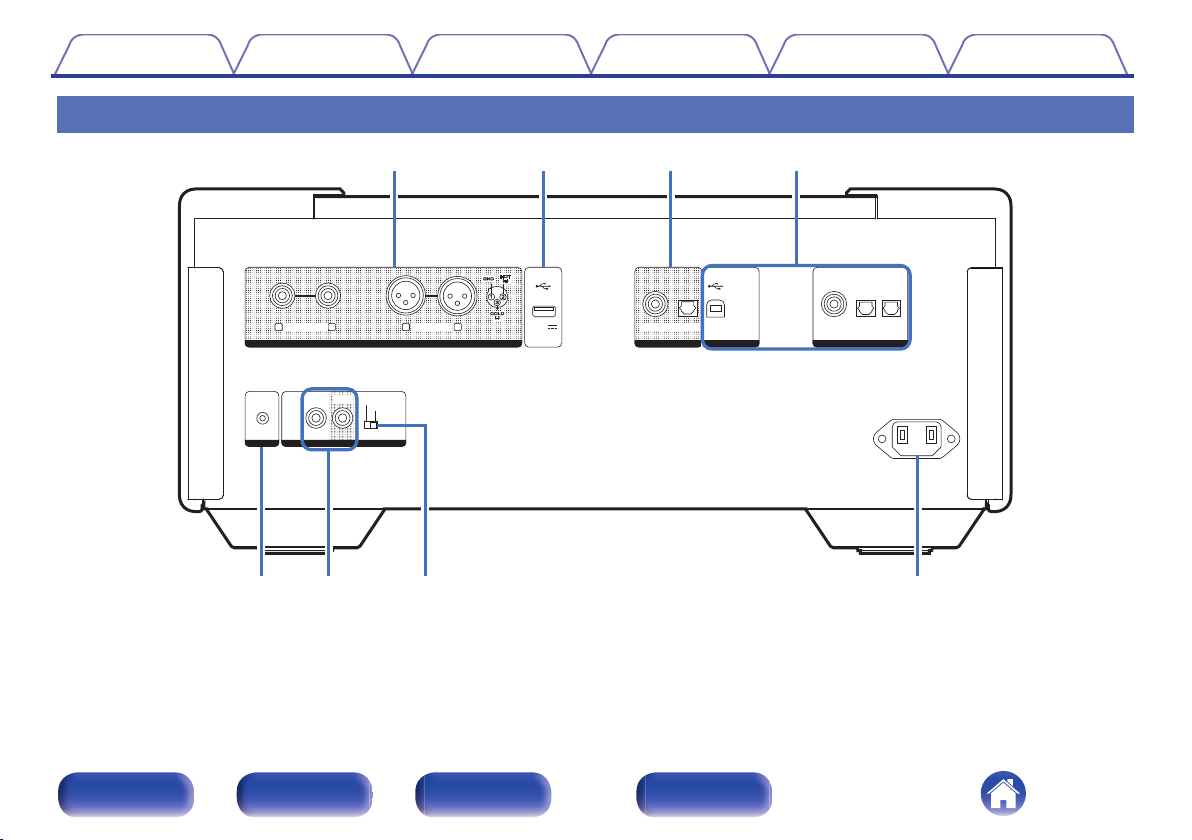

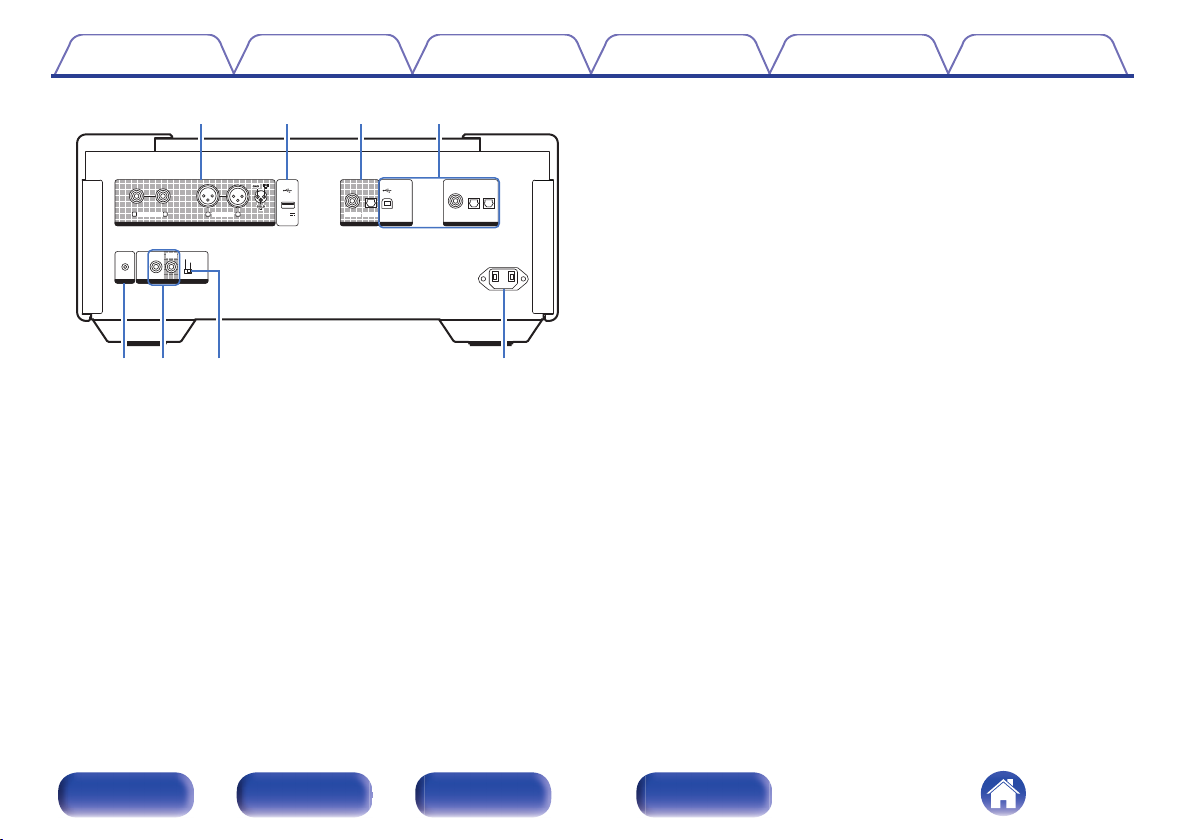

Rear panel

Connections Playback Settings Tips Appendix

For details, see the next page.

Front panel Rear panel Remote control

unit

Index

Page 11

IR IN

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

BALANCED

LINE OUT

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

R L R L

5V/1A

UNBALANCED

COAXIAL

AC IN

wqre

uyti

Contents

LINE OUT connectors

Connections Playback Settings Tips Appendix

Used to connect devices equipped with analog audio inputs connectors or an external amplifier. (v p. 19)

USB port (T)

This is used to connect USB storages (such as USB flash drives). (v p. 24)

DIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)

Used to connect an amplifier or D/A converter that has a digital input connectors. (v p. 21)

DIGITAL AUDIO IN connectors

Used to connect devices equipped with digital audio output

connectors. (v p. 22) Used to connect a computer. (v p. 23)

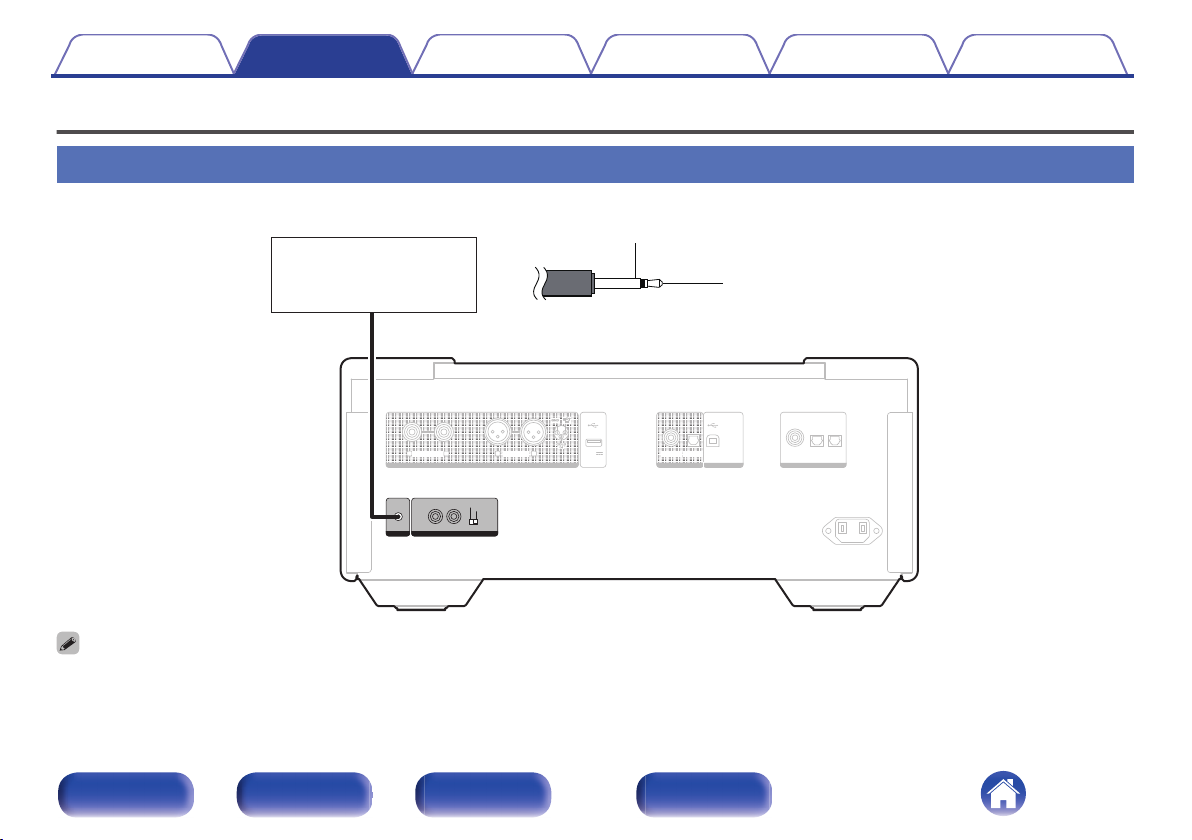

FLASHER IR IN jack

Used to connect a control box, etc. (v p. 25)

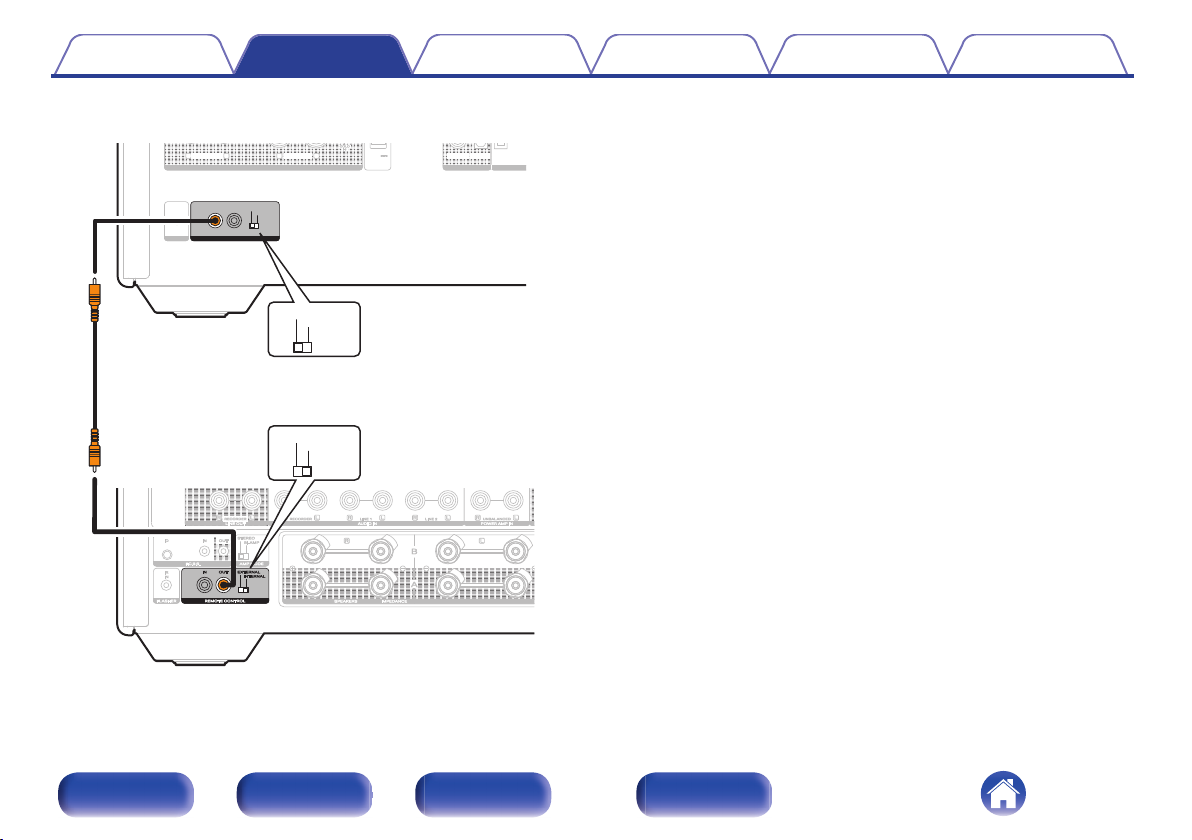

Remote control input/output connectors (REMOTE CONTROL)

Used to connect to a Marantz audio device that is compatible with the remote control function. (v p. 26)

EXTERNAL/INTERNAL switch

Turn this switch to “EXTERNAL” to operate the unit by pointing the remote control at the amplifier connected to this unit using the remote control connection. (v p. 26)

AC inlet (AC IN)

Used to connect the power cord. (v p. 28)

Front panel Rear panel Remote control

unit

Index

Page 12

q w

Contents Connections Playback Settings Tips Appendix

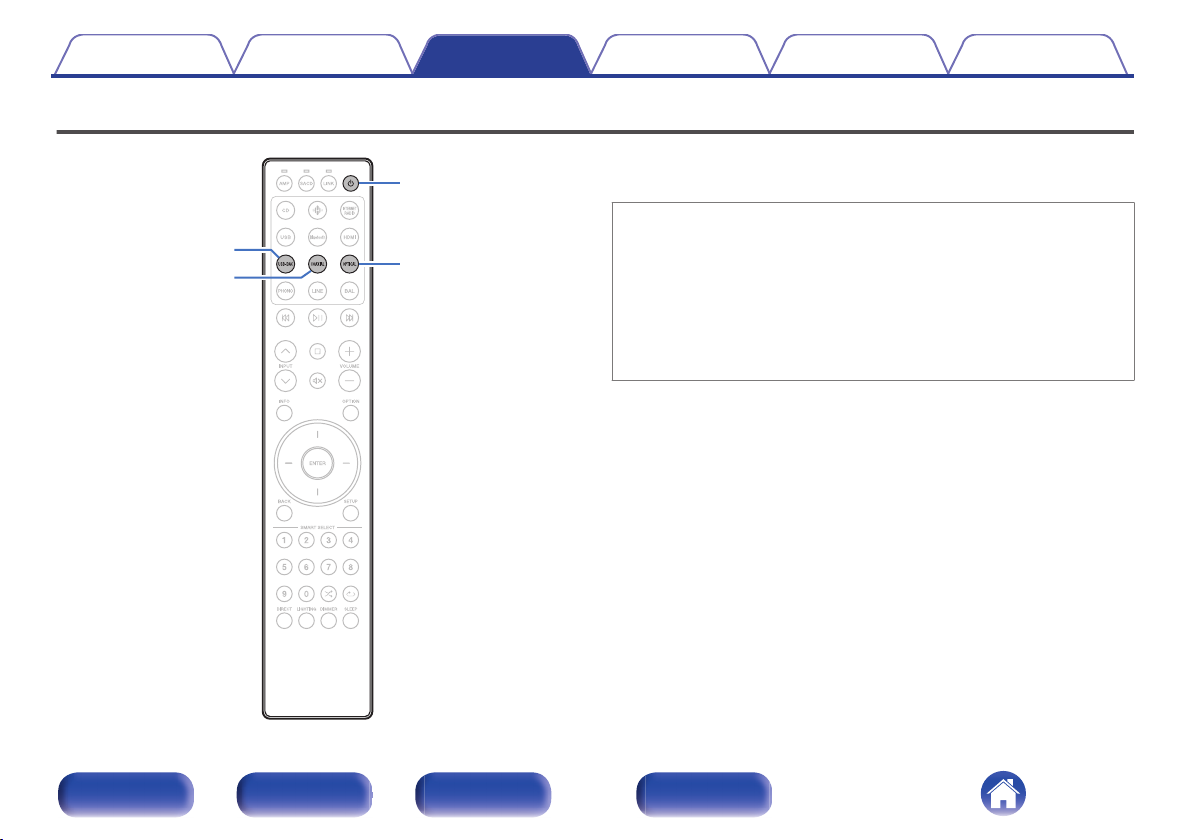

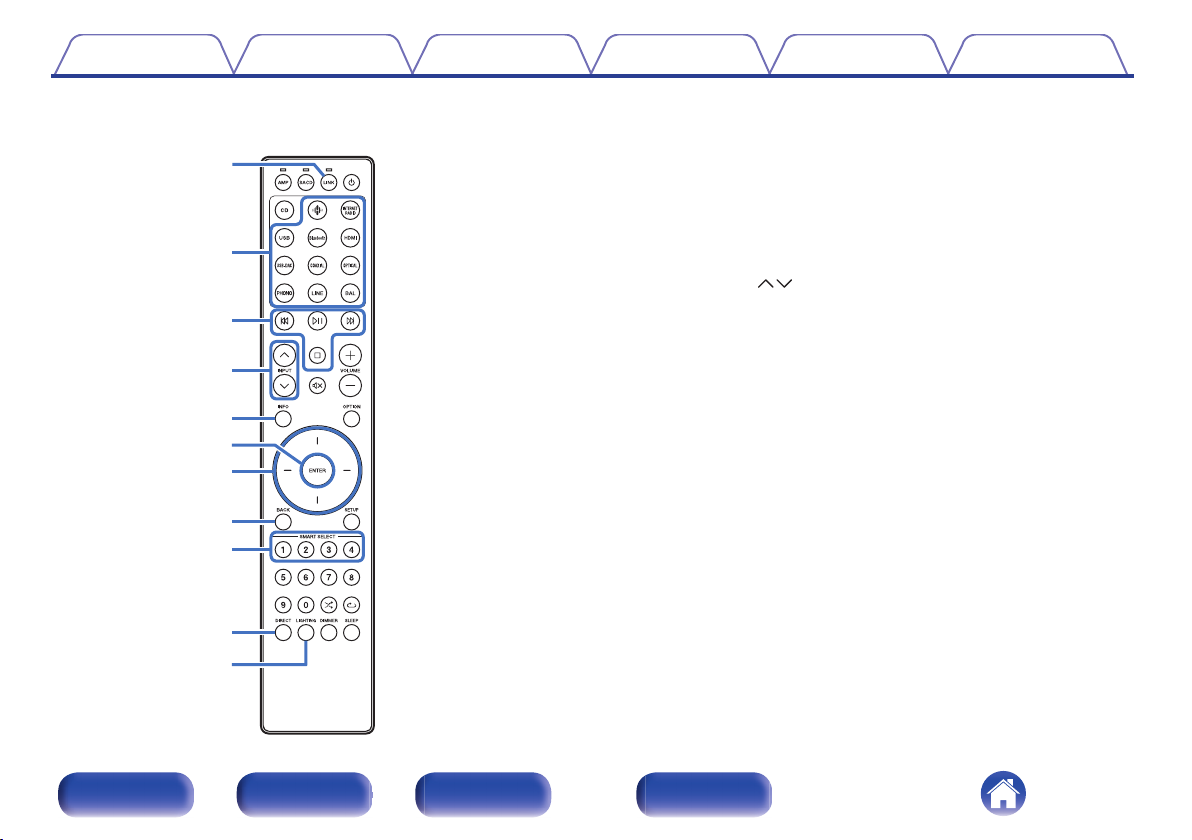

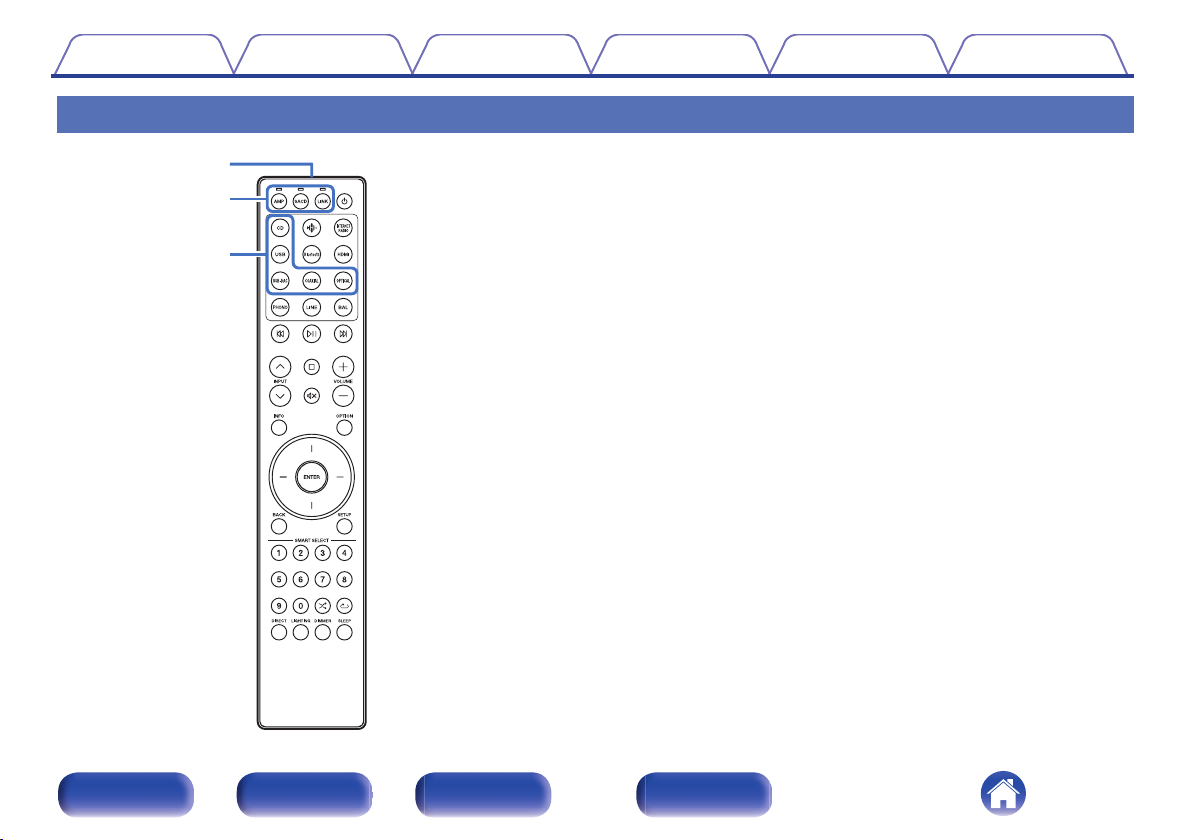

Remote control unit

The remote control provided with this unit can control a Marantz amplifier and streaming preamplifier.

“Amplifier operations” (v p. 15)

“Streaming preamplifier operations” (v p. 16)

Operating this unit

To operate this unit, press SACD button to switch the remote control operating mode to this unit.

Remote control signal transmitter

This transmits signals from the remote control unit. (v p. 6)

Remote mode select buttons/indicators (AMP/SACD/LINK)

These switch the remote control operating mode (AMP/SACD/LINK).

The indicator will light up according to the device being operated.

Input source select buttons (CD/USB/USB-DAC/COAXIAL/

OPTICAL)

This selects the input source. (v p. 31)

Front panel Rear panel Remote control

unit

Index

Page 13

Contents

Connections Playback Settings Tips Appendix

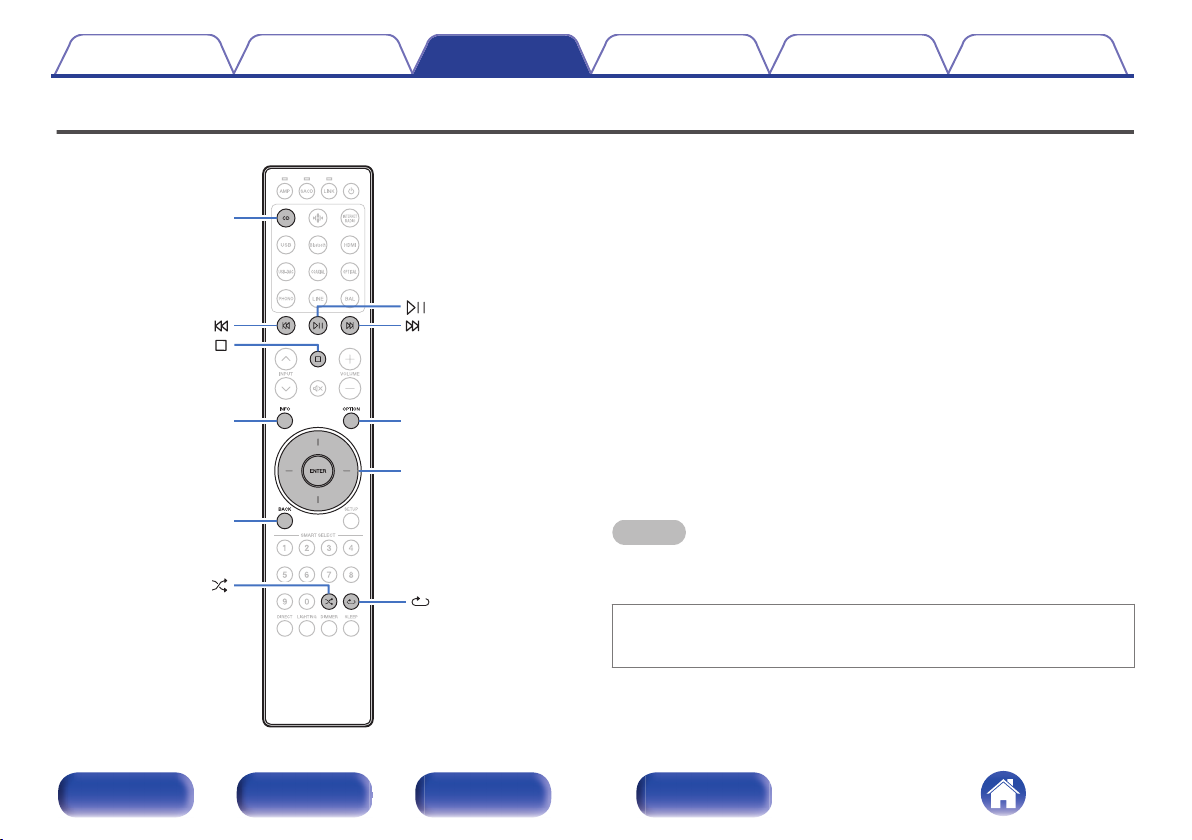

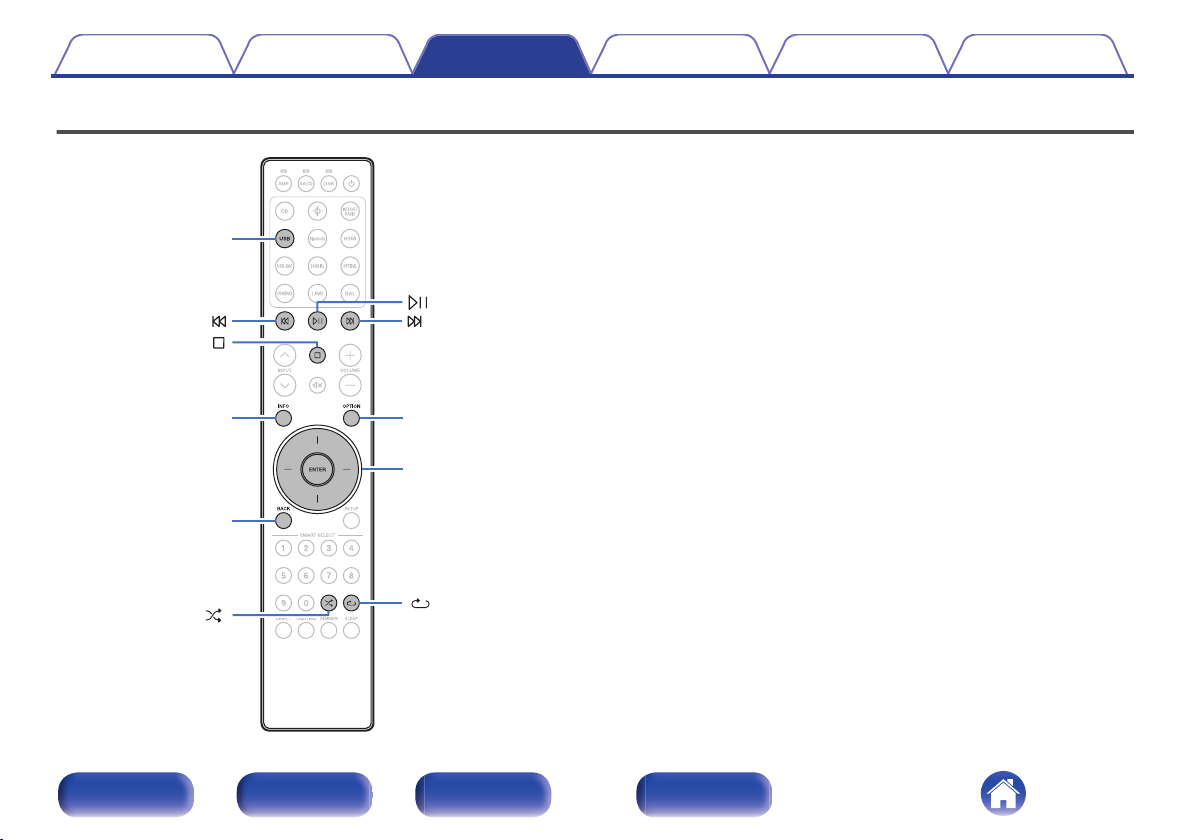

System buttons

These perform playback related operations.

Play/Pause button (p)

Press this button to pause during playback. If pressed while paused or stopped, resumes playback.

Forward-skip button (j)

Press this button during playback to play the next track. Reverse-skip button (k)

Press this button during playback to restart the current track or play the previous track.

Stop button (i)

Press this button to stop during playback.

INPUT buttons (

This selects the input source. (v p. 31)

Information button (INFO)

This switches the track information shown in the display during playback.

ENTER button

This determines the selection.

Cursor buttons

These select items.

BACK button

Returns to the previous item.

)

Front panel Rear panel Remote control

unit

Index

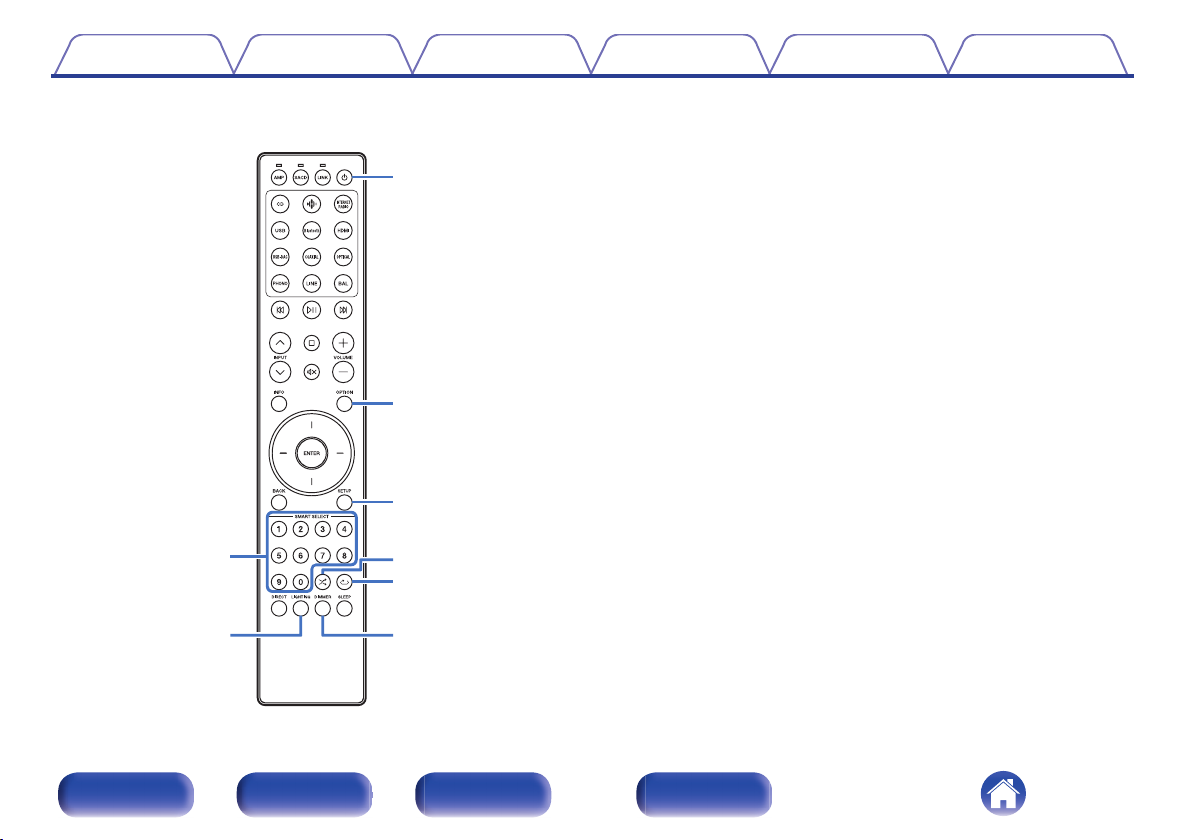

Page 14

Q11

Contents

Connections Playback Settings Tips Appendix

Number buttons (0 – 9)

These enter numbers into the unit.

LIGHTING button

This turns the illumination and display on/off. (v p. 32)

Power (X) button

This turns the power on/off (standby). (v p. 30)

OPTION button

Selects the top priority playback layer for Super Audio CDs.

(v p. 36) Selects the playback range of the data CD/DVD. (v p. 39)

Selects the playback range of the USB flash drive. (v p. 42)

SETUP button

The setting menu is displayed on the display. (v p. 54)

Random button (s)

Switches the random playback.

Repeat button (r)

Switches to the repeat playback.

DIMMER button

Adjust the display brightness of this unit. (v p. 31)

Front panel Rear panel Remote control

unit

Index

Page 15

i o

t y

Contents Connections Playback Settings Tips Appendix

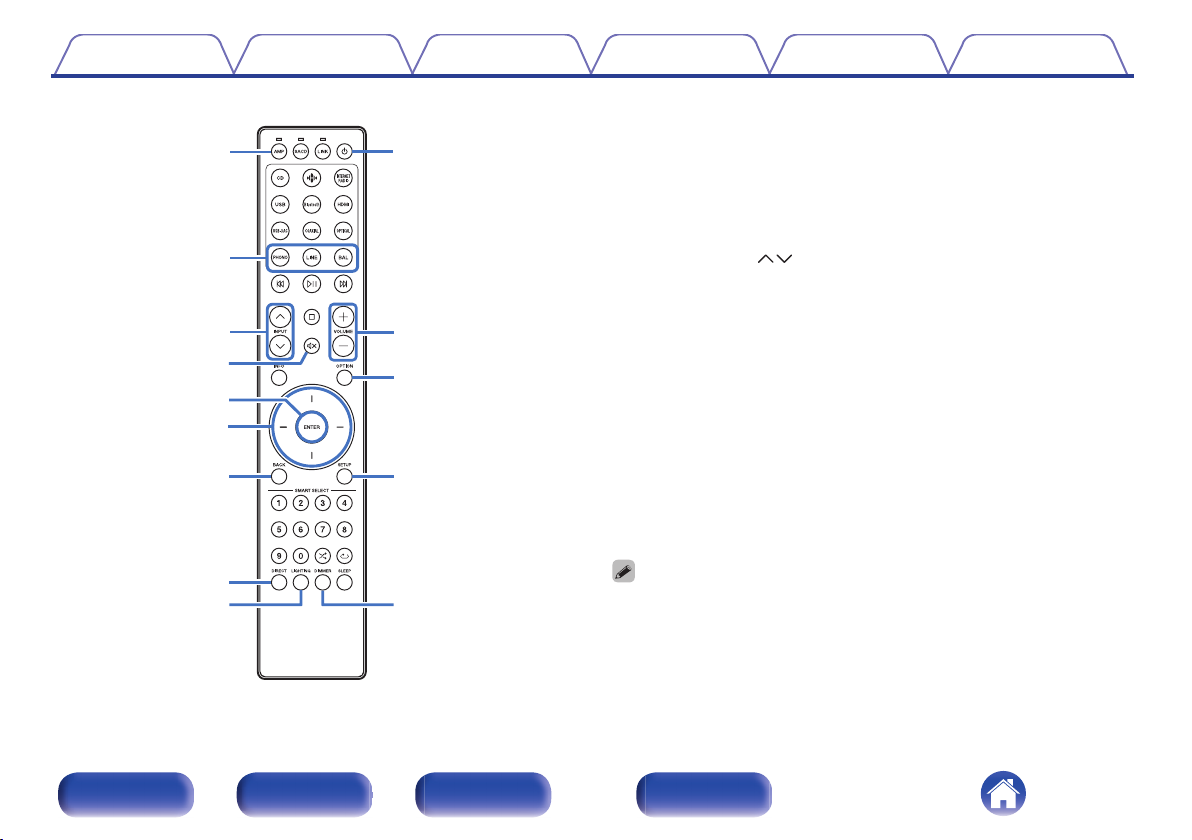

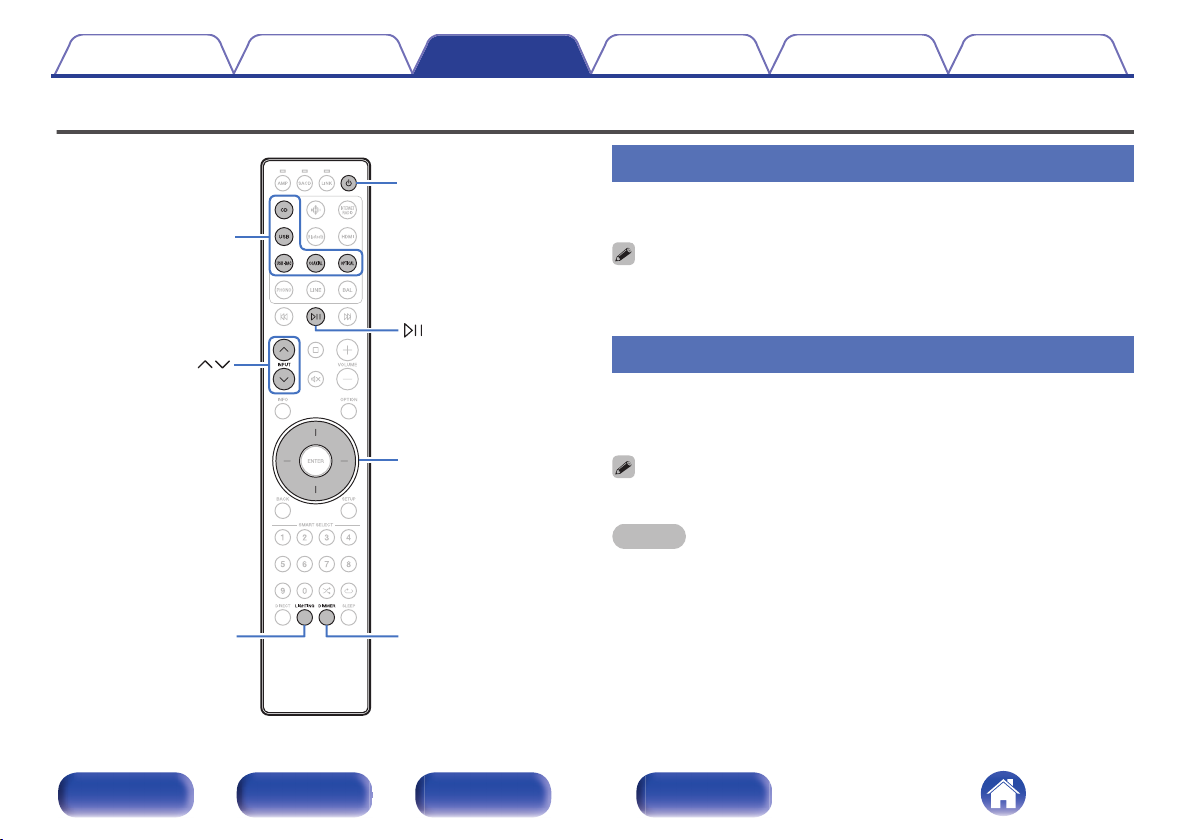

Amplifier operations

A Marantz amplifier can be operated. To operate amplifier, press AMP button to switch the remote control to

the amplifier operation mode.

Remote mode select button (AMP)

Input source select buttons (PHONO/LINE/BAL)

)

INPUT buttons (

Mute button (:)

ENTER button

Cursor buttons

BACK button

DIRECT button

LIGHTING button

Power (X) button

VOLUME buttons (no)

OPTION button

SETUP button

DIMMER button

The remote control may not operate some products.

Front panel Rear panel Remote control

unit

Index

Page 16

Q0 Q1

Contents Connections Playback Settings Tips Appendix

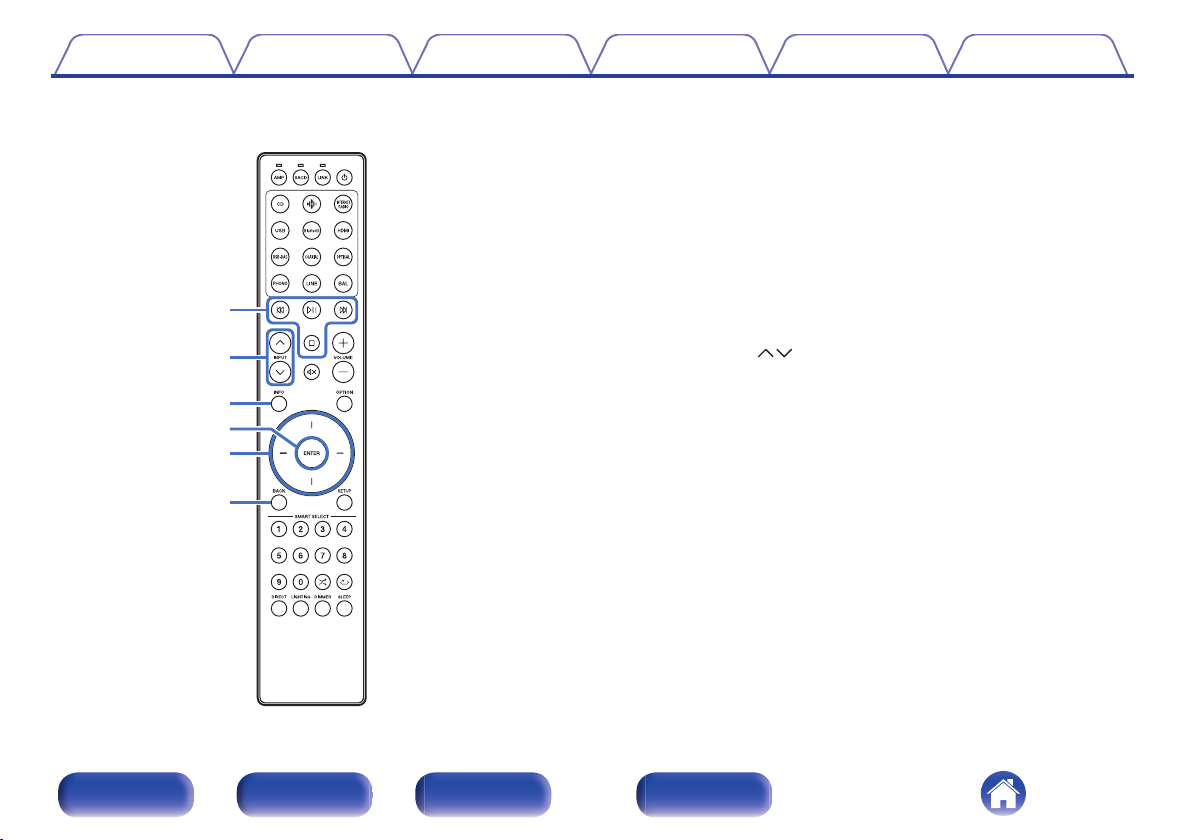

Streaming preamplifier operations

A Marantz streaming preamplifier can be operated. To operate streaming preamplifier, press LINK button to switch the

remote control to the streaming preamplifier operation mode.

Remote mode select button (LINK)

Input source select buttons

System buttons

INPUT buttons (

Information button (INFO)

ENTER button

Cursor buttons

BACK button

SMART SELECT 1 - 4 buttons

DIRECT button

LIGHTING button

)

Front panel Rear panel Remote control

unit

Index

Page 17

Q3 Q4

Q8 Q9

Contents Connections Playback Settings Tips Appendix

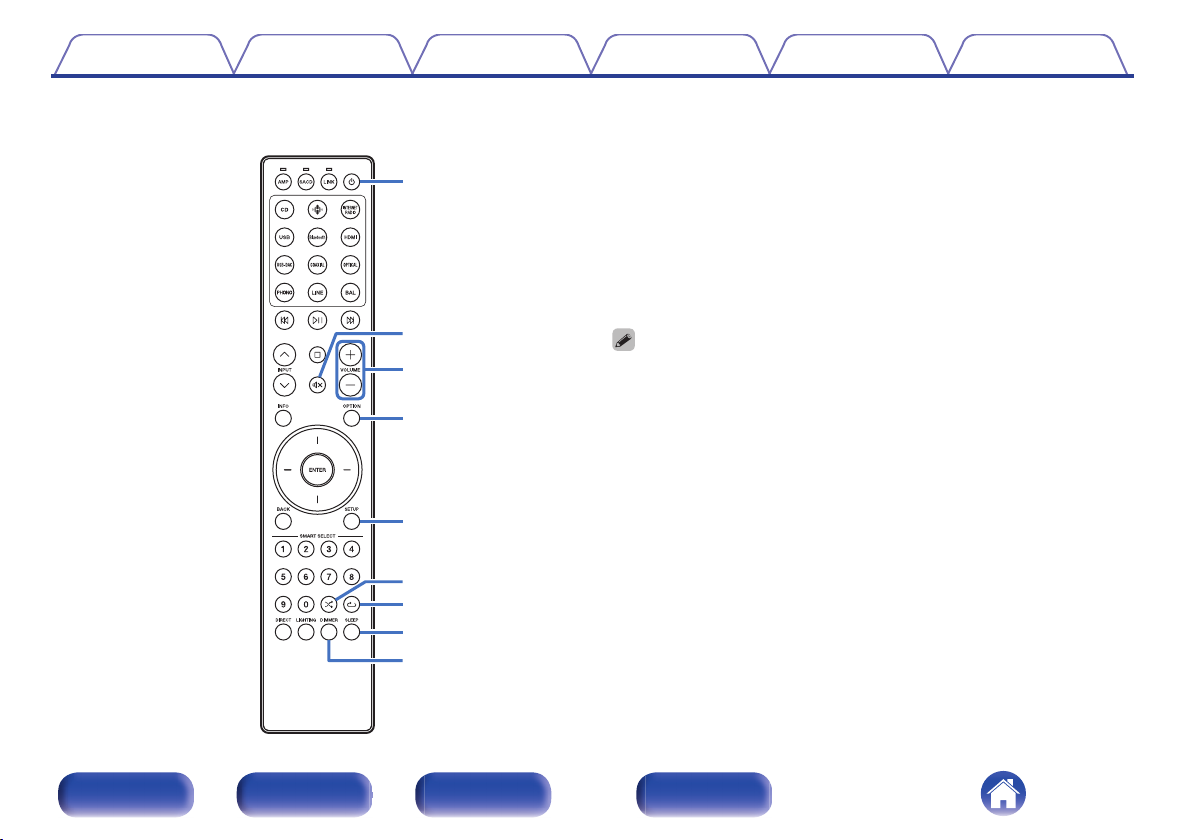

Power (X) button

Mute button (:)

VOLUME buttons (no)

OPTION button

SETUP button

Random button (s)

Repeat button (r)

SLEEP button

DIMMER button

The remote control may not operate some products.

Front panel Rear panel Remote control

unit

Index

Page 18

Contents Connections Playback Settings Tips Appendix

Contents

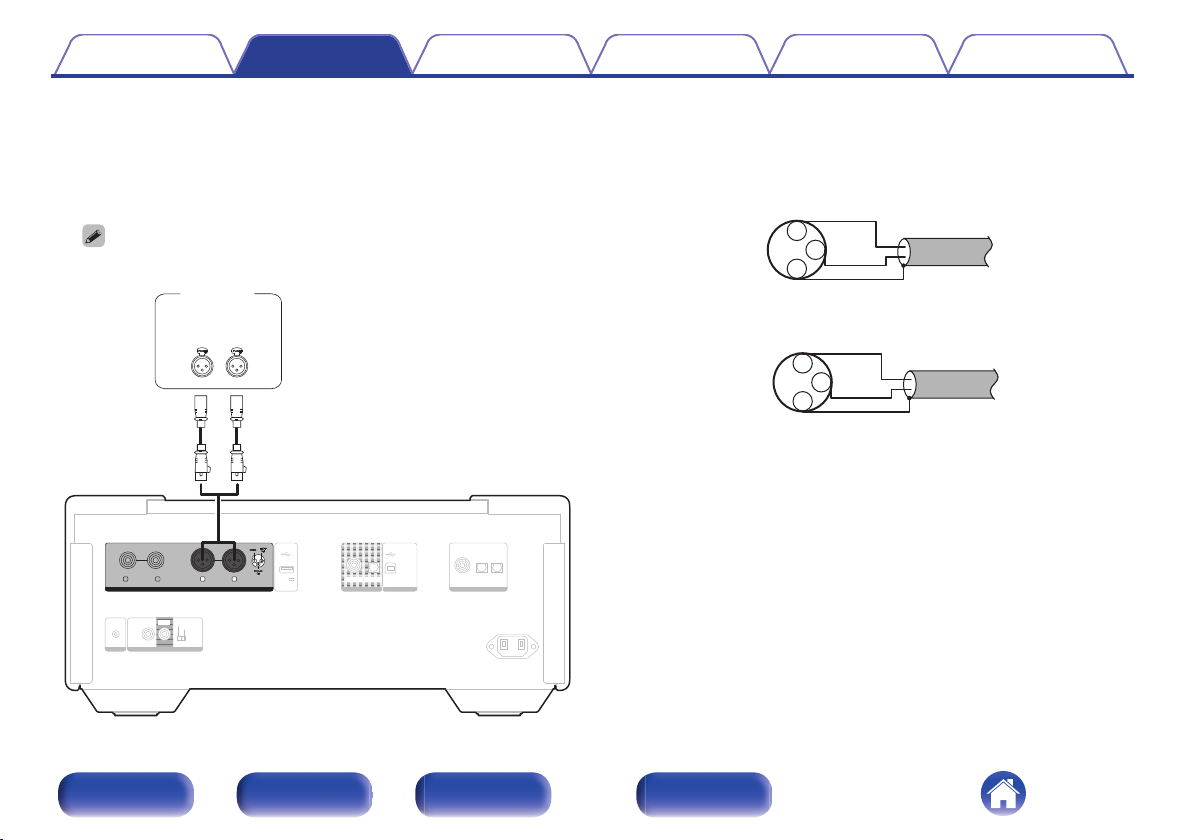

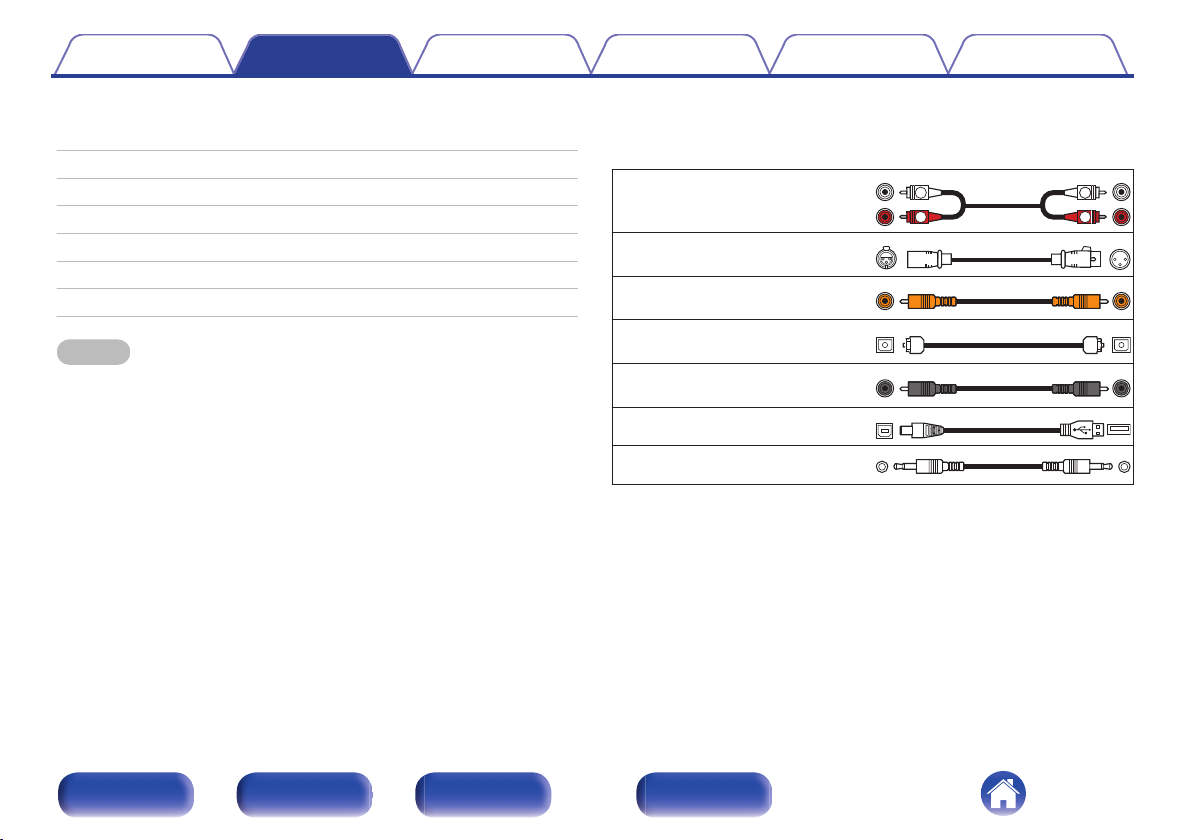

Connecting an amplifier

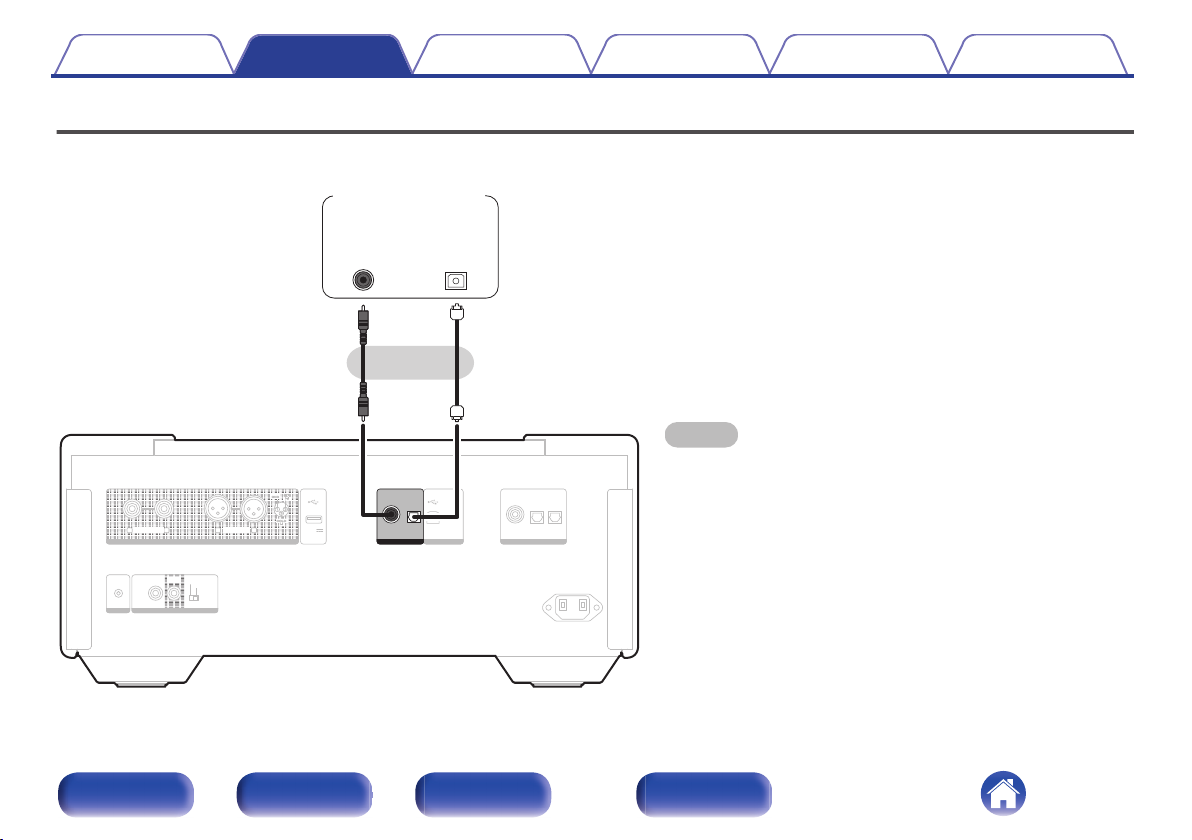

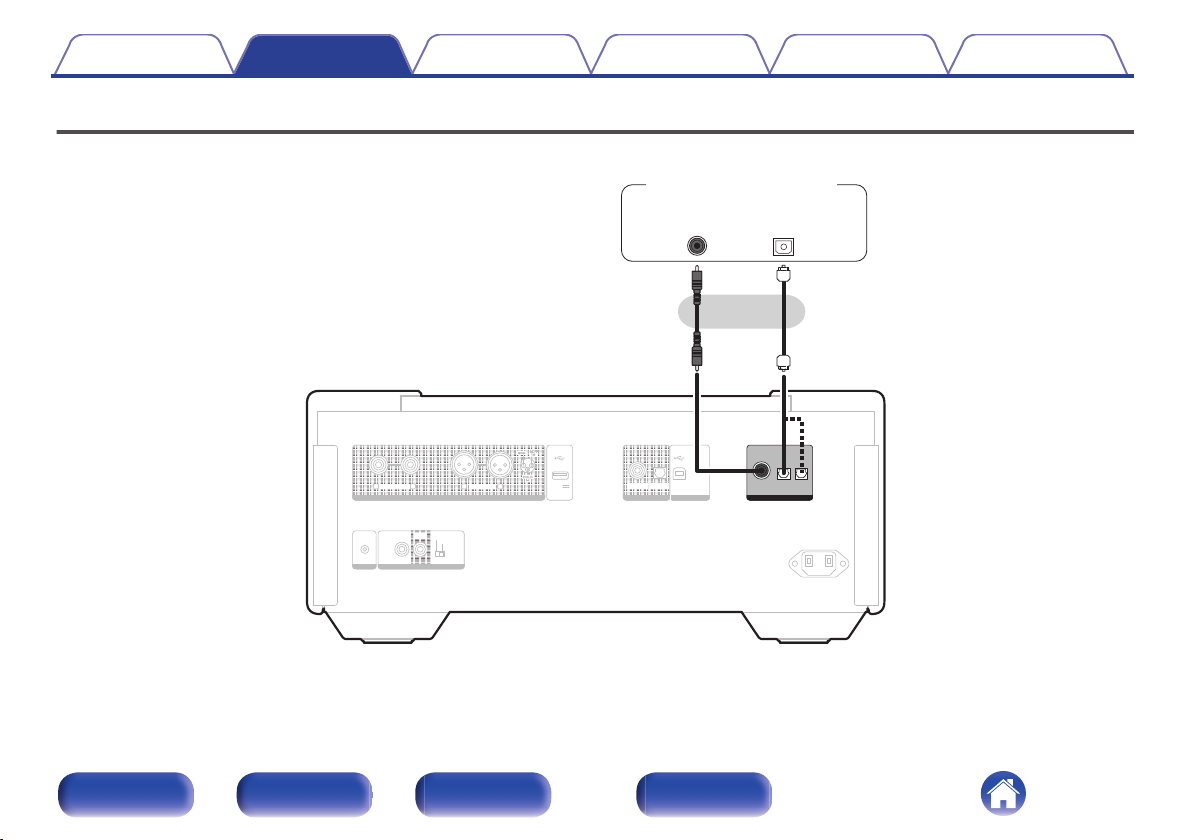

Connecting to a device with digital audio input connectors

Connecting to a device with digital audio output connectors

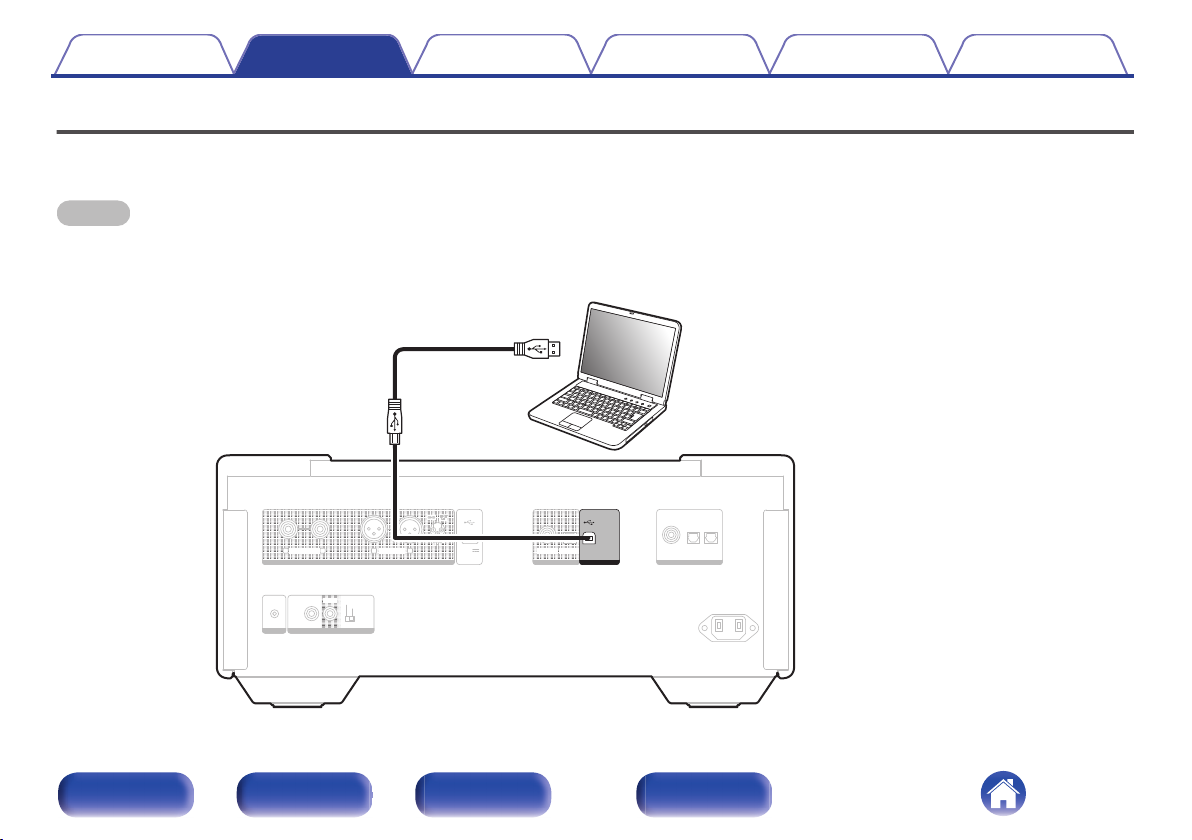

Connecting a PC or Mac

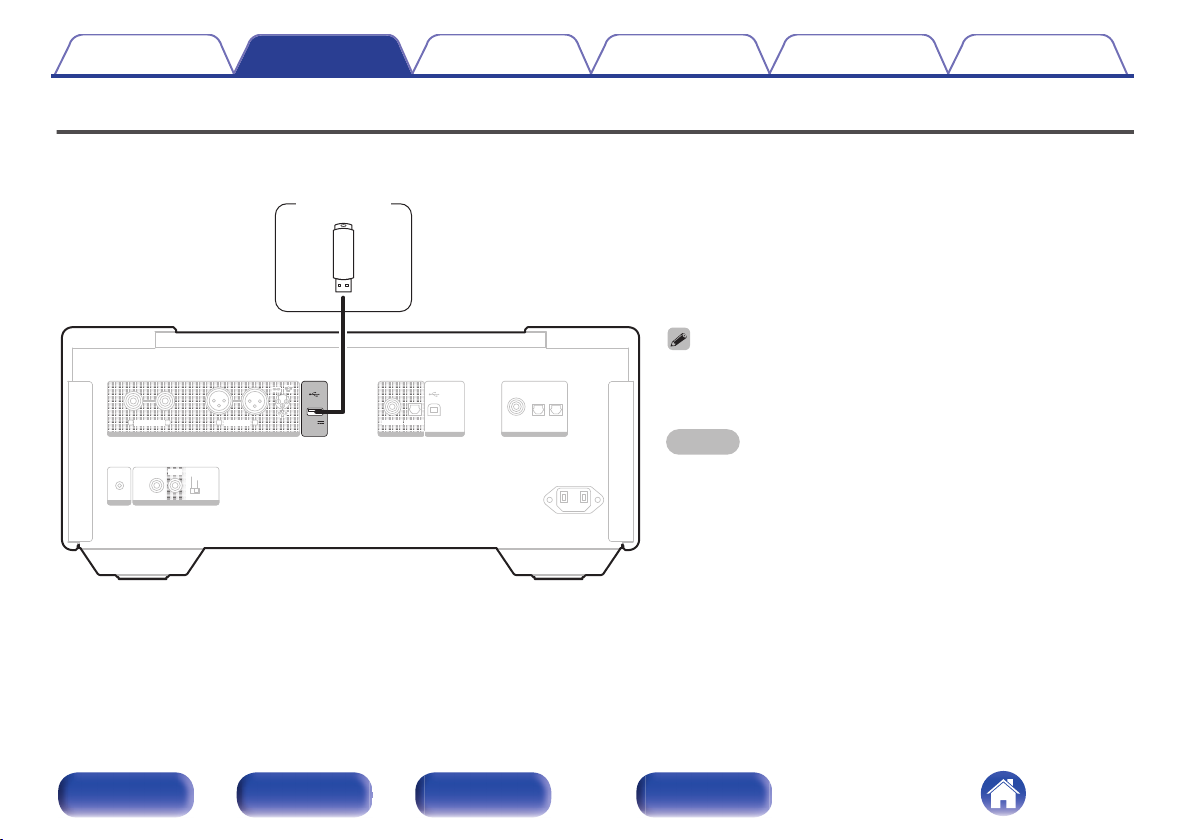

Connecting a USB flash drive to the USB port

Connecting an external control device

Connecting the power cord

NOTE

Do not plug in the power cord until all connections have been completed.

Do not bundle power cords together with connection cables. Doing so can result in

humming or noise.

Cables used for connections

Provide necessary cables according to the devices you want to connect.

Audio cable (included)

Balance cable (not included)

Remote connector cable (included)

Optical cable (not included)

Coaxial digital cable (not included)

USB cable (not included)

Monaural mini-plug cable (not included)

Front panel Rear panel Remote control

unit

Index

Page 19

IR IN

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

5V/1A

COAXIAL

AC IN

BALANCED

LINE OUT

R L R L

UNBALANCED

AUDIO

Amplifier

Contents Connections Playback Settings Tips Appendix

Connecting an amplifier

Front panel Rear panel Remote control

unit

Index

Page 20

IR IN

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

5V/1A

COAXIAL

AC IN

BALANCED

LINE OUT

R L R L

UNBALANCED

AUDIO

Amplifier

3 COLD

HOT

GND

3 HOT

COLD

GND

Contents

Connections Playback Settings Tips Appendix

About balanced connectors

This unit has both unbalanced and balanced connectors. The balanced connectors have three pins, making it possible to transmit audio signals as a balanced signal, reducing the effect of external noise. They also have a removable lock mechanism, which reduces shaking in the connector area, making the connection highly reliable.

The balanced connection is an all-stage balanced configuration.

Phases of the balanced connectors

The XLR connector is internally wired in either of the following two systems. This unit employs the European system.

European system (2 PIN=HOT/ 3 PIN=COLD)

USA system (2 PIN=COLD / 3 PIN=HOT)

If a product that employs the USA system is connected with this unit via a balanced cable, the output signal may be phase-inverted. To correct the inversion, connect the one side XLR connector reversing

the 2 PIN and 3 PIN.

Front panel Rear panel Remote control

unit

Index

Page 21

IR IN

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

BALANCED

LINE OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

R L R L

5V/1A

UNBALANCED

AC IN

OPTICAL

DIGITAL AUDIO OUT

COAXIAL

OPTICAL

COAXIAL

Amplifier /

D/A converter

Contents

Connections Playback Settings Tips Appendix

Connecting to a device with digital audio input connectors

You can enjoy digital audio playback by connecting an amplifier or D/A converter that has a digital audio connector to this unit.

NOTE

Digital audio output stops during playback of the DSD signals and linear

PCM signals with a sampling frequency of 352.8/384 kHz using this unit’s USB-DAC.

Digital audio output stops during playback of the DSD files via USB flash

drive, Data CDs and Data DVDs. Digital audio output stops during playback of the HD layer of Super Audio

CDs. Digital audio output can be set on/off using “Digital Out” in the setup

menu. (v p. 56) To connect recorder that has a digital audio connector isn't

recommended.

Front panel Rear panel Remote control

unit

Index

Page 22

IR IN

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

BALANCED

LINE OUT

OPTICAL

DIGITAL AUDIO OUT

USB-DAC

DIGITAL AUDIO IN

R L R L

5V/1A

UNBALANCED

COAXIAL

AC IN

DIGITAL AUDIO IN

COAXIAL

OPTICAL

1 2

OUT

COAXIAL

OUT

OPTICAL

CD transport / Digital device

Contents

Connections Playback Settings Tips Appendix

Connecting to a device with digital audio output connectors

Use this connection to input digital audio signals to this unit, and convert the signals for playback using the D/A converter of this unit. (v p. 43)

Specifications of supported audio formats

See “Digital input” (v p. 82).

Front panel Rear panel Remote control

unit

Index

Page 23

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

BALANCED

LINE OUT

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

COAXIAL

OPTICAL

1 2

R L R L

5V/1A

UNBALANCED

COAXIAL

AC IN

USB-DAC

DIGITAL AUDIO IN

USB 2.0 cable

(not included)

Ty p e B

Computer on which the driver software and audio player software are installed

Contents Connections Playback Settings Tips Appendix

Connecting a PC or Mac

By connecting a computer to the USB-DAC port on the rear panel of this unit using a commercially available USB connecting cable, this unit can be used as a D/A converter. (v p. 43)

NOTE

Before USB connecting this unit to your computer, install the driver software in your computer. (v p. 44)

Download the driver software from the SACD 10 page of the Marantz website.

Use a cable that is 10 ft (3 m) or less to connect to the computer.

Front panel Rear panel Remote control

unit

Index

Page 24

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

BALANCED

LINE OUT

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

R L R L

UNBALANCED

COAXIAL

AC IN

5V/1A

USB flash

drive

Contents Connections Playback Settings Tips Appendix

Connecting a USB flash drive to the USB port

For operating instructions see “Playing a USB flash drive”. (v p. 40)

Marantz does not guarantee that all USB flash drives will operate or

receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device’s supplied AC adapter.

Front panel Rear panel Remote control

unit

NOTE

USB flash drives will not work via a USB hub.

It is not possible to use this unit by connecting the rear panel’s USB port

to a PC via a USB cable. Connection to a computer is possible via the digital input USB-DAC port (Type B) on the rear panel.

Do not use an extension cable when connecting a USB flash drive. This

may cause radio interference with other devices.

Index

Page 25

BALANCED

LINE OUT

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

R L R L

5V/1A

UNBALANCED

COAXIAL

AC IN

IR IN

EXTERNAL

INTERNAL

OUT

FLASHER

REMOTE CONTROL

Control box

control device

GND

Signal

Monaural mini-plug cable

(not included)

Contents Connections Playback Settings Tips Appendix

Connecting an external control device

FLASHER IR IN jack

This unit can be controlled by connecting a control box or other control device to this unit.

To use the FLASHER IR IN jack, set the EXTERNAL/INTERNAL switch to “INTERNAL”.

Front panel Rear panel Remote control

unit

Index

Page 26

Contents Connections Playback Settings Tips Appendix

REMOTE CONTROL connectors

When this unit is connected in combination with MODEL 10 and LINK 10n, the following functions will be available.

A function that transmits remote control signals received by the MODEL

10 or LINK 10n to this unit Synchronizing the power operations of this unit, MODEL 10 and LINK

10n

When this unit is turned on, MODEL 10 and LINK 10n will also be

turned on. When this unit power is set to standby, MODEL 10 and LINK 10n

power will also be set to standby.

Next, configure the “Connection” and “Setting”.

Connection

Use the included remote connector cable to connect the REMOTE CONTROL IN connector of this unit to REMOTE CONTROL OUT connector of MODEL 10 or LINK 10n.

Setting

1. Turn the EXTERNAL/INTERNAL switch on this unit to

“EXTERNAL”.

This setting will disable remote sensor reception of this unit.

2. Turn the EXTERNAL/INTERNAL switch on MODEL 10 or LINK 10n to “INTERNAL”.

To operate the unit, point the remote control at the remote sensor

of MODEL 10 or LINK 10n.

To use this unit by itself without connecting an amplifier, turn the switch to

“INTERNAL”.

Front panel Rear panel Remote control

unit

Index

Page 27

IR IN

FLASHER

BALANCED

LINE OUT

OPTICAL

DIGITAL AUDIO OUT

USB-DAC

DIGITAL AUDIO

IDIGITAL AUDIO IN

R L R L

5V/1A

UNBALANCED

COAXIAL

EXTERNAL

INTERNAL

OUT

REMOTE CONTROL

This unit

Set to “EXTERNAL”.

Set to “INTERNAL”.

Amplifier

Remote

connector cable

(included)

EXTERNAL

INTERNAL

EXTERNAL

INTERNAL

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel Remote control

unit

Index

Page 28

OPTICAL

DIGITAL AUDIO OUT

DIGITAL AUDIO IN

USB-DAC

COAXIAL

OPTICAL

1 2

DIGITAL AUDIO IN

COAXIAL

AC IN

To household power outlet

(AC 120 V, 60 Hz)

Power cord (included)

Contents Connections Playback Settings Tips Appendix

Connecting the power cord

After completing all the connections, insert the power plug into the power outlet.

Front panel Rear panel Remote control

unit

Index

Page 29

Contents Connections Playback Settings Tips Appendix

Contents

Basic operation

Playing CDs/Super Audio CDs

Playing Data CDs and Data DVDs

Playing a USB flash drive

Using as a D/A converter

Front panel Rear panel Remote control

unit

Index

Page 30

DIMMER

LIGHTING

INPUT

Cursor Up/Down

Input source

select buttons

Contents Connections Playback Settings Tips Appendix

Basic operation

Turning the power on

Press X to turn on power to the unit.

You can also press X on the main unit to turn on power from standby mode.

You can also press p to turn on power from standby mode.

Switching the power to standby

Press X.

The unit switches to standby mode.

You can also switch the power to standby by pressing X on the main unit.

NOTE

Power continues to be supplied to some of the circuitry even when the power is in

the standby mode. When leaving home for long periods of time or when going on vacation, unplug the power cord from the power outlet.

Front panel Rear panel Remote control

unit

Index

Page 31

Contents Connections Playback Settings Tips Appendix

Selecting the input source

Press input source select buttons (CD/USB/USB-DAC/

COAXIAL/OPTICAL) to be played back.

The selected input source appears on the display.

You can also select the input source by turning INPUT selector on the main unit.

This unit switches between Optical 1 and Optical 2 each time OPTICAL is pressed.

You can also select the input source by using INPUT

Switching the display’s brightness

The display brightness can be adjusted from 100 % to Off (0 %) in steps of 5 %. Switching the display off reduces a source of noise that affects sound quality, enabling higher sound quality playback.

Press DIMMER.

The dimmer menu screen is displayed on the display.

Use Cursor Up/Down buttons to adjust the brightness

of the display.

You can also adjust the brightness by pressing DIMMER.

The display brightness is set to 100 % by default.

If buttons are operated when the display is off, information is temporarily displayed

at 100 %. The display brightness setting is synchronized with the “Illumination” - “Display”

setting in the settings menu. (v p. 58) DIMMER does not work when LIGHTING is pressed and turned off.

Front panel Rear panel Remote control

unit

Index

Page 32

Contents

Connections Playback Settings Tips Appendix

Turning the illumination and display on/off

Turn on/off the illumination and display. Switching the illumination and display off reduces a source of noise that affects sound quality, enabling higher sound quality playback.

Press LIGHTING.

Each time the button is pressed, the illumination and display are

turned on/off.

In the Settings menu, “Illumination” allows you to set the brightness of the

illumination and display. (v p. 58) When LIGHTING is pressed and lit, the illumination and display light up to the

brightness set in “Illumination” in the Settings menu. (v p. 58)

Front panel Rear panel Remote control

unit

Index

Page 33

0 – 9

OPTION

INFO

Contents Connections Playback Settings Tips Appendix

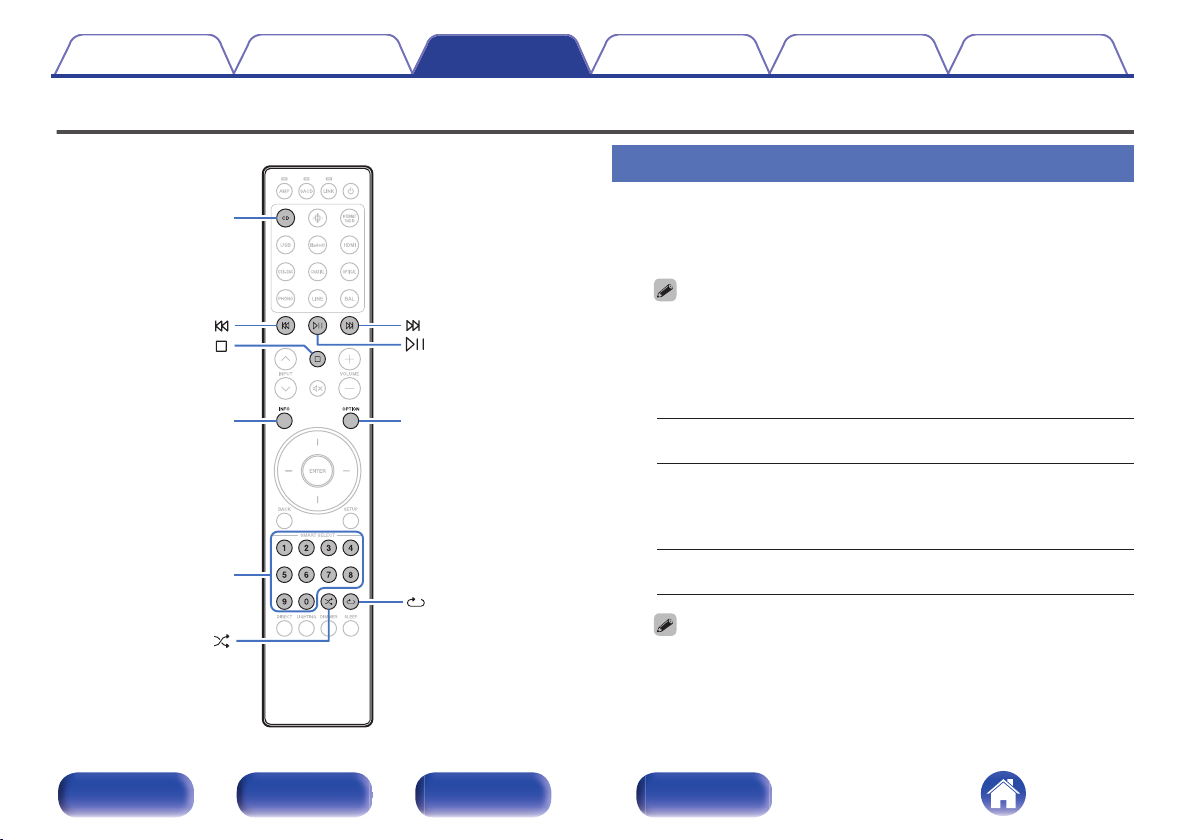

Playing CDs/Super Audio CDs

Playing CDs and Super Audio CDs

Press CD to switch the input source to “CD”.

Press q on the main unit to insert a disc.

You can also close the disc tray by pressing p. This automatically starts

playback.

When playing back a Super Audio CD, press OPTION to

set the playback layer.

Front panel Rear panel Remote control

unit

STEREO (Default):

MULTI:

CD:

If this operation is not performed, reading begins automatically based on

the top priority playback layer setting. (v p. 36)

Index

Plays back the 2-channel area of the Super Audio CD.

Plays back the multi-channel area of the Super Audio CD.

The analog output of this unit outputs a down-mixed 2-channel signal.

Plays back the CD layer of the Super Audio CD.

Page 34

Contents Connections Playback Settings Tips Appendix

Press p.

The 1 indicator lights on the display. Playback starts.

NOTE

Do not place any foreign objects in the disc tray. Doing so could damage the unit.

Do not push the disc tray in by hand when the power is turned off. Doing so could

damage the unit.

Operation buttons

k j

0 - 9 Select the track

INFO

OPTION

Playback / Pause

Stop

Skip to previous track / Skip to next track

(Press and hold) Fast-reverse / Fastforward

Random playback

Repeat playback

Switching between All-track repeat and

Single-track repeat.

Time display switching

Switching between elapsed time of the

current track, remaining time of the current track and remaining time of all tracks.

Text information recorded on the Super

Audio CD appears in the display.

Switching the playback layer of the Super Audio CD

Function

Front panel Rear panel Remote control

unit

Index

Page 35

Contents

Connections Playback Settings Tips Appendix

Switching the display

Press INFO. Displays text and time information stored on media.

The text information is only displayed for Super Audio CD.

Any characters that cannot be displayed are replaced with “.”

(period).

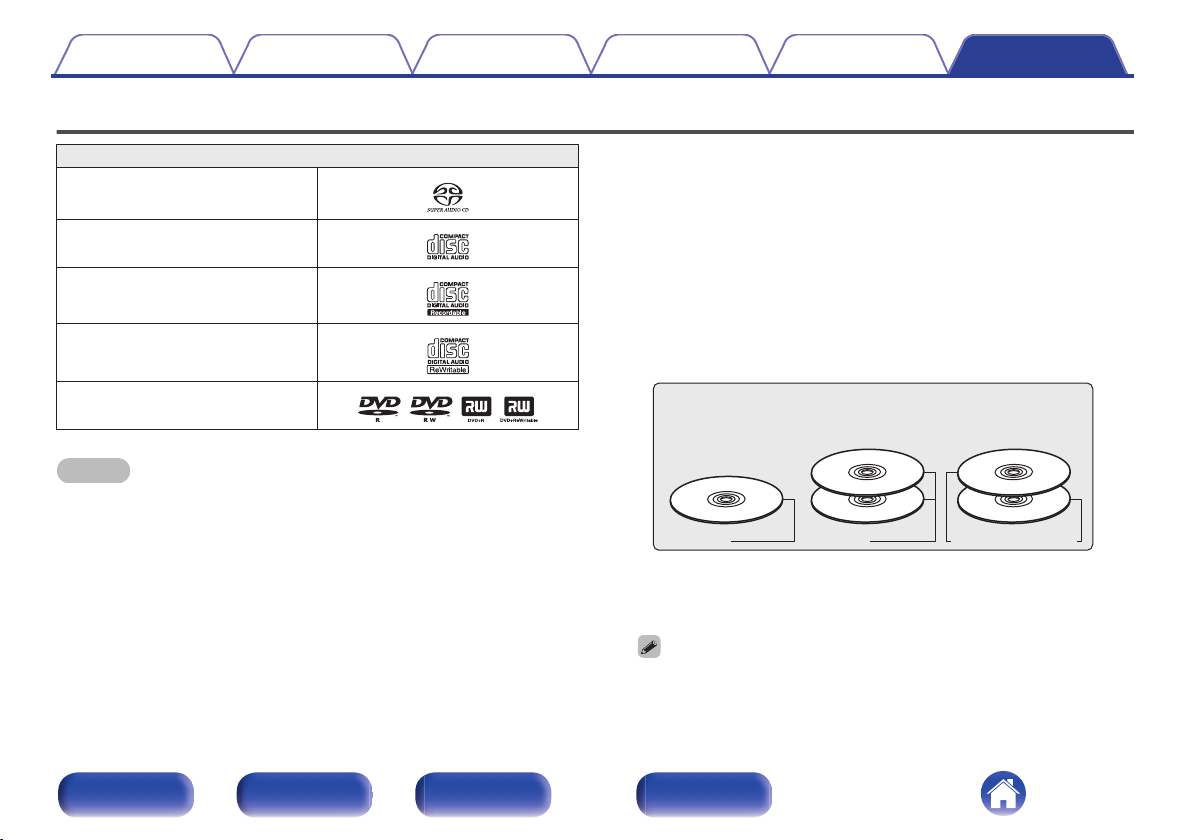

Discs that can be played back

See “Playing back Discs” (v p. 74).

Playing a specific track (Direct searching)

Use 0 – 9 to select the tracks.

GExampleH Track 4 : Press number 4 to select track 4. Track 12 : Press numbers 1 and 2 consecutively to select track 12.

The number you enter is set about 1.5 seconds after you press the

number buttons. To enter a two-digit number, be sure to press the two number buttons, one immediately after the other.

Front panel Rear panel Remote control

unit

Index

Page 36

Contents Connections Playback Settings Tips Appendix

Setting the top priority playback layer

When a disc is loaded after the setting has been made, the contents recorded on

for Super Audio CDs

The layer that is played with priority when the disc is loaded can be set.

Press CD to switch the input source to “CD”.

Check that no disc is loaded.

If the layer is switched while the disc is being loaded, the

playback layer switches for that disc, but the top priority playback layer setting itself does not change.

Press OPTION and switch to the layer you want to set.

STEREO (Default):

MULTI:

CD:

Plays back the 2-channel area of the Super Audio CD.

Plays back the multi-channel area of the Super Audio CD.

The analog output of this unit outputs a down-mixed 2-channel signal.

Plays back the CD layer of the Super Audio CD.

the set layer are displayed. If a disc that does not contain the layer set for top priority playback is loaded, the

contents recorded on another layer are displayed automatically. This setting is stored in the memory and is not cleared even when the disc holder

is opened or closed or the power is turned off. To change the setting, repeat the procedure above.

The priority playback layer cannot be set when a disc is inserted or “Open” is

shown on the display. If the area and layer have not been set for a disc, the priority playback order is as

follows:

STEREO

MULTI

Front panel Rear panel Remote control

unit

Index

Page 37

OPTION

INFO

BACK

ENTER

Cursor Up/Down

Contents Connections Playback Settings Tips Appendix

Playing Data CDs and Data DVDs

This section explains how to playback music files that are recorded onto

a CD-R/-RW or DVD-R/-RW/+R/+RW. There are many music distribution sites on the Internet allowing you to

download music files. The music (files) downloaded from such sites can be stored on CD-R/-RW or DVD-R/-RW/+R/+RW discs and played on this unit.

The audio format types and specifications supported by this unit for

playback are as follows. See “Playable files” for details. (v p. 75)

MP3

WMA

AAC

WAV

FLAC

Apple Lossless

AIFF

DSD

Front panel Rear panel Remote control

unit

NOTE

Note that depending on the software used for burning and other conditions, some

files may not play or display correctly.

“Windows Media” and “Windows” are the trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.

Index

Page 38

Contents Connections Playback Settings Tips Appendix

Playing files

Press CD to switch the input source to “CD”.

Press q on the main unit to insert a CD-R/-RW or DVD-

R/-RW/+R/+RW disc containing music files.

Use Cursor Up/Down and BACK buttons to select the

folder to be played, then press ENTER.

Use Cursor Up/Down buttons to select the file to be

played, then press ENTER.

Playback starts.

Operation buttons

k j

BACK Moving up a level in the hierarchy

Cursor Up/Down Select the item

ENTER Enter the selected item / Playback

OPTION Select the playback range

INFO

To start playing another file during playback of a CD-R/-RW or DVD-R/-RW/+R/

+RW, first press BACK to display the file tree. Next, use Cursor Up/Down buttons to select the file to be played and press ENTER.

Playback / Pause

Stop

Skip to previous track / Skip to next track

(Press and hold) Fast-reverse / Fastforward

Random playback

Repeat playback

Switching between All-track repeat and

Single-track repeat.

Switch the display between the album name and the file format

Function

Front panel Rear panel Remote control

unit

Index

Page 39

Contents Connections Playback Settings Tips Appendix

Switching the display

During playback, press INFO.

Switch the display between the album name and the file format.

If a file does not support text information or no track information is

recorded, the file name is displayed. Any characters that cannot be displayed are replaced with “.”

(period).

Files that can be played back

See “Playable files”. (v p. 75)

Switching the playback range

In the stop mode, press OPTION.

The playback range of a track can be set.

All the files in the selected folder are

Folder playback mode:

All playback mode: All the files in the disc are played.

The folder hierarchy is not displayed when “All playback mode” is set as the

playback range.

played. is displayed on the display at this time.

Front panel Rear panel Remote control

unit

Index

Page 40

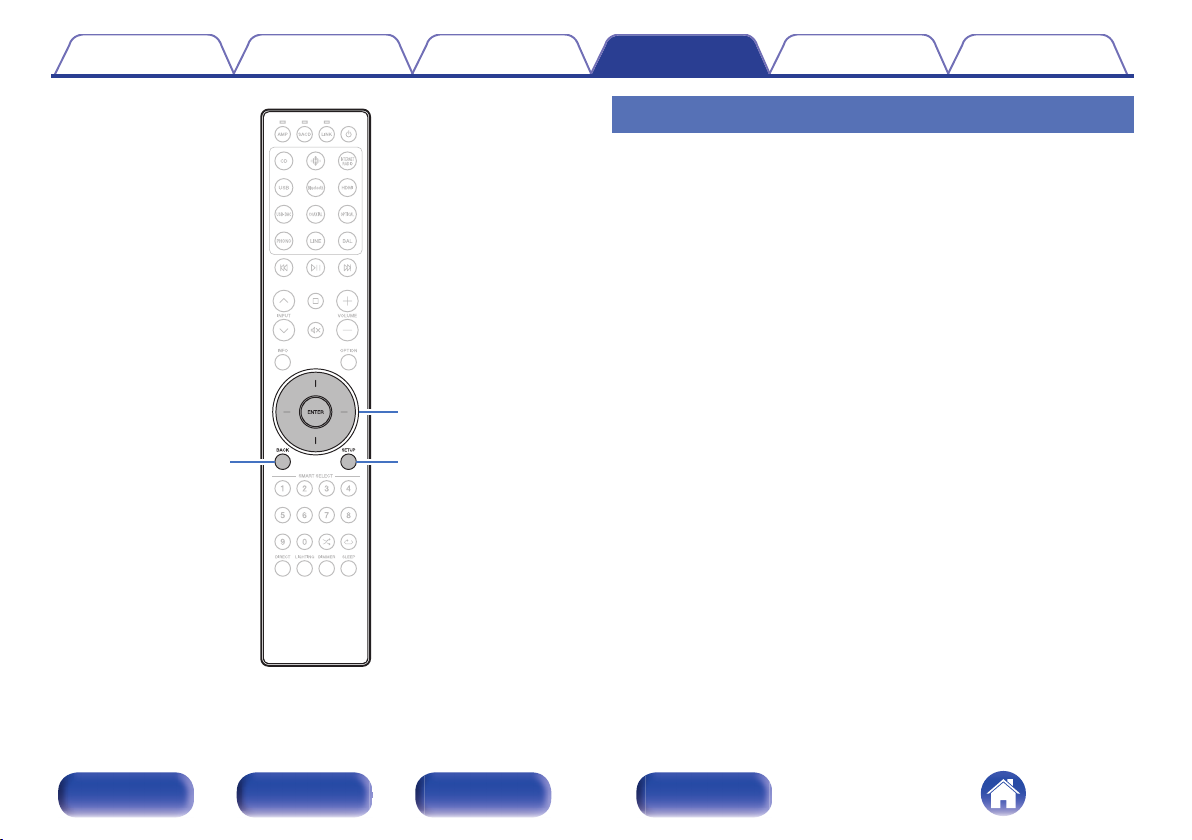

USB

INFO

BACK

ENTER

Cursor Up/Down

OPTION

Contents

Connections Playback Settings Tips Appendix

Playing a USB flash drive

Playing back music files stored on a USB flash drive.

Only USB flash drives conforming to mass storage class standards can

be played on this unit. This unit is compatible with USB flash drives in “FAT16” or “FAT32”

format. The audio format types and specifications supported by this unit for

playback are as follows. For details, see “Playing back a USB flash drives” (v p. 77).

WMA

MP3

WAV

MPEG-4 AAC

FLAC

Apple Lossless

AIFF

DSD

Front panel Rear panel Remote control

unit

Index

Page 41

Contents Connections Playback Settings Tips Appendix

Playing files stored on USB flash drives

Connect the USB flash drive to the USB port.

(v p. 24)

Press USB to switch the input source to “USB”.

When the setup menu’s “Resume Play” (v p. 57) is on, playback starts

automatically.

Press BACK button.

The file/folder list appears in the display of this unit.

The file/folder list can also be displayed by pressing i to stop the playback.

Use Cursor Up/Down buttons to select the folder to be

played, then press ENTER.

Use Cursor Up/Down buttons to select the file to be

played, then press ENTER.

Playback starts.

Operation buttons

k j

BACK Moving up a level in the folder tree

Cursor Up/Down Select the item

ENTER Enter the selected item / Playback

OPTION Select the playback range

INFO

To start playing another file during playback of a USB flash drive, first press BACK

to display the file tree. Next, use Cursor Up/Down buttons to select the file to be played and press ENTER.

Playback / Pause

Stop

Skip to previous track / Skip to next track

(Press and hold) Fast-reverse / Fastforward

Random playback

Repeat playback

Switching between All-track repeat and

Single-track repeat.

Switch the display between the album name and the file format

Function

Front panel Rear panel Remote control

unit

Index

Page 42

Contents Connections Playback Settings Tips Appendix

NOTE

Note that Marantz will accept no responsibility whatsoever for any problems

arising with the data on a USB flash drive when using this unit in conjunction with the USB flash drive.

When a USB flash drive is connected to this unit, the unit loads all of the files on

the USB flash drive. Loading may take a while if the USB flash drive contains a large number of folders and/or files.

Switching the playback range

Press OPTION.

The playback range of a track can be set.

All the files in the selected folder are

Folder playback mode:

All playback mode:

played. is displayed on the display at this time.

All the files in the USB flash drive are played.

Front panel Rear panel Remote control

unit

Index

Page 43

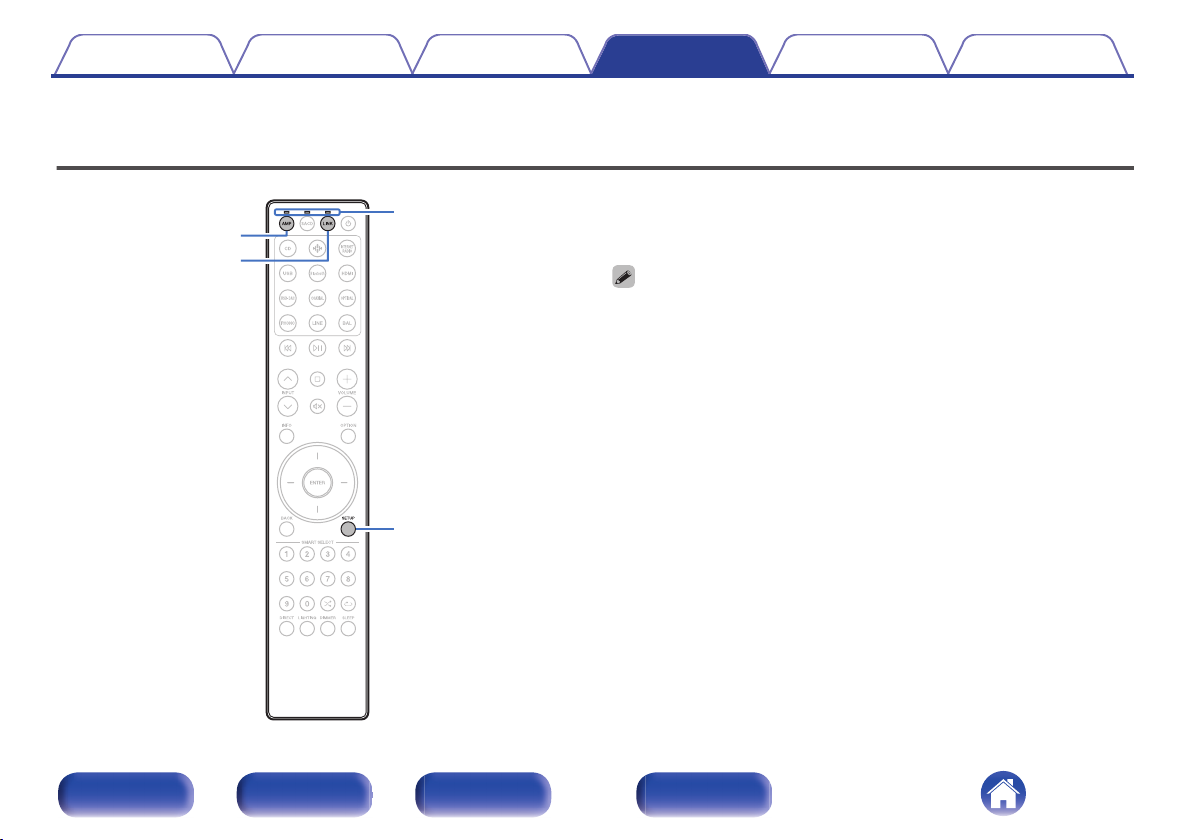

OPTICAL

USB-DAC

COAXIAL

Contents Connections Playback Settings Tips Appendix

Using as a D/A converter

Digital audio signals input from an external device or computer into this unit can be converted and output as analog signals using this unit’s D/A converter. (D/A converter function)

DSD is a registered trademark.

Microsoft, Windows 10 and Windows 11 are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

ASIO is a trademark and software of Steinberg Media Technologies

GmbH. Apple, Macintosh and macOS are trademarks of Apple Inc.,

registered in the U.S. and other countries.

Front panel Rear panel Remote control

unit

Index

Page 44

Contents Connections Playback Settings Tips Appendix

Connecting and playing back from a computer (USB-DAC)

You can enjoy high-quality audio playback from the D/A converter built in to this unit by inputting music files into this unit from a computer via USB connection.

Before USB connecting this unit to your computer, install the driver

software in your computer. Drivers do not need to be installed for macOS.

Also, you can use whichever commercially available or downloadable

player software you like to playback files on your computer.

Computer (system requirements)

Windows 10 or Windows 11

macOS 13 or 14

USB

USB 2.0: USB High speed/USB Audio Class Ver. 2.0

NOTE

This unit was checked the operation using the system requirements by us, but

it does not guarantee the operation of all systems.

Windows

macOS

Installing the dedicated driver (v p. 44)

Audio Device Settings (v p. 50)

Installing the dedicated driver (Windows OS only)

Installing the driver software

Disconnect the USB cable between your PC and the

unit.

The driver software cannot be installed correctly if your PC is

connected to the unit by a USB cable. If the unit and your computer are connected by a USB cable and

the computer is switched on before installation, disconnect the USB and restart the computer.

Download the dedicated driver from the “Download”

section of the SACD 10 page of the Marantz website onto your PC.

Unzip the downloaded file, and double-click the exe

file.

Front panel Rear panel Remote control

unit

Index

Page 45

Contents Connections Playback Settings Tips Appendix

Install the driver.

Select the language to use for the installation.

Click “OK”.

The wizard menu is displayed. Click “Next”.

Front panel Rear panel Remote control

unit

Index

Page 46

Contents Connections Playback Settings Tips Appendix

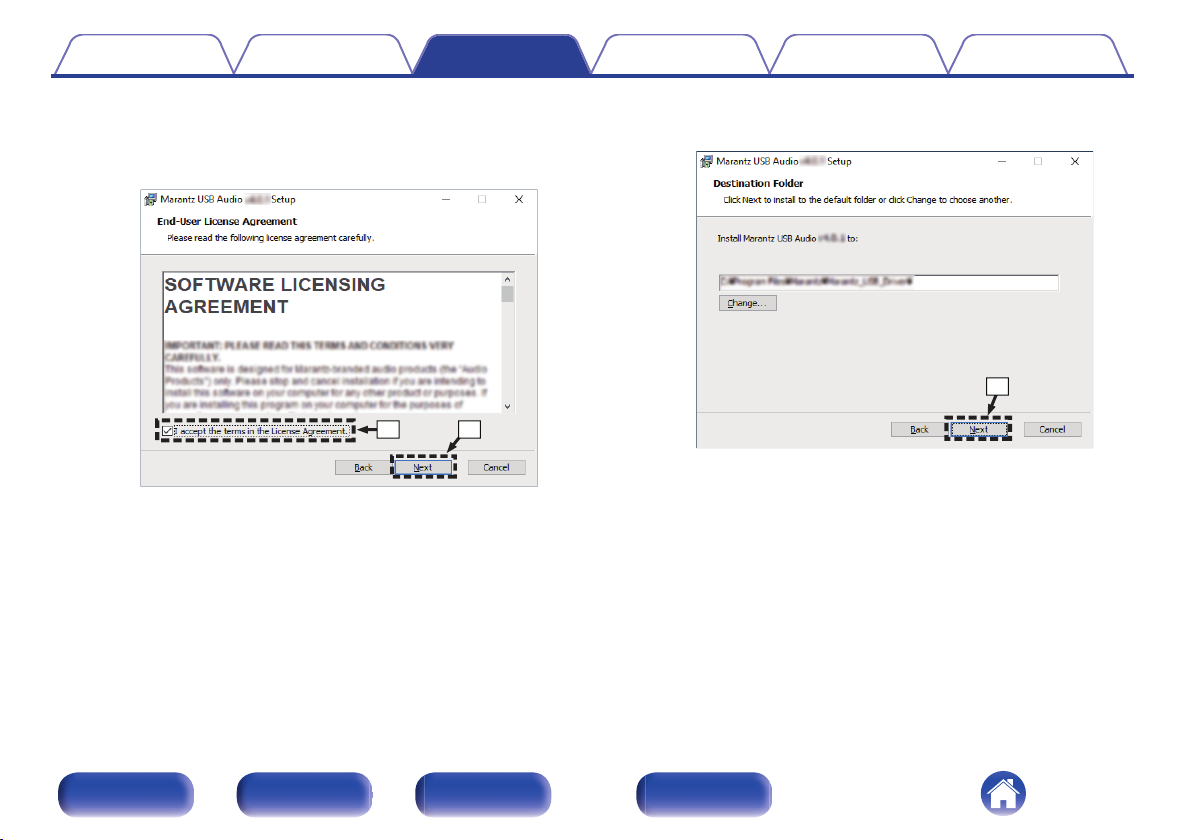

Read the Software Licensing Agreement, and click “I accept the

terms in the License Agreement.”. Click “Next”.

Select the installation destination and click “Next”.

Front panel Rear panel Remote control

unit

Index

Page 47

Contents

Connections Playback Settings Tips Appendix

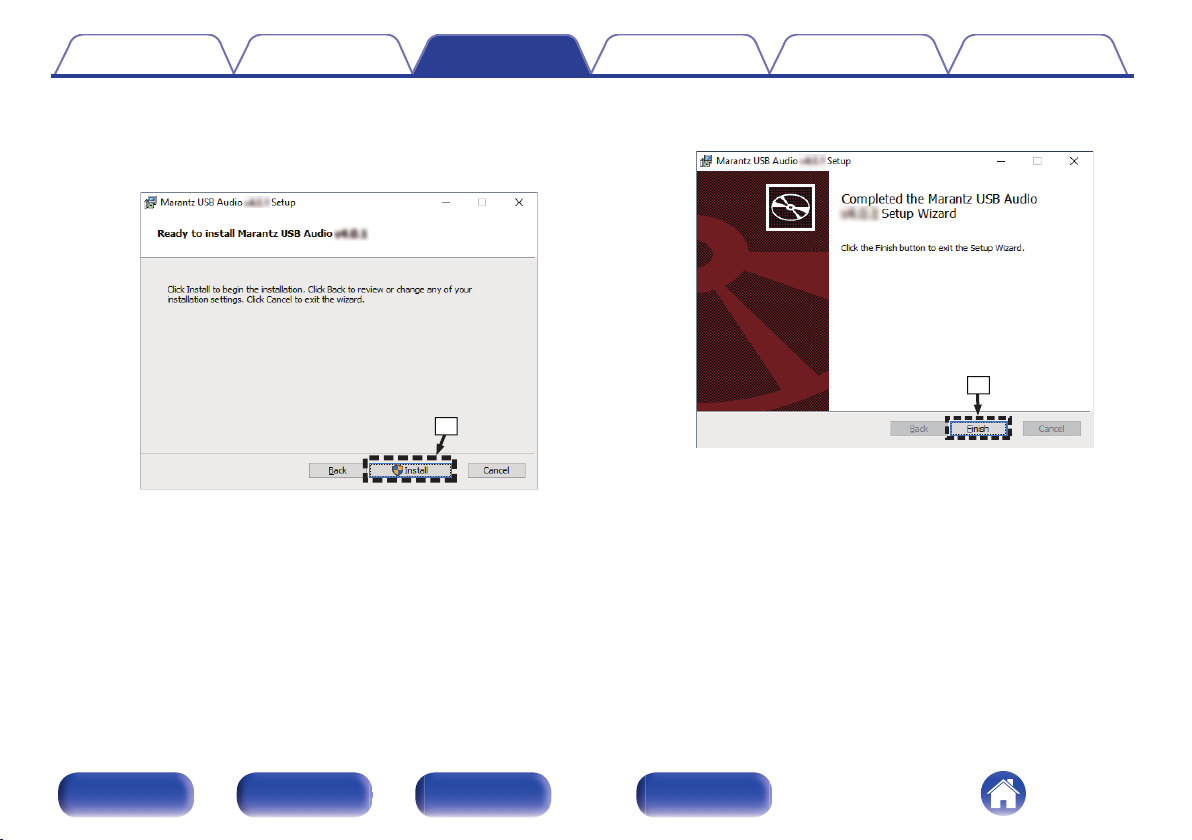

Click “Install” on the installation start dialog.

The installation starts. Do not perform any operation on the PC

until the installation is completed.

When the installation is completed, click “Finish”.

With the unit power off, connect the unit and PC using

a USB cable (not included).

For the connection procedure, refer to the “Connecting a PC or

Mac” section. (v p. 23)

Front panel Rear panel Remote control

unit

Index

Page 48

SACD 10

Contents Connections Playback Settings Tips Appendix

Press X.

When the unit power is turned on, the PC automatically finds and

connects to the unit.

Press USB-DAC to switch the input source to “USBDAC”.

Checking the installed driver.

Open the “Control Panel” on the PC.

The control panel setting list is displayed.

Click “Sound”.

The sound menu window is displayed.

Check that there is a checkmark next to “Default Device” under in

“SACD 10” of the “Playback” tab.

When there is a checkmark for a different device, click “SACD

10” and “Set Default”.

Checking audio output.

Outputs a TEST signal from the PC and checks the audio output from the USB-DAC function.

Select “SACD 10” and click “Properties”.

The Properties window is displayed.

Front panel Rear panel Remote control

unit

Index

Page 49

Contents Connections Playback Settings Tips Appendix

Click the “Advanced” tab.

Select the sampling rate and bit rate to be applied to the D/A

converter.

It is recommended that “2 channel, 32 bit, 192000 Hz (Studio

Quality)” is selected.

Click “Apply”.

Click “Test”.

Check that audio from this unit is output from the PC.

NOTE

The dedicated driver must be installed in the PC before this unit is connected to a

PC. Operation will not occur correctly if connected to the PC before the dedicated driver has been installed.

Player software supporting the Audio Stream Input Output (ASIO) driver is

required to play files with a sampling frequency of 352.8 kHz/384 kHz without downsampling. Check your player software before playing files with the ASIO driver.

Operation may fail in some PC hardware and software configurations.

Please see the FAQ at www.marantz.com if you experience any issues getting

audio to play from your computer through the this unit. You may also want to check the support pages for your audio player application.

Front panel Rear panel Remote control

unit

Index

Page 50

⑥

SACD 10

Contents

Audio device settings (macOS only)

With the unit power off, connect the unit and Mac using a USB cable

Connections Playback Settings Tips Appendix

(not included).

For the connection procedure, refer to the “Connecting a PC or Mac”

section. (v p. 23)

Press X.

Press USB-DAC to switch the input source to “USB-DAC”.

Move the cursor to “Go” on the computer screen, and then click

“Utilities”.

The utility list is displayed.

Double-click “Audio MIDI Setup”.

The “Audio Devices” window is displayed.

Secondary click on “SACD 10”, and then check that “Use This Device

For Sound Output” is checked.

If a different device is checked, select and “secondary click” on

“SACD 10”, and then select “Use This Device For Sound Output”.

Front panel Rear panel Remote control

unit

Index

Page 51

⑦

SACD 10

Contents

Select the “SACD 10” format.

It is normally recommended to set the format to “2 ch 32-bit Integer

384.0 kHz”.

Connections Playback Settings Tips Appendix

Playback

Install the desired player software on your computer beforehand. Use the rear panel USB-DAC port to connect this unit to a computer.

(v p. 23)

Press USB-DAC to switch the input source to “USB-

DAC”.

Start playback on the computer’s player software.

If the sampling frequency cannot be detected, “Signal Unlock” will

be displayed. “Unsupported” is displayed when audio signals that are not

supported by this unit are input.

Specifications of supported audio formats

See “Digital input” (v p. 82).

Quit Audio MIDI Setup.

Front panel Rear panel Remote control

unit

Index

Page 52

Contents Connections Playback Settings Tips Appendix

NOTE

Perform operations such as playback and pause on the computer. At this time, you

cannot perform operations with buttons on this unit or the remote control. When this unit is functioning as a D/A converter, sound is not output from the

computer’s speakers. If the computer is disconnected from this unit while the computer music playback

software is running, the playback software may freeze. Always exit the playback software before disconnecting the computer.

When an error occurs on the computer, disconnect the USB cable and restart the

computer. The sampling frequency of the music playback software and sampling frequency

displayed on this unit may differ. Use a cable that is 10 ft (3 m) or less to connect to the computer.

Connecting and playing back from a digital device (Coaxial/Optical 1/Optical

Connect digital device to this unit. (v p. 22)

Press COAXIAL or OPTICAL to switch the input source

to “Coaxial”, “Optical 1” or “Optical 2”.

Pressing OPTICAL changes the input source to “Optical 1” or

“Optical 2”.

Play the component connected to this unit.

If the sampling frequency cannot be detected, “Signal Unlock” will

be displayed. “Unsupported” is displayed when audio signals that are not

supported by this unit are input.

Specifications of supported audio formats

See “Digital input” (v p. 82).

NOTE

Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes

noise and could damage the speakers.

Front panel Rear panel Remote control

unit

Index

Page 53

Contents Connections Playback Settings Tips Appendix

Menu map

For menu operations, see the following page. By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.

Setting items Detailed items Description Page

Audio Filter

Dither

Noise Shaper

Digital Out

HP Amplifier Gain

Resume Play

General Illumination

Auto-Standby

This unit is equipped with a sound quality adjusting function which allows users to enjoy the desired playback sound quality.

This function adds audio data to minimize quantization error. Audio data to be added can be set on this unit. The sound quality changes. Set as desired.

Improves linearity and noise characteristics in the audible range using digital feedback. The measurements are the same but the sound quality changes. Set as desired.

Stopping digital audio output reduces a source of noise that affects sound quality, enabling higher sound quality playback.

Set the gain of the headphone amplifier. 57

When the input source is switched, the USB flash drive is disconnected and then connected, or the power is turned off and then back on during USB flash drive playback, the unit memorizes the point where playback stopped so that playback can resume from the beginning of that track.

This function adjusts the illumination of the front panel and the brightness of the display. It also enables linkage of the front panel illumination to the brightness of the display. When the brightness is turned “Off”, the noise source affecting the sound quality is suppressed, and high-quality sound playback is possible.

Sets whether to automatically switch the unit to the standby mode when there is no audio input and no operations are performed for more than 15 minutes.

Front panel Rear panel Remote control

unit

Index

Page 54

BACK

SETUP

ENTER

Cursor Up/Down

Contents Connections Playback Settings Tips Appendix

Menu operation

Press SETUP.

The setup menu is displayed on the display.

Use Cursor Up/Down buttons to select the menu to be

set or operated, then press ENTER.

Use Cursor Up/Down buttons to change to desired

setting.

Press ENTER to enter the setting.

To return to the previous item, press BACK.

Exiting the Menu, press SETUP while the setup menu is

displayed. The display returns to the normal display.

Front panel Rear panel Remote control

unit

Index

Page 55

Contents Connections Playback Settings Tips Appendix

Audio

Filter

This unit is equipped with a sound quality adjusting function which allows users to enjoy the desired playback sound quality. The unit supports PCM signal.

Offers a short impulse response for both

Filter 1 (Default):

Filter 2:

pre-echo and post-echo. Large amount of audio information clearly reproduces deep stereo imaging and the relative position of the sound source.

This characteristic is known as asymmetrical impulse response. The post echo is slightly longer than the pre-echo. The sound characteristics is more analog like.

Dither

Dither is used to avoid artifacts of digital signal processing. Side effect of dither is that Signal/Noise ratio is slightly reduced or artifacts do not completely disappear. Set as desired.

Dither 1 (Default):

Dither 2:

Off:

NOTE

The Dither function does not work when playing a Super Audio CD or DSD audio

source.

This is a Marantz developed dither that reduces digital artifacts while reducing SNR only very little.

Classic dither that reduces all artifacts but also reduces SNR.

Highest SNR but digital artifacts may slightly influence soundstage or colorate the sound.

Front panel Rear panel Remote control

unit

Index

Page 56

Contents Connections Playback Settings Tips Appendix

Noise Shaper

Improves linearity and noise characteristics in the audible range using digital feedback. The following degrees and methods can be set. The measurements are the same but the sound quality changes. Set as desired.

Balanced (Default):

Natural:

Dynamic Music:

Dynamic Voice:

NOTE

The Noise Shaper function does not work when playing a Super Audio CD or DSD

audio source.

This is the best compromise between highest signal to noise ratio and most open and detailed sound stage.

This gives high SNR for natural instruments but may reduce some resolution.

This improves the SNR but this cost resolution in sound stage. Highest possible dynamics for wideband music content in this setting.

Even higher SNR but only up to 5 kHz. This gives highest possible dynamics for natural instruments and voices.

Digital Out

Stopping digital audio output reduces a source of noise that affects sound quality, enabling higher sound quality playback.

On (Default):

Off: Do not use the digital audio output connector.

Use the digital audio output connector.

Front panel Rear panel Remote control

unit

Index

Page 57

Contents Connections Playback Settings Tips Appendix

HP Amplifier Gain

Set the gain of the headphone amplifier. Set this according to the impedance of the connected headphones. It is recommended that this is set on the “Low” side if the headphones have low impedance and on the “High” side if they have high impedance.

High:

Mid (Default):

Low:

NOTE

The headphone volume varies depending on the “HP Amplifier Gain” setting.

Decrease the volume or mute the audio first if changing this setting while listening to audio.

Set the gain of the headphone amplifier to “High”. Set this if the volume is too low at the factory default setting.

Set the gain of the headphone amplifier to “Mid”.

Set the gain of the headphone amplifier to “Low”. Set this if the volume is too high at the factory default setting.

Resume Play

When the input source is switched, the USB flash drive is disconnected and then connected, or the power is turned off and then back on during USB flash drive playback, the unit memorizes the point where playback stopped (resume information) so that playback can resume from after that point.

On (Default):

Off: Resume playback is not set.

NOTE

Resume playback works even if the USB flash drive is disconnected and then

reconnected. However, if a different USB flash drive is connected, the resume information for the previous USB flash drive is deleted.

The resume information may be deleted when the USB flash drive is removed and

files are added or deleted. Press i while playback is stopped to delete the resume information. “Resume Off”

is displayed.

Resume playback is set.

Front panel Rear panel Remote control

unit

Index

Page 58

Contents Connections Playback Settings Tips Appendix

General

Illumination

Display

100 – 5 (Default: 100)

Off

The display brightness setting is synchronized with the Dimmer menu setting.

(v p. 31)

Front Panel

Sync (Default):

100 – 5

Off

The brightness of the illumination is linked to the brightness of the display.

Auto-Standby

Sets whether to automatically switch the unit to the standby mode when the unit remains in the stop mode for more than 15 minutes.

Off (Default):

On: Enable Auto Standby mode.

Disable Auto Standby mode.

Front panel Rear panel Remote control

unit

Index

Page 59

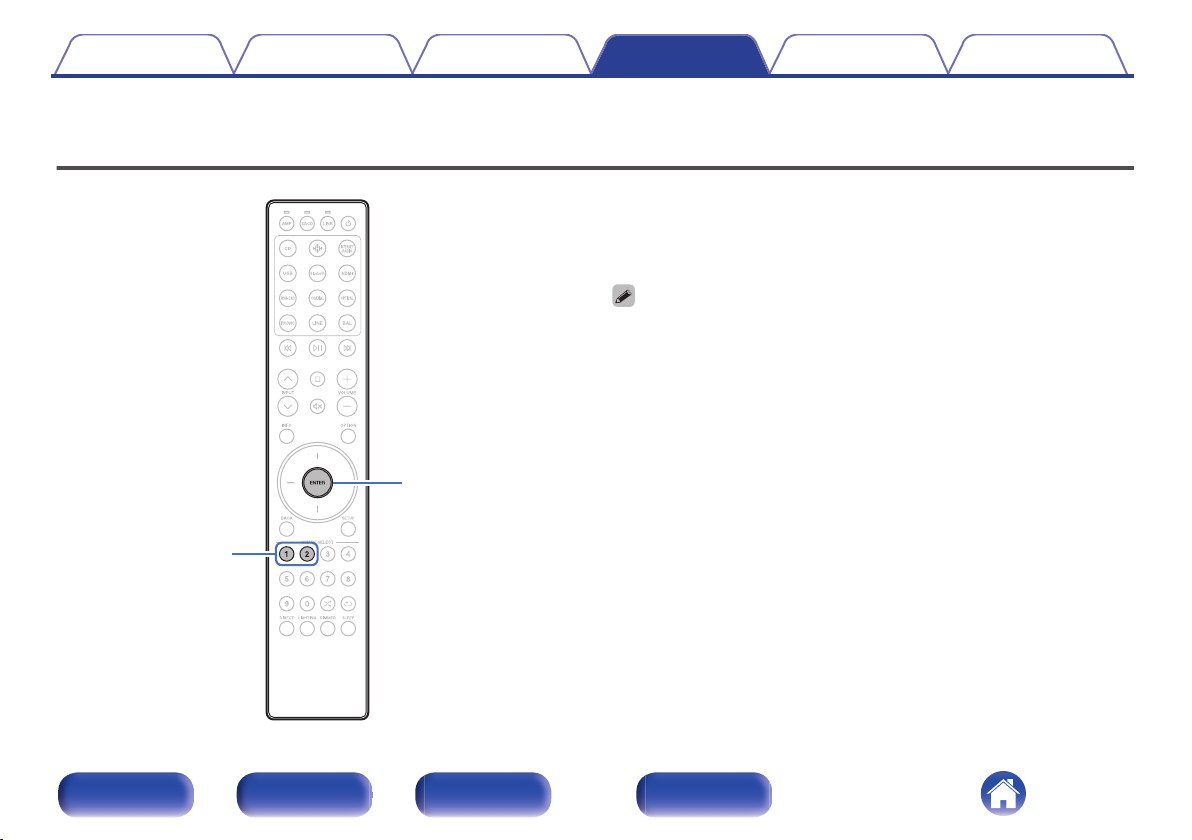

SETUP

AMP

LINK

Remote mode select indicators

Contents Connections Playback Settings Tips Appendix

Disabling amplifier/streaming preamplifier operating mode on remote control

If you do not want to use this unit in combination with MODEL 10 or LINK 10n, you can disable the remote control operating mode of the device that you are not using. By default, all remote control operating modes are enabled.

When remote control operating mode is enabled, be sure to check the operation of

your device.

Front panel Rear panel Remote control

unit

Index

Page 60

Contents Connections Playback Settings Tips Appendix

Disabling amplifier operating mode

Press and hold AMP and SETUP simultaneously until

the remote mode select indicators flash green.

Each time you perform Step 1, the amplifier operating mode is

toggled between enabled/disabled.

Disabling streaming preamplifier operating mode

Press and hold LINK and SETUP simultaneously until

the remote mode select indicators flash green.

Each time you perform Step 1, the streaming preamplifier

operating mode is toggled between enabled/disabled.

Front panel Rear panel Remote control

unit

Index

Page 61

ENTER

1 – 2

Contents

Connections Playback Settings Tips Appendix

Setting the device to be operated by the volume buttons on the remote control

If you use this unit in combination with a Marantz amplifier or streaming preamplifier, you can specify the device to be operated by the volume buttons so that you can adjust the volume of the Marantz amplifier or streaming preamplifier while the included remote control remains in SACD player operating mode.

After setting the device to be operated by the volume buttons on the remote

control, be sure to check the operation of your device. Switching the device to be operated affects the VOLUME no and : buttons on

the remote control.

Front panel Rear panel Remote control

unit

Index

Page 62

Contents Connections Playback Settings Tips Appendix

Setting the device to be operated by the volume buttons in SACD player operating mode

If you use a Marantz amplifier or streaming preamplifier in combination with this unit, you can switch the device to be operated by the volume buttons while the included remote control is set to SACD player operating mode.

By default, the device to be operated is set to “Amplifier”.

Set the device to be operated by the volume buttons to the amplifier

Press and hold ENTER and 1 on the remote control

simultaneously for 5 seconds or more.

The AMP indicator will flash green.

Set the device to be operated by the volume buttons to the streaming preamplifier

Press and hold ENTER and 2 on the remote control

simultaneously for 5 seconds or more.

The LINK indicator will flash green.

Front panel Rear panel Remote control

unit

Index

Page 63

Contents Connections Playback Settings Tips Appendix

Contents

Tips

I want to switch the filter to change the desired sound quality 64

I want to enjoy analog output audio at higher quality 64

I want to display Super Audio CD text 64

I want to play the multi-channel area of a Super Audio CD is played 64

I want to playback just the specified folder 64

I want to randomly play back all tracks on a DVD-R/-RW/+R/+RW or CD-R/-RW 64

I want to playback high resolution music files 64

I want to stop the USB flash drive from automatically starting playback 65

Simple operations in the power off state 65

I want to operate a Marantz amplifier and streaming preamplifier using the remote control of this unit 65

Troubleshooting

Power does not turn on / Power is turned off 67

Operations cannot be performed through the remote control unit 68

Display on this unit shows nothing 69

No sound comes out 69

Sound is interrupted or noise occurs 70

Desired sound does not come out 70

USB flash drives cannot be played back 71

Cannot playback Discs 72

There is a delay before the disc tray starts to open 72

Music files on PC or Mac cannot be played back (USB-DAC) 73

Audio from digital devices cannot be played back (Coaxial/Optical) 73

Front panel Rear panel Remote control

unit

Index

Page 64

Contents

Connections Playback Settings Tips Appendix

Tips

I want to switch the filter to change the desired sound quality

Switch the filter characteristics. (v p. 55)

I want to enjoy analog output audio at higher quality

Set “Digital Out” on the setup menu to “Off”. (v p. 56)

Press the DIMMER button to turn the display off. (v p. 31)

Press the LIGHTING button to turn the display and lighting LED on the front panel off. (v p. 32)

I want to display Super Audio CD text

This unit supports Super Audio CD text. Press the INFO button to switch the display information. (v p. 33)

I want to play the multi-channel area of a Super Audio CD is played

This unit can play multi-channel audio by downmixing to two channels. Press the OPTION button and set “MULTI”. (v p. 36)

I want to playback just the specified folder

Press the OPTION button to set the playback mode to folder playback mode. (v p. 39)

I want to randomly play back all tracks on a DVD-R/-RW/+R/+RW or CD-R/-RW

Before playback, press the OPTION button to set the playback mode to “All playback mode”, then press the s button for random playback. (v p. 39)

I want to playback high resolution music files

This unit can playback high resolution music files that are stored on a USB flash drive. (v p. 77)

Front panel Rear panel Remote control

unit

Index

Page 65

Contents Connections Playback Settings Tips Appendix

I want to stop the USB flash drive from automatically starting playback

Set “Off” to the “Resume Play”. (v p. 57)

Simple operations in the power off state

Press the p button to automatically turn the unit’s power supply on and start playback of the last selected input source.

I want to operate a Marantz amplifier and streaming preamplifier using the remote control of this unit

Marantz amplifier and streaming preamplifier can also be operated with the remote control of this unit. Also refer to the amplifier and streaming

preamplifier instruction manuals for those players. (v p. 15)

Front panel Rear panel Remote control

unit

Index

Page 66

Contents Connections Playback Settings Tips Appendix

Troubleshooting

If a problem should arise, first check the following:

1. Are the connections correct?

2. Is the set being operated as described in the owner’s manual?

3. Are the other devices operating properly?

If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.

Continue pressing the X button on the unit until “Restart” appears in the display, or remove and re-insert the power cord of the unit.

If this unit does not operate properly, check the corresponding symptoms in this section. If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power

immediately and contact the store where you purchased this unit.

Front panel Rear panel Remote control

unit

Index

Page 67

Contents Connections Playback Settings Tips Appendix

Power does not turn on / Power is turned off

Power is not turned on.

Check whether the power plug is correctly inserted into the power outlet. (v p. 28)

This unit is in standby mode. Press the X button on the main unit or the X button on the remote control. (v p. 30)

Power automatically turns off.

The auto standby mode setting is on. The auto standby mode automatically switches the unit to standby if there are no operations for more than 15

minutes. To disable the Auto Standby mode, set “Auto-Standby” on the menu to “Off”. (v p. 58)

When the power is turned on, the power indicator flashes in orange.

The protection circuit has been activated due to an error in the internal power supply. Unplug the power cord and contact our customer service center.

Front panel Rear panel Remote control

unit

Index

Page 68

Contents

Connections Playback Settings Tips Appendix

Operations cannot be performed through the remote control unit

Operations cannot be performed through the remote control unit.

Batteries are worn out. Replace with new batteries. (v p. 6)

Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 6)

Remove any obstacle between this unit and the remote control unit.

Insert the batteries in the proper direction, checking the q and w marks. (v p. 6)

The unit’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the

remote control sensor will not be exposed to strong light. When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV

and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not affect operations from the remote control unit of this unit.

Press the SACD button to switch the remote control operating mode to SACD player operating mode. (v p. 12)

Remote control SACD player operating mode is disabled. Press and hold the SACD and SETUP buttons simultaneously for 3 seconds or more to

enable SACD player operating mode. The device to be operated by the VOLUME no and : buttons is a Marantz streaming preamplifier. If the remote control is set to SACD player

operation mode and the volume of the Marantz amplifier connected to this unit cannot be adjusted, switch the operating device to the amplifier. (v p. 61)

The device to be operated by the VOLUME no and : buttons is a Marantz amplifier. If the remote control is set to SACD player operation mode and

the volume of the Marantz streaming preamplifier connected to this unit cannot be adjusted, switch the operating device to the streaming preamplifier. (v p. 61)

When using this unit independently, set the switch to “INTERNAL”. (v p. 26)

Front panel Rear panel Remote control

unit

Index

Page 69

Contents

Connections Playback Settings Tips Appendix

Display on this unit shows nothing

Display is off.

Press the DIMMER button, and change the setting to anything other than off. (v p. 31)

Set “Illumination” - “Display” on the setup menu to something other than “Off”. (v p. 58)

Press the LIGHTING button to turn on the lighting. (v p. 32)

No sound comes out

No sound is produced. Or sound is distorted.

Check the connections for all devices. (v p. 18)

Insert connection cables all the way in.

Check that input connectors and output connectors are not reversely connected.

Check cables for damage.

Check the amplifier’s functions and controls and adjust as necessary.

When connecting to a device with digital audio input connectors, set “Digital Out” to “On”. (v p. 56)

Digital audio output stops when playing the HD layer of a Super Audio CD or a file with a DSD signal or a linear PCM signal with a sampling frequency

of 352.8 kHz or higher.

Front panel Rear panel Remote control

unit

Index

Page 70

Contents

Connections Playback Settings Tips Appendix

Sound is interrupted or noise occurs

During playback from the CD-R/-RW or DVD-R/-RW/+R/+RW, sound is occasionally interrupted.

The sound may skip during playback of a CD-R/-RW containing a high-resolution audio source.

This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.

During playback from the USB flash drive, sound is occasionally interrupted.

When the transfer speed of the USB flash drive is slow, sound may occasionally be interrupted.

Sound is interrupted during playback of tracks saved on a computer.

Do not start applications other than the player software while playing music on your computer.

The sound may be interrupted depending on the hardware or software configuration of the computer being used.

Desired sound does not come out

Headphone volume is low.

Switch “HP Amplifier Gain” to “High” if using headphones with high impedance or low sensitivity. “HP Amplifier Gain” (v p. 57)

Front panel Rear panel Remote control

unit

Index

Page 71

Contents

Connections Playback Settings Tips Appendix

USB flash drives cannot be played back

USB flash drive is not recognized.

Disconnect and reconnect the USB flash drive. (v p. 24)

Mass storage class compatible USB flash drives are supported.

This unit does not support a connection through a USB hub. Connect the USB flash drive directly to the USB port.

The USB flash drive must be formatted to FAT16 or FAT32.

Not all USB flash drives are guaranteed to work. Some USB flash drives are not recognized. When using a type of portable hard disc drive compatible

with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.

Files on the USB flash drive are not displayed.

Files of a type not supported by this unit are not displayed. (v p. 77)

This unit can display a file structure with up to 8 levels, up to 1,000 folders and up to 2,000 files in 1 folder. Modify the folder structure of the USB flash

drive. When multiple partitions exist on the USB flash drive, only files on the first partition are displayed.

iOS and Android devices are not recognized.

The USB port of this unit does not support playback from iOS and Android devices.

Files on a USB flash drive cannot be played.

Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 77)

You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.

Playback may not be possible if the album art file size exceeds 2 MB.

Front panel Rear panel Remote control

unit

Index

Page 72

Contents

Connections Playback Settings Tips Appendix

Cannot playback Discs

Cannot playback when the play button is pressed, or cannot correctly playback a specific part of the disc.

The disc is dirty or scratched. Either clean the disc, or insert a different disc. (v p. 81)

Cannot playback CD-R/-RW or DVD-R/-RW/+R/+RW.

Discs cannot be played back unless they have been finalized. Use a finalized disc. (v p. 74)

This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.

Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 75)

“No Disc” is displayed.

“No Disc” is displayed if the disc is loaded upside-down, if no disc is loaded, when the inserted disc cannot be read because it is not compatible with

this unit or is dirty or scratched.

“System Error” is displayed.

“System Error” is displayed when an error not caused by disc, format, etc., occurs. Contact our customer service center.

“Wrong Format” is displayed.

“Wrong Format” is displayed for files created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 75)

There is a delay before the disc tray starts to open

There is a delay before the disc tray starts to open.

When an input source other than “CD” is selected, the power to the CD drive mechanism is turned off in order to improve the sound quality. This occurs

because the power to the mechanism is turned off, it is not a malfunction.

Front panel Rear panel Remote control

unit

Index

Page 73

Contents

Connections Playback Settings Tips Appendix

Music files on PC or Mac cannot be played back (USB-DAC)

This unit is not recognized on the computer.

Reconnect the USB cable to the USB port on your computer. When this unit is still not recognized after reconnection, connect to a different USB port.

(v p. 23) Restart your computer.

Check the OS of your computer. (v p. 44)

When your computer is running on Windows, a dedicated driver software should be installed. (v p. 44)

This unit is not selected as the playback device.

Select this unit as the playback device in the sound settings on the computer. (v p. 44)

“Signal Unlock” is displayed.

When digital audio signals cannot be detected properly, “Signal Unlock” is displayed. (v p. 51)

“Unsupported” is displayed.

“Unsupported” is displayed when audio signals that are not supported by this unit are input. Check the settings on your computer or player software.

(v p. 51) If the computer you use is macOS, please check if the SACD 10 format is set below 384.0 kHz using the Audio MIDI Setup. (v p. 50)

Audio from digital devices cannot be played back (Coaxial/Optical)

“Signal Unlock” is displayed.

When digital audio signals cannot be detected properly, “Signal Unlock” is displayed. (v p. 52)

“Unsupported” is displayed.

“Unsupported” is displayed when audio signals that are not supported by this unit are input. Check the audio output signal format from your digital

device. (v p. 52)

Front panel Rear panel Remote control

unit

Index

Page 74

Types of Super Audio CDs

Single layer disc Dual layer disc

Hybrid disc

HD layer

HD layer HD layer

CD layer

Contents Connections Playback Settings Tips Appendix

Playing back Discs

Playable media

Super Audio CD

CD-R

CD-RW

DVD-R/-RW/+R/+RW

NOTE

Some discs and some recording formats cannot be played.

Non-finalized discs cannot be played.

Super Audio CD

There are three types of Super Audio CDs:

Single layer disc

Single layer Super Audio CD with just an HD layer. Dual layer disc

Super Audio CD with two HD layers. Enables long playback at a high audio quality. Hybrid disc

Two-layer Super Audio CD with an HD layer and a CD layer. The signals on the CD layer can be played on a regular CD player.

The HD layer is a layer of high density signals for Super Audio CDs. The CD layer is the layer of signals that can be read on a regular CD

player.

When “MULTI” is selected, down-mixed audio is output to the L and R

channels.

Front panel Rear panel Remote control

unit

Index

Page 75

Contents

Playable files

MP3 44.1/48 kHz 32 – 320 kbps -

WMA 44.1/48 kHz 48 – 320 kbps -

AAC 44.1/48 kHz 16 – 320 kbps -

WAV

FLAC

Apple Losslessz1

AIFF

DSD 2.8/5.6 MHz - 1 bit –

The Apple Lossless Audio Codec（ALAC） decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).

This item can only be used to play files with a sampling frequency of 44.1/48 kHz.

Maximum number of playable files and folders

Maximum number of folders : 1,000 Maximum number of files in 1 folder : 2,000

Connections Playback Settings Tips Appendix

Sampling frequency Bit rate

44.1/48/88.2/

96/176.4/192 kHz

44.1/48/88.2/

96/176.4/192 kHz

44.1/48/

88.2/96 kHz

44.1/48/88.2/

96/176.4/192 kHz

- 16/24 bits

Bit length

CD-R/-RW DVD-R/-RW DVD+R/+RW

P P P P P P

P P P

Pz2

Playable discs

P P

Extension

.mp3 .wma .aac/

.m4a

.wav

.flac

.m4a

.aif/ .aiff

.dsf/

.dff

Front panel Rear panel Remote control

unit

Index

Page 76

Contents Connections Playback Settings Tips Appendix

NOTE

Be sure to give files the extension. Files with any other extensions or files with

no extensions cannot be played. Recordings you have made should only be used for your personal enjoyment,

and as per copyright laws may not be used in other ways without permission of the copyright holder.

Only music files that are not copyright-protected can be played on this unit.

Content downloaded from pay sites on the Internet are copyright protected.

Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer’s settings.

The maximum number of files and folders that can be played differs

depending on conditions such as the length of the file name or folder name or the number of levels in the folder hierarchy.

Front panel Rear panel Remote control

unit

Index

Page 77

Contents

Connections Playback Settings Tips Appendix

Playing back a USB flash drives

USB-compatible file systems

FAT16 or FAT32

If the USB memory device is divided into multiple partitions, only the top drive can be selected.

Maximum number of playable files and folders

Maximum number of folders : 1,000 Maximum number of files in 1 folder : 2,000

Tag data

ID3-TAG (Ver.1.x and 2.x) WMA-TAG (The title, artist, and album tag data are supported)

Front panel Rear panel Remote control

unit

Index

Page 78

Contents Connections Playback Settings Tips Appendix

Compatible formats

MP3

WMA

AAC

WAV

FLAC

Apple Lossless *

AIFF

DSD

The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).

NOTE

Be sure to give files the extension. Files with any other extensions or files with no extensions cannot be played.

Recordings you have made should only be used for your personal enjoyment, and as per copyright laws may not be used in other ways without permission of the copyright

holder. It is not compatible with an MP3 player, digital camera, a USB device for a mobile phone, etc.

The unit does not support a card reader, USB extension cable, or USB hub.

Sampling frequency Bit rate Bit length Extension

44.1/48 kHz 32 – 320 kbps – .mp3

44.1/48 kHz 48 – 320 kbps – .wma

44.1/48 kHz 16 – 320 kbps –

.aac/ .m4a

44.1/48/88.2/96/176.4/192 kHz – 16/24 bits .wav

44.1/48/88.2/96/176.4/192 kHz – 16/24 bits .flac

44.1/48/88.2/96/176.4/192 kHz – 16/24 bits .m4a

44.1/48/88.2/96/176.4/192 kHz – 16/24 bits

2.8/5.6 MHz – 1 bit

.aif/ .aiff

.dsf/

.dff

Only music files that are not copyright-protected can be played on this unit.

Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be

The maximum number of files and folders that can be played differs depending on conditions such as the length of the file name or folder name or the number of levels in the

folder hierarchy.

Front panel Rear panel Remote control

Index

unit

Page 79

Folder 1 Folder 2

1st level

2nd level

3rd level

File 1 File 2 File 3 Folder 3

File 4 File 5 File 6 File 7

CD-R/CD-RW or USB flash drive

Contents

Connections Playback Settings Tips Appendix

Playback order of music files

When there are multiple folders containing music files, the playback order of folders is automatically set when this unit reads the media. The files in each folder are played back in the order in which the files were recorded on the media, from the oldest date and time.

CD-R/-RW, DVD-R/-RW/+R/+RW and USB flash drive

For playback of files on CD-R/-RW, DVD-R/-RW/+R/+RW or USB flash drive, files in all folders on the first layer are played first, next on the second layer, then next on the third layer, and so on in this order.

The playback order displayed on a PC may differ from the actual playback order.

The playback order with a CD-R/-RW and DVD-R/-RW/+R/+RW may differ,

depending on the writing software. The playback order may differ from the order in which the folders or files were

recorded if you delete or add a folder or file on USB. This occurs because of data recording specifications and is not a malfunction.

About discs and files

Music files recorded on CD-R/-RW, DVD-R/-RW/+R/+RW and USB flash drive are divided into large segments (folders) and small segments (files).

Files are stored in folders, and folders can be placed for storage in a hierarchy. The unit can recognize up to 8 levels of folders.

When writing music files on a CD-R/-RW or DVD-R/-RW/+R/+RW disc,

set the writing software’s format to “ISO9660”. The files may not play properly if they are recorded in other formats. For details, refer to the instructions of your writing software.

Front panel Rear panel Remote control

unit

Index

Page 80

Outer tray guide

5 inch/12 cm disc

Inner tray guide

3 inch/8 cm disc

Figure 2

Figure 1

Contents

Connections Playback Settings Tips Appendix

Cautions on using media

Loading discs

Set the disc in the tray label side up.

Make sure the disc tray is fully open when inserting the disc.

Place the discs flatly, 5 inch/12 cm discs in the outer tray guide (Figure

1), 3 inch/8 cm discs in the inner tray guide (Figure 2).

Place 3 inch/8 cm discs in the inner tray guide without using an adapter.

NOTE

Only load one disc at a time. Loading two or more discs can damage the unit or

scratch the discs. Do not use cracked or warped discs or discs that have been repaired with

adhesive, etc. Do not use discs on which the sticky part of cellophane tape or labels is exposed

or on which there are traces of where labels have been removed. Such discs can get caught inside the player and damage it.

Do not use discs in special shapes, as they may damage the unit.

Do not push the disc tray in by hand when the power is off. Doing so could

damage the unit. If the unit is left in a room full of smoke from cigarettes, etc., for long periods of

time, the surface of the optical pickup may get dirty, preventing it from receiving signals properly.

Front panel Rear panel Remote control

unit

Index

Page 81

Gently wipe the disc from the inside towards the outside.

Do not wipe with a circular motion.

Contents Connections Playback Settings Tips Appendix

How to handle media

Do not get fingerprints, oil or dirt on discs.

Take special care not to scratch discs when removing them from their

cases. Do not bend or heat discs.

Do not enlarge the hole in the center.

Do not write on the labeled (printed) surface with ball-point pens,

pencils, etc., or stick new labels on discs. Condensation may form on discs if they are moved suddenly from a

cold place (outdoors for example) to a warm place, but do not try to dry discs with a hairdryer, etc.

Do not eject a USB flash drive or turn off the unit while a USB flash drive

is being played. This may result in malfunction or loss of the USB flash drive’s data.

Do not attempt to open or modify a USB flash drive.

USB flash drive and files can be damaged by static electricity. Do not

touch the metal contacts of a USB flash drive with your fingers. Do not use warped USB flash drive.

After use, be sure to remove any disc or USB flash drive, and store it in

its proper case, to avoid dust, scratches and deformation. Do not store discs in the following places:

1. Places exposed to direct sunlight for long periods of time

2. Dusty or humid places

3. Places exposed to heat from heaters, etc.

Cleaning discs

If there are fingerprints or dirt on a disc, wipe them off before using the

disc. Use a commercially available disc cleaning set or a soft cloth to clean

discs.

NOTE

Do not use record spray, antistatic agents, benzene, thinner or other solvents.

Front panel Rear panel Remote control

unit

Index

Page 82

Contents Connections Playback Settings Tips Appendix

Digital input

Specifications of supported audio formats

USB-DAC

Sampling frequency Bit length

DSD (2-channel)

Linear PCM (2-channel)

Digital audio output stops during playback of the DSD files and linear PCM signals

with a sampling frequency of 352.8/384 kHz.

Coaxial/Optical

Linear PCM (2-channel)

2.8/5.6/

11.2 MHz

44.1/48/88.2/96/

176.4/192/352.8/ 384 kHz

Sampling frequency Bit length

44.1/48/88.2/96/

176.4/192 kHz

1 bit

16/24/32

bits

16/24 bits

Front panel Rear panel Remote control

unit

Index

Page 83

Contents

Connections Playback Settings Tips Appendix

Explanation of terms

AIFF （Audio Interchange File Format）

This is an uncompressed and lossless format for digital audio. Use AIFF files to burn high-quality audio CDs from imported songs. AIFF files use approximately 10 MB of disk space per minute.

Apple Lossless Audio Codec

This is a codec for lossless audio compression method developed by Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data compressed to approximately 60 – 70 % can be decompressed to exactly the same original data.

DSD （Direct-Stream Digital）

One of the audio data recording methods, it is the signal aspect used to store audio signals on a super audio CD, and is Δ-Σ modulated digital audio.

FLAC (Free Lossless Audio Codec)

FLAC stands for Free lossless Audio Codec, and is a lossless free audio file format. Lossless means that the audio is compressed without any loss in quality. The FLAC license is as shown below.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice,

this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright

notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its

contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES （INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION） HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT （INCLUDING NEGLIGENCE OR OTHERWISE） ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Front panel Rear panel Remote control

unit

Index

Page 84

Contents

Connections Playback Settings Tips Appendix

MP3 （MPEG Audio Layer-3）

This is an internationally standardized audio data compression scheme, using the “MPEG-1” video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound quality equivalent to a music CD.

MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4

These are the names for digital compression format standards used for the encoding of video and audio. Video standards include “MPEG-1 Video”, “MPEG-2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.

WMA (Windows Media Audio)

This is audio compression technology developed by Microsoft Corporation.

WMA data can be encoded using Windows Media® Player. To encode WMA files, only use applications authorized by Microsoft

Corporation. If you use an unauthorized application, the file may not work properly.

Sampling frequency

Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal).

The number of readings taken in one second is called the “sampling frequency”. The larger the value, the closer the reproduced sound is to the original.

Dynamic range

The difference between the maximum undistorted sound level and the minimum discernible level above the noise emitted by the device.

Downmix

This function converts the number of channels of surround audio to a lower number of channels and plays back according to the system’s configuration.

Bit rate

This is the amount of audio data recorded on a disc that is read in one second.

Finalizing

This process enables DVD/CD recorded with a recorder to be played by other players.

Linear PCM

This is an uncompressed PCM (Pulse Code Modulation) signal. Unlike lossy compression audio sources such as MP3, no audio quality or dynamic range deteriorates.

Protection circuit

This is a function to prevent damage to devices within the power supply when an abnormality such as an overload, excess voltage occurs or over temperature for any reason.

Front panel Rear panel Remote control

unit

Index

Page 85

Contents Connections Playback Settings Tips Appendix

Specifications

Audio performance

Analog output [Super Audio CD] [CD]

Channels: 2-channels 2-channels

Playable frequency range: 2 Hz – 100 kHz 2 Hz – 20 kHz

Playable frequency response: 2 Hz – 50 kHz (-3 dB) 2 Hz – 20 kHz (±1 dB)

S/N: 118 dB (Audible range) 116 dB

Dynamic range: 112 dB (Audible range) 98 dB

Harmonic distortion: 0.0004 % (1 kHz, Audible range) 0.0015 % (1 kHz)

Wow & flutter: Crystal accuracy Crystal accuracy

Output level

Unbalanced: 2.5 V (10 kΩ/kohms) 2.0 V (10 kΩ/kohms)

Balanced: 5.0 V (10 kΩ/kohms) 4.0 V (10 kΩ/kohms)

Headphone output: 130 mW/32 Ω/ohms (variable maximum) 130 mW/32 Ω/ohms (variable maximum)

Digital output

Coaxial: - 0.5 Vp-p / 75 Ω/ohms

Optical: - –19 dBm

Optical readout system

Laser: AlGaAs AlGaAs

Wave length: 650 nm 780 nm

Signal type: 1-bit DSD 16-bit linear PCM

Sampling frequency: 2.8224 MHz 44.1 kHz

Front panel Rear panel Remote control

unit

Index

Page 86

Contents Connections Playback Settings Tips Appendix

General

Power supply: AC 120 V, 60 Hz

Power consumption: 55 W

Power consumption in standby mode: 0.3 W or less

Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)

Operating humidity: 5 – 90 % (without dew)

For the purpose of improvement, the specifications and design are subject to change without notice.

Front panel Rear panel Remote control

unit

Index

Page 87

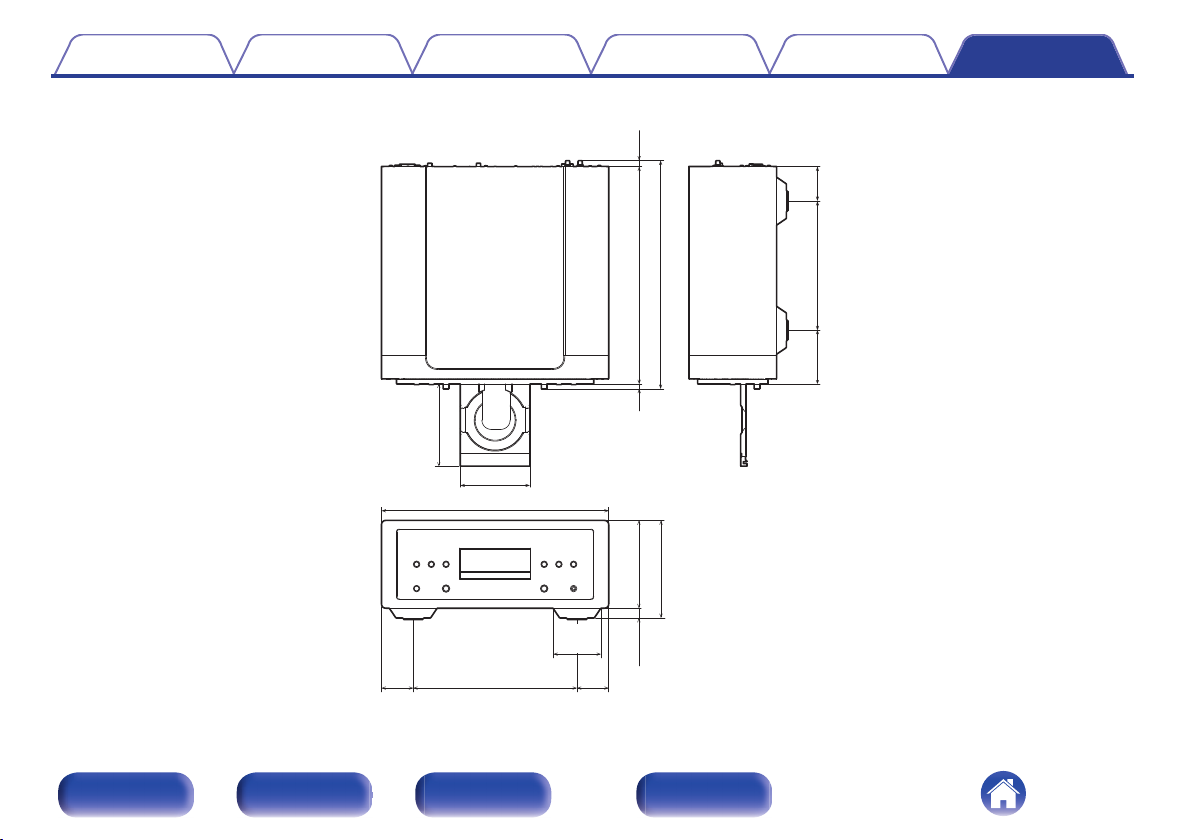

0.4

(9)

16.6 (422)

0.4

(11)

17.4 (442)

9.8 (250)

2.7

(68)

4.1 (104)

2.4

(62)

0.9 (22) 6.7 (170)

7.6 (192)

2.4

(62)

12.5 (316)

17.3 (440)

5.3 (135)

3.7 (94)

6.3 (159)

Contents Connections Playback Settings Tips Appendix

Dimensions (Unit : in. (mm))

Weight : 72 lbs 12 oz (33.0 kg)

Front panel Rear panel Remote control

unit

Index

Page 88

Contents

Connections Playback Settings Tips Appendix

Index

v A

Amplifier ................................................... 19, 21

Auto-Standby ................................................. 58

v C

CD .................................................................. 33

v D

D/A converter ................................................. 21

DATA CD ....................................................... 37

DATA DVD ..................................................... 37

Display’s brightness ....................................... 31

v F

Front panel ....................................................... 7

v R

Rear panel ...................................................... 10

Remote control unit ........................................ 12

v S

Super Audio CD ............................................. 33

v T

Tips ................................................................ 64

Troubleshooting ............................................. 66

v U

USB flash drive ......................................... 24, 40

Front panel Rear panel Remote control

unit

Index

Page 89

3520 10986 00AS
