Maple Systems OIT4165A User Manual

24 OIT3165A/4165A

Appendix D

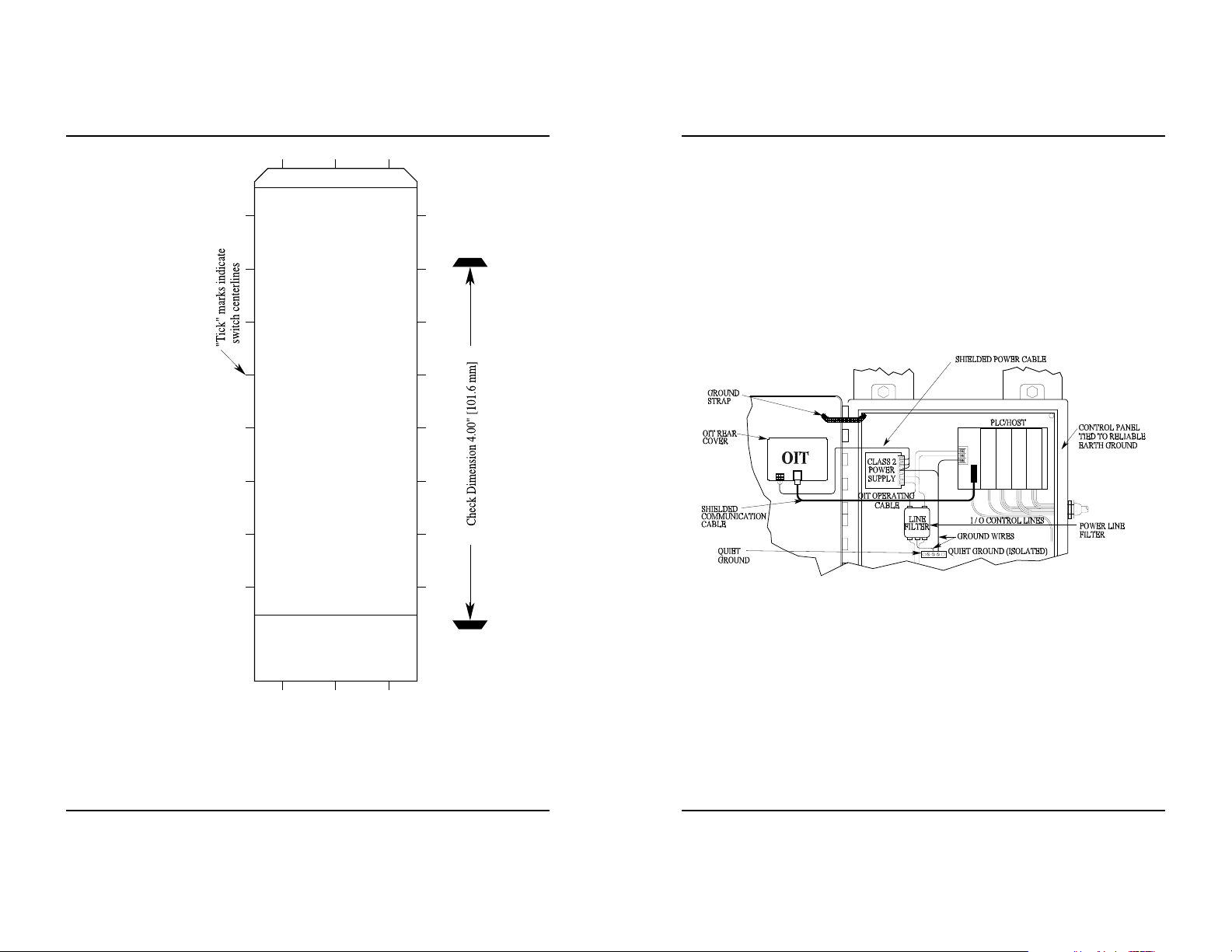

OIT Panel Cutout Dimensions – Front View

0.172" +/-0.01 Dia.,

4.4mm +/-0.3

4Holes

Connect mounting

stud(s) to control

panel earth ground

5.10" +/-0.03

5.60" +/-0.01

142.2mm +/-0.3

94mm +/-0.8

3.70" +/-0.03

129.5mm +/-0.8

Check Dimension 4.00" [101.6 mm]

INSTALLATION MANUAL

Page

F4 F7 F10

F1

F5

F2

F6 F9

F3

Toggle

1

Last
Msg

F8

Del

Next
Msg

Help

F1

F2

F3

2

Alarm

Ack

5

4

8

7

F4 F7 F10

F5

F8

F6 F9

Down

30

CLEAR

6

ENTER

9

Toggle

Last
Msg

Del

Next
Msg

Help

Ack

2

5

8

30

6

9

1

Alarm

4

7

1010-0102, REV 05

Page

Down

CLEAR

ENTER

1010-0102, REV 05

3.50"

+/-0.01

+/-0.3

88.9mm

R0.08" max.

2.0mm

4 Places

808 134th Street SW, Suite 120 • Everett, WA 98204 • USA • 425/745-3229

Fax: [phone] • E-mail: [e-mail] • URL: www.maple-systems.com

2 OIT3165A/4165A

COPYRIGHT NOTICE

This manual is a publication of MapleSystems, Inc.,and is provided for useby its customers only. The
contents of the manualare copyrighted byMaple Systems, Inc.;reproduction in whole orin part, foruse
other thanin support ofMaple Systemsequipment, is prohibited withoutthe specificwritten permission
of Maple Systems.

WARRANTY

Maple Systemswarrants each product tobe free fromelectrical andmechanical defects in materials and
workmanship for a period of two years from the date of shipment. This warranty does not apply to
defects in the Products caused by abuse, misuse, accident, casualty, alteration, negligence, repair not
authorized by Maple Systems, use on current or voltages other than specified by Maple Systems, or
application orinstallation not inaccordance with published instructionmanuals. This warrantyis in lieu
of any other warranty either expressed or implied.

Maple Systems’ liability is limited to the repair or replacement of the Product only, and not costs of
installation, removal, or damage to user’s property or other liabilities. If Maple Systems is unable to
repair or replace a nonconforming Product, it may offer a refund of the amount paid to Maple Systems
for such Product infull satisfaction of its warranty obligation. Maximum liability of Maple Systems is
the cost of the Product.

Information furnished by Maple Systems, Inc., is believed to be accurate and reliable. However, no
responsibility is assumed by Maple Systemsfor the use of this information nor for any infringements of
patents or other rights of third parties which may result from its use. No license is granted by
implication, or otherwise, under any patent or patent rights of Maple Systems, Inc. Maple Systems
retains the right to revise or change its products and documentation at any time without notice.

IF SERVICE IS REQUIRED

Package the unit in its original packaging container or, if unavailable, any suitable rigid container. If a
substitute container is used, surround the unit with shock absorbing material; damagein shipment is not
covered bythe warranty. Include aletter with theunit describing thedifficulty and designatinga contact
person. Send to the following address: Maple Systems, Inc., 808 134th Street SW, Suite120, Everett,
WA 98204.

Only Products that have been issued a Return Material Authorization (RMA) number from Maple
Systems may be returned. All RMAs must be accompanied with a written purchase order for tracking
purposes or, in the case of out-of-warranty repairs, for repair charges on a time and material basis.

All returns will be tested to verify customer claims of noncompliance with the product warranty.
Improper return packaging which makes verification impossible will void the warranty. Products
passing the tests will be returned “AS IS” to the customer.

If noncompliance is verified and is not due to customer abuse or the other exceptions described with
product warranty, Maple Systemswill, at its option, repair or replace the Product returned to it, freight
prepaid, which fail to comply withthe foregoing warranty,provided Maple Systemsis notified of such
noncompliance within the one-year warranty period.

APPLICATIONS ASSISTANCE

This manualis designed to provide the necessary informationfor trouble-free installation andoperation
of your new Operator Interface Terminal (OIT). However, if you need assistance, please call Maple
Systems at 425-745-3229 or visit our web site at www.maple-systems.com.

INSTALLATION MANUAL 23

Appendix C

Dimensional Outline

1010-0102, REV 05

1010-0102, REV 05

22 OIT3165A/4165A INSTALLATION MANUAL 3

Appendix B

Agency Ratings

UL Class I, Division 2 Groups A,B,C,D hazardous locations.

Environmental Type 4, 4x (indoor), 12

Read Me First!

European Union Directive Compliance

If this product is installed within the European Union or EFTA regions, the following regulations apply:

This apparatus is tested to meet Council Directive 89/336 Electromagnetic Compatibility (EMC) Standards:

• EN50081-2 Class A (Industrial) Emissions

• EN50082-2 Class A (Industrial) Immunity

According to these Standard, the factor which determines, for EMC purposes, whether an apparatus is
deemed to be “industrial” or “Residential, commercial and light industrial”, is given in Clause 1 of
EN50081-2 as follows:

Apparatus coveredby thisstandard isnot intended for connection to a public mains
network but is intended to be connected to a power network supplied from a high­or medium-voltage transformer dedicated for the supply of an installation feeding
the manufacturing or similar plant.

The product described in this document is intended for use solely in an industrial environment as defined
above. When installed in Europe, any other application is in contravention of European Union Directives,
and a breach of those laws.

Your new Maple Systems OIT comes from the factory without any
communications protocol or operational softwareinstalled; therefore

The OIT will NOT operate until it has been configured using

•

OITware-200 or STEPware-100.

When power is first applied, the OIT’s display will indicate that it

•

needs to be configured.

Use the OITware-200 or STEPware-100 software to create a file

•

(or “project”) that can be downloaded to the OIT.

•

When the project is transferred, both communications protocol
and operational software are automatically loaded and the unit is
ready for operation.

To ensure that the OIT meets UL and CE compliance, it is
necessary to follow all installation procedures described in this
manual.

1010-0102 REV 05

1010-0102, REV 05

4 OIT3165A/4165A

INSTALLATION MANUAL 21

Introduction

Thank you for purchasing a Maple Systems OIT3165 or OIT4165. You have
selected a rugged, reliable, and powerful operator interface for your application.
This booklet describes the steps necessary to ensure trouble-free OIT system
operation. Please read this booklet carefully!!

Static Awareness

It is best NOT to remove therear coveron the OIT. When the rear cover is removed
the circuitryinside is exposed to possible damage by electrostatic dischargeduring
handling. Minimize the possibility of electrostatic discharge by:

Discharging personal static by grounding yourself prior to handling the OIT.

•

• Handling the OIT at static-free, grounded work station.

• Connecting the chassis of the OIT to a clean ground.

• Placing the OIT into an anti-static bag during transport.

Unpacking the Unit

Carefully unpack the OIT. Please read any instructions or cautions that appear on
the shipping container. Check all material in the container against the enclosed
packing list. Maple Systems, Inc., will not accept responsibility for shortages
against the packing list unless notified within 30 days. The equipment and its
accessories were inspected and tested by MapleSystems before shipment; all of the
equipment should be in good working order. Examine the equipment carefully; if
any shipping damage is evident, notify the carrier immediately. You are
responsible forclaim negotiations with thecarrier. Save the shipping container and
packing material in case the equipment needs to be stored, returned to Maple
Systems, or transported for any reason.

Appendix A

OIT Hardware Specifications

Mechanical

Material: Aluminum sealed to NEMA 4/12 when panel mounted

Mounting: Panel

Wiring: Unit is field-wired by user to external power plug and shielded RJ-45 communications connectors

Weight: 1 pound (0.45 kg)

OIT3165A Environmental

Operating Temp: +14 to +149°F (-10 to +65°C)

Storage Temp: -22 to +176°F (-30 to +80°C)

OIT4165A Environmental

Operating Temp: +14 to +149°F (-10 to +65°C)

Storage Temp: -40 to +185°F (-40 to +85°C)

Electric Noise Immunity

Emissions: EN55011 (Group 1, Class B)—Generic commercial, light, and heavy industrial environments

EN50081-1—Generic domestic and light industrial environments
EN50081-2—Generic heavy industrial environment

Immunity: EN50082-1—Generic domestic and light industrial environments

EN50082-2—Generic heavy industrial environment

Power Requirements

Input Voltage: +12 to +30 VDC, Class 2

Power Usage: 2.5 watts typical, 3 watts maximum

Display

OIT3165 Display Type: Backlit Liquid Crystal Display (LCD)—5 x 7 dot matrix with cursor

OIT4165 Display Type: Vacuum Fluorescent Display (VFD)—5 x 7 dot matrix with cursor

Display Character Size: 2 lines of 20 characters, 0.19 inches (4.8 mm) high

Display Viewing Angle: Approximately 90 degrees

Keypad

Key Type: Membrane switch with custom legending (all keys)

Feedback: Audible

Layout: 24 user-definable keys arranged in 3 rows

Operational Life: Three million operations

Communications

Serial Port: RS-232, RS-422, or RS-485

Baud Rates: 300, 600, 1200, 2400, 4800, 9600, or 19.2k

Internal Features

Memory: 128K x 8 Flash PROM for firmware protocol and configuration data—no battery required

1010-0102, REV 05

1010-0102, REV 04
