Page 1
MapKing Pro User Manual
Voice Navigation System
MapKing Pro 1.0.0.1
User Manual
Version: Mar-11
Copyright © 2011, MapKing International Limited. All rights reserved.
Page 2
MapKing Pro User Manual
Index
Index ......................................................................................................................... 1
Technical Support ...................................................................................................... 2
Copyright and Logo................................................................................................... 2
Disclaimer ................................................................................................................. 3
1. Map ................................................................................................................... 4
2. Menu ................................................................................................................. 5
3. Search ................................................................................................................ 6
3.1. Recent ......................................................................................................... 7
3.2. Favorite ...................................................................................................... 8
3.3. Near By .................................................................................................... 10
3.4. POI ........................................................................................................... 13
3.5. Road ......................................................................................................... 17
3.6. Point on Map ............................................................................................ 20
3.7. Quick Search ............................................................................................ 22
4. Route Plan ........................................................................................................... 24
4.1. Midways ................................................................................................... 24
4.2. Simulation ................................................................................................ 29

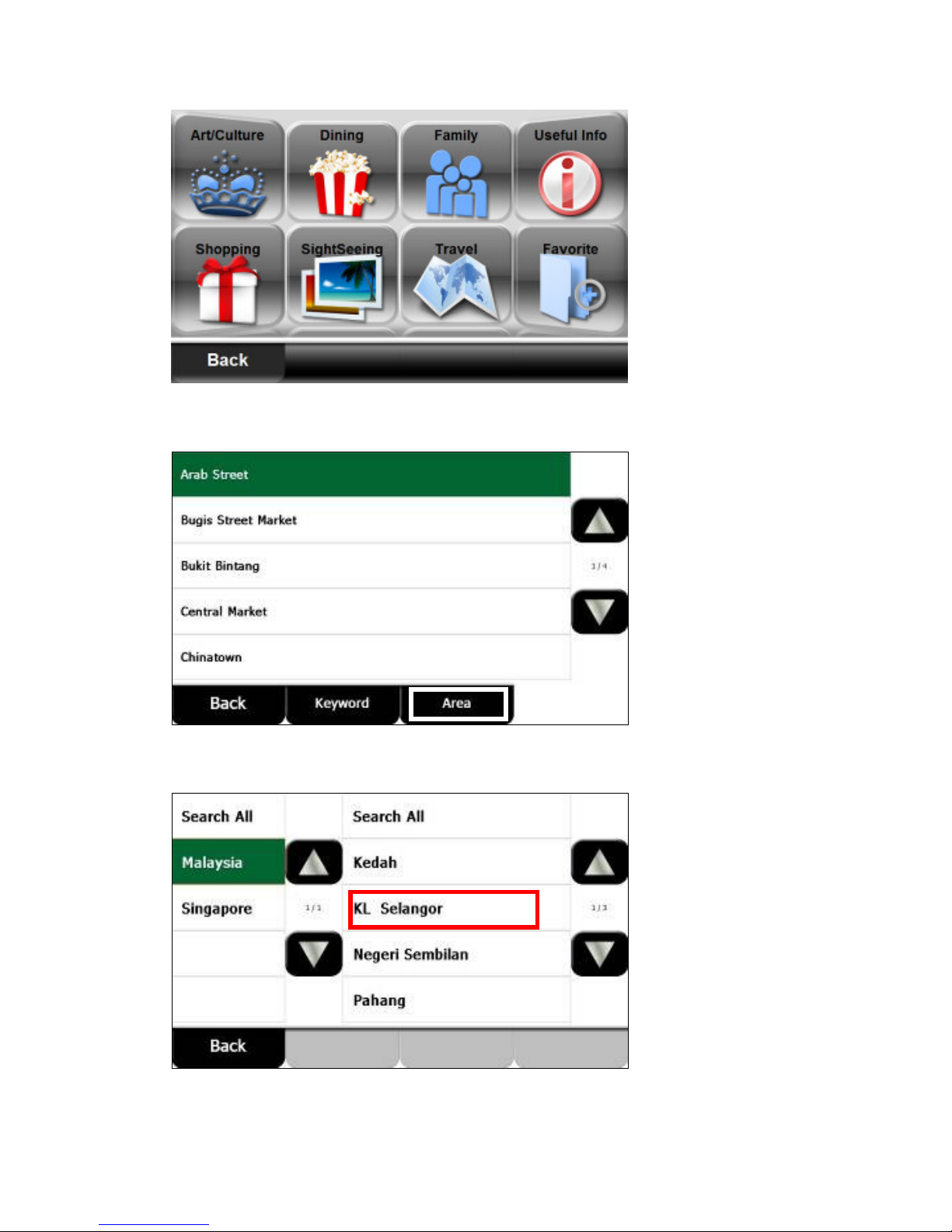

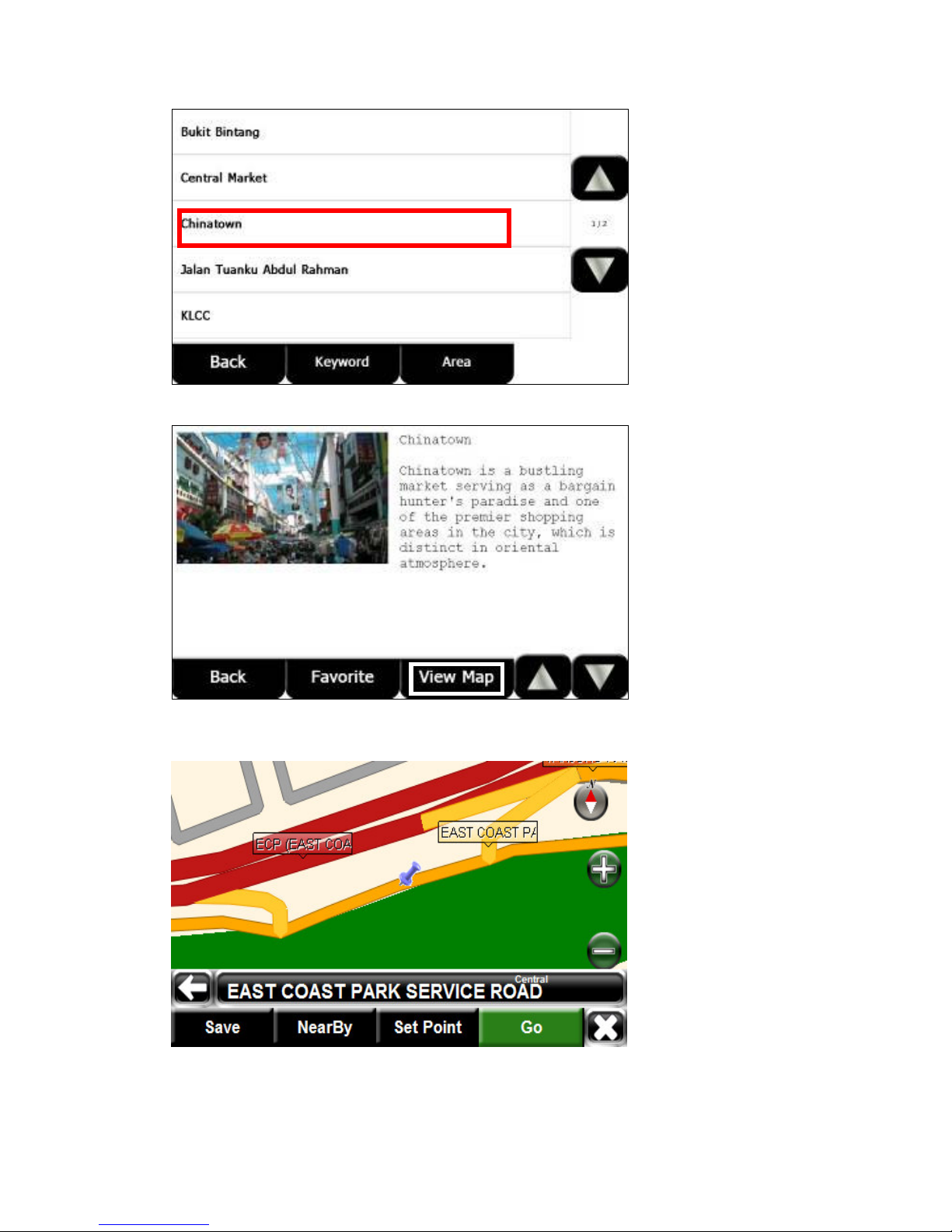

5. Tour Guide .......................................................................................................... 35
5.1. Search by region ....................................................................................... 35
5.2. Search by Keyword ................................................................................... 39
5.3. Save as Favorite ........................................................................................ 42
6. Navigation ........................................................................................................... 45
6.1. Road Sign ................................................................................................. 46
6.2. Sub-menu ................................................................................................. 46
6.3. Route Result ............................................................................................. 47
6.4. GPS Status ................................................................................................ 48

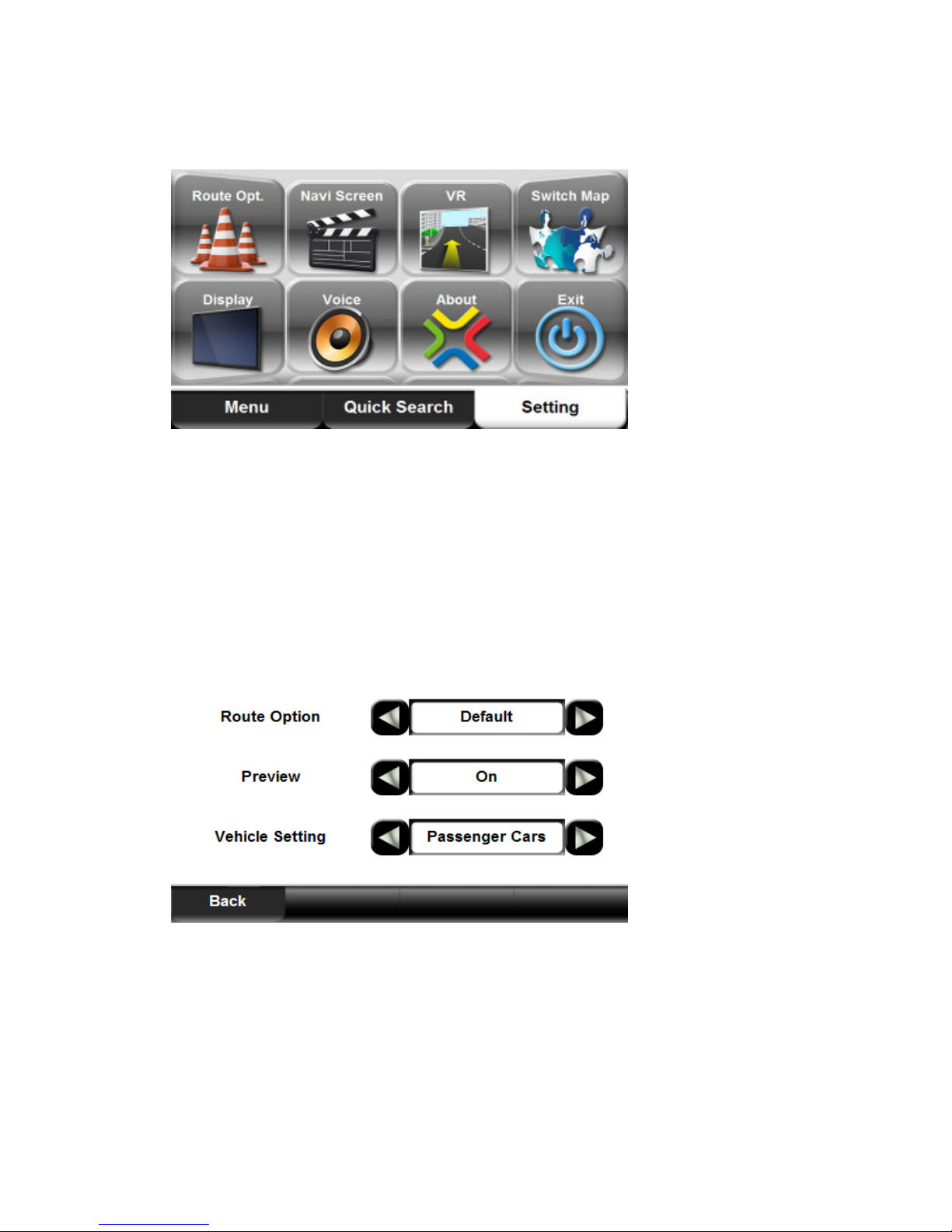

7. Setting ................................................................................................................. 49
7.1. Route Option ............................................................................................ 49
7.2. Navi Screen .............................................................................................. 50
7.3. Reality ...................................................................................................... 50

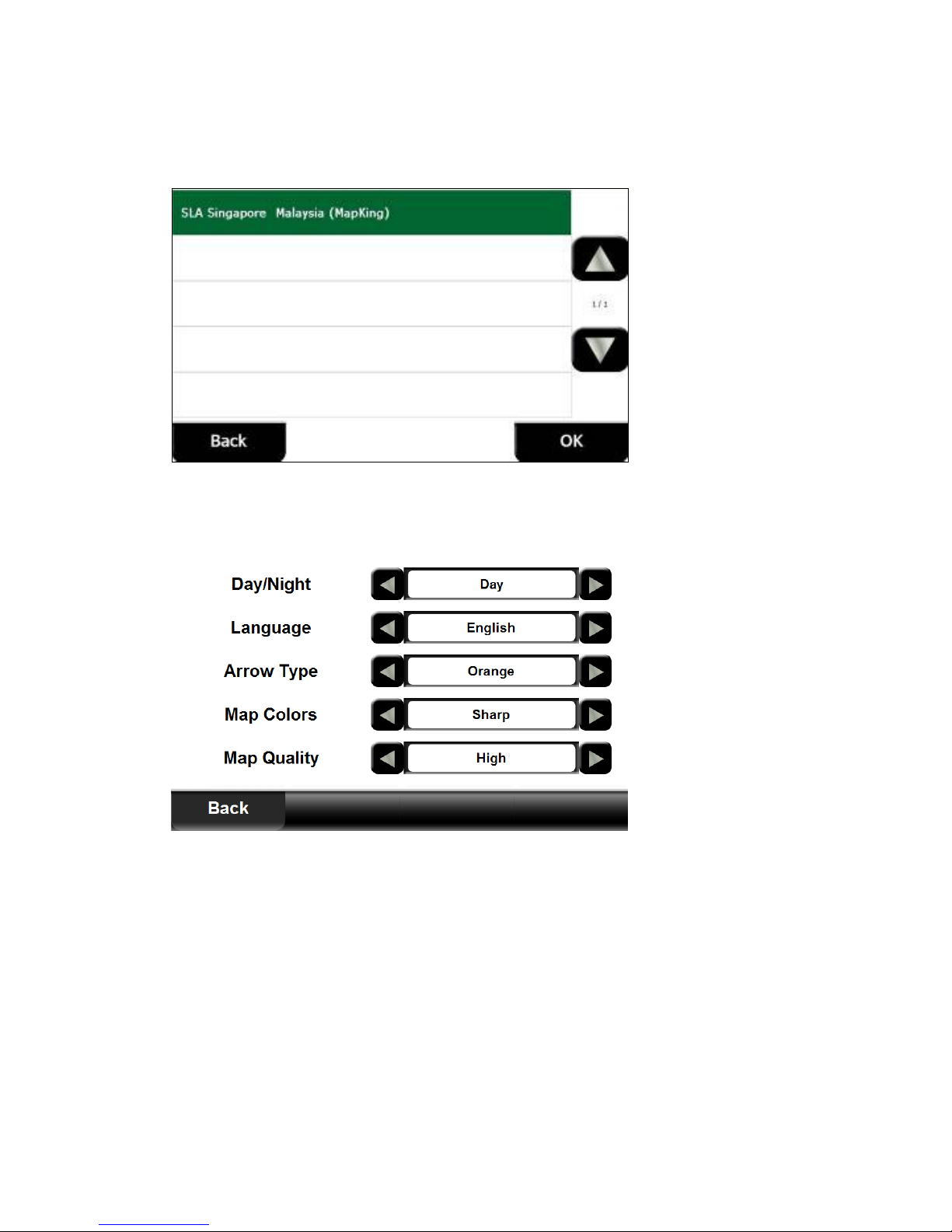

7.4. Switch Map ............................................................................................... 51
7.5. Display ..................................................................................................... 51

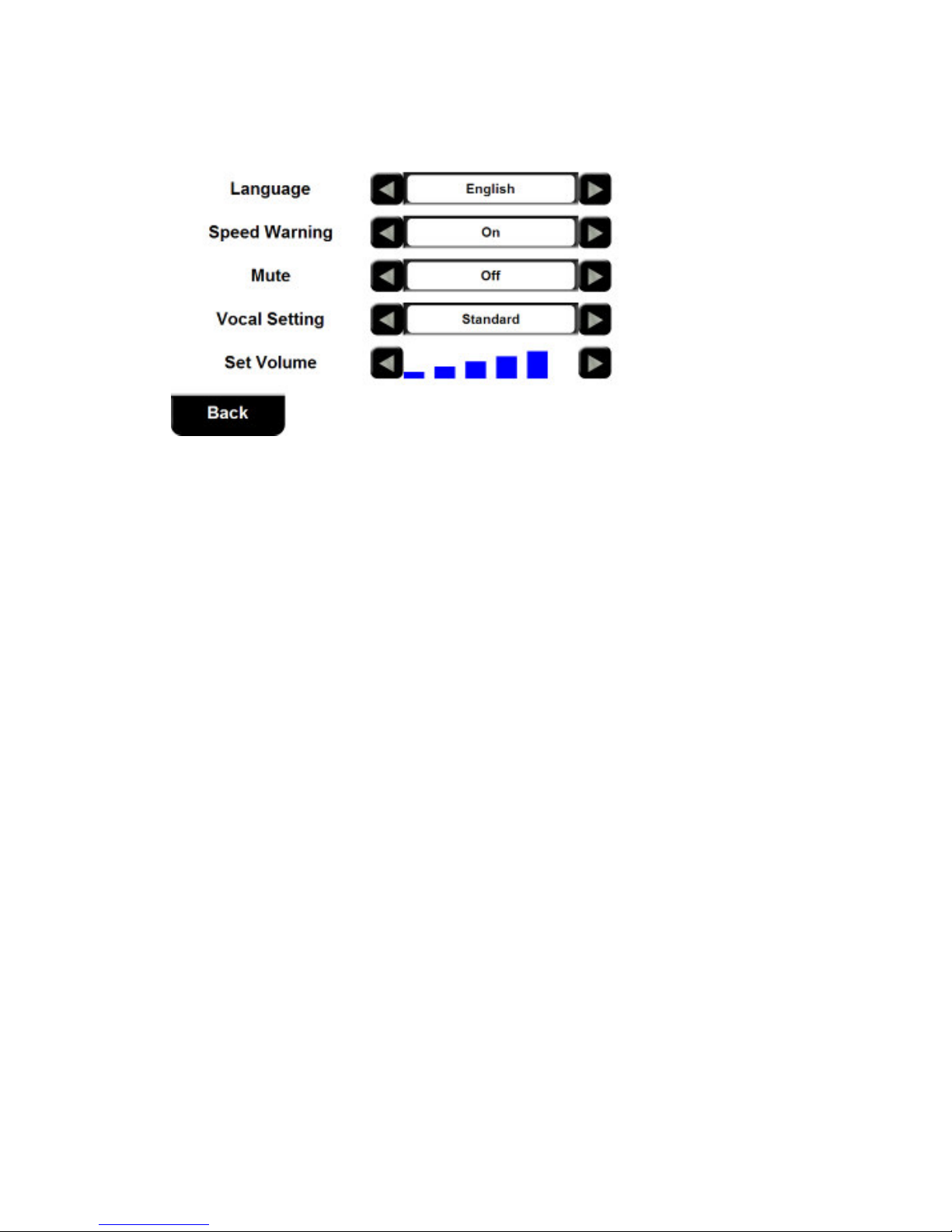

7.6. Voice ......................................................................................................... 52
P. 1
Page 3
MapKing Pro User Manual
Technical Support
Please email below to [email protected].
1. Production Authorization Code
2. Registered email
3. A detailed description of the problem you encounter
Copyright and Logo
All title, ownership, derivative works and copyrights in MapKing are owned by MapKing
International Limited (“MapKing”) and/or MapAsia.com Limited (“MapAsia”) and/or
incorporated suppliers. No right, title or interest in or to any trademark, logo or trade name of
MapKing, MapAsia or incorporated suppliers is granted under this AGREEMENT.
The Logo of MapKing is owned by MapKing International Limited. The Logo of MapAsia is
owned by MapAsia.com Limited.
Copyright of the GIS Database incorporated in MapKing is owned by MapKing and/or under
licensed from MapKing’s data partners.
MapKing is protected by local, international copyright laws and other intellectual property laws
and treaties.
MapKing is the trademark and/or logo of MapKing in the United States of American and other
countries.
MapAsia is the trademark and/or logo of MapAsia.com Limited in the United States of
American and other countries.
Copyright © 2011,
www.MapKing.com
MapAsia.com Limited
MapKing International Limited
P. 2
Page 4
MapKing Pro User Manual
Disclaimer
To ensure safe driving, we strongly advise that a driver should not operate MapKing while
driving. A driver should never focus his or her attention on the MapKing display while driving.
Map content (including direction, telephone number, address etc.) may be changed from time
to time and may not be accurate. Please stop using outdated map content. Map content will
not be updated automatically and can only be used as reference only. Please do not rely solely
on the map content for navigation. If you have doubts, please check content before use.
The route planning, voice assistance and turn indication function of MapKing is only meant to
be and should only be used as a crude reference. It should never be used to determine actual
driving directions.
The Company takes no responsibility for all losses and damages arising from the use of this
product, agreement to which is deemed given by the user upon the commencement of
operation of the system.
P. 3
Page 5
1. Map
MapKing Pro User Manual
2
3
4
5
1
1. GPS (Press to view GPS information)
2. Compass
3. Zoom in
7
10
6
4. Zoom out
5. Scale
6. Call sub-menu
7. Back to navigation mode
8. Map centre road name
9
8
9. Current region
10. Back to current position
P. 4
Page 6

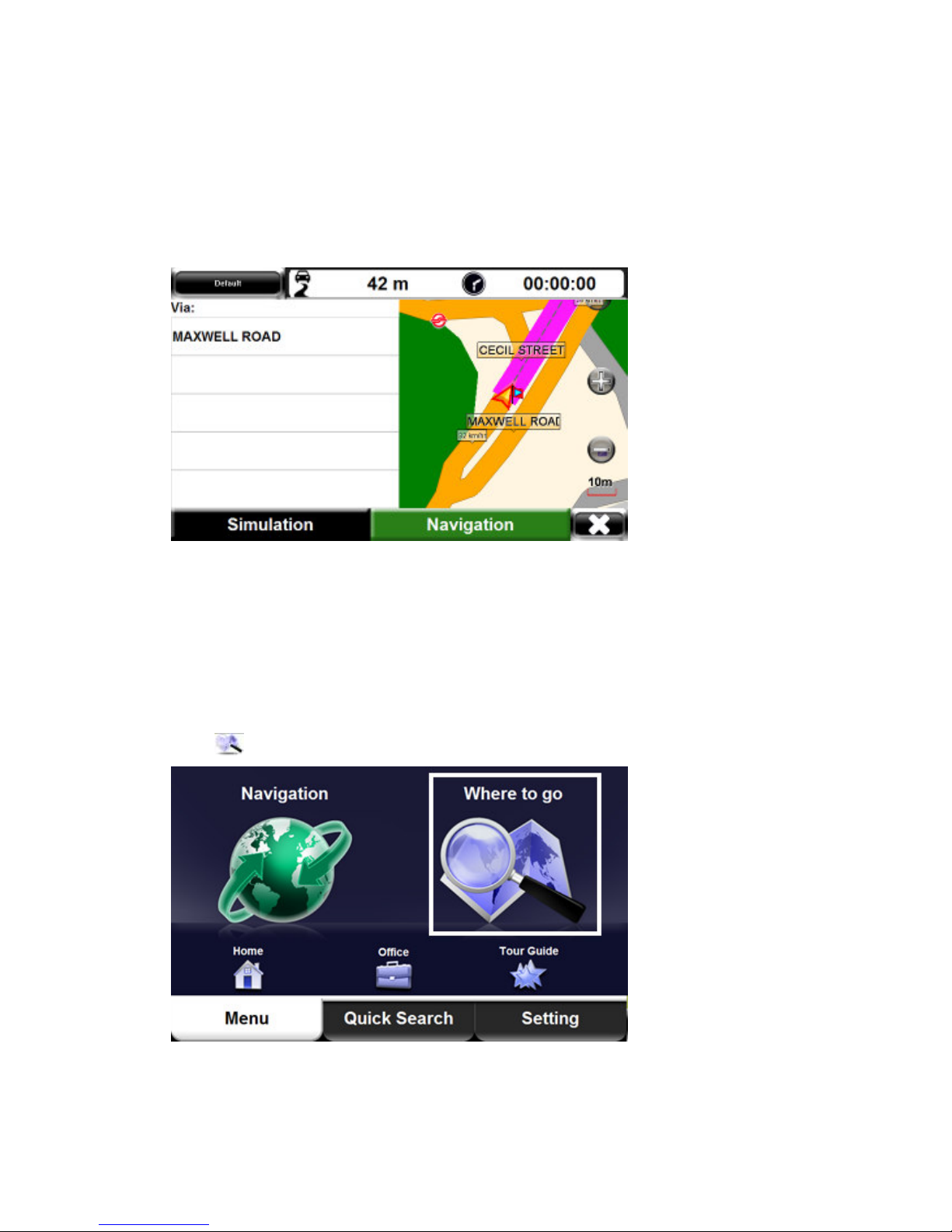

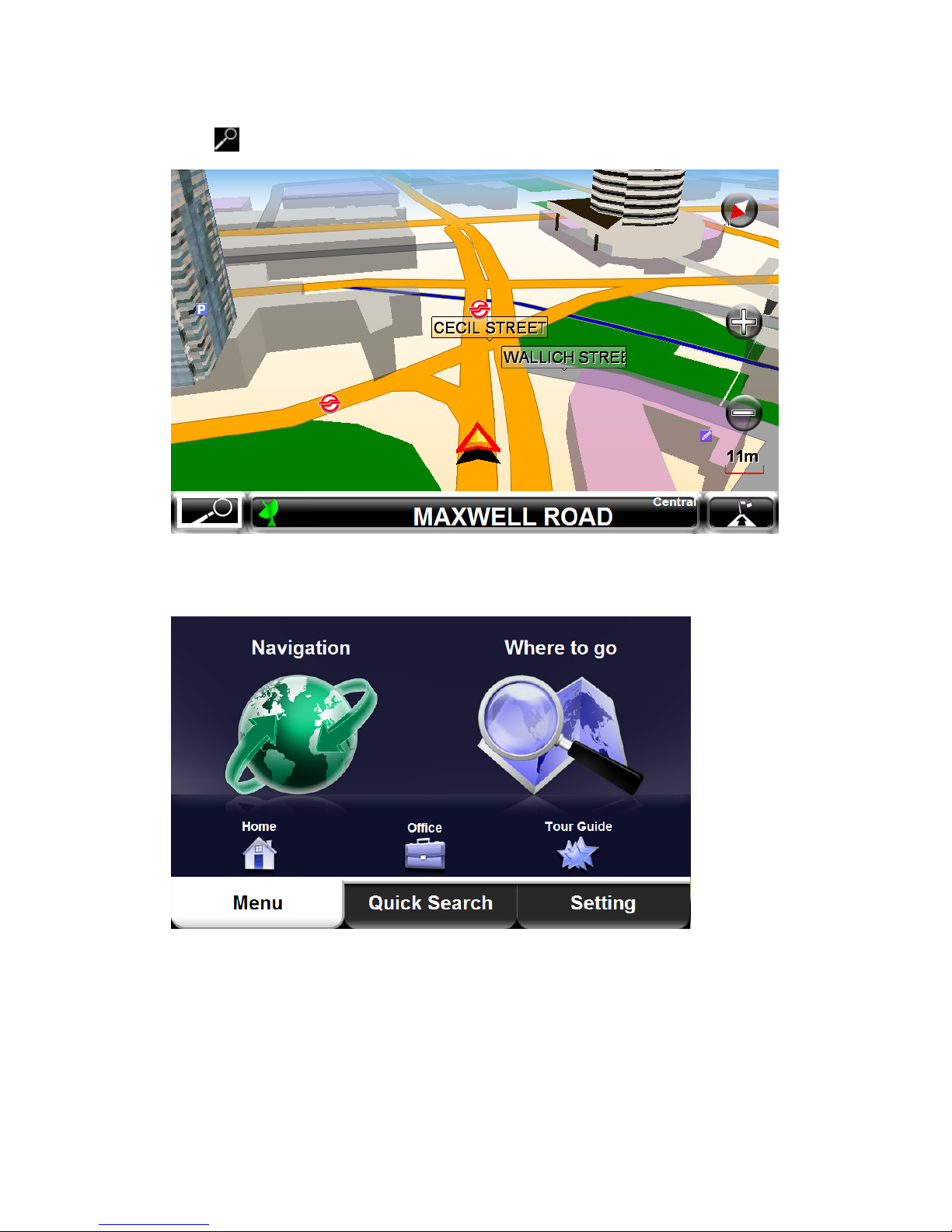

2. Menu
1. Tap
MapKing Pro User Manual
2. “Menu” interface
Home: Set Home as destination
Office: Set Office as destination

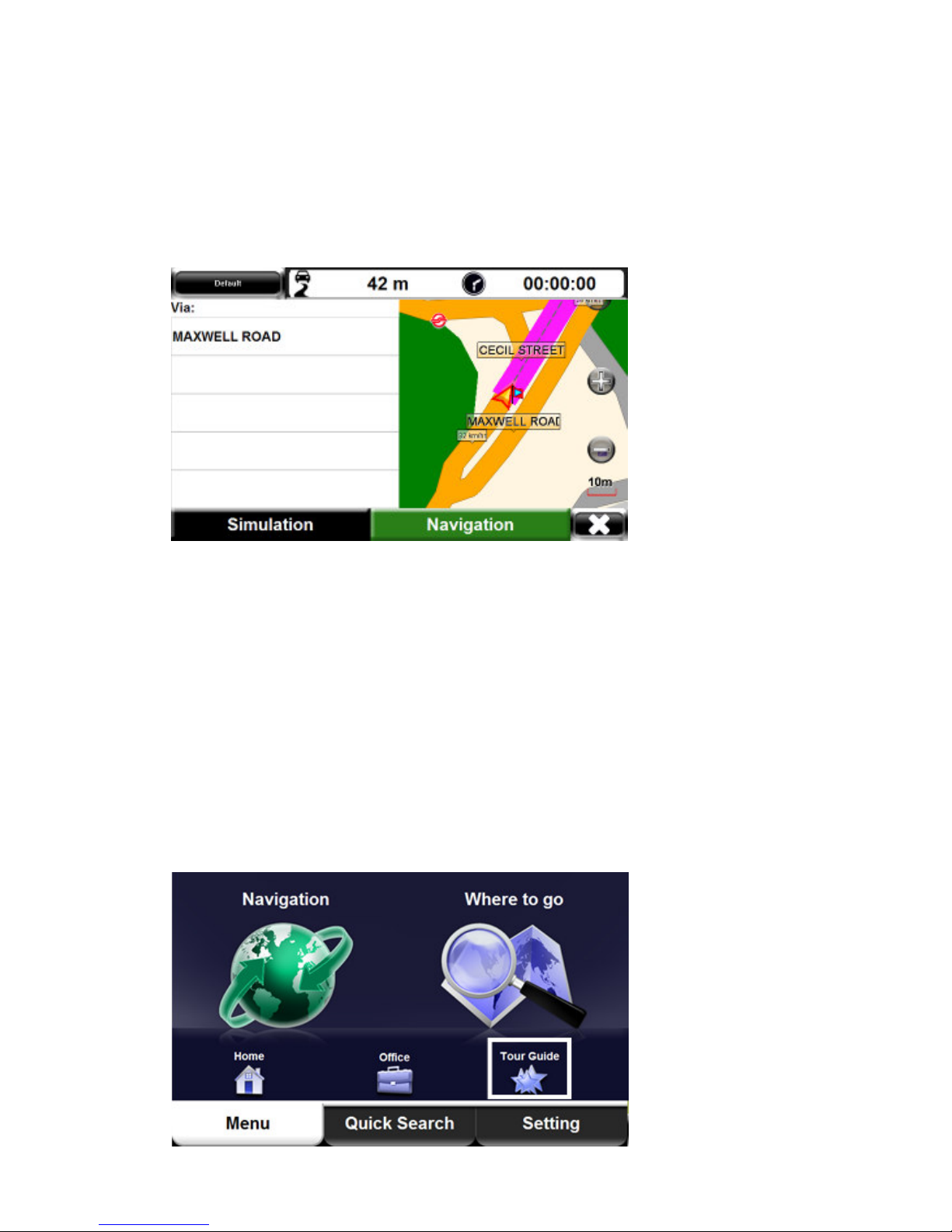

Tour Guide: Go to Tour Guide
P. 5
Page 7

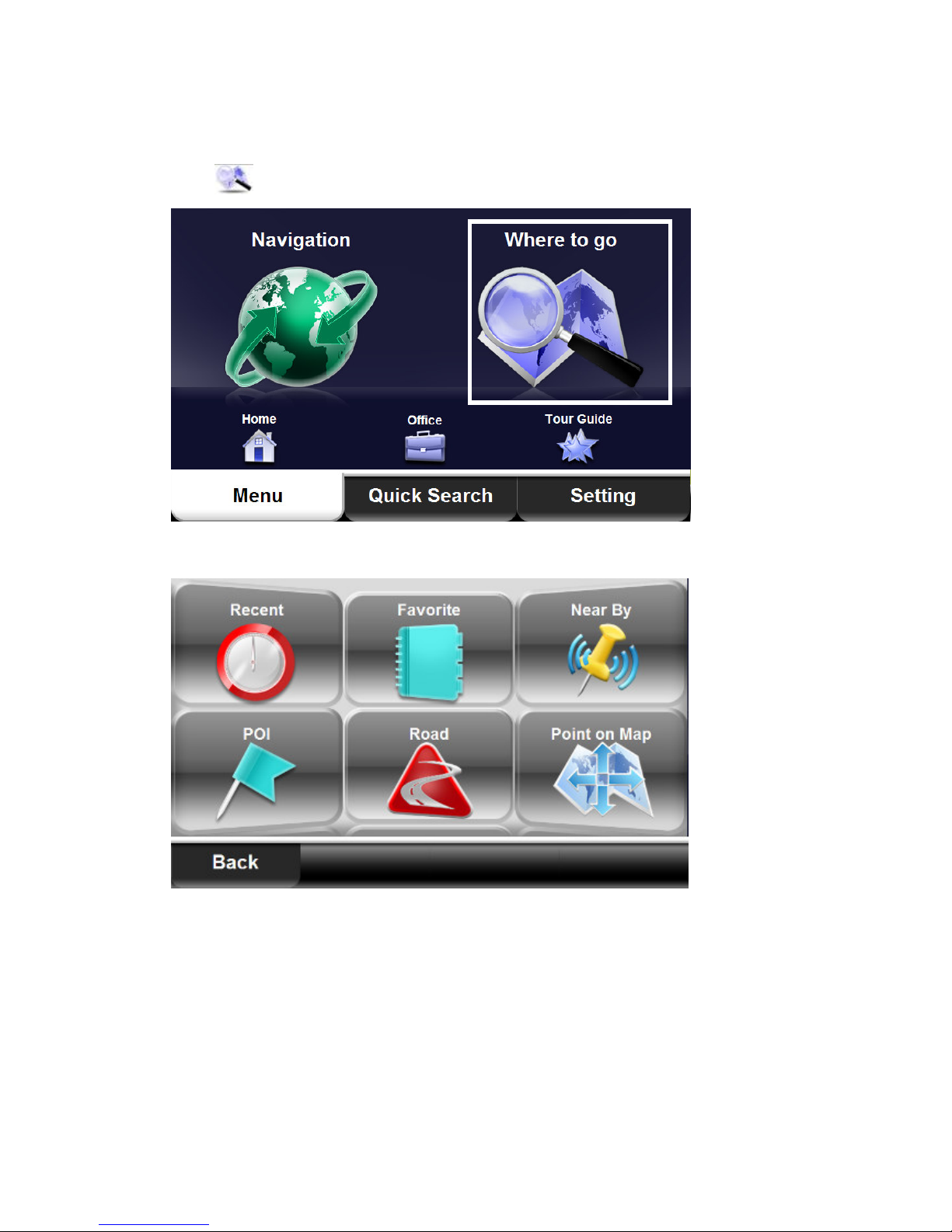

3. Search
1. Tap
2. “Search” interface
MapKing Pro User Manual
Recent: Set recent search result as destination
Favorite: Set Favorite as destination/ Home/ Office
Nearby: Search nearby POI (Point of Interest) and set as destination
POI: Search POI (Point of Interest) and set as destination
Road: Search Road and set as destination
Point on Map: Select the location by tapping the location on map
P. 6
Page 8

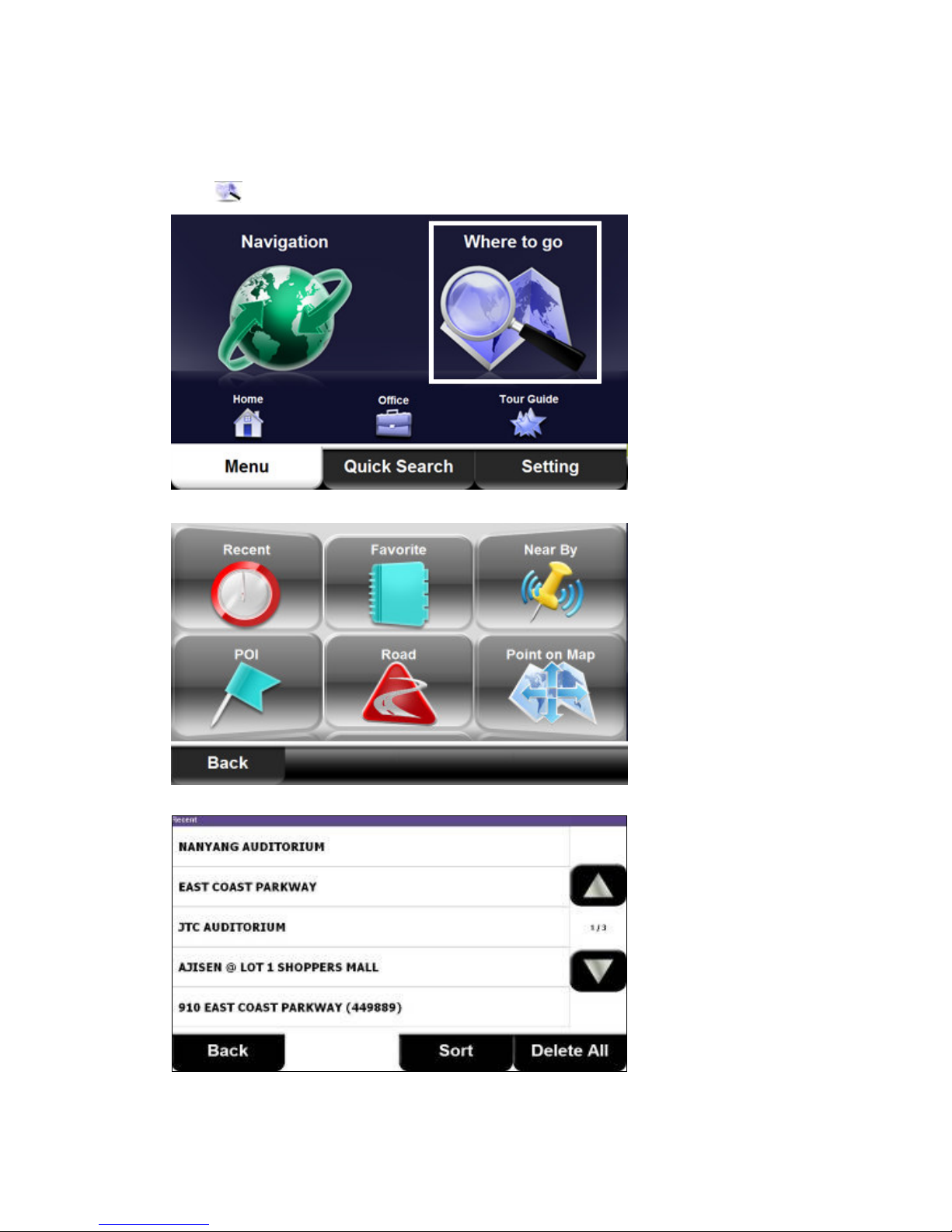

3.1. Recent
1. Tap
2. Tap “Recent”
MapKing Pro User Manual
3. “Recent” interface
Sort: Sort the recent records by date, distance, alphabet or frequency
Delete All: Delete all the recent records
P. 7
Page 9

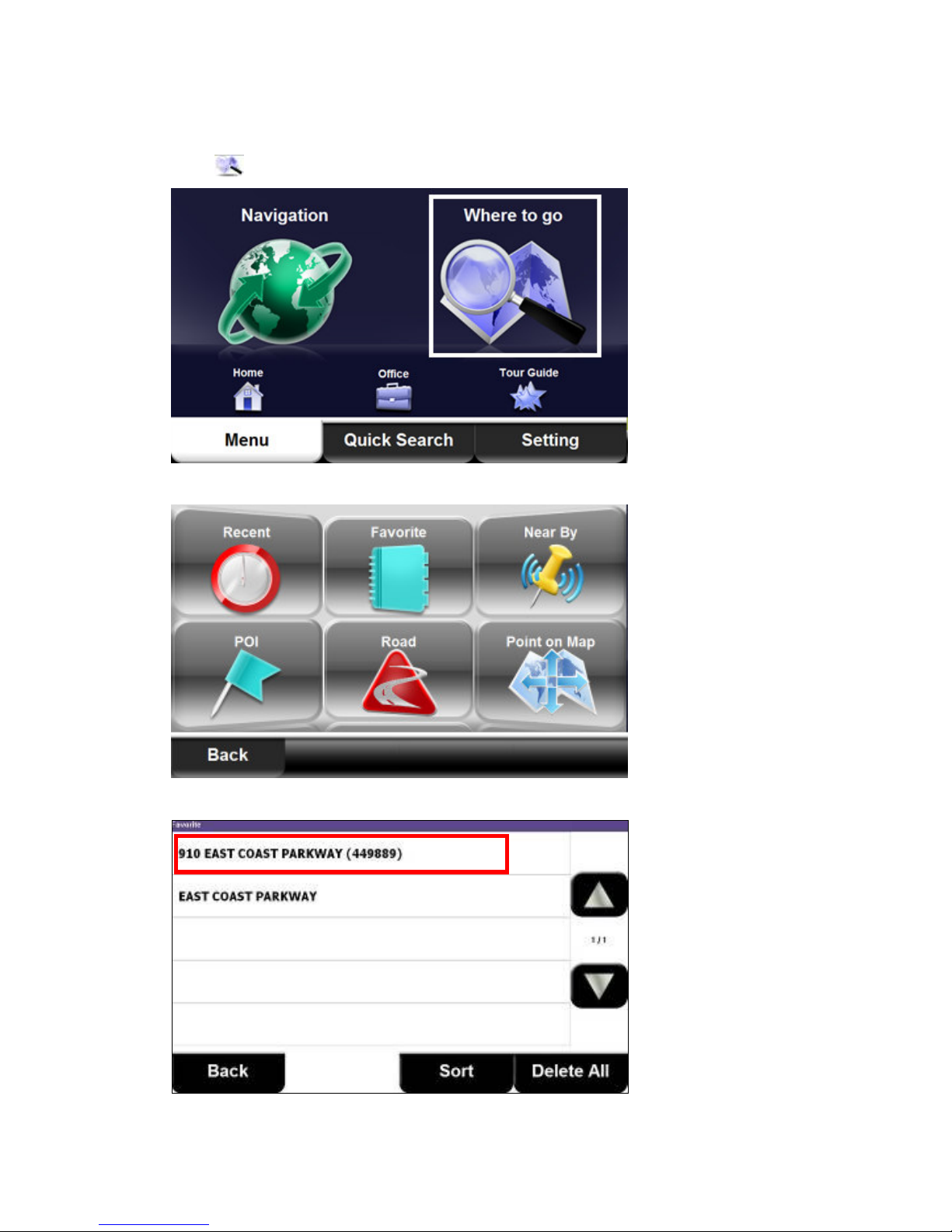

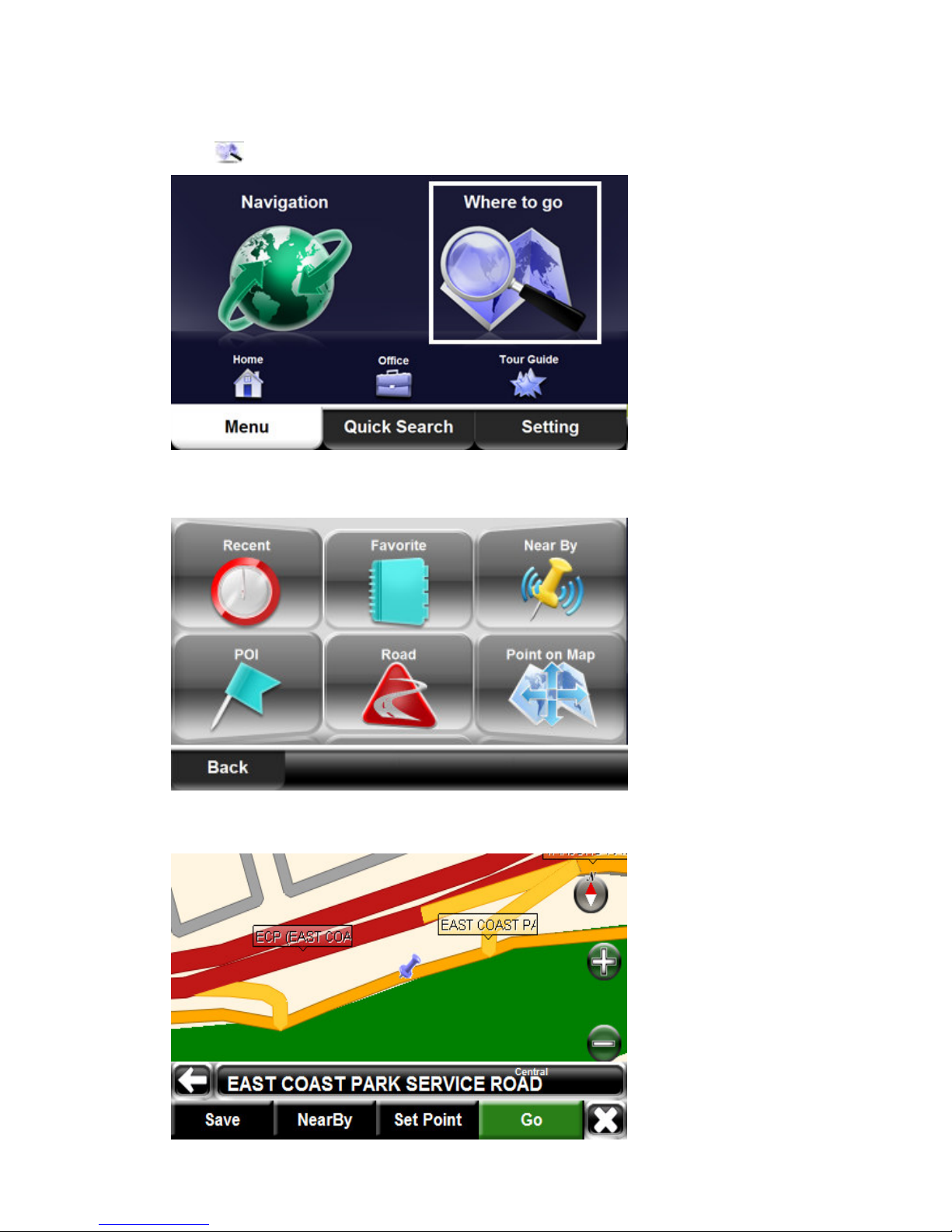

3.2. Favorite
1. Tap
2. Tap “Favorite”
MapKing Pro User Manual
3. Tap “910 EAST COAST PARKWAY (449889)”
Sort: Sort the recent records by date, distance, alphabet or frequency
Delete All: Delete all the recent records
P. 8
Page 10
MapKing Pro User Manual

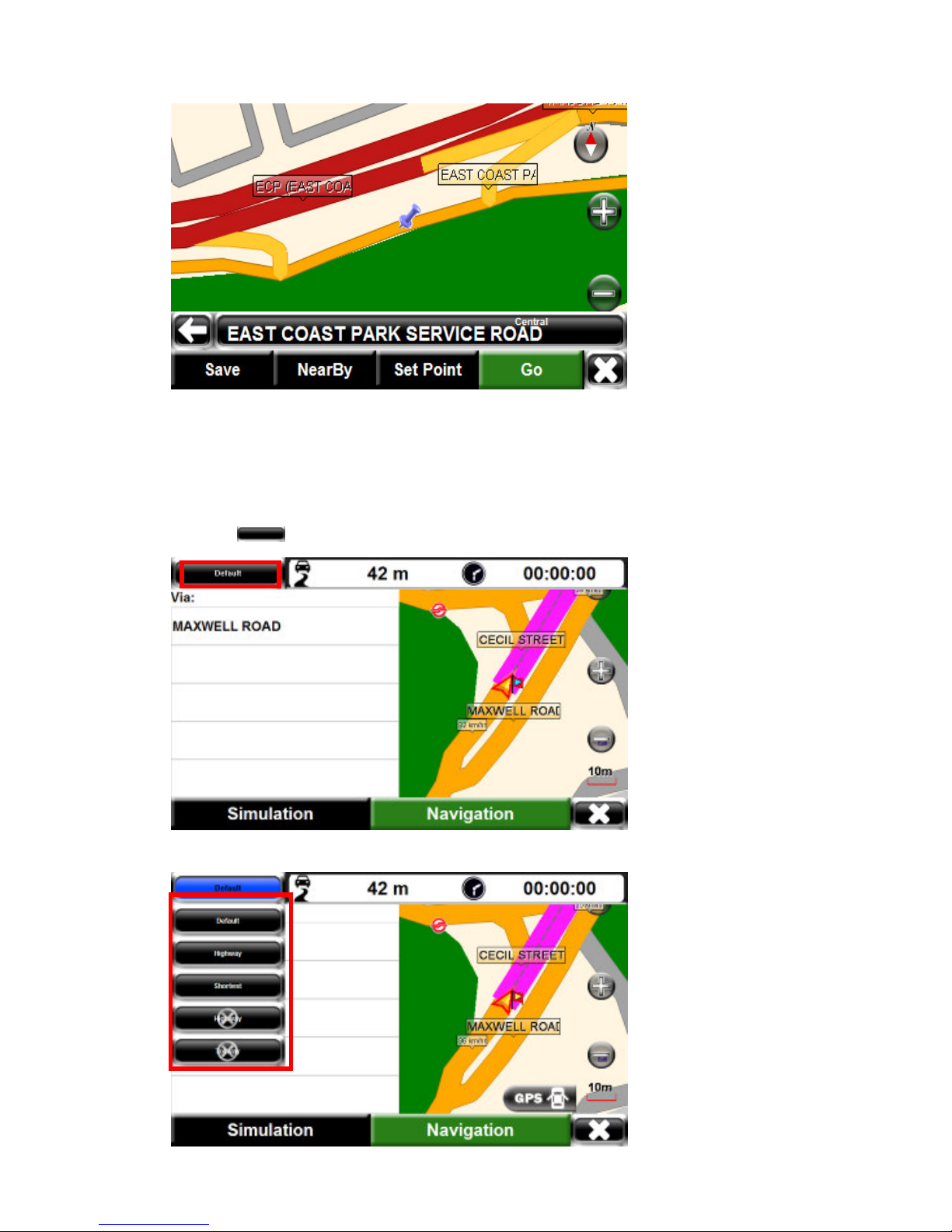

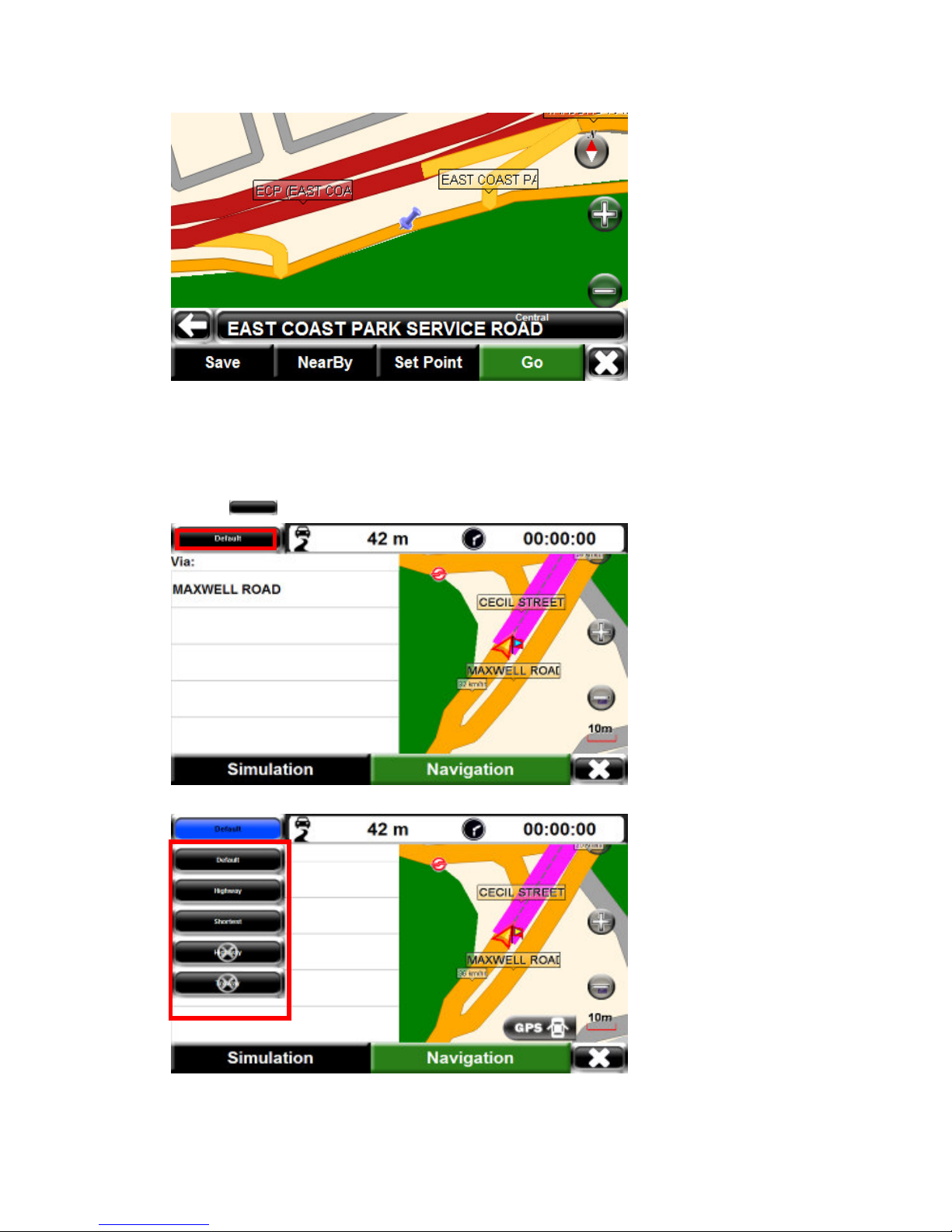

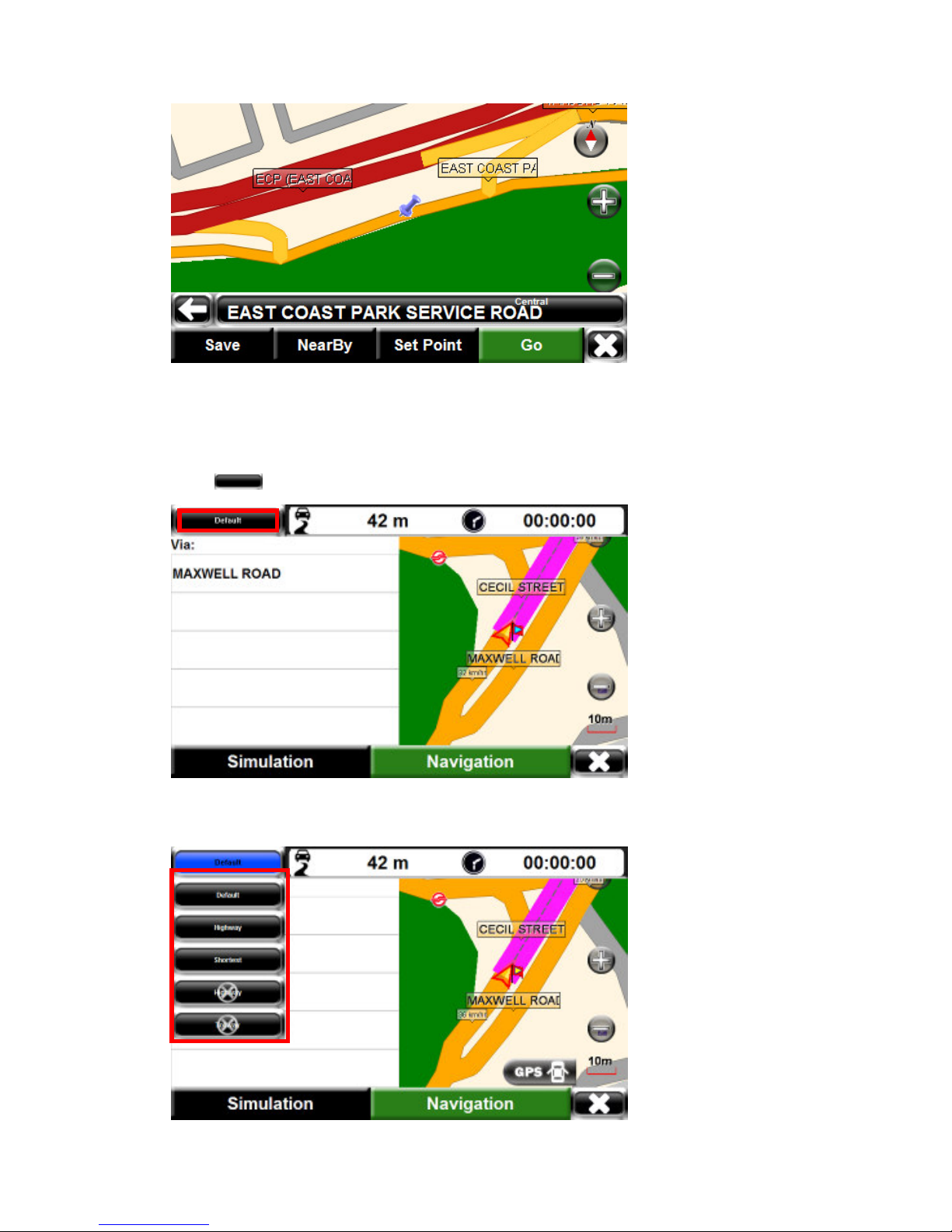

4. Tap “Go” to set location as destination
Setting: Set location as Home and Office, edit or delete Favorite records
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination

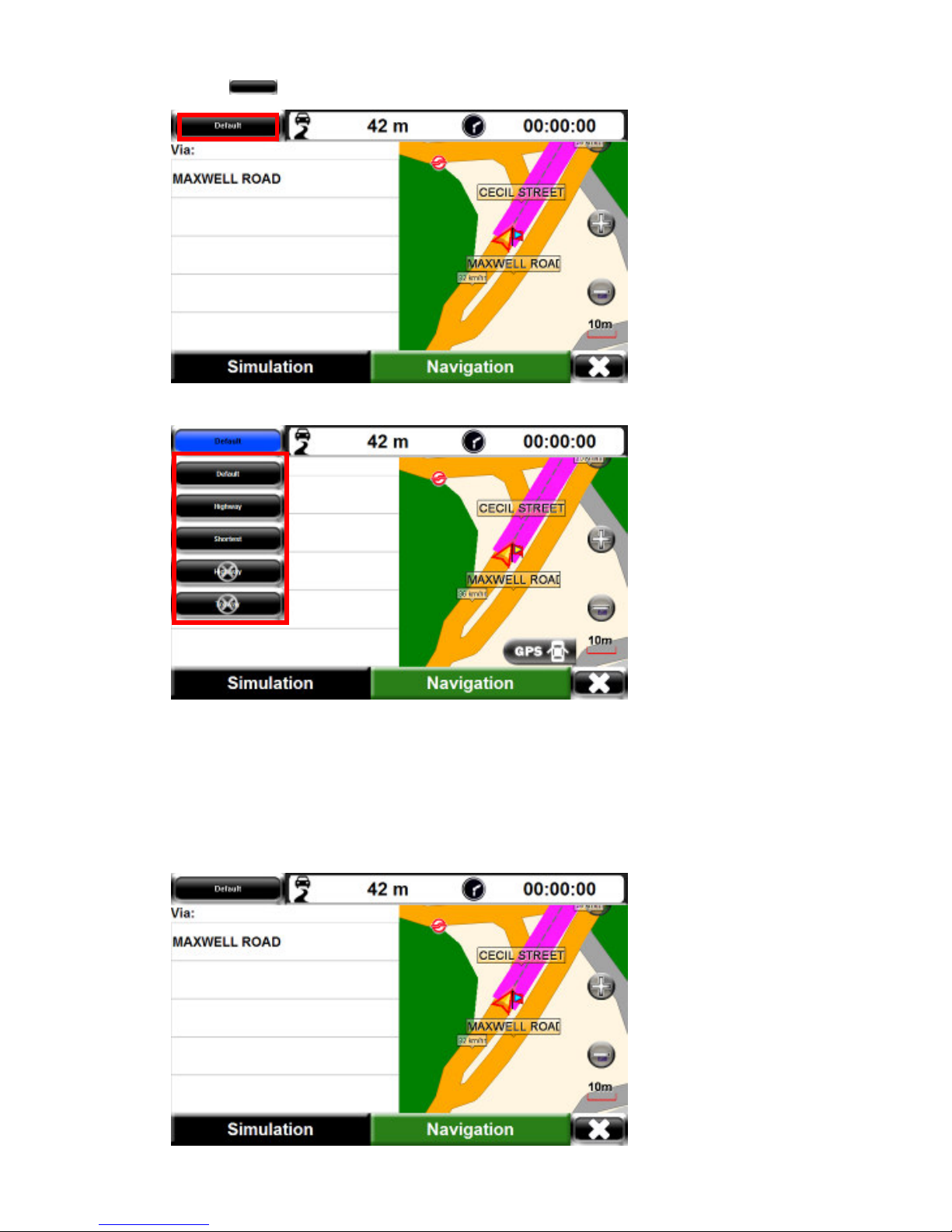

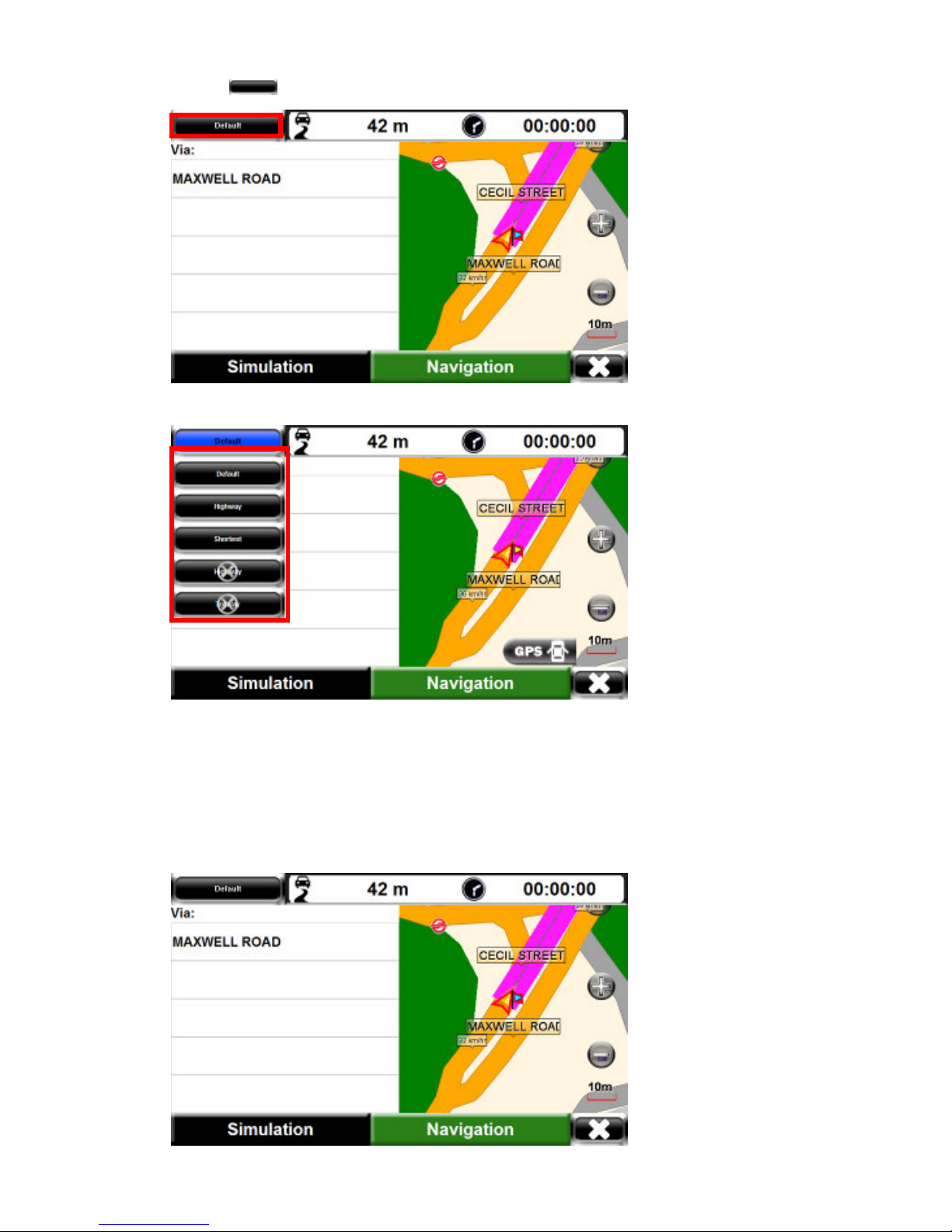

5. Tap to show route option list
6. Select route option
Default: Use optimize parameters to calculate the route
P. 9
Page 11
MapKing Pro User Manual
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway

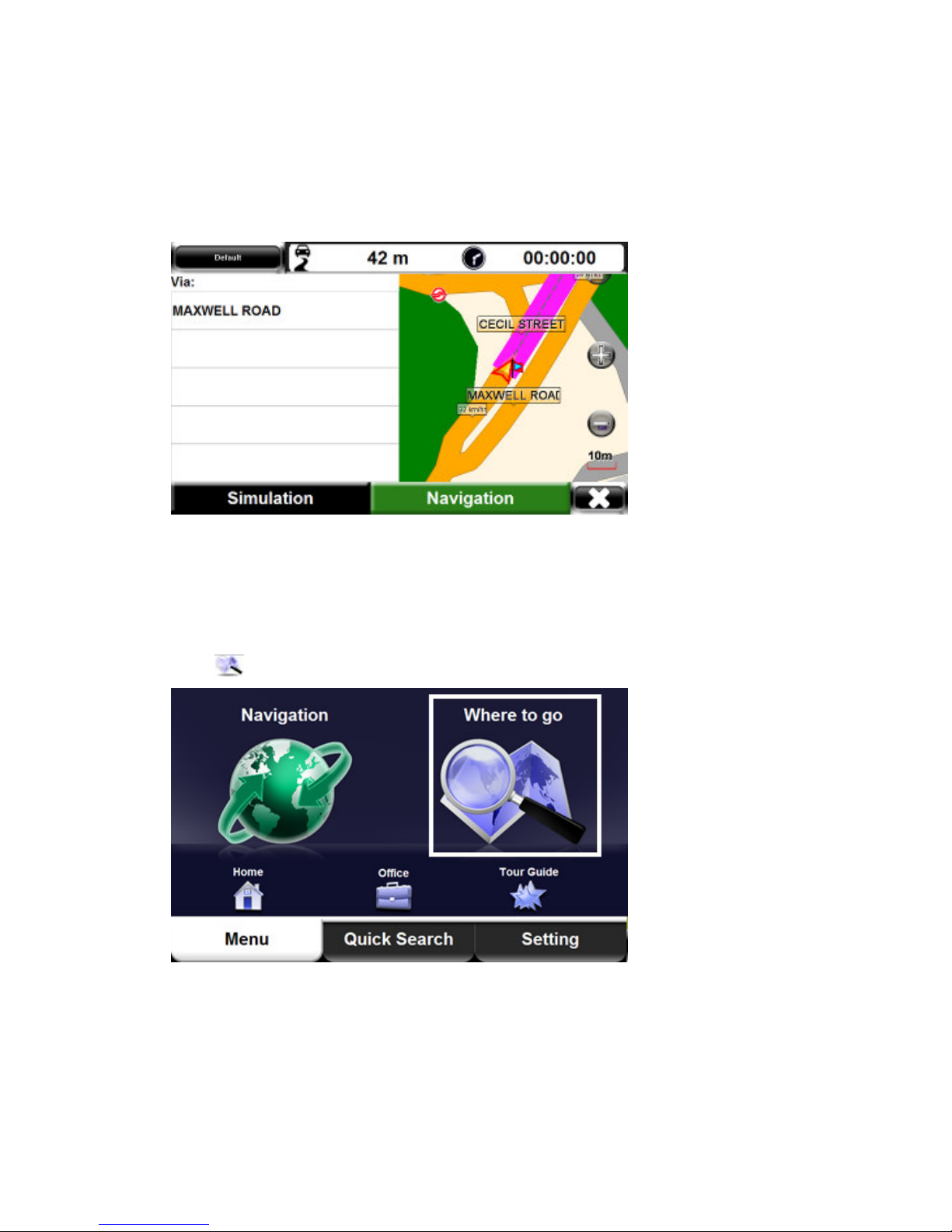

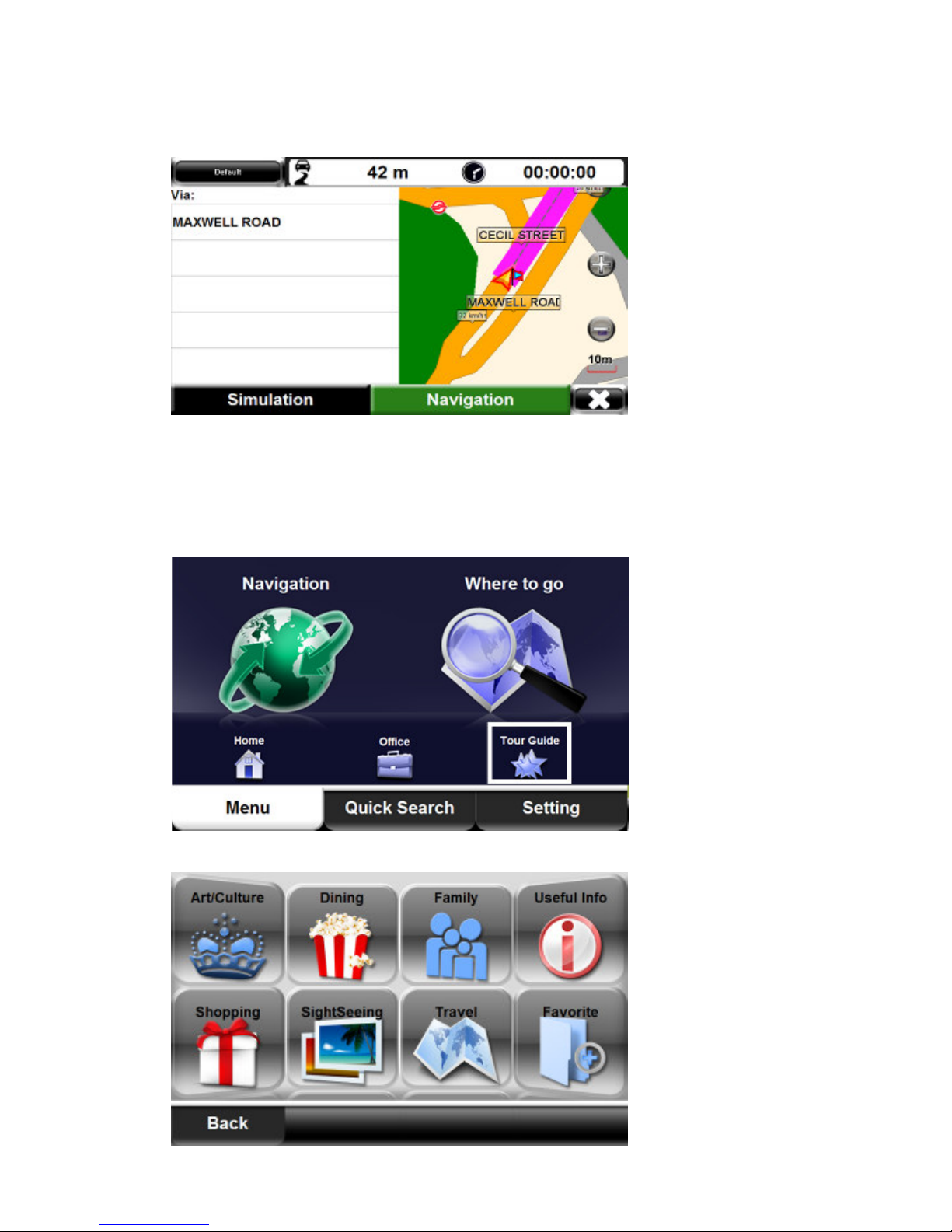

7. Tap “Navigation”

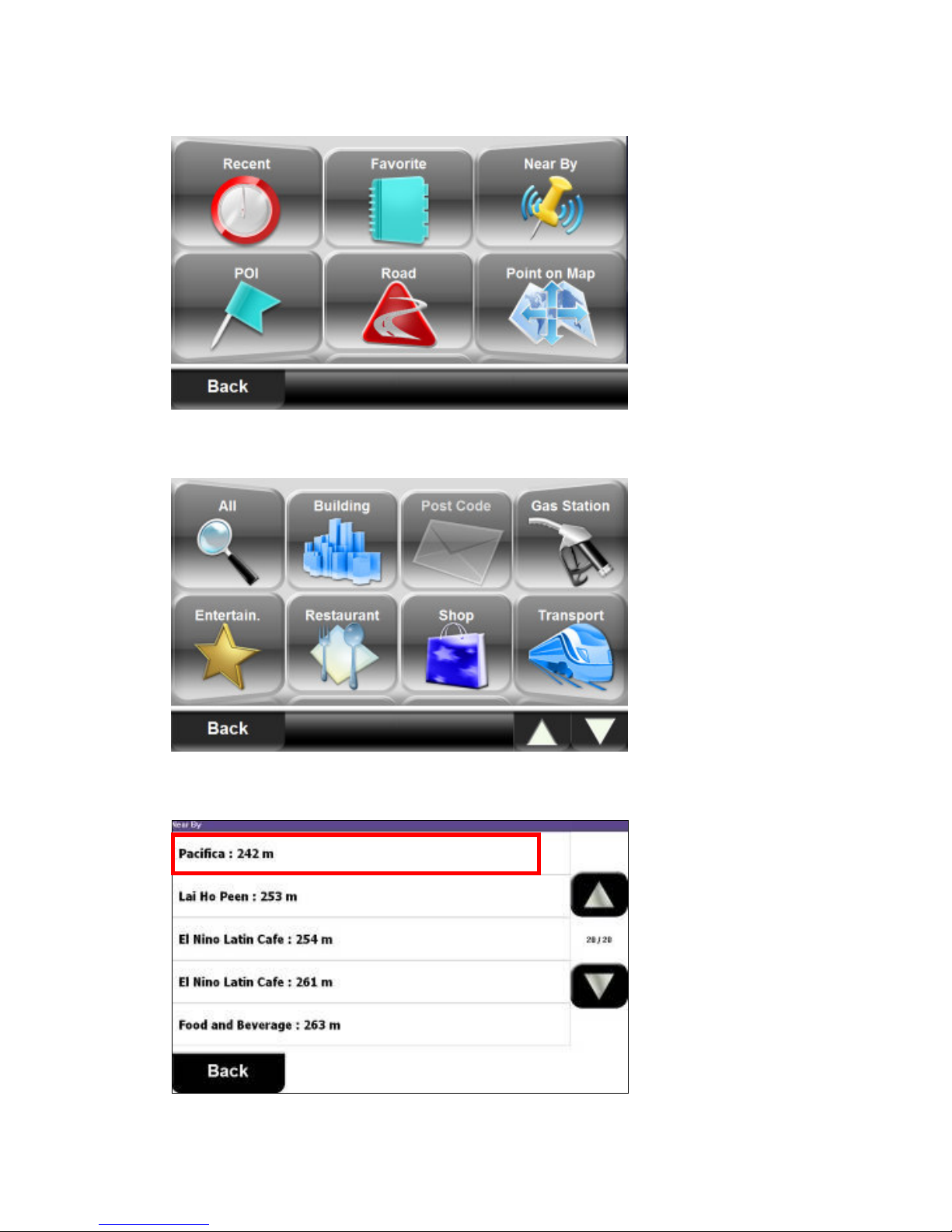

3.3. Near By
Search nearby Restaurant as destination and start navigation
1. Tap
P. 10
Page 12
2. Tap “Near By”
3. Tap “Restaurant”
MapKing Pro User Manual

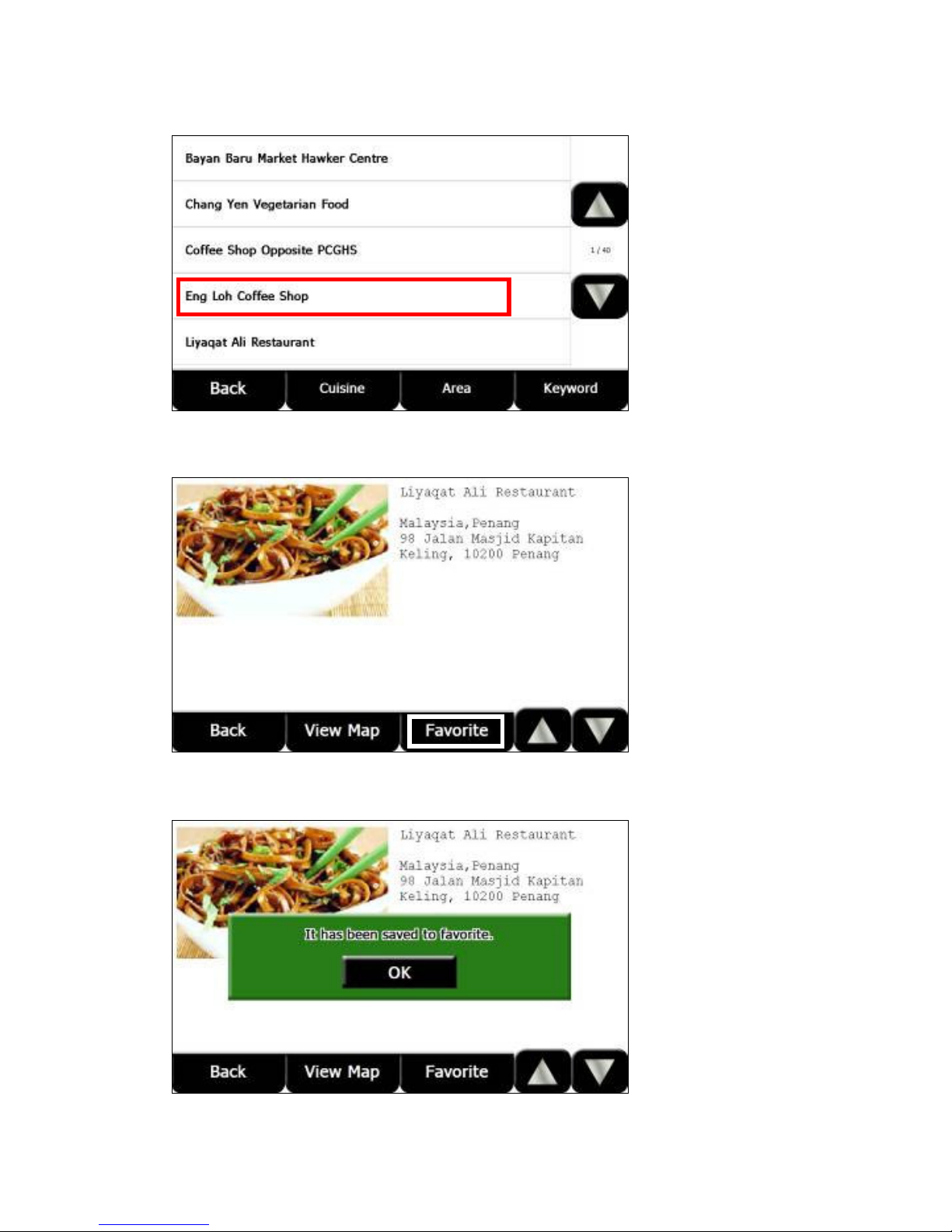

4. MapKing Pro will list out the Near By restaurants beginning with the nearest one
P. 11
Page 13
MapKing Pro User Manual
5. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination

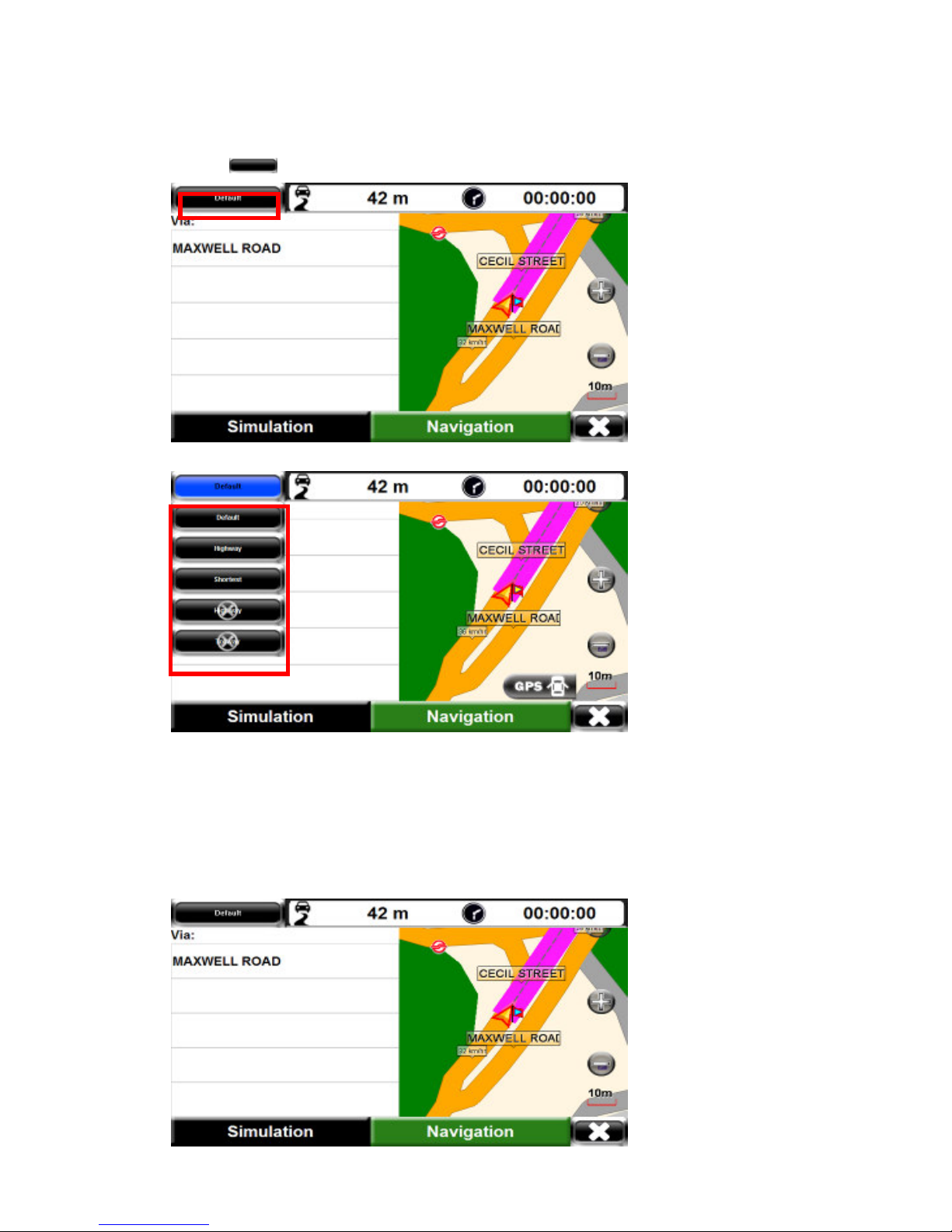

6. Tap to show route option list
7. Select route option
P. 12
Page 14
MapKing Pro User Manual
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway

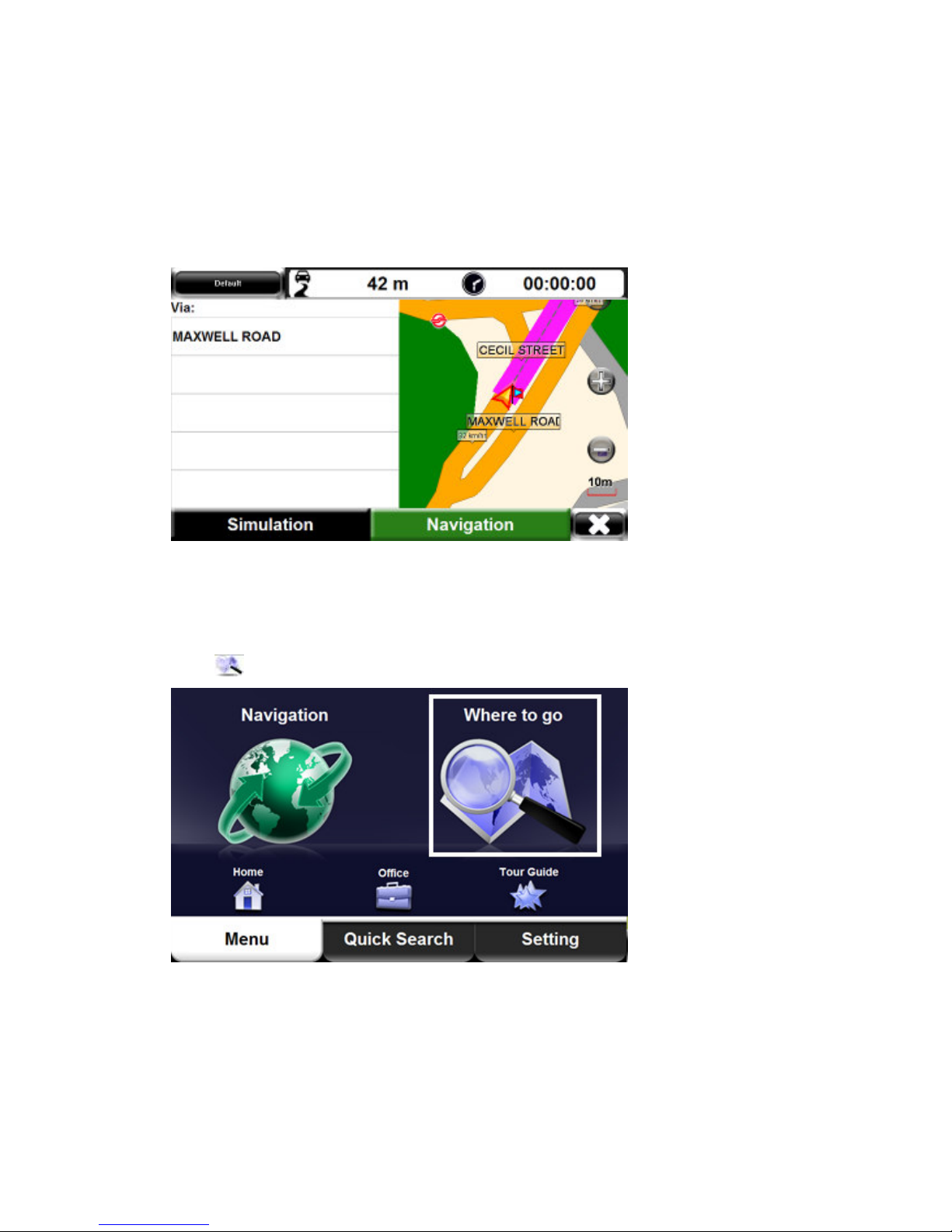

8. Tap “Navigation”

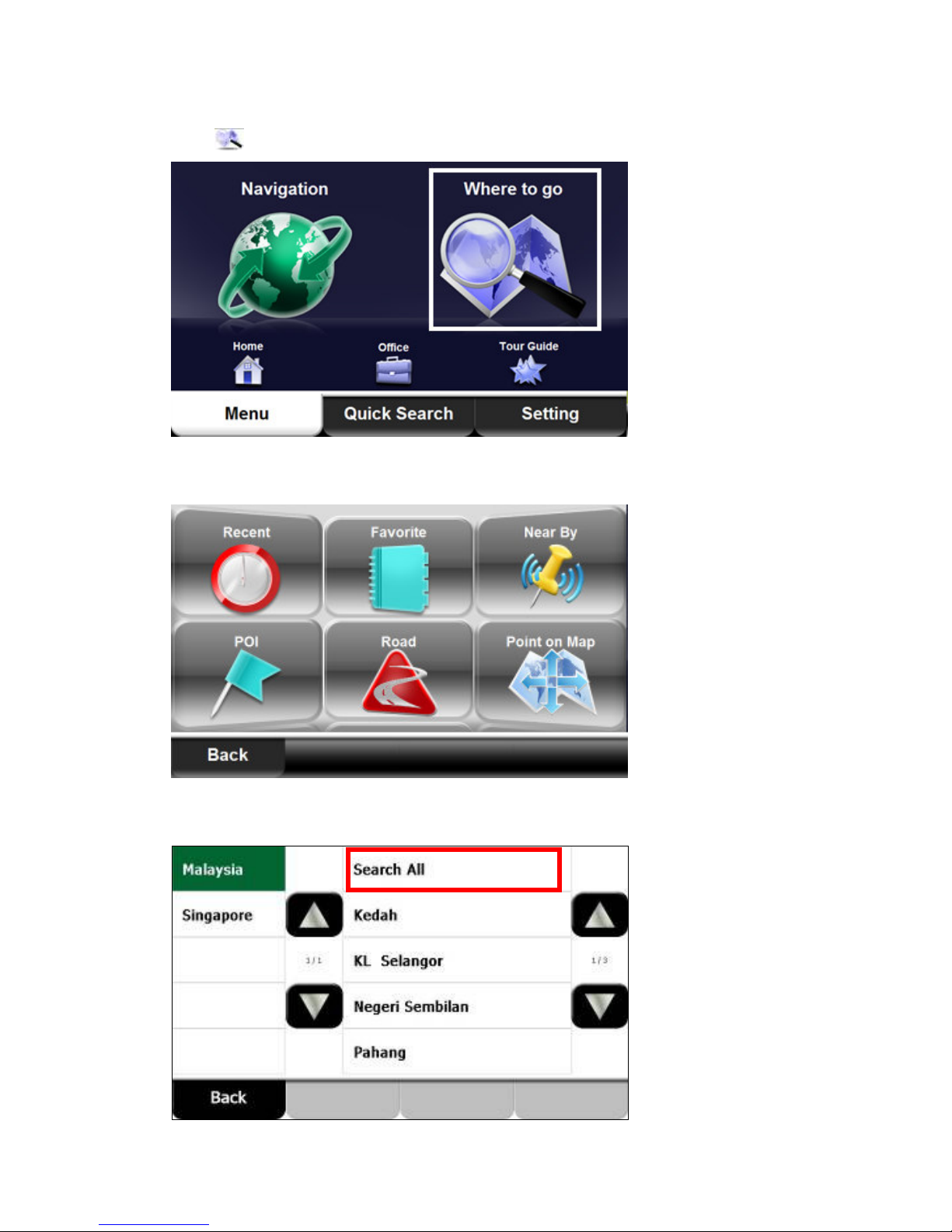

3.4. POI
Search “OCBC BANK JALAN MERU” as destination and start navigation
1. Tap
P. 13
Page 15

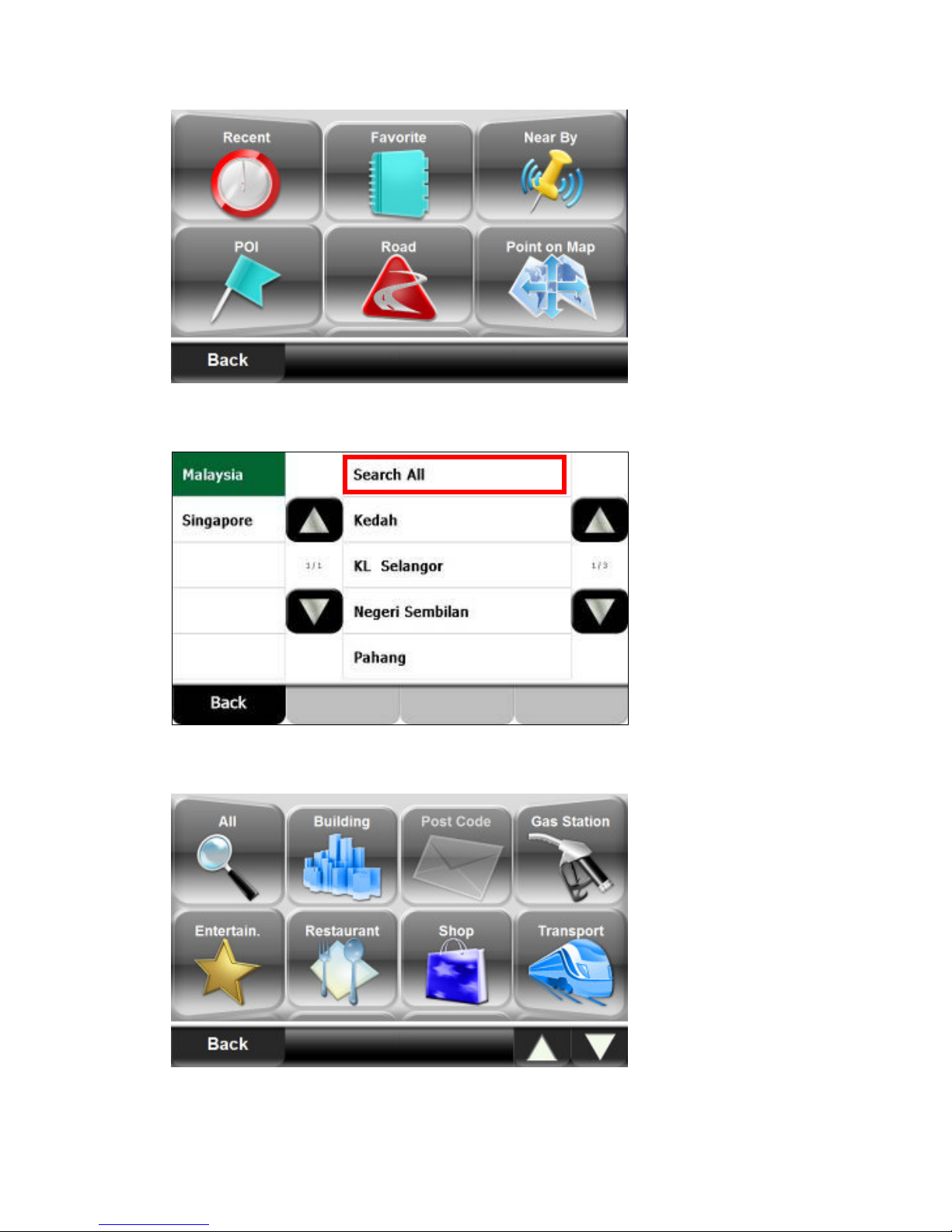

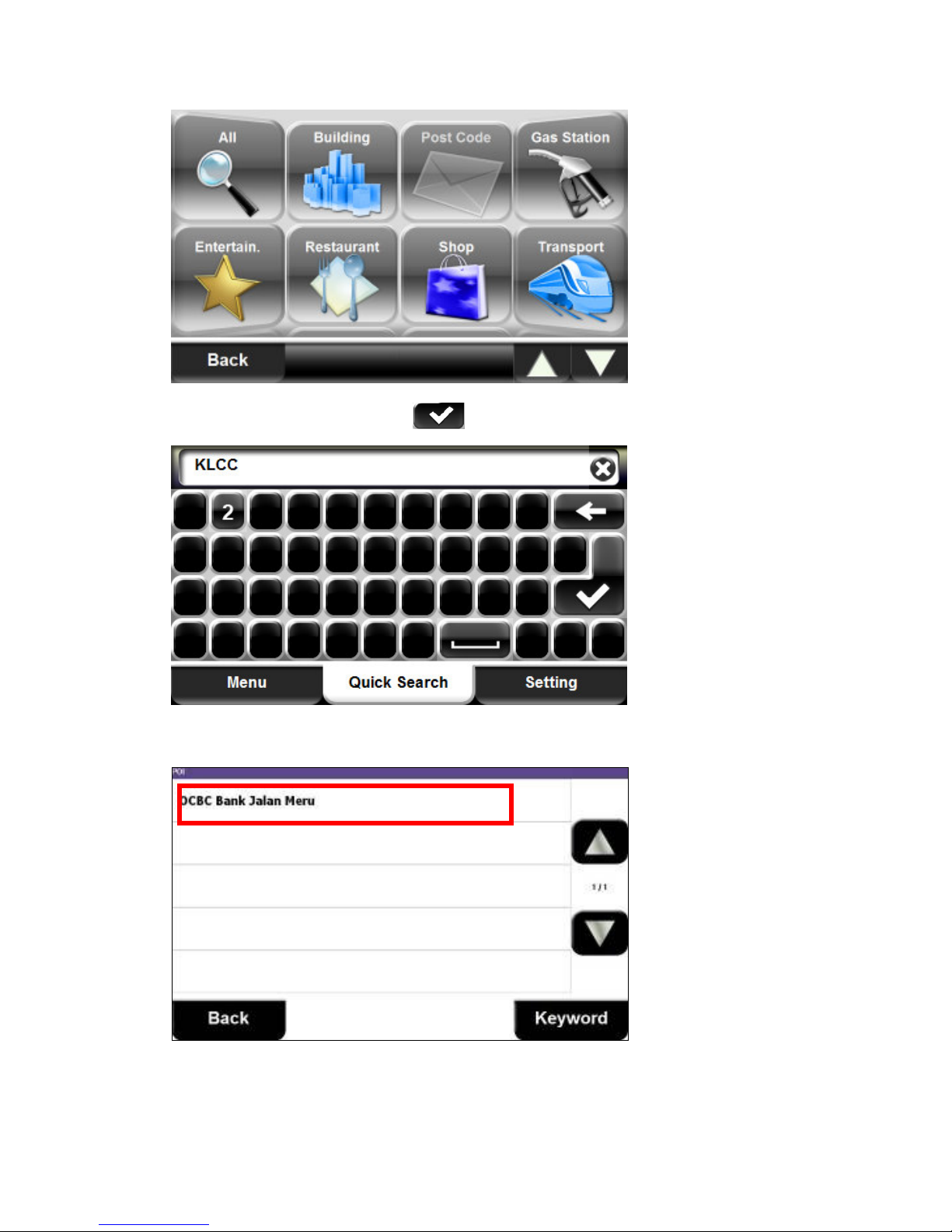

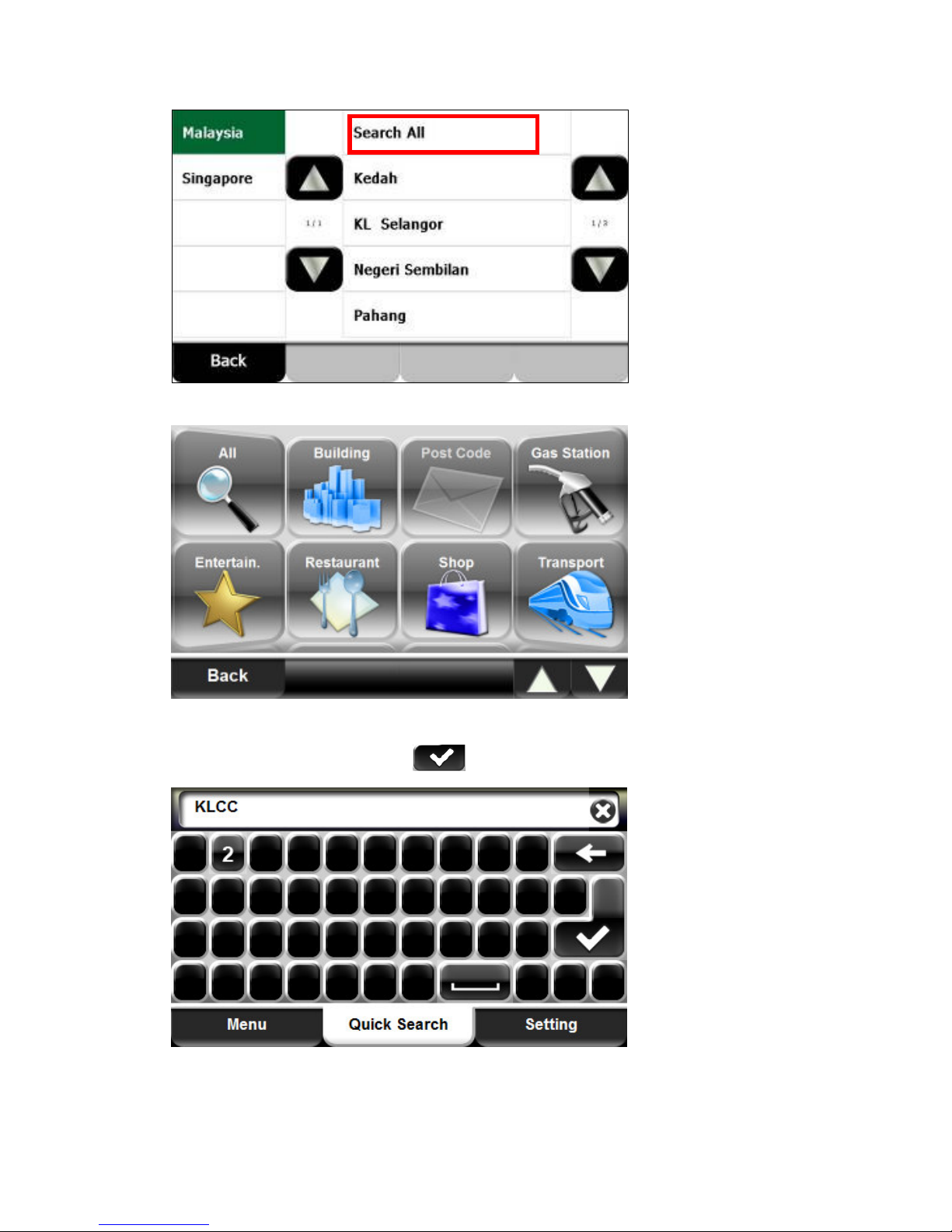

2. Tap “POI”
3. Select region and tap “Search All”
MapKing Pro User Manual
4. Tap “All”
P. 14
Page 16
MapKing Pro User Manual

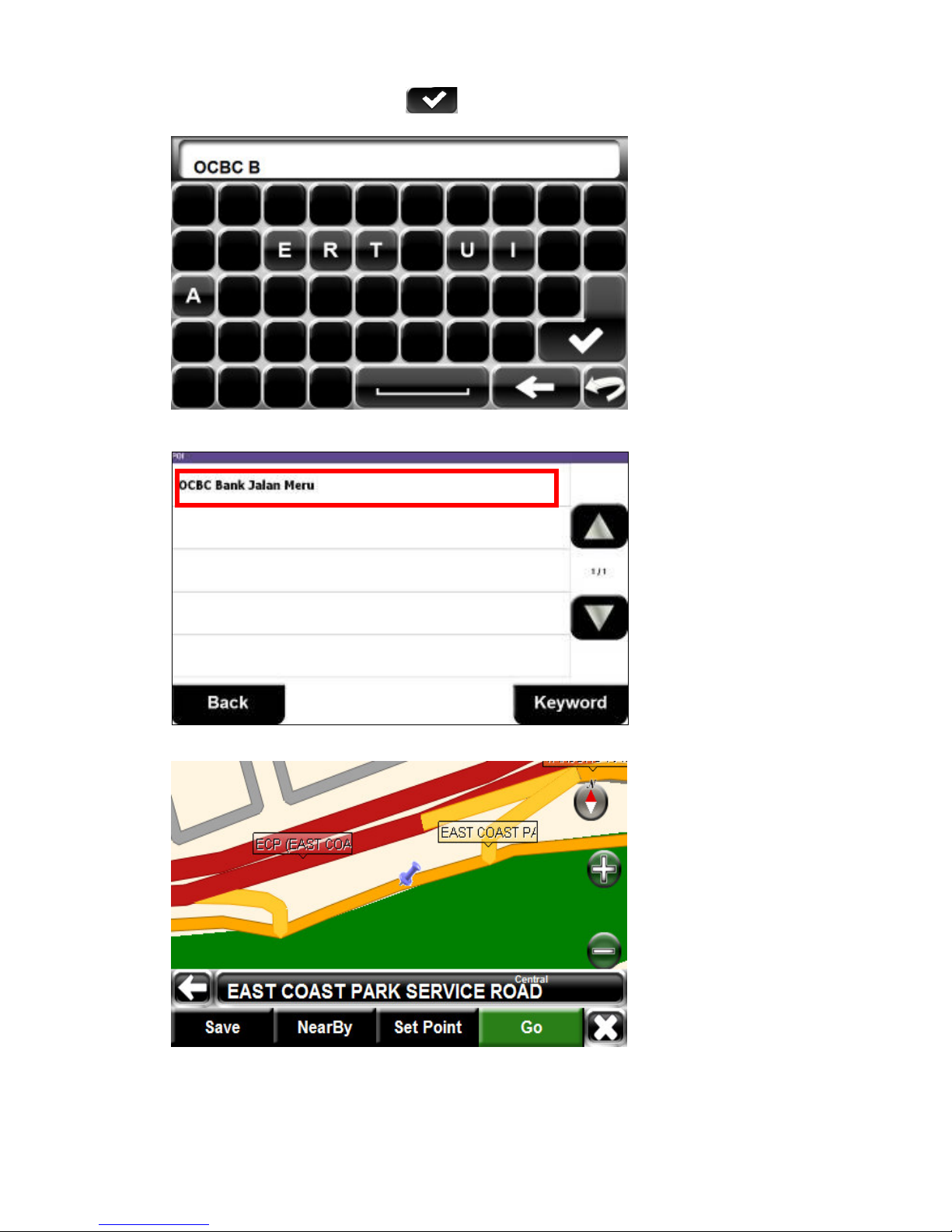

5. Type in the Keyword ,and then click
6. Tap “OCBC Bank Jalan Meru”
7. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
P. 15
Page 17

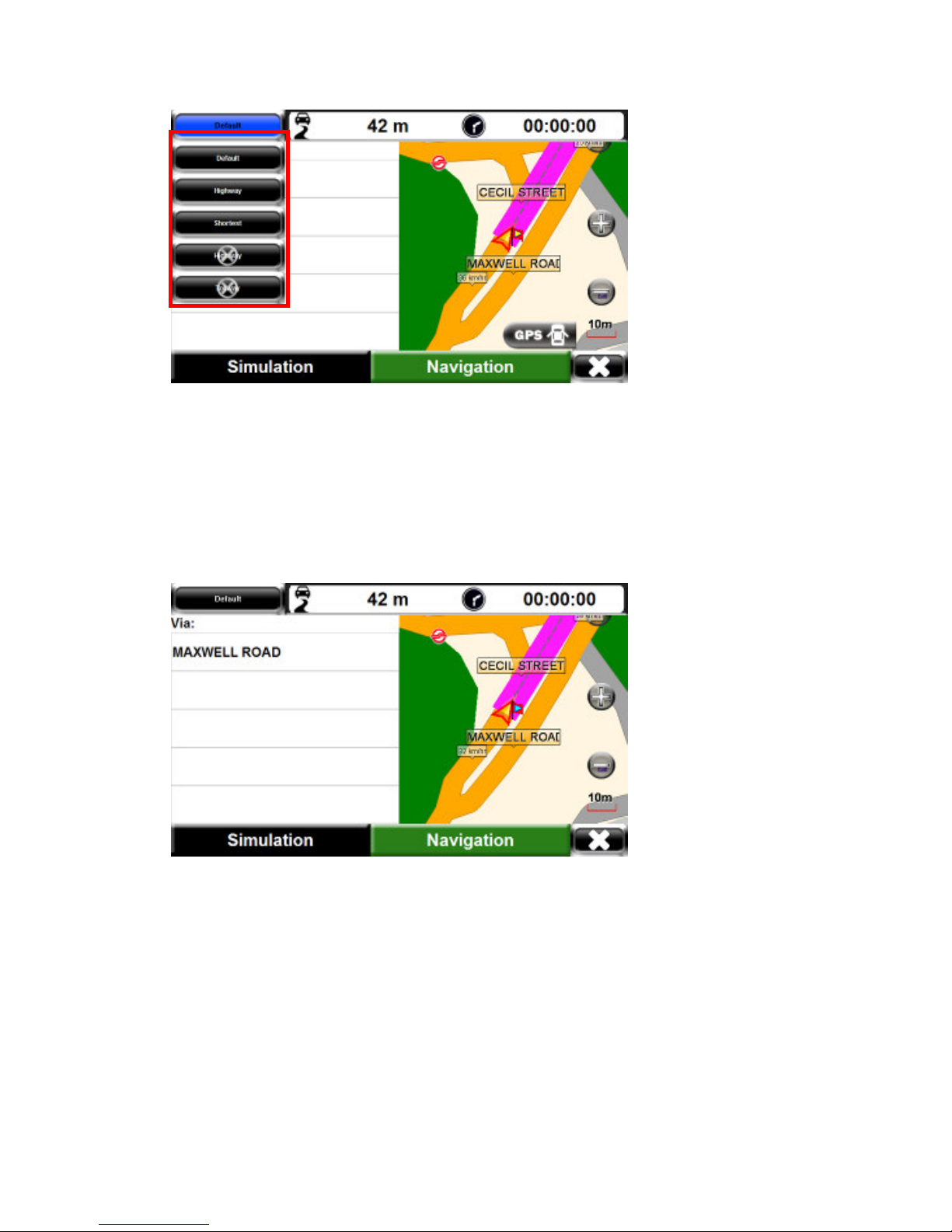

8. Tap to show route option list
9. Select route option
MapKing Pro User Manual
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
10. Tap “Navigation”
P. 16
Page 18
MapKing Pro User Manual

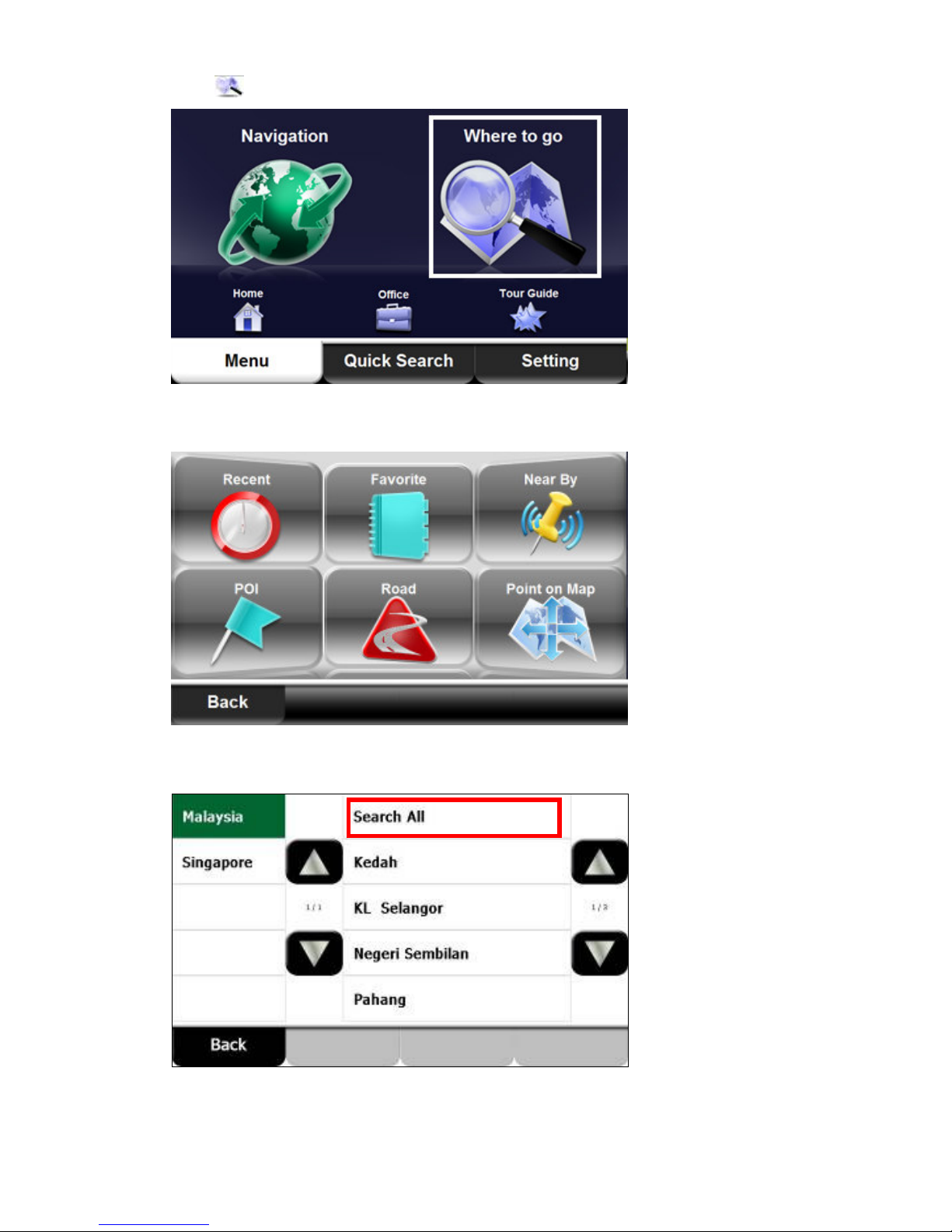

3.5. Road
Search “LORONG HELANG TIGA” as destination and start navigation
1. Tap
2. Tap “Road”
3. Select region and tap “Search All”
P. 17
Page 19
MapKing Pro User Manual

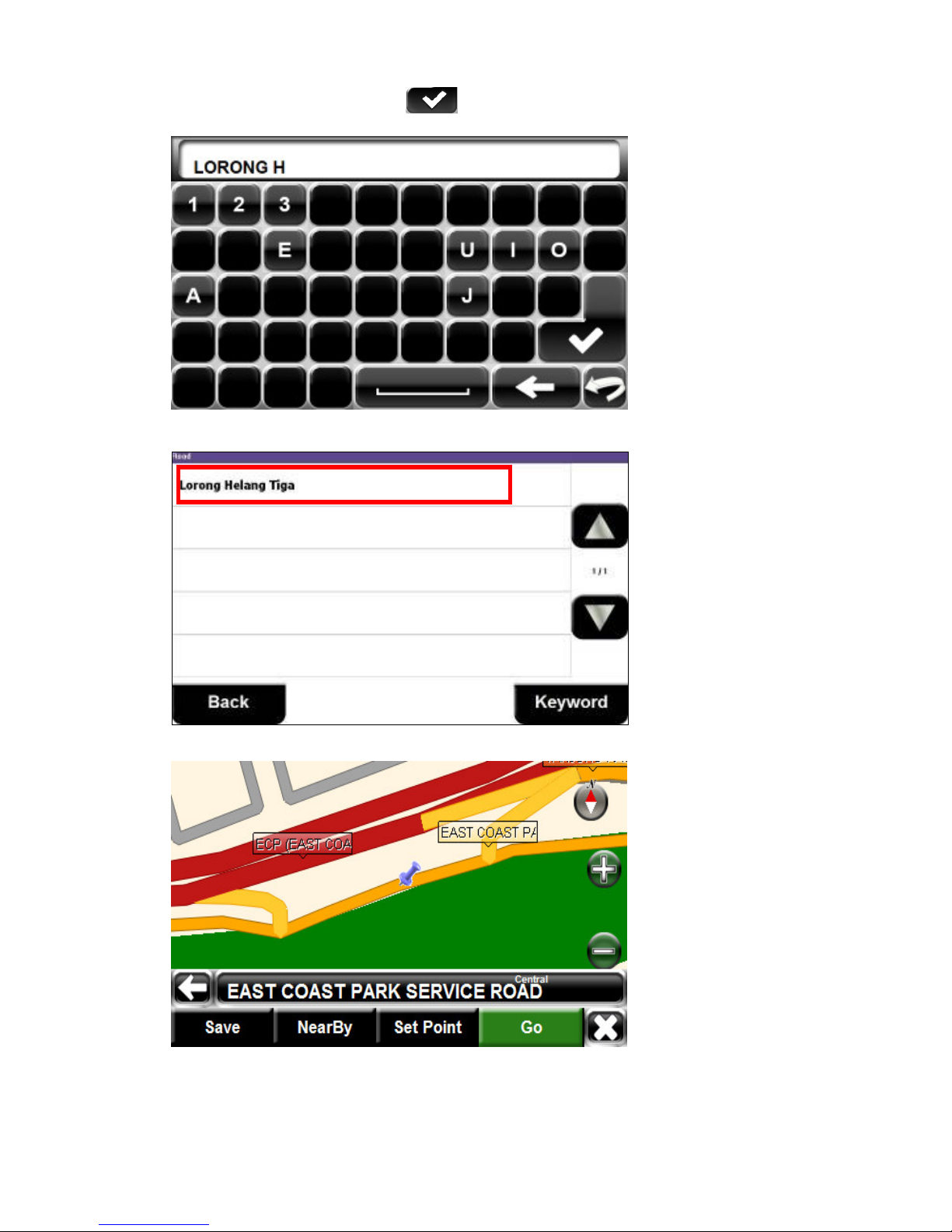

4. Type in the Keyword ,and then click
5. Tap “Lorong Helang Tiga”
6. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
P. 18
Page 20
7. Tap to show route option list
8. Select route option
MapKing Pro User Manual
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
9. Tap “Navigation”
P. 19
Page 21
MapKing Pro User Manual
3.6. Point on Map
Tap the preferred location on map and start navigation
1. Tap
2. Tap “Point on Map”
3. Tap the preferred location on the map and tap “Go” to set location as destination
Save: Save location as favorite
P. 20
Page 22
MapKing Pro User Manual
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
4. Tap to show route option list
5. Select route option
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
6. Tap “Navigation”
P. 21
Page 23
MapKing Pro User Manual

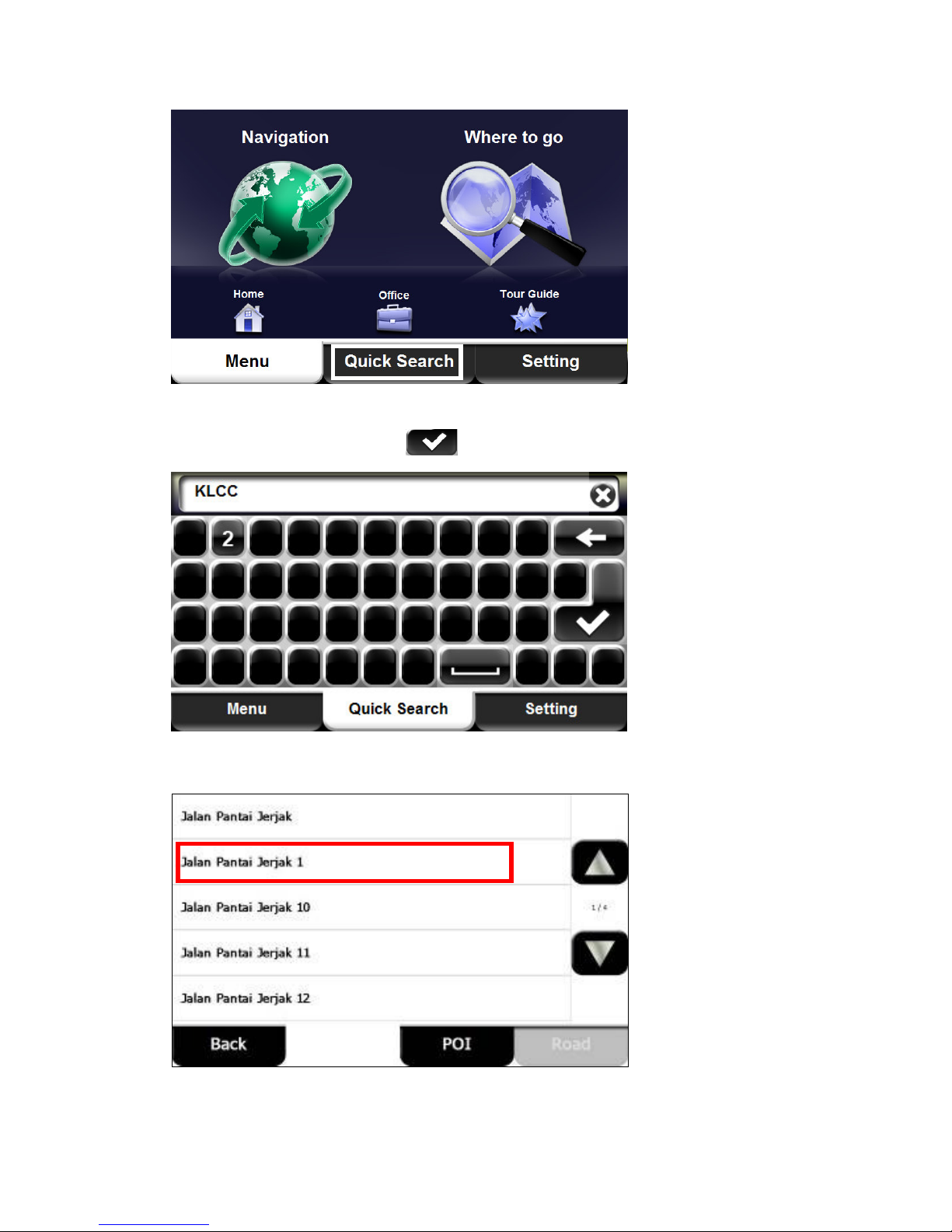

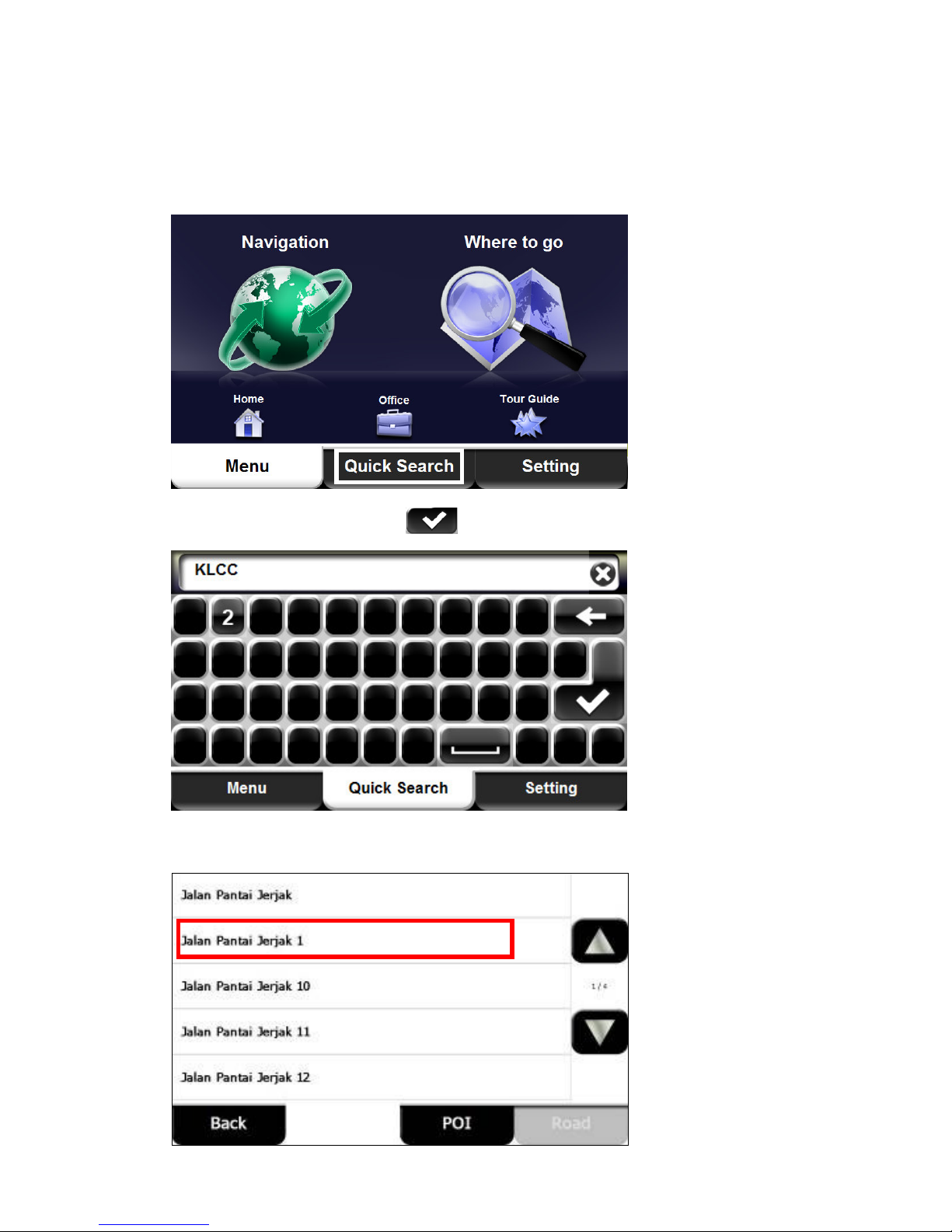

3.7. Quick Search
Example: Set “JALAN PANTAI JERJAK 1” as destination and start navigation.
1. Tap “Quick Search”
2. Type in the Keyword ,and then click
3. Tap “Jalan Pantai Jerjak 1”
P. 22
Page 24
MapKing Pro User Manual
4. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
5. Tap to show route option list
6. Select route option
P. 23
Page 25
MapKing Pro User Manual
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
7. Tap “Navigation”
4. Route Plan
4.1. Midways

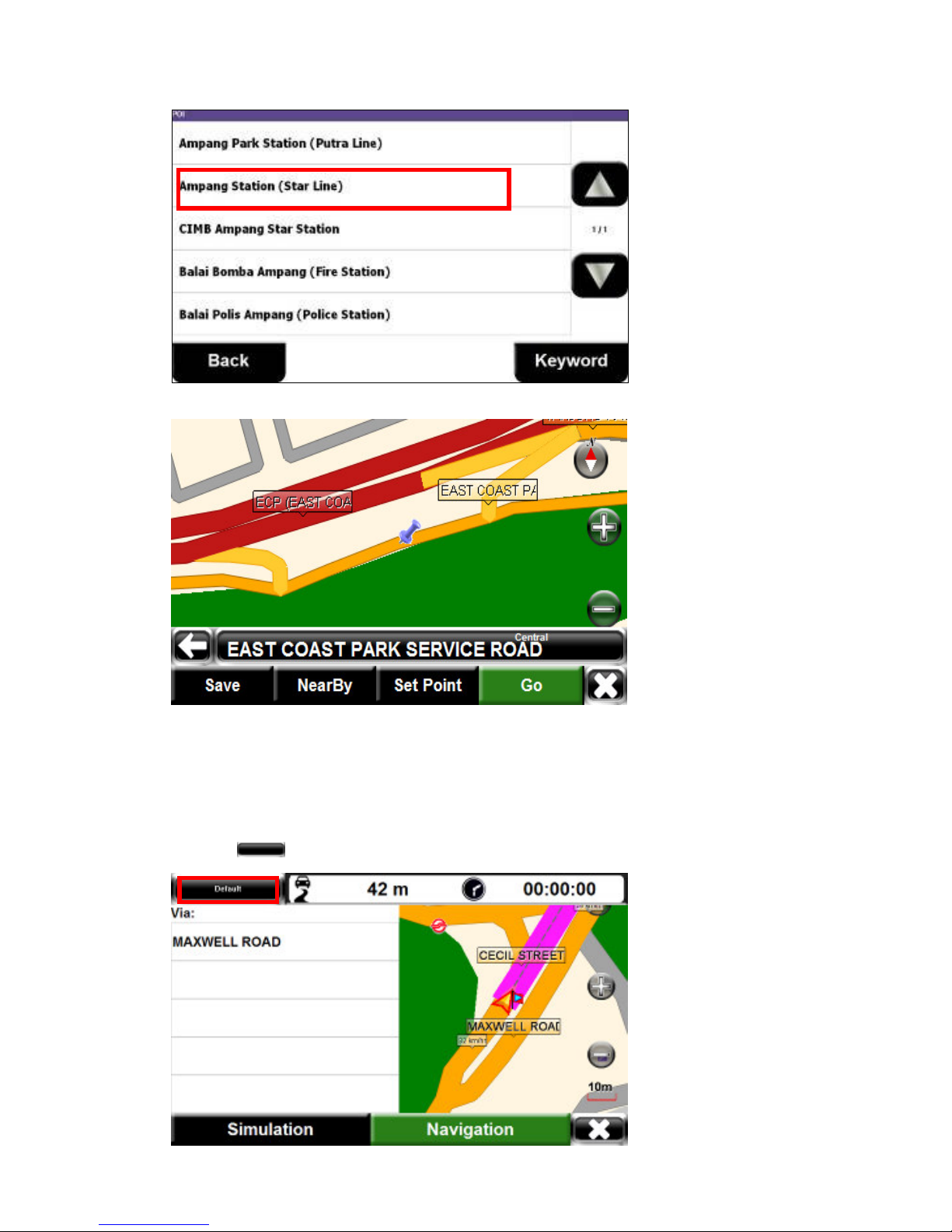

Example: Select midway by tapping on the map, set “AMPANG STATION” as destination
and start navigation.
1. Tap
P. 24
Page 26

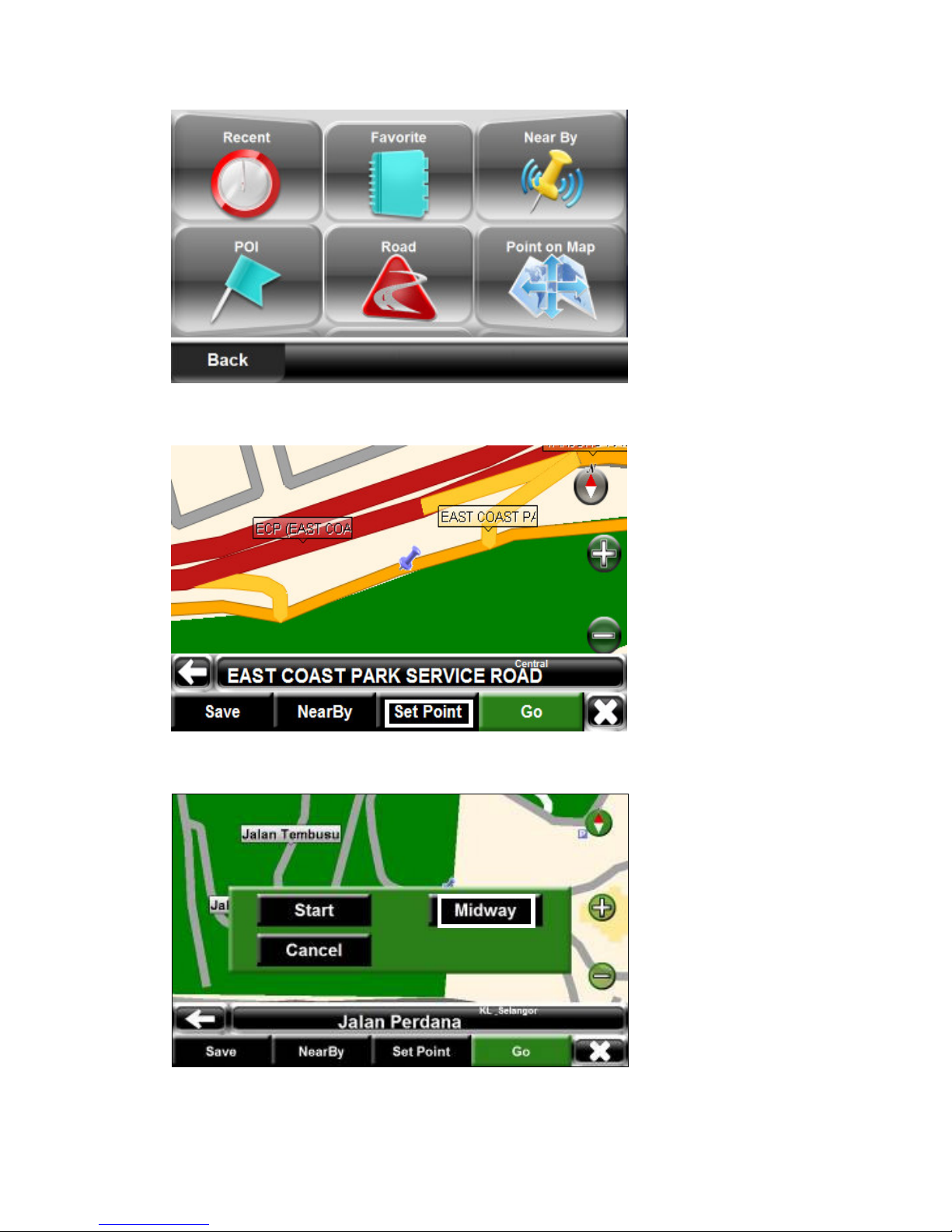

2. Tap “Point on Map”
3. Tap on the map and tap “Set Point”
MapKing Pro User Manual
4. Tap “Midway” to set location as midway point
P. 25
Page 27
MapKing Pro User Manual
5. A blue flag is shown on map representing the midway
6. Tap
7. Tap “POI”
P. 26
Page 28
8. Select region and tap “Search All”
9. Tap “All”
MapKing Pro User Manual
10. Type in the Keyword ,and then click
P. 27
Page 29
MapKing Pro User Manual
11. Tap “Ampang Station (Star Line)”
12. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
13. Tap to show route option list
P. 28
Page 30
MapKing Pro User Manual
14. Select route option
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
15. Tap “Navigation”
4.2. Simulation
Example: Set “JALAN PANTAI JERJAK” as start point and “OCBC Bank Jalan Meru” as
destination for simulation.
* If start point has not been set, the current position will be set as start point.
* Preview in Setting>Route Option has to be set to “On” in order to conduct simulation.
P. 29
Page 31
MapKing Pro User Manual
1. Tap “Quick Search”
2. Type in the Keyword ,and then click
3. Tap “Jalan Pantai Jerjak 1”
P. 30
Page 32
MapKing Pro User Manual
4. Tap “Set Point”
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
5. Tap “Start” to set location as start point
6. An icon is shown on map representing the start point
P. 31
Page 33
7. Tap
8. Tap “POI”
MapKing Pro User Manual
9. Select region and tap “Search All”
P. 32
Page 34
MapKing Pro User Manual
10. Tap “All”
11. Type in the Keyword ,and then click
12. Tap “OCBC Bank Jalan Meru”
P. 33
Page 35
MapKing Pro User Manual
13. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
14. Tap to show route option list
15. Select route option
P. 34
Page 36
MapKing Pro User Manual
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
16. Tap “Navigation”
5. Tour Guide
Tour guide consists of the travel information of the famous attractions and restaurants
in the local region. User can also set the attraction as destination for navigation.
5.1. Search by region
Example: Set “Chinatown” in KL Selangor as destination and start navigation.
1. Tap “Tour Guide”
P. 35
Page 37
2. Tap”Shopping”
3. Tap “Area”
MapKing Pro User Manual
4. Tap “KL Selangor”
P. 36
Page 38
5. Tap “Chinatown”
6. Tap “View Map”
MapKing Pro User Manual
7. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
P. 37
Page 39
8. Tap to show route option list
9. Select route option
MapKing Pro User Manual
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
10. Tap “Navigation”
P. 38
Page 40
MapKing Pro User Manual
5.2. Search by Keyword
Example: Set “KLCC” as destination and start navigation.

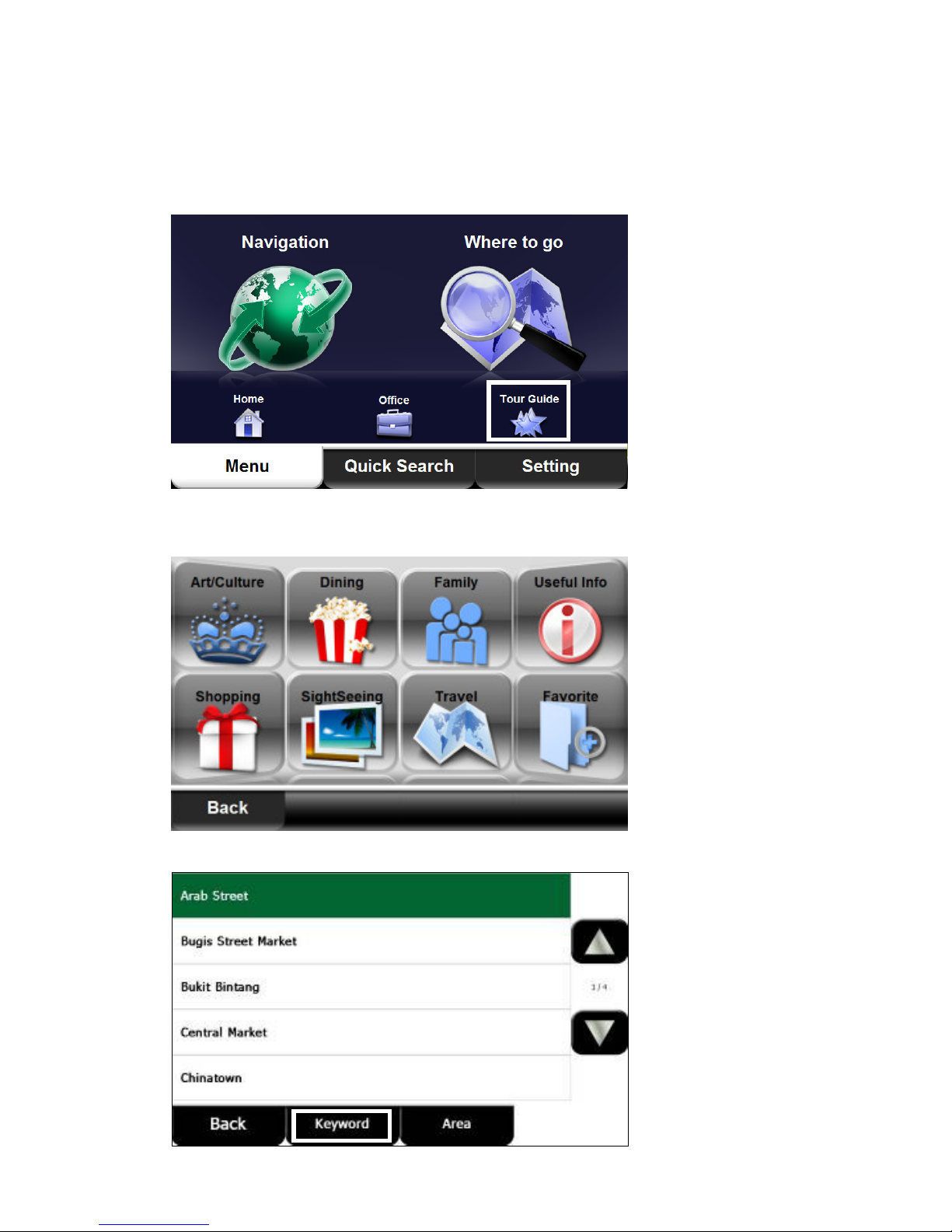

1. Tap “Tour Guide”
2. Tap “Shopping”
3. Tap”Keyword”
P. 39
Page 41
MapKing Pro User Manual

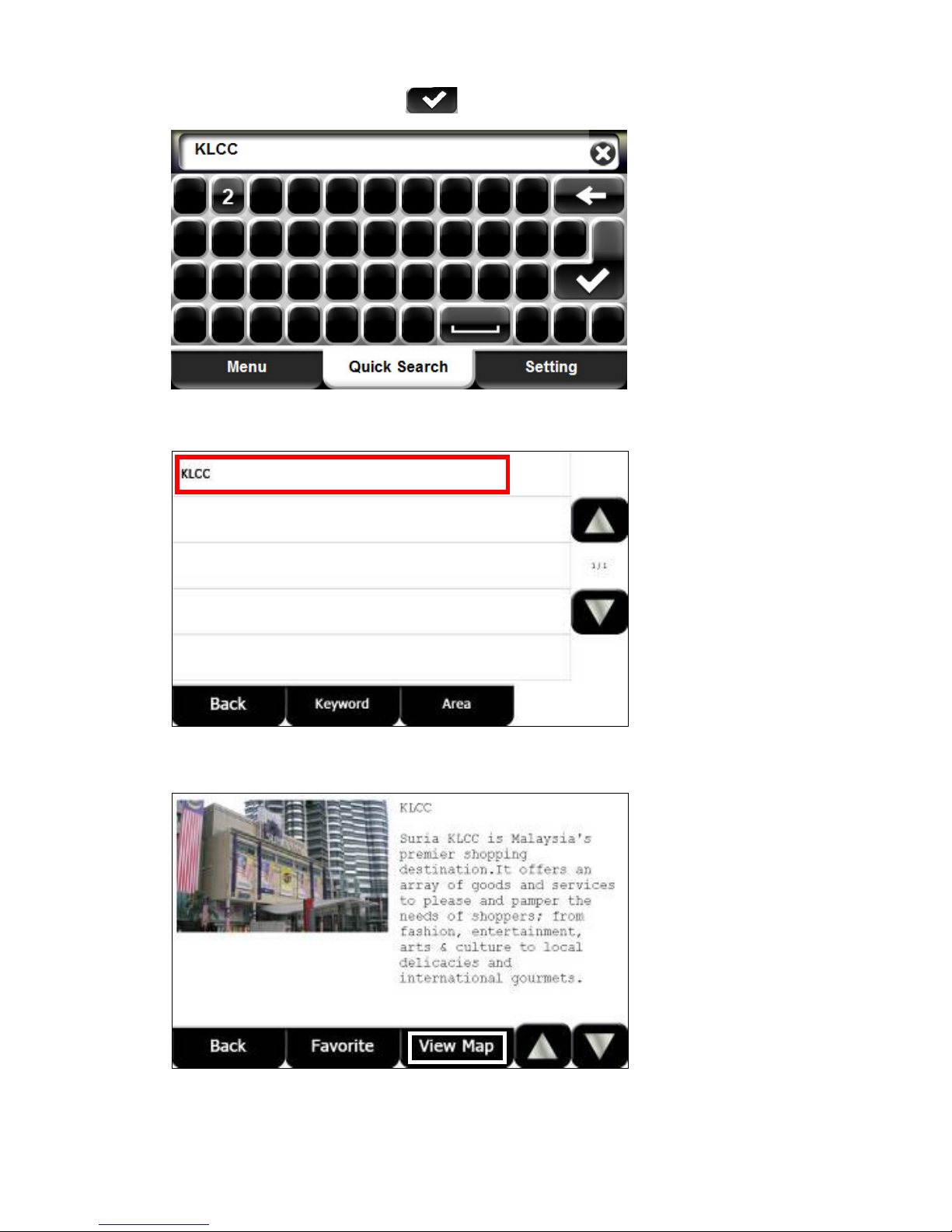

4. Type in the Keyword ,and then click
5. Tap “KLCC”
6. Tap “View Map”
P. 40
Page 42
MapKing Pro User Manual
7. Tap “Go” to set location as destination
Save: Save location as favorite
NearBy: Search nearby POI
Set Point: Set location as start point or midway point
Go: Set location as destination
8. Tap to show route option list
9. Select route option
Default: Use optimize parameters to calculate the route
Highway: Assigns high priority to expressways, highways and freeways
Shortest: Calculate route purely on length of road segment
P. 41
Page 43
MapKing Pro User Manual
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
10. Tap “Navigation”
5.3. Save as Favorite
Example: Search restaurant and save as favorite in Tour Guide.
1. Tap “Tour Guide”
2. Tap”Dining”
P. 42
Page 44
3. Tap”Liyaqat Ali Restaurant”
4. Tap “Favorite”
MapKing Pro User Manual
5. The restaurant has been saved as favorite
P. 43
Page 45
6. Tap “Favorite”
7. “Favorite” interface
MapKing Pro User Manual
Sort: Sort the recent records by date, distance, alphabet or frequency
Delete All: Delete all the recent records
P. 44
Page 46
6. Navigation
1
MapKing Pro User Manual
2
6
3
4
5
8
7
1. Next turn indicator
2. Distance to next turn
3. Estimated distance to destination
4. Estimated time to destination
5. Current speed
6. Next road name
7. GPS (Press to view GPS information)
13
8. Current road name
9. Compass
10. Zoom in
11. Zoom out
12. Scale
13. Planned route
14. Current position
14
9
10
11
12
15
15. Go to menu
16. Junction View
17. Sign Board
16
18
18. Go to Route Result
19. Call Sub-menu
P. 45
17
19
Page 47
MapKing Pro User Manual
Entering expressway along the right lane
6.1. Road Sign
The road sign defines in MapKing (from left to right):
Upper row (from left to right) Lower row (from left to right)
1. Distance to destination
2. Entering expressway along the left lane
3. Entering expressway
4.
5. Rest area
6. Tollgate
7. Entering roundabout
8. Stay on the left lane
9. Keep going straight
6.2. Sub-menu
1. Tap
10. Leaving expressway along the left lane
11. Leaving expressway
12. Leaving expressway along the right lane
13. Stay on the right lane
14. Turn left at intersection ahead
15. U-turn to the left at intersection ahead
16. Turn right at intersection ahead
17. U-turn to the right at intersection ahead
18. Leaving roundabout
P. 46
Page 48
MapKing Pro User Manual

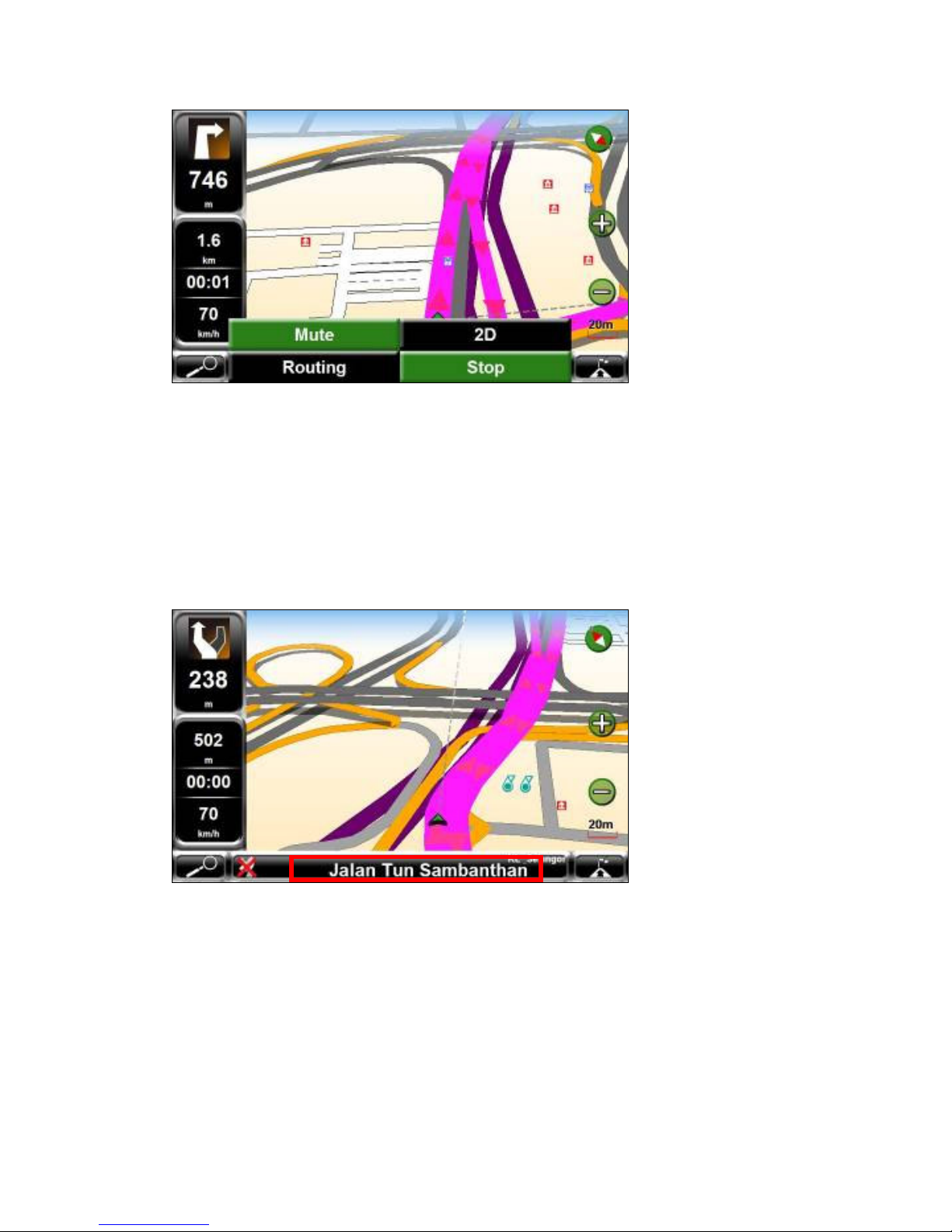

2. Sub-menu interface
Mute: Mute the navigation voice
2D/3D: Change between 2D/3D mode
Routing: Begin navigation or simulation
Stop: Stop navigation or simulation
6.3. Route Result
1. Tap road name
P. 47
Page 49

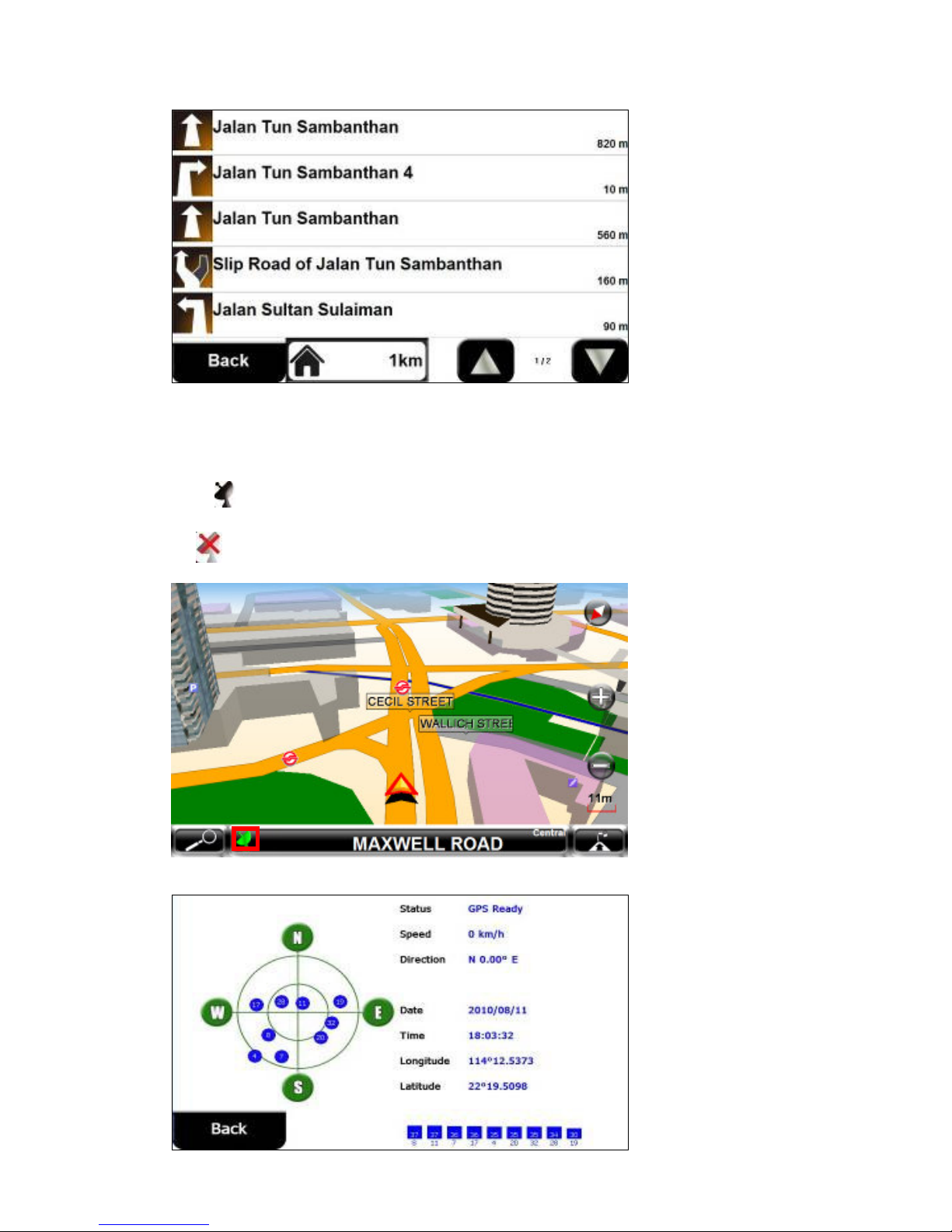

2. Route Result is listed
6.4. GPS Status
1. Tap
MapKing Pro User Manual
*If is shown, GPS signal is not detected.
2. GPS status interface
P. 48
Page 50
MapKing Pro User Manual
7. Setting
Route Opt: Change route option
Navi Screen: Change map display
VR: Turn on/ off Junction View, Sign Board images, 3D Building display
Switch Map: Change map
Display: Change day/ night mode, user interface language, vehicle type and compass type
Voice: Change voice assistance language and on/ off speed warning
About: MapKing software and map information
Exit: Exit MapKing
7.1. Route Option
Route Option:
Default: Use optimize parameters to calculate the route
Highway Preferred: Assign high priority to expressways, highways and freeways
Shortest Path: Calculate route purely on length of road segment
Highway Avoided: Avoid expressways, highways and freeways
Tollway Avoided: Avoid tollway
Preview: Turn on/off simulation function
Vehicle Setting: ERP cost is for Singapore map only. The ERP cost will varies, depending on
the time of the date, and vehicle type.
P. 49
Page 51
MapKing Pro User Manual

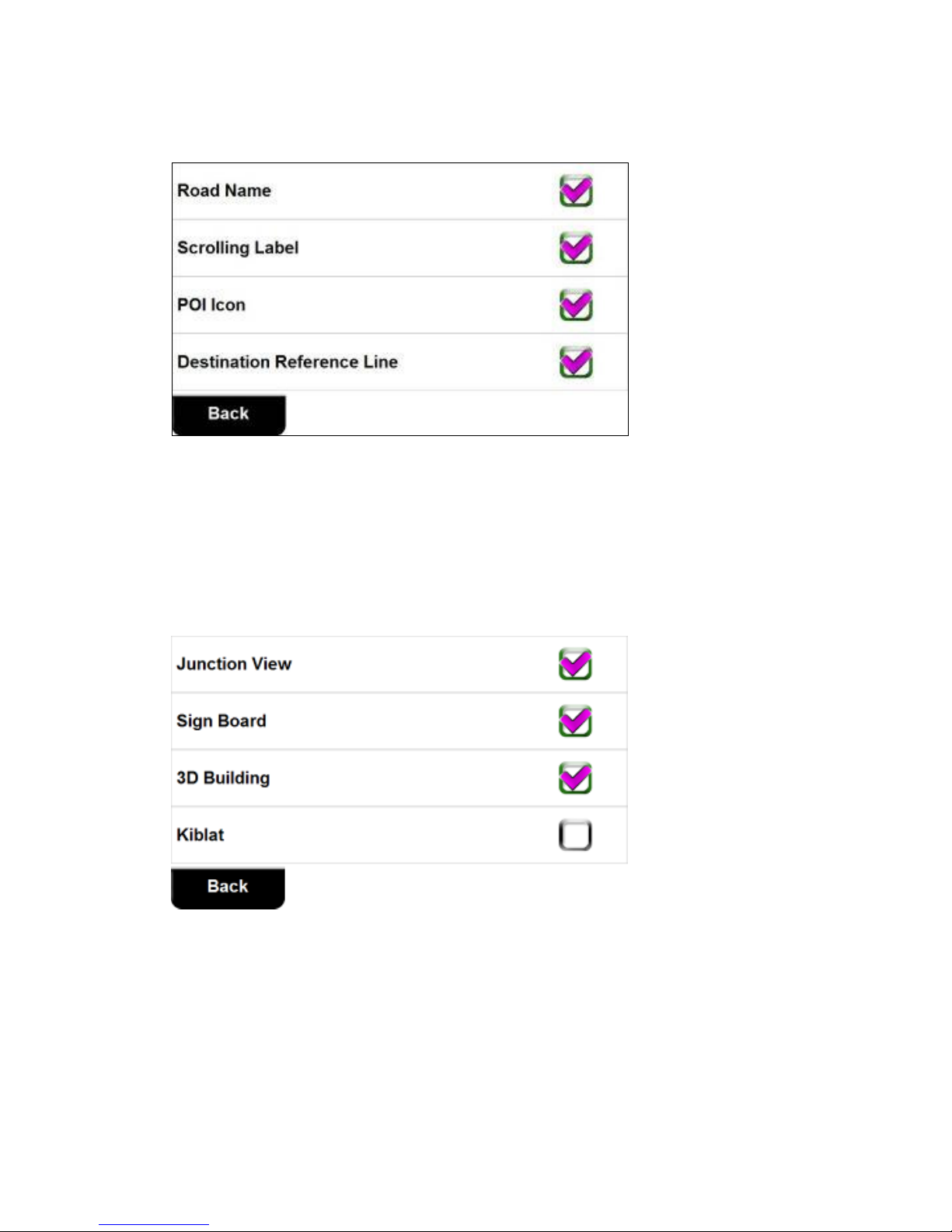

7.2. Navi Screen
Road Name: Turn on/off road name displayed on map
Scrolling Label: Turn on/off the movement of road name label
POI Icon: Turn on/off POI Icon displayed on map
Destination Reference Line: Turn on/off Destination Reference Line displayed on map
7.3. Reality
Junction View: Turn on/ off junction view image
Sign Board: Turn on/ off sign board image
3D Building: Turn on/off 3D Building display
Kiblat: Select normal compass/ Kiblat compass displayed on map
P. 50
Page 52
MapKing Pro User Manual
7.4. Switch Map
Select the preferred map and tap “OK”
7.5. Display
Day/Night: Select Auto/ Day/ Night mode
Language: Change the user interface language
Arrow Type: Select the vehicle type or colour
Map Colors: Select Sharp/Soft color displayed on map
Map Quality: Select High/Standard to get different map display quality
P. 51
Page 53
MapKing Pro User Manual
7.6. Voice
Language: Change voice assistance language
Speed Warning: turn on/off speed warning
Mute: turn on/off navigation voice
Vocal Setting: select standard or more voice assistance
Set Volume: increase or reduce volume
- End -
P. 52
Loading...
