Tiller/Cultivator
MODEL 7920
MAN 430088
Rev. F 3-30-20
MODEL 7924
OPERATOR’S/PARTS MANUAL
Operator’s Manual and Safety Instructions for
Tiller/Cultivator
Welcome to the World of Mantis Gardening
Here’s your new MANTIS Tiller . . . the lightweight wonder that’s Changing the
Way Americans Garden.
Unlike big tillers, your MANTIS Tiller weighs only 20 lbs. (Model 7920) and 22.5
lbs. (Model 7924). So it lifts easily, handles smoothly, tills and weeds precisely.
And, unlike other small tillers, it features serpentine tines that churn soil to ten
®
ATTENTION MANTIS PRODUCT OWNERS!
Get maintenance tips for your Mantis
product on our web site
at www.mantis.com
inches deep. It creates a soft, smooth seed bed, even in problem soil.
Once you know how to use your tiller correctly, we guarantee you’ll love it. So rst, please read this manual. It shows, step by
step, how to use your tiller safely.
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product, one of the best designed and built anywhere.
This machine comes with Operation and Safety instructions, Parts and Service instructions and Engine instructions. The useful life and good service you receive
from this machine depends to a large extent on how well you read and understand these manuals. Treat your machine properly, lubricate and adjust it as instructed,
and it will give you many years of reliable service.
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we also rely on your good
sense and care to achieve accident-free operation. For best protection, study the manuals thoroughly. Learn the proper operation of all controls. Observe all
safety precautions. Follow all instructions and warnings completely. Do not remove or defeat any safety features. Make sure those who operate this machine
are as well informed and careful in its use as you are.
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc. service ensures that you continue to receive the best
results possible from Schiller Grounds Care, Inc. products. You can trust Schiller Grounds Care, Inc. replacement parts because they are manufactured with
the same high precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this machine only as
directed in the manuals, keep it in good repair and follow safety warnings and instructions. You’ll always be glad you did.
Schiller Grounds Care, Inc.
1028 Street Road
Southampton, PA 18966-4217
PHONE (800) 366-6268 • FAX (215) 956-3855
TABLE OF CONTENTS
SAFETY RULES & WARNINGS
Special Safety Information ................................................. 3
Safety & Warnings ............................................................. 3
Safety Decal Information ................................................... 3
Warning Dos ...................................................................... 4
Warning Don’ts ..................................................................5
Engine/Fuel Warning Do’s ................................................. 5
Engine/Fuel Warning Don’ts .............................................. 5
ASSEMBLY ............................................................................ 6
Lower Handle .................................................................... 7
Upper Handle Assembly .................................................... 8
Tines ...............................................................................8-9
Kickstand ........................................................................... 9
This Operator’s / Parts Manual is part of the machine. Suppliers of both new and
second-hand machines must make sure that this manual is provided with the machine.
FUELING & STARTING
2-Cycle Fueling ................................................................ 10
2-Cycle Tiller Starting ................................................. 11-12
OPERATION ....................................................................13-14
TRANSPORT .......................................................................15
STORAGE ............................................................................ 15
MAINTENANCE ..............................................................16-18
TROUBLESHOOTING ......................................................... 19
MANTIS TILLER ASSEMBLIES ...................................... 20-24
CONTROL ............................................................................ 25
EPA ....................................................................................... 26
LIMITED WARRANTY INFORMATION ................BACK PAGE
2 Operator’s Manual
Safety Rules & Warnings
You will notice throughout this Operator’s Manual Safety Rules and Important Notes. Make sure you understand and obey these
warnings for your own protection.
I. SPECIAL SAFETY INFORMATION
Attention: This symbol points out our
important safety instructions.
When you see this symbol,
heed it’s warning!! Stay alert!!
To reduce the potential for accidents, comply
with the safety instructions in this manual.
Failure to comply may result in serious
personal injury, and/or equipment
and property damage.
II. SAFETY & WARNINGS
Improper use or care of this tiller or failure to wear
proper protection can result in serious injury.
Read and understand the rules for safe
operation and all instructions in this manual.
Wear hearing and eye protection.
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
III. SAFETY DECAL INFORMATION
An important part of the safety system incorporated in this tiller are the warning and information decals found on various parts of
the tiller. These decals must be replaced in time due to abrasion, etc. It is your responsibility to replace these decals when they
become hard to read.
P/N 430057P/N 400630
An Emission Control
Label is located on
the engine (This is
an EXAMPLE ONLY,
information on label
varies by engine
FAMILY.)
PRODUCT EMISSION DURABILITY
The 300 hour emission durability compliance period
is the time span selected by the manufacturer
certifying the engine emissions output meets
applicable emissions regulations, provided that
approved maintenance procedures are followed as
listed in the Maintenance Section of this manual.
Cutting hazard;
keep feet and
hands away from
rotating tines.
Caution: when assembling
the handles, make sure fuel
tank faces operator. This is
the rear of the tiller, refer to
assembly instructions
Wear ear and
eye Protection.
Do not carry
the tiller in this
position.
Incorrect assembly.
Don’t operate
indoors
Read operators manual before
using tiller, or performing any
repair or maintenance. Keep
operators manual in a safe place.
Don’t fuel, refuel, or
check fuel while smoking,
or near an open ame or
other ignition source.
Mix unleaded gas
with 2 cycle 50:1 oil.
Must meet or exceed ISOL-EGD (ISO/CD13738) and
J.A.S.O. FD Standards
3Contact us at www.mantis.com
If the tiller is used improperly or safety precautions
are not followed, the users risk serious injury
to themselves and others.
Read and understand this manual before
attempting to operate this tiller.
IV. WARNINGS - DOS
Read and understand the owner’s manual.
Pay particular attention to all sections
regarding safety.
1. Always keep a rm grip on both handles
while the tines are moving and/or the
engine is running. BE AWARE!! The
tines may coast after throttle trigger is
released. Make sure tines have come to
a complete stop and engine is off before
letting go of the tiller.
2. Always maintain a rm footing and
good balance. Do not overreach while
operating the tiller. Before you start to
use the tiller check the work area for
obstacles that might cause you to lose
your footing, balance or control of the
machine.
3. Thoroughly inspect the area where
equipment is to be used and remove
all objects, which can be thrown by the
machine.
4. Always keep area clear of children,
pets, and bystanders.
5. Always stay alert. Watch what you are
doing and use common sense. Do not
operate unit when fatigued.
6. Always dress properly. Do not wear
loose clothing or jewelry, they might
get caught in moving parts. Use sturdy
gloves. Gloves reduce the transmission
of vibration to your hands. Prolonged
exposure to vibration can cause
numbness and other ailments.
7. While working, always wear substantial
footwear and long trousers. Do not
operate the equipment when barefoot or
wearing open sandals.
8. Always wear ear and eye protection.
Eye protection must meet applicable CE
requirements. To avoid hearing damage,
we recommend hearing protection be
worn whenever using the equipment.
9. To reduce re hazard, keep the
engine, and petrol/gas storage area free
of vegetative material and excessive
grease.
10. Start the engine carefully, according to
the manufacturer’s instructions and with
feet well away from tool(s).
Keep all nuts, bolts and screws tight
11.
to be sure the equipment is in safe
working condition.
Use extreme caution when reversing
12.
or pulling the machine towards you.
13. Work only in daylight or good
articial light.
Operation of this equipment may create sparks
that can start res around dry vegetation. A spark
arrestor is installed. The operator should contact
local re agencies for laws or regulations relating
to re prevention requirements.
14. Always be sure of your footing on
slopes.
15. Exercise extreme caution when
changing direction on slopes.
16. Always keep a safe distance between
two or more people when working
together.
17. Always inspect your unit before each
use. Keep all knobs, nuts, bolts and
screws tight to be sure the equipment is
in safe working condition.
18. Always visually inspect to see that
the tools are not worn or damaged.
Before using your tiller, replace worn or
damaged elements and bolts in sets to
preserve balance.
19. Always maintain and examine your
Tiller with care. Follow maintenance
instructions given in manual.
20. Always store tiller in a sheltered area
(a dry place), not accessible to children.
The tiller as well as fuel should not be
stored in a house.
21. Always keep in mind that the operator
or user is responsible for accidents or
hazards occurring to other people or
their property.
4 Operator’s Manual
V. WARNINGS - DON’TS
Don’t use tiller with one hand. Keep
both hands on handles with ngers and
thumbs encircling the handles, while
tines are moving, and engine
is running.
Don’t run with the machine, walk.
Don’t work on excessively steep slopes.
Don’t attempt to clear tines while they
are moving. Never try to remove jammed
Handle fuel with care, it is highly ammable. Fueling a hot engine or near an ignition source can
cause a re and result in serious personal injury and/or property damage.
material before switching the engine off
and making sure the tines have stopped
completely.
Don’t allow children or people unfamiliar
with these instructions to use the
machine. Local regulations can restrict
the age of operator.
Don’t let others operate tiller without
proper training.
VI. ENGINE/FUEL WARNINGS - DOS
Always use fresh gasoline in the fuel mixture.
Stale gasoline can cause damage.
Always store fuel in containers
specically designed for this purpose.
Always add fuel before starting
the engine.
Always replace all fuel tank and
container caps securely.
Always pull starter cord slowly until
resistance is felt to avoid kickback and
prevent arm or hand injury.
Always operate engine with spark
arrestor installed and operating properly.
Safety Rules & Warnings
Don’t operate while under the inuence
of alcohol or drugs.
Don’t attempt to repair this tiller. Have
repairs made by a qualied dealer or
repairman. See that only original Mantis
parts are used.
Don’t overreach. Keep a good footing at
all times.
Don’t stand in front of tiller when tines
are rotating.
Stop the engine whenever you leave
the machine and before refueling. Allow
the engine to cool before storing in any
enclosure. Replace worn or damaged
parts for safety.
If the fuel tank needs to be drained, this
should be done outdoors.
VII. ENGINE/FUEL WARNINGS - DON’TS
Never pick up or carry a machine while
the engine is running.
Don’t fuel, refuel or check fuel while
smoking, or near an open ame or other
ignition source. Stop engine and be sure
it is cool before refueling.
Don’t leave the engine running while the
tiller is unattended. Stop the engine when
carrying out maintenance and cleaning
operations, when changing tools and
when being transported by means other
than under its own power.
Never remove the cap of the fuel tank or
add fuel while the engine is running or
when the engine is hot.
Don’t refuel, start or run this tiller indoors
or in an improperly ventilated area.
Don’t run engine when electrical system
causes spark outside the cylinder. During
periodical checks of the spark plug, keep
plug a safe distance from cylinder to
avoid burning of evaporated fuel from
cylinder.
Don’t check for spark with spark plug
or plug wire removed. Use an approved
tester.
Don’t crank engine with spark plug
removed unless spark plug wire is
disconnected. Sparks can ignite fumes.
Don’t run engine when the odor of gasoline
is present or other explosive conditions exist.
Do not attempt to start the engine if
fuel is spilled, but move the machine
away from the area of spillage and avoid
creating any source of ignition until fuel
vapors have dissipated.
Don’t operate your tiller if there is an
accumulation of debris around the
mufer, and cooling ns. To reduce the
re hazard, keep the engine and fuel
storage area free of vegetative material
and excessive grease.
Don’t touch hot mufers, cylinders
or cooling ns as contact may cause
serious burns.
Don’t change the engine governor
setting or over speed the engine.
Don’t attempt to remove spark plug while
engine is hot. Removing a spark plug
from a hot engine can cause irreparable
damage to the engine and will void your
warranty.
Don’t use starter uids as they will cause
permanent engine damage.
5Contact us at www.mantis.com
Assembly
Picture of Model 7920
T39
T40
T41
T21A
T20
T46
Picture of Model 7924
T21B
T20
T46
Improper assembly of this tiller can result in serious injury. Make
sure to follow all instructions carefully. If you have any questions,
contact our factory at 1-800-366-6268 or an authorized Mantis dealer.
Bag Contents
T12
T9
T4
T1
T3
T42
T13
T11
T15
T7
T14
T9
T12
WHAT COMES IN THE BOX
Key Qty. Part No. Description
T1 1 Upper Handle Throttle Side Assembly
T2 1 Upper Handle Assembly, Left
T3 2 Lower Handles W/Plug
T4 1 Handle Brace Assembly
T10 1 Plastic Carrying Handle
T21A,
T20, T46
T21B,
T20, T46
T39/T40 1 Pair Tiller/Cultivator Tines
T7 2 Handle Clamps
T9 1 Throttle Clip
T11 2 Bolts (3” long)
T12 2 Knobs
T13 2 Acorn Nuts
T14 4 Lock Nuts
T15 2 Cap Screws
T41 2 Tine Retaining Pins
T42 2 Carriage Bolts
T49 1 Kickstand, Stand Assembly (model 7924)
T50 1 Kickstand, Bracket and Hardware Bag
Not Shown
1 Engine Assembly (includes Fender Guard &
Worm Gear Transmission) (model 7920)
1 Engine Assembly (includes Fender Guard &
Worm Gear Transmission) (model 7924)
1 Bag of Hardware Containing
(model 7924)
1 451 2-Cycle Oil
T10
T2
T7
T42
T15
T41
T13
T50
T11
T14
Model 7924 Only
T49
WHAT YOU WILL NEED
TO ASSEMBLE THE TILLER
Prior to removing the contents and assembling, it is important to:
• Have a clean work area.
• Make sure all necessary
tools are handy.
• You will need two 7/16”
wrenches
• A 3/8” wrench for
kickstand assembly
6 Operator’s Manual
LET’S BEGIN
• With the box upright, open the box and remove the
tine box and the loose parts that are at the top of the
tiller box. Do not remove any other parts in the box.
• Lay the box on one side and open the bottom aps.
• Return the box to an upright position (as shown) and
pull the box straight up.
• Leave the engine and throttle handle in the cradle to
assist in the assembly.
• Lay everything out so you can easily identify the
parts (see parts image and list on page 6).
LOWER HANDLE ASSEMBLY
To identify part numbers see page 6.
Assembly
NOTE: Some of the photos in this manual do not represent your
tiller engine. They are for assembly purposes only.
1
• For ease of assembly and
stability it is important that you
keep the engine assembly in its
cardboard cradle.
5
2
• Lay the handle parts within easy
reach. You’ll need one of the
handle clamps (T7) and one of
the lower handles (T3). Note that
the lower handles have a short
leg on one end.
• Fit the handle clamp along the
outside of the short leg. Line
up the holes on the clamp and
the leg.
• Take the lower handles that
you’ve just put together.
Slide them into the two
recessed channels.
• Make sure you insert them
from the rear of the tiller
(gasoline tank faces the
operator)... so that the bolt
ts along the back of the
housing.
6
3
• Choose one of the two 3-inch
bolts (T11). Slide it through the
rst set of holes — near the
elbow where the lower handle
curves. (Pictures 2 & 3)
• Now slide the other lower
handle onto the 3-inch bolt. Fit
the other
handle’s short leg. Add a lock nut
(T14) and tighten nger tight.
(Picture 3)
clamp onto the other
4
• Locate recessed channels
below the engine.
• Slide the second 3-inch
bolt (T11) through the
second set of holes in
the short legs. Add a
nut
(T14)
and tighten
nger tight until you’ve
completed assembly.
lock
NOTE: THE LOCK NUTS ARE STAMPED. FINGER TIGHT IS APPROXIMATELY 1/2 TO 1-1/2 TURNS UNTIL YOU’VE COMPLETED ASSEMBLY.
7Contact us at www.mantis.com
Assembly (Continued)
UPPER HANDLE ASSEMBLY
7a
• Lightly squeeze the lower
handles (T3) toward one another
so that they line up with the two
smaller holes on the carrying
handle (T10). Then slide the
carrying handle over and down
the lower handles. It will rest
about four to six inches above the
fender.
• Gently pull the lower handles out
to their original position.
7b
• Your Mantis Tiller will look like
this when the lower handle
assembly is complete.
TINE ASSEMBLY
8 9
• Lift the upper handle until it lines up
with the lower handle.
•
Insert carriage bold (T42) from outside in.
• Screw on knob (T12) and fully tighten
the knob at the pivot point.
• Cap the exposed bolt with an acorn
11
10
• Now install the handle brace. Line
• Follow the same steps to install the
other upper handle onto the other
lower handle.
• Use the clip (T9) to secure the throttle
cable and wire in place on the lower
handle.
• Use a wrench to tighten cap screws
• Now use wrench to tighten all nuts and
nut (T13) and tighten with your 7/16”
wrench until snug. Do not over tighten.
it up with the holes on the upper
handles. Then insert a cap screw
(T15) and a lock nut (T14) on either
side.
and lock nuts.
bolts rmly and securely.
1 2 3
• You’ll need the 2 Tines and the
2 retaining pins.
8 Operator’s Manual
• Remove the unit from the
cardboard cradle and lay the
unit on its side.
• You will notice that one side of the
Tine has a circular hole while the
other has a “D” shaped hole.
TINE ASSEMBLY (Continued)
4 5 6
Assembly (Continued)
• Attach the Tine so that the circular hole
slides onto the axle rst.
• When the axle protrudes from the
other side it will line up perfectly
with the “D” shaped hole.
KICKSTAND ASSEMBLY (MODEL 7924 ONLY)
1
2 3
• Position the kickstand brace just above the
bend of the lower handles.
• Position the kickstand under the lower
handles, line up the holes and thread the
kickstand brace bolts into the kickstand.
•Tighten with the 3/8” wrench.
• Slide a retaining pin (T41) through
the hole in the axle to secure the
Tine.
• Repeat steps for the other side.
• Your Mantis tiller will look like
this when lower handle assembly
and kickstand is complete.
IMPORTANT NOTE:
Make sure you have installed the handles properly.
When you stand behind your tiller, holding the handles,
the fender warning label should face you.
79247920
Improper Throttle installation can cause tines to rotate unexpectedly.
IMPORTANT NOTE:
Before you use your MANTIS Tiller, read the
Safety Rules & Warnings on pages 3-5
IMPORTANT NOTE:
Be sure you have proper throttle movements and that
the throttle cable is not wrapped or twisted around the
handle bar. Hold down the lockout lever, fully squeeze
the throttle trigger and let go. The throttle triangle must
click in both directions. If there is any doubt, remove
air lter and visually check that the throttle triangle hits
both the idle screw and the full open stop. THIS MUST
BE DONE BEFORE STARTING THE ENGINE.
9Contact us at www.mantis.com

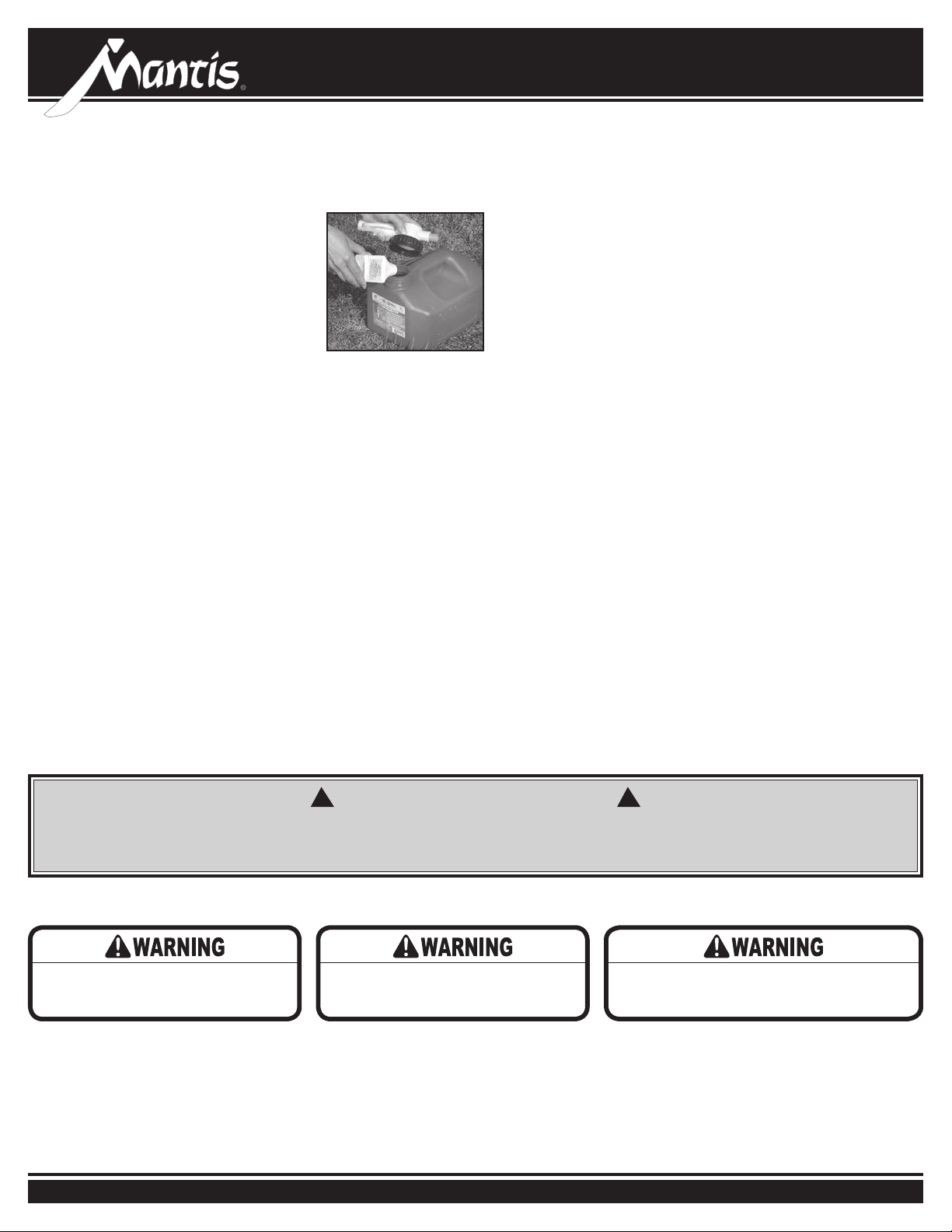

2-Cycle Tiller Fueling
2-CYCLE TILLER FUELING
MIXING FUEL
Use a mixture of 50 parts unleaded
regular gasoline and 1 part two-stroke
MANTIS oil (50:1.)* Use branded 89
octane (R+M+2) unleaded gasoline
(maximum 10% ethanol, or 15%
MTBE, no methyl alcohol.)
Here’s how to mix the oil with the gas:
1. Pour 1/2 of the gasoline into a safe container. Do not mix
the fuel and oil in the engine fuel tank.
2. Add 2.6 ounces of two-cycle engine oil to the gasoline and
mix. The bottle is measured exactly to 2.6 ounces. Then
add the rest of the gasoline.
3. Screw the cap onto the gasoline can. Then swirl the can to
blend the oil and gas.
4. Carefully pour the fuel mix into the tiller’s fuel tank. After
putting the fuel tank’s cap back on, wipe up any spilled fuel
from tank and gasoline can.
Need more pre-measured engine oil? You can order it
directly from Mantis or your local authorized Mantis
dealer. Just call toll free 1-800-366-6268 and ask for our
Sales Dept.
2.6 oz. bottle of Mantis 50:1
2-cycle engine oil
IMPORTANT:
Two stroke fuel separates and ages. Do not mix more than
you will use in a month. Using old fuel can cause difcult
starting or engine damage. Shake fuel container to thoroughly
mix fuel before each use.
Remember …
• Never, run your tiller on gasoline alone. This will ruin your
engine and void all warranties.
• Always use a clean gas can and always use unleaded gas.
• Never try to mix the oil and gasoline in the engine fuel tank.
• Always mix oil and gas in the proper proportions: 2.6 ounces
of two-cycle engine oil to one gallon of unleaded gasoline.
IMPORTANT NOTE:
Do Not use old or stale oil/gasoline mixture. Always use
the proper oil/gasoline mixture. If you do not, your engine will
suffer rapid, permanent damage. And you will void the engine
warranty.
* 2 Cycle Oil must meet or exceed ISO-L-EGD (ISO/CD
13738) and J.A.S.O. FD Standards
WARNING • DANGER
! !
ALTERNATIVE FUELS, SUCH AS E-15 (15% ETHANOL), E-85 (85% ETHANOL) OR ANY FUELS NOT MEETING ECHO REQUIREMENTS ARE NOT APPROVED FOR USE IN
ECHO 2-STROKE GASOLINE ENGINES. USE OF ALTERNATIVE FUELS MAY CAUSE PERFORMANCE PROBLEMS, LOSS OF POWER, OVERHEATING, FUEL VAPOR LOCK
AND UNINTENDED MACHINE OPERATION, INCLUDING, BUT NOT LIMITED TO, IMPROPER CLUTCH ENGAGEMENT. ALTERNATIVE FUELS MAY ALSO CAUSE PREMATURE
DETERIORATION OF FUEL LINES, GASKETS, CARBURETORS AND OTHER ENGINE COMPONENTS.
Do not operate the engine in a conned
space where dangerous carbon monoxide
fumes can collect.
Fuel is extremely ammable. Handle it with
care. Keep away from ignition sources. Do not
smoke while fueling your equipment
Do not squeeze the throttle trigger when starting. Main-
Avoid accidental blade engagement.
tain proper idle speed adjustment (2500-3100 rpm)
10 Operator’s Manual
2-CYCLE TILLER STARTING
1. Fill the fuel tank with the proper oil/gasoline mixture.
(See previous section.)
2. Hand tighten the gasoline cap just until it’s snug.
3. Place the O/I switch into the I “start/on” position.
(Picture 1)
4. Pull the choke button all the way out, to completely
close the choke. (Picture 2)

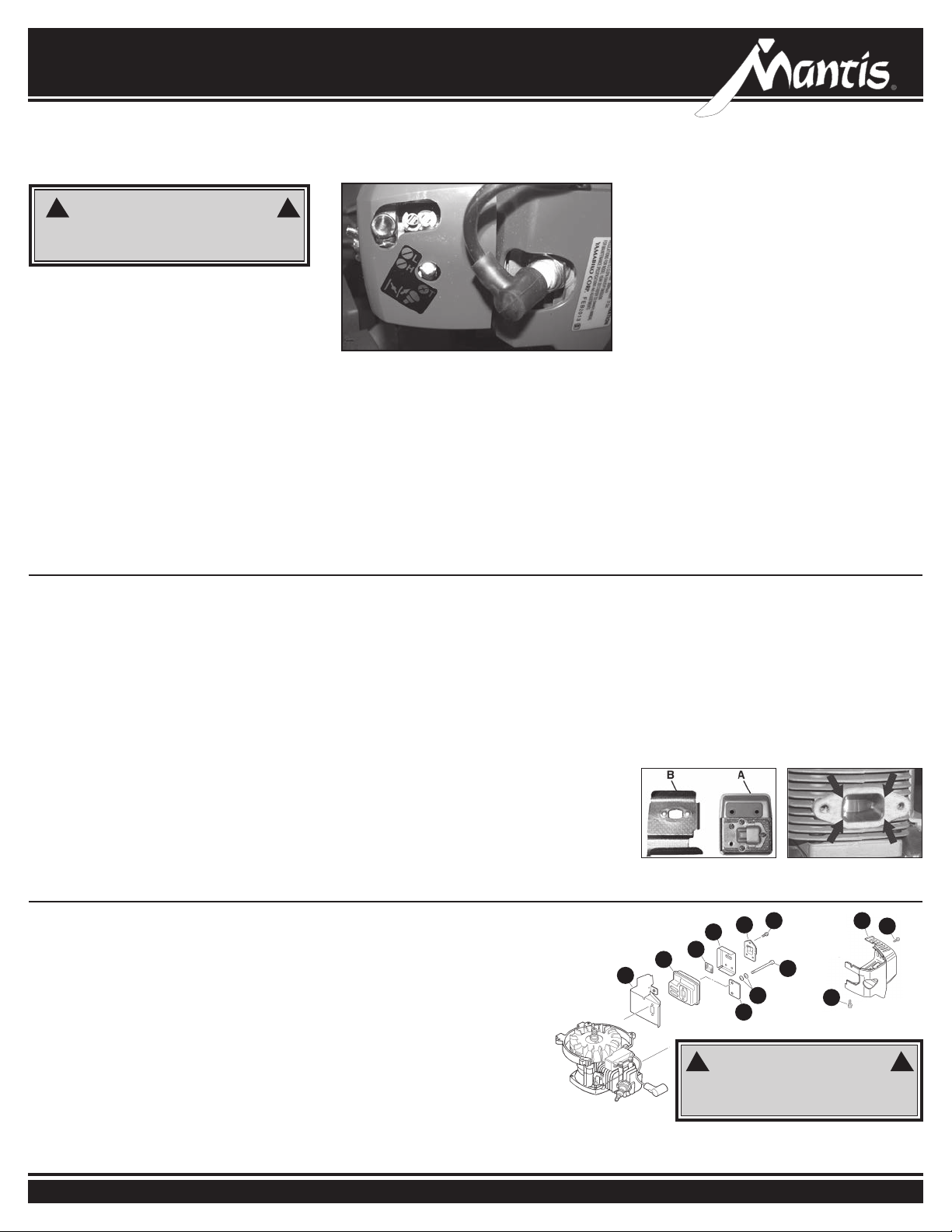

5. Locate the purge bulb on the upper right of the
engine, in front of the fuel tank. (See Picture 3) It
sends fuel into the carburetor, for easy starting.
Press the purge bulb until you see fuel ow through
the clear fuel return line. Since you’re starting “cold,”
you may need to press six to eight times. As soon
as fuel starts owing through the clear fuel line, stop
pressing!
6. Recoil pull starting (Different for each model)
Picture 1 Picture 2
Switch
OFF ON
Choke
NOTE: Don’t press the throttle trigger
during the starting of the engine.
2-Cycle Tiller Starting
Picture 3
FOR MODEL 7920:
Pull the recoil starter handle/rope
(Picture 4A) with a controlled
motion until resistance is felt.
Then give the cord a few brisk
pulls until the engine res. During
cold starting, you may need to
try three or four times before
the engine res. Do not pull the
rope out to end stop and do not
let it snap back into the starter
housing.
NOTE: DO NOT PULL THE CORD MORE THEN 4 TIMES WHEN THE CHOKE IS CLOSED. OVER PULLING MAY
CAUSE ENGINE FLOODING!
Bear in mind that, when the engine res, it only coughs or sputters, and will not run on choke.
7. Push the choke button in, all the way, to open the choke.
8. Then pull the starter cord again until engine starts and
runs.
Let the engine warm up two to three minutes before using
NOTE: If engine does not start with choke in “Run” position
after 5 engine engagements, repeat Cold Start instructions.
Picture 4A
FOR MODEL 7924 (Fast starting engine option):
Fast starting system signicantly reduces the effort required
to start the engine. Energy is stored in the starter spring
each time the handle/rope is pulled.
Slowly pull the recoil starter
handle/rope (Picture 4B) to wind
up the spring. You will hear light
clicking and then the sound of the
released spring. Generally during
cold starting, you may need two to
four light pulls before the engine
res.
Picture 4B
WARM STARTING
• To start a warm engine, follow the same procedure. The
only exception is that you can leave the choke button in
and you don’t have to pump the primer bulb.
• Before using the tiller, let the engine idle for a minute to
warm up. Before shutting it down, let the engine idle for
two to three minutes to cool down.
Never use starting uids as they will cause permanent engine damage. Using them will void the warranty.
Before you use the tiller, read the Safety & Warning rules on pages 5.
11Contact us at www.mantis.com
If you follow the normal
starting procedure, you should
have no problem starting your
tiller. But, just in case you do
have problems, here’s what to do.
Make sure the start/stop
switch is on “start.” You’d be
surprised how many people
forget to push the switch into the
“start” position.
If the switch was on “stop”
when you pulled the cord, you
may have flooded the engine.

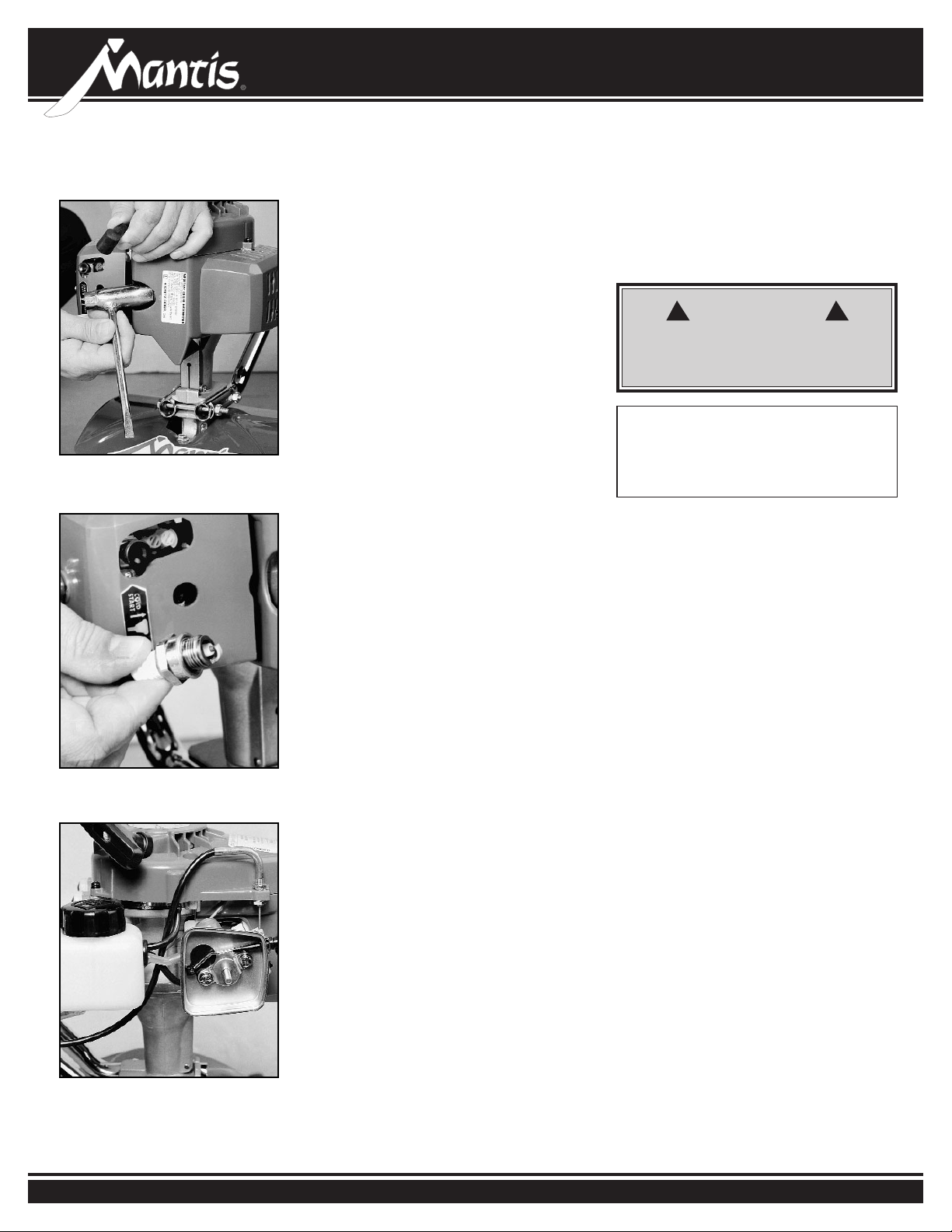

•First, examine the spark plug.
Use the special wrench that
comes with our optional
MANTIS Handy Item Kit (Item
#1422) or a 3/4 inch spark plug
wrench. (Picture 1)
•Remove the cap over the spark
plug.
•Unscrew the spark plug.
(Picture 2)
is in the stop position,
disconnect spark plug wire and
remove plug. Use a paper towel
or a clean rag to dry the spark
plug, then, with the spark plug
out of the engine, pull the
starter cord several times.
Next, replace the spark plug. Use
the wrench to tighten it and
replace the cap. Next, put the
switch in the start position and
pull the choke button out. Pull
the starter cord three or four
times until the engine coughs or
sputters. Open the choke (push
the choke button in) and pull
the cord a few times. The engine
should start and run.
2. If the end of the spark plug
is dry, check to see if the fuel
line is blocked. First loosen the
fuel cap to relieve pressure in the
tank. The fuel line runs from
the fuel tank to the carburetor.
Pull it off at the carburetor end.
Fuel should drip slowly from the
line. Wipe off any excess or
spilled fuel.
If fuel does not drip from the
line, check the line for any bends
or pinches. (Picture 3). Kinks in
the line restrict the flow of fuel
to the engine. Just straighten out
the line. Reconnect. Then follow
the normal starting procedure.
If fuel drips too freely, the line
may be disconnected from the
fuel filter. You’ll find the fuel
filter inside the fuel tank. Just re-
attach the line to the filter, and
put the filter back in the tank.
Then follow the normal starting
procedure.
Here’s Another Way to
WARNING
MAKE SURE THE START/STOP
SWITCH IS IN THE
STOP POSITION.
KEEP PLUG WIRE AWAY
FROM ENGINE TO AVOID
UNINTENTIONAL SPARK.
IMPORTANT NOTE:
To avoid possible damage
to the threads, do not try
to remove the plug from a
hot aluminum cylinder
head.
WHAT TO DO JUST IN CASE
! !
2-Cycle Tiller Starting (Continued)
WHAT TO DO JUST IN CASE
If you follow the normal starting procedure, you should have no problem starting your
tiller. But, just in case you do have problems, here’s what to do.
Make sure the O/I switch is on “I” (start).You’d be surprised how many people
Picture 1
Picture 2
Picture 3
12 Operator’s Manual
forget to push the switch into the “I” (start)
position.
If the switch was on “O” (stop) when you
pulled the cord, you may have ooded
the engine.
• First, examine the spark plug. Use the
special wrench that comes with our
optional MANTIS Handy Item Kit (Item
#8444) or a 3/4 inch spark plug wrench.
(Picture 1)
• Remove the cap over the spark plug.
• Unscrew the spark plug. (Picture 2)
STARTING A FLOODED ENGINE
If the end of the spark plug is wet, the engine may be ooded. Make sure the switch
is in the “O” (stop) position, disconnect spark plug wire and remove plug. Use a
paper towel or a clean rag to dry the spark plug, then, with the spark plug out of
the engine, pull the starter cord several times. Next, replace the spark plug.
Use the wrench to tighten it and replace the cap. Then, put the switch in the “I” (start)
position and pull the choke button out. Pull the starter cord three or four times until the
engine coughs or sputters. Open the choke (push the choke button in) and pull the
cord a few times. The engine should start and run.
FUEL LINES CHECK
If the end of the spark plug is dry, check to see if the fuel line is blocked. First loosen
the fuel cap to relieve the pressure in the tank. The fuel line runs from the fuel tank to
the carburetor. Pull it off at the carburetor end. Fuel should drip slowly from the line.
Wipe off any excess or spilled fuel.
If fuel does not drip from the line, check the line for any bends or pinches. (Picture
3). Kinks in the line restrict the ow of fuel to the engine. Just straighten out the line.
Reconnect. Then follow the normal starting procedure.
If fuel drips too freely, the line may be disconnected from the fuel lter. You’ll nd the
fuel lter inside the fuel tank. Just re-attach the line to the lter, and put the lter back
in the tank. Then follow the normal starting procedure.
! !
WARNING
MAKE SURE THE START/STOP SWITCH IS IN THE
STOP POSITION. KEEP PLUG WIRE AWAY FROM
ENGINE TO AVOID UNINTENTIONAL SPARK.
IMPORTANT NOTE:
To avoid possible damage to the
threads, do not try to remove the plug
from a hot aluminum cylinder head.
2-Cycle Tiller Operation
If engine does not stop when switch is put in the stop position, release the throttle, allow engine to idle. Put the tiller
down, and slide the choke lever to the cold start (closed) position. Have product serviced before using.
Figure 1
Read the instructions carefully. Be
familiar with the controls and the
proper use of the equipment.
NOW YOU’RE READY TO USE
YOUR MANTIS TILLER.
If you’ve seen other tillers, your MANTIS
Tiller may surprise you. It tills best when
you pull it backward! You see, when you
pull your MANTIS Tiller backward, you
give extra resistance to the tines, so they
dig deeper. (Figure 2)
In addition, when you go backward,
you erase your footprints. So your soil
stays light and uffy. With other tillers,
by contrast, you walk right over the soil
you’ve just tilled, packing it down, so it’s
less plantable.
RUN YOUR MANTIS TILLER
LIKE A VACUUM CLEANER
Place your Tiller at the head of the row
or area you want to till. Start it up. Then
use an easy rocking motion. First, pull
your Tiller backward. Then use an easy
rocking motion. Again, pull your Tiller
A SPECIAL FEATURE
(With the idle set properly and the
engine running)
Even when the engine is running, the
tines won’t turn unless you squeeze
the throttle trigger on the handlebars.
When you release the throttle trigger,
the tines will stop
.
A TIP FOR EXTENDING
YOUR ENGINE’S LIFE
After you start the engine, let your
tiller warm up for two to three
minutes before you use it. Then,
Figure 2 Figure 3 Figure 4
backward. Then, let it move forward just
a little bit. Then pull it backward again.
This will help you till deeper.
Keep repeating these steps until you’ve
tilled an entire row. Start again on the
next row. It’s much like running a vacuum
cleaner! (Figure 3)
You Can Even Control Depth.
For Deeper Tilling:
Move your Tiller slowly back and forth, as
you would a vacuum cleaner. Work the
same area over and over until you’ve dug
to your desired depth. (Figure 4)
For Shallow Tilling:
Switch the tines to the cultivating
position. (See page 14 to learn how.)
Then move your Tiller quickly over your
soil surface.
before you put your tiller away, let it
idle for a minute to give the engine a
chance to cool down.
OPERATION
With engine running, and both
hands on the handles, hold down
the throttle lockout trigger (Figure
1), then squeeze the throttle trigger
gradually to increase the engine
speed and engage the tines.
NOTE: This step must be repeated
each time your tiller trigger is
released.
For Big Weeds or Tough Roots:
Let your Tiller rock back and forth over
the tough spot, until the tines slice
through the weed or root.
Your MANTIS Tiller Handles Special
Tilling Projects:
Want to turn part of your lawn into a
colorful ower border? Your MANTIS
Tiller makes it easy! Just run your Tiller
back and forth until the sod begins to
break up. Then continue tilling. Your Tiller
will chop the clumps of sod until they’re
ne. Then, it will work them into the soil.
Pretty soon, you’ll have a soft, fresh
planting bed.
WARNING
! !
ALWAYS MAKE SURE THE HANDLE KNOBS ARE
SECURE BEFORE STARTING YOUR MANTIS TILLER.
13Contact us at www.mantis.com
2-Cycle Tiller Operation (Continued)
If your tines get jammed or entangled, shut off the
engine at once. Remove the obstruction while the
engine is off. Never try to remove an obstruction while
the engine is running. Serious injury can result.
YOUR MANTIS TILLER MAKES
WEEDING A PLEASURE!
As a tiller, your MANTIS Tiller works the soil
down to 10” (25.4 cm) deep. But, as a cultivator,
it gently cultivates the surface, only 2” to 3” (5.09
cm to 7.62 cm) deep.
First, you must switch the tines to the weeding,
cultivating position. This takes less than a
minute.
Then, your MANTIS Tiller’s sharp “tine teeth” will
slice up those pesky weeds, burying them as you
go along. And, since the tines in this position
won’t dig too deep, they won’t hurt your plants’
precious root systems.
Tilling Cultivating
The operator of this tiller is responsible for
accidents or hazards occurring to himself,
other people or their property.
The result? Your Tiller will cut your weeding time
in half, and turn a tiresome chore into a pleasure.
HOW TO SWITCH FROM TILLING TO
CULTIVATING POSITION
1. Make sure your Tiller is off.
2. Remove the retaining pins from the tines.
3. Remove the tines from the axle.
4. Place the right-side tine onto the left-side axle.
Place the left side tine onto the right-side axle.
The “D” hole should be to the outside.
5. Reinsert the pins. (Figure 1)
To set them for tilling, attach the tines
so the points of the blades face forward
- away from the operator. The tines’
points will contact the ground rst.
Figure 1
For cultivating, reverse the tines
so that the points of the tines face
backward - toward the operator. Now
the long at part of the tine’s blade
will contact the ground rst.
14 Operator’s Manual
2-Cycle Tiller Transportation & Storage
2-CYCLE TILLER TRANSPORTATION
Transporting your Tiller is easy. It’s light enough and easy
to carry using the carrying handle as seen in Figure 1.
Or, with it running, you can walk it by gently squeezing
the throttle until it moves at a comfortable pace.
Your tiller is easily transported in the back of a car or
truck. Be sure to empty the fuel tank (This is crucial)!
Then stow your tiller in the trunk of your car or truck.
TILLER STORAGE
Pour about a teaspoon of clean, aircooled, two-cycle oil through the spark-
Never store the equipment
with Fuel in the tank or in
an area where fumes may
accumulate and breach an
open ame or spark
Each fall, or before you store your
Mantis Tiller for any long period, be sure
to take these measures:
1. Do not store your Tiller with fuel still in
it. Even under ideal conditions, stored
fuel containing ethanol or MTBE can
start to go stale in 30 days. And, since
stale fuel has a high gum content, it
can clog the carburetor, this, in turn,
will restrict fuel ow. Therefore, when
you’re ready to store your Tiller,
or will not be using it for more
than 2 weeks, drain the fuel tank
completely.
2. Next, restart the engine to make
sure no fuel is left in the carburetor.
Then, run the engine until it stops.
This will prevent gum deposits,
forming inside of the carburetor and
possible engine damage.
3. Disconnect spark plug wire and
remove the spark plug. Slowly pull the
starter cord once.
4. Inspect the spark plug, and if
necessary, clean it. If you need to
replace it, buy a NGR-BPM8Y.
plug hole into the combustion chamber.
Leaving the spark plug out slowly pull
the starter cord two or three times to
coat the inside of the cylinder wall.
5. Install the spark plug, but leave the
spark plug wire disconnected.
6. Wipe the tines with oil or spray them
with WD-40, to prevent rusting.
7. Clean or replace the air lter.
8. Check or replace fuel lter.
9. Check the grease level in the worm
gear housing. Add grease if needed.
10. Store your Tiller in an upright position
in a clean, dry place. You can store
with the handles in an extended
position or folded down.
To fold the handles down, simply
loosen the lower 2-pronged knobs
until you can pivot the upper handles
down. (Figure 2)
Or it can be hung using the handle
brace.
11. Do you have fuel left over from last
season? Dispose of it properly. Buy
fresh oil and gasoline next season.
12. Remove Tilling Tines or attachments
and lightly oil tine shaft at least once
a year.
Figure 1
Picture 1
WARNING
! !
NEVER CARRY YOUR TILLER AS THE PERSON
IN PICTURE 1 IS DOING. IF YOU DO, YOU WILL
SUFFER SERIOUS INJURY.
Figure 2
15Contact us at www.mantis.com
2-Cycle Tiller Maintenance
HOW TO CHECK, CLEAN AND CHANGE THE AIR FILTER
1. Loosen the wing nut on the side of the air-cleaner cover. (Picture 1)
2. Take off the cover. Make sure to clear the choke button.
3. The air lter is the pad on the inside of the air-cleaner cover. Check whether it is
soiled or moist.
4. If the air lter needs cleaning or no longer ts properly, remove it. Just lift an edge
carefully and “peel” it out. (Picture 2)
5. Use a brush to remove debris from the pad.
6. If the air lter is so dirty that it won’t come clean, you must replace it or severe
engine damage will occur. Order a new one directly from our Customer Service Dept.
Call 1-800-366-6268.
7. Insert your clean lter inside the air-cleaner cover.
IMPORTANT! Make sure lter is “seated” properly in the cover. The lter must t
snugly inside the rim that holds the lter in place.
Installing the lter incorrectly will cause engine damage and void the warranty. Fit the
cover back over the air cleaner. (Again, make sure to clear the choke button.)
8. Tighten the wing nut to secure the cover.
Note:
Please check the lip on the Air Cleaner Cover. If the lip is chipped or cracked,
it should be replaced. This will prevent dirt from being ingested through the
carburetor into the inside of the engine.
Picture 1
Air Filter
FUEL FILTER REPLACEMENT
The fuel lter should be replaced every year. Open the fuel cap and using the cap
retainer you can remove the fuel intake line. The lter is at the end.
Hold the fuel line and work the lter out. Then just push the new one back into the tube
making sure the clamping wire is up high enough to engage with the stem of the lter.
Picture 2
Fuel Filter
16 Operator’s Manual
WARNING • DANGER
! !
REMOVE TINES BEFORE STARTING ENGINE AND
MAKING ADJUSTMENTS
WHAT TO DO IF YOUR ENGINE
IDLES TOO HIGH
What if your engine runs too fast … or if the
tines turn the instant you start the Tiller?
You may need to adjust the idle screw right
below the H and L screws. Gently turn
it counter-clockwise. You’ll know you’ve
adjusted it correctly when the axles do not
turn at low idle.
WHAT TO DO IF YOUR ENGINE
RUNS “ROUGH” CARBURATOR
ADJUSTMENT
If your engine runs “rough” or stalls, you
may need to adjust the carburetor and idle
screws.
If you remove the air-cleaner cover, you’ll
see the two carburetor, adjustment
screws
2-Cycle Tiller Maintenance
Picture 1
next to the choke button. (Picture 1)
The “RED” screw is the HIGH-speed
adjustment…The “WHITE” screw is the low
speed adjustment.
First, remove the tines from the axle. Then
start engine. Let it run for two to three
minutes. “FLASH” the choke several times
during the warm-up by closing and opening
it while engine runs in order to clear any air
from the Fuel system.
Then stop the engine after it reaches
operating temperature.
Now, turn the RED, high-speed screw
counter-clockwise all the way to stop…
Then turn the WHITE, low speed screw
halfway between the counter-clockwise and
clockwise stop positions.
Now restart the engine to nish the
carburetor adjustment.
Run the engine at full speed two or three
seconds to clear out any excess fuel. Then
return to idle.
Now, accelerate the engine to full throttle
several times to check for a smooth
transition from idle to high speed.
If the engine hesitates turn the WHITE, lowspeed screw counter-clockwise one-eighth
of a turn. Then accelerate the engine.
Repeat the adjustment until you get a
smooth transition to high speed.
HIGH ALTITUDE OPERATION
This engine has been factory adjusted to
maintain satisfactory starting, emission, and
durability performance up to 1,100 feet (96,0
kPa and above) mean sea level (MSL). To
maintain proper engine operation above
1,100 feet (96,0 kPa and above) MSL the
carburetor may need to be adjusted by an
authorized ECHO service dealer.
IMPORTANT
If the engine is adjusted for operation above
1,100 feet MSL, the carburetor must be readjusted when operating the engine below
1,100 feet MSL, otherwise severe engine
damage can result.
EXHAUST PORT/MUFFLER CLEANING
Tools required: 4mm Hex wrench, Wood or
plastic scraper
CLEANING THE MUFFLER SCREEN
1. Take out the spark plug.
2. Remove the red cylinder cover,
(#D1) which is held on by 2 phillipshead screws, (#D2) and 1 hex-head
screw, (#D3) which you will need an
allen wrench to remove.
3. You will see the metal exhaust
guide, held on by 3 more phillips-head
screws. (#C1) Remove the exhaust
guide.
4. Behind the exhaust guide (#C2) will
be the mufer gasket (#C3) and mufer
screen (#C4). The screen sits under
the gasket.
5. If the screen (#C4) is clogged with
deposits, it needs to be cleaned.
Use carburetor cleaner, and any brush
that is not metal. Brush the screen until
you are able to see through it.
6. If the screen remains plugged
after attempts at cleaning, it must be
replaced.
Parts Required: As needed: Heat Shield
1. Remove spark plug lead from spark plug,
and remove engine cover (2 screws).
2. Place piston at top dead center. Remove
mufer (A) and heat shield (B).
3. Use a wood or plastic scraping tool to
clean deposits from cylinder exhaust port.
IMPORTANT
Never use a metal tool to scrape carbon from
the exhaust port. Do not scratch the cylinder
or piston when cleaning the exhaust port.
Do not allow carbon particles to enter the
cylinder.
4. Inspect heat shield, and replace if
damaged.
5. Install heat shield and mufer.
6. Tighten mufer mounting bolts (or nuts) to
80-95 in•lbf (90-110 kgf•cm).
7. Start engine, and warm to operating
temperature.
8. Stop engine, and re-tighten mounting bolts
(or nuts) to specications.
9. Install engine cover and attach spark plug
lead.
C1
C2
C3
C4
C8
C9
! !
WARNING • DANGER
DO NOT USE GASOLINE OR OTHER
FLAMMABLE SUBSTANCE
C5
C6
C7
D1
D2
D3
17Contact us at www.mantis.com
2-Cycle Tiller Maintenance

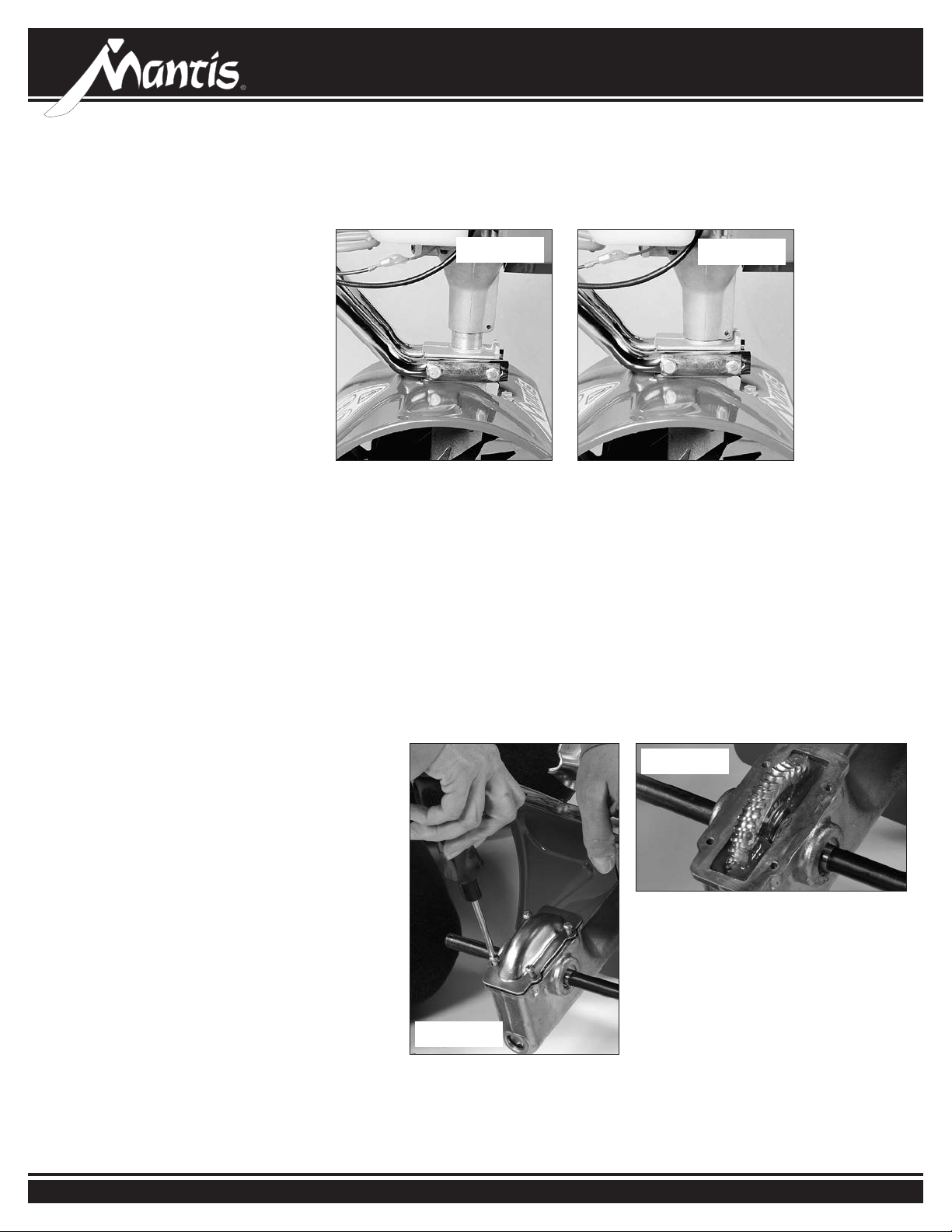

HOW TO RESEAT THE FLANGE
At some point, you may nd that the
tines won’t turn when you press the
throttle. This may mean the engine isn’t
sitting all the way down on the worm
gear housing.
Perhaps you’ve been using your Tiller
for several years. Or perhaps you’ve
removed the engine for use with our
hedge trimmer attachment, then replaced
it. In either case, the ange bolt may
have come loose and lifted the
engine up.
If this happened you’ll notice a gap
between the bottom of the engine clutch
case and the top of the worm gear
housing. (Figure 1)
To x this, loosen the ange bolt. Take
the engine off the worm gear housing.
Notice the hex head on top of the drive
shaft . Inside the clutch case, you’ll nd
the clutch drum. Make sure the hex head
lines up with the clutch drum inside the
clutch case.
Figure 1
Note how the engine doesn’t sit all
the way down on the transmission.
Then put the engine back on the
worm gear housing. Make sure the
plastic carrying handle is not under the
fuel tank.
If you’ve followed these steps properly,
there will be no gap between the clutch
Note how the engine sits all the
way down on the transmission.
Figure 2
case and the worm gear housing.
(Figure 2) Make sure you tighten the
ange bolt!
TRANSMISSION CARE
Check the transmission grease level after the rst
10 hours of use, then check yearly.
With the tines off, remove the transmission plate
(Figure 3) and gasket to see if the grease level is up
to the plate ange (Figure 4). If it is not, you will need
to add lithium zero or lithium one grease.
Wipe off any excess grease, replace the transmission
gasket and plate.
Figure 3
18 Operator’s Manual
Figure 4
Troubleshooting
Problem Cause Remedy
1. Tines don’t turn when throttle
is depressed
2. Engine fails to start
3. Engine hard to start. • Water in gasoline or stale fuel mixture.
4. Engine continuously floods. • Fuel tank vent line is not in an upright position. • Return the fuel tank vent line to the upright
5. There is black smoke coming from
exhaust
6. Engine misses. • Dirt in fuel line or carburetor.
7. Engine lacks power. • Air filter clogged.
8. Engine overheats. • Insufficient oil in fuel mixture
9. Engine noisy or knocking. • Spark plug in incorrect heat range.
10. Engine stalls under load. • Carburetor adjustment too “lean.”
• Engine is not seated properly on the gear housing. • Re-install engine following the instructions on
page 18 “How to reseat the flange”.
• O/I switch is in “O” position.
• No fuel in tank.
• Fuel strainer clogged.
• Fuel line clogged.
• Spark plug shorted or fouled.
• Spark plug is broken (cracked porcelain or
electrodes broken)
• Ignition lead wire shorted, broken or disconnected from
spark plug.
• Ignition inoperative
• Too much oil in fuel mixture.
• Engine under or over choked.
• Carburetor out of adjustment.
• Gasket leaks (carburetor or cylinder base gasket).
• Weak spark at spark plug.
• The muffler screen is clogged • Clean carbon from muffler screen (page 17)
• Carburetor improperly adjusted.
• Spark plug fouled, broken or incorrect
gap setting.
• Weak or intermittent spark at spark plug.
• Carburetor out of adjustment.
• Muffler clogged.
• Clogged exhaust ports.
• Spark Arrestor Clogged.
• Poor compression.
• Air flow obstructed
• Bearings, piston ring or cylinder walls are worn.
• Engine overheats.
• Move switch to “I”
• Fill Tank.
• Replace Strainer.
• Clean fuel line.
• Install new spark plug.
• Replace spark plug.
• Replace lead wire or attach to spark plug.
• Contact your local authorized dealer.
• Drain entire system and refill with fresh fuel.
• Drain and refill with correct mixture.
• If flooded by over choking, proceed according
to instructions in operation section. If under
choked, move choke lever to closed position
and crank two or three times.
• See “Carburetor Adjustment.”
• Replace gaskets.
• Contact your local authorized dealer.
position and place it under the cylinder cover in
the small “pocket” in the cylinder cover
• Remove and clean.
• See “Carburetor Adjustment” (page 17)
• Clean or replace spark plug - set
in. (0.6-0.7 mm)
• Contact your local authorized dealer.
• Clean or replace air filter.
• See “Carburetor Adjustment”.
• Clean carbon from muffler.
• Remove muffler, rotate engine until the piston
is at top of cylinder. With a wooden scraper
or blunt tool, remove all carbon from exhaust
ports. Be careful not to scratch or damage
piston or cylinder walls. Blow out all loose
carbon with compressed air. Install muffler and
gasket.
• Clean muffler screen (page 17)
• Contact your local authorized dealer.
• Mix fuel as described in starting instructions.
• Clean flywheel cylinder fins and screen.
• Replace with plugs specified for engine.
• Contact your local authorized dealer.
• See “Carburetor Adjustment.” (page 17)
• Remove dust and dirt from between fins.
gap to .024-.028
19Contact us at www.mantis.com
2-Cycle Tiller Assembly
MODEL
NO. 7924
T21B
T43
MODEL
NO. 7920
T21A
T11
T22*
T7
T10
T19
T3
T42
T14
T12
T13
T4
T15
T12
T15
T14
T1
T2
T9
T42
T9
T8
T18
T14
T41
T40
T36
T38
T34
T16
T7
T17
T29
31
T23
T33
T35
T35
T24
T25
T26
T37
T36
37
T38
T27
T28
T30
T45
T32
T20
MODEL NO. 7924 ONLY
T44
T50
T41
T39
T49
T46
20 Operator’s Manual
Parts List
651 #8 Self Tapping Screw
423 Roller Bearing
425 Worm Bearing Race
4
1
2
424 Worm Thrust Bearing
422 Worm Shaft
1
1
426 Worm Disk
428 Retaining Ring
429 Worm Gear
431 Tine Shaft
1
1
430 Worm Gear Thrust Washer
432 Worm Gear Bearing
434 Bearing Seal
2
2
2
435 Bearing Seal Retainer
438RA Tine Assembly, Right
438LA Tine Assembly, Left
418-1 Tine Retaining Pin
430039 Carriage Bolt 1/4-20 X 2.25”
2
1
1
2
2
430042 Ground Wire Jumper, 2 Cycle Engine
400630 Triangle Warning Label (2 Cycle Engine)
458 Roller Bearing
400010 Worm Gear Transmission Assembly
410158 Kickstand, Stand Assembly (Model No. 7924)
410113 Kickstand, Bracket And Hardware (Model No. 7924)
1
1
1
1
1
1
Key Qty. Part No. Description
T26
T27
430069 Upper Handle Throttle Side Assembly
430071 Upper Handle Assembly, Left
1
T28
T29
T30
T31 1
T32 1
430082 Lower Handle W/Plug
430084 Handle Brace Assembly
377 Handle Clamp
4078 M6 Jam Nut
478 Throttle Clip
2
1
2
2
2
T33
T34
T35
400133 Carry Handle
470 Bolt 1/4-20 X 3”
400523 Knob, Two Prongs, Female
1
2
T36
T37
T38
T39
T40
T41
1/4-20 X 1.125 Hex Head Cap Screw
395 Acorn Nut
972 1/4-20 Two-Way Lock Nut
140 Bolt 1/4-20 X 3/8” Long
430058 Mantis Logo Label
4079 M6 Internal Lock Washer
2
4
2 144-2
2
1
2
T42
T43
T44
T45
T46
487MA Engine Label
430208 Fender Guard with Labels
400908 Engine Assembly SV-5C/2 (Model No. 7920)
400904 Engine Assembly SV-5CI/2 (Model No. 7924)
468 Drive Shaft
1
1
1
1
1
T49
T50
466 Worm Gear Housing
436 Gasket
437A Gear Housing Cover
1
1
1
Key Qty. Part No. Description
T1 1
T2
T3
T4
T7
T8
T9
T10
T11 2
T12
T13
T14
T15
T16
T17
T18
T19
T20
T21A
T21B
T22*
T23
T24
T25
*Also in key T46
21Contact us at www.mantis.com
Table of Contents Part Number Index
Table of Contents Part Number Index
Table of Contents Part Number Index
Table of Contents Part Number Index
Table of Contents Part Number Index
Parts Assemblies
Model 7920
SV-5C/2 Engine
Carburetor - C1U-K82
Explosion A
Model 7924
SV-5CI/2 Engine
A34
A7
A1
A3
A4
A35
A36
A6
A5
A8
A10
A9
A12
A11
A19
A13
A37
A38
A20
A14
A30
A2
A24
A25
A22
A26
A27
A28
A29
A17
A16
A15
A31
A32
A33
A18
A21
Key Part No. Qty. Description
A021001090 1 Carburetor - C1U-K82
A1 P005000980 4 Screw, Purge Bulb Retainer
A2 P005000620 1 Retainer, Purge Bulb
A3 12538108660 1 Bulb, Purge
A4 P005000970 1 Base, Purge
A5 ------------------ 1 Body, Carburetor / Not Available Separately
A6 12537613120 1 Nozzle, Check Valve
A7 12532939030 1 Cap, Limiter
A8 12532013310 1 Needle - High Speed
A9 12532909860 1 Cap, Limiter
A10 12531813120 1 Needle - Low Speed
A11 12537242030 1 Swivel
A12 P005001070 1 Shaft, Throttle
A13 12532713930 1 Ring, Retaining
A14 12531342030 1 Spring, Return
A15 12531413930 1 Screw,Valve
A16 12531649030 1 Valve, Throttle
A17 12532715130 1 Ring, Retaining
A18 12532412820 1 Base, Purge
A19 12533406960 1 Screw, Idle Adjust
A23
23
A20 12533306960 1 Spring, Idle Adjust
A21 12531012820 2 Screw, Pump Cover
A22 12533942030 1 Screw, Metering Lever Pin
A23 12530013120 1 Repair Kit / Includes Items 24-33
A24 ------------------- 1 Diaphragm, Metering
A25 ------------------- 1 Gasket, Metering Diaphragm
A26 ------------------- 1 Pin, Metering Lever
A27 ------------------- 1 Lever, Metering
A28 ------------------- 1 Valve, Inlet Needle
A29 ------------------- 1 Plug, Welch
A30 ------------------- 1 Spring, Metering Lever
A31 ------------------- 1 Strainer
A32 ------------------- 1 Diaphragm, Pump
A33 ------------------- 1 Gasket, Pump
A34 12530313120 1
A35 ------------------- 1 Diaphragm, Metering
A36 ------------------- 1 Gasket, Metering
A37 ------------------- 1 Diaphragm, Pump
A38 ------------------- 1 Gasket, Pump
Diaphragm/Gasket Kit / Includes Items 35-38
Air Cleaner
Explosion B
B2
B1
Muffler
Explosion C
B17
B14
B13
B8
B4
B7
B6
B10
B9
B5
B3
C9
B12
B11
B15
B16
C1
C2
C3
C8
C4
C5
C6
C7
Key Part No. Qty. Description
B1 90052800005 1 Wingnut - 6
B2 13032611522 1 Cover, Air Filter
B3 89012147530 1 Label - Choke
B4 13031004560 1 Filter, Air
B5 90024205057 2 Screw - 5X57
B6 13041005360 1 Plate, Prevent
B7 17851504560 1 Shutter, Choke
B8 17851600830 1 Washer - 5
B9 13030104560 1 Case, Air Filter Includes Item 10
B10 17881005230 1 Grommet
B11 17851004560 1 Rod, Choke
B12 ------------------ 1 Carburetor
B13 13001642031 1 Gasket, Intake
B14 90023805020 2 Screw - 5X20
B15 90050000005 2 Nut - 5
B16 13001742031 1 Insulator, Intake
B17 V103000490 1 Shield, Intake
1
See Carburetor Diagram For Details
Key Part No. Qty. Description
C1 9136704012 3 Screw - 4X12
C2 A313000700 1 Guide, Exhaust
C3 V104000072 1 Gasket, Exhaust/Included In Gasket Kit
C4 14586240630 1 Screen, Spark Arrester
C5 90010505055 2 Screw - 5X55
C6 V347000000 1 Washer - Conical
C7 V150000371 1 Plate
C8 A300000521 1 Mufer
C9 V104000590 1 Shield Exhaust/Included In Gasket Kit
1
22 Operator’s Manual
Table of Contents Part Number Index
Table of Contents Part Number Index
Table of Contents Part Number Index
Parts Assemblies
Model 7920
SV-5C/2 Engine
Engine Cover, Fancase,
Clutch Case & Clutch
Explosion D
Model 7924
SV-5CI/2 Engine
D1
D3
Key Part No. Qty. Description
D1 A160000610 1 Cover, Engine
D2 90023804018 2 Screw - 4X18
D3 9110704008 1 Screw - 4X8
D17
D16
D13
D11
D5
D15
D12
D10
D9
D8
D7
D6
D4 13041611520 1 Bolt - 5X25
D5 90023804018 4 Screw - 4X18
D6 61022311520 1 Case, Clutch
D7 90023806012 1 Screw - 6X12
D14
D8 17501411520 1 Washer, Clutch
D9 17504404630 1 Washer, Clutch
D10 17501004635 1 Drum, Clutch
D11 90080836000 1 Bearing, Ball - 6000
D12 90060000010 1 Washer - 10
D13 17501904630 1 Plate, Clutch
D14 17500007531 1 Clutch Asy
D15 17501805130 2 Spring, Clutch
D16 17500905131 2 Shoe, Clutch
D17 17501605020 1 Hub, Clutch
D2
Ignition, Engine & Short Block
Explosion E
E13
E17
E11
E16
E12
E1
E15
E14
E13
E10
E9
E8
E7
E5
D4
E22
E29
E30
E6
E4
E21
E28
E27
E23
E20
E2
E3
E24
E25
E26
Key Part No. Qty. Description
E1 SB1087 1 Short Block -- Sb1087 Includes Items 2-17
E2 90016205022 2 Screw - 5X22
E3 A130000550 1 Cylinder
E4 V100000160 1 Gasket, Cylinder Included In Gasket Kit
E5 P021007712 1 Piston Kit Includes Items 6-9
E6 A101000090 1 Ring, Piston
E7 10001311520 1 Pin, Piston
E8 10001504630 2 Ring, Retaining
E9 10001411520 2 Spacer, Piston
E10 A011000390 1 Crankshaft Asy Includes Item 11
E11 V553000060 1 Bearing, Needle - 8
E12 10020411521 1 Crankcase Kit Items 13-17
E13 10021242031 2 Seal, Oil
E14 V622000020 2 Pin, Locating
E15 10024242030 1 Gasket, Crankcase Included In Gasket Kit
E16 9403536201 2 Bearing, Ball - 6201
E17 90016205028 3 Screw - 5X28
E18 ------------------ 1 Gasket, Intake Included In Gasket Kit
E19 ------------------ 1 Shield, Intake Included In Gasket Kit
E20 ------------------ 1 Shield, Exhaust Included In Gasket Kit
E21 9111304020 2 Screw - 4X20
E22 A411000220 1 Coil, Ignition
E23 16202152830 1 Lead - Ignition
E24 15901019830 1 Spark Plug -- BPM-8Y
E24 A425000000 1 Spark Plug -- BPMR-8Y Canada Models
E25 15901103432 1 Terminal, Spark Plug Cap
E26 15901201620 1 Cap, Spark Plug
E27 15611004920 1 Grommet
E28 V475002200 1 Tube, Insulator
E29 A409000150 1 Flywheel
E30 61032502730 1 Key,Woodruff
E18
E19
23Contact us at www.mantis.com
Table of Contents Part Number Index
SV-5C/2 Engine Fuel System S/N: E14112098001 - E14112999999
Table of Contents Part Number Index
SV-5Ci/2 Engine Fuel System S/N: E14912023521 - E14912999999
Table of Contents Part Number Index
SV-5C/2 Engine Engine Cover, Fancase, Starter
Parts Assemblies
Model 7920
SV-5C/2 Engine
Engine Starter
Explosion F
F27
Model 7924
SV-5CI/2 Engine
F28
F25
F26
Model 7920
F24
F20
F30
F31
F32
F21
F22
F23
F29
Model 7924
Key Part No. Qty. Description
F1 A051000640 1 Starter Asy Includes Items 2-8
F2 P022004610 2 Spring, Pawl Return
F3 P022004620 2 Pawl, Starter
F4 P022006500 1 Case, Starter
F5 P022004680 1 Spring, Rewind
F6 P022004690 1 Reel, Rope
F7 17724611120 1 Retainer, Rope
F8 P022004990 1 Grip, Starter
F9 P022004600 1 Rope, Starter - 3 X 800
F10 P022004660 1 Spring, Return
F11 P022004670 1 Pawl
F12 P022004700 1 Spring Asy
F1
F13 P022004640 1 Plate, Cam
F14 P022004630 1 Screw
F15 A052000150 1 Starter Pawl Asy Includes Items 16-18
F16 P022004740 2 Pawl, Starter
F17 17723412220 2 Spring, Return
F18 P022002100 2 Ring, Retaining - 4
F19 90016304016 4 Screw - 4 X 16
Model 7920
Key Part No. Qty. Description
F20 A051000950 4 Starter Asy Includes Items 2-8
F21 17722042030 1 Spring, Rewind
F22 17721544430 1 Reel, Rope
F23 17723644330 1 Screw
F24 17722605530 1 Rope, Starter - 3 X 890
F25 17722742030 1 Guide, Rope
F26 17722811120 1 Starter Grip Asy Includes Item 8
F27 17724611120 1 Retainer, Rope
F28 90023804016 4 Screw - 4 X 16
F29 17720212220 1 Starter Pawl Assy Includes Items 11-12
F30 17721844330 2 Pawl, Starter
F31 17723412220 2 Spring, Return
F32 90060500008 1 Lockwasher - 8
1
RePower BULK OPTION: 99944440000
1
1
F9
Model 7924
F2
F3
F4
F5
F6
F10
F11
F12
F13
F14
F16
F17
F15
F18
F19
F7
F8
Fuel System Model 7920
Explosion G
G2
G1
G3
G13
G15
G14
Gasket Kit
G12
G16
G10
G11
G8
G9
G5
G4
G7
G6
Fuel System Model 7924
Explosion H
Gasket Kit
H17
H2
H1
H3
H12
H6
H14
H13
H4
H5
H9
H10
H8
H7
24 Operator’s Manual
H11
Key Part No. Qty. Description
G1 P021034480 1 Cap Asy - Black Includes Item 2-3
G2 V107000150 1 Gasket, Cap
G3 13105156030 1 Connector, Cap
G4 A356000031 1 Vent, Fuel Tank
G5 V471001200 1 Pipe - 3 X 5 X 70 -- Black
G6 13201006460 1 Pipe - 3 X 6 X 110 -- Clear
G7 V471003720 1 Pipe - 3 X 5 X 70 -- Black
G8 V490001240 2 Clip - 6
G9 V186000520 1 Connector, Fuel Pipe
G10 13120507320 1 Filter, Fuel
G11 V471003730 1 Pipe - 3X5x140 -- Black
G12 13211546730 1 Grommet
G13 90027505015 2 Screw - 5X16 -- Tapping
G14 A350000300 1 Fuel tank Asy Includes Item 15
G15 13104528230 21 Sleeve
G16 P021009110 1 Gasket Kit
1
RePower Bulk Option: 90014
2
RePower Bulk Option: 90017
3
RePower Bulk Option: N/A
Key Part No. Qty. Description
H1 P021034480 1 Cap Asy - Black Includes Items 2-3
H2 V107000150 1 Gasket, Cap
H3 13105156030 1 Connector, Cap
H4 13011100530 2 Clip - 5.5
H5 13130056431 1 Vent, Fuel Tank
H6 V471001200 1 Pipe - 3 X 5 X 70 -- Black
H7 13201049030 1 Pipe - 3 X 6 X 50 -- Clear
H8 V471003720 1 Pipe - 3 X 5 X 70 -- Black
H9 V490001240 2 Clip - 6
H10 V186000520 1 Connector, Fuel Pipe
H11 13120507320 1 Filter, Fuel
H12 V471003730 1 Pipe - 3 X 5 X 140 -- Black
H13 13211546730 1 Grommet
H14 90027505015 2 Screw - 5 X 16 -- Tapping
H15 A350001630 1 Fuel Tank Asy Includes Item 16
H16 13104528230 2 Sleeve
H17 P021009110 1 Gasket Kit
1
RePower Bulk Option: 90014
2
RePower Bulk Option: 90017
3
RePower Bulk Option: N/A
1
2
3
1
1
2
3
1
ECHO INCORPORATED EMISSION CONTROL WARRANTY STATEMENT
such as: carburetor, fuel-injection system, ignition system, catalytic converter/mufer, fuel tank, fuel feed lines, fuel cap assembly, spark plug, air
for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the equipment/SORE owner, you should be
Any emission related part scheduled for replacement during "required maintenance" is warranted for the period of time prior to the rst scheduled
The Environmental Protection Agency (EPA) and ECHO Incorporated (ECHO Inc.) are pleased to explain the emission control system warranty
on your 2010 and later equipment/small off-road engine (SORE). New equipment/SORE must be designed, built and equipped to meet stringent
EPA anti-smog standards. ECHO Inc. must warrant the emission control system on your equipment/SORE for the periods of time listed below,
provided there has been no abuse, neglect or improper maintenance of your equipment/SORE. Your emission control system may include parts
lters, and other associated components. Where a warrantable condition exists, ECHO Inc will repair your equipment/SORE at no cost to you
including diagnosis, parts and labor. The Emission Control System warranty is extended to the original owner including all subsequent owners.
FOR ECHO AND SHINDAIWA BRANDS
MANUFACTURER'S WARRANTY COVERAGE:
The emission control system is warranted for 2 years or the length of the ECHO Inc. warranty, whichever is longer. If any emission-related part
on your equipment is defective, the part will be repaired or replaced by ECHO Inc. or its Authorized Service Representative.
OWNER'S WARRANTY RESPONSIBILITIES:
As the equipment/SORE owner, you are responsible for the performance of the required maintenance listed in your Operator's Manual. ECHO
Inc. recommends that you retain all receipts covering maintenance on your equipment/SORE however, ECHO Inc. cannot deny warranty solely
aware that ECHO Inc. may deny you warranty coverage if your equipment/SORE or a part has failed due to abuse, neglect, improper maintenance
or unapproved modications.
You are responsible for presenting your equipment/SORE to an ECHO Inc. authorized service representative as soon as a problem exists. The
warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If a warrantable condition exists and there is no
Authorized Dealer within 100 miles, ECHO Inc. will pay to ship the unit to the nearest authorized dealer. If you have questions regarding your
warranty coverage, you should contact ECHO Inc. at 1-800-673-1558, web site WWW.ECHO-USA.COM or contact Shindaiwa at 1-877-9867783, web site WWW.SHINDAIWA.COM.
WHAT DOES THIS WARRANTY COVER?
ECHO Inc. warrants that your equipment/SORE was designed, built and equipped to conform with applicable EPA emissions standards and that
your equipment/SORE is free from defects in material and workmanship that would cause it to fail to conform with applicable requirements for 2
years or the length of the ECHO Inc. warranty, whichever is longer. The warranty period begins on the date the product is purchased by an end user.
HOW WILL A COVERED PART BE CORRECTED?
If there is a defect in a part covered by this warranty, any ECHO Inc. Authorized Service Dealer will correct the defect. You will not have to pay
anything to have the part adjusted, repaired or replaced. This includes any labor and diagnosis for warranted repairs performed by the dealer. In
addition, engine parts not expressly covered under this warranty but whose failure is a result of a failure of a covered part will be warranted.
WHAT PARTS ARE COVERED?
Any applicable emission related part not scheduled for "required maintenance" will be repaired or replaced within the warranty period. The repaired
or replaced part will be warranted for the remaining ECHO Inc. warranty period.
Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty period stated
above. Any such part repaired or replaced under warranty will be warranted for the remaining ECHO Inc. warranty period.
replacement point for that part. Any such part repaired or replaced under warranty shall be warranted for the remainder of the period prior to the
rst scheduled replacement point for that part.
Any manufacturer-approved replacement part may be used in the performance of any warranty maintenance or repairs on emission related parts,
and must be provided without charge if the part is still under warranty.
Any replacement part that is equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not reduce
the warranty obligations of the manufacturer.
Throughout the equipment/SORE warranty period, ECHO Inc. will maintain a supply of warranted parts sufcient to meet the expected demand
for such parts.
SPECIFIC EMISSION RELATED WARRANTED PARTS:
• Electronic Ignition System • Spark Plug
• Catalytic Converter / Mufer Assembly • Carburetor (complete assembly or replaceable components)
• Choke • Fuel-Injection Assembly (or replaceable components)
• Fuel Tank • Fuel Cap Assembly
• Air Filter • Fuel Feed Line (and associated clamps/connectors as applicable)
WHAT IS NOT COVERED?
Any failure caused by abuse, neglect, improper maintenance, unapproved modications, use of unapproved add-on parts/modied parts or
unapproved accessories.
This Emission Control Warranty is valid only for the U.S.A., it's Territories, and Canada.
X7563200600
01/2013
25Contact us at www.mantis.com
26 Operator’s Manual
Contact us at www.mantis.com
LIMITED WARRANTY
MANTIS extends this limited warranty against defects in material and workmanship for a period of two (2) years under normal
usage for residential purposes and two (2) years under normal usage for commercial purposes, from the date of purchase by
the original purchaser.
MANTIS will repair or replace, at its option, any part or parts of the product found to be defective in material or workmanship
during the warranty period. Warranty repairs and replacements will be made without charge for parts or
under warranty will be considered as part of the original product, and any warranty on the replaced parts will expire coincident
with the original product warranty. If you think your MANTIS TILLER is defective in material or workmanship, please contact
customer service at 800-366-6268 for the location of an authorized servicing dealer or repair center. You will be responsible for
pickup and delivery charges.
MANTIS assumes no responsibility in the event that the product was not assembled or used in compliance with any assembly,
care, safety, or operating instructions contained in the Operators Manual or accompanying the product. This limited warranty
does not cover damages or defects due to normal wear and tear, lack of reasonable and proper maintenance, failure to follow
operating instructions or operators manual, misuse, lack of proper storage or accidents. This limited warranty shall not be effective
if your Mantis tiller has been subjected to negligence or has been repaired or altered by anyone other than an authorized dealer
or authorized service center.
You must maintain your MANTIS TILLER by following the maintenance procedures described in the operators manual. Such
routine maintenance, whether performed by you or a dealer, is at your expense.
MANTIS MAKES NO EXPRESS OR IMPLIED WARRANTIES, REPRESENTATIONS OR PROMISES EXCEPT THOSE
CONTAINED HEREIN. THERE ARE NO OTHER WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. ALL WARRANTIES OTHER THAN THE EXPRESS WARRANTY SET FORTH ABOVE
ARE SPECIFICALLY DISCLAIMED. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION OF THIS WRITTEN LIMITED WARRANTY. MANTIS
DISCLAIMS ALL LIABILITY FOR INDIRECT, INCIDENTAL AND/OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH
THE USE OF THE MANTIS PRODUCTS COVERED BY THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THAT ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATES TO STATE.
MANTIS
1028 Street Road
Southampton, PA 18966
(215) 355-9700
labor. All parts replaced
Specications, descriptions, and illustrative material in this literature are as accurate as known at the time of publication, but are
subject to change without notice.
©2020 Schiller Grounds Care, Inc. All Rights Reserved.
Loading...
