Mantis 401764 XP User Manual

Tiller/Cultivator

with 4 Stroke Engine

OWNER’S MANUAL

Welcome to the World of Mantis®XP Gardening

Here’s your new MANTIS XP Tiller… the lightweight wonder that is making gardening easier.

Unlike big tillers, your MANTIS XP Tiller weighs only 34 pounds and is like no other. So it lifts easily, handles smoothly, tills and weeds precisely. And, unlike other small tillers, it features dual serpentine tines that churn soil to ten inches deep. It creates a soft, smooth seed bed, even in problem soil.

It’s bigger than a mini tiller and better than a bigger tiller!

Once you know how to use your tiller correctly, we guarantee you’ll love it. So first, please read this manual. It shows, step by step, how to use your tiller safely.

If you have questions about any topic in this Manual, or for the name of your local dealer, call 1-800-366-6268 toll free, Monday – Saturday, 8:00am to 5:00pm, Eastern Time.

Table of Contents

Safety Rules & Warnings

Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Engine & Fuel Warnings . . . . . . . . . . . . . . . . . . .5

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9

Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Additional Information . . . . . . . . . . . . . . . . . . . .11

Getting to Your Garden . . . . . . . . . . . . . . . . . . . .11

. . . . . . . . . . . . . . . . . .

3-5

Tilling & Cultivating . . . . . . . . . . . . . . . . . . .12-14

Tine Positioning and Cleaning. . . . . . . . . . . . . . 14

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .15-16

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

MANTIS XP Tiller Assembly Layout . . . . . . . .18

Limited Warranty Information . . . . . . . . . . . . . .20

2

Safety Rules & Warnings

You will notice Safety Rules and Important Notes throughout this Owners Manual. Make sure you understand and obey these warnings for your own protection.

I. Special Safety Information

TO REDUCE THE POTENTIAL FOR ACCIDENTS, COMPLY

WITH THE SAFETY INSTRUCTIONS IN THIS MANUAL.

FAILURE TO COMPLY MAY RESULT IN SERIOUS PERSONAL

INJURY, AND/OR EQUIPMENT AND PROPERTY DAMAGE.

II. Safety & Warnings

!

WARNING • DANGER

ATTENTION: THIS SYMBOL POINTS OUT

OUR IMPORTANT SAFETY INSTRUCTIONS.

WHEN YOU SEE THIS SYMBOL,

HEED IT’S WARNING!! STAY ALERT!!

! !

WARNING • DANGER

!

WARNING • DANGER

IMPROPER USE OR CARE OF THIS TILLER

OR FAILURE TO WEAR PROPER PROTECTION

CAN RESULT IN SERIOUS INJURY.

READ AND UNDERSTAND THE RULES FOR SAFE OPERATION

AND ALL INSTRUCTIONS IN THIS MANUAL.

WEAR HEARING AND EYE PROTECTION.

!

WARNING: The Engine Exhaust from this product contains chemicals known

to the State of California to cause cancer, birth defects or other reproductive harm.

!

3

III. Safety Decal Information

tiller. These decals must be replaced in time due to abrasion, etc. It is your

responsibility to replace these decals when they become hard to read. The

P/N 400634

/N 400631

P

DO NOT REACH YOUR F

INGERS AND\OR HANDS IN BETWEEN THE TINE BLADES

n important part of the safety system incorporated in this tiller

A

re the warning and information decals found on various parts of the

a

location and part numbers (P/N) of these decals are illustrated below.

R

CUTTING HAZARD; KEEP F

EET AND HANDS AWAY

FROM ROTATING TINES.

DO NOT CARRY THE TILLER I

N THIS POSITION.

EAD OWNER’S MANUAL BEFORE USING TILLER, OR PERFORMING ANY REPAIR O

R MAINTENANCE. KEEP OWNERS MANUAL IN A SAFE PLACE.

DON’T FUEL, REFUEL, OR CHECK FUEL WHILE S

MOKING, OR NEAR AN OPEN FLAME OR OTHER IGNITION SOURCE.

ALWAYS REMOVE THE OUTER TINES BEFORE REMOVING THE INNER TINES

P/N 400635

! !

WARNING • DANGER

IF THE TILLER IS USED IMPROPERLY OR SAFETY PRECAUTIONS

ARE NOT FOLLOWED, THE USERS RISK SERIOUS INJURY TO

THEMSELVES AND OTHERS. READ AND UNDERSTAND THIS

MANUAL BEFORE ATTEMPTING TO OPERATE THIS TILLER.

IV. Warnings - Do’s

Read and understand the owner’s manual. Pay particular attention to all sections regarding safety.

1. Always keep a firm grip on both handles while the tines are moving and/or the engine is running. BE AWARE!! The tines may coast after throttle trigger is released. Make sure tines have come to a complete stop and engine is off before letting go of the tiller.

2. Always maintain a firm footing and good balance. Do not overreach while operating the tiller. Before you start to use the tiller, check the work area for obstacles that might cause you to lose your footing, balance or control of the machine.

3. Thoroughly inspect the area where equipment is to be used and remove all objects, which can be thrown by the machine.

4. Always keep area clear of children, pets, and bystanders.

5. Always stay alert. Watch what you are doing and use common sense. Do not

ASSEMBLING THE HANDLES, MAKE SURE FUEL TANK FACES AWAY FROM OPERATOR. THIS IS THE REAR OF THE TILLER, REFER TO ASSEMBLY I

NSTRUCTION ON PAGE 7.

operate unit when fatigued.

6. Always dress properly. Do not wear loose clothing or jewelry, they might get caught in moving parts. Use sturdy gloves. Gloves reduce the transmission of vibration to your hands. Prolonged exposure to vibration can cause numbness and other ailments.

7. While working, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.

8. Always wear ear and eye protection. Eye protection must meet ANSI Z 87.1. To avoid hearing damage, we recommend hearing protection be worn whenever using the equipment.

9. To reduce fire hazard, keep the engine, and petrol/gas storage area free of vegetative material and excessive grease.

10. Start the engine carefully, according to the manufacturer’s instructions and with feet well away from tool(s).

11. Keep all nuts, bolts and screws tight to be sure the equipment is in safe

INCORRECT ASSEMBLY.CAUTION: WHEN

!

WARNING • DANGER

OPERATION OF THIS EQUIPMENT MAY CREATE SPARKS THAT

CAN START FIRES AROUND DRY VEGETATION. A SPARK

ARRESTOR IS INSTALLED. THE OPERATOR SHOULD CONTACT

LOCAL FIRE AGENCIES FOR LAWS OR REGULATIONS

RELATING TO FIRE PREVENTION REQUIREMENTS.

WEAR EAR AND EYE PROTECTION.

DO NOT OPERATE TILLER INDOORS OR IN POORLY VENTILATED AREA

!

working condition.

12. Use extreme caution when reversing or pulling the machine towards you.

13. Work only in daylight or good artificial light.

14. Always be sure of your footing on slopes.

15. Exercise extreme caution when changing direction on slopes.

16. Always keep a safe distance between two or more people when working together.

17. Always inspect your unit before each use and ensure that all handles, guards and fasteners are secure, operating, and in place.

18. Always maintain and examine your tiller with care. Follow maintenance instructions given in manual.

19. Always store tiller in a sheltered area (a dry place), not accessible to children. The tiller as well as fuel should not be stored in a house

.

20. Always remove the outer set of tines before removing the inner set of tines.

4

ave repairs made by a qualified

V. Warnings - Don'ts

Don’t use tiller with one hand.

eep both hands on handles with

K fingers and thumbs encircling the handles, while tines are moving, and engine is running.

Don’t overreach. Keep a good

footing at all times.

Don’t run with the machine,

walk.

Don’t let others operate tiller

without proper training.

Do not stand in front of tiller

! !

hen tines are rotating.

w

Don’t work on excessively steep

slopes.

Don’t attempt to clear tines while they are moving. Never try to remove jammed material before switching the engine off and making sure the tines have stopped completely.

Don’t allow children or incapable

people to operate this tiller.

Don’t operate while under

the influence of alcohol or drugs.

Don’t attempt to repair this tiller.

WARNING • DANGER

H dealer or repairman.

See that only original Mantis

arts are used.

p

Don’t operate tiller with tines

aving the 3 rods extending from end

h without having second set of tines attached. Failure to have tines in place will damage tine assembly.

Do not reach you fingers and\or

hands in between the tine blades.

Do not attempt to remove the inner tines before removing the outer tines.

®

HANDLE FUEL WITH CARE, IT IS HIGHLY FLAMMABLE. FUELING A HOT ENGINE OR NEAR AN IGNITION

SOURCE CAN CAUSE A FIRE AND RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.

VI. Engine/Fuel Warnings - Do’s

Always use fresh gasoline. Stale gasoline can cause damage.

Always store fuel in containers specifically designed for this purpose.

Always pull starter cord slowly until resistance is felt. Then pull cord rapidly to avoid kickback and prevent arm or hand injury.

Always operate engine with spark arrestor installed and operating properly. The use of spark arrestor mufflers is required by law in the state of California (Section 4442 of the California Public Resources Code), as well as in other states or municipalities. Federal laws apply on federal lands.

VII. Engine/Fuel Warnings - Don’ts

Don’t

fuel, refuel or check fuel while smoking, or near an open flame or other ignition source. Stop engine and be sure it is cool before refueling.

Don’t

leave the engine running while the tiller is unattended. Stop engine before putting the tiller down or while transporting from one place to another.

Don’t

refuel, start or run this tiller indoors or in an improperly ventilated area.

Don’t

run engine when electrical system causes spark outside the cylinder. During periodical checks

of the spark plug, keep plug a safe distance from cylinder to avoid burning of evaporated fuel from cylinder.

Don’t

check for spark with spark plug or plug wire removed. Use an approved tester.

Don’t

crank engine with spark plug removed unless spark plug wire is disconnected. Sparks can ignite fumes.

Don’t

run engine when the odor of gasoline is present or other explosive conditions exist.

Don’t

operate the unit if gasoline is spilled. Clean up spill

Stop the engine whenever you leave the machine.

Allow the engine to cool before

storing in any enclosure.

If the fuel tank needs to be drained, this should be done outdoors.

completely before starting engine.

Don’t

operate your tiller if there is an accumulation of debris around the muffler, and cooling fins.

Don’t

touch hot mufflers, cylinders or cooling fins as contact may cause serious burns.

Don’t change the engine governor setting or over speed the engine.

Don’t

attempt to remove spark plug while engine is hot. Removing a spark plug from a hot engine can cause irreparable damage to the engine and will void your warranty.

5

Assembly

!

WARNING•DANGER

IMPROPER ASSEMBLY OF THIS TILLER

CAN RESULT IN SERIOUS INJURY.

MAKE SURE TO FOLLOW ALL

INSTRUCTIONS CAREFULLY.

IF YOU HAVE ANY QUESTIONS

CONTACT OUR FACTORY AT

!

1-800-366-6268

Your MANTIS®XP Tiller comes partially assembled. Full assembly will take just a few minutes if you follow the directions.

First, take all items out of the

carton. But do not remove the cardboard from around the Tiller’s base.

The list at the right, shows the parts that come with your tiller. Check to make sure you have them.

The bag of hardware is in the plastic bag containing the Owner’s Manual and Video.

To assemble your MANTIS Tiller, you’ll need two 7/16" and one 3/8" wrenches or sockets. We suggest that you install all nuts and bolts only “finger tight” one full turn — until you’ve completed assembly. The nuts are

self locking, but you must use a wrench to tighten them completely.

— that is, one-half to

20

1

2

6

13

51

49

Quantity Description *Key #

1 Upper Handle Assembly 2 1 Upper Handle Throttle Assembly 1 2 Lower Handles 6 1 Engine Assembly (includes Fender Guard,

Worm Gear Transmission & Tines) 20, 21, 39,

40, 55,

66, 67

1 Carrying Handle 42 1 Handle Brace 8 1 Bag of Hardware Containing: 2 Bolts (1” long) 47 4 Lock Nuts 48 2 Bolts (3” long) 49 2 Handle Clamps 51 1 Throttle Cable Clip 13 2 Round Head, Square Neck Bolts 52 2 Handle Knobs 53 1 Kickstand Assembly 69 1 Kickstand Top Bracket with 3/8” Bolts

*These numbers are the same numbers shown on the Parts

Layout on page 18.

39 40 55 66 67

21

8

47

48

69

52

**

70

42

53

6

**If applicable.

Assembly (continued)

HOW TO ASSEMBLE LOWER HANDLES

To identify part numbers, see pages 6 and 18.

1. Open the protective cardboard sleeve, but leave the engine assembly (#21) in this cradle to stabilize it during assembly. (Picture 1)

2. Lay the handle parts within easy reach. You’ll need one of the handle clamps (#51) and one of the lower handles (#6). Note that the lower handles have a short leg on one end.

3. Fit the handle clamp along the outside of the short leg. Line up the holes on the clamp and the leg.

4. Choose one of the two 3-inch bolts (#49). Slide it through the first set of holes — near the elbow where the lower handle curves. (Picture 2)

5. Now slide the other lower handle onto the 3-inch bolt. Fit the

other handle clamp onto this other handle’s short leg. Add a nut (#48) and tighten finger tight. (Picture 3)

6. Locate the worm gear housing. It starts just above – and extends down through – the tiller’s red fender guard. You’ll notice that there’s a recessed channel on either side of the housing’s top. (Picture 4.)

7. Take the lower handles that you’ve just put together. Slide them into the two recessed channels.(Picture 5.)

Make sure you insert them from the rear of the tiller (gasoline tank faces away that the bolt fits along the back of the housing.

8. Slide the second 3-inch bolt through the second set of holes in the short legs. Add a nut and tighten finger tight.

from the operator)... so

Picture 1

NOTE: THE LOCK NUTS ARE STAMPED. FINGER TIGHT IS

APPROXIMATELY 1/2 TO 1-1/2 TURNS.

Picture 3

Picture 4 Picture 5

Picture 2

7

Assembly (continued)

How to Assemble Kickstand, Upper Handles and Carrying Handle

NOTE: If your Mantis®XP was supplied with a kickstand, please start at line 1. If not, please start with the assembly of the carry handle in line 3 below.

1. Locate the kickstand top bracket (#70). Note that the distance between the channels is narrower on one end of the bracket than the other. Place the kickstand top bracket onto the kickstand assembly (#69) so the end where the channels are closer together points away from the foot of the kickstand (Picture 1). Align the bolt holes and insert two 3/8” bolts through the holes in the top bracket and screw them into the bottom bracket by hand.

2. Lightly squeeze the lower handles (#6) toward one another so they line up with the channels in the top bracket of the kickstand and slide the assembly down the lower handles until the foot of the kickstand is about 2" from the ends of the lower handles (Picture 2).

3. Again, lightly squeeze the lower handles (#6) toward one another so they line up with the 2 holes in the carry handle (#42). Then slide the

carry handle and the kickstand assembly down at the same time until the kickstand comes to a stop (Picture 3).

4. Gently pull the lower handles out to their original position.

5. Attach the upper handle throttle side assembly (#1) – the handle with the throttle cable and ground wire – onto the right lower handle with a shoulder bolt (#52), and secure with the handle knob (#53). (Picture 4

proper throttle movements and that the throttle cable is not wrapped or twisted around the handle bar.

Locate the red lockout button located on the throttle handle (Picture 5). Press the red lockout button and squeeze the throttle lever and let go.

THIS MUST BE DONE BEFORE STARTING THE ENGINE.

6. Follow the same steps to install the other upper handle onto the other lower handle. Does not show other handle installation.

7. Use the clip (#13) to secure the throttle cable and wire in place on the lower handle. (Picture 6)

8. Now install the Handle Brace (#8). Line it up with the holes on the upper handles.

) Be sure you have

Picture 1 Picture 2

Picture 3 Picture 4

Picture 5 Picture 6

WARNING • DANGER

!

REMOVE TINES BEFORE STARTING ENGINE

AND MAKING ADJUSTMENTS.

8

!

WARNING:

Improper throttle installation can cause tines to rotate unexpectedly.

!

Assembly (continued)

Then insert a Cap Screw (#47) and a Lock Nut (#48) on either side (Picture 7)

9. Use a wrench to tighten Cap Screws

and Lock Nuts.

10. Now use wrench to tighten all nuts

and bolts firmly and securely.

IMPORTANT NOTE:

Make sure you have installed the handles properly. When you stand behind your tiller, holding the handles, the gas tank is facing away from you, on the front side of the engine.

Checking the Oil Level in the Engine’s Oil Sump

IMPORTANT NOTE: Before using

your new Mantis 4-Stroke Tiller for the first time, it is important to check the oil level in the engines oil sump. The bottle of oil supplied with this machine holds the correct grade of engine oil.

Please follow the notes below for full instructions how to check the oil level in the engine.

IMPORTANT NOTE:

Before starting your 4 Stroke/Mantis premeasured bottle of 4 stroke engine oil supplied with your tiller. See 4 Stroke Tiller Engine Manual and information below for details.

IMPORTANT NOTE:

Picture 7

How to fill the engines oil sump before using your new Mantis Tiller:

1. Rock the tiller forward so that it rests on its fuel tank.

2. Remove the grey sump plug and top up the oil using the correct type of oil so that it is level with the inner first thread of the sump plug. (Picture 1)

Before you use your MANTIS Tiller, read the Safety Rules & Warnings on pages 3-5.

®

Picture 1

Tiller, add the

Max. 3.4 oz (100ml)

WARNING • DANGER

!

FUEL IS EXTREMELY FLAMMABLE. HANDLE

IT WITH CARE. KEEP AWAY FROM IGNITION

SOURCES. DO NOT SMOKE WHILE FUELING

YOUR EQUIPMENT.

IMPORTANT NOTE: Check the oil level in the engine before each use. If oil is low, top it off with 10W-30 before using. See your 4 Stroke Tiller Engine Manual and information above for details.

!

Never use starting fluids as

they will cause permanent

engine damage. Using them

will void the warranty. Before

Safety & Warning rules on

WARNING:

!

you use the tiller, read the

pages 3-6.

CHECK OIL LEVEL

Running the engine with a low oil level can cause engine damage. Overfilling the engine with oil can lead to oil leaking and smoking/oil from the muffler

9

Starting

TO START YOUR TILLER FOR THE FIRST TIME:

First, fill the fuel tank with the proper amount of gasoline (Use branded 89 octane (R+M+2) unleaded gasoline or gasohol— maximum 10% ethyl alcohol, or 15% MTBE, no methyl alcohol.)

Mantis®XP Tiller Starting Instructions

(4 Stroke 35cc engine)

IMPORTANT!

It is normal for your 4 stroke engine to smoke for the first minute or two of operation, however it is not necessary for this to occur every time. This is a result of the oil being pulled through the engine for lubrication.

WARNING

! !

DO NOT OPERATE IN A CLOSED

R CONFINED AREA

O

Warm Engine

1. Push ignition switch to I “start/on” position.

2. Pull grip slowly until you feel resistance then pull briskly. Make sure the choke is in the open, or run, position.

NOTE: When the choke is closed, never pull the cord more than four or five times. Overpulling may cause flooding.

!

WARNING

VOID ACCIDENTAL BLADE

A

ENGAGEMENT

O NOT SQUEEZE THE THROTTLE

D

TRIGGER WHEN STARTING.

AINTAIN PROPER IDLE SPEED

M

ADJUSTMENT (2500-3100 RPM)

!

How to Stop the Engine

Simply push the o/I “stop/ start”

switch to “o” (Picture 6). This will stop the engine instantly. If it should ever fail to do so, just pull the choke up to the closed position. The engine will stop at once.

About the Choke

The choke controls the amount of air drawn into the engine. Your tiller will run only if the choke is open.

Cold Engine

1. Place the o/I switch into the

I “start/on” position. (Picture 1)

2. Choke the engine (or close the choke. Move choke to the closed position.) (Picture 2)

3. Push primer bulb 6 times. (Picture 3)

4. Pull grip slowly until you feel resistance then pull briskly. (Picture 4)

5. Once the engine is running, slowly push the choke lever down to the run position—the engine will continue to run. (Picture 5)

Follow these steps whenever you are starting the engine “cold”, or when the engine has run dry and you have just added fuel. Remember, always use short, brisk pulls. Don’t give the cord a long, forceful yank. And, do not let the cord snap back into the starter housing.

Picture 1 Picture 2 Picture 3

Picture 4 Picture 5 Picture 6

WARNING • DANGER

! !

I

F ENGINE DOES NOT STOP WHEN SWITCH IS PUT IN THE STOP POSITION,

RELEASE THE THROTTLE, ALLOW ENGINE TO IDLE. PUT THE TILLER DOWN,

AND SLIDE THE CHOKE LEVER FORWARD TO THE COLD START (CLOSED)

POSITION. CHECK AND RETURN IGNITION SWITCH TO ON POSITION

BEFORE STARTING ENGINE AGAIN.

10

Additional Information

A Special Feature (with the idle set properly and the engine running)

Even when the engine is running, the tines won’t turn unless you squeeze the throttle lever on the handlebars. And, when you release the throttle lever, the tines will stop.

A Tip for Extending Your Engine’s Life

After you start the engine, let your tiller warm up for two to three minutes before you use it. Then, before you put your tiller away, let it idle for a minute to give the engine a chance to cool down.

Operation

With engine running, and both hands on the handles, press the

throttle lock out button (Picture 1), then squeeze the throttle trigger gradually to increase the engine speed and engage the tines.

NOTE: This step must be repeated each time your tiller trigger is released.

How to get your tiller to your garden

NOTE: Once the throttle trigger

is squeezed, you can release the lockout button (Picture 2).

Walk it.

Once your tiller is running, you can “walk” it to your garden. Just squeeze the throttle lever gently and let the tiller “tip-toe” across your yard on its tines. It won’t hurt your lawn or driveway. (Picture 3)

Carry It.

Make sure the engine is off.

Then use one hand to grasp the convenient carrying handle. Use the other hand to hold the handlebars. (Picture 4) Then lift your tiller and carry it to your garden. Since it weighs only 30 pounds, it won’t strain your muscles or tire you out!

Take It for a Ride.

You can easily transport your MANTIS or relative’s house. Just empty the fuel tank. (This is crucial.) Then stow your Tiller in the trunk of your car or truck. It fits easily. And you can put it in and take it out without straining your back.

NEVER TRANSPORT TILLER WITH

GAS IN FUEL TANK IN TRUNK OF

CAR OR TRUCK FOR THIS COULD

CAUSE EXPLOSION OR FIRE

®

XP Tiller to a friend’s

WARNING

!

Picture 1 Picture 2

WARNING

!

NEVER CARRY YOUR TILLER AS

THE PERSON IN PICTURE 5 IS

DOING. IF YOU DO, YOU WILL

SUFFER SERIOUS INJURY.

!

Picture 3

Picture 4

Picture 5

11

Tilling

Picture 1

Picture 2

Picture 3

Now You’re Ready to Use Your MANTIS®XP Tiller.

If you’ve seen other tillers, your MANTIS Tiller may surprise you. It tills best when you pull it backward! You see, when you pull your MANTIS Tiller backward, you give extra resistance to the

tines, so they dig deeper. (Picture 1)

What’s more when you go backward, you erase your footprints. So your soil stays light and fluffy. With other tillers, by contrast, you walk right over the soil you’ve just tilled, packing it down, so it’s less plantable.

Run Your MANTIS XP Tiller like a Vacuum Cleaner.

Place your Tiller at the head of the row or area you want to till. Start it up. Then use an easy rocking motion. First, pull your Tiller backward. Then use an easy rocking motion. Again, pull your Tiller backward. Then, let it move forward just a little bit. Then pull it backward again. This will help you till deeper.

Keep repeating these steps until you’ve tilled an entire row. Start again on the next row. It’s much like running a vacuum cleaner! (Picture 2)

You Can Even Control Depth.

For Deeper Tilling:

Move your Tiller slowly back and forth, as you would a vacuum cleaner. Work the same area over and over until you’ve dug to your desired depth. (Picture 3)

For Shallow Tilling:

Switch the tines to the cultivating position. (See page 13 to learn how.) Then move your Tiller quickly over your soil surface.

For Big Weeds or Tough Roots:

Let your Tiller rock back and forth over the tough spot, until the tines slice through the weed or root.

Your MANTIS XP Tiller Handles Special Tilling Projects.

Want to turn part of your lawn into a colorful flower border? Your MANTIS XP Tiller makes it easy! Just run your Tiller back and forth until the sod begins to break up. Then continue tilling. Your Tiller will chop the clumps of sod until they’re fine. Then, it will work them into the soil. Pretty soon, you’ll have a soft, fresh planting bed.

12

! !

WARNING • DANGER

THE OPERATOR OF THIS TILLER IS RESPONSIBLE FOR

ACCIDENTS OR HAZARDS OCCURRING TO HIMSELF, OTHER PEOPLE

OR THEIR PROPERTY.

! !

IF YOUR TINES GET JAMMED OR ENTANGLED, SHUT OFF THE ENGINE AT ONCE.

REMOVE THE OBSTRUCTION WHILE THE ENGINE IS OFF.

NEVER TRY TO REMOVE AN OBSTRUCTION WHILE THE ENGINE IS RUNNING.

WARNING • DANGER

SERIOUS INJURY CAN RESULT.

Tilling

How about a familysize vegetable garden?

Nowadays many gardeners prefer small gardens — especially in the suburbs, where space is at a premium. But, if you’re fortunate enough to own a large lot, you can create a bigger garden — a half acre or more.

! !

IMPORTANT

To change the tines on your

4 Stroke Mantis®XP Tiller,

rotate the handles forward and

allow tiller to rest on the engine.

Your MANTIS XP Tiller Makes Weeding a Pleasure!

As a tiller, your MANTIS XP Tiller works the soil down to 10” (25.4 cm) deep. But, as a cultivator, it gently cultivates the surface, only 2" to 3" (5.09 cm to

7.62 cm) deep. First, you must switch the tines

to the weeding position. This

takes less than a few minutes. Then, your MANTIS XP

Tiller’s sharp “tine teeth” will slice up those pesky weeds, burying them as you go along. And, since the tines in this position won’t dig too deep, they won’t hurt your plants’ precious root systems.

The result? Your Tiller will cut your weeding time in half, and turn a tiresome chore into a pleasure.

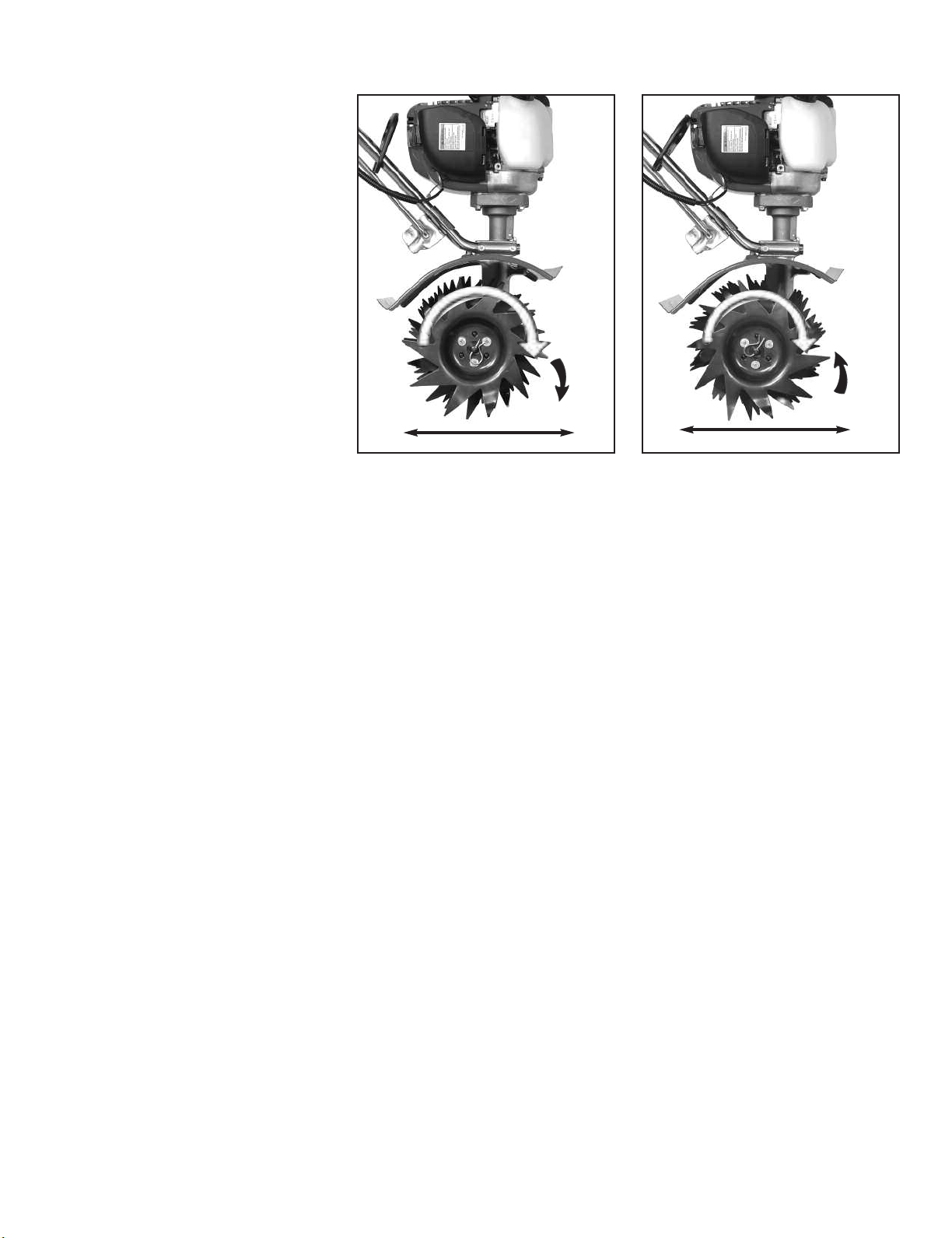

How to Switch From Tilling to Cultivating Position

To switch between tilling and cultivating, you will simply move the tines from one side of the tiller to the other.

When the tines are in the tilling position, they will appear as shown in Picture 1. When running, the tines rotate to the front of the tiller and the points of the tines will contact the ground first, allowing it to aggressively cut and break the soil for tilling.

When the tines are in the cultivating position, they will appear as shown in Picture 2. In this position, when the tines rotate, the long flat part of the teeth will contact the ground first for a less aggressive cultivating action.

1. First, you will need to understand that your Mantis XP has an inner and an outer set of tines on each side of the tiller as shown in Picture 3

2. Make sure the tiller is turned off.

3. Remove the retaining pins from the outer set of tines (Picture

4) and remove the outer tines.

4. Only after you have removed the outer set of tines, then remove the retaining pins from the inner tines and remove the retaining pins from the inner tines and remove the inner tines from the transmission axle (Picture 5)

5. Place the right-side set of inner tines onto the left-side. The "D" shaped hole should be to the outside. Make sure the tine retaining pin is installed. Repeat for the other side

6. Place the right side set of outer tines onto the left-side axle. The "D" shaped hole should be to the outside and insert the tine retaining pin. Repeat for the other side.

Your Mantis XP tiller also has the ability to till or cultivate at either a 9" or 16" width. The tiller is sent to you set up for 16". To run the tiller at a 9" width, simply remove the inner and outer tines as noted above. Then just put the outer tines back onto the transmission axel and secure with a retaining pin on each side.

WARNING • DANGER

! !

DO NOT REACH YOUR FINGERS

AND\OR HAND BETWEEN

THE TINE BLADES.

DO NOT ATTEMPT TO REMOVE THE INNER SET OF TINES UNTIL YOU HAVE FIRST REMOVED THE

OUTER SET OF TINES.

Picture 1

Inner Tines

Outer Tines

Picture 2 Picture 3

Picture 4

Picture 5

13

Cultivating

Now You’re Ready to Cultivate or Weed.

Guide your tiller where you want to weed and start it up. Pull your Tiller backward slowly, then let it move forward a bit, in a gentle rocking motion. Watch it slice, shred, and bury those weeds!

Got tough weeds? Lighten your pressure on the throttle to slow your Tiller down. Then work back and forth until your Tiller chops up the weeds. It’s easy and effective!

Your Mantis®XP Tiller Can Weed Between Narrow Rows!

Your Mantis XP Tiller is a precision weeder that can easily fit in tight places. So don’t be afraid to weed anywhere: between plants and shrubs, in corners, against fences, on raised beds, in wide rows, even in very narrow rows. Your Mantis XP Tiller weeds six* to nine inches wide. So you can run it in a tightly planted garden without damaging your delicate plants. That’s good news for

Fuel Tank

Handles

ine Rotation

T

Tine Teeth

ack

B

F

Tilling Position

Tine teeth point in the same direction as the rotation of the tine; or toward the front of the Tiller, away from the operator.

suburban gardeners, who often have to plant rows close together!

*With optional Planter Furrower attachment. (Item #6222)

andles

H

ront

Back

Cultivating Position

Tine teeth point in the opposite direction as the rotation of the tine. Tines point toward the back of the tiller, or toward the operator.

To do this you must take off the tine assemblies (both sides) and replace with only the outer set of tines. Do not operate with only the inner set of tines. Damage will occur using this set of tines.

uel Tank

F

ine Rotation

T

Tine Teeth

Front

Cleaning the Tines

The installed weed reducer will help, but remember, any tiller will tangle in tall grass, stringy vines, or super-big weeds. So, if you have a “backyard jungle,” first use a knife, pruner, or brush cutter to chop up the overgrowth. If the tines become tangled anyway, turn the engine off completely before trying to clear them.

14

From time to time, you may want to remove the tines to get them completely clean. To do this, please follow steps 1-4 as noted under “How to Switch From Tilling to Cultivating Position” on page 13. Then, you can remove any weeds, stones, or mud from the tines. As always, please be sure to remove the outer tines before removing the inner

tines. Also, do not reach your fingers and\or hand in between the tine blades. When finished, simply return the tines to their starting positions.

The optional Tine Detangler (Item #1322) will clear tines in a jiffy. Contact your local authorized

®

Mantis

dealer or call 1-800-366-

6268 to order.

Maintenance

How to Check the Grease Level Inside the Worm Gear Housing

When we built your Mantis®XP tiller, we added grease to properly lubricate the transmission for the first 10 hours of operation. As part of the regular maintenance of your tiller, it is imperative that you inspect the grease level and add grease if necessary. This will help your tiller give you years of excellent usage.

You will need to add grease with a grease gun using the fitting at the front of the transmission (Picture 1). You should add grease through this

fitting after the first 10 hours of operation and then every 50 hours of use. To add grease through

the grease fitting:

1. Make sure the tiller is turned off and remove

the tines.

2. Place the tiller front side down on an elevated

surface and remove the 4 screws holding the transmission cover (Picture 2).

3. Remove the transmission cover and gasket.

Inspect the grease level. If it is below the edge of the gear housing, you will need to add grease. If it is already flush with this edge, you do not need to add grease. DO NOT OVERFILL. Too much grease can create pressure which can cause seals to fail or the clutch to slip.

4. If grease is needed, remove the protective cap

from the grease fitting, attach the grease gun, and slowly add grease until the level is flush with the edge of the transmission (Picture 3).

5. Return the grease fitting protective cover, gasket,

and transmission cover with the 4 original screws.

In between adding grease with the grease gun, you should inspect the grease level after approximately 10 hours of operation. If grease is needed, you can add grease directly to the opening in the transmission using Mantis item number 9985.

Picture 1 Picture 2

Picture 3

!

WARNING

!

PREMATURE TRANSMISISSION FAILURE CAN OCCUR IF

PROPER GREASE LEVEL IS NOT BE MAINTAINED

15

Maintenance

Check the Air Filter Often

A wet or dirty air filter can

affect the way your engine starts, performs, and wears. So, it’s a good idea to check your air filter once a month.

If you work in dusty soil, or if you want to be on the safe side — then check your filter more often (for instance, before each use). But be sure to replace it at least once a year, in the spring or fall.

How to Check, Clean and Change the Air Filter

1. The air filter is held in the air cleaner in a black housing on the side of the tiller, behind the gas tank cap.

2. Squeeze the two locking tabs at the rear of the air cleaner cover (Picture 1) and swing the cover towards the front of the engine to open it

3. The air filter is the dark sponge like material on the inside ofthe air cleaner. Check whether it is soiled or moist.

4. If the air filter needs to be cleaned or no longer fits properly, simply remove it by carefully peeling it out of the air cleaner

icture 1

P

(Picture 2)

5. To clean the air filter a. Clean the filter element in

warm soapy water, rinse and allow to dry thoroughly. Or, clean in a non-flammable solvent and allow to dry.

b. Dip the filter element in clean

engine oil, then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the element

c. Wipe dirt from the air cleaner

body and cover, using a moist rag. Be careful to prevent dirt from entering the carburetor.

6. Insert your clean filter inside the air cleaner.

IMPORTANT! Make sure the filter is "seated" properly in the cover. The filter must fit snugly inside the opening that holds the filter in place. Installing the filter incorrectly will cause engine damage and void the warranty. Fit the cover back

Picture 2

over the air cleaner and snap the two locking tabs.

IMPORTANT NOTE:

A dirty air cleaner will restrict air flow to the carburetor, reducing engine performance. If you operate the engine in very dusty areas, clean the air filter element more often then specified in the Maintenance section.

IMPORTANT NOTE:

Operating the engine without an air filter element, or with a damaged air filter element, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by the Limited Warranty.

Note:

Please check the lip on the Air Cleaner Cover. If the lip is chipped or cracked, it should be replaced. This will prevent dirt from being ingested through the carburetor into the inside of the engine.

What to do Just in Case…

At some point, you may find that the tines won’t turn when you squeeze the throttle. This may mean the engine isn’t sitting all the way down on the worm gear housing.

Perhaps you’ve been using your Tiller for several years. The flange bolt (Key #12, Page 18) may have come loose and lifted the engine up.

If this happened you’ll notice a gap between the bottom of the engine flange (Key #43, Page 18) and the top of the worm gear housing. (Picture 3)

To fix this, loosen the flange

16

bolt. Take the engine off the worm gear housing. Notice the hex head on top of the drive shaft (Key #22, Page 18). Inside the flange housing, you’ll find the clutch drum (Key #57, Page 18). Make sure the hex head lines up with the clutch drum inside the flange housing.

Then put the engine back on the

Picture 3. Note how the engine doesn’t sit all the way down on the transmission.

worm gear housing. Make sure the plastic carrying handle is not under the engine.

If you’ve followed these steps properly, there will be no gap between the engine flange and the worm gear housing. (Picture 4) Make sure you tighten the flange bolt!

Picture 4. Note how the engine sits all the way down on the transmission.

Storage

Each fall, or before you store your Mantis long period, be sure to take these measures:

1. Do not store your Tiller with fuel still in it. Even under ideal conditions, stored fuel containing ethanol or MTBE can start to go stale in 30 days. And, since stale fuel has a high gum content, it can clog the carburetor, this, in turn, will restrict fuel flow. Therefore, when you’re ready to store your Tiller, or will not be using it for more than 2 weeks, drain the fuel tank completely.

2. Next, restart the engine to make sure no fuel is left in the carburetor. Then, run the engine until it stops. This will prevent gum deposits, forming inside of the carburetor and possible engine damage.

3. Disconnect the spark plug wire and remove the spark plug. Slowly pull the starter cord once.

4. Inspect the spark plug, and if necessary, clean it. If you need to replace it, buy a NGK-CMR5H.

®

XP Tiller for any

!

WARNING • DANGER

DO NOT STORE IN AN AREA WHERE FUEL FUMES MAY

ACCUMULATE AND REACH A FLAME OR SPARK.

5 Install the spark plug, but leave the spark plug wire disconnected.

6. Clean the air filter as described in

your 4 Stroke Tiller Engine Manual.

7. Clean dirt, grass and other materials from the entire machine.

8. Wipe the tines with oil or spray them with WD-40, to prevent rusting.

9. Oil the throttle cable and all visible moving parts. (Do not remove the engine cover.)

10. Check the grease level in the

worm gear housing as described on page 15.

11. Order new parts to replace any that are badly worn or broken. Just call 1-800-366-6268 and ask for a local authorized Mantis or 4 Stroke Tiller dealer.

12. Store your Tiller in an

upright position in a clean, dry place. You can store with the handles in an extended position or folded down.

13. To fold the handles, follow these easy steps: Loosen the handle knobs (#53) then fold the handles forward. Tighten knob securely. Your handles are now folded and ready to store in a smaller area.

14. Do you have fuel left over from last season? Dispose of it properly. Buy fresh oil and gasoline next season.

15. Remove Tilling Tines or attachments and lightly oil tine shaft at least once a year.

You may store your Mantis Tiller with the handles upright as in Picture 1 or with the handles folded down, as in Picture 2.

!

Picture 1

Do not store the tiller

lying flat on its front,

back, or side.

Picture 2

IMPORTANT

!

It is important to store your 4 Stroke Mantis Tiller in an upright position. Laying the Tiller on its side will cause the oil to leak out

of the engine through the air cleaner case.

!

17

1

2

4

3

6

0

5

6

5

7

6

1

6

2

1

4

8

6

3

4

7

8

4

7

41

67

41

40

44

68

50

66

41

46

20

39

6

4

65

23

Mantis®XP Tiller Assembly

71

0

7

69

#

ITEM QTY. PART # DESCRIPTION / REMARKS

1 1 400257 TRIGGER HANDLE ASSM. RH 2 1 400255 HANDLE ASSM. LH 6 2 400224 LOWER HANDLE -FOLD DOWN 7 1 400633 LABEL, BRACE FRONT 8 1 400306 HANDLE BRACE 12 1 910502 10-32 X 3/4 - FLANGED BOLT 13 2 478 THROTTLE CLIP 20 1 400312 FENDER GUARD 21 1 400916 ENGINE ASSY – 35CC 4 STROKE 22* 1 468 DRIVE SHAFT 23 1 400301 WORM GEAR HOUSING 24 1 436 GASKET 25 1 437A HOUSING COVER 26 4 651 RD. HD. SELF TAPPING SCREW 27 1 423 ROLLER BEARING 28 2 425 WORM BEARING RACE 29 1 424 WORM THRUST BEARING 30 1 422 WORM SHAFT 31 1 426 WORM DISK

ITEM QTY. PART # DESCRIPTION / REMARKS

32 1 428 RETAINING RING 33 1 429 WORM GEAR 34 1 431 TINE SHAFT 35 2 430 WORM GEAR THRUST WASHER 36 2 432 WORM GEAR BEARING 37 2 434 BEARING SEAL 38 2 435 BEARING SEAL RETAINER 39 1 400328 TINE ASSY - OUTER RIGHT 40 1 400327 TINE ASSY - OUTER LEFT 41 4 418-1 TINE RETAINING HAIR PIN 42 1 400315 CARRYING HANDLE 43 1 400307 ENGINE ADAPTER 44 1 400631 TINE LABEL 45 1 458 ROLLER BEARING 46 1 4058 MANTIS LABEL 47 2 410 CAP SCREW 1/4-20 X 1" LG. 48 4 972 LOCK NUT 1/4 - 20 49 2 470 1/4-20 X 3” BOLT 50 2 M9452 BOLT 1/4 - 20 X 1/2" LG.

ITEM QTY. PART # DESCRIPTION / REMARKS

51 2 377 HANDLE CLAMP 52 2 400509 BOLT 53 2 400510 KNOB 54 2 400230 PLUG 55 1 400302 TRANSMISSION ASSEMBLY 56 1 400132 BEARING 57 1 400308 CLUTCH DRUM 60 4 400529 M6 X 33MM - FLANGED BOLT 61 1 400524 RETAINING RING 62 1 400310 THROTTLE STOP HONDA 35CC 63 1 400634 LABEL WARNING 64 1 400313 DUST CAP FOR GREASE FITTING 65 1 400300 GREASE FITTING 66 1 400330 TINE ASSY. INNER RIGHT 67 1 400329 TINE ASSY. INNER LEFT 68 2 4092 WEED RECYCLER 69# 1 410158 KICKSTAND LEG ASSY. 70# 1 410113 HARDWARE FOR KICKSTAND 71 2 400635 LABEL, XP TINE WARNING

* ALSO IN KEY #55 – 400302 # IF APPLICABLE

18

400332

Spare Parts

1. Set of two inner tines

2. Set of two outer tines

400331

400333

3. Set of four tines (inner and outer)

66

40

9

3

67

p/n

67

40

p/n

39

66

p/n

NOTES: _________________________________________________________________________

________________________________________________________________________________

19

MANTIS®XP TILLER LIMITED WARRANTY

MANTIS extends this limited warranty against defects in material and workmanship for a period of five (5) years for normal

esidential purposes and two (2) years for commercial use from the

r date of purchase, to the first retail purchaser and each subsequent owner, during the warranty period. This warranty covers all portions of the MANTIS XP TILLER.

MANTIS will repair or replace, at its option, any part or parts of the product proven to be defective in material or workmanship under normal usage during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor. All

arts replaced under warranty will be considered as part of the

p original product, and any warranty on the replaced parts will expire coincident with the original product warranty. If you think your MANTIS XP TILLER is defective in material or workmanship, you must send it, along with your proof of purchase (sales receipt) to:

Mantis 1028 Street Road Southampton, PA 18966

You are responsible for pickup and delivery charges; the product must be returned to us postage paid.

MANTIS assumes no responsibility in the event that the product was not assembled or used in compliance with any assembly, care, safety, or operating instructions contained in the Owner’s Manual or accompanying the product; was not used with reasonable care or requires replacement or repair due to accidents or lack of proper maintenance; or was misused, altered, used for other than normal or

intended purposes. This warranty does not cover damage due to normal wear and tear.

You must maintain your MANTIS XP TILLER by following the maintenance procedures described in the owner’s manual. Such routine maintenance, whether performed by you or a dealer, is at your expense.

MANTIS MAKES NO EXPRESS OR IMPLIED WARRANTIES OR REPRESENTATIONS EXCEPT THOSE CONTAINED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY, INCLUDING

ERCHANTABILITY AND FITNESS FOR A PARTICULAR

M PURPOSE, IS LIMITED TO THE DURATION OF THIS WRITTEN LIMITED WARRANTY. MANTIS DISCLAIMS ALL LIABILITY FOR INDIRECT, INCIDENTAL AND/OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE USE OF THE MANTIS PRODUCTS COVERED BY THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THAT ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATES TO STATE.

MANTIS 1028 Street Road Southampton, PA 18966 (215) 355-9700

Specifications, descriptions, and illustrative material in this literature are as accurate as known at the time of publication, but are subject to change without notice.

P/N 401764 4 /10 Printed in USA

20

Mantis 401764 XP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
