PUB0110 iss:09 03/17
Flexible Duct
Internal
Grille
External
Grille
The Shower Fan
screwed to the joist
Model: Hyper150
Order Code: FAN0085
This 150mm diameter in-line duct axial fan is suitable for domestic ventilation
applications which require high working pressures with low relative noise.
Integral ball bearings mean a long lifetime of service and a quieter operation.
These fans are generally mounted in the ceiling cavity to exhaust air from interior
vents to the outside. The compact design, low prole, ease of mounting and IP
rating to IPX2 ensure a straight forward installation, which enables additional
ducting to be added to this system, while still maintaining high levels of extraction.
Thank you for selecting our Manrose 150mm In-Line Extractor Fan.
Please read all instructions before commencing installation.

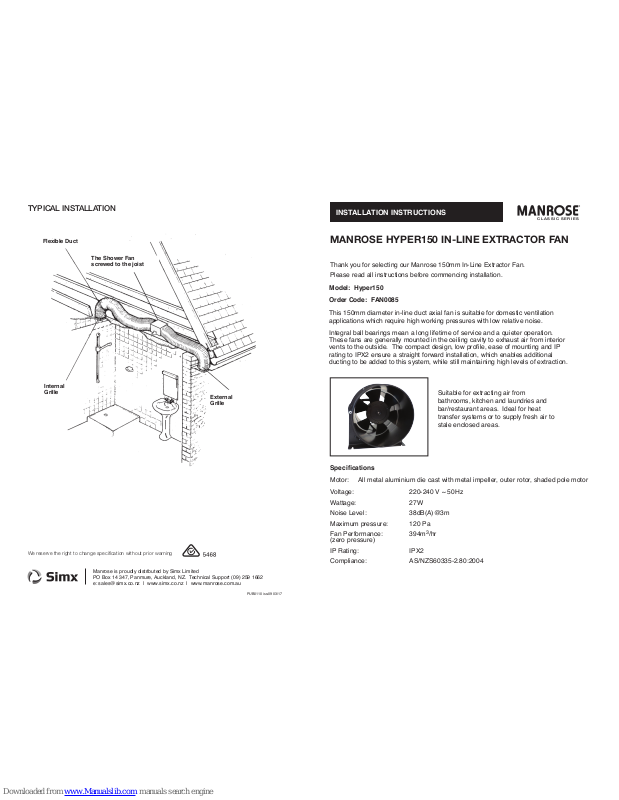

MANROSE HYPER150 IN-LINE EXTRACTOR FAN
CLASSIC SERIES
INSTALLATION INSTRUCTIONS
We reserve the right to change specification without prior warning
Manrose is proudly distributed by Simx Limited
PO Box 14 347, Panmure, Auckland, NZ. Technical Support (09) 259 1662
e: sales@simx.co.nz | www.simx.co.nz | www.manrose.com.au
TYPICAL INSTALLATION
Specications
Motor: All metal aluminium die cast with metal impeller
, outer rotor, shaded pole motor
Voltage: 220-240 V ~ 50Hz
Wattage: 27W
Noise Level: 38dB(A)@3m
Maximum pressure: 120 Pa
Fan Performance: 394m
3
/hr
(zero pressure)
IP Rating: IPX2
Compliance: AS/NZS60335-2.80:2004
Suitable for extracting air from
bathrooms, kitchen and laundries and
bar/restaurant areas. Ideal for heat
transfer systems or to supply fresh air to
stale enclosed areas.
INSTALLATION
The plastic spigots have been designed for easy mounting onto a at solid surface such as
the top plate of a wall partition as found in a ceiling cavity or alternatively to avoid possible
resonance effects the motor can be suspended from the rafters.
Electrical Connections
NOTE: A REGISTERED ELECTRICIAN MUST INSTALL ANY FIXED WIRING
AS PER THE NEW ZEALAND/AUSTRALIAN WIRING REGULATIONS.
BROWN
BLUE
LIVE
EARTH
NEUTRAL
GREEN/YELLOW
IMPORTANT
• Isolate the mains supply before making any electrical connections. This system
should be installed by a qualified electrician.
• When fitting through an external wall, an external grille must be fitted at all times.
• Fan should only be installed by fixed wiring, a flexible cord should not be used.
• This appliance is not intended for use by persons (including children) with
reduced physical sensory or mental capabilities, or lack of experience or
knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• Precautions must be taken to avoid the back-flow of gases into the room from
the open flue of gas or other open-fire appliances when mounted in outside
windows or walls.
A
B
D
C
Product A B C D
Hyper 150 200 143 170 185
Dimension Information
0
20
40
60
80
100
120
140
0 20 40 60 80 100 120
Pressure (Pa)
Airflow (l/s)
Performance Curve - Hyper150 Fan
