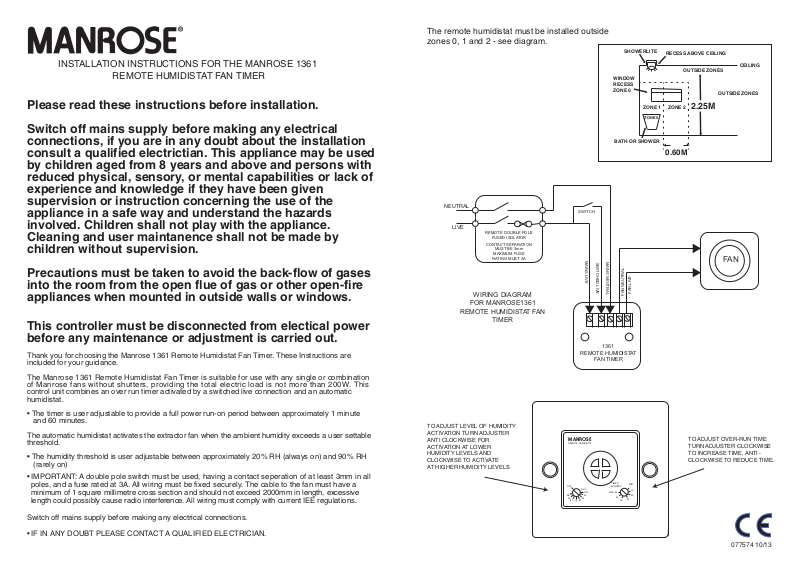

INSTALLATION INSTRUCTIONS FOR THE MANROSE 1361
REMOTE HUMIDISTAT FAN TIMER
Please read these instructions before installation.
Switch off mains supply before making any electrical
connections, if you are in any doubt about the installation
consult a qualified electrictian. This appliance may be used
by children aged from 8 years and above and persons with
reduced physical, sensory, or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintanence shall not be made by
children without supervision.
Precautions must be taken to avoid the back-flow of gases
into the room from the open flue of gas or other open-fire
appliances when mounted in outside walls or windows.
This controller must be disconnected from electical power
before any maintenance or adjustment is carried out.
Thank you for choosing the Manrose 1361 Remote Humidistat Fan Timer. These Instructions are
included for your guidance.
The Manrose 1361 Remote Humidistat Fan Timer is suitable for use with any single or combination
of Manrose fans without shutters, providing the total electric load is not more than 200W. This
control unit combines an over run timer activated by a switched live connection and an automatic
humidistat.
• The timer is user adjustable to provide a full power run-on period between approximately 1 minute
and 60 minutes.
The automatic humidistat activates the extractor fan when the ambient humidity exceeds a user settable
threshold.
• The humidity threshold is user adjustable between approximately 20% RH (always on) and 90% RH
(rarely on)
• IMPORTANT: A double pole switch must be used, having a contact seperation of at least 3mm in all
poles, and a fuse rated at 3A. All wiring must be fixed securely. The cable to the fan must have a
minimum of 1 square millimetre cross section and should not exceed 2000mm in length, excessive
length could possibly cause radio interference. All wiring must comply with current IEE regulations.
The remote humidistat must be installed outside
zones 0, 1 and 2 - see diagram.
NEUTRAL
LIVE
REMOTE DOUBLE POLE
FUSED ISOLATOR
CONTACT SEPARATION
MUST BE 3mm
MAXIMUM FUSE
RATING MUST 3A
WIRING DIAGRAM
FOR MANROSE1361
REMOTE HUMIDISTAT FAN
TIMER
TO ADJUST LEVEL OF HUMIDITY
ACTIVATION TURN ADJUSTER
ANTI CLOCKWISE FOR
ACTIVATION AT LOWER
HUMIDITY LEVELS AND
CLOCKWISE TO ACTIVATE
AT HIGHER HUMIDITY LEVELS
SWITCH
MAINS LIVE
SWITCHED LIVE
REMOTE HUMIDISTAT
FAN TIMER
MANROSE
REMOTE HUMIDISTAT
OFF
RH %
ON
98
40
90
50
80
60
70
SHOWERLITE
WINDOW
RECESS
ZONE 0
BATH OR SHOWER
MAINS NEUTRAL
FAN NEUTRAL
1361
TIMER
MINUTES
60
MAX
50
30
40
FAN LIVE
MIN
1
10
20
RECESS ABOVE CEILING
ZONE 2
ZONE 1
ZONE 0
0.60M
OUTSIDE ZONES
CEILING
OUTSIDE ZONES
2.25M
FAN
TO ADJUST OVER-RUN TIME
TURN ADJUSTER CLOCKWISE
TO INCREASE TIME, ANTI CLOCKWISE TO REDUCE TIME.
Switch off mains supply before making any electrical connections.
• IF IN ANY DOUBT PLEASE CONTACT A QUALIFIED ELECTRICIAN.
077574 10/13
