Model # MB 00730
# MB 00730-DISP

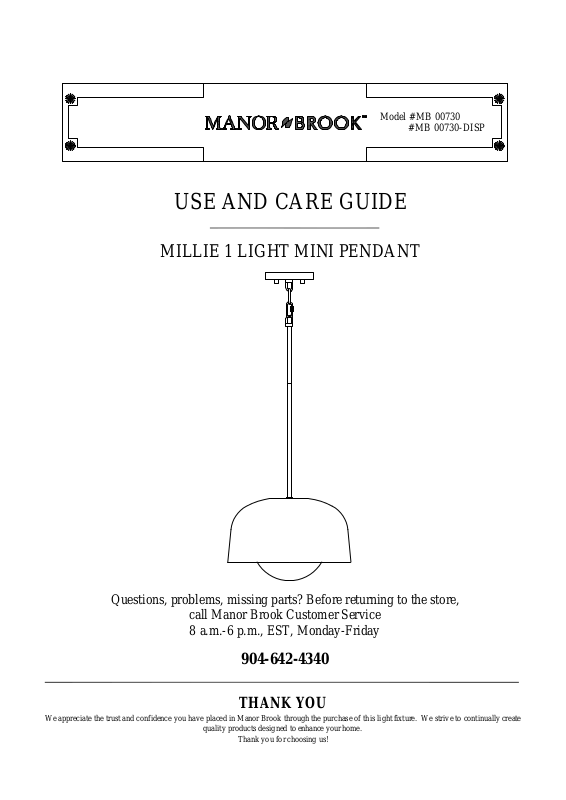

USE AND CARE GUIDE
MILLIE 1 LIGHT MINI PENDANT
Questions, problems, missing parts? Before returning to the store,
call Manor Brook Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
904-642-4340
THANK YOU
We appreciate the trust and confidence you have placed in Manor Brook through the purchase of this light fixture. We strive to continually create
quality products designed to enhance your home.
Thank you for choosing us!
Page 2
Table of Contents
Safety Information .................................................... 2 Assembly ..................................................................... 5
Warranty ................................................................... 2 Installation ............................................................5, 6, 7
Pre-Installation .......................................................... 3 Care and Cleaning ........................................................ 7
Planning Installation ............................................ 3 Troubleshooting ........................................................... 7
Tools Required ..................................................... 3
Hardware Included ............................................... 3
Package Contents ................................................. 4
Safety Information
□ Consult a qualified electrician with any
electrical questions you may have.
IMPORTANT: Inspect the wire insulation for any cuts,
abrasions, or exposed copper that may have occurred
during shipping. If there is a defect in the wire, do not
continue the assembly process. Please call our Customer
Service Team at 904-642-4340.
Warranty
1-YEAR LIMITED WARRANTY
WHAT IS COVERED
The manufacturer warrants this lighting fixture to be free from defects in the materials and workmanship for a period
of one (1) year from date of purchase. This warranty applies only to the original consumer purchaser and only to
products used in normal use. If this product is found to be defective, the manufacturer's only obligation, and your
exclusive remedy, is the repair or replacement of the product at the manufacturer's discretion, provided that the
product has not been damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling.
This warranty shall not apply to any product that is found to have been improperly installed, assembled, or used in
any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure
of the product as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure
not relating to faulty material or workmanship.
WHAT IS NOT COVERED
This warranty shall not apply to the finish on any portion of the product due to weathering, as this is considered
normal wear. The manufacturer does not warrant and specifically disclaims any warranty, whether expressed or
implied, other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not
be liable for any consequential or incidental loss or damage, including but not limited to, any labor or expense costs
involved in the replacement or repair of the product.
Contact the Customer Service Team at 904-642-4340.
2
Page 3
Pre-Installation
PLANNING INSTALLATION
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or
cardboard. Inspect each part for defects that may have occurred during shipping.
Keep your receipt and these instructions for proof of purchase.
NOTE: This light fixture requires the use of one 120V, 60Hz,
60-Watt max, medium-base type A bulb (not included).
Do not exceed the recommended wattage.
TOOLS REQUIRED
Safety
goggles
Wire
strippers
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
EE
Phillips
screwdriver
Wire cutters
BB CC
FF
GG
Flathead
screwdriver
Ladder
Pliers
Electrical
tape
DD
Part
AA
BB
CC
DD
EE
FF
GG
Description
Wire nut
Mounting plate
Outlet box screw
Mounting screw
Ground screw
Small nut
Finial
Quantity
3
1
2
2
1
2
2
3
Please contact 904-642-4340 for further assistance.
Page 4
Pre-Installation (continued)

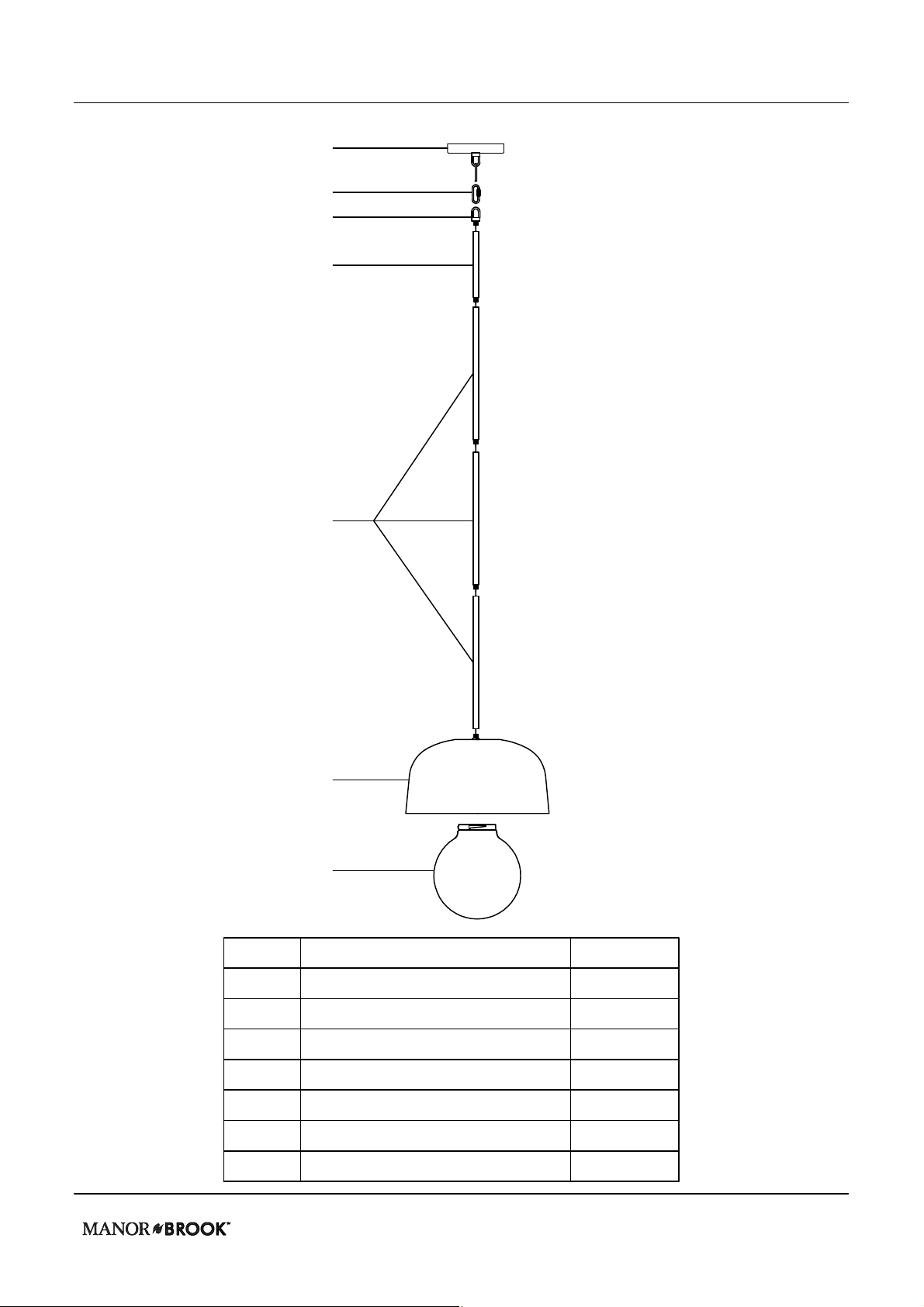

PACKAGE CONTENTS
A
B
C
D
E
Part
A
B
C
D
E
F
G
F
G
Description Quantity
Canopy assembly
Quick link
Loop
6 inches extension tube
Glass shade
1
1
1
1
1Fixture body
1
312 inches extension tube
4
Page 5
Assembly
Installation

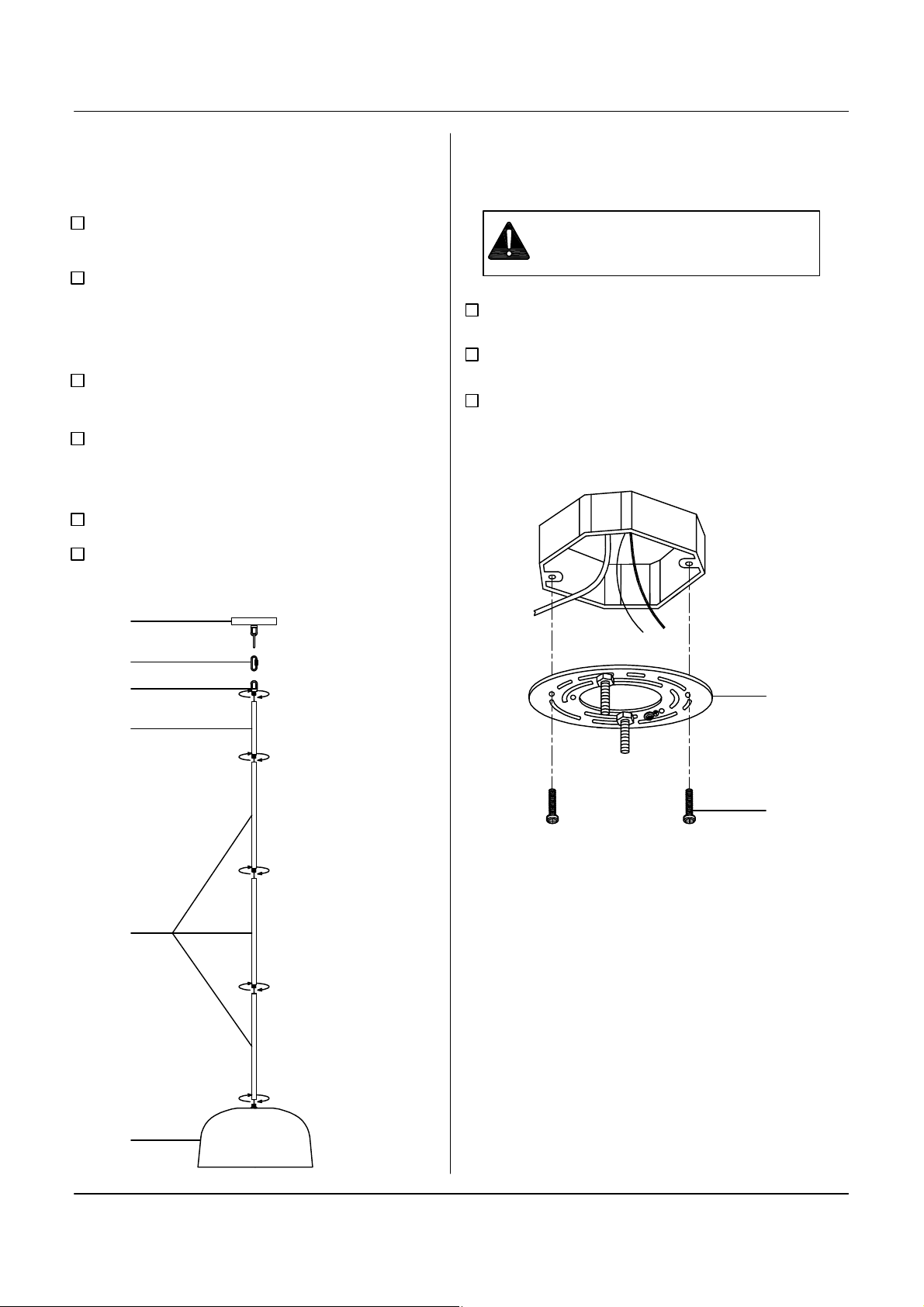

1 Assembling the light fixture
Carefully unpack the fixture and lay out all
parts on clean surface.
Determine how many extension tubes you
would like to use. The numbers of tubes you use
depends on the length you desire for the
installed light fixture.
Feed the fixture wires up through the 12" tubes
(E), the 6" tube (D).
Attach the desired number of tubes (D and E) to
the fixture body (F) by screwing the tubes in a
clockwise direction.
Screw loop (C) to top of the extension tube.
Attach quick link (B) to the bottom of canopy
assembly (A) and loop (C) to hang the fixture.
A
1 Installing the mounting plate
CAUTION: Ensure the power is off at the
main fuse box prior to beginning installation.
Turn off the switch at the wall.
Turn the power off at the main fuse box.
Attach the mounting plate (BB) to the outlet box
using the outlet box screws (CC).
C
D
B
BB
CC
E
F
5
Please contact 904-642-4340 for further assistance.
Page 6
Installation (continued)

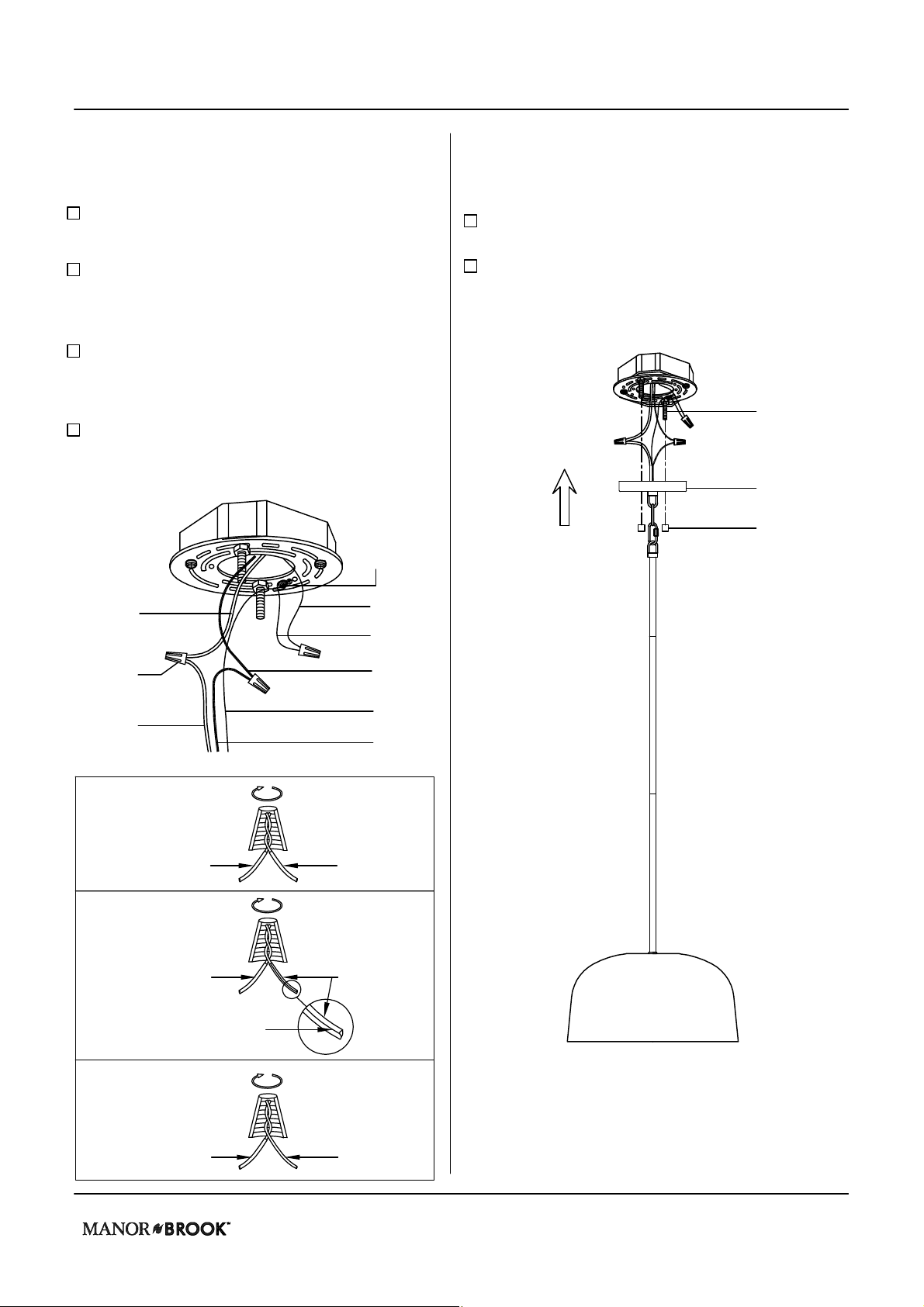

2 Connecting the wires
Install the fixture bare ground wire (1) under the
ground screw (EE) on the mounting plate (BB).
Connect the fixture bare ground wire (1) to the
green (or bare, or green & yellow)supply ground
wire (2) in the outlet box using a wire nut (AA).
Connect the white fixture wire (3) to the white
(or ribbed) supply wire (4) in the outlet box
using a wire nut (AA).
Connect the black fixture wire (5) to the black
(or red, or blue) supply wire (6) in the outlet box
using a wire nut (AA).
EE
4
2
1
3 Hanging the light fixture
Push all excess wires into the outlet box.
Raise the canopy (A) to the ceiling and secure in
place by screwing the two finials (GG) to the
nipples of the mounting screws (DD).
DD
A
GG
AA
3
House wire
black
(or red, or blue)
(HOT)
House wire
white
(NEUTRAL)
Ribbed line
House wire
green
(or bare wire,
or green & yellow)
(GROUND)
6
1
5
Fixture wire
smooth
(HOT)
Fixture wire
ribbed
(NEUTRAL)
Fixture wire
bare wire
(GROUND)
6
Page 7
Installation (continued)

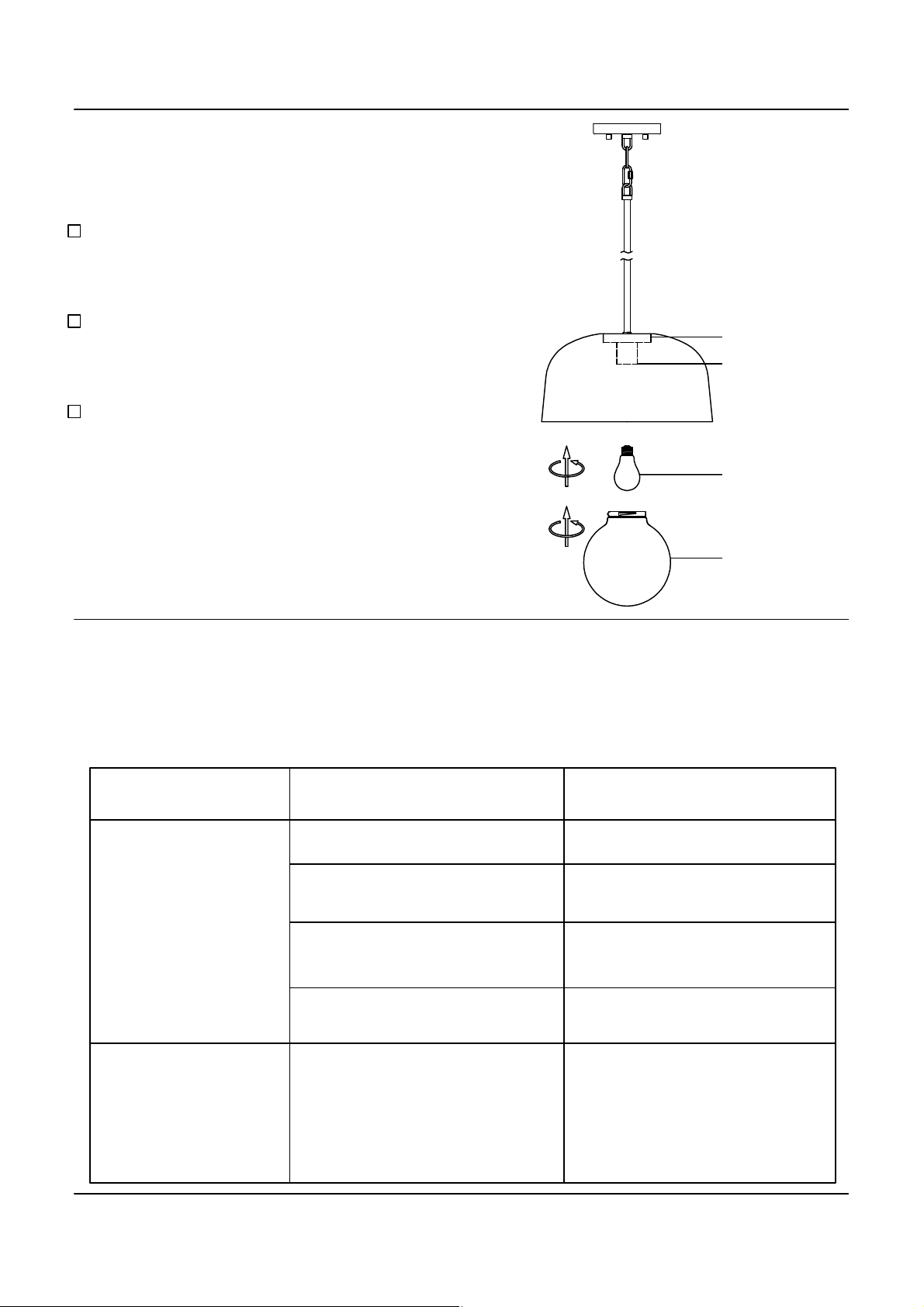

4 Installing the bulb & assembling glass shade
Prior to installing the bulb, inspect socket for silica
packet. If packet is present, then remove and throw
away. Do not expose it to children or pets.
Install one 120V, 60Hz, 60-watt max., medium-base,
type A bulb (not included) into the socket of fixture
body.
Secure the glass shade (G) to bottom of the cup by
twisting it.
Cup
Socket
Bulb
(Not included)
G
Care and Cleaning
□ Clean the light fixture with a soft, dry cloth. Do not use any cleaners with chemicals, solvents, or harsh abrasives.
Troubleshooting
Problem
The bulb will not light.
Possible Cause
□ The bulb is burned out.
□ The power is off.
□ There is a faulty wire connection.
□ The circuit breaker is off.
Solution
□ Replace the light bulb.
□ Ensure that the power supply is
turned on.
□ Check the wiring.
□ Ensure that the circuit breaker
is set in the on position.
The fuse blows or a
circuit breaker trips when
the light is turned on.
□ There is an exposed wire.
□ There are too many items on
one circuit.
7
□ Discontinue use of the light
fixture.
□ Contact a qualified electrician or
call the Customer Service Team at
904-642-4340.
□ Unplug other items on the circuit.
Please contact 904-642-4340 for further assistance.
Page 8
Questions, problems, missing parts? Before returning to the store,
call Manor Brook Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
904-642-4340
Retain this manual for future use.
