FOREWORD

This operating manual applies to the persons using the Safety Breakaway Couplings –
Cable release version.

It is very important to read and understand this operation manual before use of this
coupling. Become familiar with the unit’s operation, applications and limitations. Be
particularly aware of its specific hazards. Store this manual in a clean area and always at a
readily available location. Additional copies at no charge can be obtained through written
requests.

IMPORTANT!!

READ THE COMPLETE DOCUMENTATION

The base for this manual follows the EU-Directives:

Pressure Equipment Directive 2014/68/EU of 15 May 2014

Potentially Explosion Atmosphere Directive 2014/34/EU of 29 March 2014

• Do not make modifications that are not authorized by the manufacturer.

• Read and respect all warnings and instructions provided to you.

• Use only original MannTek spare parts for maintenance.

SUMMARY OF REVISIONS

Date of change

Description

2015-05-21

1. Edition

2018-10-09

General review & New layout, Updated EU-Directives

Operating Manual

2018-10-09 3 of 20

TABLE OF CONTENT

Foreword ....................................................................................................................................................... 1

Summary of revisions ................................................................................................................................... 2

Table of Content ........................................................................................................................................... 3

1 Introduction .......................................................................................................................................... 4

1.1 Intended use .................................................................................................................................... 4

1.2 Range of applications ...................................................................................................................... 4

1.3 Product specification........................................................................................................................ 5

1.4 Technical data ................................................................................................................................. 5

1.5 Triggering forces .............................................................................................................................. 6

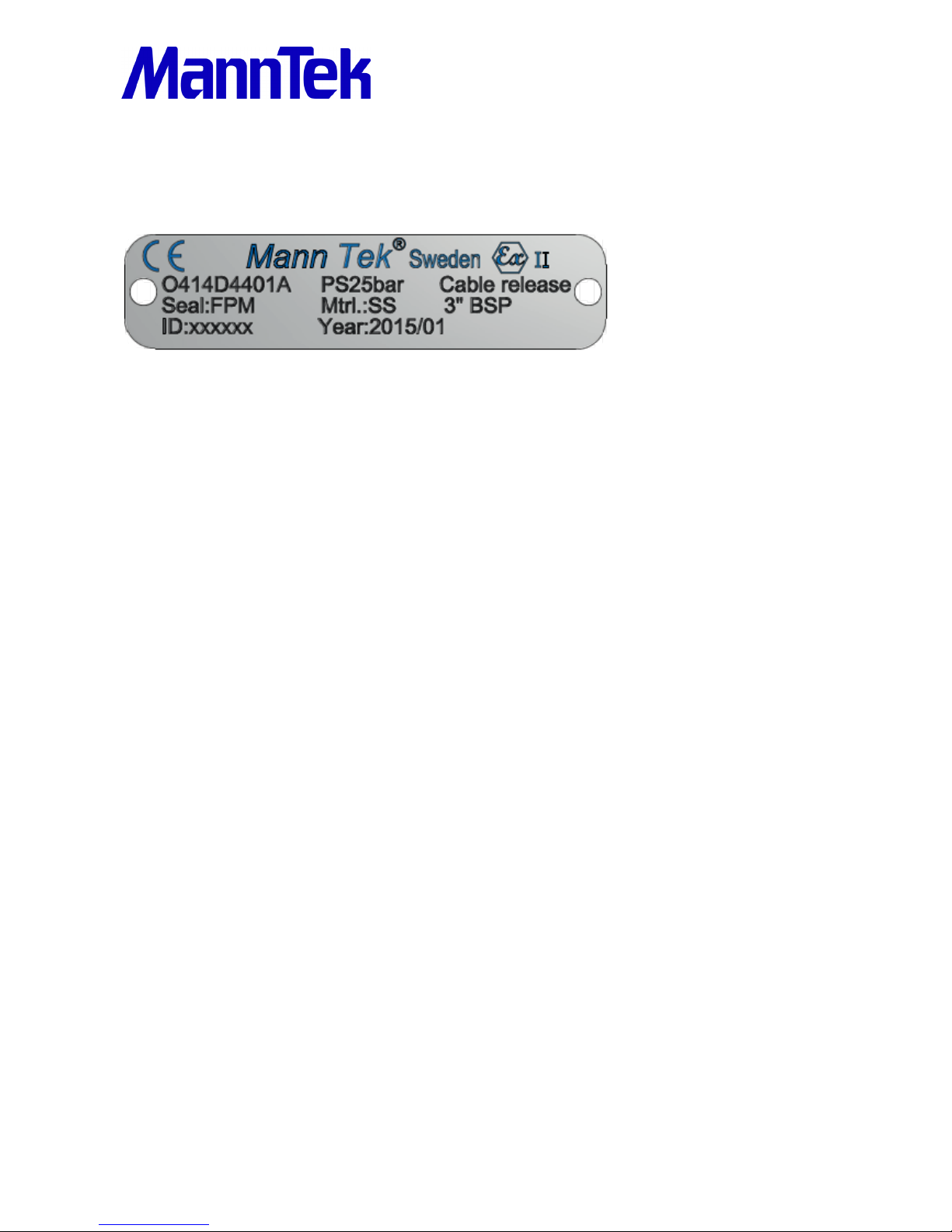

1.6 Identification plate e.g. for SBC-C 3”-3”BSP ................................................................................ 7

1.7 Scope of delivery ............................................................................................................................. 7

2 General Safety Rules ........................................................................................................................... 8

2.1 Safety Instructions ........................................................................................................................... 8

3 Transport and storage .......................................................................................................................... 9

3.1 Delivery Check ................................................................................................................................. 9

3.2 Complaints / Return of goods .......................................................................................................... 9

3.3 Returning Used Product .................................................................................................................. 9

3.4 Sample of Certificate of Decontamination ..................................................................................... 10

3.5 Storage .......................................................................................................................................... 10

4 Installation .......................................................................................................................................... 11

4.1 Initial operation .............................................................................................................................. 11

4.2 Installation ...................................................................................................................................... 11

5 Operation ........................................................................................................................................... 14

5.1 General notes ................................................................................................................................ 14

5.2 Daily visual inspection ................................................................................................................... 14

5.3 Cleaning ......................................................................................................................................... 14

5.4 Disassembly .................................................................................................................................. 14

5.5 Improper use .................................................................................................................................. 14

5.6 Maintenance / repair ...................................................................................................................... 14

5.7 Miscellaneous ................................................................................................................................ 14

6 Maintenance and repair ..................................................................................................................... 15

6.1 General information ....................................................................................................................... 15

6.2 Maintenance and service instruction ............................................................................................. 16

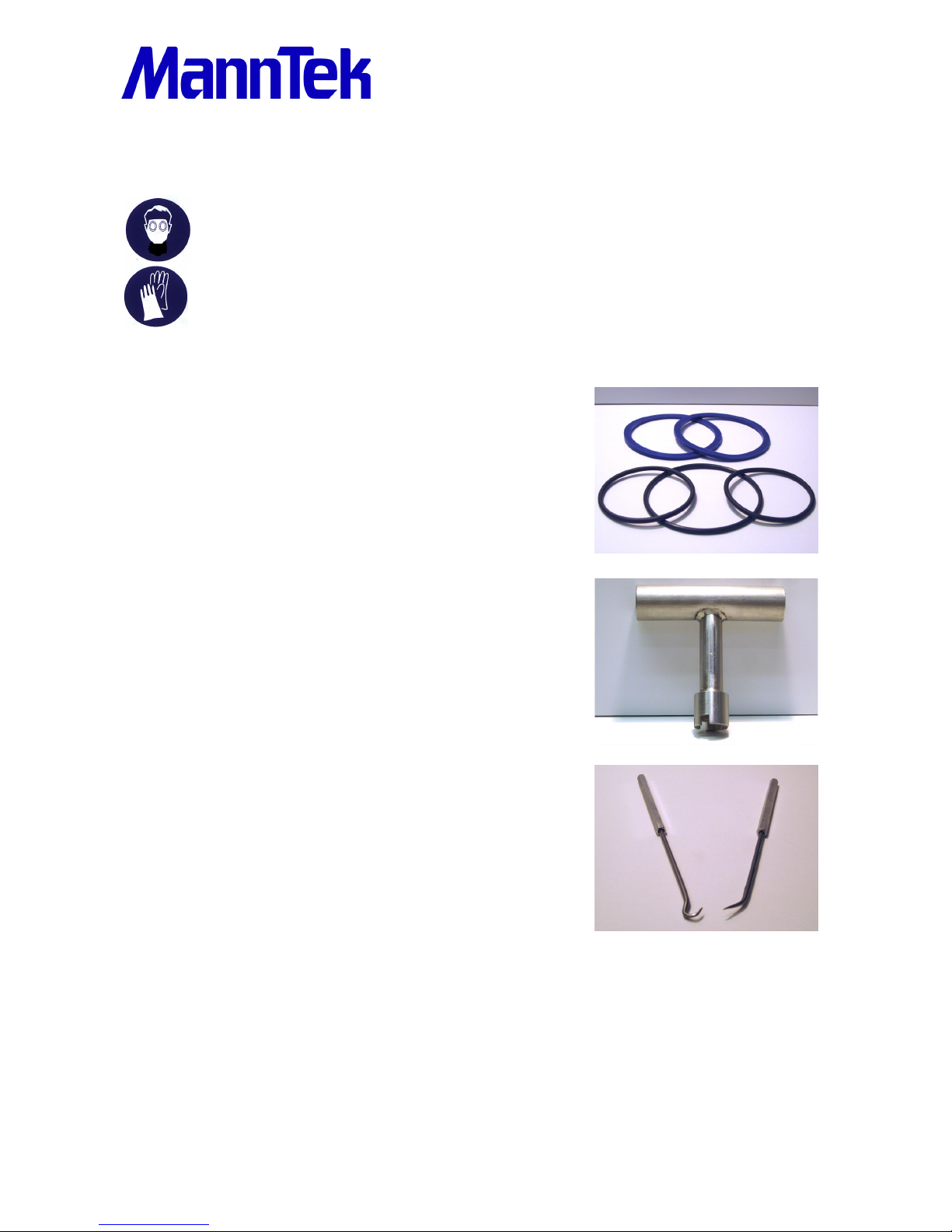

6.3 Spare parts and tools..................................................................................................................... 16

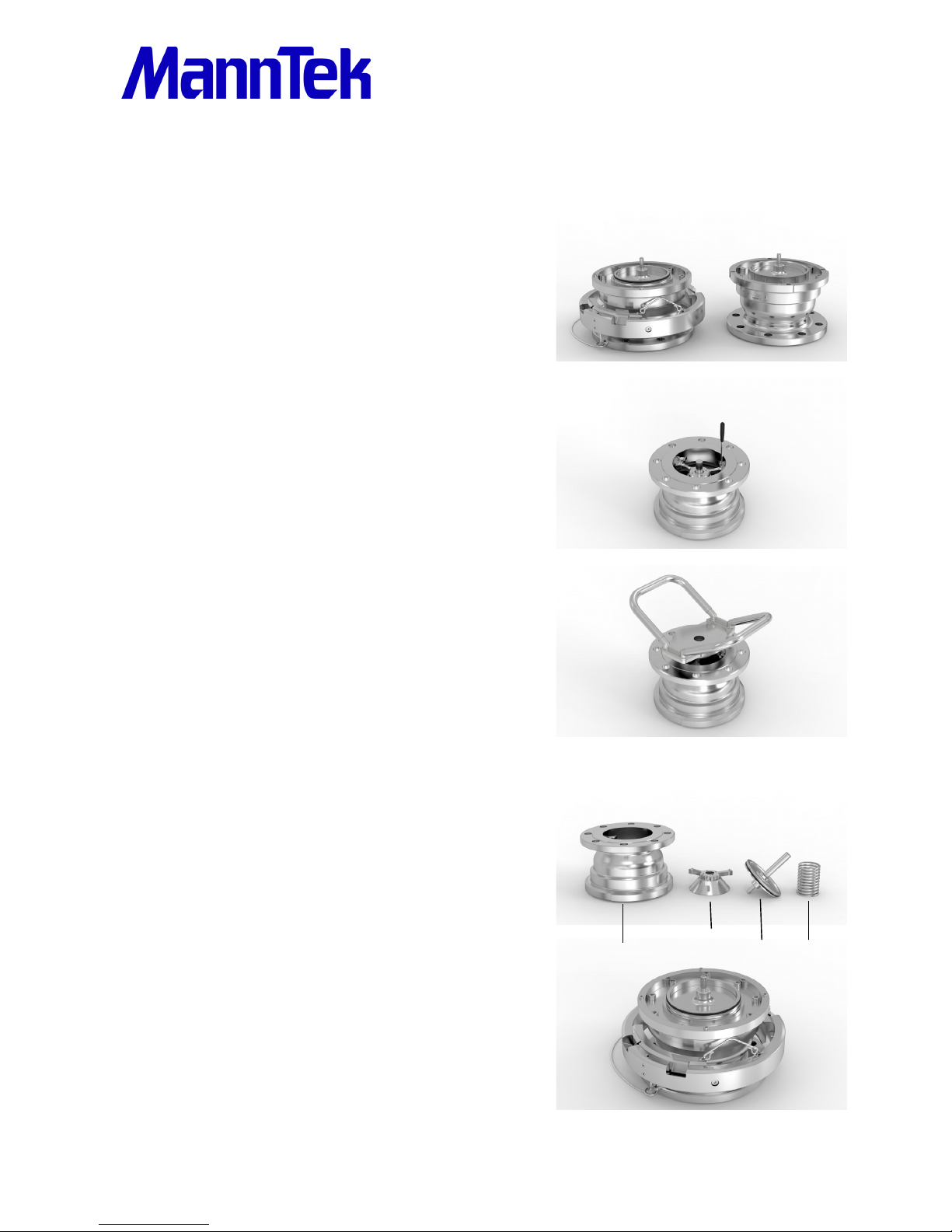

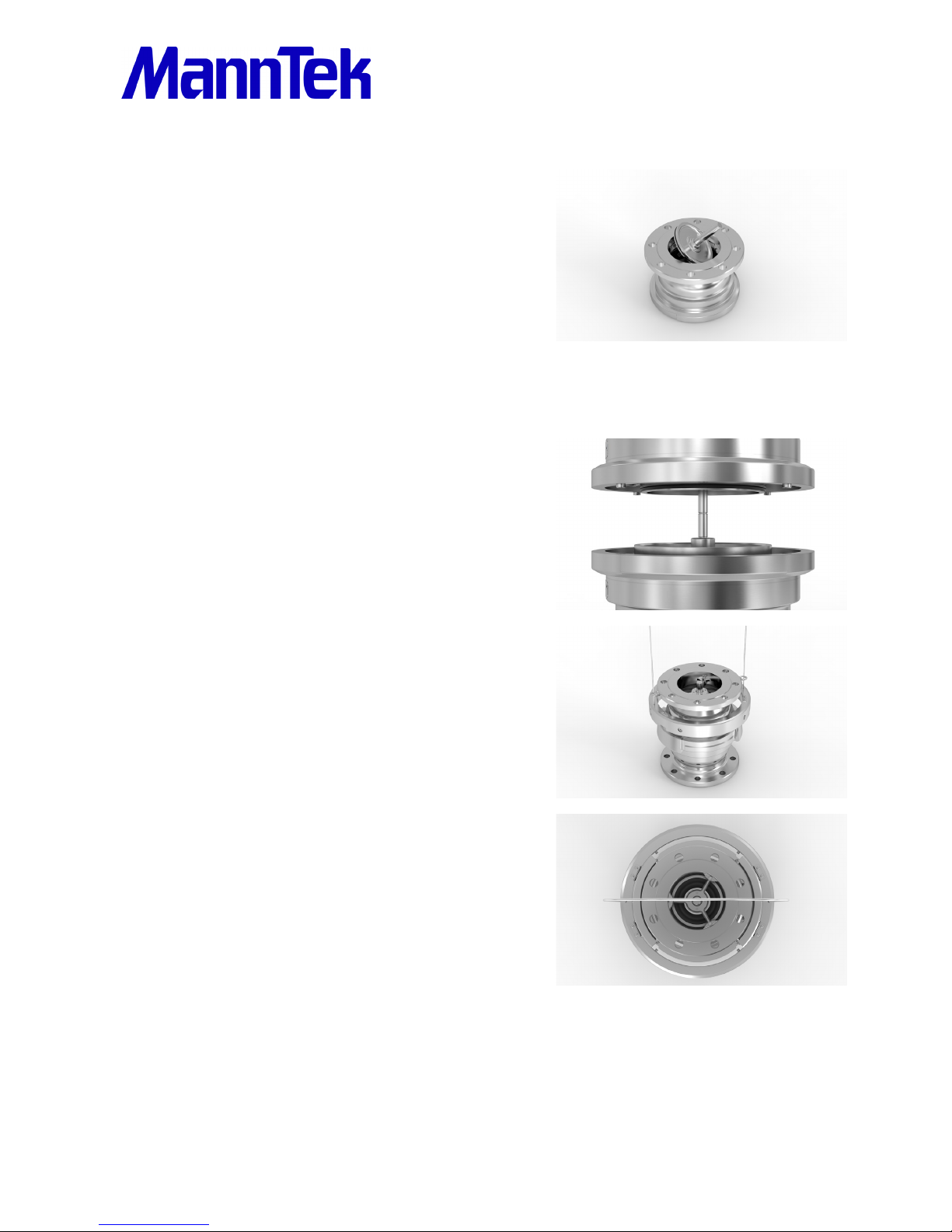

6.4 Assembly ....................................................................................................................................... 17

6.5 Pressure and tightness test ........................................................................................................... 19

7 Applicable documents ........................................................................................................................ 20

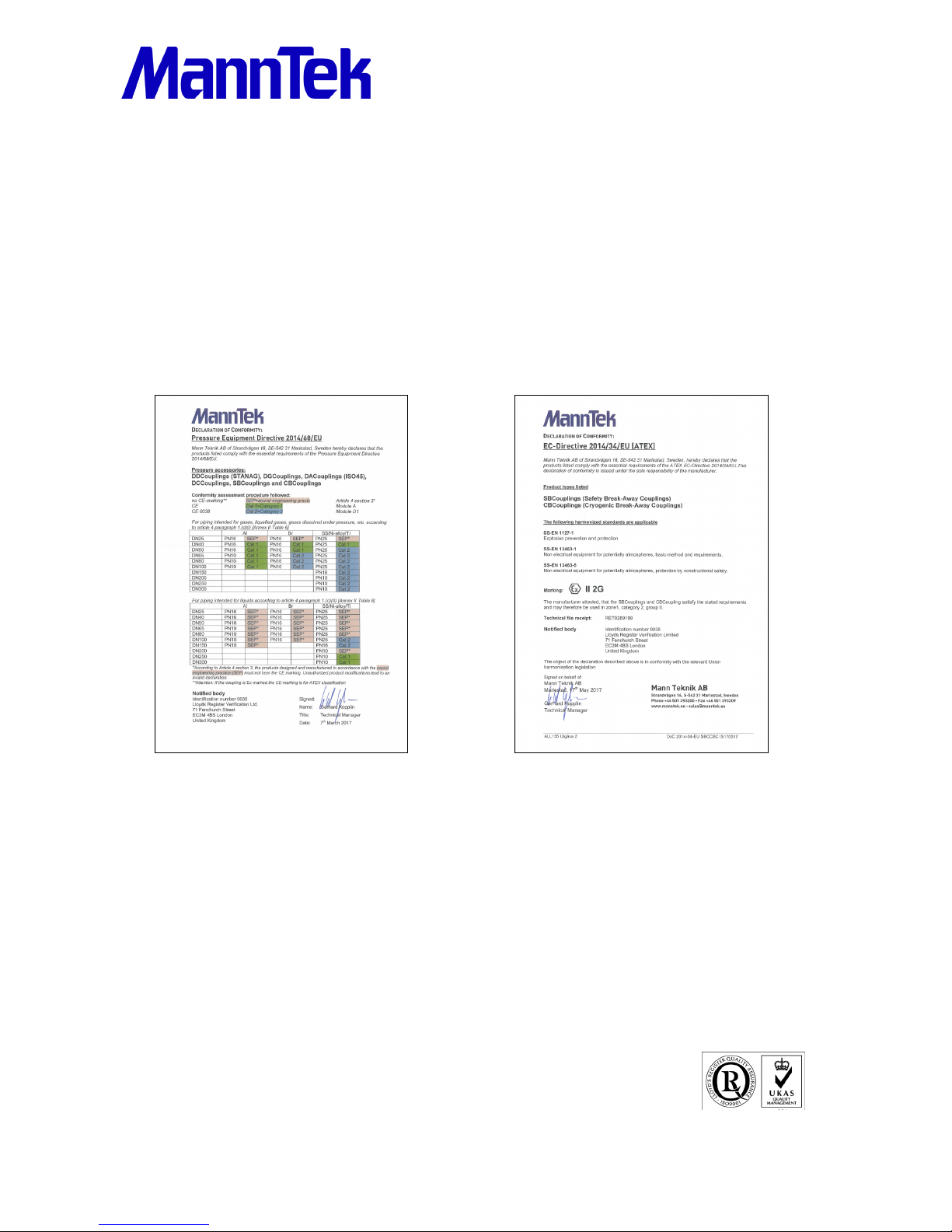

7.1 Declaration of Conformity .............................................................................................................. 20

Operating Manual

2018-10-09 4 of 20

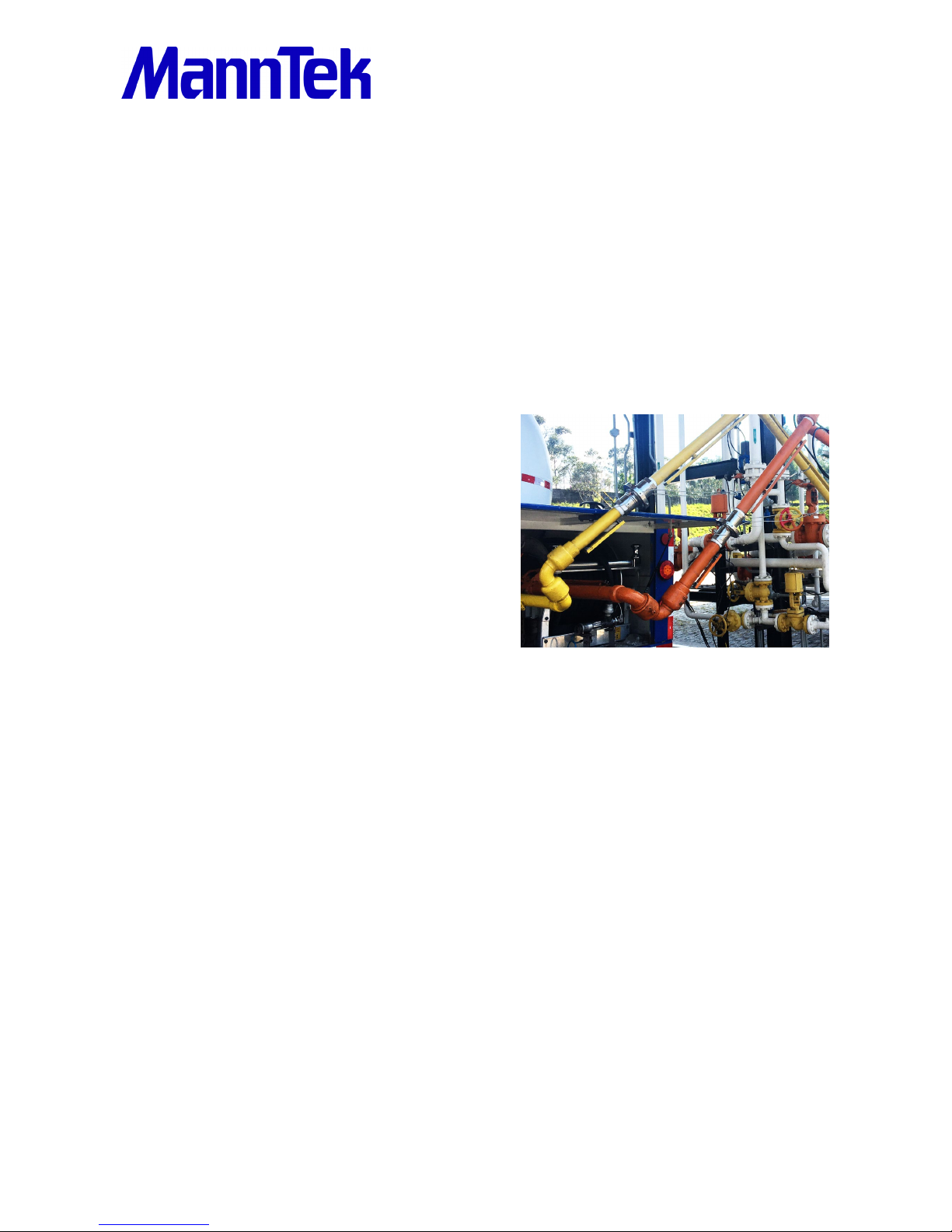

1 INTRODUCTION

1.1 INTENDED USE

This guide for safety breakaway couplings SBC is intended for operators and planners of tankers and tank

systems as well as for hose assembly workshops and hose assembly workshop maintenance engineers. The

safety breakaway coupling acts as a safety component in the supply line of mobile refuelling systems,

preventing damage to the environment whenever the supply pipe bursts during filling or emptying due to a

change in location of the tank. The coupling valves on the tank and on the supply line immediately close

whenever the housing halves break away.

SBC safety breakaway couplings of MannTek include special features:

• High quality processing

• Sturdy design

• Low wear

• Tamper-proof

• Safe operation

• Release angle up to 90° through two pressure

clamps on activation mechanism

• Maintenance-friendly

• Wide spectrum of application

1.2 RANGE OF APPLICATIONS

Industrial

• Plant engineering

• Power plant construction

• Chemical industry

• Food processing industry

• Process technology

• Tank cleaning

Media

• Lyes and acids

• Fuels and oils

• Gases

• LPG/ LNG & CNG

• Materials hazardous to

the environment and

water

Filling systems

• Airfields

• Railroads and wagons

• Tank trucks

• Ships

• Tank containers

• Liquefied gas

Operating Manual

2018-10-09 5 of 20

1.3 PRODUCT SPECIFICATION

Product name: Safety Breakaway Coupling
Sizes: 1”, 2“, 2½“, 3“, 4”, 5” and 6”
Thread Connection: BSP-Thread ISO 228, NPT-Thread ANSI B1.20.1

BSPT-Thread EN 10226, ACME, S60x6
Flange Connection: Flange EN 1092, ANSI B16.5, DIN 28459, T.T.M.A., BS 10
Other Connection: MIL-C-10387J, DIN 11850, DIN 11864, DIN 32676, ISO 2852
Material (casting): EN 10213 – 1.4408/1.4409+AT

ASTM A351 – CF-3M or CF-8M EN 1982 – CC491K

EN 1706 – AC-42000/42100-T6
Material (machined): EN 10272 – 1.4401/1.4404+AT

ASTM A479 – S31603 (316L) EN 12164 – CW614N

EN 755-2 – EN AC-5083 or AC-6026/6262-T6
Working pressure: 10 bar / 16 bar / 25 bar / 150 psi / 360 psi Max test pressure: 16 bar / 25 bar / 40

bar / 240 psi / 540 psi
Temperature range: -20ºC to + 80ºC -Outside this range, between -54ºC and + 250ºC ask for

confirmation

1.4 T

ECHNICAL DATA

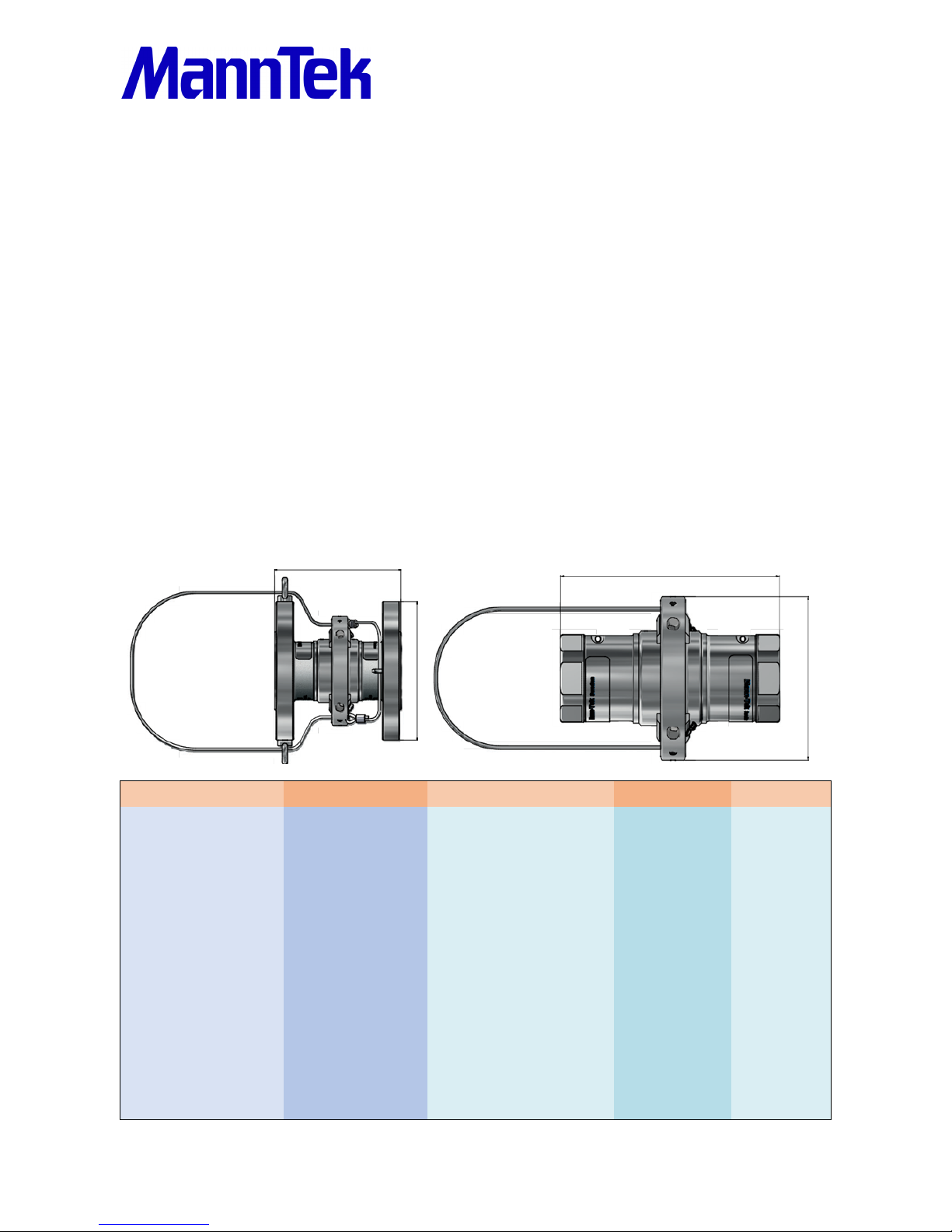

Table 1: Nominal Widths, Weight and Dimensions [mm]

Nominal width

Connection

KG (Stainless steel)

D (mm)

L (mm)

DN25- 1”

1” Thread

2,5

100

141

1” Flange

5

115

132

DN50- 2”

2” Thread

3,5

120

178

2” Flange

8,5

165

150

DN65- 2½”

2½” Thread

10

155

251

2½” Flange

16

190

214

DN80 - 3”

3” Thread

12

185

279

3” Flange

18

210

222

DN100- 4”

4“ Thread

20

220

320

4” Flange

25

255

239

DN150- 6”

6” Thread

55

310

400

6” Flange

68

320

384

Operating Manual

2018-10-09 6 of 20

Table 2: Materials

Component Material no. Standard Operating temperature

Housing Check

valve

1.4404 EN 10270-1.4401+AT

-54°C to 250° C

1.4409 EN 10213-1.4409+AT

CW614N EN 12164-CW614N

-54°C to 200° C

CB491K EN 1982.CB491K-GS

5083 EN 755- AW-5083

-54°C to 100° C

6262 EN 755- AW 6262-T6

42100 EN 1706-AC-42100-T6

Spring 1.44.1 EN10270-1.4401 -54°C to 250° C

Table 3: Seals

Component Material Standard 2 Operating temperature1

O-ring

NBR Perbunan TM , Buna N -38° C to 80° C

EPDM Buna AP -54° C to 120° C

FFKM Kalrez TM , Chemraz TM -15° C to 260° C

FKM Viton TM -20° C to 200° C

1.5 TRIGGERING FORCES

Table 4: Forces on the pull cable (calculated)

Nominal width Release force at 25 bar nominal pressure

0° release angle 60° release angle

DN25-1“ 0,15 kN 0,2 kN

DN50-2“ 0,25 kN 0,4 kN

DN65-2½“ 0,4 kN 0,8 kN

DN80-3“ 0,4 kN 0,8 kN

DN100-4“ 1,3 kN 1,6 kN

DN150-6“ 3,6 kN 4,5 kN

Table 5: Max spill under disconnection at max working pressure:

Nominal width DN 25 DN 50 DN 65 DN 80 DN 100 DN 125 DN 150

Max. spill at WP 0,05 l 0,1 l 0,2 l 0,4 l 0,6 l 1,2 l 2,0 l
