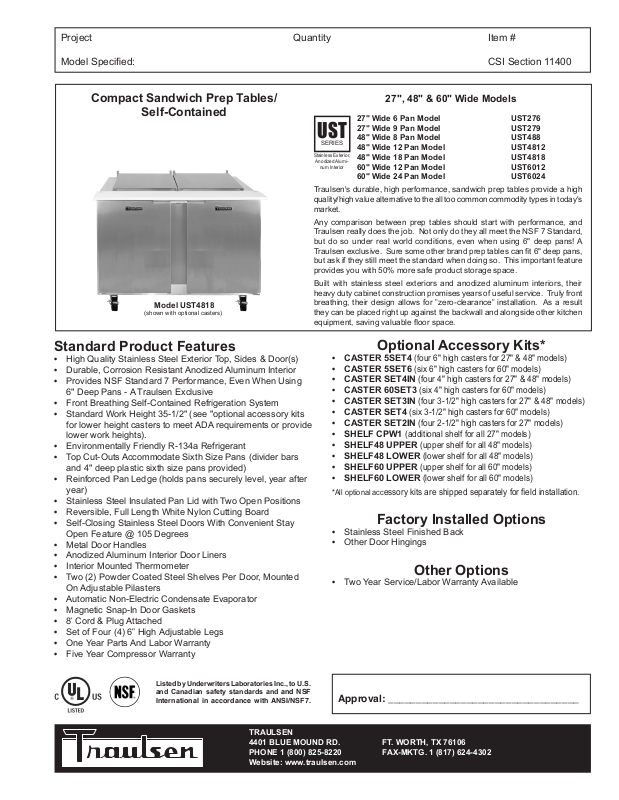

Compact Sandwich Prep Tables/

Self-Contained

Model UST4818

(shown with optional casters)

Standard Product Features

• High Quality Stainless Steel Exterior Top, Sides & Door(s)

• Durable, Corrosion Resistant Anodized Aluminum Interior

• Provides NSF Standard 7 Performance, Even When Using

6" Deep Pans - A Traulsen Exclusive

• Front Breathing Self-Contained Refrigeration System

• Standard Work Height 35-1/2" (see "optional accessory kits

for lower height casters to meet ADA requirements or provide

lower work heights).

• Environmentally Friendly R-134a Refrigerant

• Top Cut-Outs Accommodate Sixth Size Pans (divider bars

and 4" deep plastic sixth size pans provided)

• Reinforced Pan Ledge (holds pans securely level, year after

year)

• Stainless Steel Insulated Pan Lid with Two Open Positions

• Reversible, Full Length White Nylon Cutting Board

• Self-Closing Stainless Steel Doors With Convenient Stay

Open Feature @ 105 Degrees

• Metal Door Handles

• Anodized Aluminum Interior Door Liners

• Interior Mounted Thermometer

• Two (2) Powder Coated Steel Shelves Per Door, Mounted

On Adjustable Pilasters

• Automatic Non-Electric Condensate Evaporator

• Magnetic Snap-In Door Gaskets

• 8' Cord & Plug Attached

• Set of Four (4) 6" High Adjustable Legs

• One Year Parts And Labor Warranty

• Five Year Compressor Warranty

27", 48" & 60" Wide Models

27" Wide 6 Pan Model UST276

UST

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

Traulsen's durable, high performance, sandwich prep tables provide a high
quality/high value alternative to the all too common commodity types in today's

market.

Any comparison between prep tables should start with performance, and

Traulsen really does the job. Not only do they all meet the NSF 7 Standard,

but do so under real world conditions, even when using 6" deep pans! A
Traulsen exclusive. Sure some other brand prep tables can t 6" deep pans,

but ask if they still meet the standard when doing so. This important feature

provides you with 50% more safe product storage space.

Built with stainless steel exteriors and anodized aluminum interiors, their

heavy duty cabinet construction promises years of useful service. Truly front
breathing, their design allows for "zero-clearance" installation. As a result
they can be placed right up against the backwall and alongside other kitchen

equipment, saving valuable oor space.

27" Wide 9 Pan Model UST279
48" Wide 8 Pan Model UST488
48" Wide 12 Pan Model UST4812
48" Wide 18 Pan Model UST4818
60" Wide 12 Pan Model UST6012
60" Wide 24 Pan Model UST6024

Optional Accessory Kits*

• CASTER 5SET4

• CASTER 5SET6

• CASTER SET4IN

• CASTER 60SET3

• CASTER SET3IN

• CASTER SET4

• CASTER SET2IN

• SHELF CPW1

• SHELF48 UPPER

• SHELF48 LOWER

• SHELF60 UPPER

• SHELF60 LOWER

*All optional accessory kits are shipped separately for eld installation.

(four 6" high casters for 27" & 48" models)
(six 6" high casters for 60" models)

(four 4" high casters for 27" & 48" models)

(six 4" high casters for 60" models)

(four 3-1/2" high casters for 27" & 48" models)

(six 3-1/2" high casters for 60" models)

(four 2-1/2" high casters for 27" models)

(additional shelf for all 27" models)

(upper shelf for all 48" models)

(lower shelf for all 48" models)

(upper shelf for all 60" models)

(lower shelf for all 60" models)

Factory Installed Options

• Stainless Steel Finished Back

• Other Door Hingings

Other Options

• Two Year Service/Labor Warranty Available

Listed by Underwriters Laboratories Inc., to U.S.
and Canadian safety standards and and NSF

International in accordance with ANSI/NSF7.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: __________________________________

Project Quantity Item #

Model Specied: CSI Section 11400

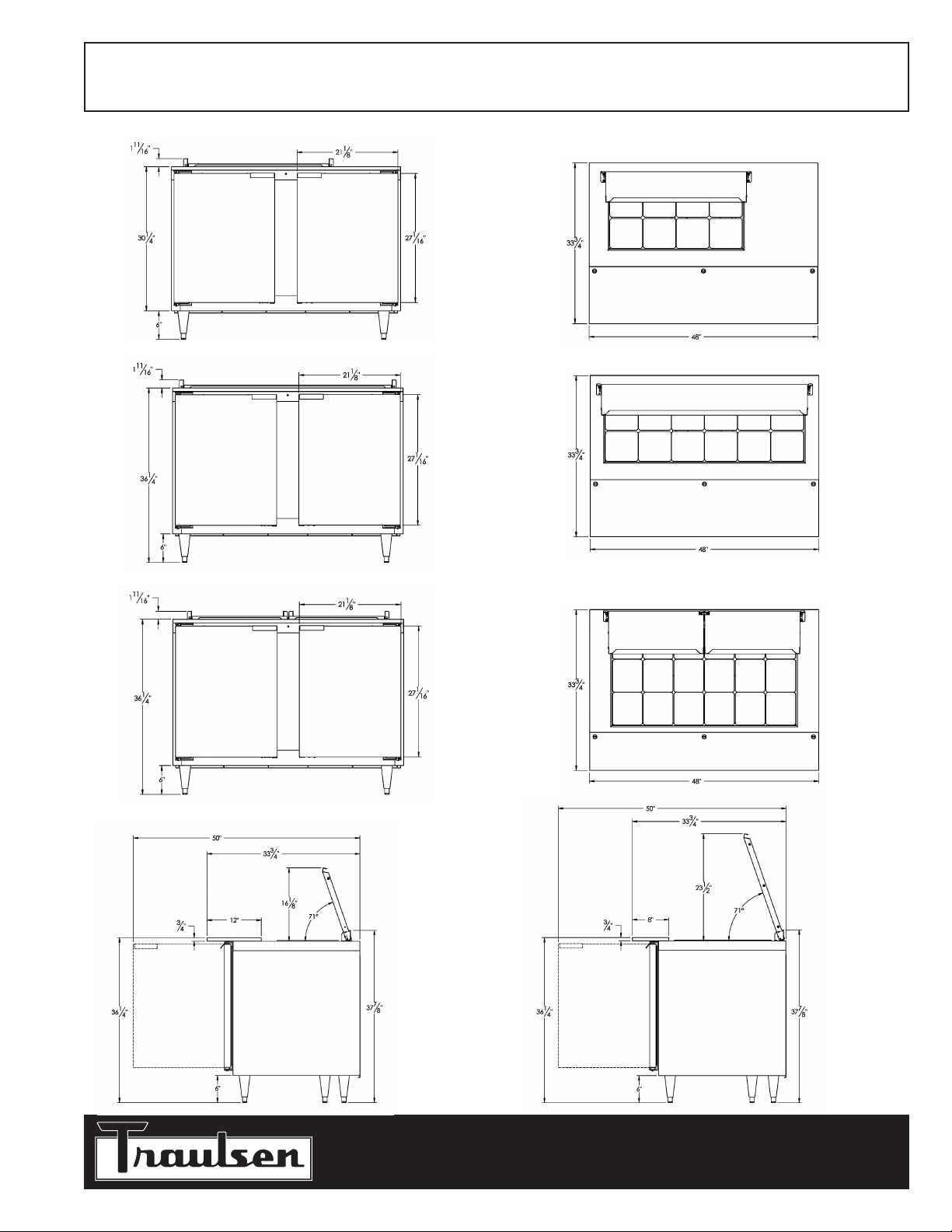

Elevation UST276 Plan UST276 Elevation UST279 Plan UST279

Section UST276

& UST6012

Section UST279

& UST6024

Elevation UST6012 Elevation 6024

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Plan UST6024Plan UST6012

Project Quantity Item #

Model Specied: CSI Section 11400

Plan UST488

Elevation UST488

Elevation UST4812

Elevation UST4818

Plan UST4812

Plan UST4818

Section UST488

& UST4812

Section

UST4818

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Project Quantity Item #

Model Specied: CSI Section 11400

Specications

Construction, Hardware and Insulation

Cabinet exterior front, one piece sides, pan lid, and doors are constructed of 22
gauge stainless steel. Cabinet interior and door liners are constructed of anodized
aluminum. The exterior cabinet back and bottom are constructed of galvanized steel.

Doors self close at less than 90 degrees and also includes a stay open feature at
105 degrees. Easily removable for cleaning, vinyl magnetic door gasket assures

tight door seal.

Both the cabinet and doors are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.

A 3/4" thick, full-length, reversible white nylon cutting board is supplied standard.

Pans & Cover

Each model is supplied standard with its full compliment of 4" deep plastic 1/6 size

pans and stainless steel pan dividers. The insulated lift-up pan cover is constructed
of stainless steel, and is easily removable for cleaning.

DIMENSIONAL DATA UST276 UST279 UST488 UST4812 UST4818 UST6012 UST6024

Net capacity cu. ft. 7.1 7.1 13.1 13.1 13.1 16.7 16.7

Length - overall in. 27 27 48 48 48 60 60

Depth - overall in.1 333⁄4 333⁄4 333⁄4 333⁄4 333⁄4 333⁄4 333⁄4

Depth - with door open 90° 545⁄8 545⁄8 50 50 50 545⁄8 545⁄8

Clear door height in. 241⁄8 241⁄8 241⁄8 241⁄8 241⁄8 241⁄8 241⁄8

Clear door width in. 223⁄4 223⁄4 181⁄4 181⁄4 181⁄4 223⁄4 223⁄4

Height Overall (lid closed)2 377⁄8 377⁄8 377⁄8 377⁄8 377⁄8 377⁄8 377⁄8

Height Overall (lid open)2 515⁄8 59 515⁄8 515⁄8 59 515⁄8 59

Height to Work Surface2 351⁄2 351⁄2 351⁄2 351⁄2 351⁄2 351⁄2 351⁄2

Height to Cutting Board

2

361⁄4 361⁄4 361⁄4 361⁄4 361⁄4 361⁄4 361⁄4

Number of shelves - total 2 2 4 4 4 4 4

Shelf area sq. ft. 4.88 4.88 10.3 10.3 10.3 13.2 13.2

Cutting Board Depth 12 8 12 12 8 12 8

Pan Capacity - 1/6 Size 6 9 8 12 18 12 24

ELECTRICAL DATA

Voltage 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1

Full Load Amperes 4.5 4.5 6.3 6.3 6.3 6.3 6.3

REFRIGERATION DATA

Refrigerant R-134a R-134a R-134a R-134a R-134a R-134a R-134a

BTU/HR - H.P.3 1020

(1⁄5 HP)

1020

(1⁄5 HP)

1600

(1⁄4 HP)

160

SHIPPING DATA

Length - Crated in. 44 44 631⁄2 631⁄2 631⁄2 751⁄2 751⁄2

Depth - Crated in. 441⁄4 441⁄4 441⁄4 441⁄4 441⁄4 441⁄4 441⁄4

Height - Crated in. 463⁄4 463⁄4 463⁄4 463⁄4 463⁄4 463⁄4 463⁄4

Volume - Crated cu. ft. 53 53 76 76 76 90 90

Net Wt. lbs. 270 270 285 285 285 375 375

Gross Wt. lbs. 280 280 300 300 300 400 400

1= Overall depth gure includes standard cutting board.
2= Height shown when mounted on 6" high legs or casters.
3= Based on a 90 degree F ambient and 20 degree F evaporator.

NOTES

Refrigeration System

A balanced, rear mounted, front breathing, self-contained refrigeration system
using R-134a refrigerant is provided. It features a capillary tube metering device,

air-cooled hermetic compressor, a forced air evaporator coil and a non-electric

condensate evaporator. An 8' cord and plug is provided. Standard operating
temperature of the refrigerated base is 34 to 38°F.

Interior

Standard interior arrangements include two (2) powder coated wire shelves per
door, mounted on pilasters. These are adjustable in 1/2" increments, allowing for a
minimum of 1-1/2" spacing between shelves.

Warranties

Both a one year parts and labor warranty and a ve year compressor warranty (self­contained models only) are provided standard. An optional 2nd year extended parts

and labor warranty is also available.

0 (1⁄4 HP)

160

0 (1⁄4 HP)

160

0 (1⁄4 HP)

160

0 (1⁄4 HP)

Equipped With One NEMA 5-15 P Plug

NOTE: When ordering please specify: Voltage, Hinging, Optional Accessories and any
additional warranties.

Continued product development may necessitate specication changes without notice.

Part No. TR35821 (revised 4/10)
