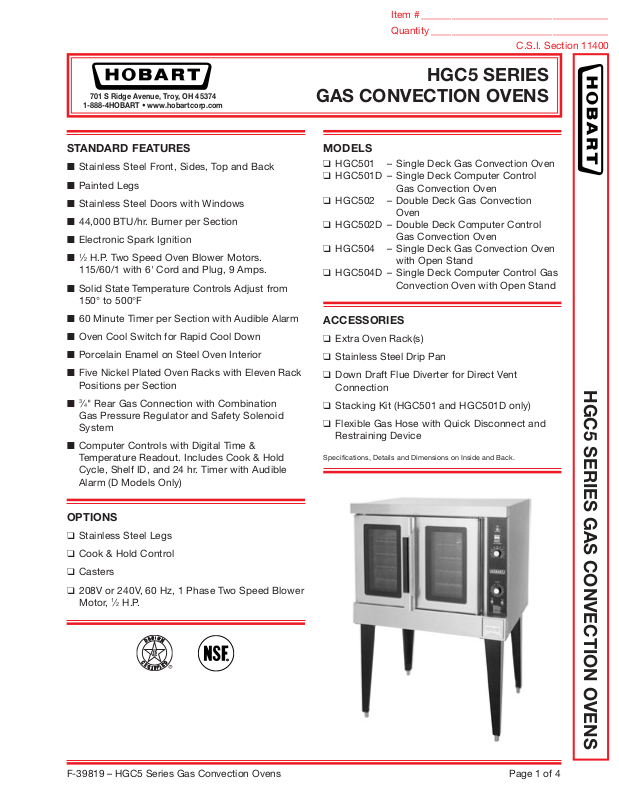

HGC5 SERIES
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Stainless Steel Front, Sides, Top and Back
■ Painted Legs
■ Stainless Steel Doors with Windows
■ 44,000 BTU/hr. Burner per Section
■ Electronic Spark Ignition
■ 1⁄2 H.P. Two Speed Oven Blower Motors.
115/60/1 with 6' Cord and Plug, 9 Amps.
■ Solid State Temperature Controls Adjust from
150° to 500°F
■ 60 Minute Timer per Section with Audible Alarm
■ Oven Cool Switch for Rapid Cool Down
■ Porcelain Enamel on Steel Oven Interior
■ Five Nickel Plated Oven Racks with Eleven Rack
Positions per Section
■ 3⁄4" Rear Gas Connection with Combination
Gas Pressure Regulator and Safety Solenoid
System
■ Computer Controls with Digital Time &
Temperature Readout. Includes Cook & Hold
Cycle, Shelf ID, and 24 hr. Timer with Audible
Alarm (D Models Only)
GAS CONVECTION OVENS
MODELS
❑ HGC501 – Single Deck Gas Convection Oven
❑ HGC501D – Single Deck Computer Control
Gas Convection Oven
❑ HGC502 – Double Deck Gas Convection
Oven
❑ HGC502D – Double Deck Computer Control
Gas Convection Oven
❑ HGC504 – Single Deck Gas Convection Oven
with Open Stand
❑ HGC504D – Single Deck Computer Control Gas
Convection Oven with Open Stand
ACCESSORIES
❑ Extra Oven Rack(s)
❑ Stainless Steel Drip Pan
❑ Down Draft Flue Diverter for Direct Vent
Connection
❑ Stacking Kit (HGC501 and HGC501D only)
❑ Flexible Gas Hose with Quick Disconnect and
Restraining Device
Specifications, Details and Dimensions on Inside and Back.
HGC5 SERIES GAS CONVECTION OVENS
OPTIONS
❑ Stainless Steel Legs
❑ Cook & Hold Control
❑ Casters
❑ 208V or 240V, 60 Hz, 1 Phase Two Speed Blower
Motor, 1⁄2 H.P.
F-39819 – HGC5 Series Gas Convection Ovens Page 1 of 4
Page 2
HGC5 SERIES
GAS CONVECTION OVENS
IMPORTANT
1. A combination gas pressure regulator and safety
solenoid system is included in this unit. Natural gas is
3.5" w.c., propane gas is 10.0" w.c.
2. An adequate ventilation system is required for
commercial cooking equipment. Information may be
obtained by writing to the National Fire Protection
Association, Batterymarch Park, Quincy, MA 02289.
When writing, refer to NFPA No. 96.
3. These units are manufactured for installation in
accordance with ANSZ223.1A (latest edition), National
Fuel Gas Code. Copies may be obtained from the
American Gas Association, 1515 Wilson Blvd.,
Arlington, VA 22209.
4. Clearances: Combustible Non-combustible
Rear 6" 6"
Sides 4" 4"
5. This appliance is manufactured for commercial
installation only and is not intended for home use.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
MODEL NO. WIDTH
HGC501
HGC501D
HGC502
HGC502D
40" 411⁄2" 563⁄4" 44,000 44,000 115/60/1 483
40" 411⁄2" 70" 44,000 88,000 115/60/1 1,180
DEPTH
(INCLUDES
HANDLES) HEIGHT
BTU/HR.
PER OVEN
TOTAL
BTU/HR. ELECTRICAL
APPROX.
SHP. WT.
LBS.
Page 2 of 4 F-39819 – HGC5 Series Gas Convection Ovens
Page 3
HGC5 SERIES
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
DETAILS AND DIMENSIONS
GAS CONVECTION OVENS
F-39819 – HGC5 Series Gas Convection Ovens Page 3 of 4
Page 4
Printed On Recycled Paper
HGC5 SERIES
GAS CONVECTION OVENS
SPECIFICATIONS
General: Gas convection oven. Basic section
(HGC5/HGC5D) is without legs; may be ordered
separately for replacement, for stacking 2-high or for
mounting on legs. HGC501/HGC501D single basic
section on 253⁄4" legs. HGC502/HGC502D two basic
HGC5 sections on 8" legs.
Construction: Stainless steel front, sides, top, and
back, painted legs. Porcelain enamel on steel oven
interior. Simultaneously operated stainless steel doors
with windows. Two interior oven lights per section.
Non-sag insulation applied to the top, rear and sides,
bottom and doors.
Oven interior measures 29"w x 221⁄8"d x 20"h. Five
nickel plated oven racks per section measure 281⁄4" x
201⁄2". Eleven position nickel plated rack guides with
positive rack stops per section.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Controls: Side mounted temperature controls adjust
from 150° to 500°F. 60-minute timer with audible
alarm. Oven cool switch for rapid cool down.
“D” models feature side-mounted computer controls
adjustable from 150° to 500°F, 24-hour timer with
audible alarm, six programmable preset buttons,
Cook & Hold and Shelf ID.
Gas: One 44,000 BTU/hr. burner per section. 88,000
BTU/hr. for Model HGC502. Electronic spark igniter.
Electrical: One 1⁄2 H.P. two-speed oven blower motor
per section. 115/60/1 power supply required. 6 foot
cord and plug. 9 amps total draw.
IMPORTANT
WHEN ORDERING: The following must be specified:
1) The type of gas
2) The altitude when above 2,000 ft.
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
Page 4 of 4 F-39819 – HGC5 Series Gas Convection Ovens
