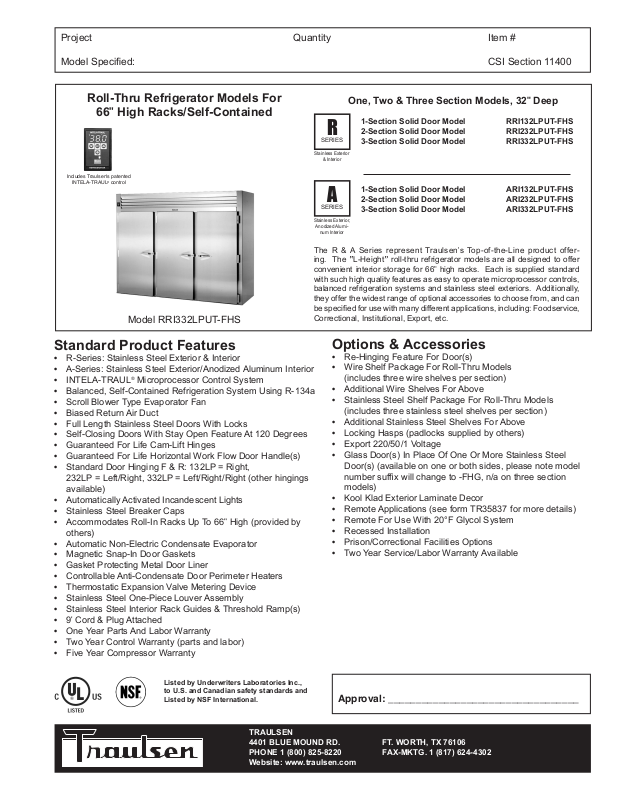

Page 1
Project Quantity Item #
Model Specied: CSI Section 11400
Roll-Thru Refrigerator Models For
66" High Racks/Self-Contained
Includes Traulsen's patented
INTELA-TRAUL® control
Model RRI332LPUT-FHS
Standard Product Features
• R-Series: Stainless Steel Exterior & Interior
• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior
• INTELA-TRAUL® Microprocessor Control System
• Balanced, Self-Contained Refrigeration System Using R-134a
• Scroll Blower Type Evaporator Fan
• Biased Return Air Duct
• Full Length Stainless Steel Doors With Locks
• Self-Closing Doors With Stay Open Feature At 120 Degrees
• Guaranteed For Life Cam-Lift Hinges
• Guaranteed For Life Horizontal Work Flow Door Handle(s)
• Standard Door Hinging F & R: 132LP = Right,
232LP = Left/Right, 332LP = Left/Right/Right (other hingings
available)
• Automatically Activated Incandescent Lights
• Stainless Steel Breaker Caps
• Accommodates Roll-In Racks Up To 66" High (provided by
others)
• Automatic Non-Electric Condensate Evaporator
• Magnetic Snap-In Door Gaskets
• Gasket Protecting Metal Door Liner
• Controllable Anti-Condensate Door Perimeter Heaters
• Thermostatic Expansion Valve Metering Device
• Stainless Steel One-Piece Louver Assembly
• Stainless Steel Interior Rack Guides & Threshold Ramp(s)
• 9' Cord & Plug Attached
• One Year Parts And Labor Warranty
• Two Year Control Warranty (parts and labor)
• Five Year Compressor Warranty
One, Two & Three Section Models, 32" Deep
1-Section Solid Door Model RRI132LPUT-FHS
R
SERIES
Stainless Exterior
& Interior
A
SERIES
Stainless Exterior,
Anodized Alumi-
num Interior
The R & A Series represent Traulsen's Top-of-the-Line product offering. The “L-Height” roll-thru refrigerator models are all designed to offer
convenient interior storage for 66" high racks. Each is supplied standard
with such high quality features as easy to operate microprocessor controls,
balanced refrigeration systems and stainless steel exteriors. Additionally,
they offer the widest range of optional accessories to choose from, and can
be specied for use with many different applications, including: Foodservice,
Correctional, Institutional, Export, etc.
2-Section Solid Door Model RRI232LPUT-FHS
3-Section Solid Door Model RRI332LPUT-FHS
1-Section Solid Door Model ARI132LPUT-FHS
2-Section Solid Door Model ARI232LPUT-FHS
3-Section Solid Door Model ARI332LPUT-FHS
Options & Accessories
• Re-Hinging Feature For Door(s)
• Wire Shelf Package For Roll-Thru Models
(includes three wire shelves per section)
• Additional Wire Shelves For Above
• Stainless Steel Shelf Package For Roll-Thru Models
(includes three stainless steel shelves per section)
• Additional Stainless Steel Shelves For Above
• Locking Hasps (padlocks supplied by others)
• Export 220/50/1 Voltage
• Glass Door(s) In Place Of One Or More Stainless Steel
Door(s) (available on one or both sides, please note model
number sufx will change to -FHG, n/a on three section
models)
• Kool Klad Exterior Laminate Decor
• Remote Applications (see form TR35837 for more details)
• Remote For Use With 20°F Glycol System
• Recessed Installation
• Prison/Correctional Facilities Options
• Two Year Service/Labor Warranty Available
Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.
TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE 1 (800) 825-8220 FAX-MKTG. 1 (817) 624-4302
Website: www.traulsen.com
Approval: __________________________________
Page 2
Project Quantity Item #
Model Specied: CSI Section 11400
Specications
Construction, Hardware and Insulation
Cabinet exterior front, one piece sides, louver assembly and doors are constructed
of 20 gauge stainless steel with #4 nish. Cabinet interior and door liners are
constructed of stainless steel (anodized aluminum in the A-Series). The exterior
cabinet top and bottom are constructed of heavy gauge aluminized steel. The interior
oor is constructed of stainless steel and insulated with 3⁄4" of resilient cork. Readily
attachable stainless steel ramps are provided to facilitate loading/unloading.
Doors are equipped with a heavy-duty, extruded wiper gasket for sealing to bottom
ramp, removable plug cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges
include a concealed switch to automatically activate the interior incandescent
lighting. Guaranteed for life, work ow door handles are mounted horizontally over
recess in door which limits protrusion from door face into aisleways. Doors have
seamless, polished metal corners.
Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal.
Both the cabinet and door(s) are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.
DIMENSIONAL DATA R/ARI132LPUT R/ARI232LPUT R/ARI332LPUT
Net capacity cu. ft. 38.8 (1099 cu l) 80.2 (2272 cu l) 117.5 (3329 cu l)
Length - overall in. 351⁄2 (90.2 cm) 68 (172.7 cm) 1001⁄2 (255.3 cm)
Depth - overall in. 391⁄8 (99.4 cm) 391⁄8 (99.4 cm) 391⁄8 (99.4 cm)
Depth - over body in. 32 (81.3 cm) 32 (81.3 cm) 32 (81.3 cm)
Depth - doors open 90° in. 941⁄2 (240.0 cm) 941⁄2 (240.0 cm) 941⁄2 (240.0 cm)
Clear door width in. 271⁄8 (68.8 cm) 271⁄8 (68.8 cm) 271⁄8 (68.8 cm)
Clear door height in. 665⁄16 (168.4 cm) 665⁄16 (168.4 cm) 665⁄16 (168.4 cm)
Height - overall in. 831⁄4 (211.5 cm) 831⁄4 (211.5 cm) 831⁄4 (211.5 cm)
RRI Net Wt. lbs. 490 (222 kg) 775 (352 kg) 1050 (476 kg)
ARI Net Wt. lbs. 415 (188 kg) 670 (304 kg) 915 (415 kg)
Rack Capacity - 66" High 1 2 3
ELECTRICAL DATA
Voltage 115/60/1 115/60/1 115/60/1
Feed wires with Ground 3 3 3
Full load amperes 11.6 13.4 15.2
REFRIGERATION DATA
Refrigerant R-134a R-134a R-134a
BTU/HR H.P.1 2220 (1⁄3 HP) 4200 (1⁄2 HP) 5120 (3⁄4 HP)
NOTE: Figures in parentheses reect metric equivalents.
1= Based on a 90 degree F ambient and 20 degree F evaporator.
2= For approximate remote weights deduct 40 lbs. from respective net or gross weight. For other
information on remote models, please refer to form TR35837.
One Section Models Equipped With One
NOTES
NEMA 5-15P Plug
Refrigeration System
A top mounted , self-contained, balanced refrigeration system using R-13 4a
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled
hermetic compressor, plenum effect blower coil, large, high humidity evaporator
coil located outside the food zone and a top mounted non-electric condensate
evaporator. Biased return air duct protects against introduction of warm kitchen air,
promoting even temperature maintenance and efcient operation. A 9' cord and
plug is provided. Standard operating temperature is 34 to 38°F.
Controller
The easy to use water resistant INTELA-TRAUL® microprocessor control system
is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready.
Optional hardware required to be NDP compliant. Third party software required
for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius
Temperature Scale Display Capability, and an RS485 data port. In addition it
includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean
Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply
Interruption.
Interior
Readily removable, interior-mounted, stainless steel guides for rack are provided
for protection. Maximum rack size with wheels inboard of frame is 27" wide by 29"
deep by 66" high. Racks supplied by others.
Warranties
Both a one year parts and labor warranty and a ve year compressor warranty
(self-contained models only) are provided standard. An optional 2nd year extended
parts and labor warranty is also available. In addition the INTELA-TRAUL® control is
warranted by a two year parts and labor warranty.
Elevation -
R/ARI132LPUT
Elevation -
R/ARI232LPUT
Elevation -
R/ARI332LPUT
Two & Three Section Models Equipped
With One NEMA 5-20P Plug
NOTE: Full load amps and plug style may vary depending on
electrical options chosen and condensing unit employed.
In order to assure optimum performance, the condensing unit MUST have an adequate supply
of air for cooling purposes. Therefore, the operating location must either have a minimum of 12”
clearance overhead of the condensing unit or allow for unrestricted air ow at the back of the unit.
Clearance of at least 12” above is required in order to perform certain maintenance tasks.
NOTE: When ordering please specify: Voltage, Hinging, Door Size, Options and any additional warranties.
Continued product development may necessitate specication changes without notice.
Part No. TR35767 (revised 4/10)
REQUIRED CLEARANCES
TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE 1 (800) 825-8220 FAX-MKTG. 1 (817) 624-4302
Website: www.traulsen.com
Plan - R/ARI132LPUT
Plan - R/ARI332LPUT
Plan - R/ARI232LPUT
Section - All Models
