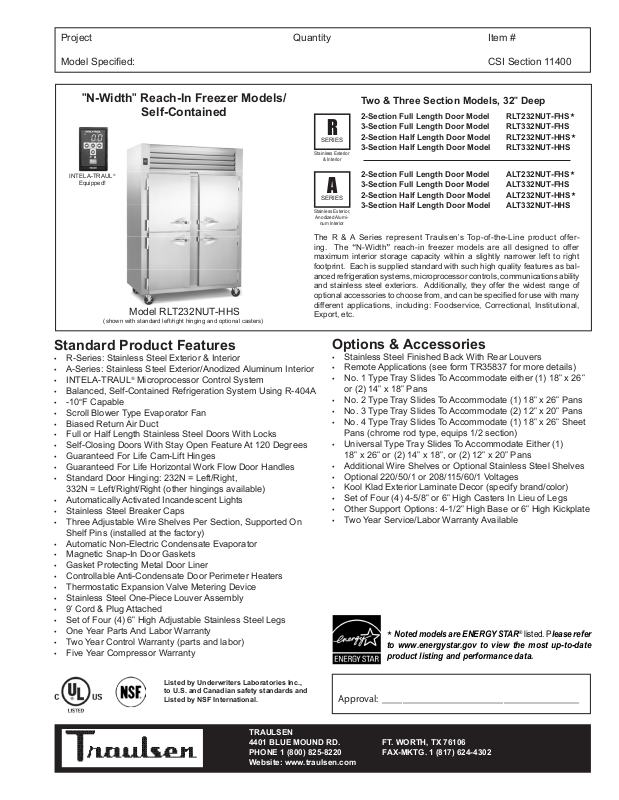

Mannhart ALT232NUT-FHS Specifications

Project Quantity Item #

Model Specied: CSI Section 11400

"N-Width" Reach-In Freezer Models/

Self-Contained

INTELA-TRAUL

Equipped!

®

Model RLT232NUT-HHS

(shown with standard left/right hinging and optional casters)

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior

• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior

• INTELA-TRAUL® Microprocessor Control System

• Balanced, Self-Contained Refrigeration System Using R-404A

• -10°F Capable

• Scroll Blower Type Evaporator Fan

• Biased Return Air Duct

• Full or Half Length Stainless Steel Doors With Locks

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handles

• Standard Door Hinging: 232N = Left/Right,

332N = Left/Right/Right (other hingings available)

• Automatically Activated Incandescent Lights

• Stainless Steel Breaker Caps

• Three Adjustable Wire Shelves Per Section, Supported On

Shelf Pins (installed at the factory)

• Automatic Non-Electric Condensate Evaporator

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Metal Door Liner

• Controllable Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device

• Stainless Steel One-Piece Louver Assembly

• 9' Cord & Plug Attached

• Set of Four (4) 6" High Adjustable Stainless Steel Legs

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

Two & Three Section Models, 32" Deep

2-Section Full Length Door Model RLT232NUT-FHS

R

SERIES

Stainless Exterior

& Interior

A

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

The R & A Series represent Traulsen's Top-of-the-Line product offer­ing. The “N-Width” reach-in freezer models are all designed to offer
maximum interior storage capacity within a slightly narrower left to right
footprint. Each is supplied standard with such high quality features as bal­anced refrigeration systems, microprocessor controls, communications ability
and stainless steel exteriors. Additionally, they offer the widest range of
optional accessories to choose from, and can be specied for use with many
different applications, including: Foodservice, Correctional, Institutional,
Export, etc.

3-Section Full Length Door Model RLT332NUT-FHS
2-Section Half Length Door Model RLT232NUT-HHS

3-Section Half Length Door Model RLT332NUT-HHS

2-Section Full Length Door Model ALT232NUT-FHS
3-Section Full Length Door Model ALT332NUT-FHS

2-Section Half Length Door Model ALT232NUT-HHS
3-Section Half Length Door Model ALT332NUT-HHS

★

★

★

★

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers

• Remote Applications (see form TR35837 for more details)

• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"

or (2) 14" x 18" Pans

• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Pans

• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Pans

• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet

Pans (chrome rod type, equips 1/2 section)

• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18", or (2) 12" x 20" Pans

• Additional Wire Shelves or Optional Stainless Steel Shelves

• Optional 220/50/1 or 208/115/60/1 Voltages

• Kool Klad Exterior Laminate Decor (specify brand/color)

• Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs

• Other Support Options: 4-1/2" High Base or 6" High Kickplate

• Two Year Service/Labor Warranty Available

★

Noted models are ENERGY STAR® listed. Please refer
to www.energystar.gov to view the most up-to-date
product listing and performance data.

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: _______________________________________

Project Quantity Item #

Model Specied: CSI Section 11400

Specications

Construction, Hardware and Insulation

Cabinet exterior front, one piece sides, louver assembly and doors are constructed
of 20 gauge stainless steel with #4 nish. Cabinet interior and door liners are
constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabi­net top, back and bottom are constructed of heavy gauge aluminized steel. A set of four
(4) adjustable 6" high stainless steel legs are included.

Doors are equipped with a gasket protecting metal door pan, removable plug
cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal,
glide hinges with stay open feature at 120 degrees. Hinges include a concealed
switch to automatically activate the interior incandescent lighting. Guaranteed for
life, work ow door handles are mounted horizontally over recess in door which limits
protrusion from door face into aisleways. Doors have seamless, polished metal

corners.

Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal.
Anti condensate heaters are located behind each door opening.

Both the cabinet and door(s) are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.

DIMENSIONAL DATA R/ALT232NUT R/ALT332NUT

Net capacity cu. ft. 46.0 (1303 cu l) 69.5 (1969 cu l)

Length - overall in. 52

⁄8 (132.4 cm) 765⁄

16

(193.8 cm)

1

Depth - overall in. 35 (88.8 cm) 35 (88.8 cm)

3

Depth - less handle in. 33

⁄4 (84.4 cm) 333⁄4 (84.4 cm)

Depth - over body in. 32 (81.3 cm) 32 (81.3 cm)

5

Depth - door open 90° in. 57

Clear door width in. 21

Clear half-door height in. 27

Clear full-door height in. 57
Height - overall on 6" legs 83

1

RLT Net Wt. lbs.

ALT Net Wt. lbs.

655 (297 kg) 870 (395 kg)

1

600 (272 kg) 770 (349 kg)

⁄8 (146.3 cm) 575⁄8 (146.3 cm)

1

⁄8 (53.6 cm) 211⁄8 (53.6 cm)

1

⁄2 (69.9 cm) 271⁄2 (69.9 cm)

5

⁄8 (146.3 cm) 575⁄8 (146.3 cm)

1

⁄4 (211.5 cm) 831⁄4 (211.5 cm)

No. Standard Shelves 6 9

2

Shelf area sq. ft.

34.6 (3.21 sq m) 51.9 (4.82 sq m)

STANDARD ELECTRICAL & REFRIGERATION DATA

Voltage 115/60/1 115/60/1

Feed wires with Ground 3 3

Full load amperes 15.7 16.0

Refrigerant R-404A R-404A

3

BTU/HR H.P.

NOTE: Figures in parentheses reect metric equivalents.
1= For shipping weights and dimensions please refer to spec sheet form TR35875.
2= Area of standard shelf compliment only, does not include storage area of additional shelves or available
on cabinet bottom.
3= Based on a 90 degree F ambient and -10 degree F evaporator (-20 for three section models). For
information on remote models, please refer to form TR35837.

3730 (3⁄4 HP) 4100 (3⁄4 HP)

NOTES

Refrigeration System

A top mounted, self-contained, balanced refrigeration system using R-404A
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled
hermetic compressor, plenum effect blower coil, large, high humidity evaporator
coil located outside the food zone and a top mounted non-electric condensate
evaporator. Biased return air duct protects against introduction of warm kitchen air,
promoting even temperature maintenance and efcient operation. A 9' cord and
plug is provided. Standard operating temperature is 0 to -5°F (all models are -10

degree F capable in up to 100 degree ambient.

Controller

The easy to use water resistant INTELA-TRAUL

®

microprocessor control system

is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready.
Optional hardware required to be NDP compliant. Third party software required
for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius
Temperature Scale Display Capability, Defrost Lockouts, and an RS485 data port. In
addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open,
Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power

Supply Interruption.

Interior

Standard interior arrangements include three (3) wire shelves per section, mounted on
shelf pins. Shelves are full-width, and do not have any large gaps between them requiring
the use of "bridge" or "junior shelves." Recommended load limit per shelf should not ex-
ceed 225 lbs. Optional tray slides may be purchased in combination with, or in lieu of these.

Warranties

Both a one year parts and labor warranty and a ve year compressor warranty
(self-contained models only) are provided standard. An optional 2

nd

year extended
parts and labor warranty is also available. In addition the INTELA-TRAUL® control is
warranted by a two year parts and labor warranty.

Elevation ­R/ALT232NUT

Elevation -

R/ALT332NUT

Plan - R/ALT332NUT

Equipped With One NEMA 5-20P Plug

NOTE: Full load amps and plug style may vary depending on
electrical options chosen and condensing unit employed.

NOTE: When ordering please specify: Voltage, Hinging, Door Size, Options and any ad­ditional warranties.

Continued product development may necessitate specication changes without notice.

Part No. TR35763 (revised 12/10)

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Plan - R/ALT232NUT

Section - All Models
