Mannhart ALT132DUT-HHS Specifications

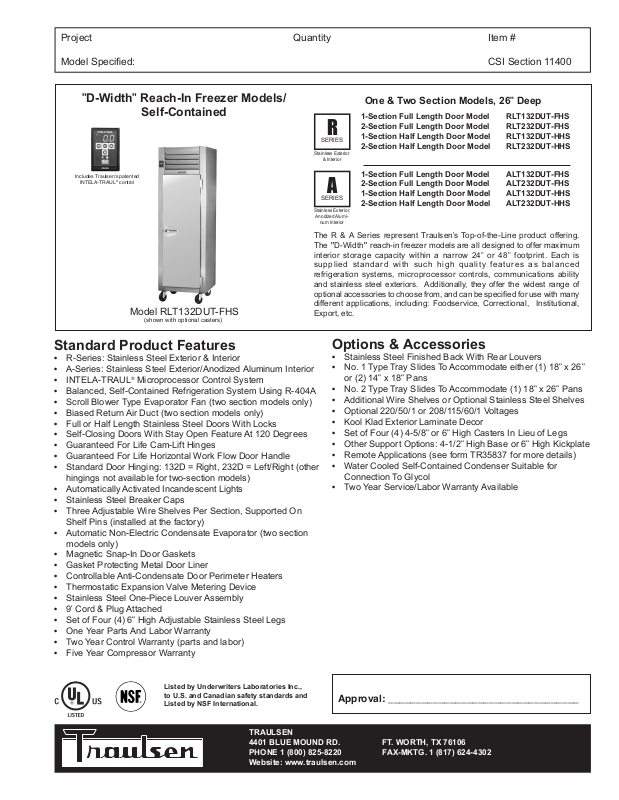

Project Quantity Item #

Model Specied: CSI Section 11400

"D-Width" Reach-In Freezer Models/

Self-Contained

Includes Traulsen's patented

INTELA-TRAUL® control

Model RLT132DUT-FHS

(shown with optional casters)

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior

• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior

• INTELA-TRAUL® Microprocessor Control System

• Balanced, Self-Contained Refrigeration System Using R-404A

• Scroll Blower Type Evaporator Fan (two section models only)

• Biased Return Air Duct (two section models only)

• Full or Half Length Stainless Steel Doors With Locks

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handle

• Standard Door Hinging: 132D = Right, 232D = Left/Right (other

hingings not available for two-section models)

• Automatically Activated Incandescent Lights

• Stainless Steel Breaker Caps

• Three Adjustable Wire Shelves Per Section, Supported On

Shelf Pins (installed at the factory)

• Automatic Non-Electric Condensate Evaporator (two section
models only)

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Metal Door Liner

• Controllable Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device

• Stainless Steel One-Piece Louver Assembly

• 9' Cord & Plug Attached

• Set of Four (4) 6" High Adjustable Stainless Steel Legs

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

One & Two Section Models, 26" Deep

1-Section Full Length Door Model RLT132DUT-FHS

R

SERIES

Stainless Exterior

& Interior

A

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

The R & A Series represent Traulsen's Top-of-the-Line product offering.
The “D-Width” reach-in freezer models are all designed to offer maximum
interior storage capacity within a narrow 24" or 48" footprint. Each is
su pp li ed sta nd ar d wi th suc h high quality feature s as balanced
refrigeration systems, microprocessor controls, communications ability
and stainless steel exteriors. Additionally, they offer the widest range of
optional accessories to choose from, and can be specied for use with many
different applications, including: Foodservice, Correctional, Institutional,
Export, etc.

2-Section Full Length Door Model RLT232DUT-FHS
1-Section Half Length Door Model RLT132DUT-HHS
2-Section Half Length Door Model RLT232DUT-HHS

1-Section Full Length Door Model ALT132DUT-FHS
2-Section Full Length Door Model ALT232DUT-FHS
1-Section Half Length Door Model ALT132DUT-HHS
2-Section Half Length Door Model ALT232DUT-HHS

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers

• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"

or (2) 14" x 18" Pans

• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Pans

• Additional Wire Shelves or Optional Stainless Steel Shelves

• Optional 220/50/1 or 208/115/60/1 Voltages

• Kool Klad Exterior Laminate Decor

• Set of Four (4) 4-5/8" or 6" High Casters In Lieu of Legs

• Other Support Options: 4-1/2" High Base or 6" High Kickplate

• Remote Applications (see form TR35837 for more details)

• Water Cooled Self-Contained Condenser Suitable for

Connection To Glycol

• Two Year Service/Labor Warranty Available

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: __________________________________

Project Quantity Item #

Model Specied: CSI Section 11400

Specications

Construction, Hardware and Insulation

Cabinet exterior front, one piece sides, louver assembly and doors are constructed
of 20 gauge stainless steel with #4 nish. Cabinet interior and door liners are
constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabi­net top, back and bottom are constructed of heavy gauge aluminized steel. A set of four
(4) adjustable 6" high stainless steel legs are included.

Doors are equipped with a gasket protecting metal door pan, removable plug
cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal,
glide hinges with stay open feature at 120 degrees. Hinges include a concealed
switch to automatically activate the interior incandescent lighting. Guaranteed for
life, work ow door handles are mounted horizontally over recess in door which limits
protrusion from door face into aisleways. Doors have seamless, polished metal

corners.

Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal.
Anti condensate heaters are located behind each door opening.

Both the cabinet and door(s) are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.

DIMENSIONAL DATA R/ALT132DUT R/ALT232DUT

Net capacity cu. ft. 17.7 (501 cu l) 42.0 (1190 cu l)

Length - overall in. 24 (61.0 cm) 48 (121.9 cm)

Depth - overall in. 35 (88.8 cm) 35 (88.8 cm)

Depth - less handle in. 333⁄4 (84.4 cm) 333⁄4 (84.4 cm)

Depth - over body in. 32 (81.3 cm) 32 (81.3 cm)

Depth - door open 90° in. 543⁄4 (139.1 cm) 543⁄4 (139.1 cm)

Clear door width in. 185⁄8 (47.3 cm) 199⁄16 (49.7 cm)

Clear half-door height in. 271⁄2 (69.9 cm) 271⁄2 (69.9 cm)

Clear full-door height in. 575⁄8 (146.3 cm) 575⁄8 (146.3 cm)
Height - overall on 6" legs 831⁄4 (211.5 cm) 831⁄4 (211.5 cm)

RLT Net Wt. lbs. 360 (163 kg) 619 (280 kg)

ALT Net Wt. lbs. 320 (145 kg) 560 (254 kg)

No. Standard Shelves 3 6

Shelf area sq. ft.1 14.2 (1.3 sq m) 31.6 (2.9 sq m)

ELECTRICAL DATA

Voltage 115/60/1 115/60/1

Feed wires with Ground 3 3

Full load amperes 11.5 14.9

REFRIGERATION DATA

Refrigerant R-404A R-404A

BTU/HR H.P.2 1890 (1⁄2 HP) 3070 (3⁄4 HP)

NOTE: Figures in parentheses reect metric equivalents.
1= Area of standard shelf compliment only, does not include storage area of additional shelves or available
on cabinet bottom.
2= Based on a 90 degree F ambient and -20 degree F evaporator.
3= For approximate remote weights deduct 40 lbs. from respective net or gross weight. For other
information on remote models, please refer to form TR35837.

In order to assure optimum performance, the condensing unit MUST have an adequate supply
of air for cooling purposes. Therefore, the operating location must either have a minimum of 12”

clearance overhead of the condensing unit or allow for unrestricted air ow at the back of the unit.
Clearance of at least 12” above is required in order to perform certain maintenance tasks.

NOTES

REQUIRED CLEARANCES

One Section Models Equipped With One NEMA 5-15P Plug

NOTE: Full load amps and plug style may vary depending on
electrical options chosen and condensing unit employed.

Two Section Models Equipped With One NEMA 5-20P Plug

Refrigeration System

A top mounted , self- contained, balanced refrig eration system using R-404A
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled
hermetic compressor and a plenum effect blower coil. Two section models include a
large, high humidity evaporator coil located outside the food zone and a top mounted
non-electric condensate evaporator. One section models include an interior mounted
ceiling coil and bottom mounted electric condensate evaporator. A 9' cord and
plug is provided. Standard operating temperature is 0 to -5°F.

Controller

The easy to use water resistant INTELA-TRAUL® microprocessor control system
is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready.
Optional hardware required to be NDP compliant. Third party software required
for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius
Temperature Scale Display Capability, Defrost Lockouts, and an RS485 data port. In
addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open,
Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power

Supply Interruption.

Interior

Standard interior arrangements include three (3) wire shelves per section, mounted
on shelf pins. Shelves are full-width, and do not have any large gaps between them
requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf
should not exceed 225 lbs. Optional tray slides may be purchased in combination
with, or in lieu of these. Both standard and optional interior arrangements are
completely installed at the factory.

Warranties

Both a one year parts and labor warranty and a ve year compressor warranty
(self-contained models only) are provided standard. An optional 2nd year extended
parts and labor warranty is also available. In addition the INTELA-TRAUL® control is
warranted by a two year parts and labor warranty.

Elevation -

R/ALT132DUT

Plan - R/ALT132DUT

Elevation -

R/ALT232DUT

Plan - R/ALT232DUT

NOTE: When ordering please specify: Voltage, Hinging, Door Size, Options and any ad­ditional warranties.

Continued product development may necessitate specication changes without notice.

Part No. TR35765 (revised 4/10)

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Section - R/ALT132DUT

Section - R/ALT232DUT
