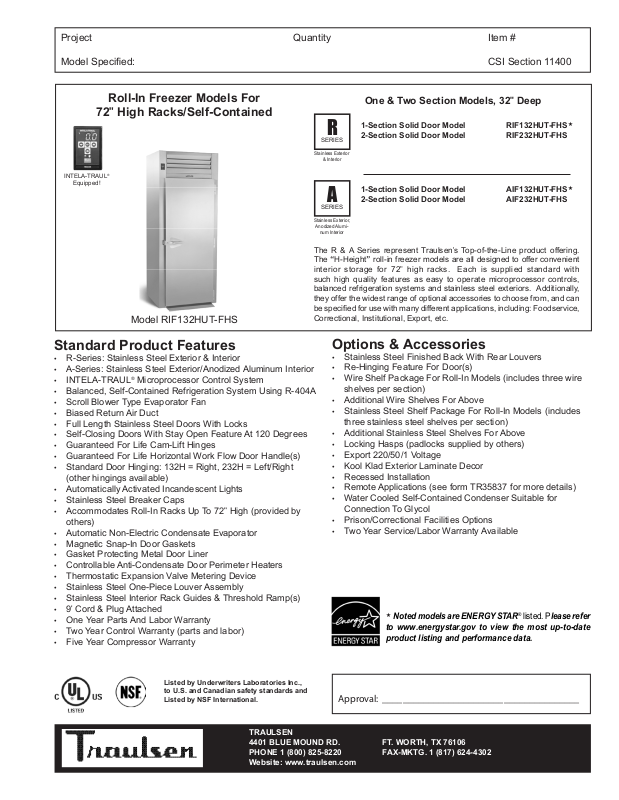

Mannhart AIF132HUT-FHS Specifications

Project Quantity Item #

Model Specied: CSI Section 11400

Roll-In Freezer Models For

72" High Racks/Self-Contained

INTELA-TRAUL®

Equipped!

Model RIF132HUT-FHS

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior

• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior

• INTELA-TRAUL® Microprocessor Control System

• Balanced, Self-Contained Refrigeration System Using R-404A

• Scroll Blower Type Evaporator Fan

• Biased Return Air Duct

• Full Length Stainless Steel Doors With Locks

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handle(s)

• Standard Door Hinging: 132H = Right, 232H = Left/Right

(other hingings available)

• Automatically Activated Incandescent Lights

• Stainless Steel Breaker Caps

• Accommodates Roll-In Racks Up To 72" High (provided by

others)

• Automatic Non-Electric Condensate Evaporator

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Metal Door Liner

• Controllable Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device

• Stainless Steel One-Piece Louver Assembly

• Stainless Steel Interior Rack Guides & Threshold Ramp(s)

• 9' Cord & Plug Attached

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

One & Two Section Models, 32" Deep

R

SERIES

Stainless Exterior

& Interior

A

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

The R & A Series represent Traulsen's Top-of-the-Line product offering.
The “H-Height” roll-in freezer models are all designed to offer convenient
interior storage for 72" high racks. Each is supplied standard with
such high quality features as easy to operate microprocessor controls,
balanced refrigeration systems and stainless steel exteriors. Additionally,
they offer the widest range of optional accessories to choose from, and can
be specied for use with many different applications, including: Foodservice,
Correctional, Institutional, Export, etc.

1-Section Solid Door Model RIF132HUT-FHS
2-Section Solid Door Model RIF232HUT-FHS

1-Section Solid Door Model AIF132HUT-FHS
2-Section Solid Door Model AIF232HUT-FHS

★

★

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers

• Re-Hinging Feature For Door(s)

• Wire Shelf Package For Roll-In Models (includes three wire

shelves per section)

• Additional Wire Shelves For Above

• Stainless Steel Shelf Package For Roll-In Models (includes

three stainless steel shelves per section)

• Additional Stainless Steel Shelves For Above

• Locking Hasps (padlocks supplied by others)

• Export 220/50/1 Voltage

• Kool Klad Exterior Laminate Decor

• Recessed Installation

• Remote Applications (see form TR35837 for more details)

• Water Cooled Self-Contained Condenser Suitable for

Connection To Glycol

• Prison/Correctional Facilities Options

• Two Year Service/Labor Warranty Available

★

Noted models are ENERGY STAR® listed. Please refer
to www.energystar.gov to view the most up-to-date
product listing and performance data.

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: _______________________________________

Project Quantity Item #

Model Specied: CSI Section 11400

Specications

Construction, Hardware and Insulation

Cabinet exterior front, one piece sides, louver assembly and doors are constructed
of 20 gauge stainless steel with #4 nish. Cabinet interior and door liners are
constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabi­net top, back and bottom are constructed of heavy gauge aluminized steel. The interior
oor is constructed of stainless steel and insulated with

3

⁄4" of resilient cork. A readily

attachable stainless steel ramp is provided to facilitate loading/unloading.

Doors are equipped with a heavy-duty, extruded wiper gasket for sealing to bottom
ramp, removable plug cylinder locks and guaranteed for life cam-lift, gravity ac­tion, self-closing metal, glide hinges with stay open feature at 120 degrees. Hinges
include a concealed switch to automatically activate the interior incandescent
lighting. Guaranteed for life, work ow door handles are mounted horizontally over
recess in door which limits protrusion from door face into aisleways. Doors have
seamless, polished metal corners.

Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal.

Both the cabinet and door(s) are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.

DIMENSIONAL DATA R/AIF132HUT R/AIF232HUT

Net capacity cu. ft. 39.0 (1104 cu l) 79.5 (2252 cu l)

1

Length - overall in. 35

Depth - overall in. 35

⁄2 (90.2 cm) 68 (172.7 cm)

9

⁄16 (90.3 cm) 359⁄16 (90.3 cm)

Depth - over body in. 32 (81.3 cm) 32 (81.3 cm)

1

Depth - door open 90° in. 63

Clear door width in. 27

Clear door height in. 72

Height - overall in. 89

⁄4 (160.7 cm) 631⁄4 (160.7 cm)

1

⁄8 (68.8 cm) 271⁄8 (68.8 cm)

3

⁄16 (183.4 cm) 723⁄16 (183.4 cm)

1

⁄8 (226.4 cm) 891⁄8 (226.4 cm)

RIF Net Wt. lbs. 480 (218 kg) 785 (356 kg)

AIF Net Wt. lbs. 410 (186 kg) 685 (311 kg)
Rack Capacity - 72" High 1 2

ELECTRICAL DATA

Voltage 115/60/1 208-230/115/60/1

Feed wires with Ground 3 4

Full load amperes 11.5 9.4

REFRIGERATION DATA

Refrigerant R-404A R-404A

1

BTU/HR H.P.

NOTE: Figures in parentheses reect metric equivalents.
1= Based on a 90 degree F ambient and -10 degree F evaporator.
2= For approximate remote weights deduct 40 lbs. from respective net or gross weight. For other
information on remote models, please refer to form TR35837.

2160 (1⁄2 HP) 4710 (1 HP)

NOTES

One Section Models Equipped With
One NEMA 5-15P Plug

Refrigeration System

A top mounted, self-contained, balanced refrigeration system using R-404A
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled
hermetic compressor, plenum effect blower coil, large, high humidity evaporator
coil located outside the food zone and a top mounted non-electric condensate
evaporator. Biased return air duct protects against introduction of warm kitchen air,
promoting even temperature maintenance and efcient operation. A 9' cord and
plug is provided. Standard operating temperature is 0 to -5°F.

Controller

The easy to use water resistant INTELA-TRAUL

®

microprocessor control system

is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready.
Optional hardware required to be NDP compliant. Third party software required
for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius
Temperature Scale Display Capability, Defrost Lockouts, and an RS485 data port. In
addition it includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open,
Clean Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power
Supply Interruption.

Interior

Readily removable, interior-mounted, stainless steel guides for rack are provided
for protection. Maximum rack size with wheels inboard of frame is 27" wide by 29"
deep by 72" high. Racks supplied by others.

Warranties

Both a one year parts and labor warranty and a ve year compressor warranty
(self-contained models only) are provided standard. An optional 2

nd

year extended
parts and labor warranty is also available. In addition the INTELA-TRAUL® control is
warranted by a two year parts and labor warranty.

Elevation -

R/AIF132HUT

Elevation -

R/AIF232HUT

Two Section Models Equipped With
One NEMA L14-20P Plug

NOTE: Full load amps and plug style may vary depending on
electrical options chosen and condensing unit employed.

In order to assure optimum performance, the condensing unit MUST have an adequate supply
of air for cooling purposes. Therefore, the operating location must either have a minimum of 12”
clearance overhead of the condensing unit or allow for unrestricted air ow at the back of the unit.
Clearance of at least 12” above is required in order to perform certain maintenance tasks.

NOTE: When ordering please specify: Voltage, Hinging, Door Size, Options and any ad­ditional warranties.

Continued product development may necessitate specication changes without notice.

Part No. TR35770 (revised 12/10)

REQUIRED CLEARANCES

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Plan - R/AIFI132HUT

Plan - R/AIF232HUT

Section - All Models
