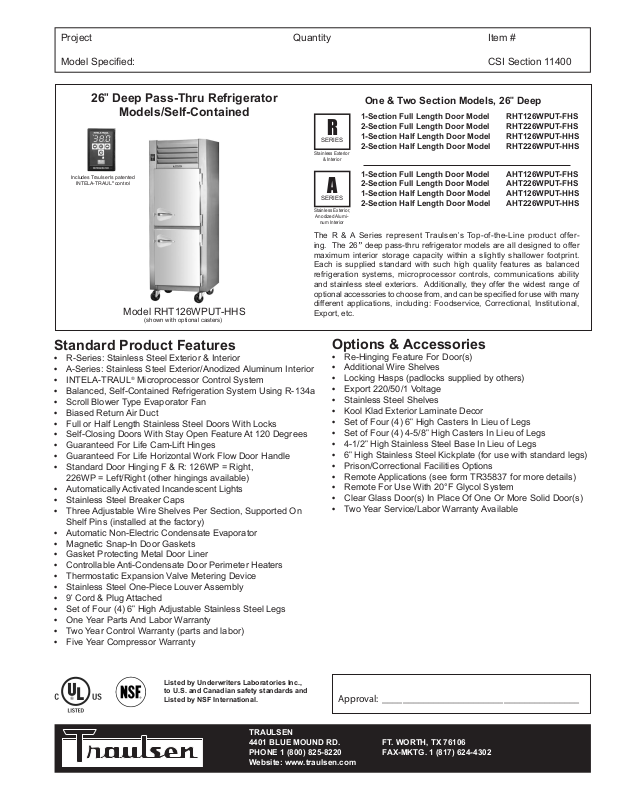

Mannhart AHT126WPUT-FHS Specifications

Project Quantity Item #

Model Specied: CSI Section 11400

26" Deep Pass-Thru Refrigerator

Models/Self-Contained

Includes Traulsen's patented

INTELA-TRAUL® control

Model RHT126WPUT-HHS

(shown with optional casters)

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior

• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior

• INTELA-TRAUL® Microprocessor Control System

• Balanced, Self-Contained Refrigeration System Using R-134a

• Scroll Blower Type Evaporator Fan

• Biased Return Air Duct

• Full or Half Length Stainless Steel Doors With Locks

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handle

• Standard Door Hinging F & R: 126WP = Right,

226WP = Left/Right (other hingings available)

• Automatically Activated Incandescent Lights

• Stainless Steel Breaker Caps

• Three Adjustable Wire Shelves Per Section, Supported On

Shelf Pins (installed at the factory)

• Automatic Non-Electric Condensate Evaporator

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Metal Door Liner

• Controllable Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device

• Stainless Steel One-Piece Louver Assembly

• 9' Cord & Plug Attached

• Set of Four (4) 6" High Adjustable Stainless Steel Legs

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

One & Two Section Models, 26" Deep

1-Section Full Length Door Model RHT126WPUT-FHS

R

SERIES

Stainless Exterior

& Interior

A

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

The R & A Series represent Traulsen's Top-of-the-Line product offer­ing. The 26” deep pass-thru refrigerator models are all designed to offer
maximum interior storage capacity within a slightly shallower footprint.
Each is supplied standard with such high quality features as balanced
refrigeration systems, microprocessor controls, communications ability
and stainless steel exteriors. Additionally, they offer the widest range of
optional accessories to choose from, and can be specied for use with many
different applications, including: Foodservice, Correctional, Institutional,
Export, etc.

2-Section Full Length Door Model RHT226WPUT-FHS
1-Section Half Length Door Model RHT126WPUT-HHS
2-Section Half Length Door Model RHT226WPUT-HHS

1-Section Full Length Door Model AHT126WPUT-FHS
2-Section Full Length Door Model AHT226WPUT-FHS
1-Section Half Length Door Model AHT126WPUT-HHS
2-Section Half Length Door Model AHT226WPUT-HHS

Options & Accessories

• Re-Hinging Feature For Door(s)

• Additional Wire Shelves

• Locking Hasps (padlocks supplied by others)

• Export 220/50/1 Voltage

• Stainless Steel Shelves

• Kool Klad Exterior Laminate Decor

• Set of Four (4) 6" High Casters In Lieu of Legs

• Set of Four (4) 4-5/8" High Casters In Lieu of Legs

• 4-1/2" High Stainless Steel Base In Lieu of Legs

• 6" High Stainless Steel Kickplate (for use with standard legs)

• Prison/Correctional Facilities Options

• Remote Applications (see form TR35837 for more details)

• Remote For Use With 20°F Glycol System

• Clear Glass Door(s) In Place Of One Or More Solid Door(s)

• Two Year Service/Labor Warranty Available

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: _______________________________________

Project Quantity Item #

Model Specied: CSI Section 11400

Specications

Construction, Hardware and Insulation

Cabinet exterior front, one piece sides, louver assembly and doors are constructed
of 20 gauge stainless steel with #4 nish. Cabinet interior and door liners are
constructed of stainless steel (anodized aluminum in the A-Series). The exterior cabi­net top and bottom are constructed of heavy gauge aluminized steel. A set of four (4)
adjustable 6" high stainless steel legs are included.

Doors are equipped with a gasket protecting metal door pan, removable plug
cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal,
glide hinges with stay open feature at 120 degrees. Hinges include a concealed
switch to automatically activate the interior incandescent lighting. Guaranteed for
life, work ow door handles are mounted horizontally over recess in door which limits
protrusion from door face into aisleways. Doors have seamless, polished metal
corners.

Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal.
Anti condensate heaters are located behind each door opening.

Both the cabinet and door(s) are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.

DIMENSIONAL DATA R/AHT126WPUT R/AHT226WPUT

Net capacity cu. ft. 20.4 (578 cu l) 43.5 (1234 cu l)

Length - overall in. 297⁄8 (75.9 cm) 58 (147.3 cm)

Depth - overall in. 3115⁄16 (81.2 cm) 3115⁄16 (81.2 cm)

Depth - over body in. 26 (66.0 cm) 26 (66.0 cm)

Depth - doors open 90° in. 773⁄8 (196.5 cm) 773⁄8 (196.5 cm)

Clear door width in. 211⁄2 (54.6 cm) 211⁄2 (54.6 cm)

Clear half-door height in. 271⁄2 (69.9 cm) 271⁄2 (69.9 cm)

Clear full-door height in. 575⁄8 (146.3 cm) 575⁄8 (146.3 cm)
Height - overall on 6" legs 831⁄4 (211.5 cm) 831⁄4 (211.5 cm)

RHT Net Wt. lbs. 370 (168 kg) 600 (272 kg)

AHT Net Wt. lbs. 330 (150 kg) 530 (240 kg)

No. Standard Shelves 3 6

Shelf area sq. ft.1 14.6 (1.35 sq m) 29.2 (2.71 sq m)

ELECTRICAL DATA

Voltage 115/60/1 115/60/1

Feed wires with Ground 3 3

Full load amperes 8.3 9.2

REFRIGERATION DATA

Refrigerant R-134a R-134a

BTU/HR H.P.2 2220 (1⁄3 HP) 2220 (1⁄3 HP)

NOTE: Figures in parentheses reect metric equivalents.
1= Area of standard shelf compliment only, does not include storage area of additional shelves or available
on cabinet bottom.
2= Based on a 90 degree F ambient and 20 degree F evaporator.
3= For approximate remote weights deduct 40 lbs. from respective net or gross weight. For other
information on remote models, please refer to form TR35837.

NOTES

Refrigeration System

A top mounted , self-contained, balanced refrigeration system using R-13 4a
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled
hermetic compressor, plenum effect blower coil, large, high humidity evaporator
coil located outside the food zone and a top mounted non-electric condensate
evaporator. Biased return air duct protects against introduction of warm kitchen air,
promoting even temperature maintenance and efcient operation. A 9' cord and
plug is provided. Standard operating temperature is 34 to 38°F.

Controller

The easy to use water resistant INTELA-TRAUL® microprocessor control system
is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready.
Optional hardware required to be NDP compliant. Third party software required
for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius
Temperature Scale Display Capability, and an RS485 data port. In addition it
includes audio/visual alarms for: Hi/Lo Cabinet Temperature, Door Open, Clean
Condenser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply
Interruption.

Interior

Standard interior arrangements include three (3) wire shelves per section, mounted
on shelf pins. Shelves are full-width, and do not have any large gaps between them
requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf
should not exceed 225 lbs. Both standard and optional interior arrangements are
completely installed at the factory.

Warranties

Both a one year parts and labor warranty and a ve year compressor warranty
(self-contained models only) are provided standard. An optional 2nd year extended
parts and labor warranty is also available. In addition the INTELA-TRAUL® control is
warranted by a two year parts and labor warranty.

Elevation -

R/AHT126WPUT

Elevation -

R/AHT226WUT

Plan - R/AHT126WPUT

Equipped With One NEMA 5-15 P Plug

NOTE: Full load amps and plug style may vary depending on
electrical options chosen and condensing unit employed.

In order to assure optimum performance, the condensing unit MUST have an adequate supply
of air for cooling purposes. Therefore, the operating location must either have a minimum of 12”

clearance overhead of the condensing unit or allow for unrestricted air ow at the back of the unit.
Clearance of at least 12” above is required in order to perform certain maintenance tasks.

NOTE: When ordering please specify: Voltage, Hinging, Door Size, Options and any ad­ditional warranties.

Continued product development may necessitate specication changes without notice.

Part No. TR35761 (revised 4/10)

REQUIRED CLEARANCES

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Plan - R/AHT226WPUT

Section - All Models
