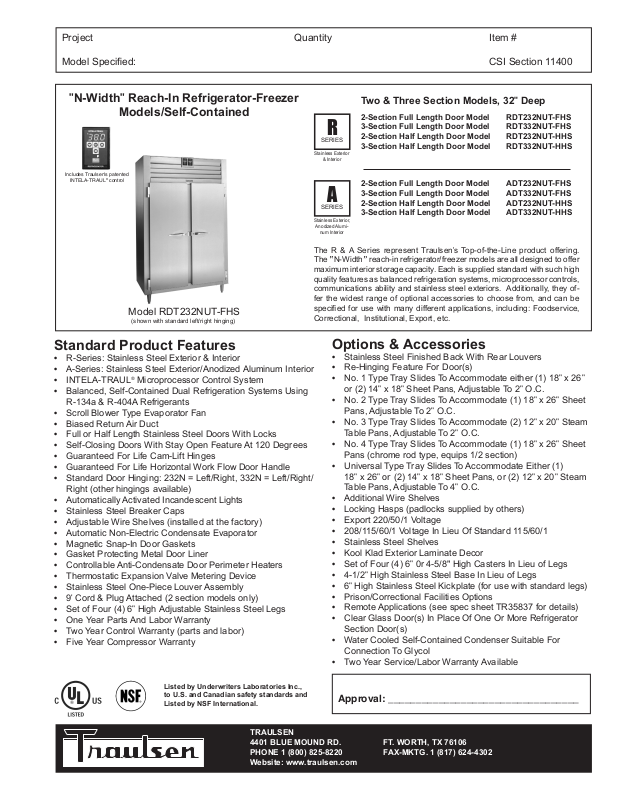

Mannhart ADT232NUT-FHS Specifications

Project Quantity Item #

Model Specied: CSI Section 11400

"N-Width" Reach-In Refrigerator-Freezer

Models/Self-Contained

Includes Traulsen's patented

INTELA-TRAUL® control

Model RDT232NUT-FHS

(shown with standard left/right hinging)

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior

• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior

• INTELA-TRAUL® Microprocessor Control System

• Balanced, Self-Contained Dual Refrigeration Systems Using

R-134a & R-404A Refrigerants

• Scroll Blower Type Evaporator Fan

• Biased Return Air Duct

• Full or Half Length Stainless Steel Doors With Locks

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handle

• Standard Door Hinging: 232N = Left/Right, 332N = Left/Right/

Right (other hingings available)

• Automatically Activated Incandescent Lights

• Stainless Steel Breaker Caps

• Adjustable Wire Shelves (installed at the factory)

• Automatic Non-Electric Condensate Evaporator

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Metal Door Liner

• Controllable Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device

• Stainless Steel One-Piece Louver Assembly

• 9' Cord & Plug Attached (2 section models only)

• Set of Four (4) 6" High Adjustable Stainless Steel Legs

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

Two & Three Section Models, 32" Deep

2-Section Full Length Door Model RDT232NUT-FHS

R

SERIES

Stainless Exterior

& Interior

A

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

The R & A Series represent Traulsen's Top-of-the-Line product offering.
The “N-Width” reach-in refrigerator/freezer models are all designed to offer
maximum interior storage capacity. Each is supplied standard with such high
quality features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they of­fer the widest range of optional accessories to choose from, and can be

specied for use with many different applications, including: Foodservice,

Correctional, Institutional, Export, etc.

3-Section Full Length Door Model RDT332NUT-FHS
2-Section Half Length Door Model RDT232NUT-HHS
3-Section Half Length Door Model RDT332NUT-HHS

2-Section Full Length Door Model ADT232NUT-FHS
3-Section Full Length Door Model ADT332NUT-FHS
2-Section Half Length Door Model ADT232NUT-HHS
3-Section Half Length Door Model ADT332NUT-HHS

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers

• Re-Hinging Feature For Door(s)

• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"

or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.

• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.

• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
Table Pans, Adjustable To 2" O.C.

• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet

Pans (chrome rod type, equips 1/2 section)

• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam

Table Pans, Adjustable To 4" O.C.

• Additional Wire Shelves

• Locking Hasps (padlocks supplied by others)

• Export 220/50/1 Voltage

• 208/115/60/1 Voltage In Lieu Of Standard 115/60/1

• Stainless Steel Shelves

• Kool Klad Exterior Laminate Decor

• Set of Four (4) 6" 0r 4-5/8" High Casters In Lieu of Legs

• 4-1/2" High Stainless Steel Base In Lieu of Legs

• 6" High Stainless Steel Kickplate (for use with standard legs)

• Prison/Correctional Facilities Options

• Remote Applications (see spec sheet TR35837 for details)

• Clear Glass Door(s) In Place Of One Or More Refrigerator

Section Door(s)

• Water Cooled Self-Contained Condenser Suitable For
Connection To Glycol

• Two Year Service/Labor Warranty Available

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: __________________________________

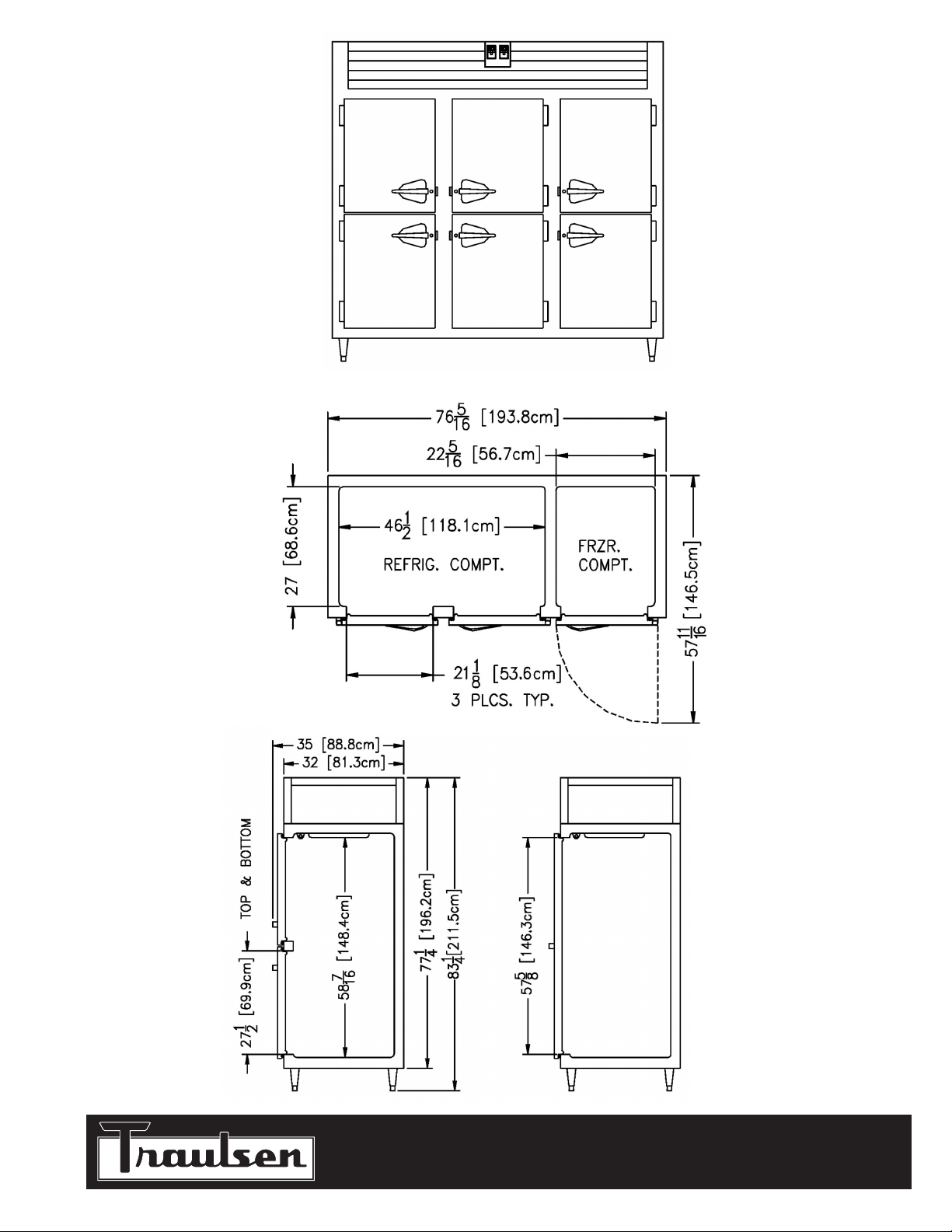

Elevation - R/ADT232NUT

Plan - R/ADT232NUT
