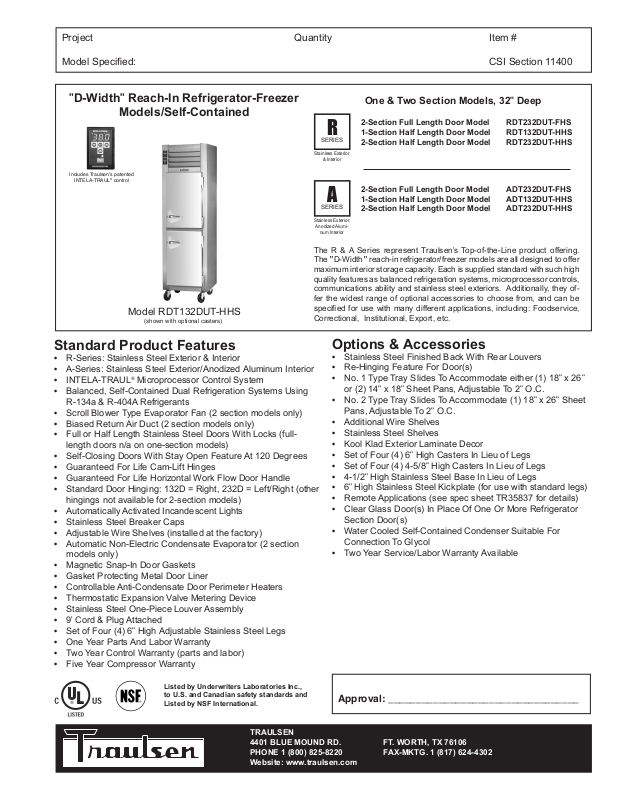

Mannhart ADT132DUT-HHS Specifications

Project Quantity Item #

Model Specied: CSI Section 11400

"D-Width" Reach-In Refrigerator-Freezer

Models/Self-Contained

Includes Traulsen's patented

INTELA-TRAUL® control

Model RDT132DUT-HHS

(shown with optional casters)

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior

• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior

• INTELA-TRAUL® Microprocessor Control System

• Balanced, Self-Contained Dual Refrigeration Systems Using

R-134a & R-404A Refrigerants

• Scroll Blower Type Evaporator Fan (2 section models only)

• Biased Return Air Duct (2 section models only)

• Full or Half Length Stainless Steel Doors With Locks (full-

length doors n/a on one-section models)

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handle

• Standard Door Hinging: 132D = Right, 232D = Left/Right (other

hingings not available for 2-section models)

• Automatically Activated Incandescent Lights

• Stainless Steel Breaker Caps

• Adjustable Wire Shelves (installed at the factory)

• Automatic Non-Electric Condensate Evaporator (2 section

models only)

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Metal Door Liner

• Controllable Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device

• Stainless Steel One-Piece Louver Assembly

• 9' Cord & Plug Attached

• Set of Four (4) 6" High Adjustable Stainless Steel Legs

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

One & Two Section Models, 32" Deep

2-Section Full Length Door Model RDT232DUT-FHS

R

SERIES

Stainless Exterior

& Interior

A

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

The R & A Series represent Traulsen's Top-of-the-Line product offering.
The “D-Width” reach-in refrigerator/freezer models are all designed to offer
maximum interior storage capacity. Each is supplied standard with such high
quality features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they of­fer the widest range of optional accessories to choose from, and can be

specied for use with many different applications, including: Foodservice,

Correctional, Institutional, Export, etc.

1-Section Half Length Door Model RDT132DUT-HHS
2-Section Half Length Door Model RDT232DUT-HHS

2-Section Full Length Door Model ADT232DUT-FHS
1-Section Half Length Door Model ADT132DUT-HHS
2-Section Half Length Door Model ADT232DUT-HHS

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers

• Re-Hinging Feature For Door(s)

• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"

or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.

• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.

• Additional Wire Shelves

• Stainless Steel Shelves

• Kool Klad Exterior Laminate Decor

• Set of Four (4) 6" High Casters In Lieu of Legs

• Set of Four (4) 4-5/8" High Casters In Lieu of Legs

• 4-1/2" High Stainless Steel Base In Lieu of Legs

• 6" High Stainless Steel Kickplate (for use with standard legs)

• Remote Applications (see spec sheet TR35837 for details)

• Clear Glass Door(s) In Place Of One Or More Refrigerator

Section Door(s)

• Water Cooled Self-Contained Condenser Suitable For
Connection To Glycol

• Two Year Service/Labor Warranty Available

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: __________________________________

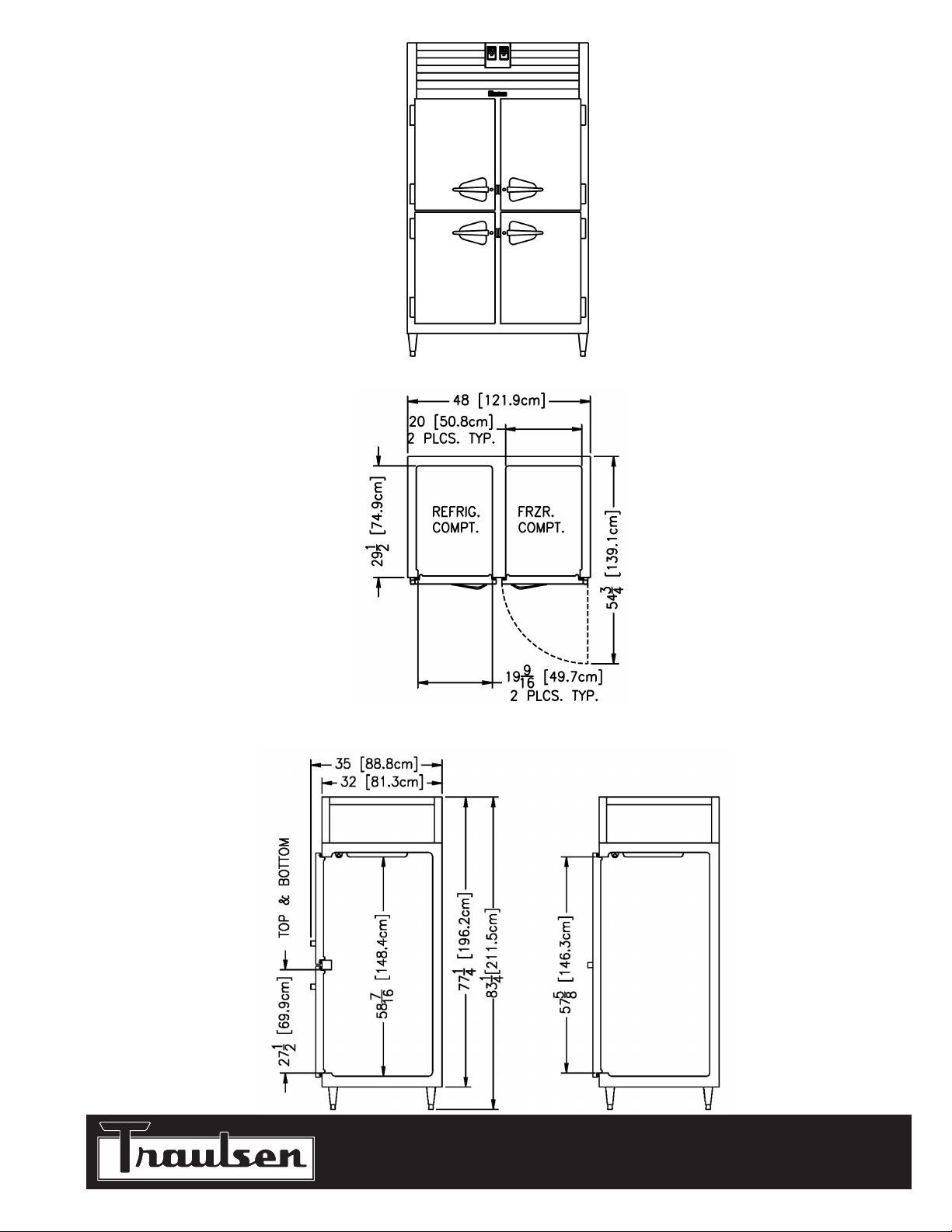

Elevation - R/ADT132DUT

Plan - R/ADT132DUT

Section - R/ADT132DUT
