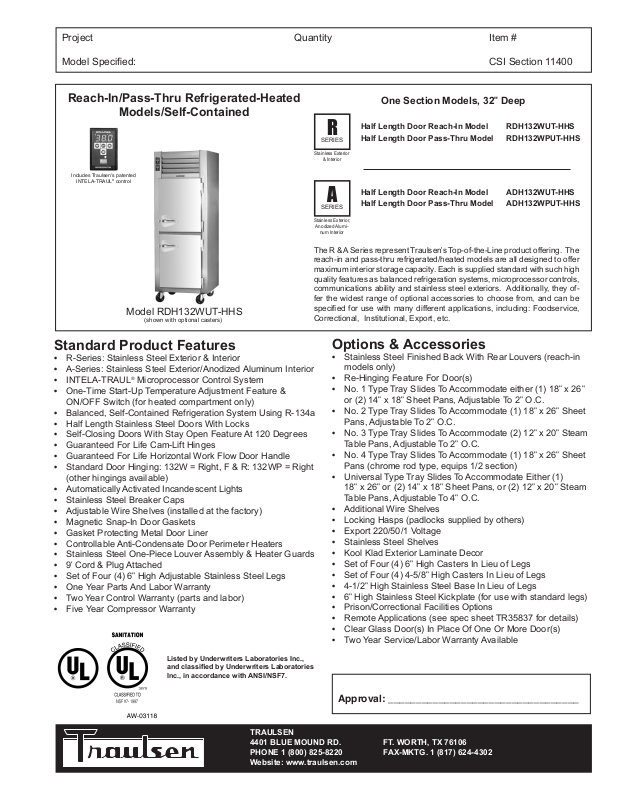

Mannhart ADH132WPUT-HHS Specifications

Project Quantity Item #

Model Specied: CSI Section 11400

Reach-In/Pass-Thru Refrigerated-Heated

Models/Self-Contained

Includes Traulsen's patented

INTELA-TRAUL® control

Model RDH132WUT-HHS

(shown with optional casters)

Standard Product Features

• R-Series: Stainless Steel Exterior & Interior

• A-Series: Stainless Steel Exterior/Anodized Aluminum Interior

• INTELA-TRAUL® Microprocessor Control System

• One-Time Start-Up Temperature Adjustment Feature &

ON/OFF Switch (for heated compartment only)

• Balanced, Self-Contained Refrigeration System Using R-134a

• Half Length Stainless Steel Doors With Locks

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handle

• Standard Door Hinging: 132W = Right, F & R: 132WP = Right

(other hingings available)

• Automatically Activated Incandescent Lights

• Stainless Steel Breaker Caps

• Adjustable Wire Shelves (installed at the factory)

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Metal Door Liner

• Controllable Anti-Condensate Door Perimeter Heaters

• Stainless Steel One-Piece Louver Assembly & Heater Guards

• 9' Cord & Plug Attached

• Set of Four (4) 6" High Adjustable Stainless Steel Legs

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

One Section Models, 32" Deep

R

SERIES

Stainless Exterior

& Interior

A

SERIES

Stainless Exterior,

Anodized Alumi-

num Interior

The R & A Series represent Traulsen's Top-of-the-Line product offering. The
reach-in and pass-thru refrigerated/heated models are all designed to offer
maximum interior storage capacity. Each is supplied standard with such high
quality features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they of­fer the widest range of optional accessories to choose from, and can be

specied for use with many different applications, including: Foodservice,

Correctional, Institutional, Export, etc.

Half Length Door Reach-In Model RDH132WUT-HHS
Half Length Door Pass-Thru Model RDH132WPUT-HHS

Half Length Door Reach-In Model ADH132WUT-HHS
Half Length Door Pass-Thru Model ADH132WPUT-HHS

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers (reach-in
models only)

• Re-Hinging Feature For Door(s)

• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"

or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.

• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet

Pans, Adjustable To 2" O.C.

• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam

Table Pans, Adjustable To 2" O.C.

• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans (chrome rod type, equips 1/2 section)

• Universal Type Tray Slides To Accommodate Either (1)

18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam

Table Pans, Adjustable To 4" O.C.

• Additional Wire Shelves

• Locking Hasps (padlocks supplied by others)

• Export 220/50/1 Voltage

• Stainless Steel Shelves

• Kool Klad Exterior Laminate Decor

• Set of Four (4) 6" High Casters In Lieu of Legs

• Set of Four (4) 4-5/8" High Casters In Lieu of Legs

• 4-1/2" High Stainless Steel Base In Lieu of Legs

• 6" High Stainless Steel Kickplate (for use with standard legs)

• Prison/Correctional Facilities Options

• Remote Applications (see spec sheet TR35837 for details)

• Clear Glass Door(s) In Place Of One Or More Door(s)

• Two Year Service/Labor Warranty Available

Listed by Underwriters Laboratories Inc.,

and classied by Underwriters Laboratories

Inc., in accordance with ANSI/NSF7.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: __________________________________

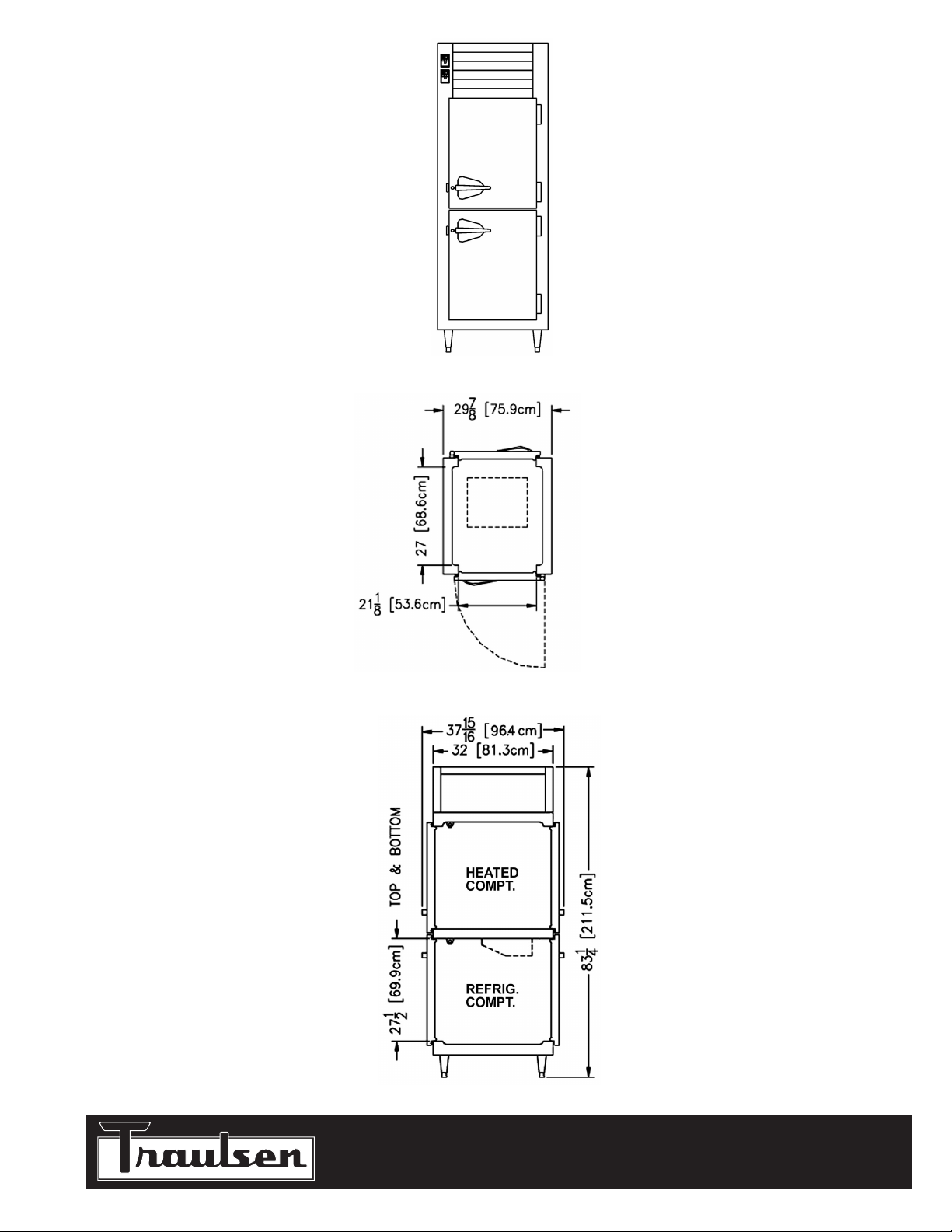

Elevation - R/ADH132WUT

Plan - R/ADH132WUT

Section - R/ADH132WUT
