Mannhart 2HXGF Specifications
701 S Ridge Avenue, Troy, OH 45374
CERTIFIED
1-888-4HOBART • www.hobartcorp.com
Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400

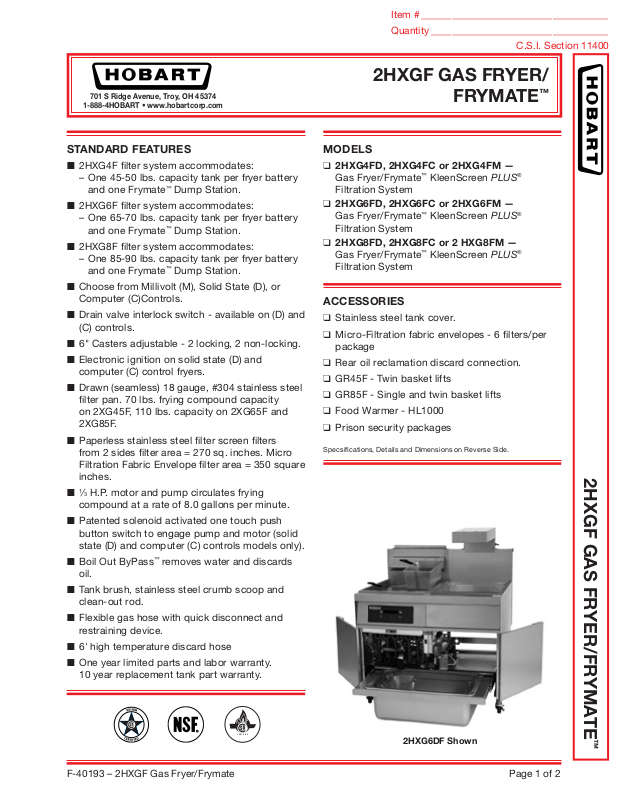

2HXGF GAS FRYER/
FRYMATE
™
STANDARD FEATURES
■ 2HXG4F lter system accommodates:
– One 45-50 lbs. capacity tank per fryer battery
and one Frymate™ Dump Station.
■ 2HXG6F lter system accommodates:
– One 65-70 lbs. capacity tank per fryer battery
and one Frymate™ Dump Station.
■ 2HXG8F lter system accommodates:
– One 85-90 lbs. capacity tank per fryer battery
and one Frymate™ Dump Station.
■ Choose from Millivolt (M), Solid State (D), or
Computer (C)Controls.
■ Drain valve interlock switch - available on (D) and
(C) controls.
■ 6" Casters adjustable - 2 locking, 2 non-locking.
■ Electronic ignition on solid state (D) and
computer (C) control fryers.
■ Drawn (seamless) 18 gauge, #304 stainless steel
lter pan. 70 lbs. frying compound capacity
on 2XG45F, 110 lbs. capacity on 2XG65F and
2XG85F.
■ Paperless stainless steel lter screen lters
from 2 sides lter area = 270 sq. inches. Micro
Filtration Fabric Envelope lter area = 350 square
inches.
■ 1⁄3 H.P. motor and pump circulates frying
compound at a rate of 8.0 gallons per minute.
■ Patented solenoid activated one touch push
button switch to engage pump and motor (solid
state (D) and computer (C) controls models only).
■ Boil Out ByPass™ removes water and discards
oil.
■ Tank brush, stainless steel crumb scoop and
clean-out rod.
■ Flexible gas hose with quick disconnect and
restraining device.
■ 6' high temperature discard hose
■ One year limited parts and labor warranty.
10 year replacement tank part warranty.
MODELS
❑ 2HXG4FD, 2HXG4FC or 2HXG4FM —
Gas Fryer/Frymate™ KleenScreen PLUS®
Filtration System
❑ 2HXG6FD, 2HXG6FC or 2HXG6FM —
Gas Fryer/Frymate™ KleenScreen PLUS®
Filtration System
❑ 2HXG8FD, 2HXG8FC or 2 HXG8FM —
Gas Fryer/Frymate™ KleenScreen PLUS®
Filtration System
ACCESSORIES
❑ Stainless steel tank cover.
❑ Micro-Filtration fabric envelopes - 6 lters/per
package
❑ Rear oil reclamation discard connection.
❑ GR45F - Twin basket lifts
❑ GR85F - Single and twin basket lifts
❑ Food Warmer - HL1000
❑ Prison security packages
Specsications, Details and Dimensions on Reverse Side.
2HXGF GAS FRYER/FRYMATE
2HXG6DF Shown
F-40193 – 2HXGF Gas Fryer/Frymate Page 1 of 2
™
2HXGF GAS FRYER/
F/W
FRYMATE
SPECIFICATIONS:
IMPORTANT
1. A combination valve with pressure regulator is provided with
this unit.
Natural Gas 4.0" (102 mm) W.C.
Propane Gas 10.0" (254 mm) W.C.
2. An adequate ventilation system is required for Commercial
Cooking Equipment. Information may be obtained by writing
to the National Fire Protection Association, Batterymarch
Park, Quincy, MA 02269. When writing refer to NFPA No. 96.
™
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
3. All models require a 6" (152 mm) clearance at both sides and
rear adjacent to combustible construction.
4. All models require a 16" (407 mm) minimum clearance to
adjacent open top burner units.
5. This appliance is manufactured for commercial installation
only and is not intended for home use.
SERVICE CONNECTIONS:
P1 1⁄2" (13 mm) NPT common rear gas connection.
E1 120 volt, 60 Hz, 1 phase electrical connection (lter
pump).
F/W Optional Heat Lamp 120 volt, 60 Hz, 1 phase electrical
connection.
FILTER AREA
SCREEN/
FILTER PAN
MODEL
2HXG4F 70 lbs.
2HXG6F
2HXG8F
Pump Electric/Amps Electric Power
8 Gal./Min.
CAPACITY
110 lbs.
115 V
5.0 A
FABRIC
ENVELOPE MOTOR
270 sq. in.
350 sq. in.
270 sq. in.
350 sq. in.
115 V 60 Hz
1 Ph
1/3 H.P
1750 RPM
1/3 H.P.
1750 RPM
OVERALL
MODEL WIDTH DEPTH
2HXG4F 31.00" 30.13" 46.25" 36.25" 14" x 14" 90,000 45-50 lbs. 323 lbs. 146 kg
2HXG6F 42.00" 30.13" 46.25" 36.25" 19.5" x 14" 150,000 65-70 lbs. 500 lbs. 227 kg
2HXG8F 42.00" 34.38" 46.25" 36.25" 19.5" x 18.25" 150,000 85-90 lbs. 620 lbs. 281 kg
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
HEIGHT
WORKING
HEIGHT TANK SIZE BTU/HR.
FRY COMP.
CAPACITY
APPROX. SHIP.
WEIGHT
Page 2 of 2 F-40193 – 2HXGF Gas Fryer/Frymate
F-40193 (01/08) LITHO IN U.S.A. (H-01)
