Content Page Number
Kitty the Robotic Kitten Operating Manual-2
1 Removing Kitty from her package---------3
2 Initial Set-up-------------------------------------4
3 Understanding Kitty’s programming------4
4 Kitty’s sensors and touch inputs----------5
5 Kitty’s basic functions--------------------7
6 Teaching Kitty everyday tricks-------------10
7 Teaching Kitty advanced tricks-----------12
8 Replacing Kitty’s Batteries---------------16
9 Trouble shooting tips---------------------17

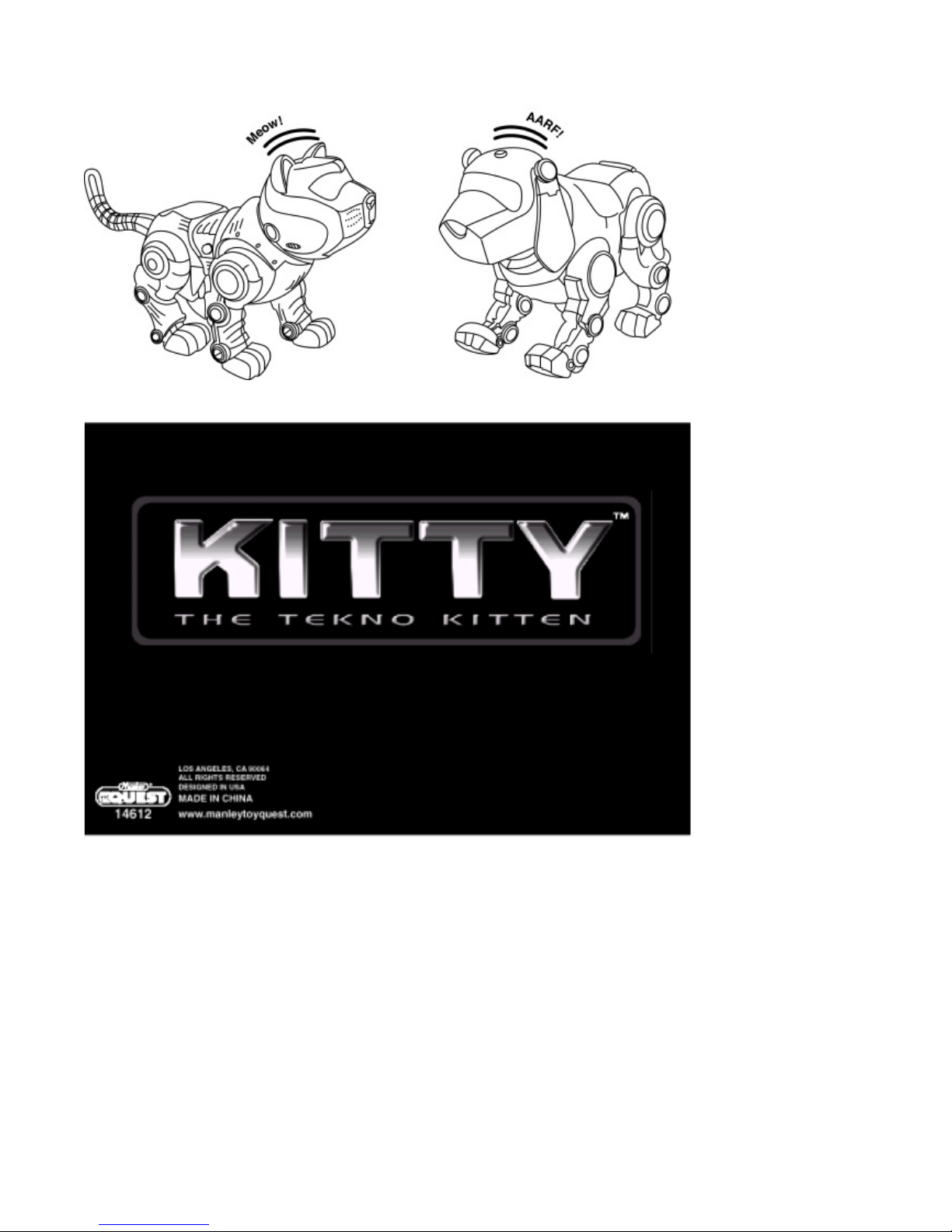

10. Interacting with other Robotic Pets----18
Kitty the Robotic Kitten Operating Manual
Kitty is an authentic robot that does everything a real kitty can do…and more! She can walk, "meow", talk, cr y,
move her tail, look around, and display a wide range of emot ions. With your help, she can be taught to perform
amazing tricks!
Thanks to her artif icial int elligence program, (and a few purrs and m eows!), Kitty will let you know how she is
feeling and provide feedback on the car e you provide. Kit t y k nows how long it’s been since she’s been fed and
is quick to remind you when she is need of some attention. Like a real cat, she goes to sleep several times a
day when left alone!
Kitty has state-of-the-art sensors that allow her to "see" and "hear" and even "feel" your touch. With these
sensors and Kitty’s powerful computer brain, Kitty can determine if it is getting dark, if the lights in the house
suddenly turn on, if someone’s talking to her, if there is a loud noise (like a knock at the door) - and even if
you're petting her on her back!
Kitty can also walk fast or slow depending on how she feels. If she is just looking for adventure, she will walk at
a normal pace. If she is excited or scared, Kit ty will walk faster. In short, Kitty is programmed to respond just
like a real 8-week-old "kitt y cat"!
Understanding Kitty
By the following instructions in this manual (or using the web site http://www.kittyrobot.com/
) you will be able to
provide the best life possible for Kitt y… and lead to greater enjoyment in your new role as Cool Pet Owner.
1. Removing Kitty From The Package
Kitty is held in place by several plastic straps and two plastic columns under her belly. Carefully remove all the
plastic straps. Pull the two plastic latches out from each of t he colum ns
(Fig. 1)
. Turn Kitty upside down and
notice that there is a thumbscrew of each of the columns still attached. Unscrew them and save them if you
want to reuse the package as a carry case. Save Kitty’s Fish Treat and her Place Mat (counting trick) in a safe
place.
2. Initial Set Up
After Kitty is free from the package, pull the Tab out of her side to begin her program set up. Turn the On/ Off
switch off and then on again. When you hear a "beep" it means Kitty has come to life!
3. Understanding Kitty’s Programming
Kitty uses the latest in artificial intelligence software. She has the intellect of an 8-week-old kitten. Kittens aren’t
perfect and, from t im e to time, she may have a mind of her own. Sometimes Kitty will respond to your
commands, and other times she will do what she wants to do. It all depends on how she feels and how you are
trying to communicate with her.
Like all kittens, Kitty loves attent ion. Yell out her name and clap your hands to let her know you’re there. Pat
her on the head or pet her on the back when she is good. Feed her r egularly. Change her batteries when she
stops working. Just think of her as a real kitten and she will be your friend f or life!
4.Kitty’s Sensor And Touch Inputs
To understand how Kitty words you must know about her input devices.
(Fig.2)
Located between her eyes under the protective lens, Kitty’s
LIGHT SENSOR
responds to changes in light
levels.
The
SOUND SENSOR
in Kitty’s head allow her to respond to voices and other noises.
When pressed, t he
MOUTH SENSOR
lets Kitty knows she is being fed. You’ll know she is enjoying her meal
when you hear her crunching and slurping.
The
NOSE SENSOR
has two purposes. When pressed, Kitty will make "sniffing” noises. Also, if she walks into
an object, this sensor will shut down her motor function t o keep her out of harm’s way. You’ll hear her say
"
OW!
"
Kitty’s
TOUCH SENSORS
let her know that she is being petted. T hese sensor are your way of letting Kitty
know how much affection you have for her. Please note the location of each sensor (A, B and C) which run
directly down the center of her back.
(Fig. 2)
When you strok e Kit t y down her back, she will become very
happy. Move your hand from t he back from
Sensor A
on the back of her down her back to
Sensor C (Fig. 3)
Try to touch her lightly - like you might a real cat. You will see that Kit ty will
PURR
and wiggle her tail. The
more you pet her, the more Kitty's purring you will hear from her.
The
MODE BUTTON
is used to program Kitty and teaching her t r icks.
Kitty powers up or shuts down when you move the
ON/OFF SWITCH
.
The
RESET BUTTON
refreshes Kitty’s brain back to the beginning of her programming.
5. Kitty’s Basic Functions Powering Up Kitty:
Turn the On/Off switch to the ON position. You will hear a "beep". Kitty is alive!
Kitty will begin to sense what is going on around her automatically. If you yell her name or clap for her, she may
Meow, Cry, Whine, become f r ightened and run away, or any number of other things. If she is crying, she may
be unhappy or startled. If she meows playfully she may be looking for affection.
Keeping Kitty Happy:
Kitty needs attention and stimulation to be happy. Just like a real kitten, it is important to play with her and not
forget to take care of her. Gently stroking her back, talk ing to her, or clapping your hands will meet with joyous
results. You will see her head turn with curiosity, her eyes flash with anticipation, her tail curl, and she will
happily parade around seeking adventure.
Kitty loves to eat! Remember to feed her once a day (or more if you prefer). Kitty always likes a snack during
the day. By pressing the Fish Treat to her
MOUTH SENSOR
, you’ll hear the crunching noises that indicate
she’s one satisfied kitty.
How You Can Tell Kitty Is Unhappy:
Kitty’s voice will let you know her mode. If you hear her crying, begging, or m oaning, it’s time to turn her frown
upside down. To make her happy again, just feed her, pet her on the back, and play with her.
Kitty does not like to be left alone. If you haven’t played with her as often as she’d like, Kitty will cry for several
minutes before quieting down. When you return, in most cases she will be extremely happy to see you again.
However, if you leave her for a very long time, she may be very annoyed with you and HISS when you return.
All will be forgiven when you play with her again.
When Kitty Gets Sleepy:
Kitty likes to sleep several times a day. Occasionally, you will hear her yawn. If she is left alone for a few
minutes, she will meow for a few minutes and then go to sleep. You can easily tell if she is asleep as her
EYES
will be not be lit.
Kitty will also go to sleep as nighttime approaches. Kit t y’s
LIGHT SENSORS
will let her computer know it’s late
at night. Like a real Kitt y, first you may hear a yawn or whimper for a few seconds. Her eyes will change from
the round eye to the rectangular eye slits.
(Fig. 4)
A few minutes later, Kitty will start to softly snore and her eyes will shut off. Now she’s asleep. You can wake
Kitty up by talking to her, making a loud noise, or turning on t he lights. She may wake up a bit startled and will
either Meow or Cry. It’s a good idea to let Kitty know you are there by petting her along her back.
Making Kitty Sniff:
Kitty is very curious and loves to sniff out objects placed in front of her. If you press anything against her nose,
she will take a whiff of it.
Teasi ng Ki t ty With Her Tr eat :
Kitty likes her Fish Treat. If you wave it in front of her eyes, she may walk towards you, meow for the Treat, or
even cry for it. It's always kind to feed Kit t y is she k nows you are offer ing her a treat.
(Fig.5)
Kitty’s Emergency Stop:
Kitty will automatically stop moving her legs when she hits an object with her nose while walking. You may also
hear a slight grinding noise occasionally if she cannot move. This is normal and will not cause any damage. If
you want to make Kitty stop walking at any time, tap her on t he nose. You will hear Kitty say "
OW!
" --so be
gentle!
6. Teaching Kitty Tricks:
Kitty is amazingly smart - but she needs
YOUR
know- how to program her so she can perform her tricks.
Follow these steps
EXACTLY
and you will be able to make Kitty astound your friends and fam ily with your
combined
talents. Here are the tricks she can do:
Trick name What Kitty will do How to program her How to make her do the trick How to make her stop
Speak Meow on your command. Press and hold the
Sensor A for 3 seconds
until a "beep" is heard.
Yell Kitty' s name or clap your
hands. Kitty will meow each time
and move her head and tail with
happiness.
Pet her on her back and she
will purr and return to normal
play.
Pounce Kitty will appear to stalk her
"prey" . She will look around,
move forward slowly and
quietly-then run quickly to
pretend to pounce on an
object.
Touch the Sensor C
continuously for 3
seconds until a "beep" is
heard. Repeat this again
by touching Sensor C for
another 3 seconds
continuously until you
hear a "beep".
Yell Kitty' s name or clap Kitty
will do the trick each time. For
extra fun, place her Fish treat
about 2 feet in front of her and
see if she can "catch" it in her
paws!
(Fig.6)
Pet her on her back and she
will purr and return to normal
play.
Started
when the
lights come
on
Kitty is sensitive to bright
lights. Kitty can be
programmed to make
sounds of being frightened
and lonely when the room
becomes bright.
Press and hold Mode
button and Sensor C for 3
seconds "beep", beep,
beep, beep" will be
heard. Press Sensor C
again to confirm. Here a
"beep".
Turn on the lights when gets
dark or move her from a dark
place to a well lit place.
Press Nose and Mouth
Sensors for 3 seconds until
you hear a sensor of High
and Low beeps .
Talk Say words in English
1) "Kitty , 2)"Thank you,
3)"Yummy,4)"Pet me".
Press MODE BUTTON
and NOSE SENSOR for
3 seconds until you hear
4 "Beeps" and "Thank
You". Press TOUCH
SENSOR A and you will
hear Kitty Laugh Press
NOSE SENSOR again to
start.
"Kitty" is played whenever there
is a change in the light level or
the MODE BUTTON is pressed.
Kitty will say "Thank You" or
"Yummy" when she is fed.
Whenever Kitty feels like she
wants some affection, she will
say "Pat Me !"
Press Nose and Mouth
Sensor for 3 seconds until
you hear a series of High and
Low beeps.
Laugh Laugh when she hears any
noise. She will then "excuse"
herself.
Press MOSE BUTTON
and NOSE SENSOR for
3 seconds until you hear
4 "Beeps" and "Thank
You". Press TOUCH
SENSOR A and you will
hear Kitty Laugh. Press
NOSE SENSOR again to
start.
Talk to Kitty or make a loud
noise. Kitty will laugh each time.
Press Nose and Mouth
Sensors for 3 seconds until
you hear a sensor of High
and Low beeps .
Sing And
Dance
Play music and move in an
animated pre-programmed
pattern with the music. She
will perform to one of three
different songs.
Press and hold the
MODE BUTTON,NOSE
SENSOR and MOUTH
SENSOR at the same
time for 3 seconds. Hear
4 "Beeps". Press MODE
BUTTON once to being
to select a song. Press
TOUCH SENSOR A
repeatedly to song. One
Beep is song 1. Two
Beeps is song 2. Three
Beeps is song 3.
Press Mode Button to begin
Sing and Dance Routine.
She will say "Thank You" and
will return to normal play
when she completes her
performance.
Trick name What Kitty will do How to program her How to make her do the trick How to make her stop
Rude Noises Cough or Burp and excuse
herself.
Press MODE BUTTON
and TOUCH SENSOR A
for 3 seconds until you
hear 4 "Beeps". Press
NOSE SENSOR again to
confirm. The "Burp" and
"cough" sound will be
played.
Kitty will make these noise all by
herself for about 10 minutes.
Wait 10 minutes and Kitty will
stop all by herself.
Wake up
songs
Play one of three different
songs when she wakes up.
Press and Hold MODE
BUTTON and TOUCH
SENSOR B for 3 seconds
and hear 3 "Beeps".
Press NOSE SENSOR to
select each song. Press
once and song
one ,press again to hear
song two , and third time
for song three. When the
song you have selected
has finished
playing ,press the MODE
BUTTON and hear a
"beep".
Place Kitty in a dark area (or
wait until night time) and let her
snore and go to sleep. When
she wakes up, she will play the
song of your choice.
Kitty will stop automatically
when she is finished. To
make her NOT wake you up
the next morning. Press
Nose and Mouth Sensors for
3 seconds until you hear a
series of High and Low
beeps.
7. Advanced Programming Tricks:
Now it’s time to really concentrate. Kitty’s advanced tricks are a bit more difficult to program but well worth the
effort.
Trick Name: Alarm Clock
Kitty will wake up at exactly the time you want her to and play a special song.
To program Kitty, you must teach her to tell time.
Press the
MODE BUTTON
for 3 seconds until you hear a "
Beep
". You will see that both of Kitty’s eyes are ON
which means it’s
A.M.
(midnight to noon). If her left eye is Off it means
P.M.
(noon to midnight).
Next, check your clock to see the current tim e of the day. Press the
TOUCH SENSOR A
(listen for a "beep")
one time for each of the hours of the day starting with AM. If you press more than 12 times, Kitty’s left eye will
go
OFF
indicating that you are in PM time. Press the
MODE BUTTON
when you have finished and you will
hear the number of beeps that eq ual t he num ber you pressed. (Kitty’s eyes will also flash. If you set the wrong
time, you must press
RESET
and start over. If the number of beeps is correct, press the
MODE BUTTON
again. You will see Kitty’s eyes have stopped flashing and are now on. You have just set the Hour s of the day.
To set the m inut es, look at the current time and divide the minutes into 5-minute segments. Each five-minut e
segment will be equal to 1 "
beep
". For example, 15 minutes equals
3
"beeps" 25 minutes, equals 5 "beeps",
etc. Press the
TOUCH SENSOR A
(listen for the beep) once f or each 5-minute interval of time. Press t he
MODE BUTTON
when you have entered the correct minutes. The Eyes will flash on and off and you will hear
the number of beeps you have entered. If t he num ber of beeps is incorrect, press the
MOUTH SENSOR
to
start over. If the number of beeps is correct, press the
MODE BUTTON
one more time. The Eyes will stop
flashing and Kitty is ready for is norm a l play.
To Set The Alarm:
In setting Kitty’s alarm, you have 2 choices as to how you’d like her to wake you up in the morning. Kitty can
either wake you up by Meowing or can make an Alarm sound. Here’s how to set her.
Press the
MODE BUTTON
and the
MOUTH SENSOR
for 3 seconds. You’ll hear 2 beeps. You’re now in Alarm
Mode.
To select a wake-up time, repeat the same process for setting the clock. Kitty will wake you up by Meowing and
moving her tail. If you want to wake up with an Alarm sound instead, press t he
MODE BUTTON
and
NOSE
SENSOR
for 3 after setting the alarm. You’ll hear 4 "
wake up
" sound that tells you the alarm is set.
Kitty will shut herself off in a short period after her alarm goes off. You do not need to press any of her buttons
to make her stop. removed or the
RESET
button is pressed or the
ON/OFF SWITCH
is moved to the OFF
position, you must reset both the Clock and the Alar m by repeating the procedures.
Kitty’s Amazing Counting Trick!
Kitty will actually count the number of treats on her dish from one to four! This is the ultimate trick to master but
Kitty needs your help to do it.
You will need the print ed car d t hat is included in the package that is labeled "Kitty’s Place Mat". Place the card
in front of Kitty with the arr ows f a cing towards Kitty’s eyes. On the Place Mat you will see a different number of
treats in each dish. Kitty will tell you how many treats she wants to eat.

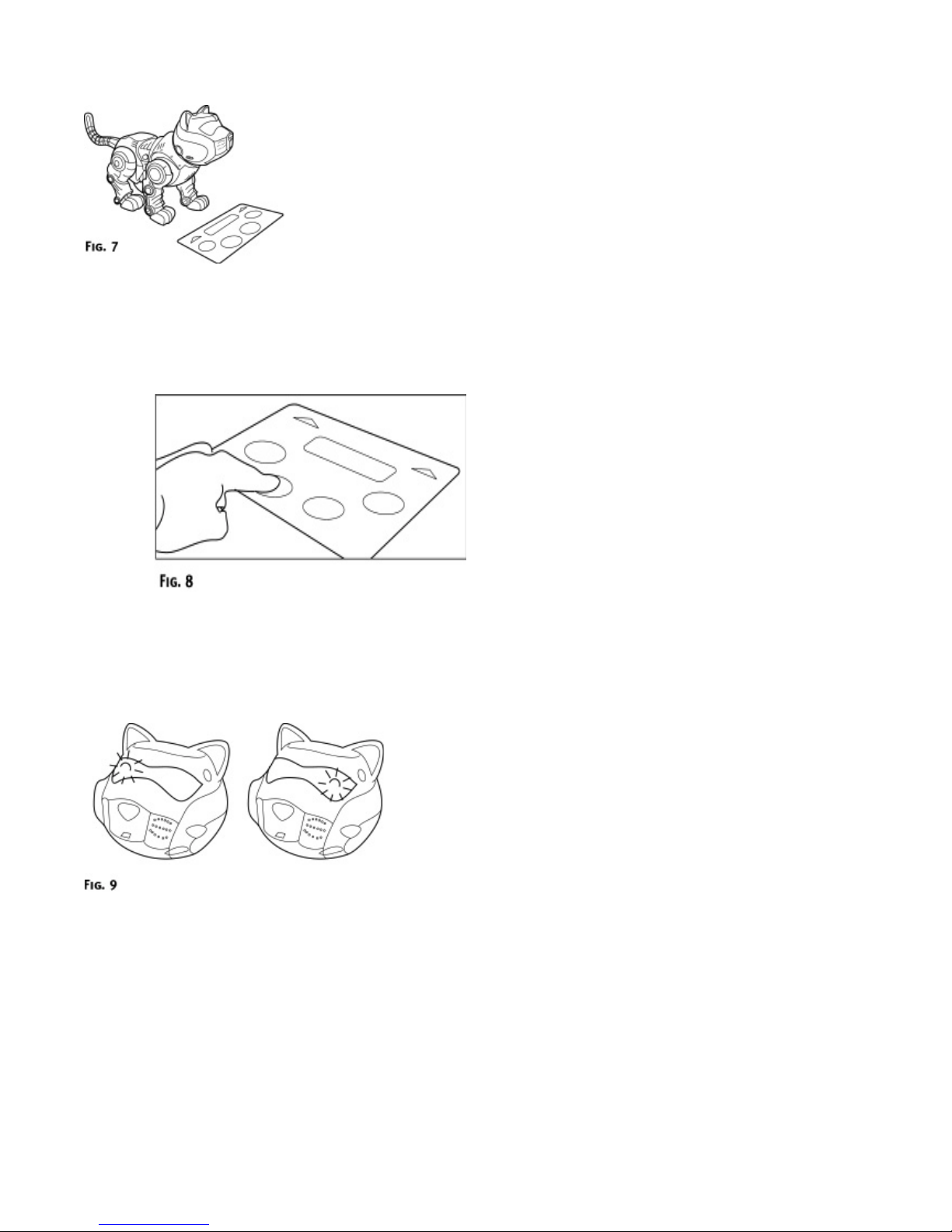

(Fig. 7)
To prog r am Kitty for this trick, Press and Hold the
MODE BUTTON
and the
NOSE SENSOR
for 3 seconds.
You will hear 4 "
beeps
" and Kitty say "
THANK YOU!
" Press the
MOUTH BUTTON
and Kitty will start to play a
musical tune (you can use this time to prep the audience). When the tune stops, press t he
NOSE SENSOR
and you will hear a beep. You are programmed to run the trick!
Ask someone (we'll call her Shirley) to choose a dish on the Place Mat any dish and put her fing er on it.
(Fig.
8)
Press
TOUCH SENSOR A
to start Kitty into action. Kit t y will "Meow" or make a "
Whimper
" and her Right eye
or Left eye will light up
(Fig. 9)
. Instruct Shirley to move her finger to the
NEXT
dish in the direction of Kitty’s
eyes. Shirley can only move one time for each of Kitty’s "
Meows
" or "
Whimpers
".
IMPORTANT:
If Shirley is on the last dish of the Place Mat and Kitt y says to move
OFF
of the Place Mat, then
they should
NOT
move her finger from that dish.
Kitty will ask the audience to make several moves. When she is decided how many treats she wants, Kitty will
count the treats on the dish that you are pointing t o by saying "
Yummy
" once for each treat on the dish and
then laugh. She will say "
Yummy
" 1 time for one treat, 2 times for the two treats, 3 times for 3 treats, and 4
times for 4 treats. If everyone has followed the rules, Kitty will
ALWAYS
give the correct answer.
To ask Kit ty to count again, have an audience member choose another dish and Press
TOUCH SENSOR A
again. You can do this as many times as you wish.
How to make Kitty stop doing the trick: Press the
MODE BUTTON
and hear a "
beep
". Kitty will return to her
normal programming.
Practice this trick a few times to master it. If you want to make t he t r ick really appear amazing, use some real
candy instead of the Place Mat! Put four small groups of candy in front of Kitty with one candy being on the Left,
2
candies to the Right of the first, 3 candies to the Right of the second, and 4 candies to the far right
(Fig. 10)
.
NOTE:
It is important to place them in the correct order or the trick will fail. Your friends won’t believe how Kitty
did it!
8. Replacing Kitty’s Batteries (Fig. 11)
:
Kitty runs by battery power. When her batteries are low, she will not respond to any of your commands. To
replace the batteries, unscrew the small screw on the
BATTERY DOOR
on Kitty’s belly. Pull the Battery door
out. Replace the batteries in the orientation shown.
USE ONLY ALKALINE BATTERIES
. Never use
Rechargeable Batteries or these will damage Kitt y’s electronic circuits.
BATTERY CAUTIONS:
IMPORTANT:
Only parents should replace batteries.
Do not use rechargeable batteries.
Do not attempt to recharge non- r echar geable batteries.
Insert batteries as marked and always follow the toy and battery manufacture’s Instructions.
Use only the same or equivalent type of battery as recommended.
Do not short-circuit the supply terminals.
Do not mix old and new batteries. Do not mix different types of bat teries, such as alkaline,
standard(carbon-zinc), rechargeable(nickel-cadmium).
Always remove exhausted or dead batteries from the product.
Remove batteries from the product before extended storage
9. Trouble Shooting:
Difficulty Solution
Kitty' s eyes flash when I press the
MODE BUTTON
or other sensors.
You are in the CLOCK SET MODE by accident. Turn Kitty
Off and again or press RESET.
I pick Kitty up and I hear a "beep" .
You have accidentally touched one of Kitty' s Touch
sensors. Pet her on the back or turn Kitty Off and again or
press RESET.
Kitty does not respond to me when I call her. You may be speaking too quietly. Try to get closer to her,
speak louder, or clap your hands. She is always listening.
Kitty fell and her legs or tail popped off. This is normal under extreme conditions. Simply pop the
pieces back on. Match the flat surfaces of the legs to the
pins to make the proper alignment. Please do not do this
under normal conditions as it may lead to permanent
damage.
I' ve lost Kitty' s Place Mat for her counting trick. Arrange some other "treats" - such as candy - in front of
her in the correct order. Refer to
Fig.10
.
10. Interacting With Other Robotic Pets
Kitty’s programming is designed to hear and respond with other Robot ic Pets from the Institut e of Robotic
Technology. These include Tekno the Robot ic Puppy or anot her Kitty the Tek no Kit t en. If you have a friend with
a Kitty or Tekno, place them near one another. You’ll see they begin to react to each other and all sorts of fun
ways! They’ll walk, talk and generally like each other’s company (unless Kitty gets frightened!). It’s a great way
to keep your Kitty happy.
Loading...
