Manitowoc Ice Q300 Installation Manual

Q MODEL

DISPENSER

Q160/290/300

Installation,

Use, and Care

Thank you for selecting a Manitowoc Dispenser, the dependability leader in ice making equipment and related products. With proper care and maintenance, your new Manitowoc Dispenser will provide you with many years of reliable and economical performance.

Part Number

80-1388-3

Safety Notices

Procedural Notices

Installation and start-up of this equipment should be done by a qualified service technician.

When using or servicing a Q Model Dispenser, be sure to pay close attention to the safety notices in this manual. Disregarding the notices may lead to serious injury and/or damage to the dispenser.

Throughout this manual, you will see the following types of safety notices:

WARNING

Text in a Warning box alerts you to a potential personal injury situation. Be sure to read the Warning statement, and then proceed carefully.

CAUTION

Text in a Caution box alerts you to a situation in which you could damage the dispenser. Be sure to read the Caution statement, and then proceed carefully.

When using or servicing a Q Model Dispenser, be sure to read the procedural notices in this manual. These notices supply helpful and important information.

Throughout this manual, you will see the following types of procedural notices:

NOTE: Text set off as a Note provides you with simple, but useful, extra information.

Important

Important boxes serve two functions. They call the operator’s attention to important

information. They also provide the service technician with

information that may help perform a procedure more efficiently. Disregarding this information may slow down the work.

CAUTION

Proper care and maintenance are essential for troublefree operation of your Manitowoc Dispenser.

Read and understand this manual. It contains valuable care and maintenance information. If you encounter problems not covered by this manual, feel free to contact Manitowoc Ice, Inc. We will be happy to provide assistance.

WARNING

Personal Injury Potential

Do not operate equipment that has been misused, abused, neglected, damaged, or altered/modified from that of original manufactured specifications.

We reserve the right to make product improvements at any time.

Specifications and design are subject to change wi thout notice.

MANITOWOC ICE, INC.

2110 South 26th Street P.O. Box 1720

Manitowoc, WI 54221-1720

Phone: (920) 682-0161

Service Fax: (920) 683-7585

Web Site - www.manitowocice.com

2002 Manitowoc Ice, Inc.

Litho in USA

Table of Contents

Section 1 - General Information

Foreword..................................................................................................................................................................1-1

Model/Serial Number Location..............................................................................................................................1-1

Warranty Information............................................................................................................................................1-2

Equipment Overview...............................................................................................................................................1-3

Section 2 – Equipment Specifications

Q Series Measurements...........................................................................................................................................2-1

Q Series Metric Measurements..............................................................................................................................2-2

Section 3 – Installation Procedures

Installation Check List............................................................................................................................................3-1

Installation Procedures...........................................................................................................................................3-3

Post-Installation Check List...................................................................................................................................3-4

Section 4 - Maintenance

Disassembling the Dispenser Parts

For Cleaning (Door Removal)................................................................................................................................4-1

Cleaning the Drain Pan...........................................................................................................................................4-2

Disassembling the Rocking Chute/Door................................................................................................................4-3

Re-Installing the Paddle Wheel Guard .................................................................................................................4-6

Disassembling the Dispenser Parts for Bin Cleaning

(Agitator and Paddle Wheel Removal)..................................................................................................................4-7

Monthly Sanitizing Procedure................................................................................................................................4-9

Sanitizing Procedure for

Water Valve Assembly............................................................................................................................................4-10

Table of Contents

Table of Contents (continued)

Section 5 – Component Parts-Removal and Replacement

Gearmotor Shaft Seal Replacement ......................................................................................................................5-1

Removal of Front Panel of Dispenser

(See pages 4-1 and 4-2)

Removal of Pin, Agitator and Paddle Wheel

(See pages 4-5and 4-6)

Section 6 – Checklist

Problem: Ice Does Not Dispense When Rocking Chute is Depressed................................................................6-1

Section 1 General Information

General Information

This manual is a reference guide for the owner/operator, service agent and installer of this equipment. Please read this manual before installation or operation of the machine. If you encounter a problem, first consult the Trouble shooting Guide or Adjustments sections of this manual. I

f you cannot correct the problem, call your Manitowoc Service Agent, Distributor or the Factory. Always have your model and serial number available when you call.

Q1000 Ice Machines are not approved for use on a QModel Dispenser.

Earthquake kits are available to secure the ice machine to the dispenser and the dispenser to the floor.

Adapter Kit

A 22’’ wide machine mounted to a 30’’ wide dispenser requires an adapter kit

Front of Dispenser

Label with Model Number and Serial Number is located behind the front panel, to the right of the rocking chute.

Locations of Model Number and Serial Number

Back of Dispenser

A second location for the Model Number and Serial Number is on

Model

umber/

Serial

umber

the back of the dispenser, in the upper right corner..

Dispensers Covered in This Manual

Series

Q160 Q300

Q290

Rocking Chute

Operated

QPA160 QRA164 QCA163 N/A QPA310 QRA340 QCA330 N/A

N/A N/A N/A QFA291

NOTE: These dispensers are designed to dispense both dice and half dice ice.

These dispensers may be used in conjunction with a Manitowoc ice machine for automatic fill of dispenser.

Q160 dispensers are capable of storing 120 lbs. of ice. Q290/Q300 dispensers are capable of storing 180 lbs. of ice.

Card Operated Coin Operated

Glass Fill

Dispenser

1-1

General Information Section 1

WARRANTY INFORMATION

The packet containing this manual also includes warranty information. Warranty coverage begins the day your new dispenser is installed.

2. Repairs due to unauthorized modifications to the dispenser or the use of non-standard parts without prior written approval from Manitowoc Ice, Inc.

Important

Complete and mail the OWNER WARRANTY REGISTRATION CARD as soon as possible to validate the installation date.

3. Damage caused by improper installation of the dispenser, electrical supply, water supply or drainage, or damage caused by floods, storms, or other acts of God.

If you do not return your OWNER WARRANTY REGISTRATION CARD, Manitowoc will use the date of sale to the Manitowoc Distributor as the first day of warranty coverage for your new dispenser.

4. Premium labor rates due to holidays, overtime, etc.; travel time; flat rate service call charges; mileage and miscellaneous tools and material charges not listed on the payment schedule. Additional labor

WARRANTY COVERAGE

The following Warranty outline is provided for your convenience. For a detailed explanation, read the warranty bond shipped with each product.

Contact your local Manitowoc representative or Manitowoc Ice, Inc. if you need further warranty information.

charges resulting from the inaccessibility of the dispenser are also excluded.

5. Parts or assemblies subjected to misuse, abuse, neglect or accidents.

6. Damage or problems caused by installation, cleaning and/or maintenance procedures inconsistent with the technical instructions provided

PARTS

in this manual.

Manitowoc warrants the dispenser against defects in materials and workmanship, under normal use and service, for three (3) years from the date of original installation.

AUTHORIZED WARRANTY SERVICE

To comply with the provisions of the warranty, a refrigeration service company, qualified and authorized by a Manitowoc distributor, or a Contracted Service

LABOR

Labor required to repair or replace defective components is covered for three (3) years from the date of original installation.

Representative must perform the warranty repair. NOTE: If the dealer the dispenser was purchased from

is not authorized to perform warranty service, contact the Manitowoc distributor or Manitowoc Ice, Inc. for the name of the nearest authorized service

EXCLUSIONS

representative.

The following items are not included in the dispenser’s warranty coverage:

SERVICE CALLS

If you have followed the procedures listed the

1. Normal maintenance, adjustments and cleaning as outlined in this manual.

Troubleshooting Guide of this manual, and the dispenser still does not perform properly, call your authorized service company.

1-2

Section 1 General Information

Equipment Overview

Q300 Dispensers

Removable front panel

Gearmotor

Scrap ice tray

gitator time

Q160 Dispensers

Rocking chute

gitato

Ice bin

Paddle wheel

The operation of the Q Series ice dispenser can be divided into three main operations. They are Dispenser Activation, Ice Pick-Up and Ice Delivery.

Dispenser Activation

Dispenser activation can be accomplished with a number of different mechanisms.

• Rocking Chute (Push for Ice) Activation –User pushes the Rocking Chute, which energizes a microswitch. The energized microswitch engages the gearmotor.

• Room Key Card Activation – User places their hotel room key card into a slot on the dispenser. The room key card activates the microswitch. The user then presses the Rocking Chute (Push for Ice) for ice dispense. This action activates the gearmotor.

• Coin Operated Activation – User places one quarter into dispenser. The quarter activates the coin mechanism. The user then presses the Rocking Chute (Push for Ice) for ice dispense. This action activates the gearmotor.

Ice Pick-Up

When the customer activates the dispenser, the gearmotor inside the dispenser begins to turn.

The gearmotor shaft is attached to the paddle wheel inside the bin of the dispenser. As the paddle wheel turns it picks up ice from the dispenser bin. The paddle wheel will bring the pocket containing the ice to the top of the travel area.

Ice Delivery

When the paddle wheel pocket reaches the top of its travel, the ice falls from the paddle wheel to the ice chute opening of the dispenser bin. The bin chute then directs the ice to the door assembly.

If the door closes before all the ice is dispensed, some ice may be held back by the door assembly. If the door is open, the ice will fall through the door and the ice chute. The ice chute will direct the ice into the customer’s container.

Model QFA-291 is equipped with an optional water valve. When the water valve lever is pressed, water flows through the system to the water valve nozzle.

1-3

General Information Section 1

Room Key Card Activation

Coin Operated Activation

1. User places ice bucket under ice chute.

2. User places their hotel room key card into a slot on the dispenser which is labeled “Insert Room Key Card”. The room key activates the microswitch.

3. The user then presses the Rocking Chute (Push for Ice) for ice dispense. Pushing the ice chute activates the gearmotor.

The room key card must stay in the slot for the microswitch to remain activated.

1. User places ice bucket under ice chute.

2. User places one quarter (U.S. currency only) into dispenser.

3. The user then presses the Rocking Chute (Push for Ice) for ice dispense.

Pushing the ice chute activates the gearmotor. Ice will dispense for up to one minute for each 25 cent activation per factory setting.

Important

Coin Operated Activation will accept U.S. quarters only. No other coin is accepted and no change is returned to the user. To allow use of Canadian coins, please contact your local dealer.

1-4

Section 1 General Information

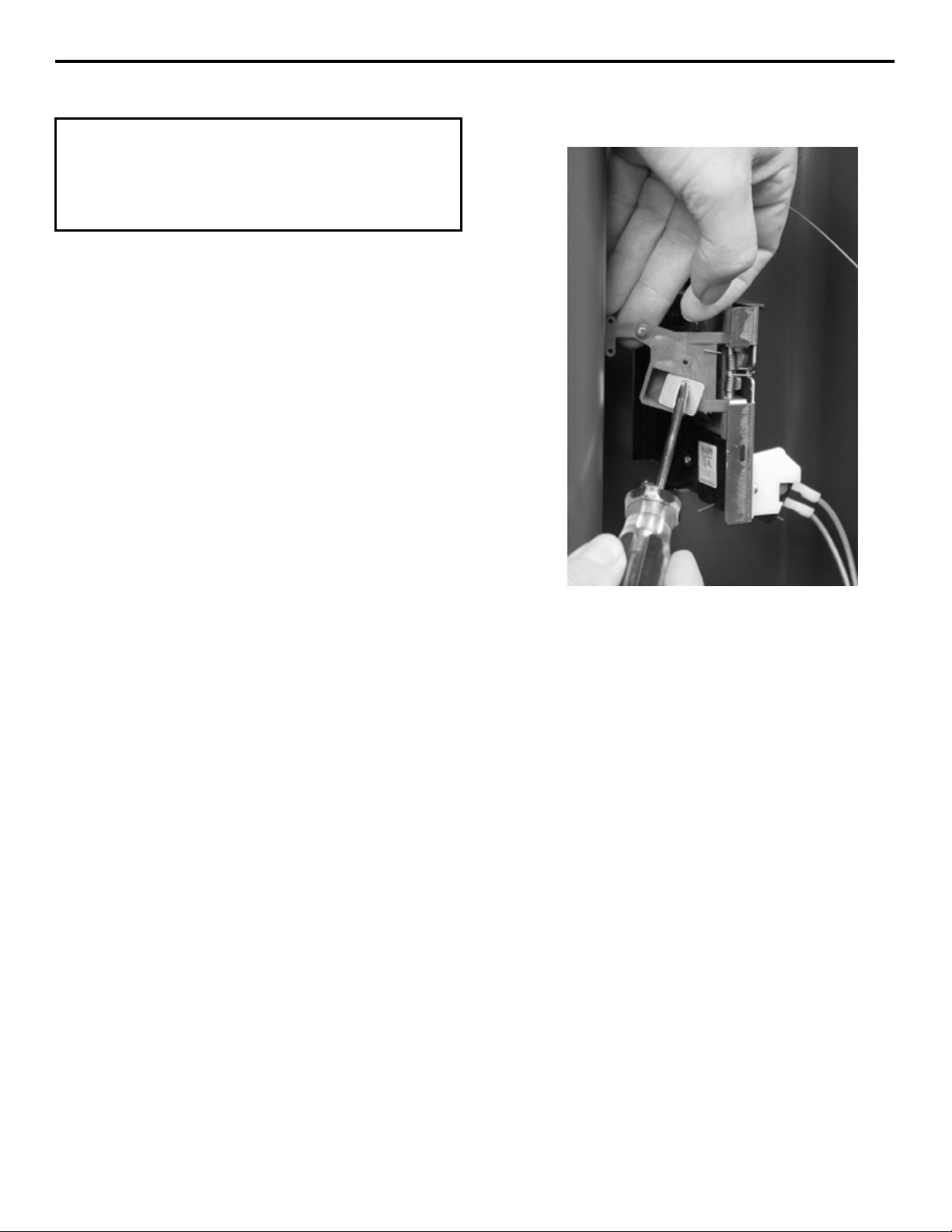

Adjusting the Coin Mechanism Timer

1. Remove the control box cover. On the inside of the control box there is a white instruction label which shows how to set intervals for coin mechanism dispense times.

2. Inside the control box, the coin mechanism timer is to the left. The ice agitation timer is to the right.

3. With a small Phillips head screwdriver, adjust the coin mechanism timer. For timer adjustment reference information, see below or refer to the white instruction label inside the control box cover.

4. The timer is factory set at the midpoint (as shown above) for 60 seconds of dispense time. The adjustment pot can be set (counterclockwise) for as low as 12 seconds of dispense time. The adjustment pot can be set (clockwise) for as high as 120 seconds of dispense time.

COIN MECHANISM

TIMER

1-5
