TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
Q Series
Q Model - Marine
Q0600M
Q0600M- Control Box Components 1
Q0600M - Evaporator Compartment - Common Components 3
Q0600M - Refrigeration Compartment - Common Components 5
Q0600M - Refrigeration Compartment - Water-cooled Components 7
Q0600M - Panels 9
i
Q0600M
Q0600M- CONTROL BOX COMPONENTS
Q0600M_2.PDF
1
Q0600M
Q0600M- CONTROL BOX COMPONENTS
# PART # DESCRIPTION QTY Note
1 7627823 Control Board
2 2511003 7 Amp Fuse - Mounted on Control Board
3 2301343 Toggle Switch Only
3a 2032173 Toggle Switch with Wiring Harness Attached
4 Contactor
4a 2006599 Contactor - 230V/50-60 Hz/1 Ph
5 8504993 PTCR Compressor Starter
6 Compressor Run Capacitor
6a 2010143 Run Capacitor - 115V/60 Hz/1 Ph
7 Terminal Board with Wire Harness Attached
7a 2032293 Wiring Harness - 230V/60 Hz/1 Ph
8 8373263 Refrigeration Service Valve Assembly
9 5475039 Locknut - 0.375" - 18 NPS
10 6025593 Control Box
11 7628523 Control Box Cover
12 8505013 PTCR Compressor Starter Mounting Bracket
13 4302253 Control Board Mounting Supports
14 6024953 Capacitor Mounting Strap
15 5202169 Screw - #10-24 x 0.50" Ground
16 5202069 Screw - #10-24 x 0.50" HEX
Q0600M_2.PDF
2
Q0600M

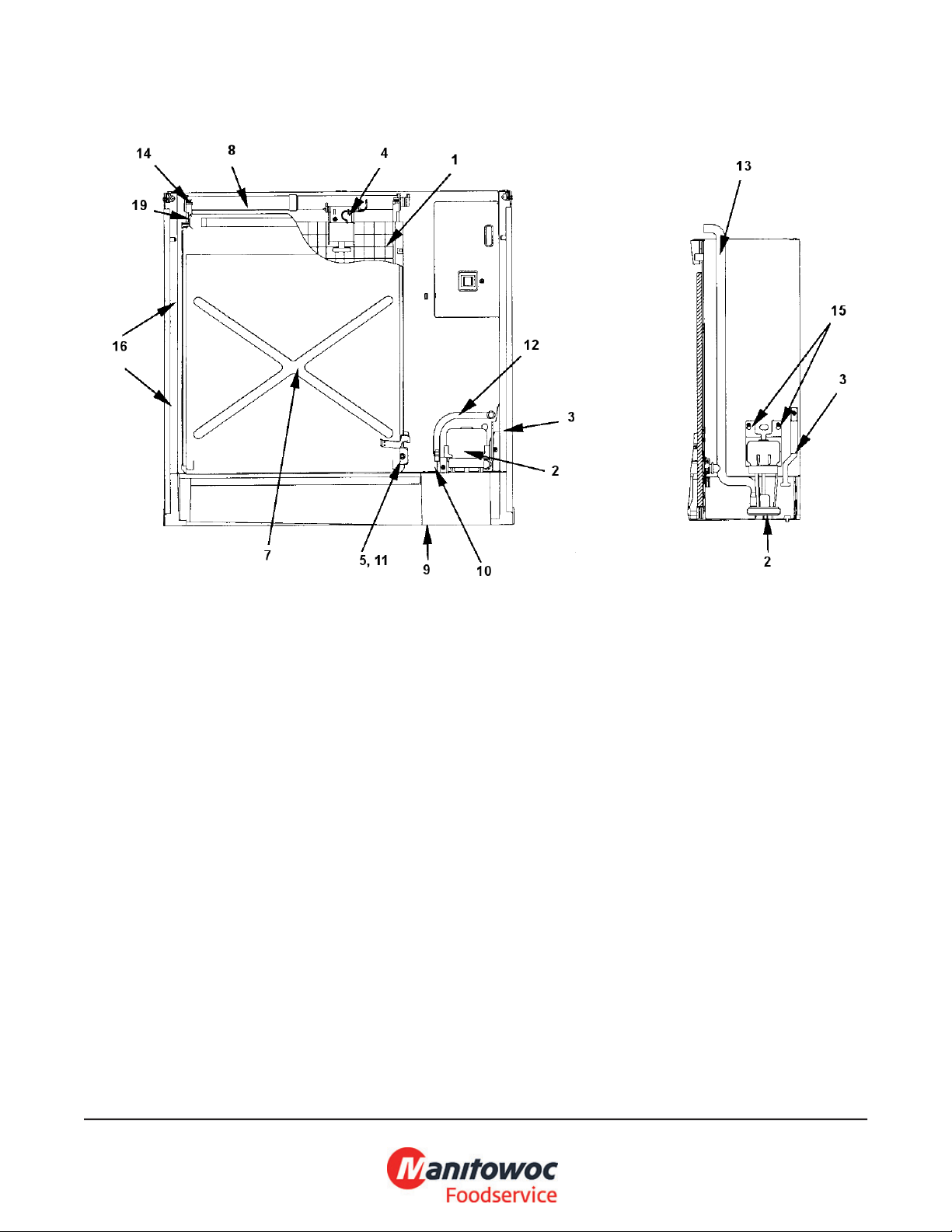

Q0600M - EVAPORATOR COMPARTMENT - COMMON COMPONENTS
Q0600M_3.PDF
3
Q0600M
Q0600M - EVAPORATOR COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Evaporator Assembly
1a 7625129 Evaporator - Regular Cube
1b 7625119 Evaporator - Dice Cube
1c 7625109 Evaporator - Half Dice Cube
2 7626013 Water Pump - 230V/50-60 Hz
3 2511293 Water Level Probe
4 7627813 Ice Thickness Control Probe
5 2301483 Magnetic Bin Switch [1]
6 7620543 Water Flow Clamp - Use on Regular Cube Evap. Only
7 6048331 Water Curtain
8 7624983 Water Distribution Tube - B/J/Q
9 4300629 Water Trough Plug
10 4303883 Water Inlet Flow Tube
11 7628023 Water Curtain Magnet and Cap
12 4421113 Water Inlet Tubing 0.375 ID
13 4421093 Water Pump Out Tubing
14 5000013 Thumbscrew - #8-32 x 0.375"
15 5202069 Screw - #10-24 x 0.50" HEX
16 5202189 Screw - #10-24 x 0.75"
17 7628063 Base and Water Trough Repair Kit
18 7626213 Evaporator Top Molding and Gasket Assembly
19 7627763 Water Curtain Pin Assembly
PART NOTES:
[1] - Mounted to Evaporator
Q0600M_3.PDF
4
Q0600M
Q0600M - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
Q0600M_4.PDF
5
Q0600M
Q0600M - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor
1a 000010555 Compressor - Bristol - 208-230V/60 Hz/1 Ph
2 Water Dump Valve
2a 000001768 Water Dump Valve - 208-230V/50-60 Hz
3 Harvest Valve
3a 7630101 Solenoid Valve with Coil - 230V/50-60 Hz [1]
3b 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [2]
3c 2404483 Alco Solenoid Valve Coil Only - 230V/50 Hz
4 Water Inlet Valve
4a 000007966 Water Inlet Valve - 208-230V/50-60 Hz
5 7600203 Expansion Valve
6 Expansion Valve Body Insulation Boot
6a 4007213 Valve Insulation Boot - Body
6b 4000363 Valve Insulation Boot - Body
7 4007203 Valve Insulation Boot - Bulb [3]
8 8310153 Manifold Strainer - 3 Hole [4]
9 2077203 Water Pump Electrical Wire Lead
10 2355369 High Pressure Cut-out Control
11 6023541 Dump Valve/Water Inlet Valve Mounting Bracket
12 6019503 Right Corner Post Weldment
13 8706083 Female Wing Adapter - 0.50"
14 4420383 Clear Tubing - 0.625" ID
15 8503069 Mounting - Rubber Grommet
16 5573419 Washer
17 5012309 Compressor Mounting - Screw
18 5650709 Snap Clamp - 0.799"/0.899" ID
19 5650529 Clamp - Expansion Valve Bulb
20 5202099 Screw - #10-24 x 0.50" PHIL
21 5202189 Screw - #10-24 x 0.75"
22 6019513 Left Corner Post Weldment
PART NOTES:
[1] - Danfoss
[2] - \pages from 000005156_02.jpg" width=266 height=183>
[3] - \pages from 400720_08.jpg" width=923 height=583>
[4] - in front of harvest valve
Q0600M_4.PDF
6
Q0600M
Q0600M - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS
Q0600M_5.PDF
7
Q0600M
Q0600M - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor [1]
2 8930259 Drier
3 000008892 Receiver
4 8865333 Water-cooled Condenser
5 8253153 Water Regulating Valve
6 8706083 Female Wing Adapter - 0.50"
7 6000543 Receiver Strap
8 6019063 Back Panel
9 8332033 Water Coupling
10 5202189 Screw - #10-24 x 0.75"
PART NOTES:
[1] - Refer to COMMON COMPONENTS
Q0600M_5.PDF
8
Q0600M
Q0600M - PANELS
Q0600M_6.PDF
9
Q0600M
Q0600M - PANELS
# PART # DESCRIPTION QTY Note
1 6036321 Air and Water
2 6032841 Left Side and Right Side Panel
3 6019981 Back Panel
4 6031121 Top Cover
5 5119019 Screw - #8 x 1.75"
5a 5202313 Front Cover Screw
6 5573389 Washer - Nylon 0.171" x 0.38"
7 5648279 Screw Retainer - Nylon #8
8 5473039 Speed Nut Assembly to Mount Front Cover
9 5202099 Screw - #10-24 x 0.50" PHIL
10 7600813 Bracket Assembly
11 9202509 Extruded Tape
Q0600M_6.PDF
10
