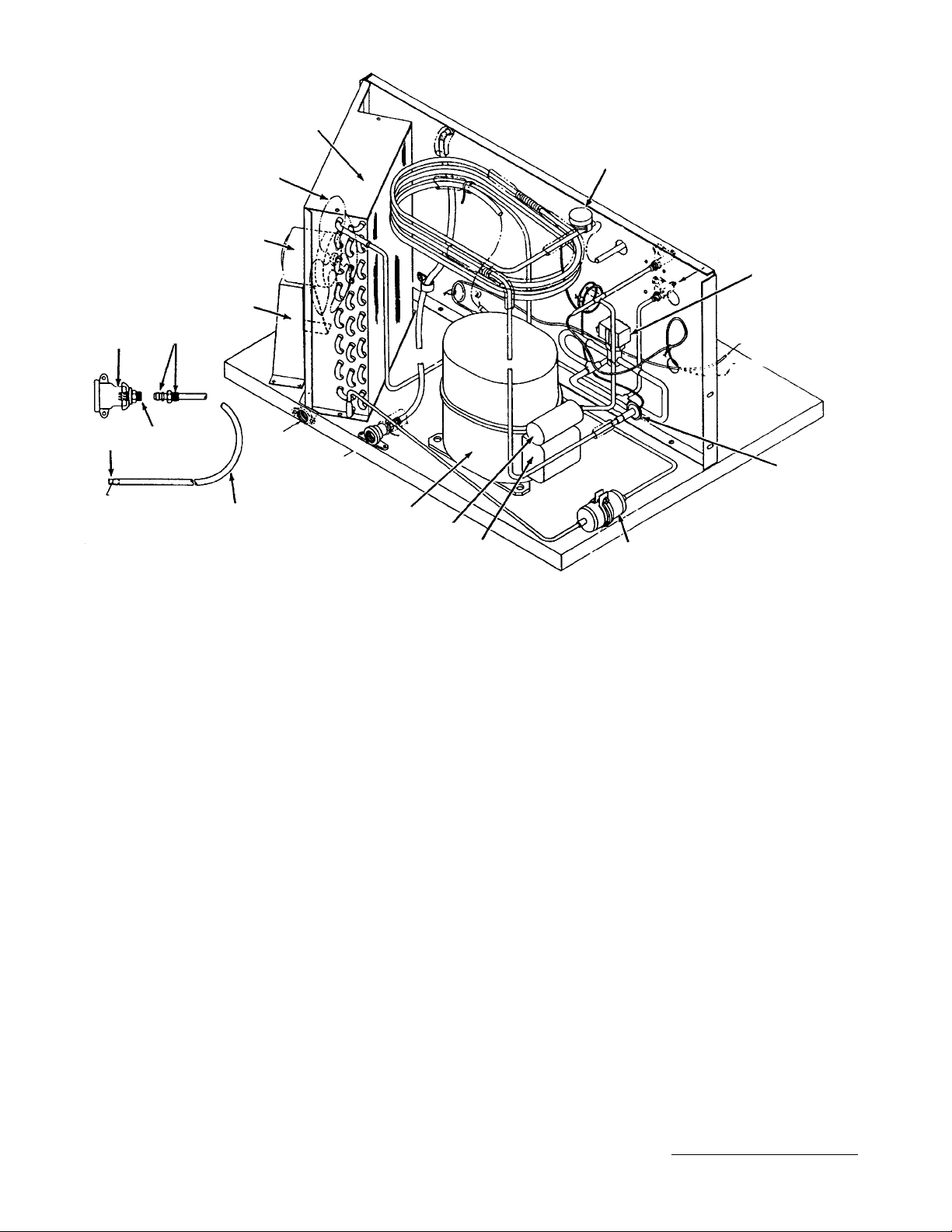

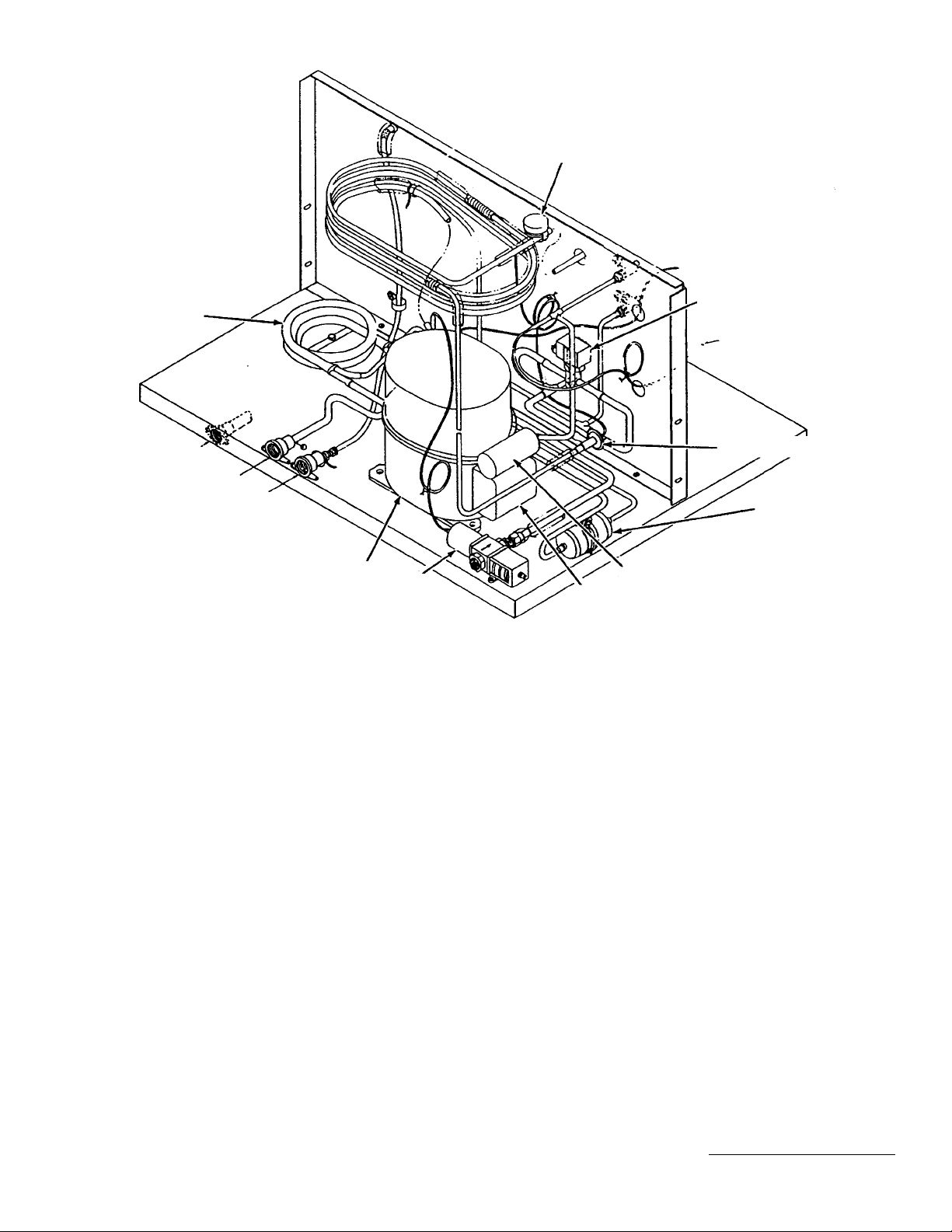

Manitowoc Ice CR0201W Parts Manual
Manitowoc
Ice Machine Parts List
for Models
CR0200A
CD0202A
CY0204A
Manufactured February 1980 through February 1983
CR0201W
CD0203W
CY0205W
C200 – 1
Updated: 4/12
C0200 EVAPORATOR
7
2
5
12
14
16
13
15
17
19
20
21
32
26
18
33
22
3
11
23
24
26
25
1
8
31
64
9
27
8
10
27
29
28
1091
PA RT NO.
1 Control Box Cover . . . . . . . . . . . . . . . 7619733
2 Manual Harvest Switch. . . . . . No Longer Available
3 Water Curtain . . . . . . . . . . . . . No Longer Available
4 Water Distribution Tube . . . . . No Longer Available
5 Main Toggle Switch. . . . . . . . . . . . . . . † 2300849
6 End Collar. . . . . . . . . . . . . . . . . . . . . . † 4408219
7 End Stopper . . . . . . . . . . . . . . . . . . . . † 4408209
8 Mounting Clip . . . . . . . . . . . . . No Longer Available
9 Pop Rivet . . . . . . . . . . . . . . . . . . . . . . † 5768439
10 Nylon Nut . . . . . . . . . . . . . . . . . . . . . . † 5429459
11 Centering Pin . . . . . . . . . . . . . . . . . . . † 5013139
12 Water Supply Tube (Need 2"). . . . . . . 4420339
13 Water Supply Tube (Need 13"). . . . . . 4420339
14 Elbow . . . . . . . . . . . . . . . . . . . No Longer Available
15 Water Pump . . . . . . . . . . . . . . . . . . . . † 7623063
16 Water Pump Bracket. . . . . . . . No Longer Available
17 Sump Trough . . . . . . . . . . . . . No Longer Available
18 Float Valve Assembly . . . . . . . . . . . . . 8369123
PART NO.
19 Bracket For Float Valve . . . . . No Longer Available
20 Wing Nut. . . . . . . . . . . . . . . . . . . . . . . † 5489139
21 Overflow Elbow. . . . . . . . . . . . . . . . . . 4300093
22 Water Flow Restrictor . . . . . . . No Longer Available
23 Ice Chute After SN 81020221. . . . . .
No Longer Available
23 Ice Chute Up to SN 81020221 . . . . . No Longer Available
24 Damper Door Up to SN 81020221 . . . . . . . . . . . . .
No Longer Available
24 Damper Door After SN 81020221
. . . . . . . . . . . . . . . . . . . . . . . No Longer Available
25 Knurled Screw . . . . . . . . . . . No Longer Available
26 Harvest Rack . . . . . . . . . . . . . No Longer Available
27 Water Curtain Hook RH . . . . . No Longer Available
28 Evaporator (Regular cube) . . . No Longer Available
29 Evaporator (Half dice cube) . . . . . . . . † 6817339
30 Evaporator (Dice cube). . . . . . No Longer Available
31 Top Grid Extrusion . . . . . . . . . No Longer Available
32 Bottom Grid Extrusion . . . . . . No Longer Available
33 Process Valve. . . . . . . . . . . . . . . . . . . † 8373109
Updated: 7/11
C200 – 2
† Refer to Cross Reference Guide
C0200 CONTROL BOX
WATER COOLED
MODEL
6
Damper
Door Bin
Switch
4
Low
Pressure
Control
4
3
Solid
State
Timer
16
2
High
Pressure
Control
1
Toggle
Switch
AIR COOLED
MODEL
5 – Fan
Cycle
Control
1092
1 Toggle Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2300849
2 High Pressure Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2355011
PART NO.
3 Solid State Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2406239
4 Low Pressure Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2355193
5 Fan Cycle Control
Up to SN 80120001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
After SN 80120001. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2301123
6 Damper Door Bin Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2300799
C200 – 3
† Refer to Cross Reference Guide
Updated: 7/02
