Manitowoc Ice BD1392N PARTS LIST

For more Parts Information:

https://manitowocfsg.sysonline.com/Default.aspx

TABLE OF CONTENTS

Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
B Series
B1300, BC1395
B1300 - Control Box Components 1
B1300 - Evaporator Compartment - Common Components 3
B1300 - Refrigeration Compartment - Common Components 6
B1300 - Refrigeration Compartment - Air-cooled Components 8
B1300 - Refrigeration Compartment - Water-cooled Components 10
B1300 - Refrigeration Compartment - Remote Components 12
B1300 - Panels 14
B1300 - Electrical Applications 16
BC1395 Remote Condenser Components 18

i

1

2

5

6

7

8

9, 10

12

13

14

15

16

17

19

20

21

19

19

22

16

15

9, 10

13

12

19

20

21

19

17

19

22

11

11

34

B1300, BC1395

B1300 - CONTROL BOX COMPONENTS

B1300_2.PDF

1

B1300, BC1395

B1300 - CONTROL BOX COMPONENTS

# PART # DESCRIPTION QTY Note
1 Contactor for 1 Phase Units [1]

2 2006619 Contactor - 230V/60 Hz/3 Ph
3 2010133 Run Capacitor - 115-230V/50-60 Hz/1 Ph
3 000001395 Run Capacitor - 208-230V/50-60 Hz/1 Ph
4 8503853 Start Capacitor - 50-60 Hz/1 Ph
4 8505513 Start Capacitor - 50-60 Hz/1 Ph
5 Start Relay For Bristol [1]
5 2007519 Start Potential Relay - 60 Hz
6 2355369 High Pressure Cut-out Control
7 Terminal Board With Harness, 1 Ph [1]
8 2031413 Terminal Board with Wiring Harness [2]
9 2301343 Toggle Switch Only
10 2031059 Toggle Switch With Wiring Harness Attached
11 7628003 Control Board [3]
12 2511003 7 Amp Fuse - Mounted on Control Board
12a 2511169 0.125 Amp 60 Hz Mini Fuse [4]
13 4302253 Control Board Mounting Supports
14 Capacitor Bracket [1]
15 Mounting Bracket for High Pressure Control [1]
16 5121669 Screw - #8-32 x 0.50"
17 Control Box [1]
18 Control Box Cover With Labels [1]
19 2502189 Bushing - 0.625"
20 2500019 Bushing - 1.187"
21 5202069 Screw - #10-24 x 0.50" HEX
22 5202169 Screw - #10-24 x 0.50" Ground

PART NOTES:

[1] - No Longer Available
[2] - Discontinued
[3] - (For use with all voltages)
[4] - See Page 9 for 50 Hz Applications

B1300_2.PDF

2

2824

22, 23

1

28

9, 25

14

7, 26

15

11

14

18

24

24

6

27

12

10

16, 23

13

23

21

17

20

3

4

5

19

Figure A

Sump #6010321

Figure B

Sump #6010501

B1300, BC1395

B1300 - EVAPORATOR COMPARTMENT - COMMON COMPONENTS

B1300_3.PDF

3

B1300, BC1395

B1300 - EVAPORATOR COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note
1 2301483 Magnetic Bin Switch

2 7624983 Water Distribution Tube - B/J/Q
3 7624739 Evaporator - Regular Cube
4 7624729 Evaporator - Dice Cube
5 7624719 Evaporator - Half Dice Cube
6 8369133 Float Valve
7 Float Valve Bracket Used With Figure A Sump Trough [1]
7a 7621403 Bracket
8 7627813 Ice Thickness Control Probe
9 6010321 Sump Trough [2]
9a 6010501 Sump Trough [3]
10 4008513 Water Curtain
10a 7627763 Water Curtain Pin Assembly
10b 7628023 Water Curtain Magnet and Cap
11 7626013 Water Pump - 230V/50-60 Hz [4]
12 4420913 Water Pump Discharge Tube
13 2077743 Water Pump Lead [5]
14 Ice Baffle [1]
15 Ice Baffle Support Used With Figure A Sump Trough [1]

Ice Baffle Support Used With Figure B Sump Trough [1]
16 Loop Clamp 2.00" Diameter [1]
17 5650709 Snap Clamp - 0.799"/0.899" ID
18 5650539 Snap Clamp - 1.123 x 1.296
19 8390053 Union Connector
19a 8390123 90 Degree Barbed Fitting
20 4420383 Clear Tubing - 0.625" ID
21 4420291 Vinyl Tube - 0.25" OD
22 5650693 Nylon Spring Clip
23 5202069 Screw - #10-24 x 0.50" HEX
24 5000013 Thumbscrew - #8-32 x 0.375"
25 5012279 Thumbscrew - Push-in [6]
26 Shield, Mylar Splash for Float [1]
27 5650729 Compression Nut
28 5202189 Screw - #10-24 x 0.75"
29 Water Curtain Stop [1]
30 Splash Shield [1]
31 7626213 Evaporator Top Molding and Gasket Assembly [7]

PART NOTES:

[1] - No Longer Available
[2] - (Up to SN 950460000, See Figure A)

Discontinued
[3] - (After SN 950460000, See Figure B)
[4] - See Page 9 for 50 Hz Applications

B1300_3.PDF

4

B1300, BC1395

B1300 - EVAPORATOR COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note

PART NOTES:

[5] - Discontinued
[6] - (Mounting Sump Trough)
[7] - (Not shown)

B1300_3.PDF

5

1

14

10, 11, 16, 24

4

19

17

12

13

3, 27

19

26, 30

5

8

3, 27

2

15

28

22

20, 21, 25

9, 31

23, 28, 29

1, 14

7

5

28

18

18

To Compressor
Discharge Port

To
Compressor
Suction Port

Front View

Condenser
Components

Back View

6

Condenser
Components

Control
Box
Cover

B1300, BC1395

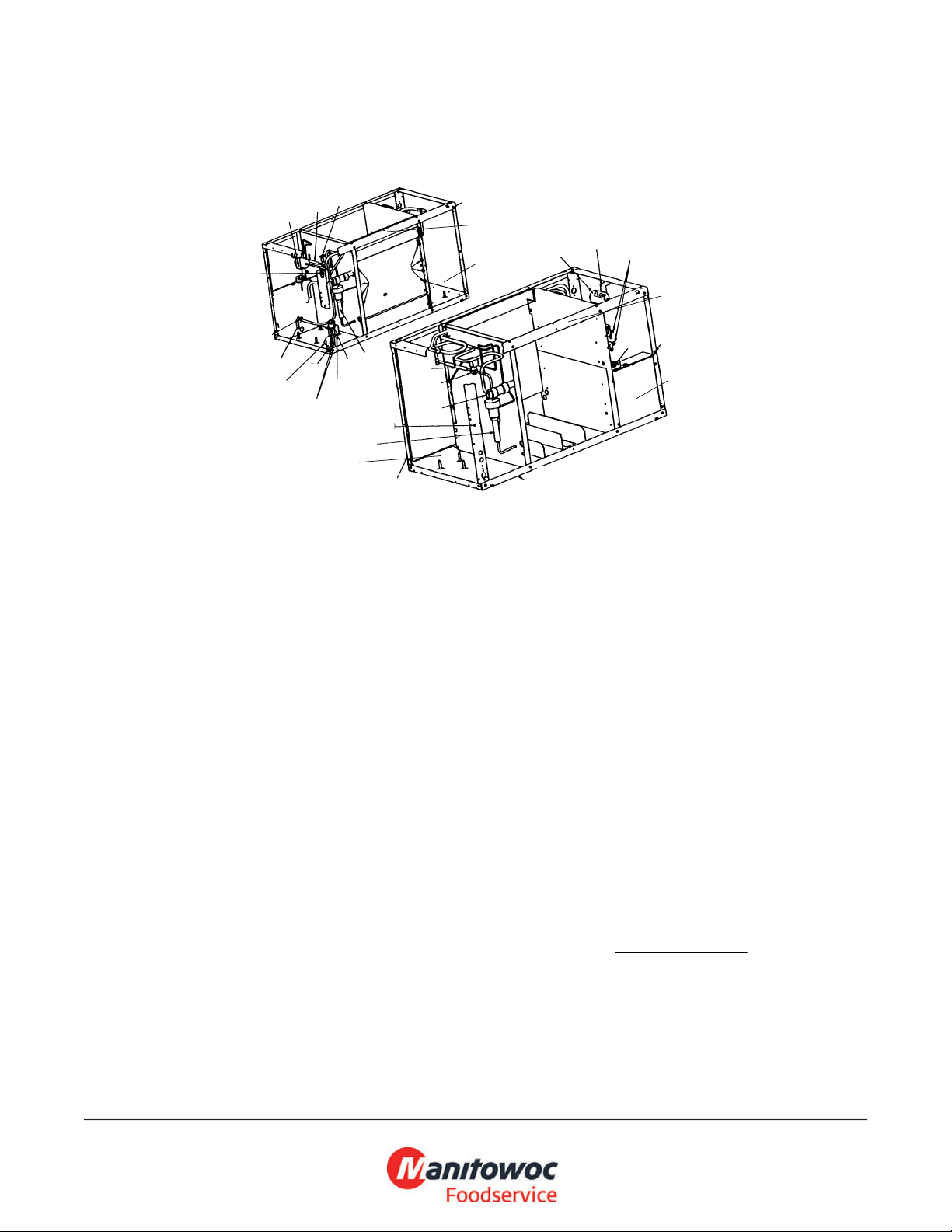

B1300 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

B1300_4.PDF

6

B1300, BC1395

B1300 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note
1 8930279 Drier

2 000001768 Water Dump Valve - 208-230V/50-60 Hz
3 7625663 Expansion Valve
4 2355369 High Pressure Cut-out Control
5 7630101 Solenoid Valve with Coil - 230V/50-60 Hz [1]
6 Ice Baffle Support Used With 6010321 [2]

Ice Baffle Support Used With 6010501 [2]
7 Manifold Strainer [3]
8 Manifold Strainer [4]
9 2351163 Thermistor
10 8373109 Process Valve
11 Stem Assembly [2]
12 Angle, Top & Bottom, Fawn [2]
13 Cornerpost Weldment [2]
14 Bracket, Drier [2]
15 Bracket, Dump Valve [2]
16 Bracket, Service Valve [2]
17 Control Box Cover [2]
18 2501409 Bushing - 0.875"
19 5429109 Cage Nut to Mount Front Panel
20 5650709 Snap Clamp - 0.799"/0.899" ID
21 Copper Elbow 5/8 x 5/8 [2]
22 1706021 Water Adapter, 1/2" NPT
23 8706093 Female Wing Adapter - 0.375"
24 5475039 Locknut - 0.375" - 18 NPS
25 Molded Vinyl White Tube [2]
26 4007203 Valve Insulation Boot - Bulb [5]
27 4007213 Valve Insulation Boot - Body
28 5202069 Screw - #10-24 x 0.50" HEX
29 1360961 Male Connector
30 5650529 Clamp - Expansion Valve Bulb
31 5650843 Clamp, Thermistor

PART NOTES:

[1] - (Danfoss)
[2] - No Longer Available
[3] - No Longer Available(Compressor Side)
[4] - No Longer Available(Condenser Side)
[5] - \pages from 400720_08.jpg" width=923 height=583>

B1300_4.PDF

7

13

8

To Discharge T ee

22

11

21

4

10

12

15

9

5

16, 17, 18, 19

21

7

6

1

16, 18, 20

To Manifold/Strainer

To Low Side

Process Tube

Discharge Port

Suction Port

To Liquid Line Y-Fitting

8 on each side

2, 3

B1300, BC1395

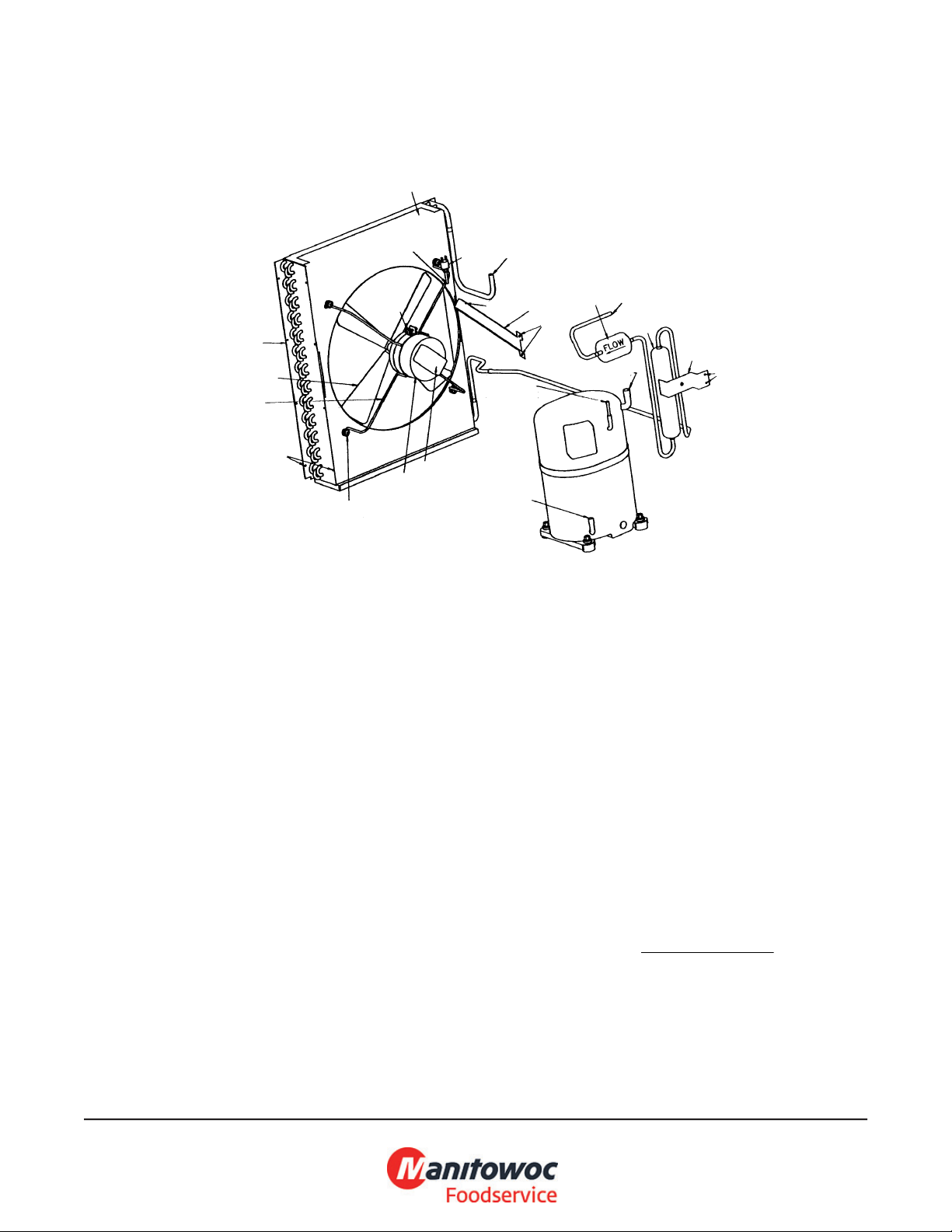

B1300 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS

B1300_5.PDF

8

B1300, BC1395

B1300 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS

# PART # DESCRIPTION QTY Note
1 Air Condenser [1]

2 7603283 Compressor - Copeland - 208-230V/60 Hz/1 Ph [2]
3 7603293 Compressor - Copeland - 208-230V/60 Hz/3 Ph [2]
4 8930279 Drier
5 7626733 Fan Motor - 208-230V/50-60 Hz
6 2416113 Fan Blade
7 3006823 Fan Motor Mounting Bracket
8 2001263 Fan Cycling Control - 200-250 psig [3]
9 8504583 Fan Motor Run Capacitor
10 Receiver [1]
11 Channel, Wire Cover [1]
12 Bracket [1]
13 Fan Shroud [1]
14 4040073 Air Filter [4]
15 5202099 Screw - #10-24 x 0.50" PHIL
16 5033589 Mounting - Screw
17 5429559 Mounting - Rubber Wellnut
18 5545109 Lockwasher
19 5573059 Mounting - Flatwasher
20 5429529 Mounting - Hexnut
21 5202069 Screw - #10-24 x 0.50" HEX
22 5602169 Screw, #10-24 x 0.50 [2]

PART NOTES:

[1] - No Longer Available
[2] - See Page 9 for 50 Hz Applications
[3] - \pages from 200126_09.jpg" width=150 height=306>
[4] - (Not shown)

B1300_5.PDF

9

12

Discharge Tee

6, 12

To Low Side Process Tube

Discharge Port

Suction

Port

To Liquid Line Y-Fitting

7

10, 12

4

10, 12

11

12

5

13, 14, 15

9

9

13, 15, 16, 17

3

8

12

B1300, BC1395

B1300 - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS

B1300_6.PDF

10

B1300, BC1395

B1300 - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS

# PART # DESCRIPTION QTY Note
1 7603283 Compressor - Copeland - 208-230V/60 Hz/1 Ph [1]

2 7603293 Compressor - Copeland - 208-230V/60 Hz/3 Ph [1]
3 8930279 Drier
4 000008894 Receiver
5 000001508 Water-Cooled Condenser
6 8372123 Water Regulating Valve
7 Panel - Remote & Water Couplings [2]
8 Female Wing Adapter - Condenser Drain [2]
9 Reducing Coupling 0.75 x 0.50 [2]
10 6000541 Receiver Strap
11 4301923 Hole Plug for 1.0625" Hole
12 5202069 Screw - #10-24 x 0.50" HEX
13 5430029 Nut [3]
14 5545149 Lockwasher
15 5573099 Mounting - Flatwasher
16 8503069 Mounting - Rubber Grommet
17 8503949 Mounting - Sleeve

PART NOTES:

[1] - See Page 9 for 50 Hz Applications
[2] - No Longer Available
[3] - Discontinued

B1300_6.PDF

11

To Di sch arg e Tee

To Low Side
Process Tube

Discharge
Port

Suction

Port

To Liquid Line Y-Fitting

16

23

11

6

11

8

12

12

13

13

14

17

22

20

10

9

21

19

23

10

7

15

18

5

3

1, 2

4

B1300, BC1395

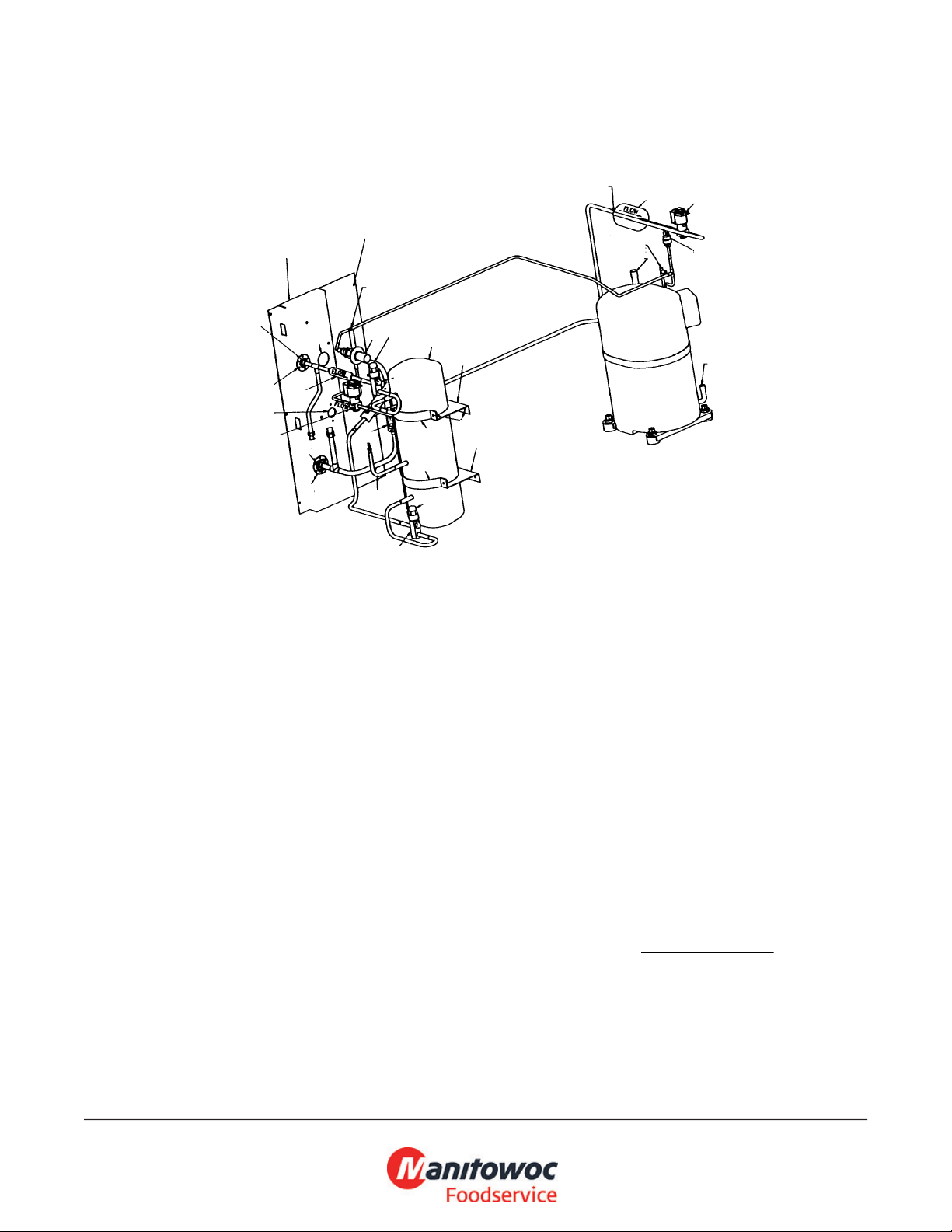

B1300 - REFRIGERATION COMPARTMENT - REMOTE COMPONENTS

B1300_7.PDF

12

B1300, BC1395

B1300 - REFRIGERATION COMPARTMENT - REMOTE COMPONENTS

# PART # DESCRIPTION QTY Note
1 7603283 Compressor - Copeland - 208-230V/60 Hz/1 Ph [1]

2 7603293 Compressor - Copeland - 208-230V/60 Hz/3 Ph [1]
3 8373159 Magni-Check Valve - 0.5"
4 8373149 Magni-Check Valve - 0.375"
5 8930279 Drier
6 8367793 Harvest Pressure Regulating Valve
7 2355409 Low Pressure Cut-out [2]
8 7629583 Receiver
9 Receiver Safety Soft Plug [3]
10 8373169 Receiver Service Valve
11 5650753 Caps for Refrigeration Service Valve
12 6000561 Receiver Mounting Bracket
13 6307214 Receiver Mounting Strap
14 7630061 Solenoid Valve with Coil - 208-230V/50-60 Hz [4]
15 7630101 Solenoid Valve with Coil - 230V/50-60 Hz
16 Panel, Remote Coupling [3]
17 4301923 Hole Plug for 1.0625" Hole
18 Hole Plug 1.50" [3]
19 8360353 Coupling - Male - 1-1/6-12
20 8360343 Coupling - Male - 5/8-18
21 8360063 Coupling Mounting Flange for 1-1/16-12
22 8360053 Coupling Mounting Flange for 5/8-18
23 5202069 Screw - #10-24 x 0.50" HEX
24 K0129 Female Line Set Coupling Kit [5]

PART NOTES:

[1] - See Page 9 for 50 Hz Applications
[2] - Discontinued
[3] - No Longer Available
[4] - (Danfoss)
[5] - SALES(On line set)

B1300_7.PDF

13

11

19

21

12

15

14

21

16

21

17

26

20

3, 8

1, 2, 6, 7

18

23

24

22

3, 8

25

25

19

21

4, 9

Located On
Evap Side Of
Bulkhead

Air
Only

Air
Only

Air

WTR/RMT Only
For This Side

Air
Only

5,
10

B1300, BC1395

B1300 - PANELS

B1300_8.PDF

14

B1300, BC1395

B1300 - PANELS

# PART # DESCRIPTION QTY Note

FAWN
1 Front Panel Assembly With Air Louvers [1]
2 Front Panel Assembly, Water and Remote [1]
3 Side Panels, RH or LH [1]
4 Top Cover [1]
5 Air Baffle [1]

STAINLESS STEEL
6 Front Panel Assembly With Air Louvers [1]
7 Front Panel Assembly, Water or Remote [1]
8 Side Panel, LH or RH [1]
9 Top Cover [1]
10 Air Baffle [1]

COMMON PARTS
11 Back Panel, Evaporator Side [1]
12 Back Panel, Air-cooled, Condenser Side [1]
13 Back Panel, Water and Remote [1]
14 4040073 Air Filter
15 7626863 Air Filter Bracket Kit
16 7626863 Air Filter Bracket Kit
17 Top and Bottom Frame Angle [1]
18 Angle, Front Panel [1]
19 Accordion Panel Clip [1]
20 5429109 Cage Nut to Mount Front Panel
21 5202069 Screw - #10-24 x 0.50" HEX
22 3718199 O-ring
23 5026689 Screw - 8-32 x 1.50"
24 5573389 Washer - Nylon 0.171" x 0.38"
25 5202099 Screw - #10-24 x 0.50" PHIL
26 9202509 Extruded Tape

PART NOTES:

[1] - No Longer Available

B1300_8.PDF

15

B1300 – 9

B1300 ELECTRICAL APPLICATIONS

All parts are the same as the 60 Hz Model with the following exceptions:
230V/50 Hz/1 Phase PART NO.

Compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7603303

Start Components for Bristol:

Run Capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2010133

Start Capacitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 8503853

Start Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available

Start Components for Tecumseh:

Run Capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 000000028

Start Capacitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8505513

Start Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2007529

Start Components for Copeland:

Run Capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 000000025

Start Capacitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8505133

Start Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2007533

Water Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 1480279

7 Amp Fuse For Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2511003

0.1 Amp Mini-fuse For Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2511053

Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available

Terminal Board With Wiring Harness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available

415V/50 Hz/3 Phase

Compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available

Water Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 1480279

7 Amp Fuse For Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2511003

0.1 Amp Mini-fuse For Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2511053

Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available

Terminal Board With Wiring Harness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2031643

† Refer to Cross Reference Guide

Updated: 5/11

B1300, BC1395

B1300 - ELECTRICAL APPLICATIONS

B1300_9.PDF

16

B1300, BC1395

B1300 - ELECTRICAL APPLICATIONS

# PART # DESCRIPTION QTY Note

All parts are the same as the 60 Hz Model with the following

exceptions:

230V/50 Hz/1 Phase

7603303 Compressor - Copeland - 230V/50 Hz/1 Ph

Start Components for Bristol:

2010133 Run Capacitor - 115-230V/50-60 Hz/1 Ph
8503853 Start Capacitor - 50-60 Hz/1 Ph

Start Relay [1]

Start Components for Tecumseh:

000000028 Run Capacitor - 208-230V/50-60 Hz/1 Ph
8505513 Start Capacitor - 50-60 Hz/1 Ph
2007529 Start Potential Relay - 50 Hz

Start Components for Copeland:

000000025 Run Capacitor 208-230V/50-60 Hz/1 Ph
8505133 Start Capacitor - 230V/50-60 Hz/1 Ph

2007533 Start Potential Relay - 230V/50-60 Hz/1 Ph

1480279 Water Pump - 208-230V/50-60 Hz
2511003 7 Amp Fuse - Mounted on Control Board
2511053 0.100 Amp 50 Hz Mini Fuse [2]

Terminal Block [1]

Terminal Board With Wiring Harness [1]

415V/50 Hz/3 Phase

Compressor [1]

1480279 Water Pump - 208-230V/50-60 Hz
2511003 7 Amp Fuse - Mounted on Control Board
2511053 0.100 Amp 50 Hz Mini Fuse [2]

Terminal Block [1]

2031643 Terminal Board With Wiring Harness

PART NOTES:

[1] - No Longer Available
[2] - Discontinued

B1300_9.PDF

17

4

25

21, 25

28

19, 20

24

8

26

26

8

22, 26

16

26

7

25

9

13

15

14

16

25

12

17, 18, 23, 27

5

3

11

25

10

22, 26

1

2, 30

21

6

22, 26

22, 26

15

9

25

1

B1300, BC1395

BC1395 REMOTE CONDENSER COMPONENTS

B1300_10.PDF

18

B1300, BC1395

BC1395 REMOTE CONDENSER COMPONENTS

# PART # DESCRIPTION QTY Note
1 8850903 Air Condenser

2 7629413 Fan Motor - 208-230V/50-60 Hz/1 Ph
3 2416113 Fan Blade
4 3400643 Fan Guard
5 2415053 Rain Slinger
6 000004070 Head Pressure Control Valve
7 Top Cover [1]
8 6017901 Panel - Side Before Serial Number 110529484
9 6017911 Panel - Rear Before Serial Number 110529484
10 6017921 Panel - Front Before Serial Number 110529484
11 6017681 Fan Motor Mounting Bracket
12 6017761 Electrical Box Cover
13 8360053 Coupling Mounting Flange for 5/8-18
14 8360063 Coupling Mounting Flange for 1-1/16-12
15 8360343 Coupling - Male - 5/8-18
16 8360353 Coupling - Male - 1-1/6-12
17 5573139 Mounting - Lockwasher
18 5573099 Mounting - Flatwasher
19 5573049 Flatwasher
20 5545119 Mounting - Lockwasher
21 5544649 #10 Split Lockwasher
22 5544599 Panel/Condenser Mounting Lockwasher
23 5429759 Mounting - Hexnut
24 5429529 Mounting - Hexnut
25 5202059 Screw
26 5121539 Panel/Condenser Mounting Screw - #8 x 0.50"
27 5035659 Fan Motor Mounting Screw
28 5033459 Screw - 1/4-20 x 0.625"
29 5026249 Mounting Screw - #8-32 x 0.50" PHIL
30 8504583 Fan Motor Run Capacitor [2]
30 Fan Capacitor [3]
31 7628783 Terminal Bock
32 6008681 Terminal Block Mounting Bracket
33 K0129 Female Line Set Coupling Kit [4]

50 Hz APPLICATION
34 7629413 Fan Motor - 208-230V/50-60 Hz/1 Ph

PART NOTES:

[1] - No Longer Available
[2] - (Emerson)
[3] - No Longer Available(Magnatec)
[4] - SALES

B1300_10.PDF

19
